垃圾填埋场渗漏的频谱激电三维数值模拟

doi:10.11720/wtyht.2025.1384

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5250 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要垃圾填埋场渗漏液污染土壤和地下水的问题日益突出,基于渗漏液具有明显的低阻、高极化、高时间常数和低频率相关系数的电性特征,利用频谱激电法对垃圾填埋场进行三维有限元数值模拟,讨论该方法在填埋场渗漏液探测中的理论效果。首先,利用本文算法对典型地电模型进行正演,数值解与解析解的最大相对误差低于2.5%,表明算法准确有效;其次,依据垃圾填埋场真实电性特征设定激电模型参数,使数值模拟更贴合实际;最后,对比分析不同情况下填埋场发生渗漏的激电异常响应。结果表明:无论填埋场是否有高阻防渗墙,视复电阻率相位与视频散率均能准确圈定出渗漏液位置;相同规模的渗漏液羽化带,位置越浅,其视复电阻率相位和视频散率的异常形态越显著;与直流电阻率法相比,频谱激电法可以观测到地下更为丰富的电性参数,其应用于垃圾填埋场渗漏液探测的效果甚佳。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	石靖
	熊彬
	徐志锋
	黄理善
	陆裕国
	李耀昕
	喻佳敏

关键词 ：频谱激电法, 数值模拟, 垃圾填埋场, 渗漏液, 有限单元法

Abstract：

The contamination of soils and groundwater caused by landfill leachate is increasingly prominent. Given the distinctive electrical properties of leachate, such as low resistivity, high polarization, high time constant, and low-frequency correlation coefficient, this study performed three-dimensional finite element numerical simulations of landfills using the spectral induced polarization (SIP) method. The aim is to explore the theoretical effects of this method in detecting landfill leachate. First, this study conducted forward modeling for typical geoelectric models using the algorithm developed in this study. The result revealed a maximum relative error between the numerical and analytical solutions of less than 2.5%, demonstrating the algorithm's accuracy and effectiveness. Second, the parameters of the SIP model were set based on the actual electrical characteristics of landfills, ensuring that the numerical simulations closely reflected actual conditions. Finally, SIP anomaly responses were compared and analyzed for landfill leachate leakage under different scenarios. The results indicate that the leachate locations can be accurately delineated using the apparent complex resistivity's phase and apparent dispersion, regardless of whether landfills are equipped with high-resistivity impermeable walls. For leachate plumes of the same scale, shallower locations corresponded to more pronounced anomaly morphologies of apparent complex resistivity's phase and apparent dispersion. Compared to the direct current resistivity method, the SIP method can detect richer underground electrical parameters, achieving better application effects in detecting landfill leachate.

Key words： spectral induced polarization (SIP) method numerical simulation landfill leachate finite element method

收稿日期: 2024-09-14 修回日期: 2024-11-29 出版日期: 2025-08-20

ZTFLH:

P631

基金资助:国家自然科学基金项目(42174080)

通讯作者: 熊彬(1974-),男,教授,主要研究方向为电磁地球物理勘查理论与方法。Email: xiongbin@glut.edu.cn

作者简介: 石靖(1992-),男,硕士研究生,主要研究方向为地质资源与地质工程(应用地球物理)。Email: 841414840@qq.com

引用本文:

石靖, 熊彬, 徐志锋, 黄理善, 陆裕国, 李耀昕, 喻佳敏. 垃圾填埋场渗漏的频谱激电三维数值模拟[J]. 物探与化探, 2025, 49(4): 980-988.
SHI Jing, XIONG Bin, XU Zhi-Feng, HUANG Li-Shan, LU Yu-Guo, LI Yao-Xin, YU Jia-Min. Three-dimensional numerical simulations of spectral induced polarization for detecting landfill leachate. Geophysical and Geochemical Exploration, 2025, 49(4): 980-988.

链接本文:

https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.1384 或 https://www.wutanyuhuatan.com/CN/Y2025/V49/I4/980

Table 1 水平层状介质模型参数

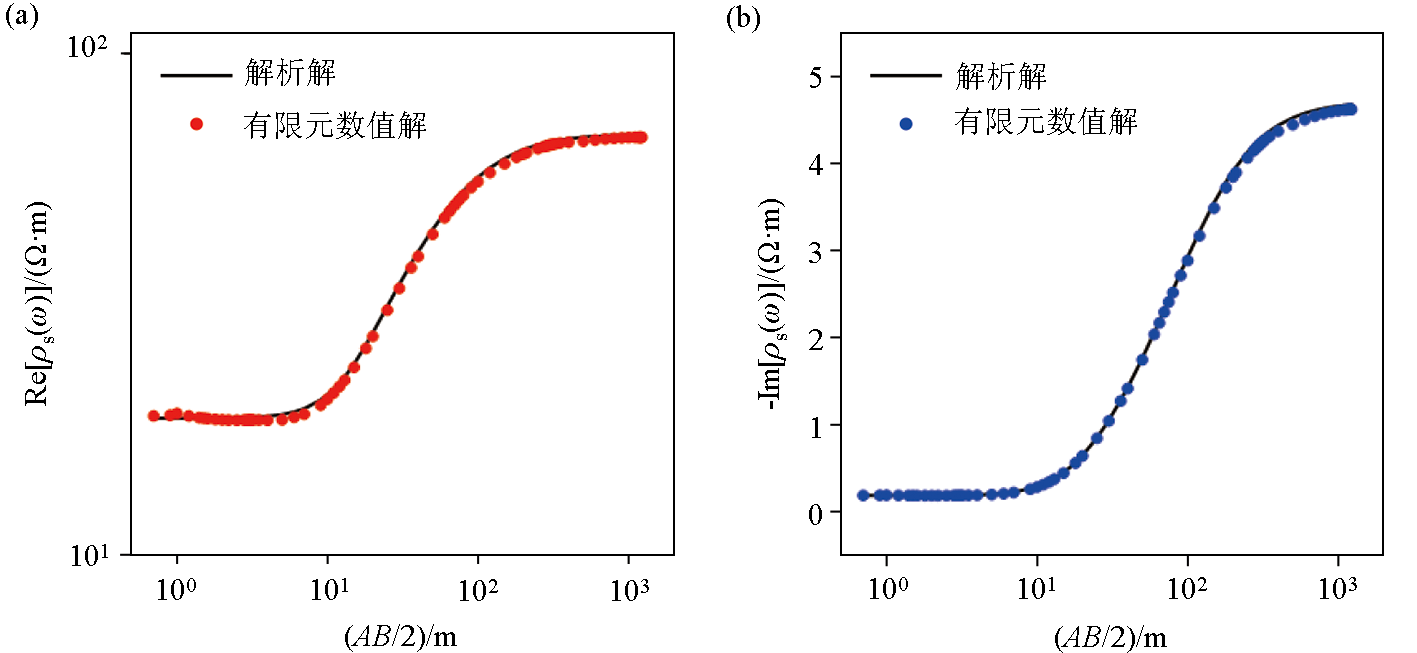

Fig.1 对称四极装置视复电阻率测深曲线的实部(a)与虚部(b)

Fig.2 对称四极装置视复电阻率测深曲线的相对误差曲线

Table 2 垃圾填埋场中介质的激电参数

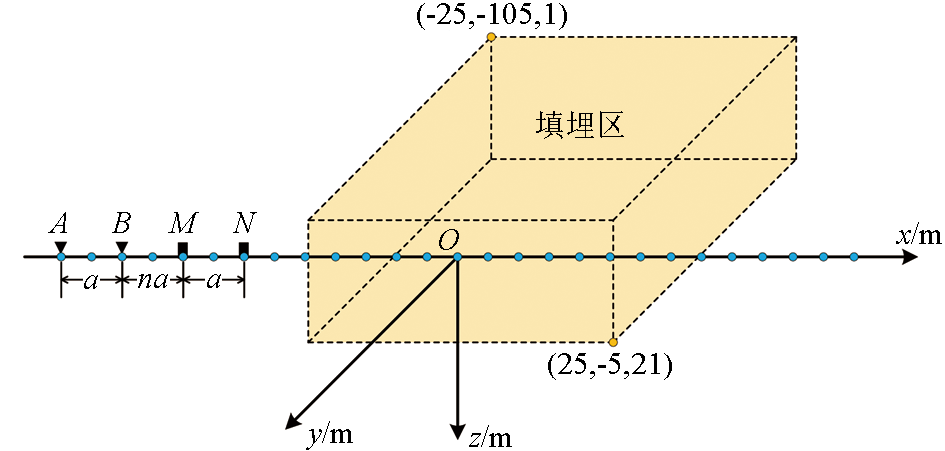

Fig.3 模型1无渗漏无防渗墙的垃圾填埋场

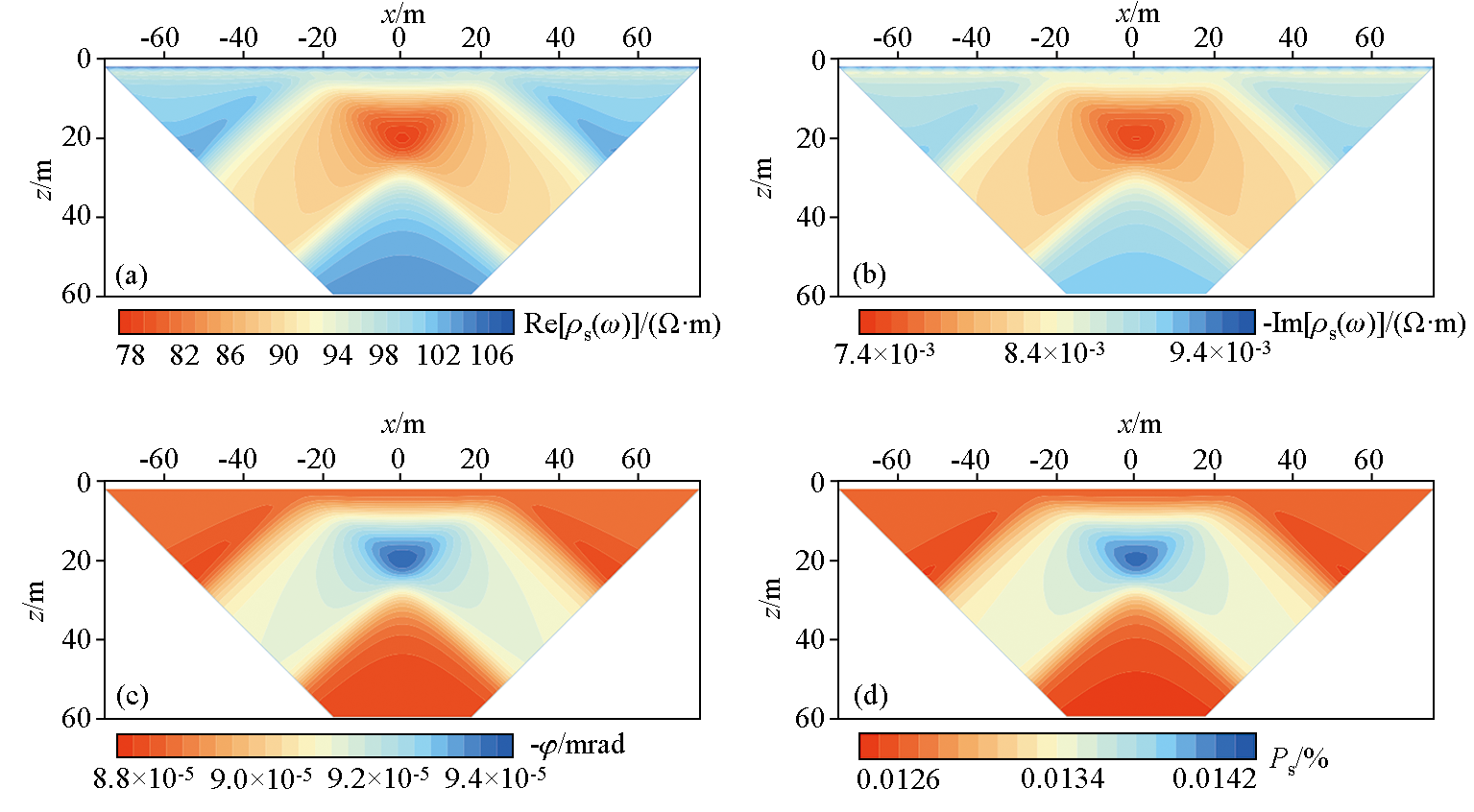

Fig.4 模型1 Dipole-Dipole装置视复电阻率实部(a)、虚部(b)、相位(c)(f=1 Hz)及视频散率(d)等值线断面

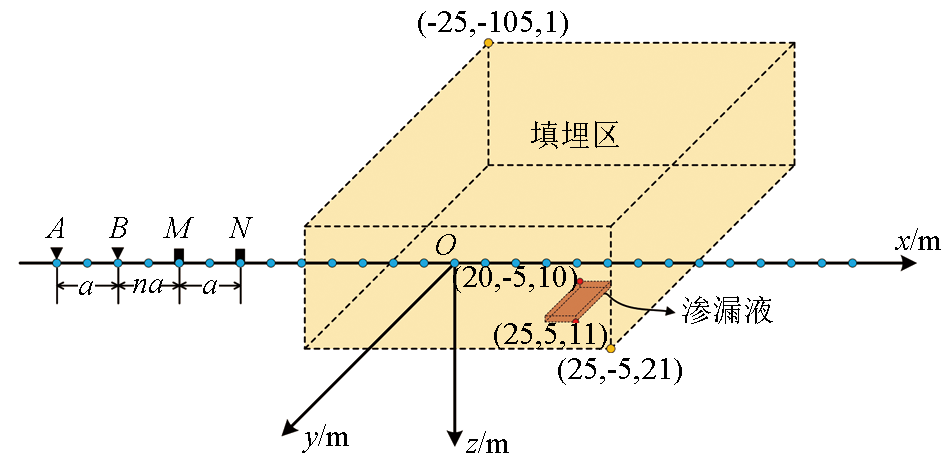

Fig.5 模型2中部渗漏无防渗墙的垃圾填埋场

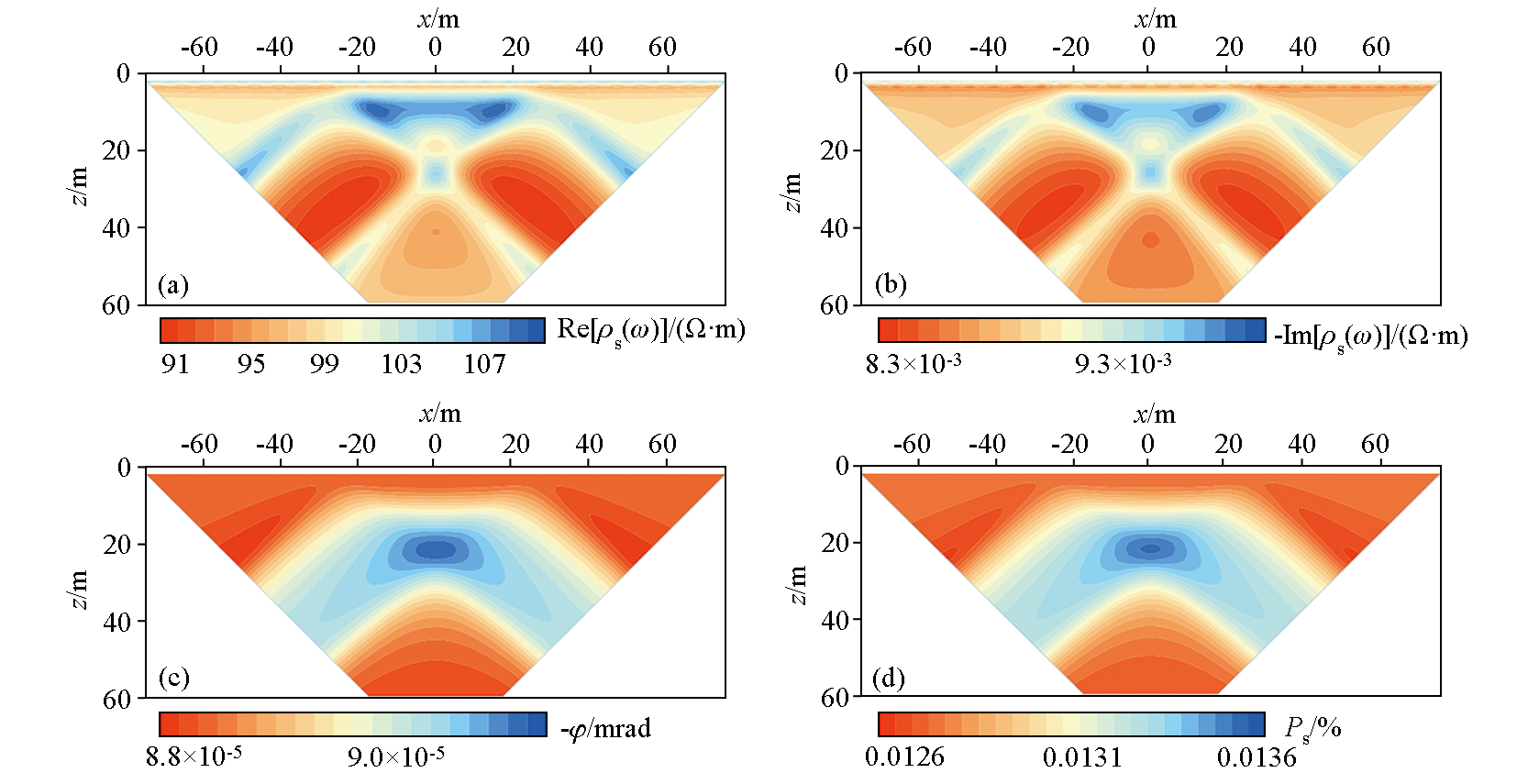

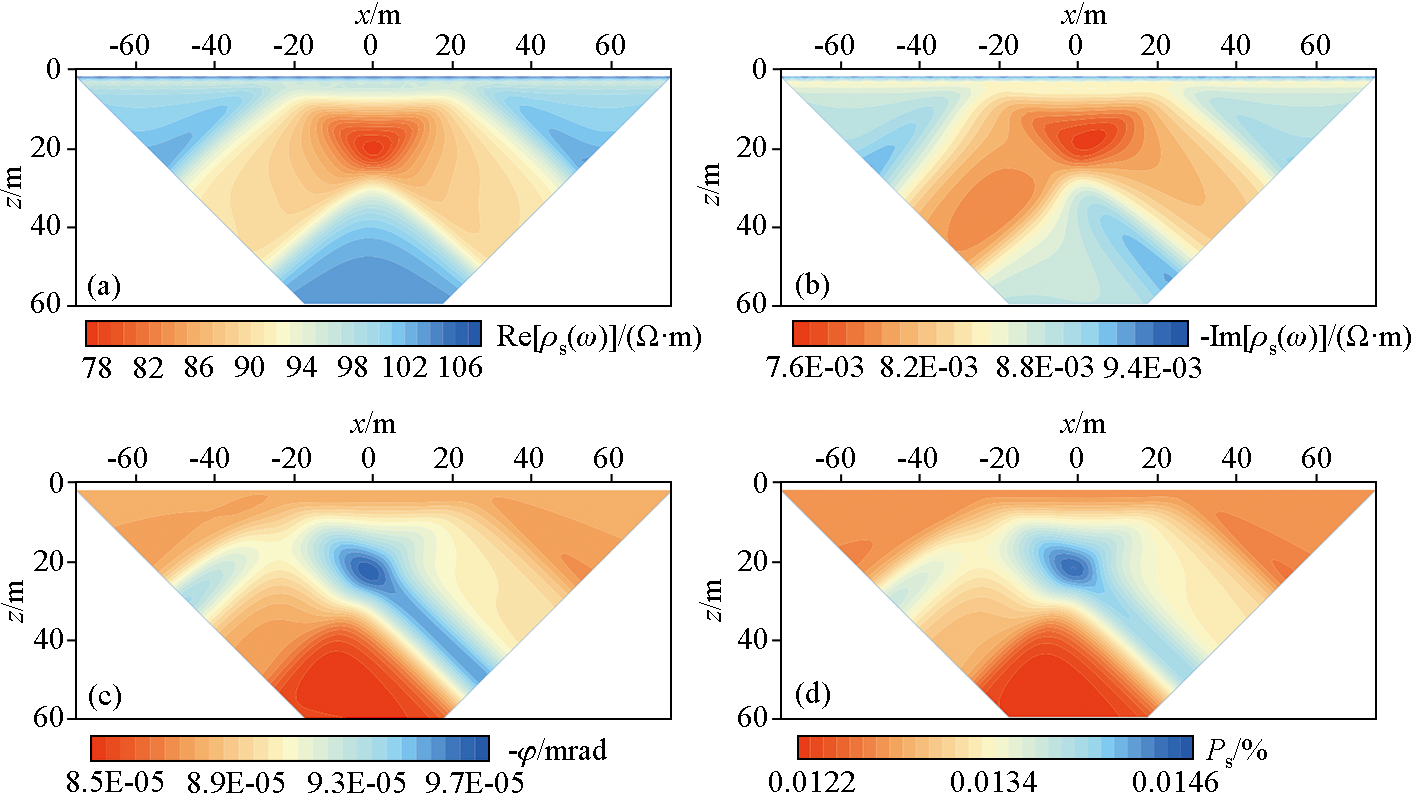

Fig.6 模型2 Dipole-Dipole装置视复电阻率实部(a)、虚部(b)、相位(c) (f=1 Hz)及视频散率(d)等值线断面

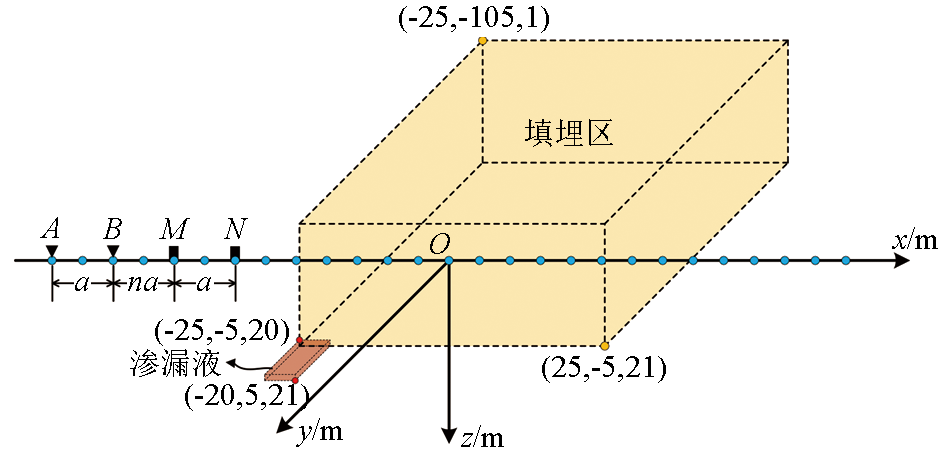

Fig.7 模型3底部渗漏无防渗墙的垃圾填埋场

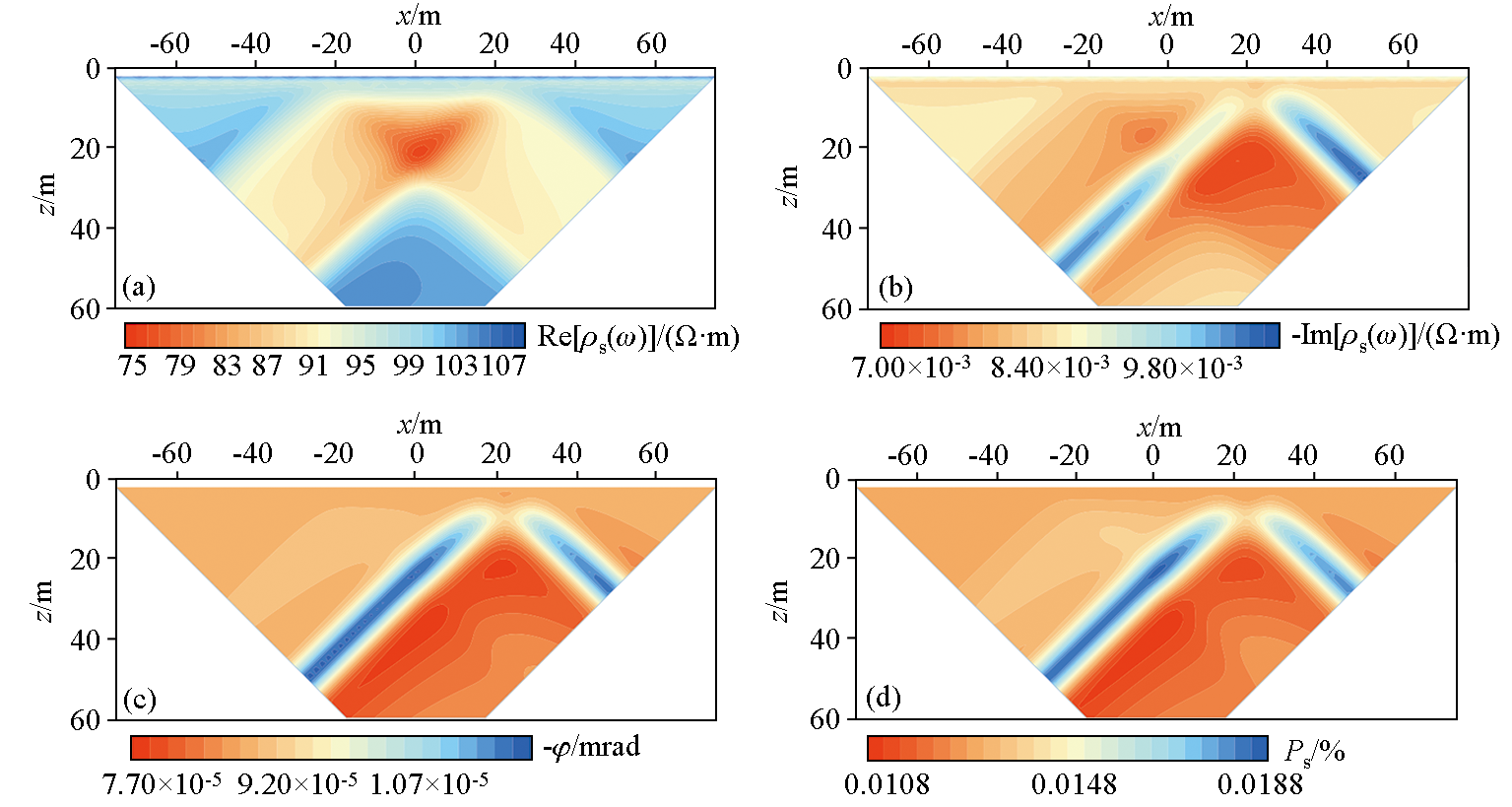

Fig.8 模型3 Dipole-Dipole装置视复电阻率实部(a)、虚部(b)、相位(c) (f=1 Hz)及视频散率(d)等值线断面

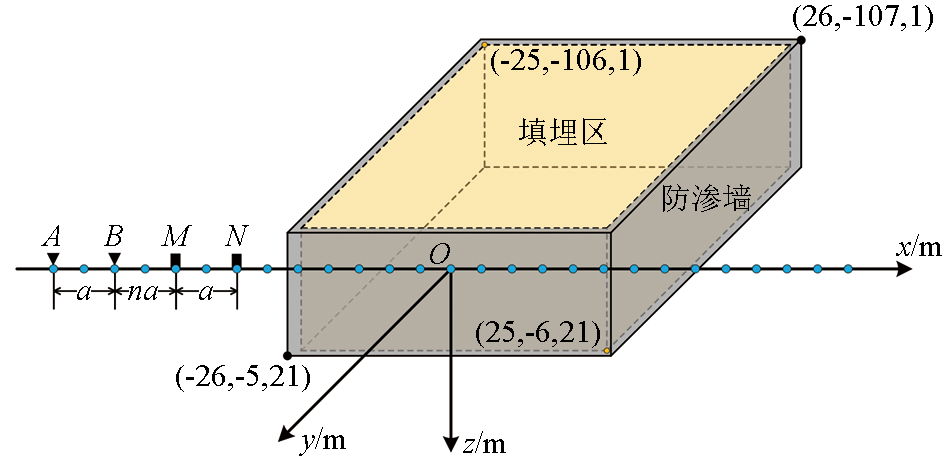

Fig.9 模型4底部渗漏带防渗墙的垃圾填埋场

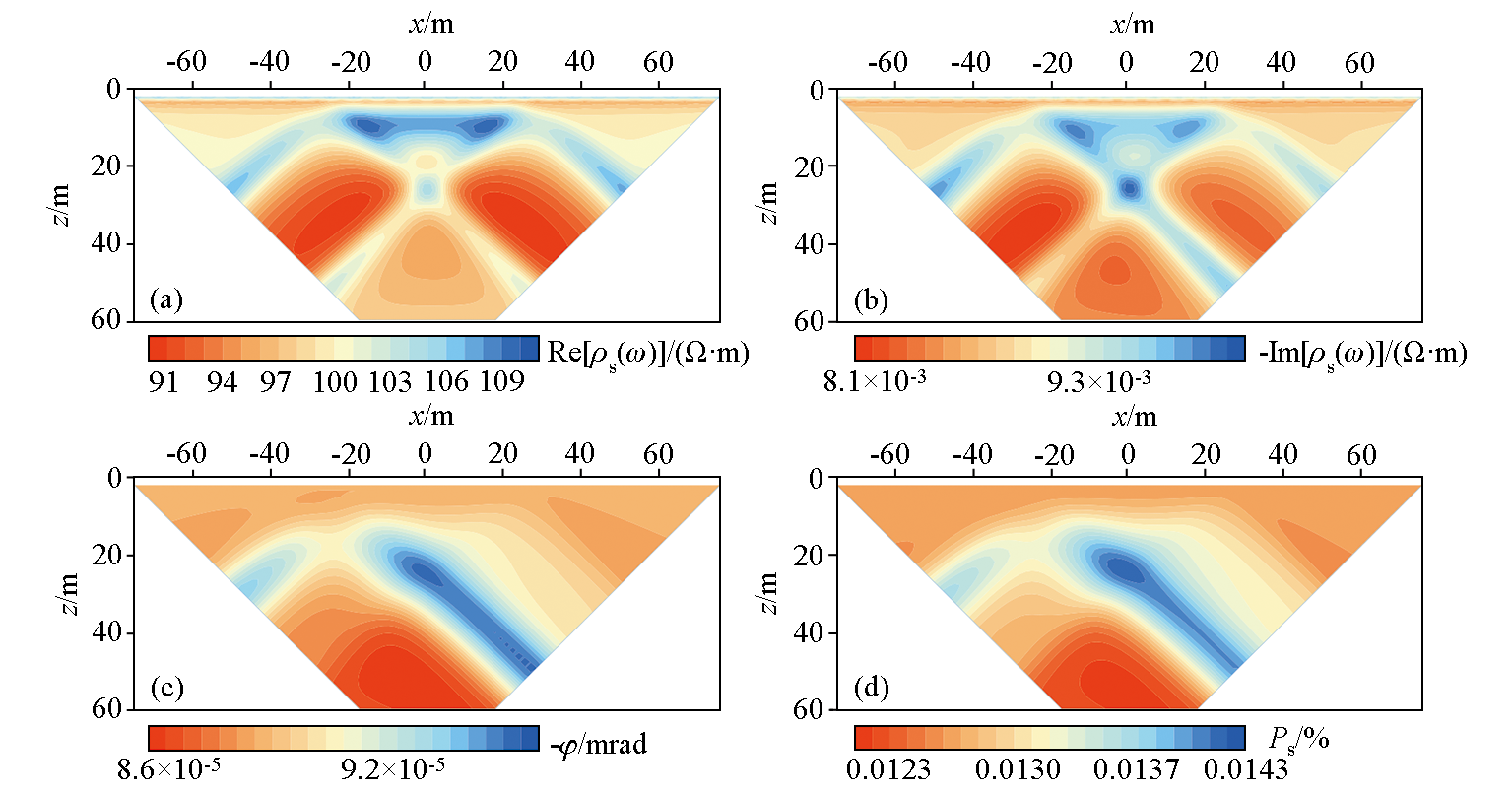

Fig.10 模型4 Dipole-Dipole装置视复电阻率实部(a)、虚部(b)、相位(c) (f=1 Hz)及视频散率(d)等值线断面

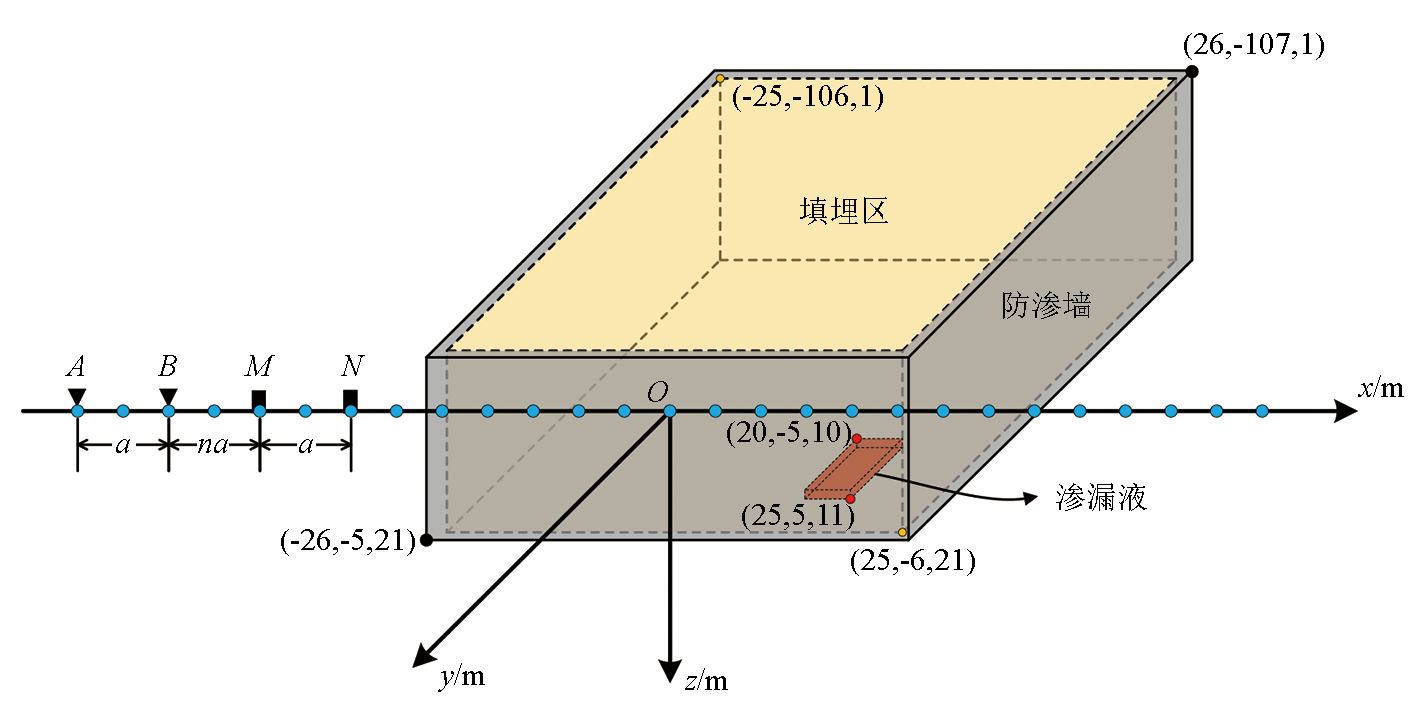

Fig.11 模型5中部渗漏带防渗墙的垃圾填埋场

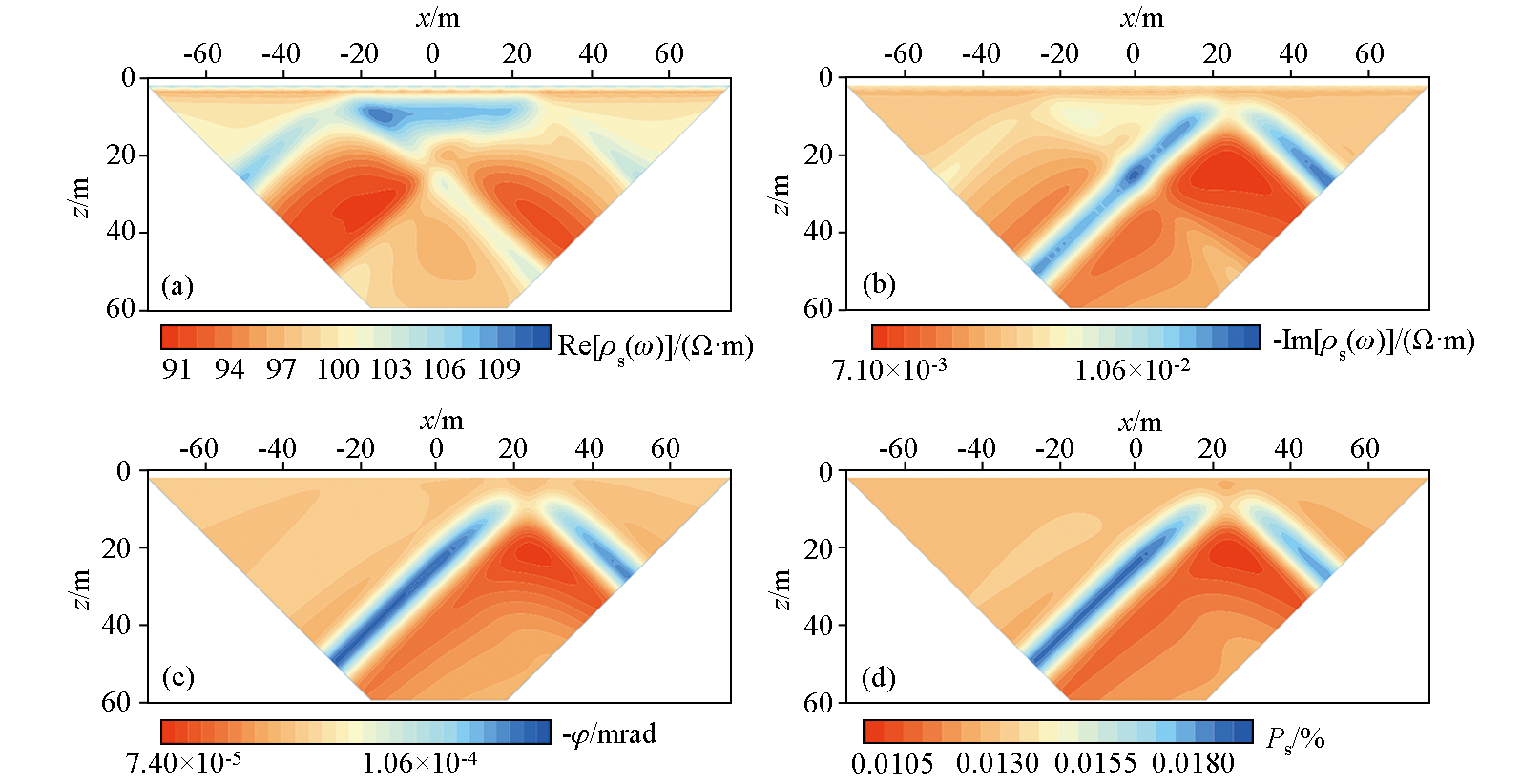

Fig.12 模型5 Dipole-Dipole装置视复电阻率实部(a)、虚部(b)、相位(c) (f=1 Hz)及视频散率(d)等值线断面

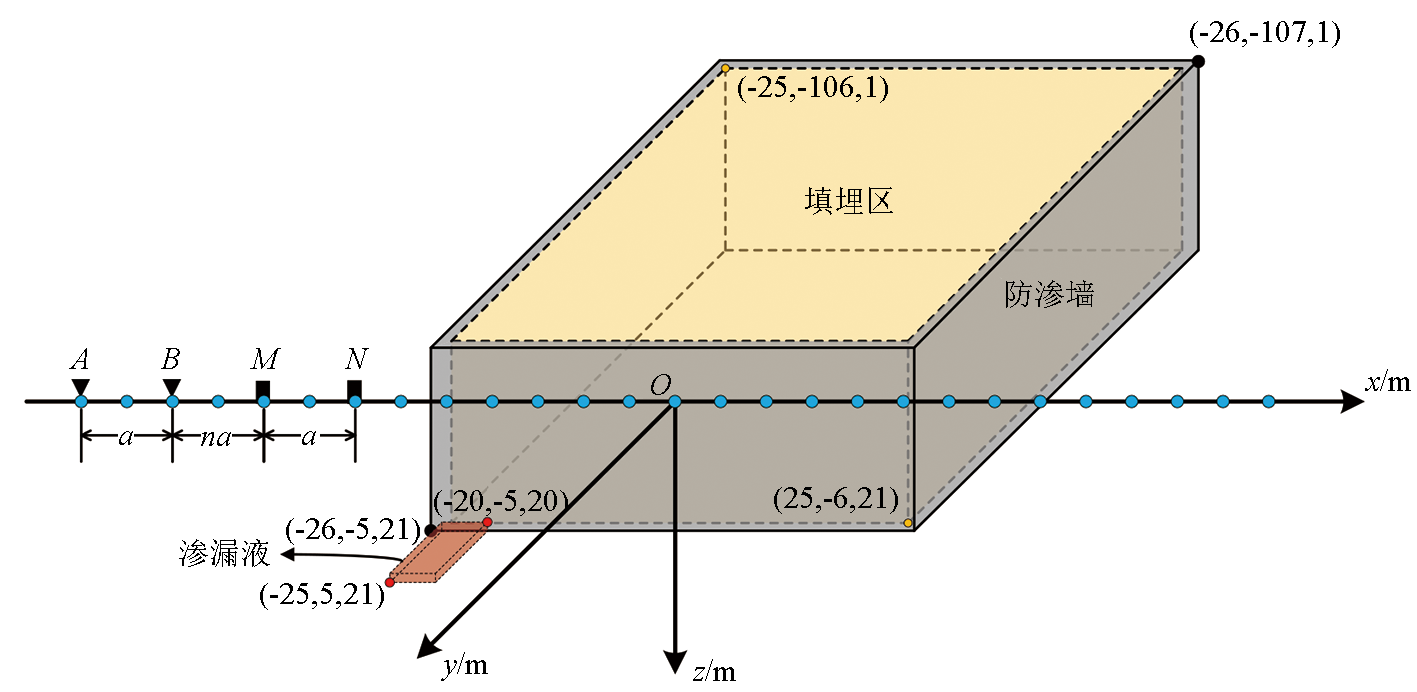

Fig.13 模型6底部渗漏带防渗墙的垃圾填埋场

Fig.14 模型6 Dipole-Dipole装置视复电视率实部(a)、虚部(b)、相位(c) (f=1 Hz)及视频散率(d)等值线断面
