水道浊积体特征识别模式及其储层地震预测——以西非下刚果盆地MC块为例

doi:10.11720/wtyht.2025.0032

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4981 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要

西非下刚果盆地深水区发育典型水道浊流体系,是深水油气勘探的重点区域。该区浊积体具有非均质性强、储层展布复杂的特点。传统方法在浊积体识别精度和储层预测能力上存在不足,难以满足高效勘探需求。本研究基于深水重力流理论,以西非下刚果盆地深水区水道浊流体系为对象,依据浊积作用发育部位、可容空间形态及浊积体内幕特征,结合钻井揭示的岩石相、测井相以及地震相等综合建立了4类不同尺度水道浊积体的特征识别模式;进一步以相带控储为基础,基于改进的射线弹性阻抗反演方法构建了新的复合弹性参数,使其对浊积砂岩储层具有更佳的分辨能力,从而实现了浊积砂岩储层的定量预测。经后验井检验精度较高,应用效果好,为该类深水区油气资源评价、井位部署提供了重要依据。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	高君
	徐睿
	黄家宸
	苑书金

关键词 ：水道浊积体, 特征识别模式, 浊积砂岩, 射线弹性反演, 复合弹性参数, 储层预测

Abstract：

A typical channel turbidite system is developed in the deep-water area of the Lower Congo Basin,West Africa,establishing this area as a significant target for deep-water oil and gas exploration.Turbidite bodies in this area are characterized by strong heterogeneity and a complex reservoir distribution.Traditional methods show limited turbidite body identification accuracy and reservoir prediction ability,failing to support efficient exploration.This study investigated the channel turbidite system in this area based on the deep-water gravity flow theory.It established feature identification models for four kinds of channel turbidites at different scales.The models integrate the turbidite depositional site,accommodation space geometry,internal turbidite characteristics,and the rock,log,and seismic facies obtained through drilling.Furthermore,guided by the principle of facies-controlled reservoir distribution,new composite elastic parameters were constructed based on an improved ray-path elastic impedance inversion method.These parameters provided enhanced resolution for turbidite sandstone reservoirs,enabling a quantitative prediction of such reservoirs.Validation with post-test wells demonstrates high accuracy and favorable application outcomes.Overall,this study serves as a foundational guide for oil and gas resource assessments and well placement in similar deep-water areas.

Key words： channel turbidite body feature identification model turbidite sandstone ray-path elastic impedance inversion composite elastic parameter reservoir prediction

收稿日期: 2025-02-24 修回日期: 2025-06-10 出版日期: 2025-08-20

ZTFLH:

P631.4

基金资助:“十三五”国家重大专项“南大西洋两岸重点盆地油气勘探开发关键技术”(2016ZX05033-02)

作者简介: 高君(1966-),男,博士,教授级高级工程师,长期从事地震地质综合研究工作。

引用本文:

高君, 徐睿, 黄家宸, 苑书金. 水道浊积体特征识别模式及其储层地震预测——以西非下刚果盆地MC块为例[J]. 物探与化探, 2025, 49(4): 919-924.
GAO Jun, XU Rui, HUANG Jia-Chen, YUAN Shu-Jin. Feature identification model and seismic reservoir prediction of channel turbidite bodies: A case study of the MC block,Lower Congo Basin,West Africa. Geophysical and Geochemical Exploration, 2025, 49(4): 919-924.

链接本文:

https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.0032 或 https://www.wutanyuhuatan.com/CN/Y2025/V49/I4/919

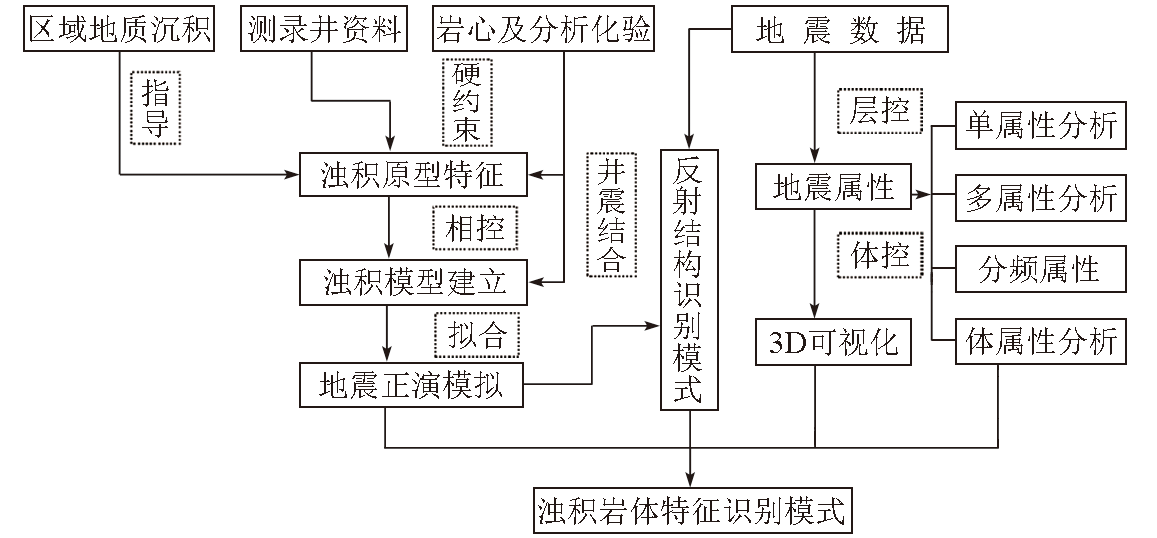

Fig.1 浊积岩体特征识别技术流程

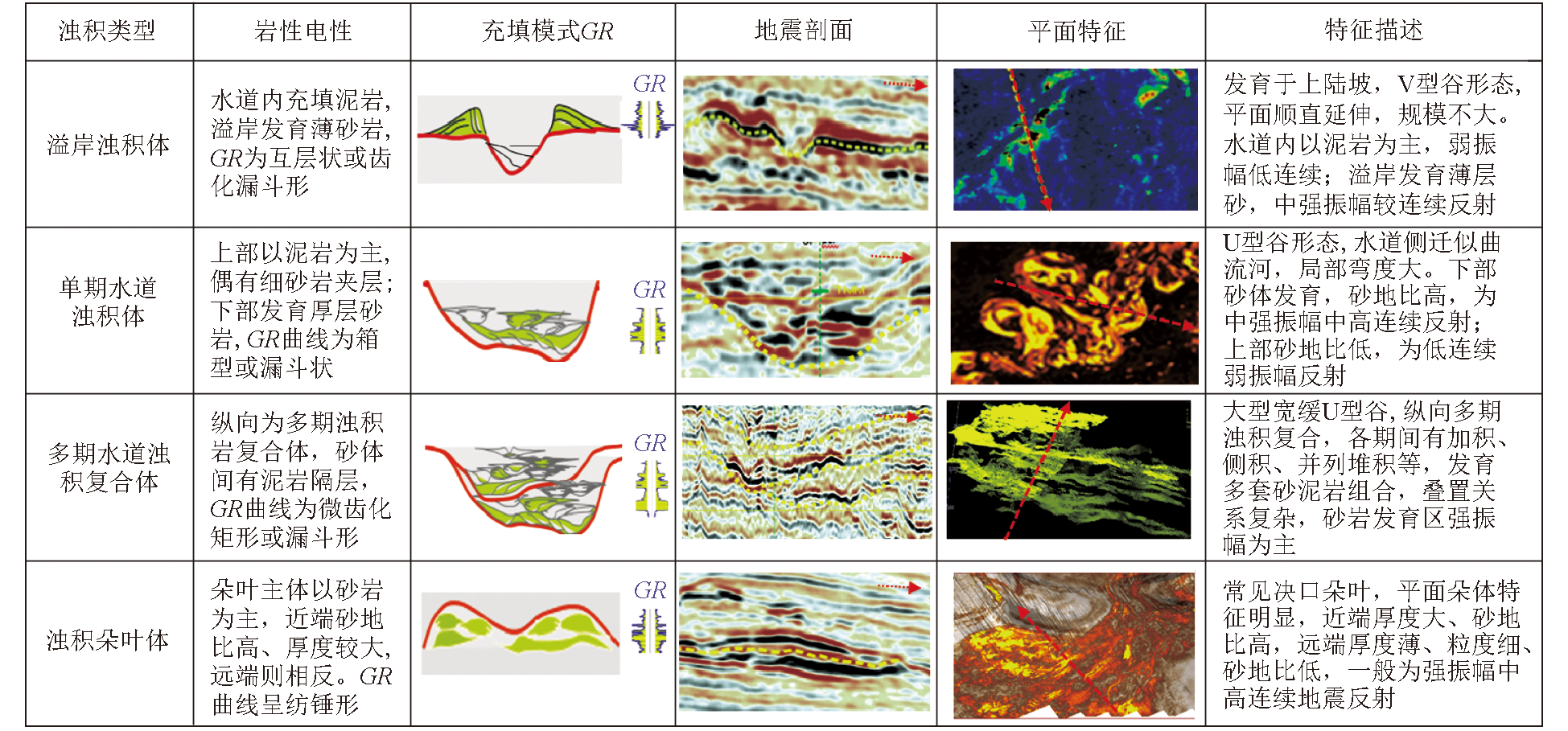

Fig.2 安哥拉海域水道浊积体特征模式

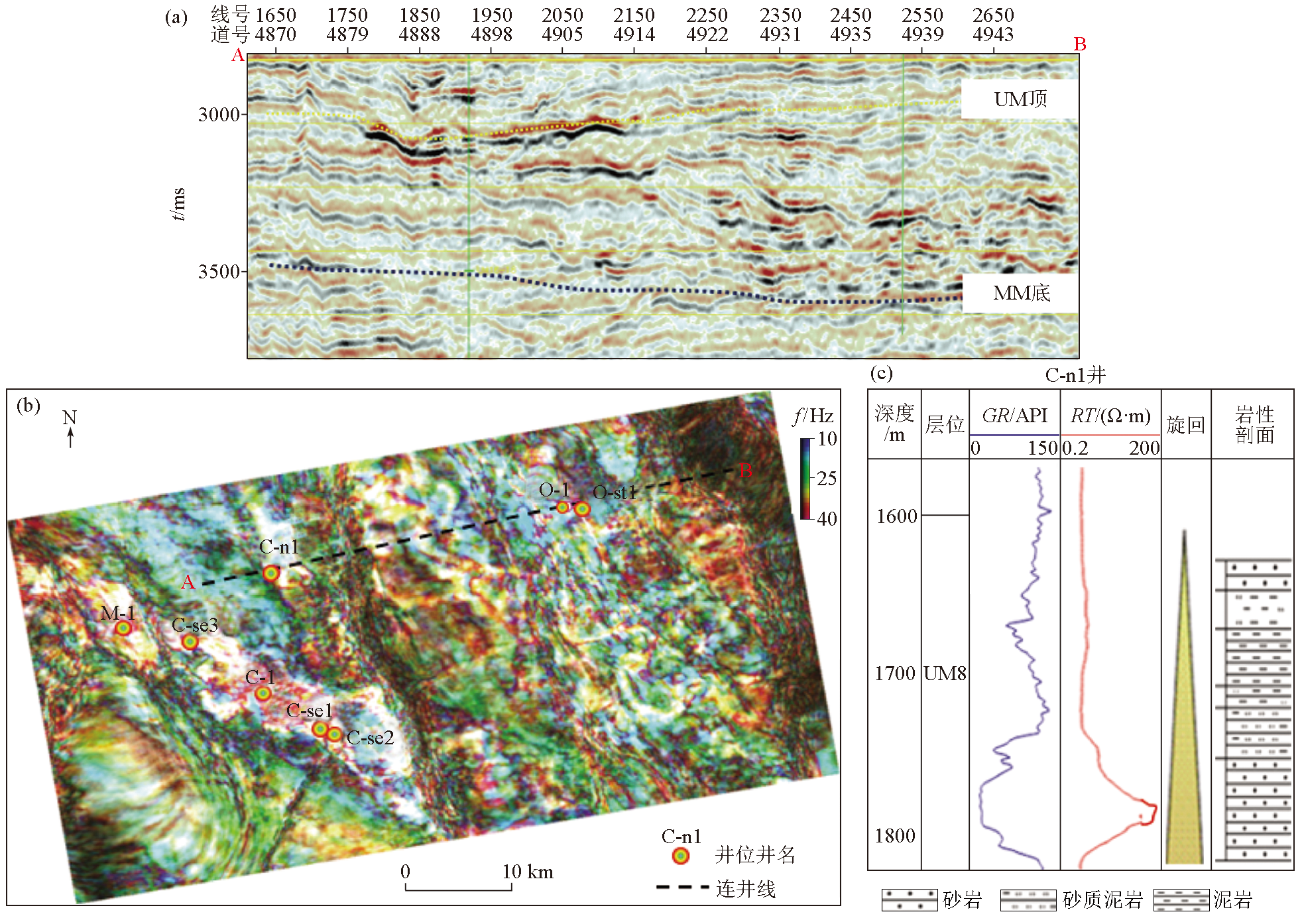

Fig.3 地震分频体RGB融合属性图及C-n1井岩性剖面
a—近东西向反射地震剖面;b—地震分频RGB融合属性;c—过井地层岩性剖面

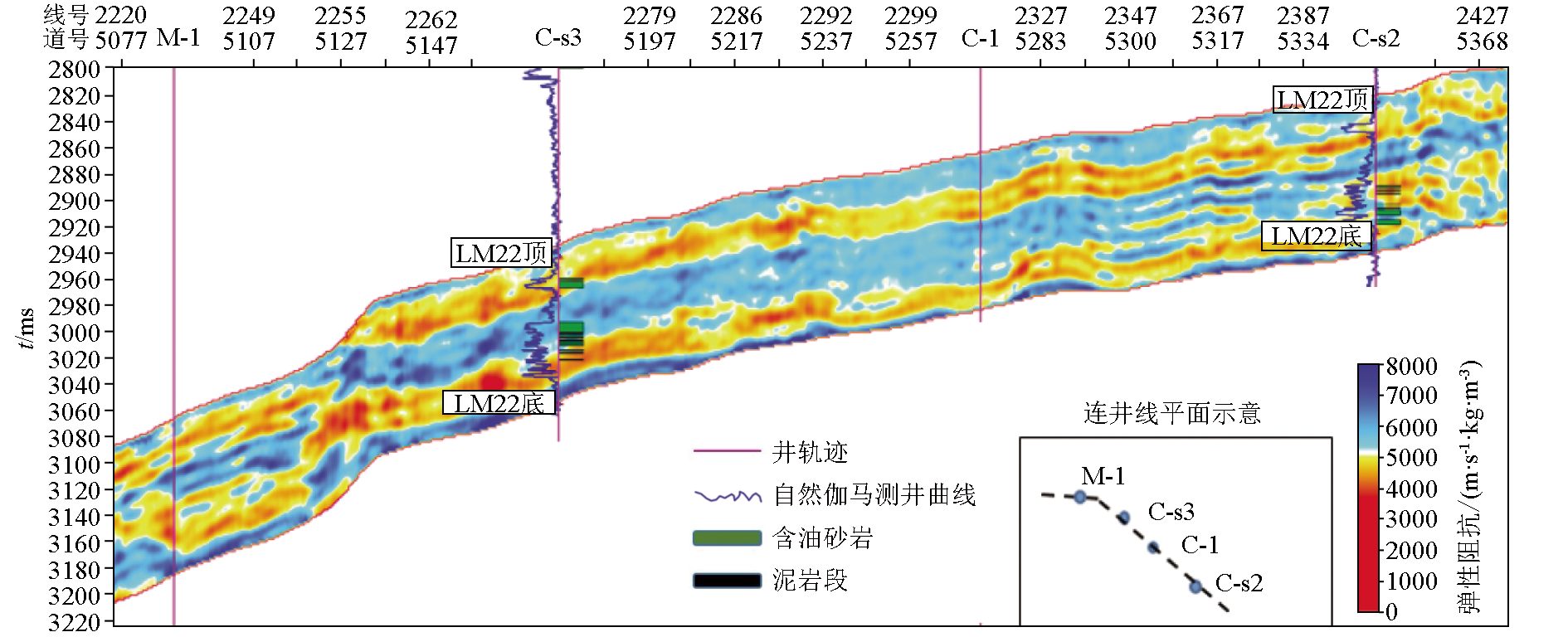

Fig.4 射线弹性阻抗反演剖面

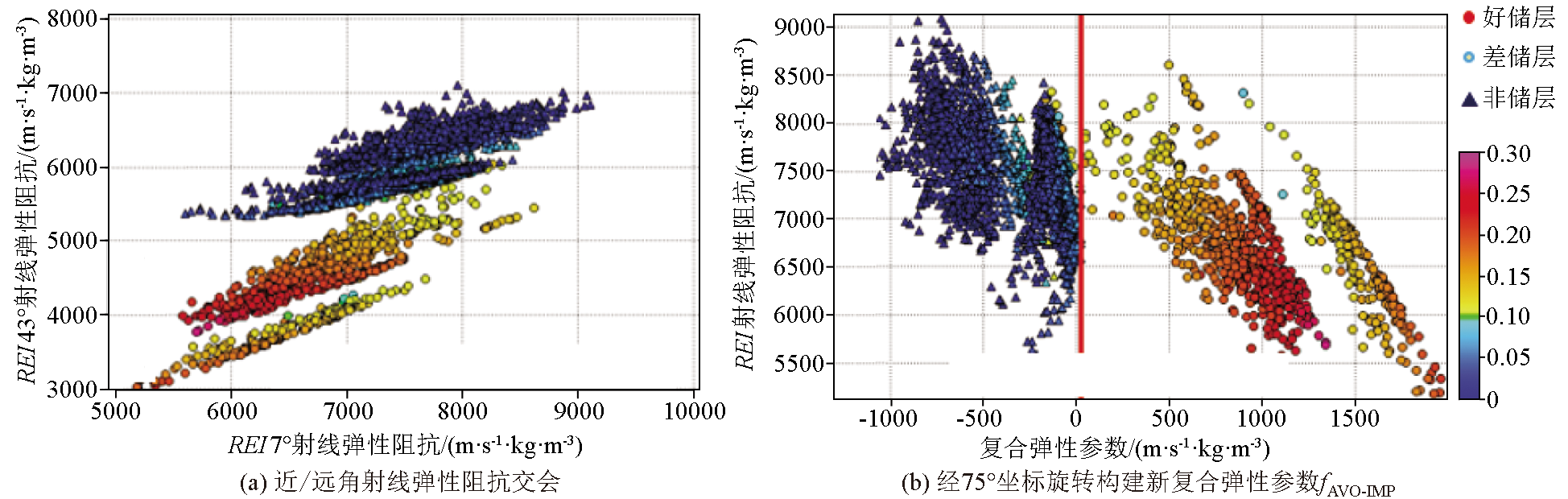

Fig.5 射线弹性阻抗交会构建新的AVO弹性阻抗

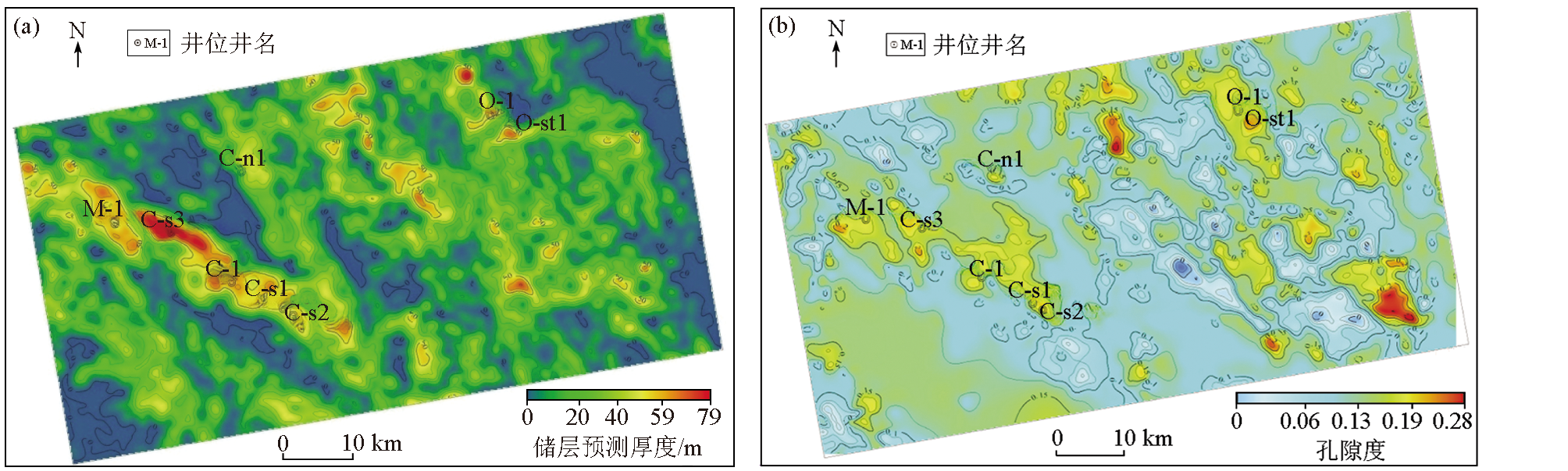

Fig.6 基于射线弹性反演的f_AVO-IMP浊积砂储层厚度预测(a)和孔隙度预测(b)

[1]	李相博, 刘化清, 杨田, 等. 深水重力流沉积与油气成藏[M]. 北京: 石油工业出版社, 2022.
[1]	Li X B, Liu H Q, Yang T, et al. Deep-water gravity flow deposition and hydrocarbon accumulation[M]. Beijing: Petroleum Industry Press, 2022.
[2]	朱伟林, 崔旱云, 吴培康, 等. 被动大陆边缘盆地油气勘探新进展与展望[J]. 石油学报, 2017, 38(10):1099-1109. doi: 10.7623/syxb201710001
[2]	Zhu W L, Cui H Y, Wu P K, et al. New development and outlook for oil and gas exploration in passive continental margin basins[J]. Acta Petrolei Sinica, 2017, 38(10):1099-1109. doi: 10.7623/syxb201710001
[3]	Reading H G, Richards M. Turbidite systems in deep-water basin margins classified by grain size and feeder system[J]. AAPG Bulletin, 1994, 78(5):792-822.
[4]	Kuenen P H, Migliorini. Turbidity currents as a cause of Graded bedding[J]. The Journal of Geology, 1950, 58(4):329-344.
[5]	Mennard H W. Deep-sea channels topography and sedimentation[J]. American Association of Petroleum Geologist Bulletin, 1955,39:236-255.
[6]	Bouma A H. Sedimentology of some flysch deposits[M]. Amsterdam,Netherland, Elsevier Pub,1962.
[7]	Normark W R. Growth patterns of deep sea fans[J]. American Association of Petroleum Geologists Bulletin, 1970,54:2170-2195.
[8]	Walker R G. Deep water sandstone facies and ancient submarine fans:Models for exploration of stratigraphic traps[J]. American Association of Petroleum Geologists Bul letin,1978.62:932-966.
[9]	庞雄, 陈长民, 朱明, 等. 深水沉积研究前缘问题[J]. 地质论评, 2007, 53(1):36-43.
[9]	Pang X, Chen C M, Zhu M, et al. Frontier of the deep-water deposition study[J]. Geological Review, 2007, 53(1):36-43.
[10]	蔡露露, 刘春成, 吕明, 等. 西非下刚果盆地深水水道发育特征及沉积储层预测[J]. 中国海上油气, 2016, 28(2):60-70.
[10]	Cai L L, Liu C C, Lyu M, et al. The development characteristics of deep water channel and sedimentary reservoir prediction in Lower Congo basin,West Africa[J]. China Offshore Oil and Gas, 2016, 28(2):60-70.
[11]	韩文明, 于水, 刘阳, 等. 复杂深水重力构造勘探研究新方法——以尼日尔三角洲深水区A构造为例[J]. 中国海上油气, 2012, 24(1):13-16.
[11]	Han W M, Yu S, Liu Y, et al. A new method to research complex gravity structures in deep water:A case of structure A in deep-water Niger Delta[J]. China Offshore Oil and Gas, 2012, 24(1):13-16.
[12]	张金淼, 韩文明, 范洪耀, 等. 西非深水区地震勘探关键技术研究及应用实践[J]. 中国海上油气, 2013, 25(6):43-47.
[12]	Zhang J M, Han W M, Fan H Y, et al. Some key techniques of seismic prospecting and their application in West Africa deep water region[J]. China Offshore Oil and Gas, 2013, 25(6):43-47.
[13]	廉桂辉, 朱亚婷, 王晓光, 等. 叠前反演技术在玛湖油田储层预测中的应用[J]. 特种油气藏, 2022, 29(1):80-84. doi: 10.3969/j.issn.1006-6535.2022.01.012
[13]	Lian G H, Zhu Y T, Wang X G, et al. Application of pre-stack inversion technology to reservoir prediction of Mahu Oilfield[J]. Special Oil & Gas Reservoirs, 2022, 29(1):80-84.
[14]	赵泽茜, 成丽芳, 范殿佐. 时变分频反褶积在提高薄砂体预测精度方面的应用[J]. 物探与化探, 2023, 47(6):1588-1594.
[14]	Zhao Z X, Cheng L F, Fan D Z. Application of time-varying frequency-division deconvolution in improving the prediction accuracy of thin sandbodies[J]. Geophysical and Geochemical Exploration, 2023, 47(6):1588-1594.
[15]	Whitcombe D N. Elastic impedance normalization[J]. Geophysics, 2002, 67(1):60-62.
[16]	Ma J F, Morozov I B. Ray-path elastic impedance[R]. Calgary: Canadian Society of Exploration Geophysicists National Convention, 2004.
[17]	马劲风. 弹性阻抗EI意义的延伸与广义弹性阻抗[R]. 北京: CPS/SEG2004国际地球物理会议, 2004.
[17]	Ma J F. Extension of elastic impedance and generalized elastic impedance[R]. Beijing: CPS/SEG2004 Proceedings of International Geophysical Conference, 2004.
[18]	刘力辉, 王绪本. 一种改进的射线弹性阻抗公式及弹性参数反演[J]. 石油物探, 2011, 50(4):331-335,23. doi: 10.3969/j.issn.1000-1441.2011.04.003
[18]	Liu L H, Wang X B. One modified ray-path elastic impedance and elastic parameter inversion[J]. Geophysical Prospecting for Petroleum, 2011, 50(4):331-335,23. doi: 10.3969/j.issn.1000-1441.2011.04.003
