平面电磁波法探测浅层局部良导体的响应特征
马宏伟1(), 刘海波2(), 刘鹏飞2, 刘晓宇3, 颜拓疆4, 龙霞5
1.山东中矿集团有限公司, 山东 招远 265401
2.招远市阜山金矿有限公司, 山东 招远 265400
3.矿冶科技集团有限公司, 北京 100160
4.云南冶金资源股份有限公司, 云南 昆明 650102
5.湖南五维地质科技有限公司, 湖南 长沙 410205
Response characteristics of shallow good local conductors using the plane electromagnetic wave method
MA Hong-Wei1(), LIU Hai-Bo2(), LIU Peng-Fei2, LIU Xiao-Yu3, YAN Tuo-Jiang4, LONG Xia5
1. Shandong Zhongkuang Group Co., Ltd., Zhaoyuan 265401, China
2. Zhaoyuan Fushan Gold Mine Co., Ltd., Zhaoyuan 265400, China
3. BGRIMM Technology Group, Beijing 100160, China
4. Yunnan Metallurgical Resources Co., Ltd., Kunming 650102, China
5. Hunan 5D Geophyson Co., Ltd., Changsha 410205, China
全文: PDF(4391 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

针对均匀半空间背景下的三维良导体模型进行正演计算,研究其在平面波电磁探测条件下的响应特征。三维良导体的电磁异常主要由分界面静态积累电荷产生的二次场所引起,因此目标体电阻率与围岩电阻率相对差异越大,响应相对异常也越大;观测电极距离目标体越近,响应相对异常越大。三维体在水平方向上和垂直方向上的尺寸变化对异常的影响程度不同:垂向厚度变化对异常影响较小;水平方向两个尺寸相差不大时,视电阻率响应曲线形态呈现类似于二层D型测深曲线形态,响应相对异常随水平尺寸变大而变大;当水平方向两个异常体尺寸相差较大时(大尺寸达到小尺寸的8倍以上),沿着大尺寸方向观测与沿着小尺寸方向观测得到的曲线形态不同。沿着大尺寸方向观测时,视电阻率响应曲线形态呈现类似于高低高变化的三层H型测深曲线。此外,视电阻率相对异常一般为相位相对异常值的2倍以上,而且视电阻率异常纵向上遵循静态效应规律,在高频出现异常后将一直延伸至低频更有利于发现异常,因此利用视电阻异常更有利于识别异常。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
马宏伟
刘海波
刘鹏飞
刘晓宇
颜拓疆
龙霞
关键词 平面电磁波局部良导体响应特征相对异常视电阻率相位
Abstract

This study conducted the forward modeling of a 3D good conductor model under a uniform half-space background to investigate its response characteristics in a plane electromagnetic wave survey. The electromagnetic anomalies of a three-dimensional good conductor are primarily caused by the secondary field generated by static charge accumulated at interfaces. Consequently, higher relative resistivity differences between the target conductor and the surrounding rock correspond to greater response anomalies. Additionally, a smaller distance between observation electrodes and the target conductor is associated with greater relative response anomalies. Changes in the horizontal and vertical dimensions of a conductor pose different impacts of anomalies. Specifically, variations in vertical thickness have minor impacts on the anomalies. When a conductor has similar dimensions in the horizontal direction, its apparent resistivity response curve resembles a two-layer D-type sounding curve, with the relative anomalies intensifying as the horizontal sizes increase. However, in the case of significant differences between the two dimensions in the horizontal direction (with the larger dimension being at least eight times the smaller), the response curves observed in the directions of the larger and smaller dimensions differ. Notably, the apparent resistivity response curve observed in the direction of the larger dimension resembles a three-layer H-shaped sounding pattern characterized by high, low, and high values sequentially. In addition, the relative anomalies of apparent resistivity are generally more than two times those of phase, with apparent resistivity anomalies following the static effect law in the vertical direction. Specifically, apparent resistivity anomalies in high frequencies tend to extend to low frequencies, creating favorable conditions for anomaly identification. Therefore, apparent resistivity anomalies are more conducive to anomaly identification for good conductors.

Key wordsplane electromagnetic wave    local good conductor    response characteristic    relative anomaly    apparent resistivity    phase
收稿日期: 2024-06-26      修回日期: 2024-10-25      出版日期: 2025-08-20
ZTFLH:  P631
通讯作者: 刘海波(1988-),男,工程师,主要从事地下矿山管理工作。Email:1064815300@qq.com
作者简介: 马宏伟(1988-),男,高级工程师,主要从事矿山地质勘查、采矿工作。Email:mahongwei99954@126.com
引用本文:
马宏伟, 刘海波, 刘鹏飞, 刘晓宇, 颜拓疆, 龙霞. 平面电磁波法探测浅层局部良导体的响应特征[J]. 物探与化探, 2025, 49(4): 902-911.
MA Hong-Wei, LIU Hai-Bo, LIU Peng-Fei, LIU Xiao-Yu, YAN Tuo-Jiang, LONG Xia. Response characteristics of shallow good local conductors using the plane electromagnetic wave method. Geophysical and Geochemical Exploration, 2025, 49(4): 902-911.
链接本文:
https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.1270      或      https://www.wutanyuhuatan.com/CN/Y2025/V49/I4/902

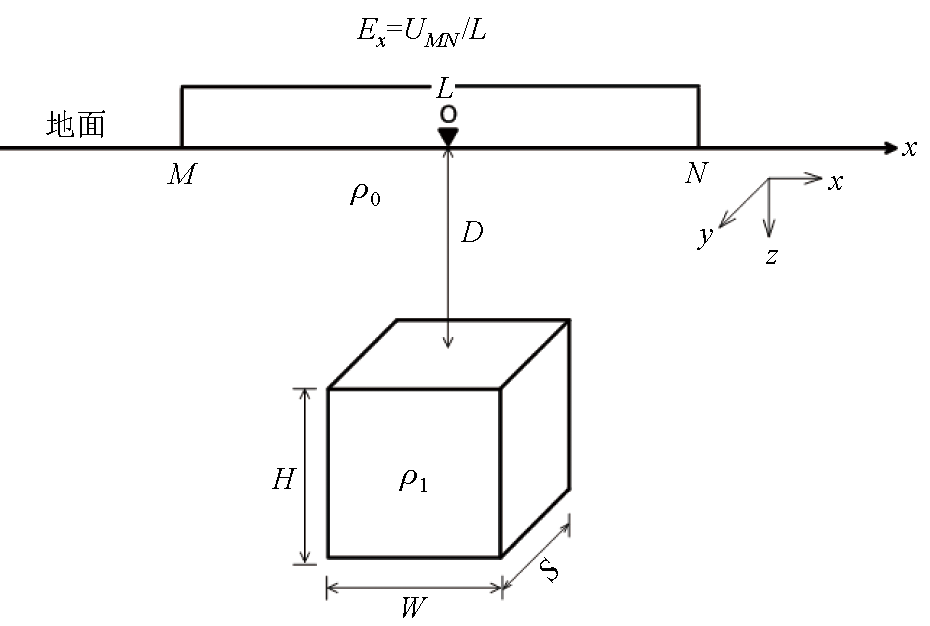

Fig.1  简化模型
参数 S/m W/m H/m D/m L/m ρ1/(Ω·m) ρ0/(Ω·m) Max(${\delta }_{{\rho }_{xy}}$)/% Max(${\delta }_{{\phi }_{xy}}$)/%
L变化 20 20 20 10 10 10 100 60 23
20 20 20 10 20 10 100 50 19
20 20 20 10 40 10 100 28 12
20 20 20 10 80 10 100 17 8
Table 1  模型参数及响应异常最大值(观测极距变化)

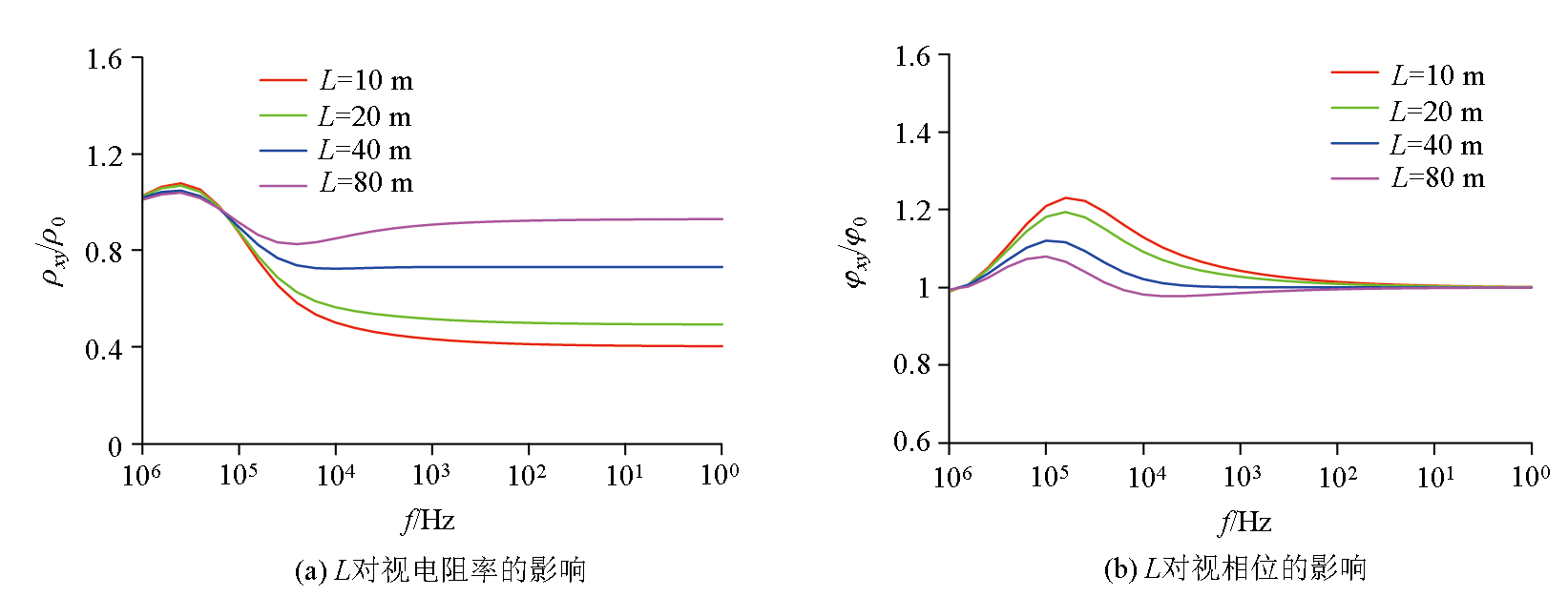

Fig.2  L变化时目标体正上方中心测点归一化响应
参数 S/m W/m H/m D/m L/m ρ1/(Ω·m) ρ0/(Ω·m) Max(${\delta }_{{\rho }_{xy}}$)/% Max(${\delta }_{{\phi }_{xy}}$)/%
ρ10=1/10 80 80 80 40 20 10 100 61 23
80 80 80 40 20 20 200 61 23
80 80 80 40 20 50 500 61 23
80 80 80 40 20 100 1000 61 23
ρ10变化 80 80 80 40 20 5 100 71 29
80 80 80 40 20 10 100 61 23
80 80 80 40 20 20 100 46 16
80 80 80 40 20 40 100 27 8
Table 2  模型参数及响应异常最大值(电阻率变化)

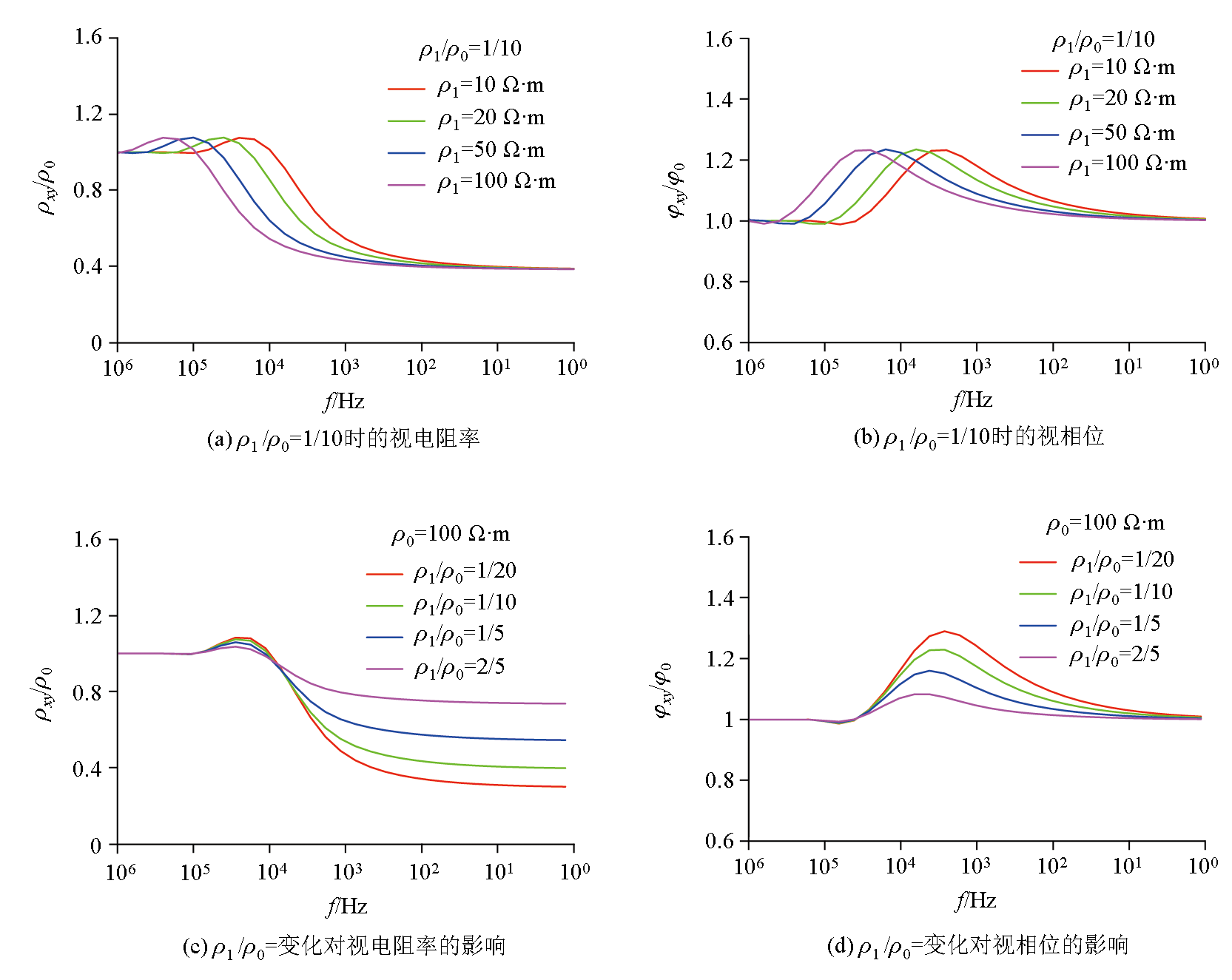

Fig.3  电阻率变化时目标体正上方中心测点归一化响应
参数 S/m W/m H/m D/m L/m ρ1/(Ω·m) ρ0/(Ω·m) Max(${\delta }_{{\rho }_{xy}}$)/% Max(${\delta }_{{\phi }_{xy}}$)/%
H变化 80 80 20 80 20 10 100 15 5
80 80 40 80 20 10 100 19 6
80 80 80 80 20 10 100 23 7
80 80 160 80 20 10 100 25 7
80 80 320 80 20 10 100 25 7
S变化 20 20 20 20 20 10 100 20 7
40 20 20 20 20 10 100 28 10
80 20 20 20 20 10 100 34 12
160 20 20 20 20 10 100 37 13
320 20 20 20 20 10 100 37 13
W变化 20 20 20 20 20 10 100 20 7
20 40 20 20 20 10 100 40 16
20 80 20 20 20 10 100 52 24
20 160 20 20 20 10 100 44 24
20 320 20 20 20 10 100 44 24
S/W=1 10 10 20 20 20 10 100 5 2
20 20 20 20 20 10 100 20 8
40 40 20 20 20 10 100 53 21
80 80 20 20 20 10 100 84 45
Table 3  模型参数及响应异常最大值(目标体尺寸变化)

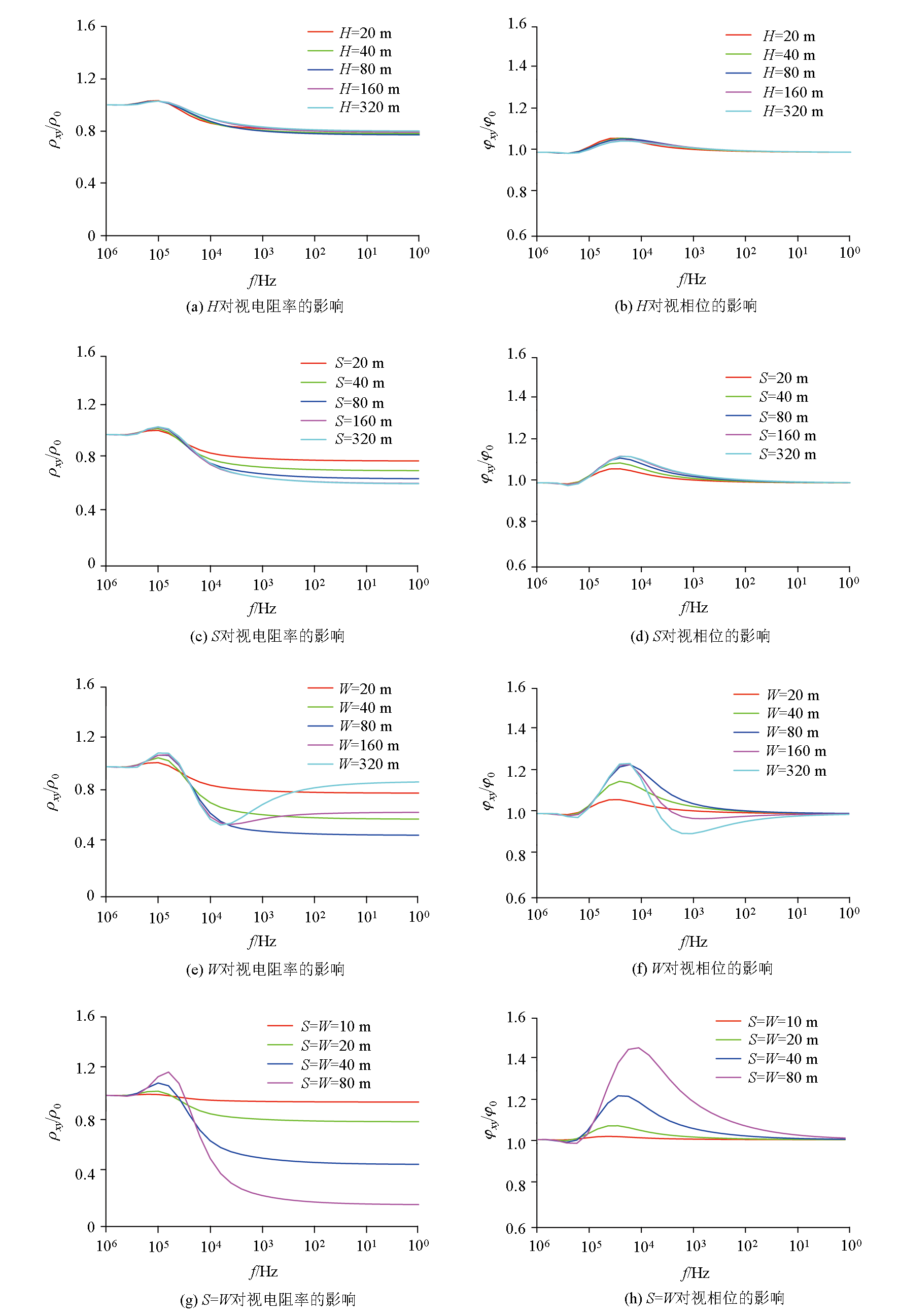

Fig.4  目标体尺寸变化时其正上方中心测点归一化响应
Fig.5  目标体埋深变化时其正上方中心测点归一化响应
参数 S/m W/m H/m D/m L/m ρ1/(Ω·m) ρ0/(Ω·m) Max(${\delta }_{{\rho }_{xy}}$)/% Max(${\delta }_{{\phi }_{xy}}$)/%
D变化 20 20 20 5 20 10 100 80 36
20 20 20 10 20 10 100 51 19
20 20 20 20 20 10 100 20 7
20 20 20 40 20 10 100 5 2
S=W=H=D 20 20 20 20 20 10 100 20 7
40 40 40 40 20 10 100 22 7
80 80 80 80 20 10 100 23 7
160 160 160 160 20 10 100 23 7
Table 4  模型参数及响应异常最大值(埋深变化)

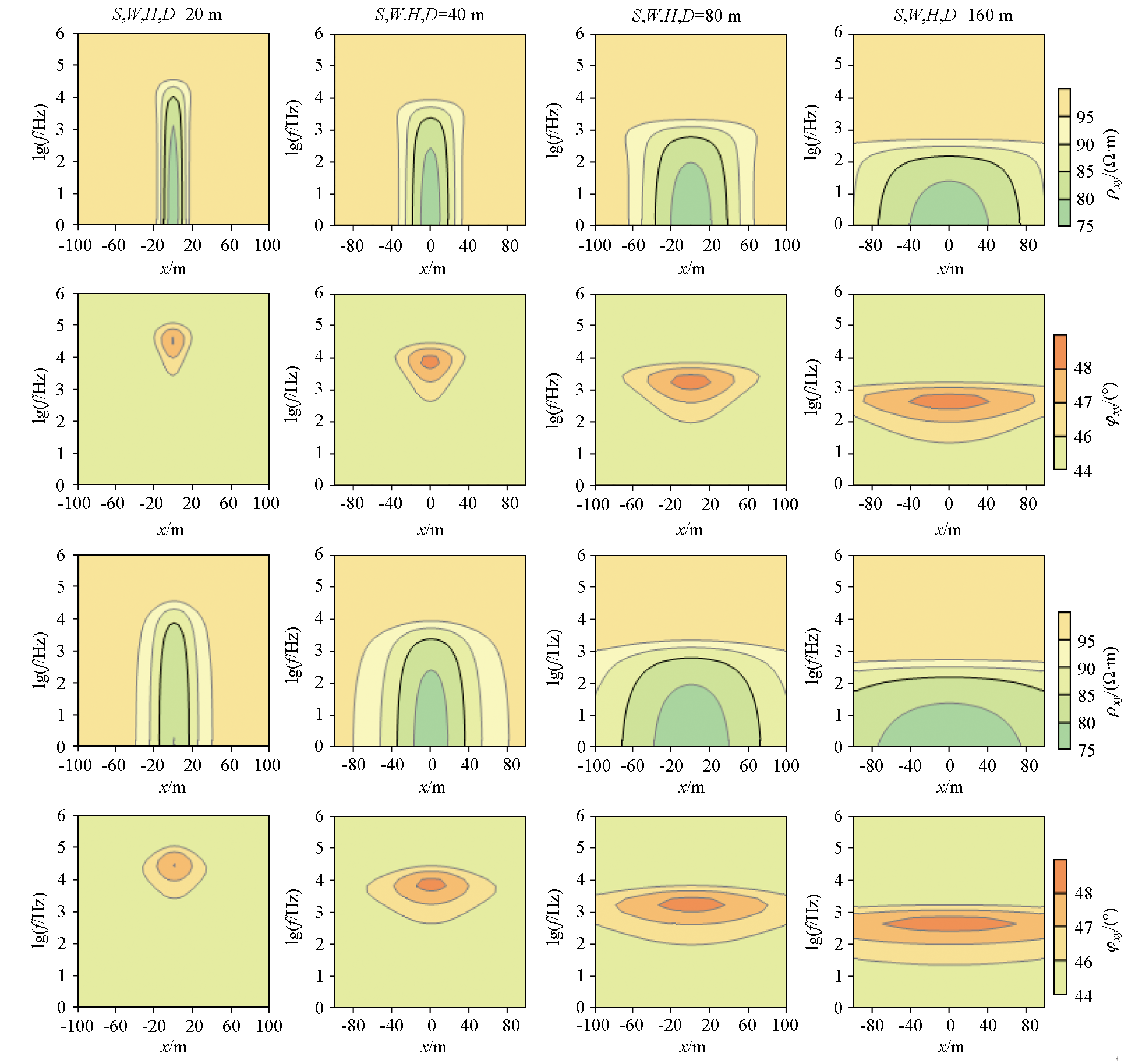

Fig.6  立方体状目标体异常剖面
