频率域地空电磁法磁场三分量全域视电阻率的定义

doi:10.11720/wtyht.2025.1204

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(2587 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要

频率域地空电磁法(ground-airborne frequency-domain electromagnetic,GAFDEM)相比传统地面电磁法具有工作效率高、成本低、可适用于复杂地形地貌环境的特点,是一种很有发展潜力的方法。已经成功研制与该方法相关的仪器和设备,并得到了初步应用,但其解释方法还有待于发展。本文研究了均匀半空间下磁场三分量随电阻率的变化规律,提出了用基于泰勒级数展开的方式,采用迭代法计算全域视电阻率的方法。通过对典型地层模型的计算,分析了不同分量、不同频域、不同飞行高度、不同偏移距下全域视电阻率的特征。结果表明,该全域视电阻率定义方法基本不受收发距、飞行高度等参数的影响,能够正确地反映地层电阻率的变化,为后续频率域地空电磁法数据的处理和解释提供了理论指导。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	罗姣
	郭文波
	刘长生
	张继锋
	王伟
	徐毅
	张鑫鑫
	陈靖

关键词 ：频率域, 地空电磁系统, 全域视电阻率, 磁场三分量

Abstract：

The ground-airborne frequency-domain electromagnetic (GAFDEM) method exhibits high efficiency and low cost compared to conventional ground electromagnetic methods. It is applicable to electromagnetic sounding in complex topographic and geomorphic settings, demonstrating promising application potential. Despite the development and preliminary application of GAFDEM-related instrumentation and equipment, the interpretation methods for GAFDEM data remain under-studied. By investigating the resistivity-varying patterns of three components of the magnetic field in a homogeneous half-space, this study proposed an iterative method based on Taylor series expansion to calculate the global apparent resistivity. Through the calculation of a typical stratigraphic model, this study analyzed the characteristics of global apparent resistivity under different components, frequency domains, flight altitudes, and offsets. The results demonstrate that the definition method of global apparent resistivity in this study, subjected to minimal impacts from parameters like receiver-transmitter distance and flight altitude, can effectively reflect the variations of formation resistivity. Therefore, this study provides a theoretical guide for the processing and interpretation of GAFDEM data.

Key words： frequency domain ground-airborne electromagnetic system global apparent resistivity three components of a magnetic field

收稿日期: 2024-05-08 修回日期: 2024-07-24 出版日期: 2025-06-20

ZTFLH:

P631

基金资助:国家自然科学基金(42174168);长安大学中央高校基本科研业务费专项资金(300102262201);陕西有色金属控股集团战略新兴产业重点科技攻关项目(第二批);陕西省自然科学基础研究计划专项资金(2025JC-YBQN-379);西安西北有色物化探总队有限公司科技项目

通讯作者: 刘长生(1966-),男,教授,主要从事电磁法理论正反演、计算机应用技术研究工作。Email:30623297@qq.com

作者简介: 罗姣(1988-),女,硕士,高级工程师,主要从事电磁法勘探研究工作。Email:342579518@qq.com

引用本文:

罗姣, 郭文波, 刘长生, 张继锋, 王伟, 徐毅, 张鑫鑫, 陈靖. 频率域地空电磁法磁场三分量全域视电阻率的定义[J]. 物探与化探, 2025, 49(3): 679-686.
LUO Jiao, GUO Wen-Bo, LIU Chang-Sheng, ZHANG Ji-Feng, WANG Wei, XU Yi, ZHANG Xin-Xin, CHEN Jing. Definition of global apparent resistivity based on three components of the magnetic field for the interpretation of the ground-airborne frequency-domain electromagnetic data. Geophysical and Geochemical Exploration, 2025, 49(3): 679-686.

链接本文:

https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.1204 或 https://www.wutanyuhuatan.com/CN/Y2025/V49/I3/679

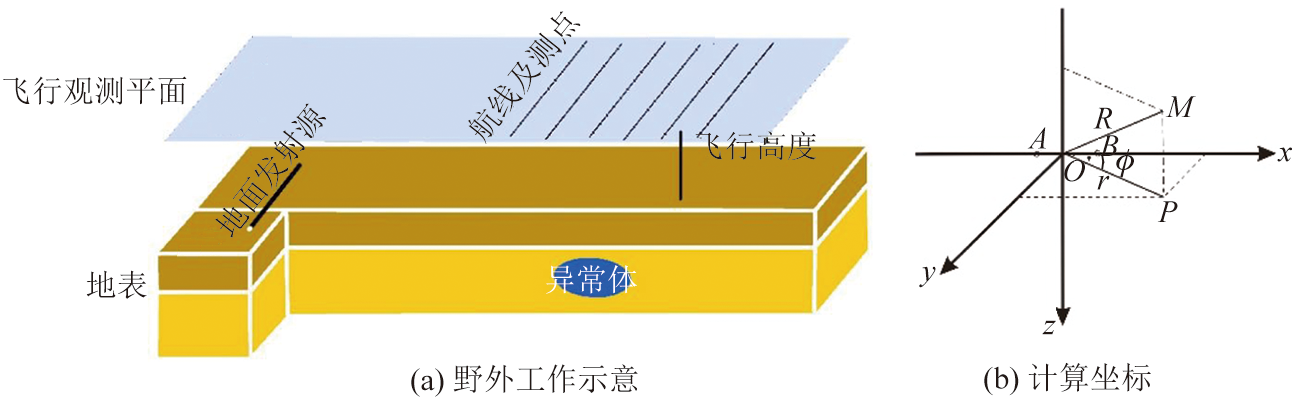

Fig.1 水平电偶源频率域地空电磁法

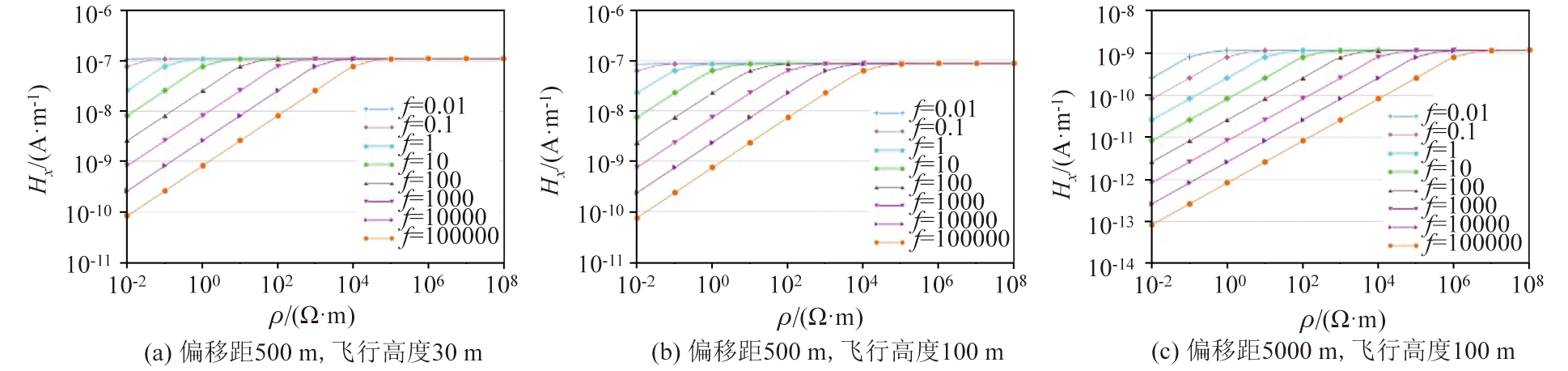

Fig.2 均匀半空间下磁场强度H_x响应随模型电阻率变化

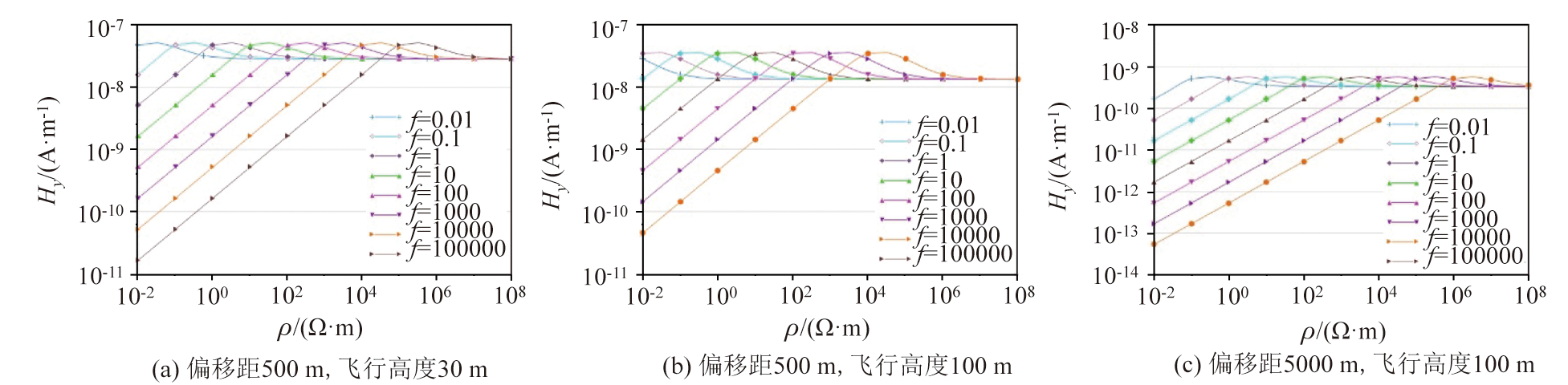

Fig.3 均匀半空间下磁场强度H_y响应随模型电阻率变化

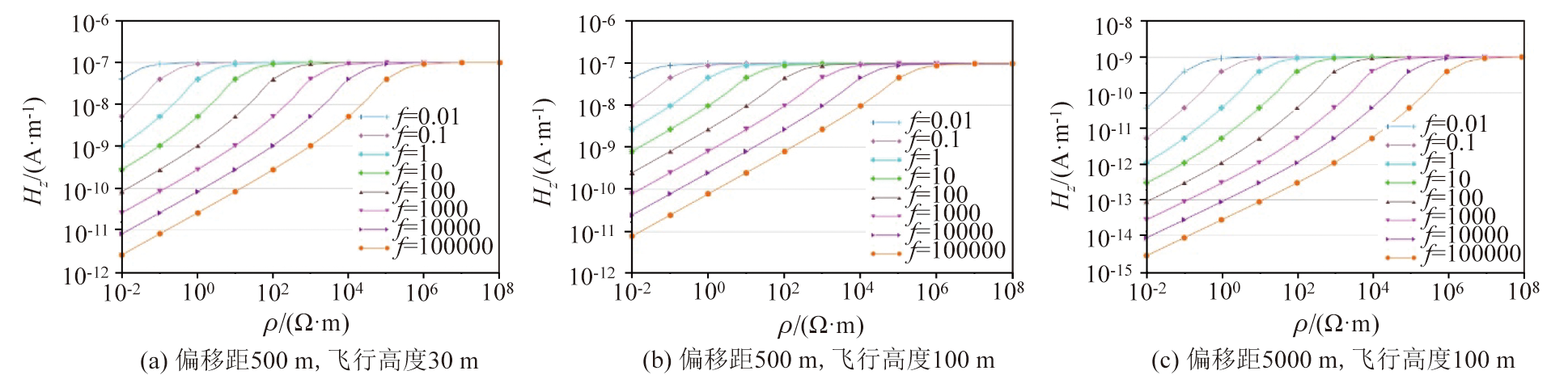

Fig.4 均匀半空间下磁场强度H_z响应随模型电阻率变化

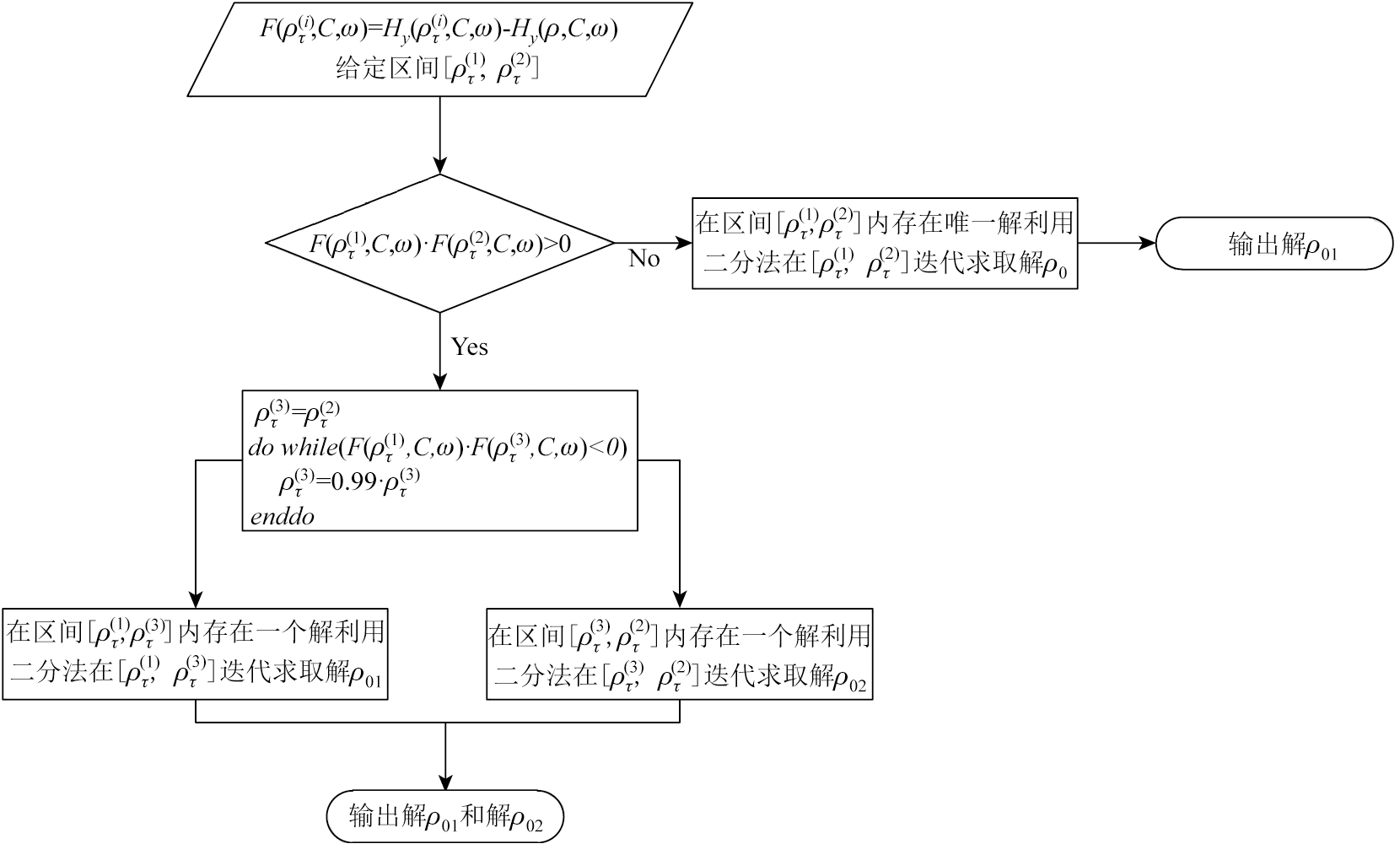

Fig.5 磁场强度y分量二分法求取全域视电阻率算法流程

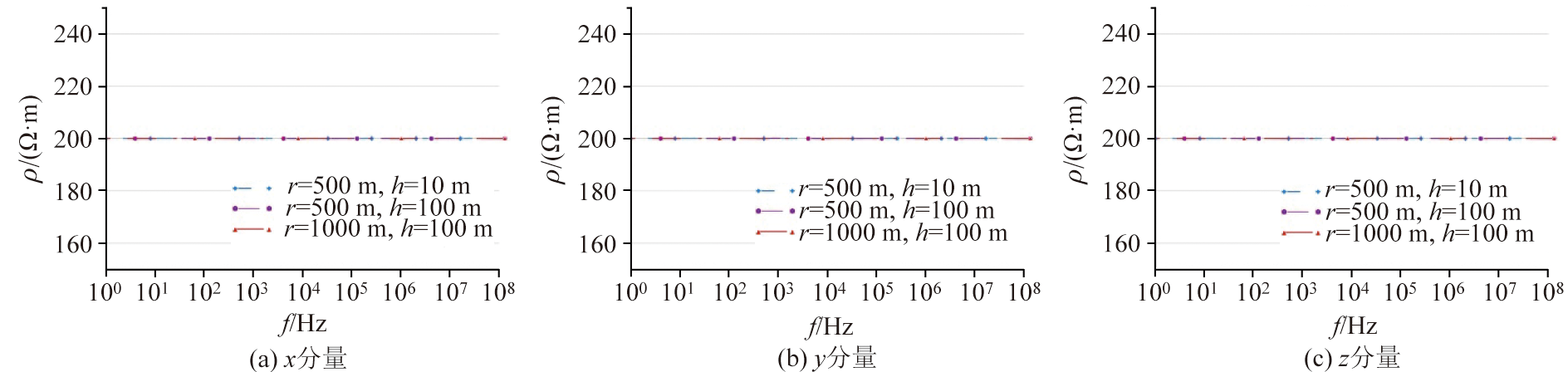

Fig. 6 均匀半空间不同偏移距r、不同飞行高度h磁场各分量全域视电阻率

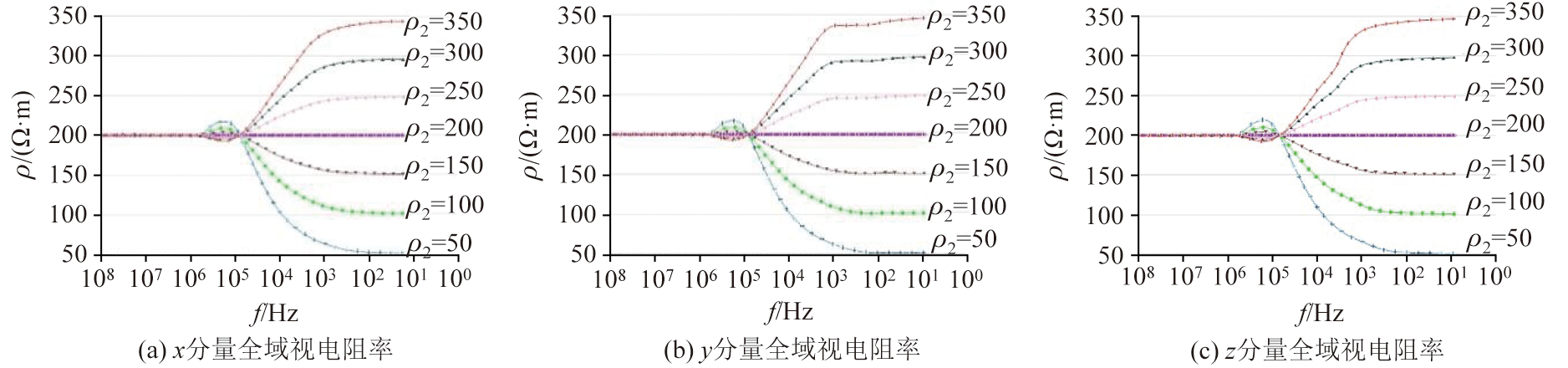

Fig.7 偏移距1 500 m,飞行高度100 m全域视电阻率

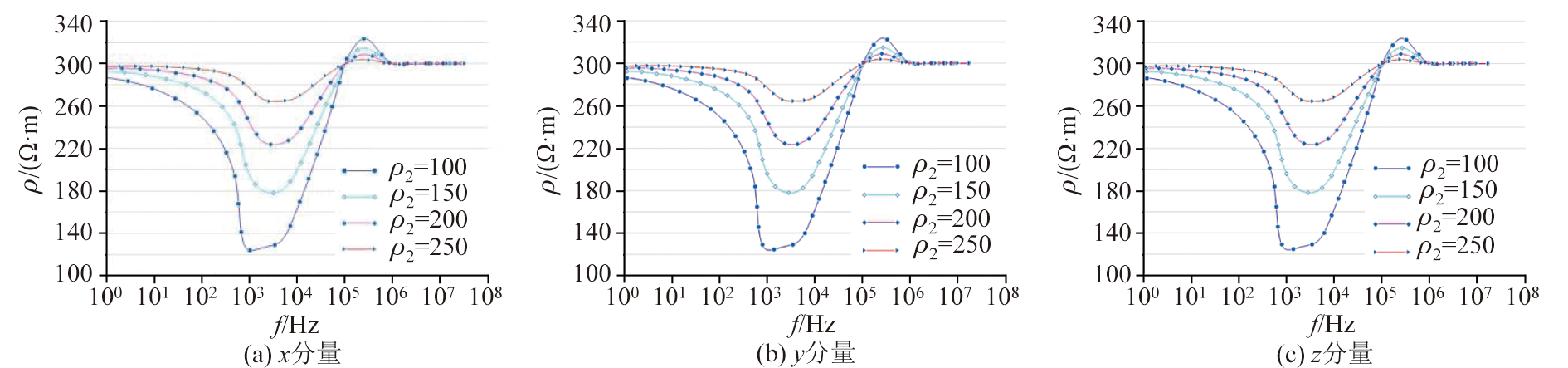

Fig.8 H型模型磁场各分量全域视电阻率随频率变化曲线

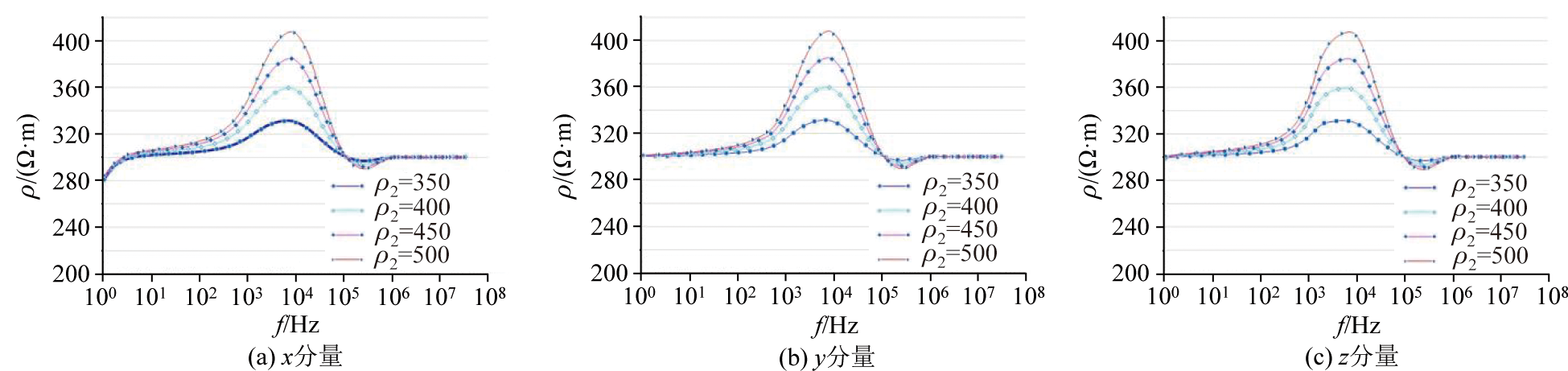

Fig.9 K型模型磁场各分量全域视电阻率随频率变化曲线
