AVO梯度谱蓝化在中深层薄砂岩刻画中的应用

doi:10.11720/wtyht.2023.1272

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6845 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The conventional spectral bluing technique is mainly utilized for post-stack seismic frequency expansion.It is applicable to the shallow strata where sandstones and mudstones can be effectively identified based on the wave impedance of logs.However,this technique has many limitations for the impedance aliasing zones of moderately deep strata.The amplitude versus offset (AVO) gradient reflects the change in the relative reflection coefficient with offset and is positively correlated with the rate of change in Poisson's ratio,which can distinguish between sandstones and mudstones in moderately deep strata.Through forward modeling,this study first proved the reliability and stability of the AVO gradient in identifying the top interface of sandstones in moderately deep strata according to the changes in parameters such as lithologic association,physical properties,and fluids.Furthermore,to improve the characterization precision of thin sandstone interbeds in moderately deep strata,this study proposed a AVO gradient-based spectral bluing for seismic frequency expansion.The model tests and practical applications show that the spectral bluing based on AVO gradient can directly identify the information on reservoir interfaces and simplify the multi-parameter lithology prediction method based on CRP gathers or partial angle stack data.Moreover,the new technique proposed in this study can effectively characterize the thin sandstones in deeply buried strata in the XH sag and provides a reference for high-resolution seismic processing of moderately deep strata.

Key words： moderately deep strata AVO gradient spectral bluing high-resolution seismic processing thin reservoir characterization

Received: 14 June 2022 Published: 27 April 2023

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Qing-Wen LIU
	Jian LI
	De-Wen QIN

Cite this article:

Qing-Wen LIU,Jian LI,De-Wen QIN. Application of the AVO gradient-based spectral bluing technique in the characterization of thin sandstones in moderately deep strata[J]. Geophysical and Geochemical Exploration, 2023, 47(2): 438-446.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1272 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I2/438

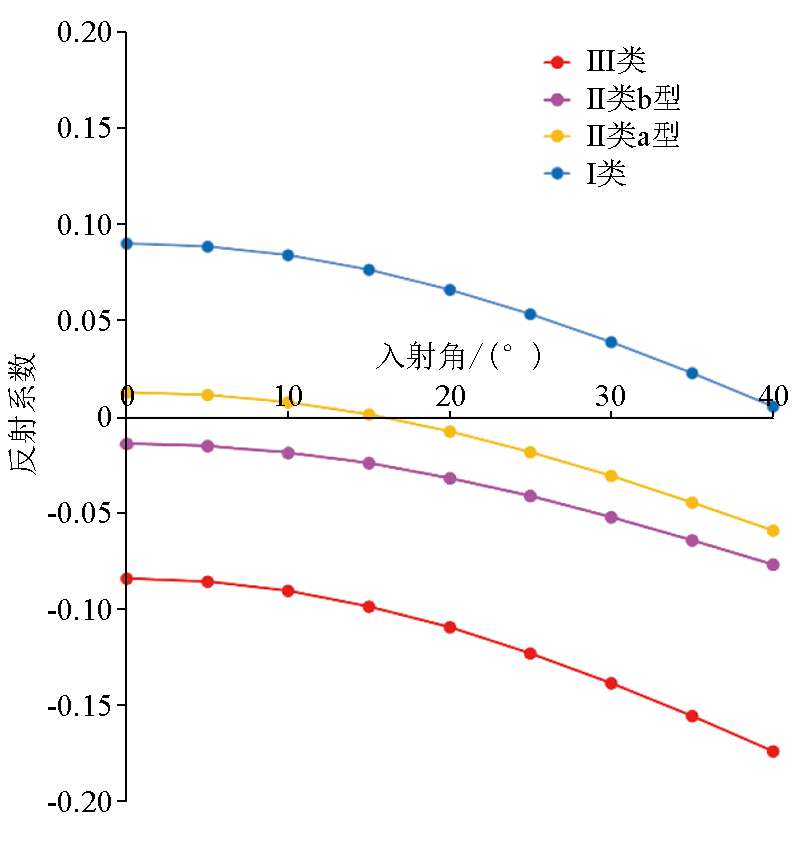

AVO characteristic curves of four types of sandstone

Sandstone’s elastic parameters of four AVO types

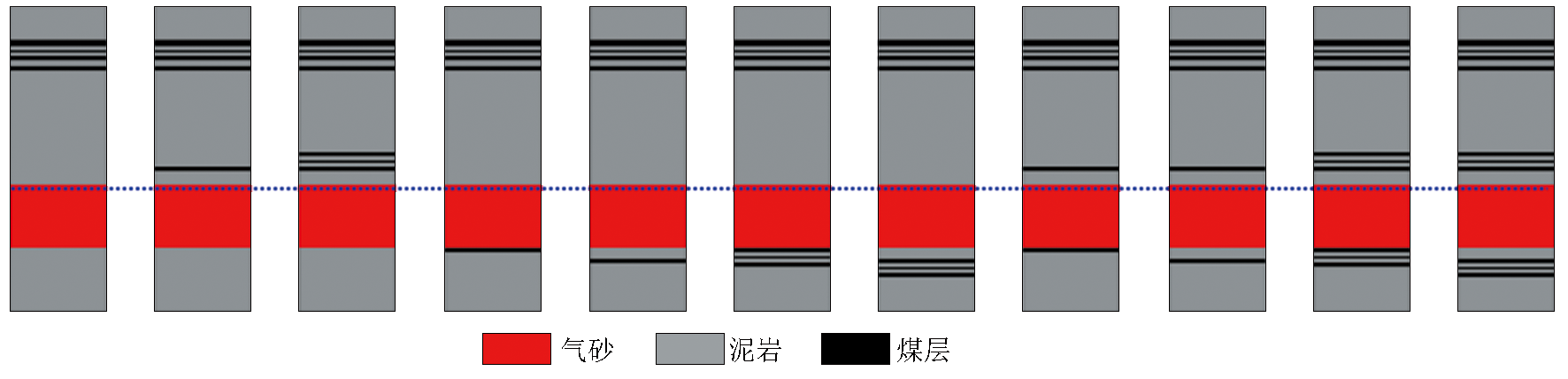

Eleven types of lithological association in the target area

Elastic parameters of different lithology in the target area

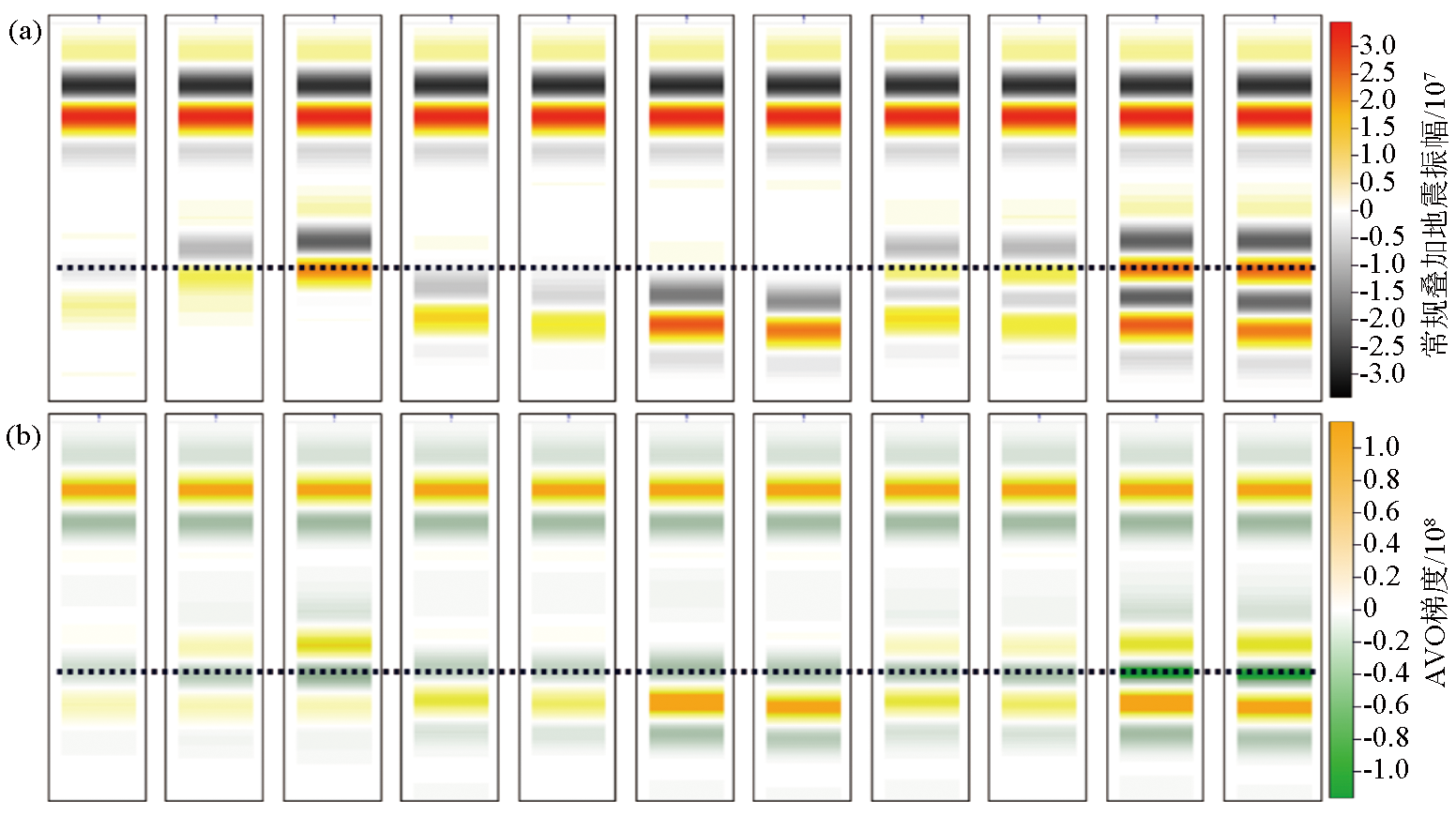

Forward modeling of different lithological associations in gas case
a—normal post-stack seismic;b—AVO gradient

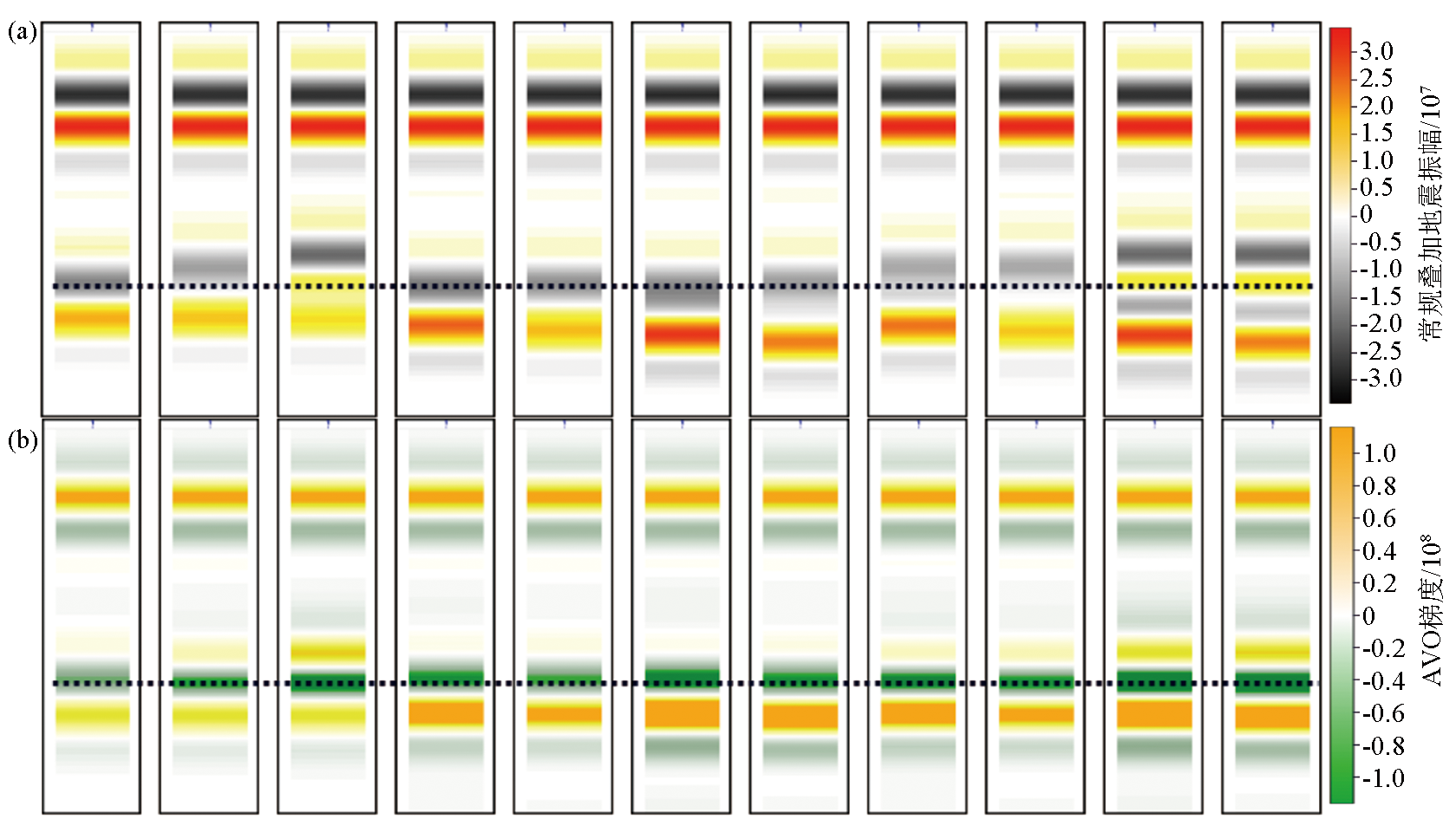

Forward modeling of different lithological associations in water case
a—normal post-stack seismic;b—AVO gradient

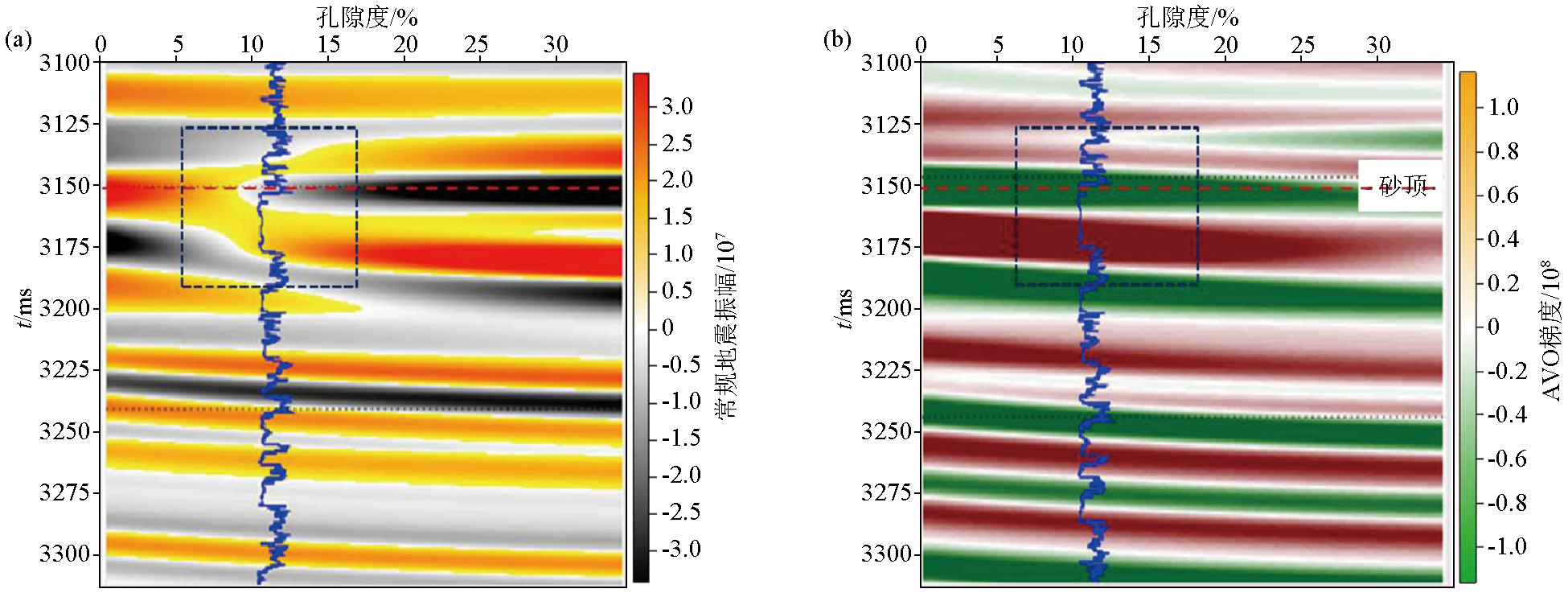

Forward modeling based on reservoir porosity change
a—normal post-stack seismic change of different porosity;b—AVO gradient change of different porosity

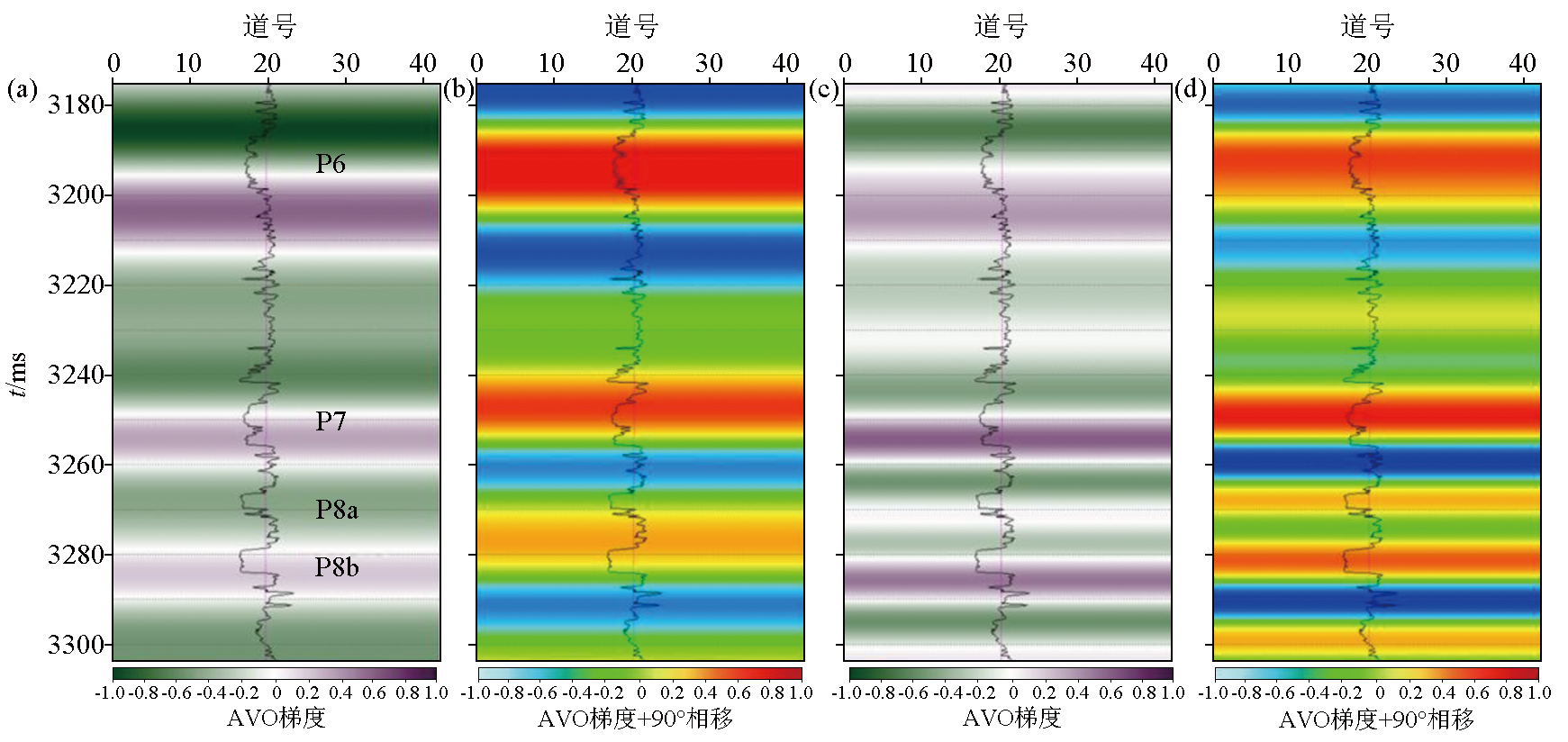

Analysis of pre-stack AVO gradient spectral bluing for well A-1
a—raw AVO gradient;b—90°phase shift of raw AVO gradient;c—spectral bluing AVO gradient;d—90°phase shift of spectral bluing AVO gradient

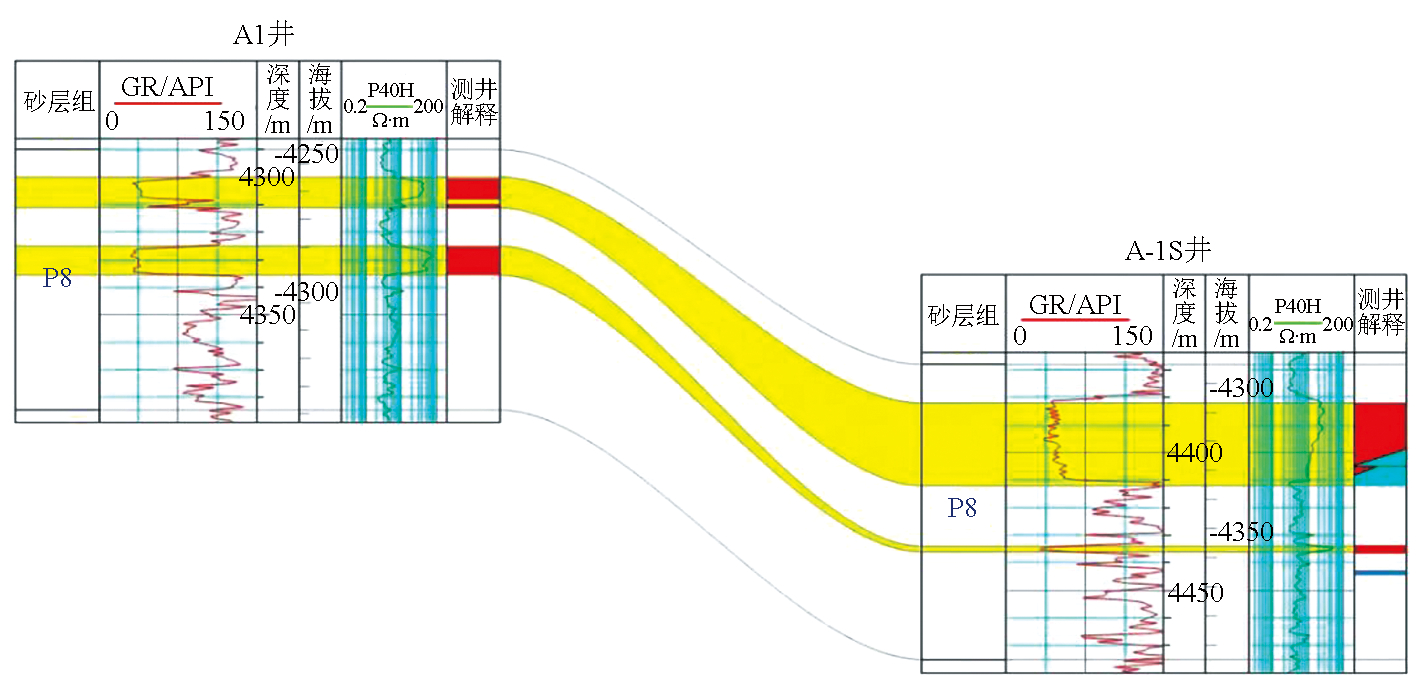

P8 sandstone distribution of well A-1 and A-1S

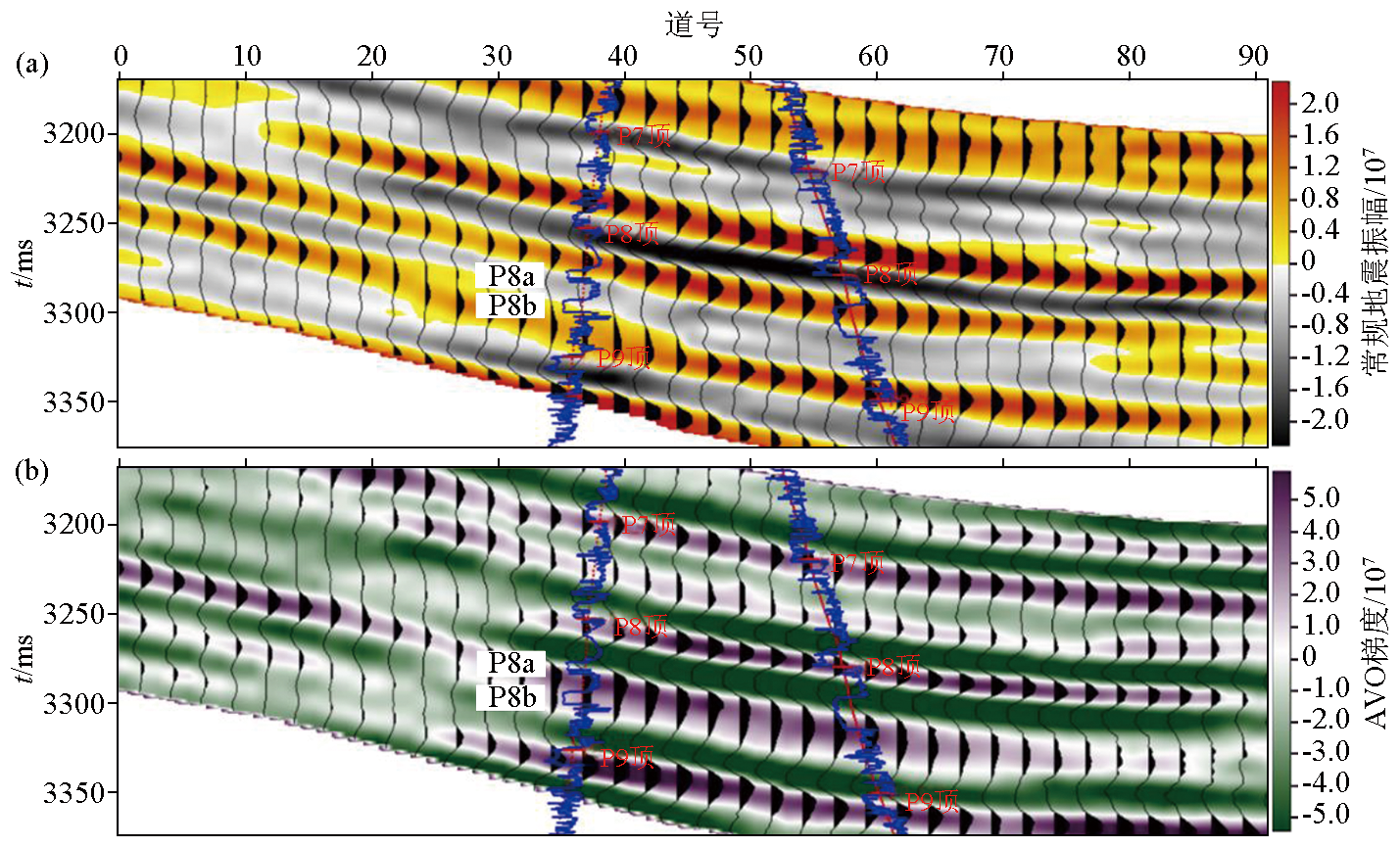

Normal post-stack seismic(a) and AVO gradient(b) through exploration wells

Process of spectrum bluing operator calculation
a—calculation of well-log’s reflection spectrum;b—calculation of AVO gradient spectrum;c—calculation of bluing operator;d—bluing operator in the time domain

AVO gradient section based on spectral bluing technique through exploration wells

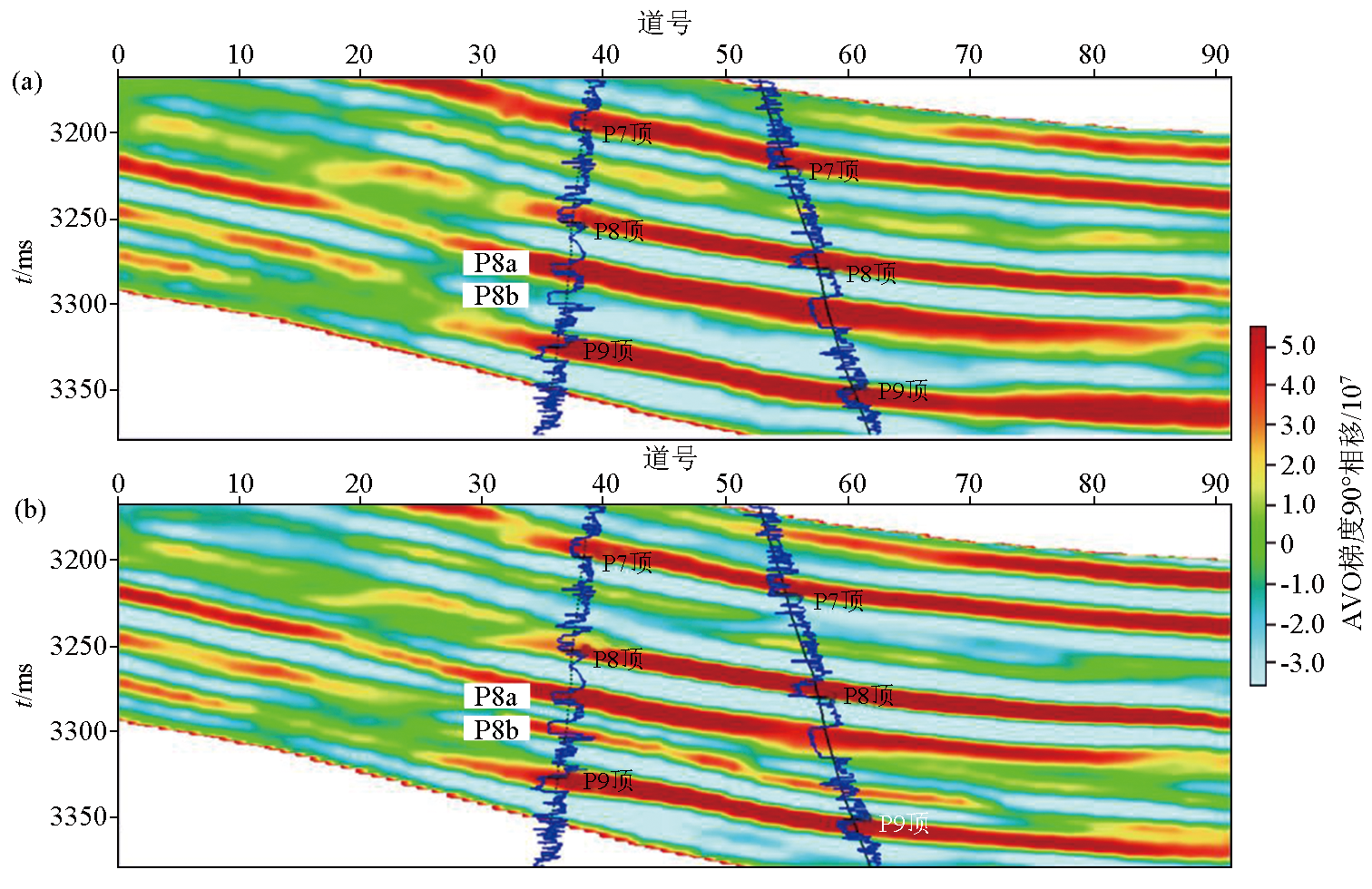

Lithology prediction comparison before(a) and after(b) AVO gradient spectral bluing
