基于Python语言的瑞利面波频散反演实行方案

doi:10.11720/wtyht.2022.1238

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (2912 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study developed a workflow of Rayleigh-wave dispersion inversion using the Python programming language, and the detail is as follows.First,carry out the forward modeling of the dispersion curves on a horizontal layered model using the pysurf96 software package.Second,create an objective function used to describe the fitting degree of the dispersion curves.Third,complete the dispersion curve inversion using the heuristic algorithm in the scikit-opt software package.The problems encountered in the function call in the workflow were proposed and solved.The results show that the Python-based dispersion curve inversion of Rayleigh wave in multilayered media is reliable and offers a certain computational efficiency.In this way,this study built a Python-based inversion platform of underground layered structures using the wave dispersion,thus providing a method for other researchers to do inversion using open-source software.Finally,this study carried out the inversion of the crust and upper mantle structures using the dispersion curves extracted from the study of Yi-bo Peng on the noise in the Hailar Basin,achieving ideal results.

Key words： Python library Rayleigh wave dispersion curve inversion heuristic algorithm

Received: 12 August 2021 Published: 21 June 2022

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei-Zhi WU
	Li LOU
	Peng WANG
	Bin WANG

Cite this article:

Wei-Zhi WU,Li LOU,Peng WANG, et al. A Python-based scheme of Rayleigh-wave dispersion inversion[J]. Geophysical and Geochemical Exploration, 2022, 46(3): 743-749.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.1238 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I3/743

Parameters of two layered media model

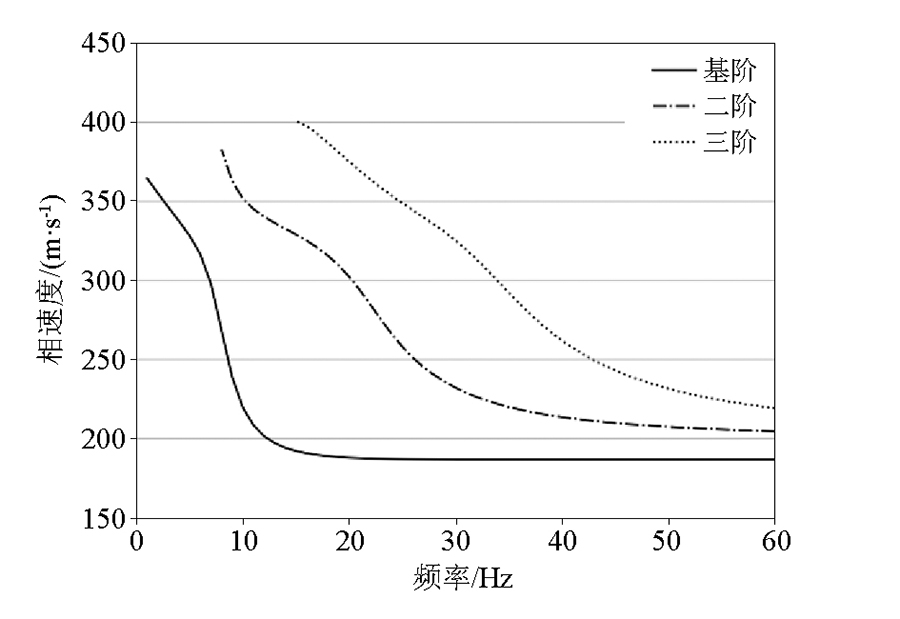

Rayleigh wave dispersion curve of two layered media model based on pysurf96

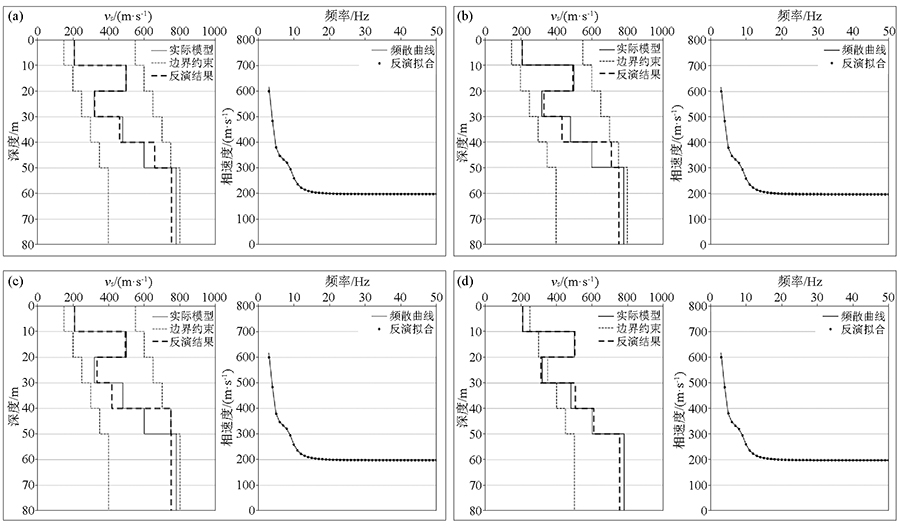

Results of different heuristic algorithms
a—differential evolution algorithm;b—genetic algorithm;c—particle swarm optimization;d—simulated annealing algorithm

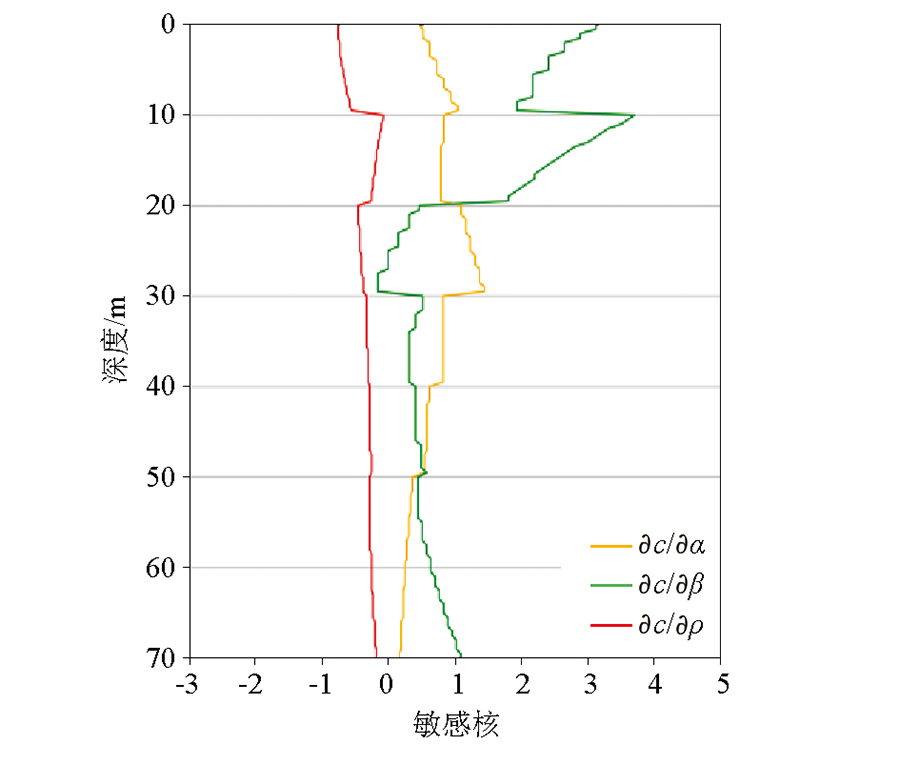

Phase sensitivity kernel of Rayleigh wave on 2 Hz

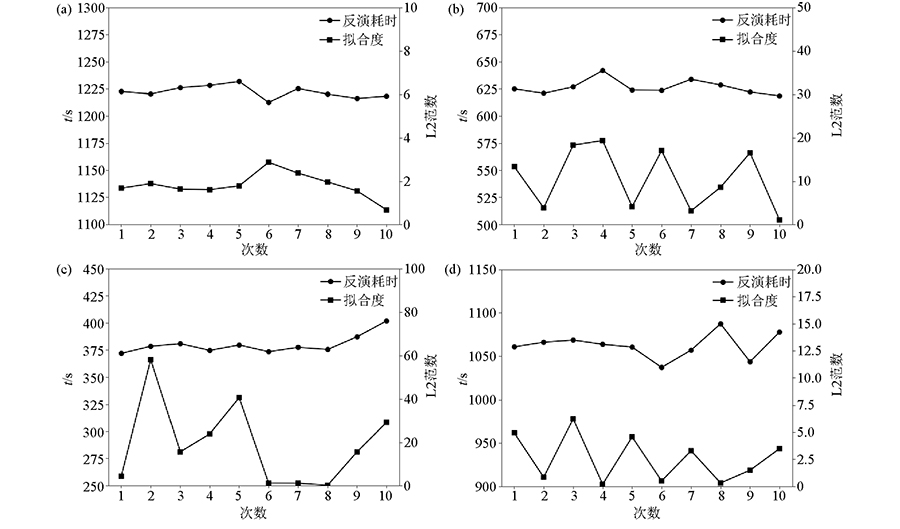

Efficiency and stability of different heuristic algorithms
a—differential evolution algorithm;b—genetic algorithm;c—particle swarm optimization;d—simulated annealing algorithm

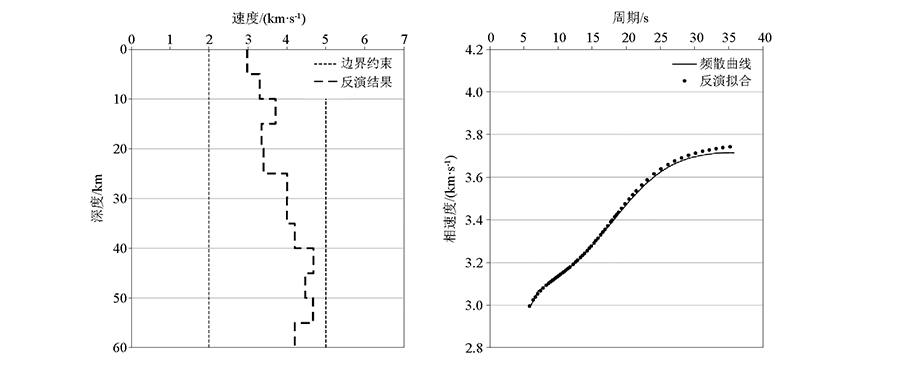

Inversion of Rayleigh wave dispersion curve in Hailar Basin by Genetic Algorithm
