物探与化探  2025, Vol. 49 Issue (3): 746-753    DOI: 10.11720/wtyht.2025.1466
  工程勘察 本期目录 | 过刊浏览 | 高级检索 |
西南山岭强震区特长深埋隧道的综合物探应用
邬远明1(), 邢泽峰2, 鲁光银2
1.湖南省交通规划勘察设计院有限公司, 湖南 长沙 410219
2.中南大学 地球科学与信息物理学院,湖南 长沙 410083
Application of integrated geophysical exploration in an extra-long deep tunnel in the seismically active mountainous region, Southwest China
WU Yuan-Ming1(), XING Ze-Feng2, LU Guang-Yin2
1. Hunan Provincial Communications Planning, Survey & Design Institute Co., Ltd., Changsha 410219, China
2. School of Geosciences and Info-Physics, Central South University, Changsha 410083, China
全文: PDF(3080 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

西部山区的大风顶隧道属深埋特长隧道,区域内地震活动性较强,地质及水文地质条件极其复杂。此隧道勘查工作的重难点在于复杂地质条件与不良勘探环境增加了勘查难度,同时需精准推断隧址区岩体破碎程度及富水性特征,以制定有效的防震措施。因此,在利用地质资料进行区域岩性的初步划分基础上,开展了以音频大地电磁测深为主结合高密度电法的综合物探。结果表明,综合物探有效揭示了隧址区整体视电阻率变化和浅部详细的视电阻率分布,尤其是隧道洞口附近电场分布特征,从而推断出隧址区岩体的破碎程度与富水性特征。同时通过钻井资料有效验证了物探方法的有效性,表明使用综合物探方法可以为强震区特长深埋隧道勘查和建设提供参考。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
邬远明
邢泽峰
鲁光银
关键词 ： 强震区,  特长深埋隧道,  岩性划分,  综合物探,  地震活动影响
Abstract：

The Dafengding tunnel is an extra-long deep tunnel in the seismically active mountainous region characterized by exceptionally complex geologic and hydrogeologic conditions in Southwest China. The primary challenges in the tunnel investigation arise from complex geological conditions and unfavorable exploration environments. Moreover, developing effective seismic mitigation measures necessitates precisely determining the fragmentation and water-bearing characteristics of rock masses at the tunnel site. Hence, based on the initial classification of regional lithologies using geologic data, this study conducted integrated geophysical exploration at the tunnel site by combining the audio-frequency magnetotelluric method with high-resolution electrical resistivity tomography. The results indicate that the integrated geophysical exploration effectively revealed the overall variation in apparent resistivity at the tunnel site and the shallow apparent resistivity distribution, particularly the characteristics of the electric field near the tunnel portal. These findings enabled the inference of the fragmentation and water-bearing characteristics of rock masses at the tunnel site. Moreover, the borehole data effectively validated the effectiveness of the integrated geophysical exploration, demonstrating that the integrated geophysical exploration can provide a valuable reference for the investigation and construction of extra-long deep tunnels in seismically active regions.
Key words： seismically active region    extra-long deep tunnel    lithologic classification    integrated geophysical exploration    impact of seismic activity
收稿日期: 2024-12-04      修回日期: 2025-03-19      出版日期: 2025-06-20
ZTFLH:  P631
基金资助:国家自然科学基金项目(41974148);国家重点研发计划项目(2023YFF0718000);中国中铁股份有限公司科技研究开发计划项目(2022-重大专项-07)
作者简介: 邬远明(1982-),男,工程师,硕士,主要从事电法勘探工作。Email: 156443024@qq.com
引用本文:
邬远明, 邢泽峰, 鲁光银. 西南山岭强震区特长深埋隧道的综合物探应用[J]. 物探与化探, 2025, 49(3): 746-753.
WU Yuan-Ming, XING Ze-Feng, LU Guang-Yin. Application of integrated geophysical exploration in an extra-long deep tunnel in the seismically active mountainous region, Southwest China. Geophysical and Geochemical Exploration, 2025, 49(3): 746-753.
链接本文:
https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.1466      或      https://www.wutanyuhuatan.com/CN/Y2025/V49/I3/746
岩性 ρ/(Ω·m) 岩性 ρ/(Ω·m)
灰岩 500~6000 白云岩 200~3000
砂岩 100~2000 碳质页岩 100~2000
粉砂岩 50~1000 玄武岩 1500~8000
Table 1  隧址区矿物电阻率范围统计

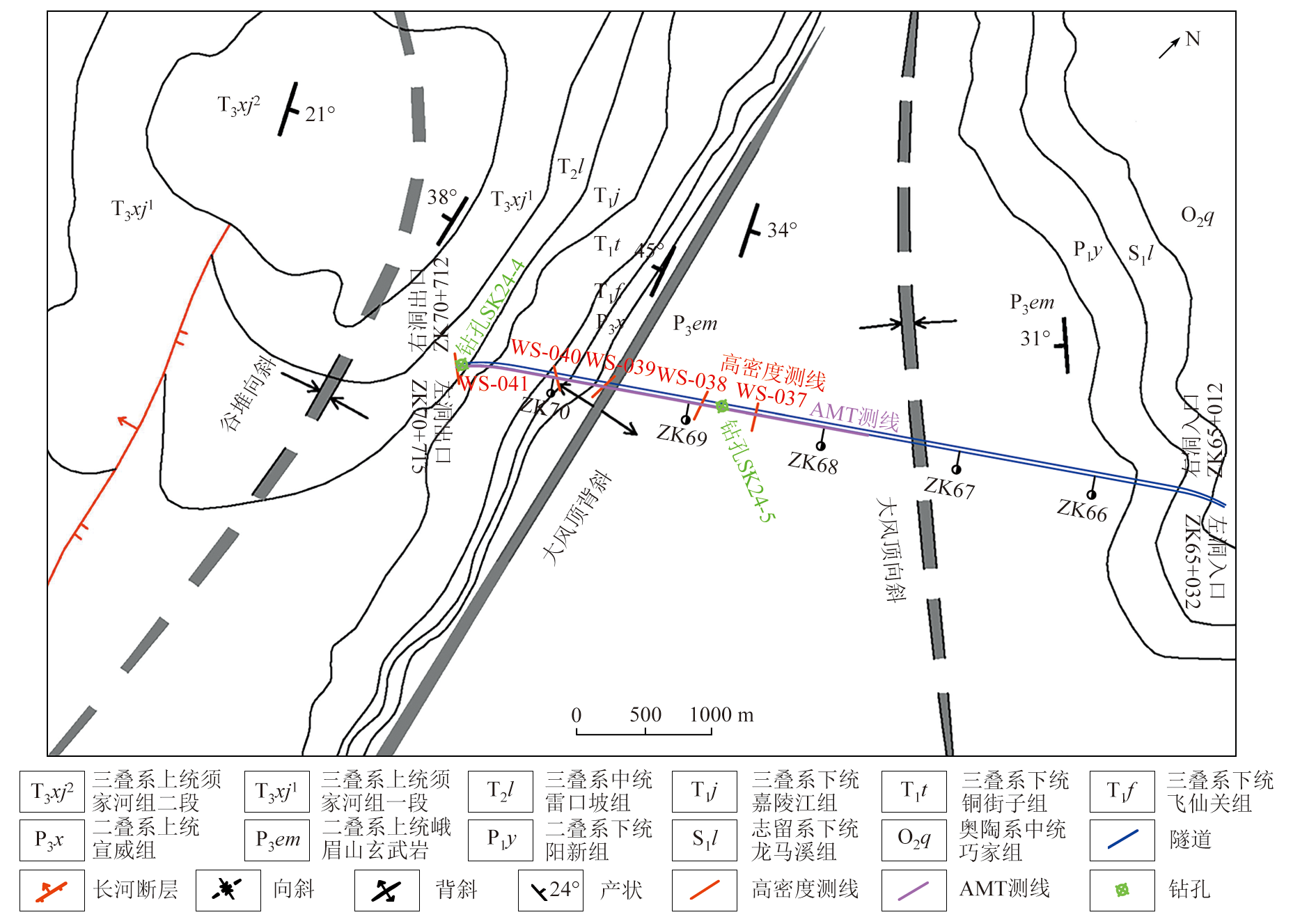

Fig.1  隧址区地质构造及物探测线示意
地质
背景		 推断解释 ρs/
(Ω·m)		 lg[ρs/
(Ω·m)]		 围岩
级别
碳酸盐岩地层 极破碎、富水溶洞 ≤50 ≤1.7 V
风化破碎、溶蚀发育区 50~2200 1.7~2.3 IV
弱风化带岩石 200~700 2.3~2.8 III
微风化、完整坚硬岩石 ≥700 ≥2.8 II
碎屑岩地层 极破碎、富水岩石 ≤50 ≤1.7 V
破碎、富水性强、强风化带 50~200 1.7~2.3 IV
较破碎、富水性中、弱风化带 200~500 2.3~2.7 III
富水性弱、微风化带 ≥500 ≥2.7 II
火山岩地层 岩石破碎、极软弱或
富水岩体		 ≤300 ≤2.5 V
破碎、软弱或含水岩体 300~1000 2.5~3 IV-V
较破碎、富水性中到弱 1000~2000 3~3.3 IV
岩体较完整、富水性弱 ≥2000 ≥3.3 III
Table 2  各岩类解释划分标准

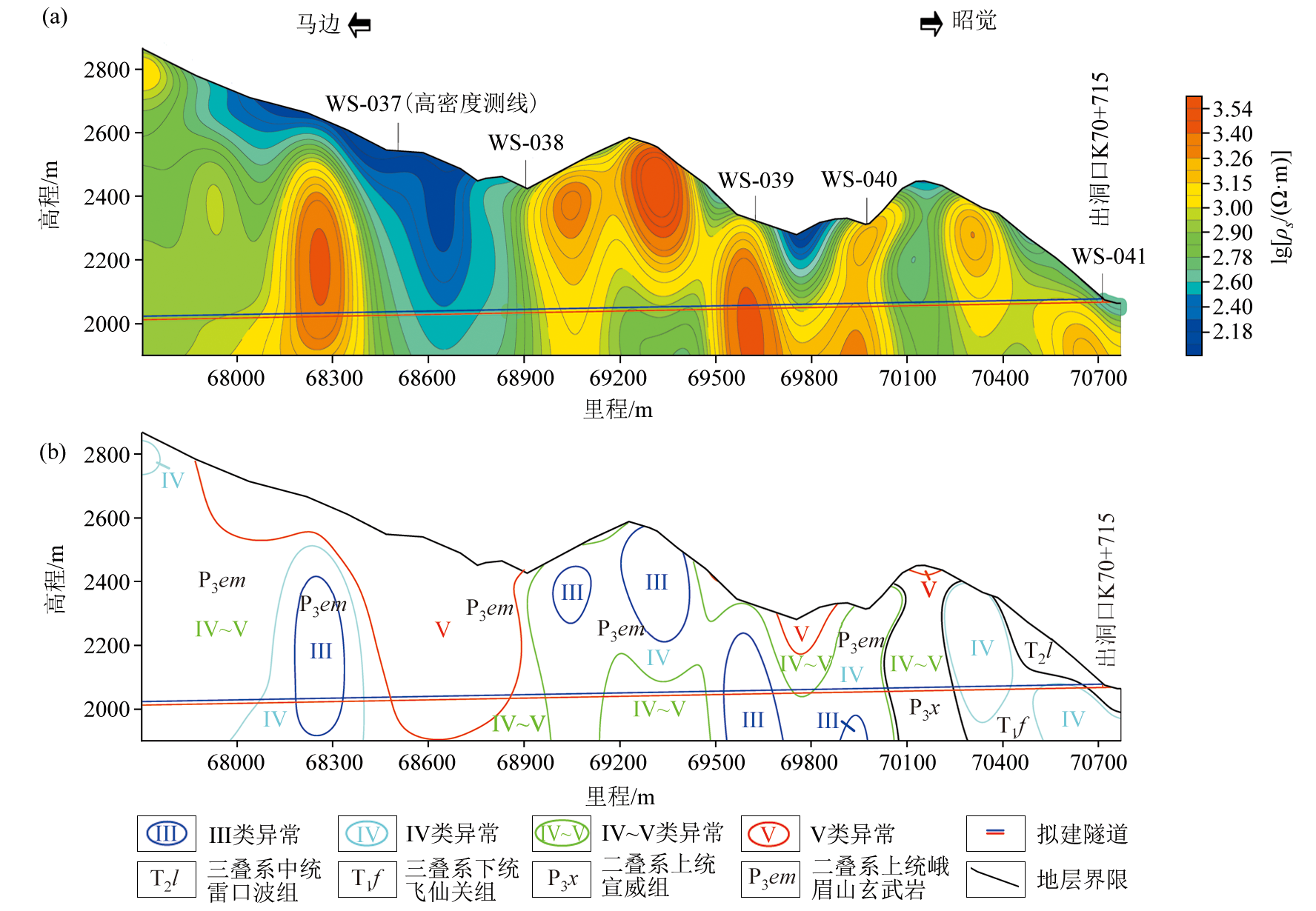

Fig.2  大风顶隧道左线AMT视电阻率断面(a)岩性异常分类剖面(b)

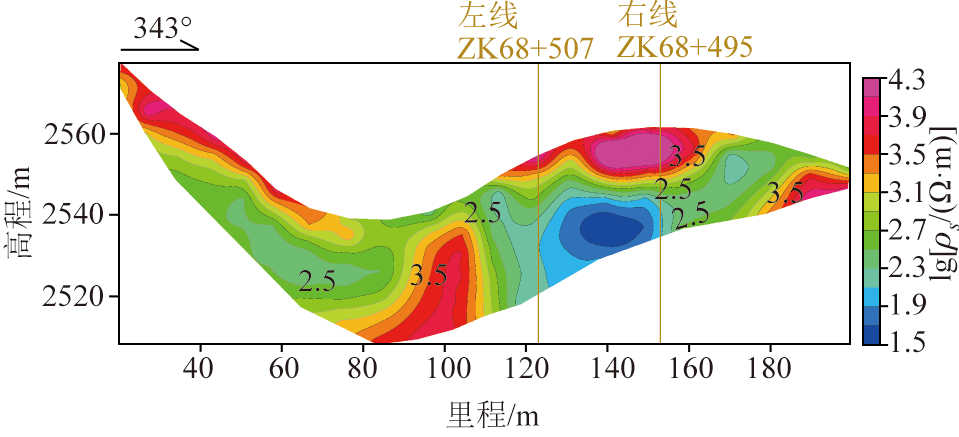

Fig.3  大风顶隧道左线ZK68+507处WS-037高密度电法视电阻率断面
Fig.4  大风顶隧道左线ZK68+907处WS-038高密度电法视电阻率断面

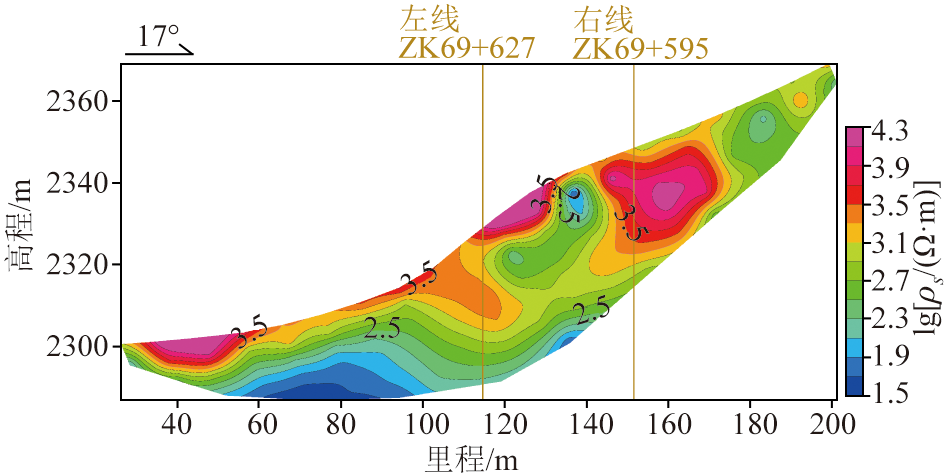

Fig.5  大风顶隧道左线ZK69+627处WS-039高密度电法视电阻率断面
Fig.6  大风顶隧道左线ZK69+977处WS-040高密度电法视电阻率断面

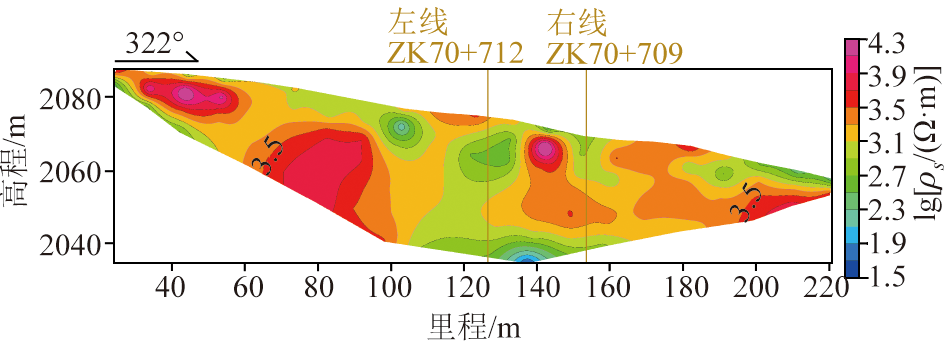

Fig.7  大风顶隧道左线ZK70+712处WS-041高密度电法视电阻率断面
