广域电磁法在辽东新房金矿深部勘查中的应用

doi:10.11720/wtyht.2025.1087

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (3847 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Xinfang gold deposit resides in the gold polymetallic ore concentration area in eastern Liaoning Province. Based on regional metallogenic patterns and existing exploration results, the southern part of the Yalu River fault zone, where the Xinfang gold deposit is located, shows significant potential for gold resources. As exploration progresses, more gold ore bodies are expected to be discovered in the gold deposit area. However, the lack of effective deep exploration techniques limits further exploration and exploitation in the area, failing to effectively reveal the extensions of lithological boundaries and the distributions of fault structures in the area. This study presented the first application of the wide-field electromagnetic method in the area. Based on the obtained results and geological engineering information, this study delineated the electrical layers within a depth of 3 km, determining the thickness of the Neoproterozoic cap rocks and inferring several fault zones. Combined with existing geological data, this study identified the low-resistivity anomaly zone at a depth of about 1 km as an extensional structural plane caused by ductile shearing. Overall, this study provides valuable geophysical data for establishing a geological prospecting model for eastern Liaoning Province, holding significant research value for geological and mineral exploration in the area.

Key words： wide-field electromagnetic method gold deposit deep exploration low-resistivity anomaly

Received: 11 March 2024 Published: 23 October 2025

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei-Tian LIANG
	Jia-Xin FENG
	Di-Quan LI
	Jun ZHENG

Cite this article:

Wei-Tian LIANG,Jia-Xin FENG,Di-Quan LI, et al. Application of the wide-field electromagnetic method in the deep exploration of the Xinfang gold deposit,eastern Liaoning Province[J]. Geophysical and Geochemical Exploration, 2025, 49(5): 1061-1069.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2025.1087 OR https://www.wutanyuhuatan.com/EN/Y2025/V49/I5/1061

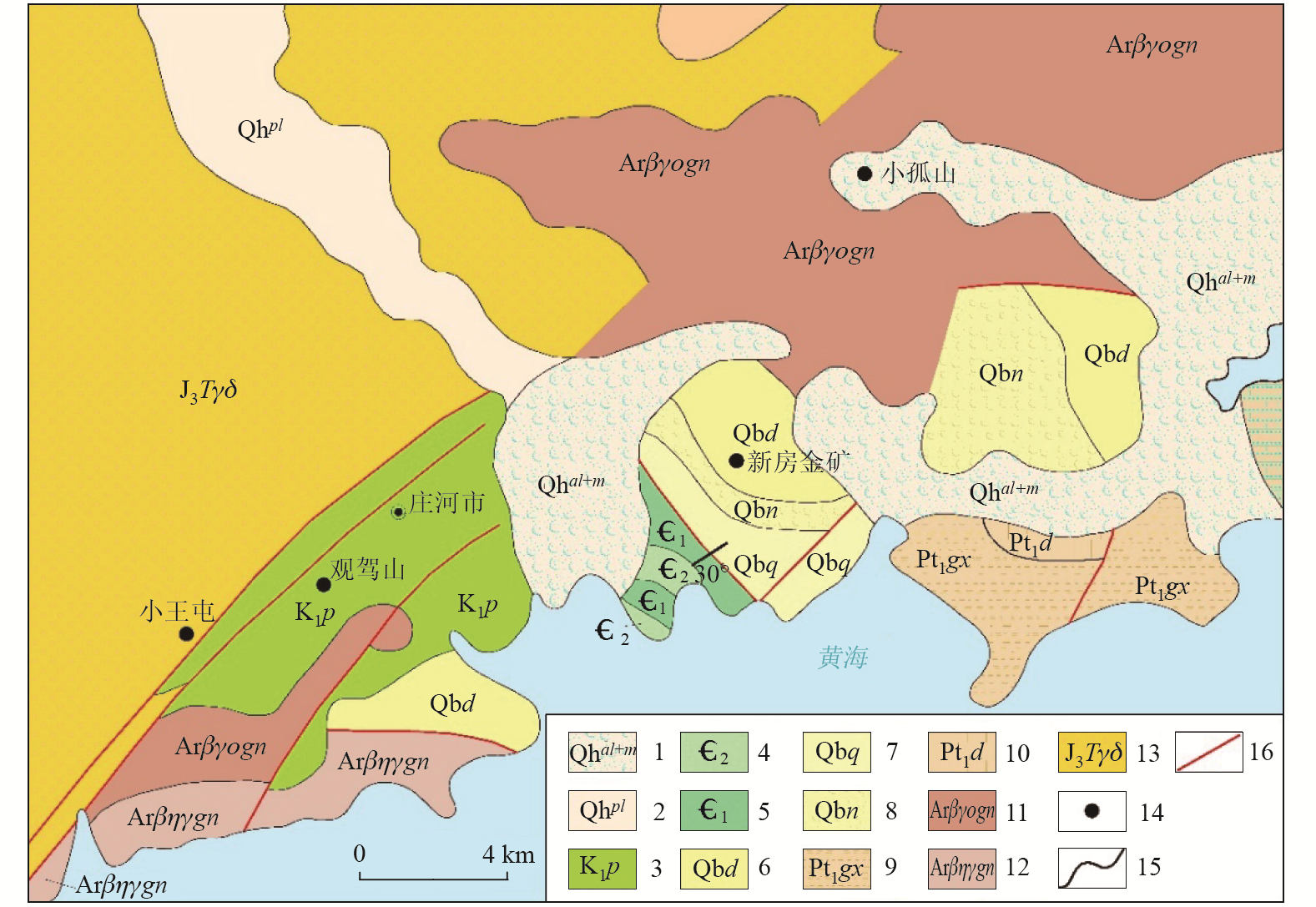

Schematic diagram of geological formations of Xinfang Gold Mine in Liaodong
1—Quaternary alluvial and marine deposits; 2—Quaternary pluvial deposits; 3—Pulandian Formation of Cretaceous; 4—Cambrian middle series; 5—Cambrian lower series; 6—Neoproterozoic Qingbaikou System Diaoyutai Formation; 7—Qingbaikou System Qiaotou Formation of Neoproterozoic; 8—Qingbaikou System Nanfen Formation of Neoproterozoic; 9—Gaixian Formation of Paleoproterozoic; 10—Dashiqiao Formation of Paleoproterozoic; 11—Archean biotite plagioclase gneiss; 12—Archean biotite monzonite gneiss; 13—late Jurassic Taipingling unit granodiorite; 14—metal ore occurrence; 15—geological boundary; 16—fracture tectonic zone

Physical property statistics

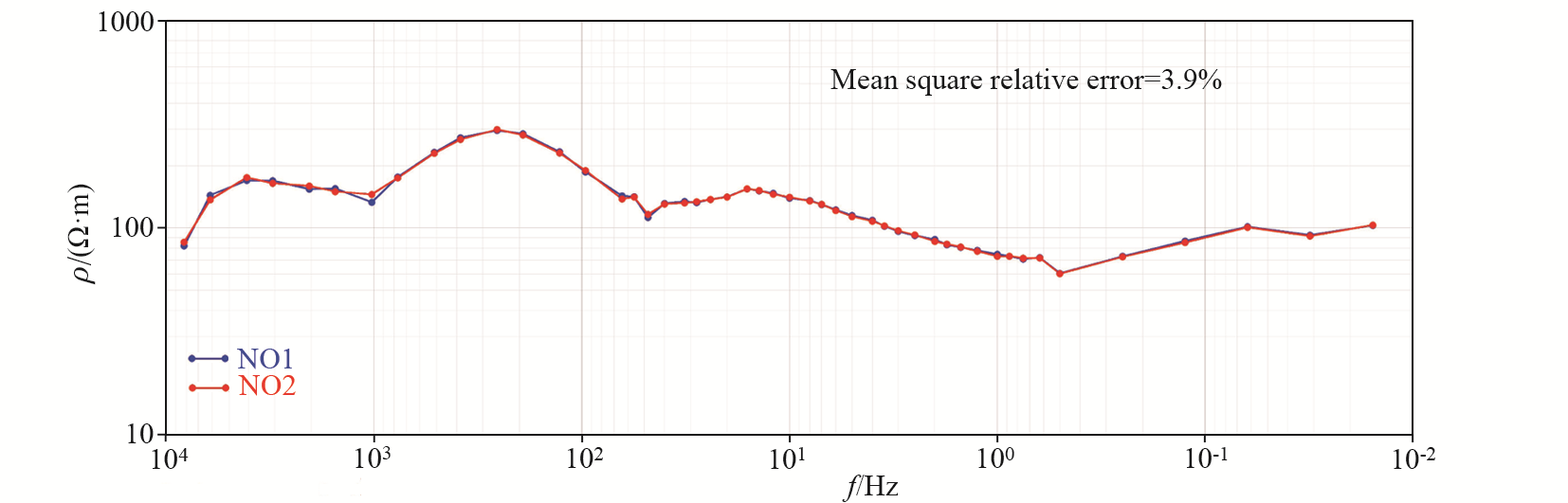

Instrument consistency comparison graph

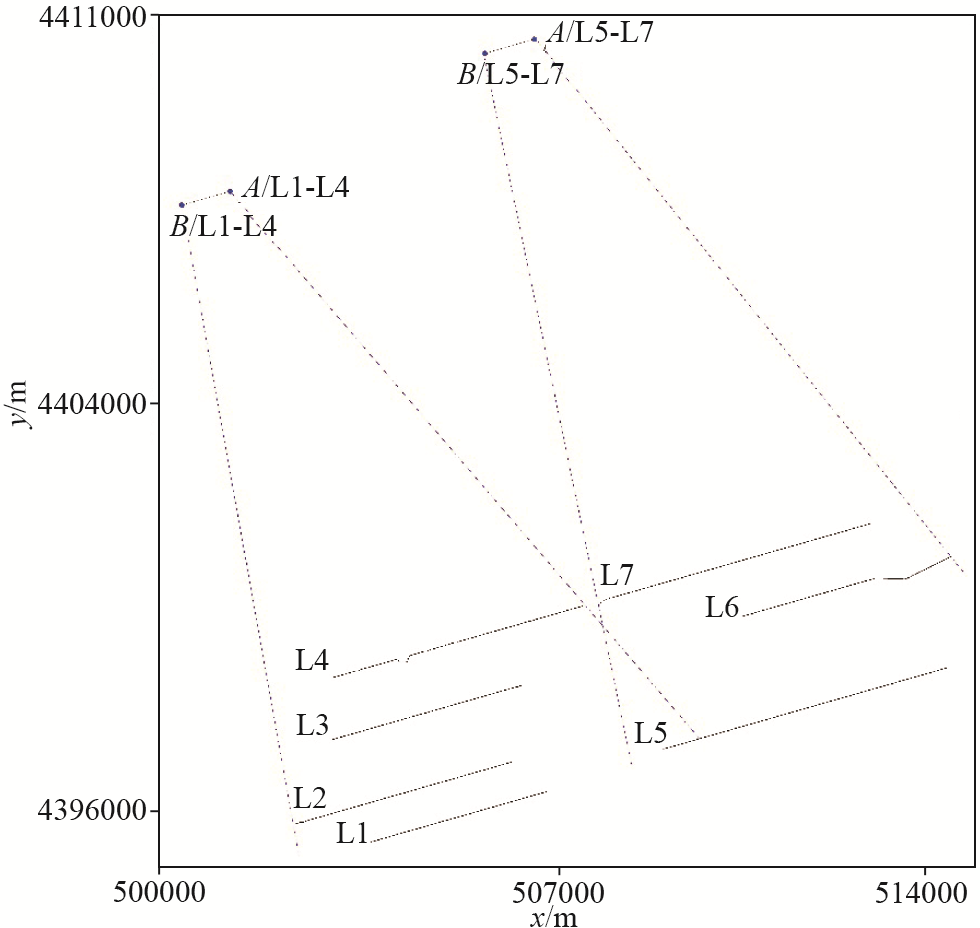

Wide field section deployment diagram

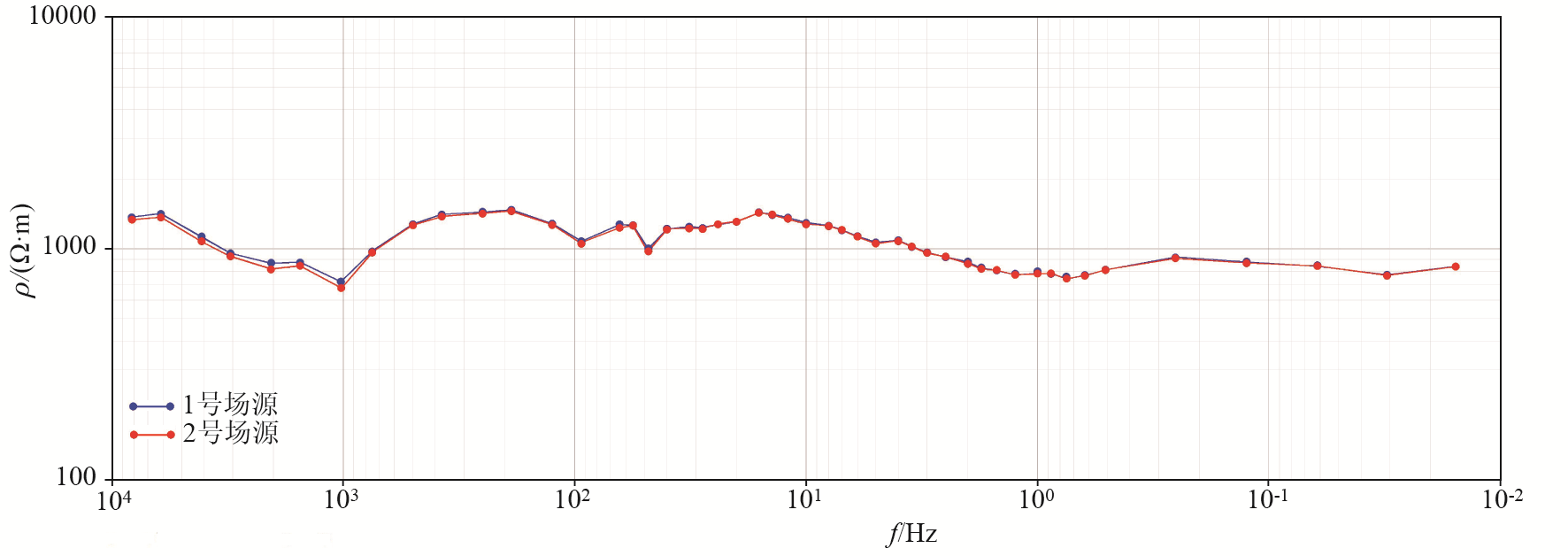

Comparison of original curves at point 10 of L5 with different field sources

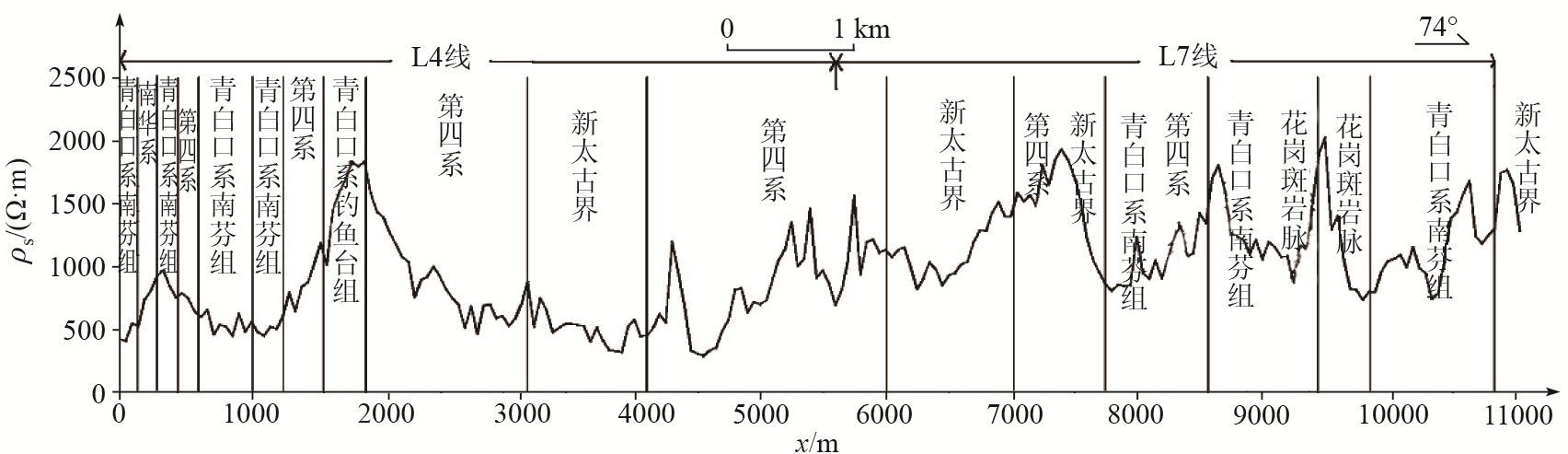

The first statistical curve of apparent resistivity

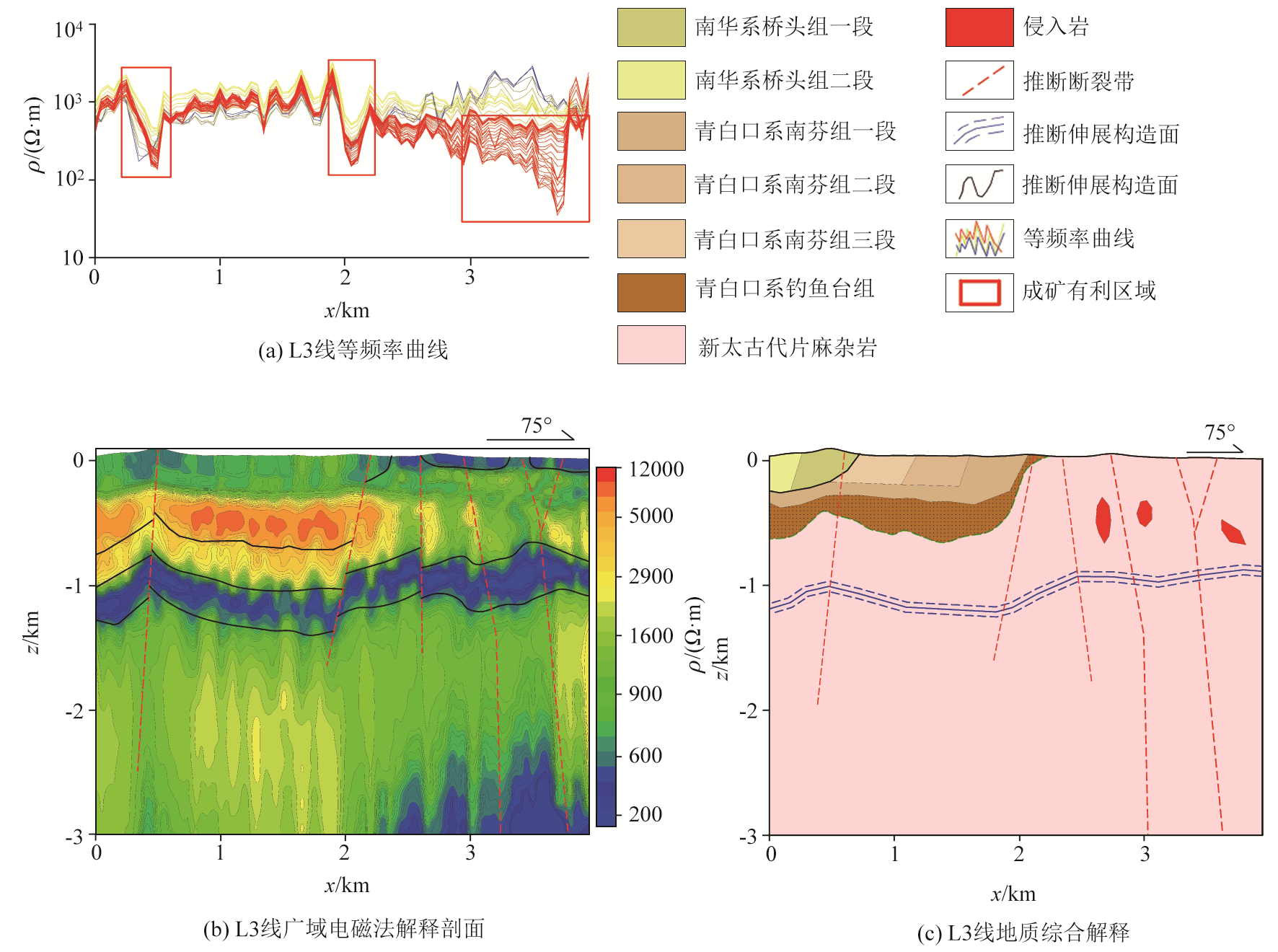

L3 wide field comprehensive interpretation diagram

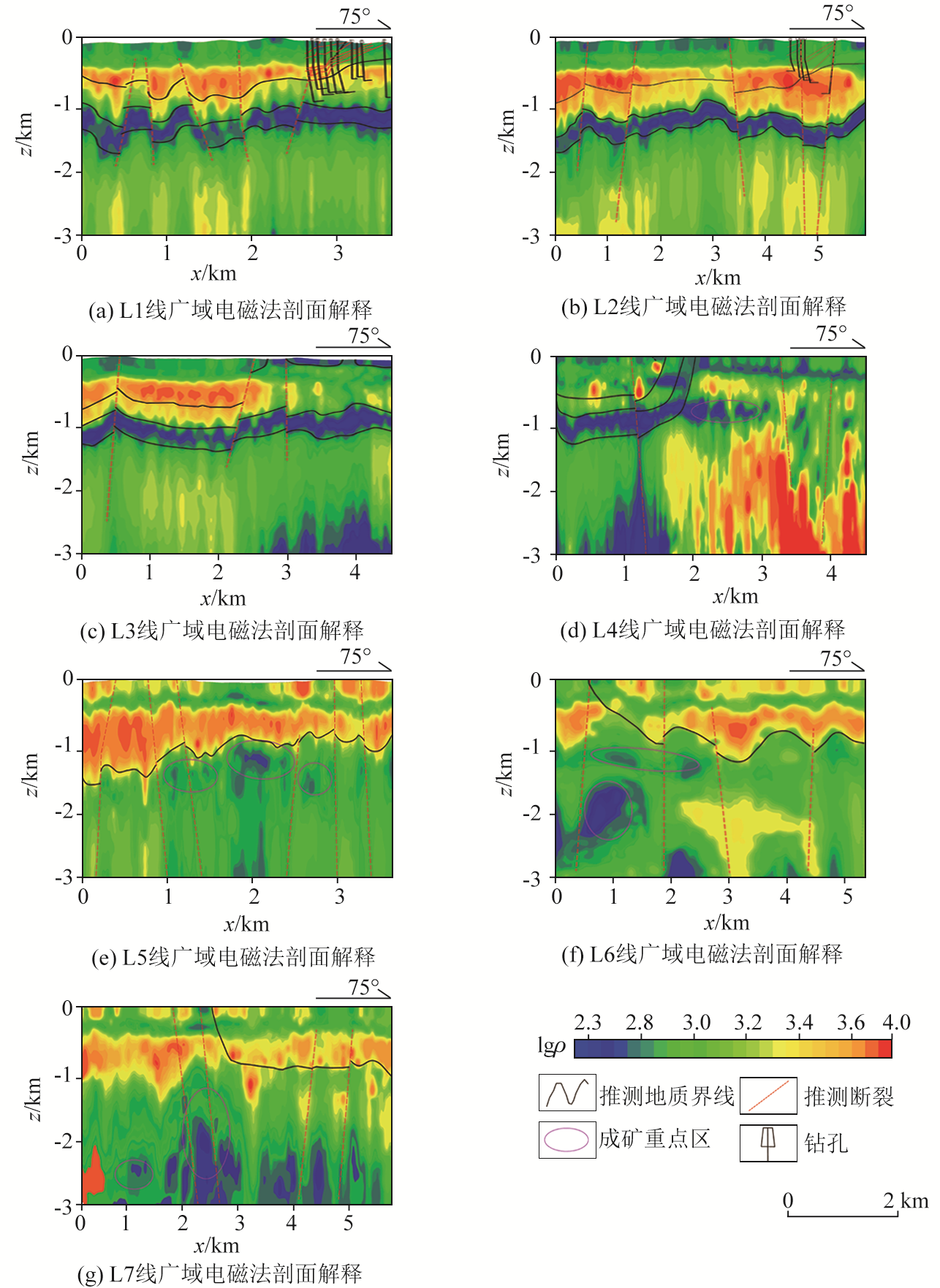

Comprehensive interpretation map of WFEM

Interpretation plan of wide field section fault structure

[1]	李浩, 韩吉龙, 王功文, 等. 辽东矿集区大东沟金矿床成矿时代和成因: 地质、年代学、地球化学和同位素制约[J]. 岩石学报, 2024, 40(10):3191-3213.
[1]	Li H, Han J L, Wang G W, et al. Age and genesis of the Dadonggou gold deposit in the Liaodong mining district:Evidences from geology,chronology,geochemistry and isotope[J]. Acta Petrologica Sinica, 2024, 40(10):3191-3213.
[2]	梁维天, 李帝铨, 孙新胜, 等. 辽东郑屯地区基于广域电磁法的深孔验证[J]. 物探与化探, 2024, 48(3):675-683.
[2]	Liang W T, Li D Q, Sun X S, et al. Deep-hole verification of wide-field electromagnetic method-derived results in the Zhengtun area of the Liaodong region[J]. Geophysical and Geochemical Exploration, 2024, 48(3):675-683.
[3]	王兴春, 邱海城, 李建平, 等. 辽东半岛五龙金矿外围电性特征及找矿意义[J]. 黄金科学技术, 2024, 32(1):1-12.
[3]	Wang X C, Qiu H C, Li J P, et al. Peripheral electrical characteristics and its prospecting significance of Wulong gold deposit in eastern Liaoning Peninsula[J]. Gold Science and Technology, 2024, 32(1):1-12.
[4]	朱日祥, 杨进辉, 王功文, 等. 辽东地区金矿床成因与资源潜力[J]. 中国科学:地球科学, 2024, 54(3):677-692.
[4]	Zhu R X, Yang J H, Wang G W, et al. The genesis and resource potential of gold deposits in the Liaodong Peninsula[J]. Scientia Sinica:Terrae, 2024, 54(3):677-692.
[5]	杨中柱, 孟庆成. 辽南变质核杂岩构造[J]. 辽宁地质, 1996(4):241-250.
[5]	Yang Z Z, Meng Q C. The metamorphic core-complex structre in south Liaoning[J]. Land & Resources, 1996(4):241-250.
[6]	朱志澄. 变质核杂岩和伸展构造研究述评[J]. 地质科技情报, 1994, 13(3):1-9.
[6]	Zhu Z C. Review on metamorphic core complex and extensional tectonics[J]. Bulletin of Geological Science and Technology, 1994, 13(3):1-9.
[7]	王文清, 曲亚军. 辽东古元古宙金矿地质特征及成矿模式[J]. 辽宁地质, 2000, 17(3):161-172.
[7]	Wang W Q, Qu Y J. Geological characteristics and metallogenic models of gold deposits of Paleoproterozoic in east Liaoning Province[J]. Liaoning Geology, 2000, 17(3):161-172.
[8]	张秋生. 辽东半岛早期地壳与矿床[M]. 北京: 地质出版社,1988.
[8]	Zhang Q S. Early crust and mineral deposits of Liaodong Peninsula,China[M]. Beijing: Geological Publishing House,1988.
[9]	曾庆栋, 陈仁义, 杨进辉, 等. 辽东地区金矿床类型、成矿特征及找矿潜力[J]. 岩石学报, 2019, 35(7):1939-1963.
[9]	Zeng Q D, Chen R Y, Yang J H, et al. The metallogenic characteristics and exploring ore potential of the gold deposits in eastern Liaoning Province[J]. Acta Petrologica Sinica, 2019, 35(7):1939-1963.
[10]	解洪晶, 王玉往, 李德东, 等. 辽东青城子矿集区双顶沟岩体年代学及地球化学研究[J]. 地质学报, 2018, 92(6):1264-1279.
[10]	Xie H J, Wang Y W, Li D D, et al. Geochronology and geochemistry study of the shuangdinggou intrusion in the qingchengzi ore concentration area,eastern Liaoning Province[J]. Acta Geologica Sinica, 2018, 92(6):1264-1279.
[11]	杨凤超, 宋运红, 张朋, 等. 辽宁青城子矿集区金银矿成矿流体特征和成矿物质来源示踪[J]. 地质学报, 2016, 90(10):2775-2785.
[11]	Yang F C, Song Y H, Zhang P, et al. Forming fluid characteristics and tracing of ore-forming source materials of gold-silver deposit in the Qingchengzi ore concentration area[J]. Acta Geologica Sinica, 2016, 90(10):2775-2785.
[12]	陈荣度, 李显东, 张福生. 对辽东古元古代地质若干问题的讨论[J]. 中国地质, 200, 30(2):207-21.
[12]	Chen R D, Li X D, Zhang F S. Discussion on some problems of Paleoproterozoic geology in eastern Liaoning[J]. Geology of China, 200, 30 (2):207-21.
[13]	单学东, 李显东, 战丽华, 等. 辽东永宁组(群)沉积特征[J]. 辽宁地质, 1999, 16(1):29-34.
[13]	Shan X D, Li X D, Zhan L H, et al. Sedimentary characteristics of Yongning formation(group)[J]. Land & Resources, 1999, 16(1):29-34.
[14]	何继善. 广域电磁测深法研究[J]. 中南大学学报:自然科学版, 2010, 41(3):1065-1072.
[14]	He J S. Wide field electromagnetic sounding methods[J]. Journal of Central South University:Science and Technology Edition, 2010, 41(3):1065-1072.
[15]	何继善. 广域电磁法和伪随机信号电法[M]. 北京: 高等教育出版社, 2010.
[15]	He J S. Wide-area electromagnetic method and pseudo-random signal electrical method[M]. Beijing: Higher Education Press, 2010.
[16]	何继善. 深部矿产资源探测中电磁方法的若干进展[J]. 贵州地质, 201, 30(1):1-8.
[16]	He J S. Some advances of electromagnetic methods in deep mineral resources exploration[J]. Guizhou Geology, 201, 30 (1):1-8.
[17]	汤井田, 任政勇, 周聪, 等. 浅部频率域电磁勘探方法综述[J]. 地球物理学报, 2015, 58(8):2681-2705.
[17]	Tang J T, Ren Z Y, Zhou C, et al. Frequency-domain electromagnetic methods for exploration of the shallow subsurface:A review[J]. Chinese Journal of Geophysics, 2015, 58(8):2681-2705.
[18]	朱裕振, 许聪悦. 广域电磁法深部找矿实验效果[J]. 物探与化探, 2011, 35(6):743-746.
[18]	Zhu Y Z, Xu C Y. The experimental application of wider field electromagnetic method to the prospectiang for deep ore deposits[J]. Geophysical and Geochemical Exploration, 2011, 35(6):743-746.
[19]	邓锋华, 杨洋, 李帝铨. 广域电磁法在隐伏金矿中的应用[J]. 工程地球物理学报, 201, 10(3):357-36.
[19]	Deng F H, Yang Y, Li D Q. The application of wide-field electromagnetic method to hidden gold deposit[J]. Chinese Journal of Engineering Geophysics, 201, 10(3):357-36.
[20]	梁维天, 李勇, 王东波, 等. 辽东南金属矿勘查中广域电磁法应用效果[J]. 物探与化探, 2020, 44(5):1078-1084.
[20]	Liang W T, Li Y, Wang D B, et al. The application effect of WFEM in the exploration of metal deposits in the southeast of Liaoning Province[J]. Geophysical and Geochemical Exploration, 2020, 44(5):1078-1084.
