基于C#的Aether大地电磁系统原始数据文件读写及应用

doi:10.11720/wtyht.2025.1052

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (5028 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Based on the analysis of the data files from the MTU series instruments, this study explored the data files from the Aether magnetotelluric system. The C# programming language was employed to write a program to decode the original time series A24 files, magnetic probe calibration apial files, and standard time series atts files, completing the development of time series split, read/write, and display modules, probe file read/write and display modules, and Fourier transform and Fourier coefficient display modules. Finally, the applicability of the program used in this study was tested by comparing the above modules with the relevant modules in the prMT processing software. The operability of the program was tested using actual field data. Overall, this study provides a certain basis and reference for delving into power spectrum estimation and interference signal processing.

Key words： magnetotelluric Aether data format C#

Received: 20 February 2024 Published: 23 October 2025

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jing-Long HE
	Shao-Lei KOU
	Cheng LIU
	Han LI
	Kai YANG

Cite this article:

Jing-Long HE,Shao-Lei KOU,Cheng LIU, et al. Reading, writing, and application of raw data files from the Aether magnetotelluric system based on the C# programming language[J]. Geophysical and Geochemical Exploration, 2025, 49(5): 1201-1211.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2025.1052 OR https://www.wutanyuhuatan.com/EN/Y2025/V49/I5/1201

Data header byte allocation table of A24 file

Data header byte allocation table of atts file

Data header byte allocation table of apial file

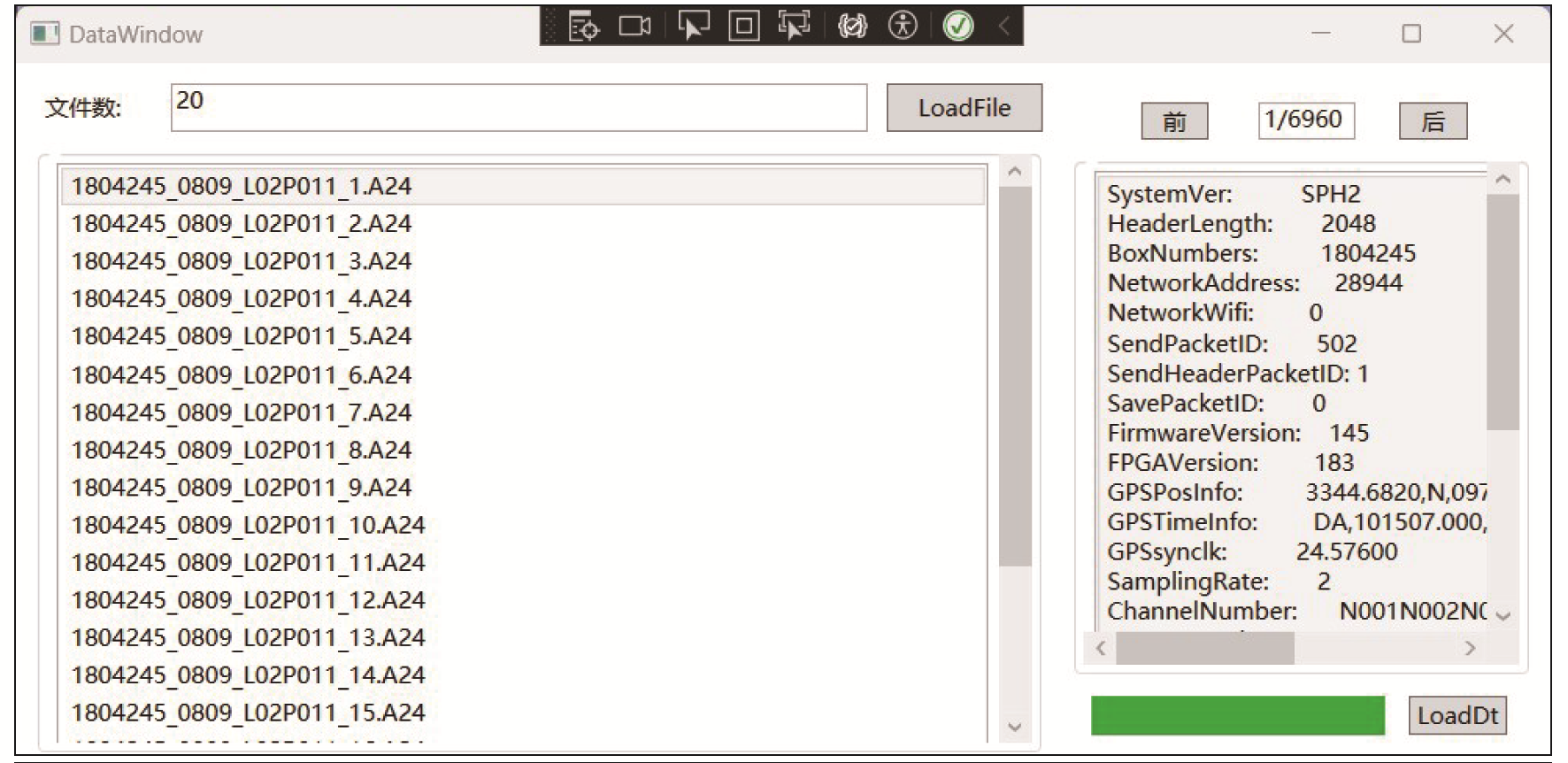

UI diagram of time series data reading and writing module

UI diagram of time series editing module

UI diagram of probe calibration file analysis module

Comparison of data header information of L02P011 using prMT module (a) and DataWindow module (b)

Comparison of FFT of L01P011 using prMT module (a) and attsWindow module (b)

Comparison of time series display

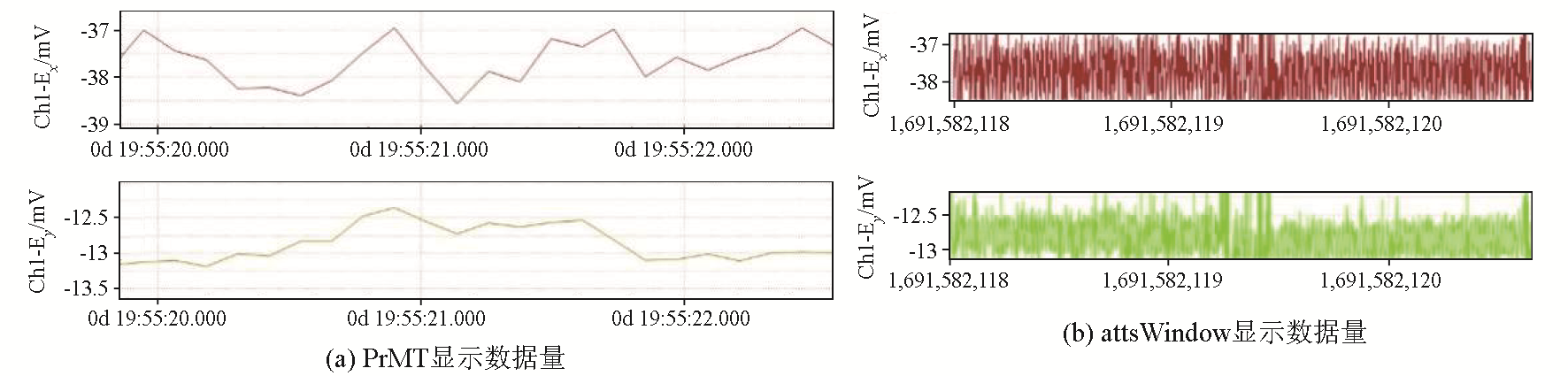

Comparison of data volume display
