雄安新区浅地表地质—地球物理三维可视化建模

doi:10.11720/wtyht.2025.0101

Abstract
Figure/Table
References
Related Citation (7)

Download: PDF (5671 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The construction of three-dimensional visualization models in key urban areas is important for multidisciplinary data integration and intuitive presentation of spatial stratigraphic distribution.However,existing models face limitations in integrated geological-geophysical interpretation and concrete visualization of results.In response to this,this study established a 3D visualization model based on comprehensive geophysical data,specifically including a 3D structural model and a 3D velocity model for the Xiong'an core area down to 5 km depth.It revealed the correspondence between the 3D S-wave velocity distribution and the spatial morphology of strata,and validated the structural framework of alternating uplifts and depressions.To be specific,within the depth range of 0~1 km,the lateral homogeneity of S-wave velocity reflects the stable sedimentary characteristics of Quaternary and Neogene strata.Between 1 km and 2.2 km,the velocity zoning is unclear,primarily due to fracture development in the Jixianian geothermal reservoir,which leads to a reduction in S-wave velocity.Below 2.2 km,the significant velocity contrast between the Xushui Depression and the Rongcheng Uplift is mainly attributed to lithological differences and unconformable contacts.The construction of the 3D velocity model helps overcome the limitations of sparse geological data and reveals the subsurface 3D structures in the Xiong'an core area from a physical property perspective.

Key words： 3D modeling 3D S-wave velocity model Xiong'an New Area geophysical data SKUA-GOCAD

Received: 14 April 2025 Published: 30 December 2025

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Shuai-Peng ZHU
	Yong QIU
	Zhi-Ping XU
	Qiao-Xia LIU
	Ji-Yan LIN
	Yong-Hong DUAN
	Ju-Hong LI

Cite this article:

Shuai-Peng ZHU,Yong QIU,Zhi-Ping XU, et al. 3D visualization modeling of shallow-surface geological and geophysical data in Xiong'an New Area[J]. Geophysical and Geochemical Exploration, 2025, 49(6): 1333-1342.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2025.0101 OR https://www.wutanyuhuatan.com/EN/Y2025/V49/I6/1333

Geotectonic map of Xiong'an New Area

List of sources of modelling data

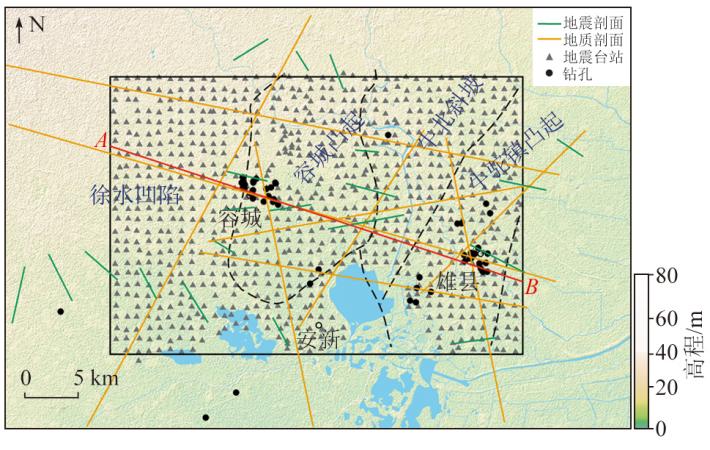

Map of data distribution in the study area

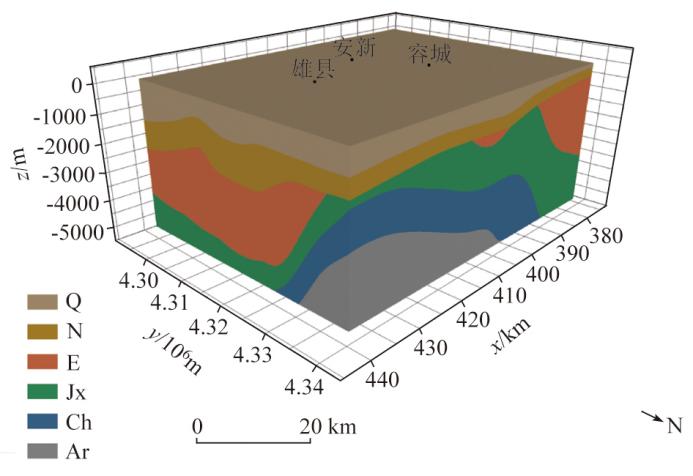

3D geological body model of Xiong'an core area

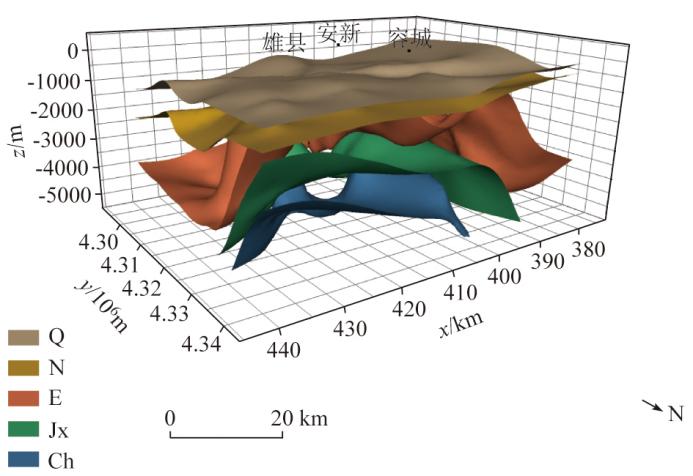

3D geological bottom interface model of Xiong'an core area

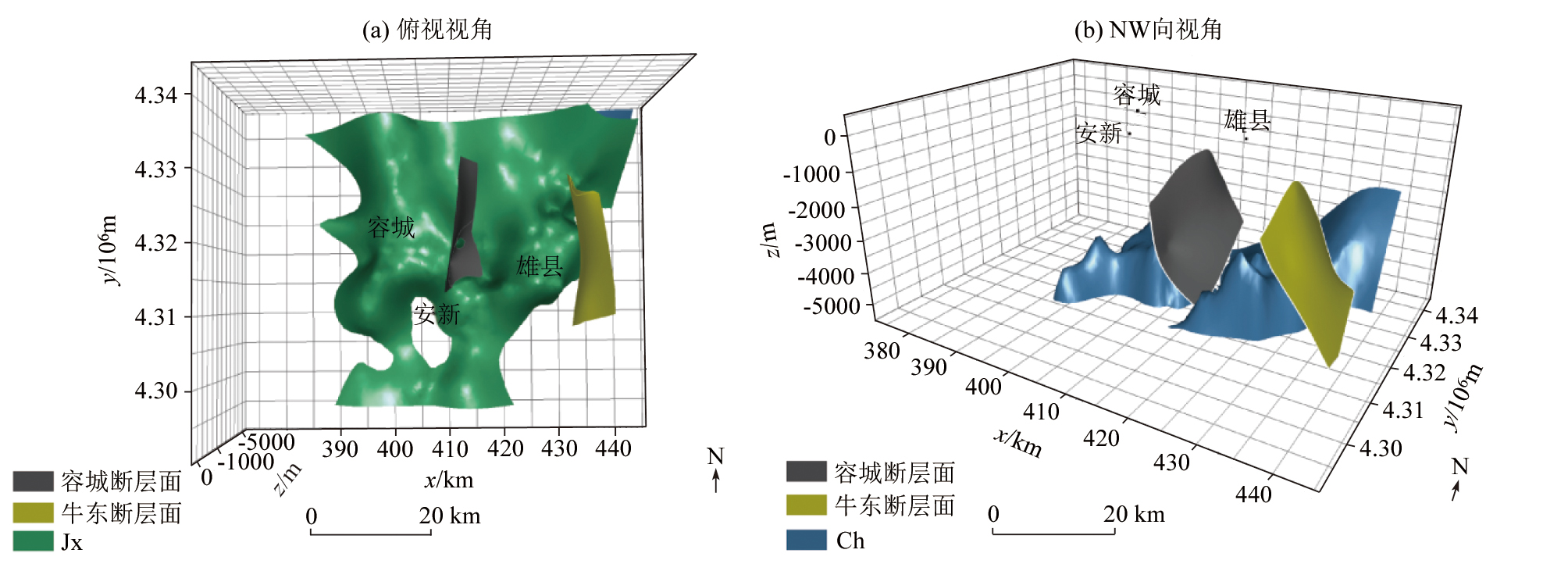

3D geological bottom interfaces and fault surfaces in Xiong'an core area

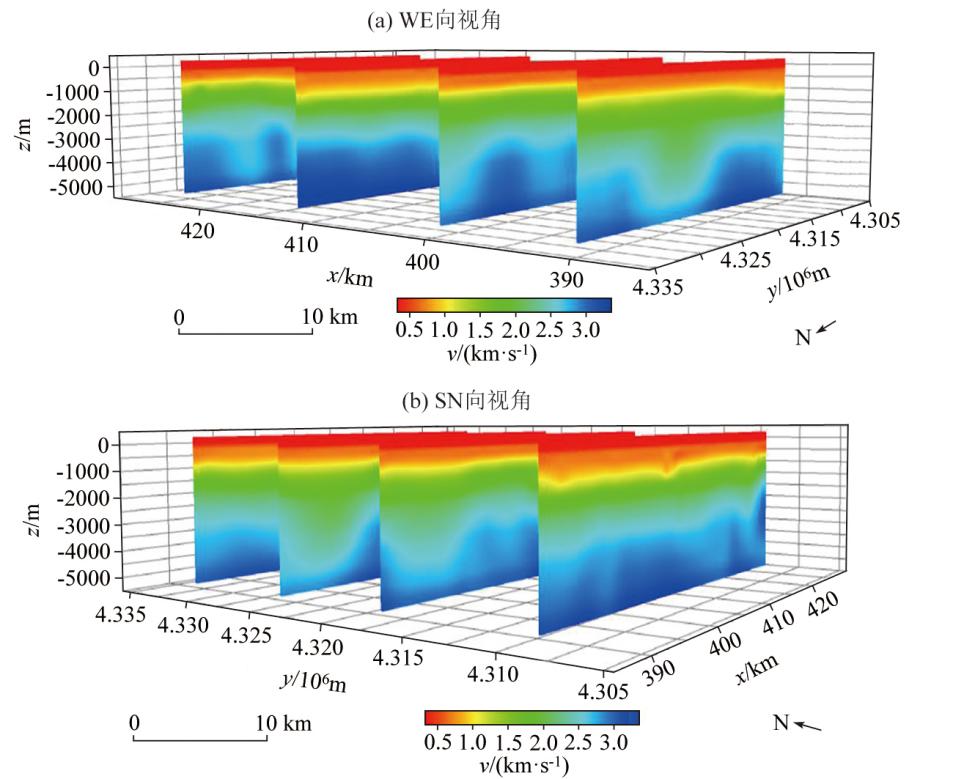

Longitudinal slices of a 3D velocity structure model of Xiong'an core area

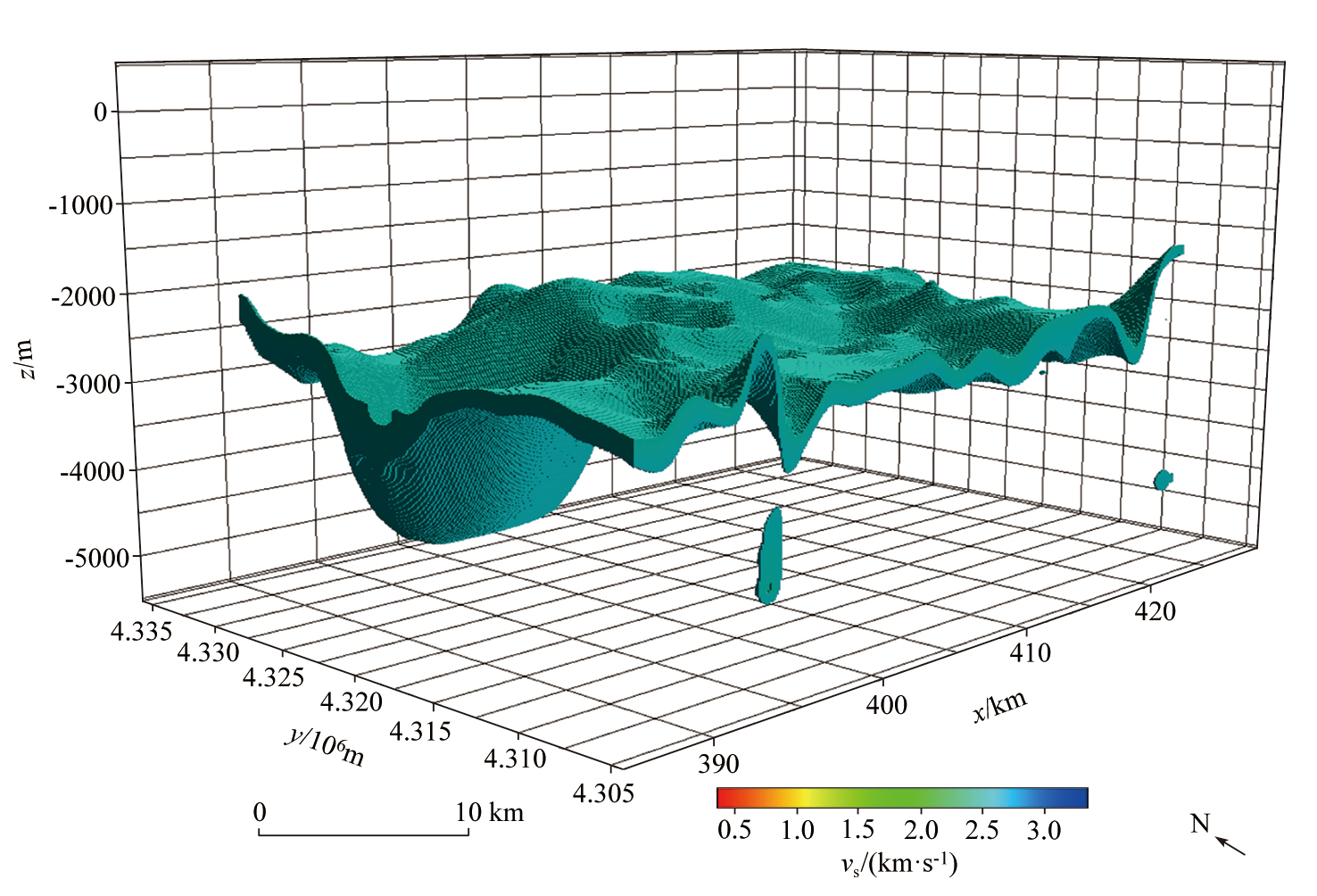

3D S-wave velocity extraction(2.5 km/s≤v_s≤2.6 km/s)

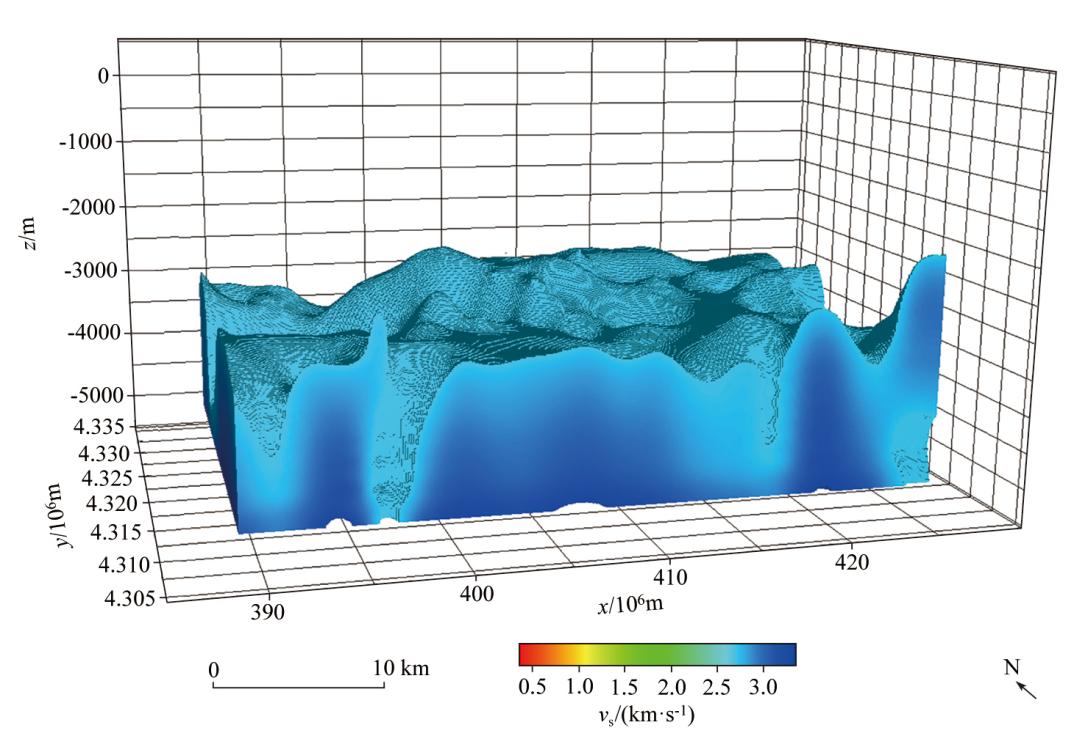

3D S-wave velocity extraction(2.7 km/s≤v_s≤3.3 km/s)

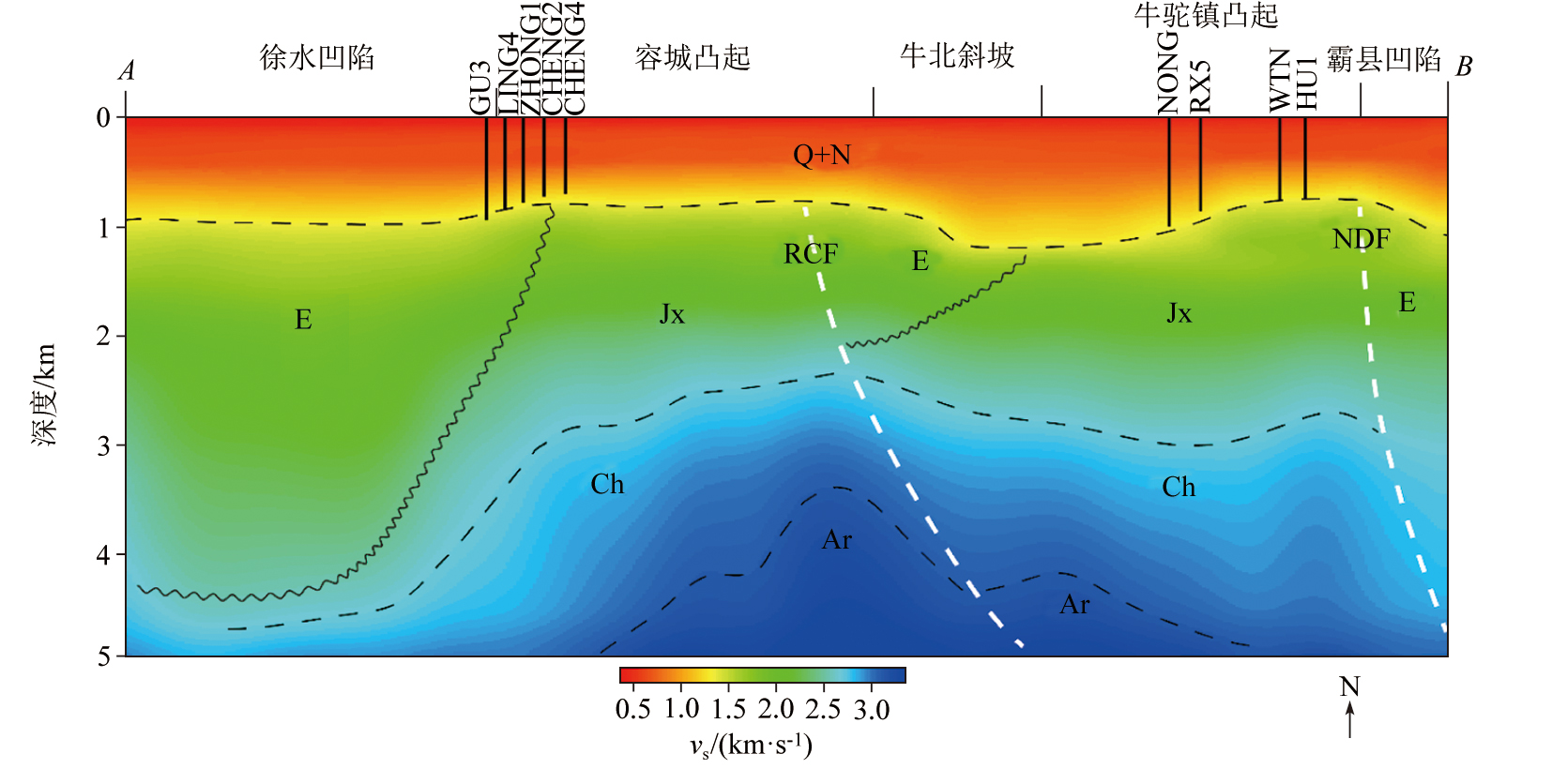

East-west vertical slices of the 3D velocity structure model of Xiong'an core area

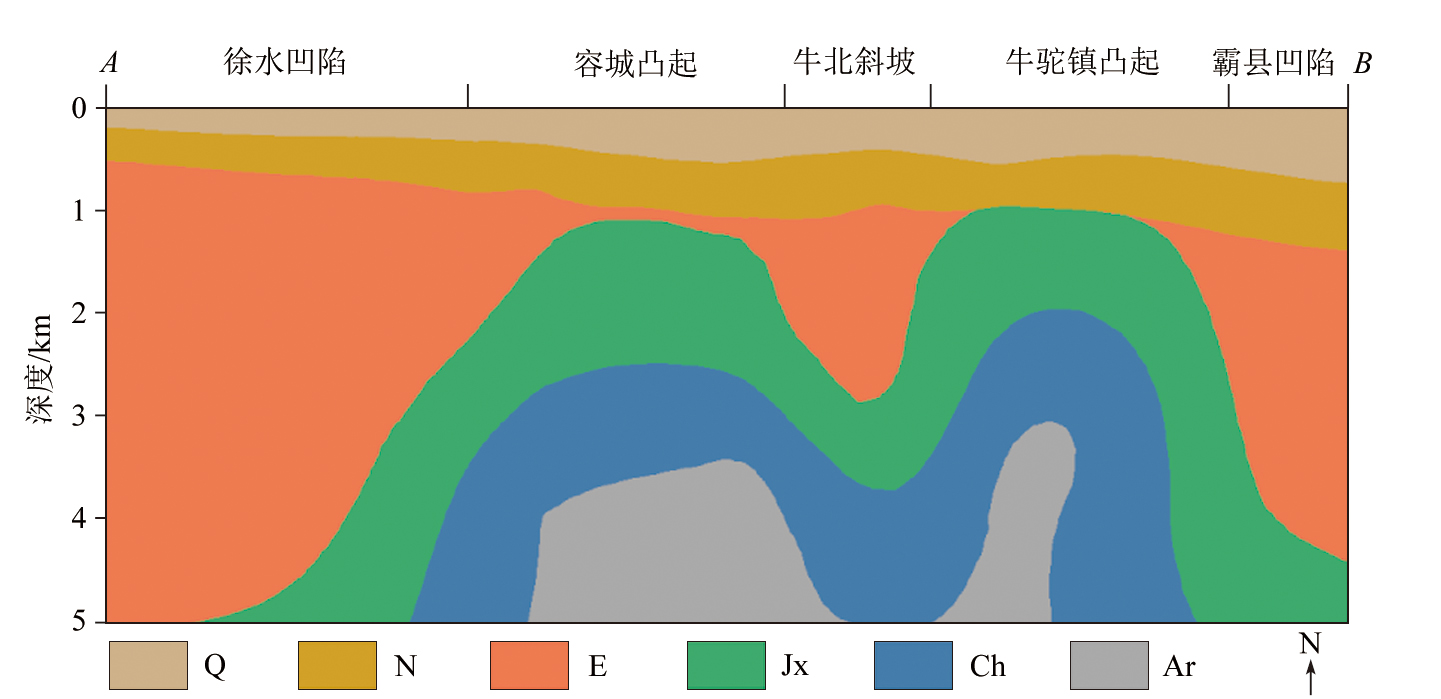

East-west vertical slices of the 3D geological body model of Xiong'an core area
