光纤旋转地震仪的主、被动源观测实验与应用

doi:10.11720/wtyht.2024.0142

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (9597 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In the past two decades, high-sensitivity ring laser gyroscopes have demonstrated the potential of rotational observation data in global seismology. Commercial fiber-optic three-component rotational seismometers have heralded a new development phase of rotational seismography. Field experiments for high-sensitivity portable fiber-optic rotational seismometers in China remain in the initial stage, whereas their relevant data analysis results have been obtained internationally. This study elucidated the co-located observation experiments on six components (6C, including three components of translational motions and three components of rotational motions) of an active source and a natural earthquake, involving experimental schemes, implementation steps, and subsequent data analysis. Moreover, this study revealed the primary factors influencing the experiment results by comparatively analyzing the similarities and differences of experiments. Fiber-optic rotational and conventional seismometers need to be fixed on the same rigid panel to ensure the consistency of received signals. Besides, proper ground coupling and burial processing contribute to high-quality experimental data. The experimental results indicate that water bodies will affect surface wave manifestation and P-wave clarity. These findings, enriching the practical experience in seismic rotational observation experiments, serve as a reference for the design of subsequent rotational observation experiments, thereby assisting in completing the experiments and obtaining higher-quality data. In terms of data application, this study optimized and substantiated the feasibility of the preprocessing scheme, with the backazimuth calculation accuracy improved by 58.8° and 50° at the two active-source measuring points, and by 24.1° and 29.4° at the two passive-source measuring points. The application of six-component seismic data from a single seismic station suggests that additional observation of rotational components can acquire more seismic wavefield information, thus the observation of rotational components can be employed to enhance the utilization of China's massive seismic observation data. Overall, fiber-optic rotational seismometers broaden the boundary of seismic monitoring technology, boost seismology research, and create new possibilities for future earthquake research.

Key words： fiber-optic rotational seismometer methane-based active source experiment seismological observation backazimuth calculation

Received: 01 April 2024 Published: 08 January 2025

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yu-Jia CAO
	Yan-Jun CHEN
	Zheng-Bin LI
	Yun-Tian TENG
	Ding-Fan ZHANG

Cite this article:

Yu-Jia CAO,Yan-Jun CHEN,Zheng-Bin LI, et al. Active/passive source-based observation experiments and applications of fiber-optic rotational seismometers[J]. Geophysical and Geochemical Exploration, 2024, 48(6): 1486-1497.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.0142 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I6/1486

22]; c—coordinate system and nomenclature for rotational components
">

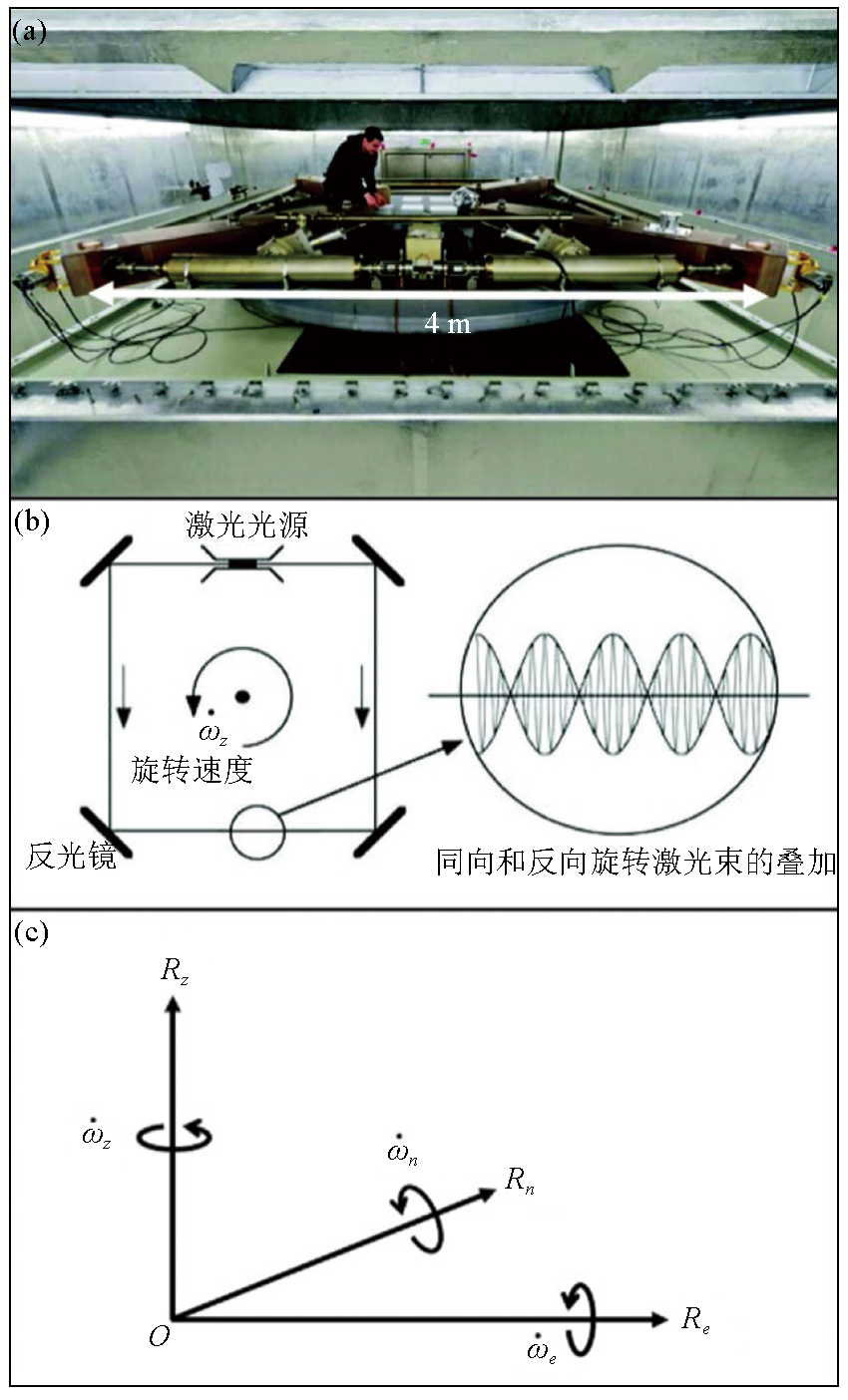

Schematic diagram of the laster gyroscope
a—ring laser gyroscope G-ring; b—Sagnac effect^[22]; c—coordinate system and nomenclature for rotational components

指标名称	性能数值
灵敏度/(rad·s^-1/ $H z$ )	2×10^-8
频段/Hz	0.01~125
采样率/Hz	250~400
最大角速率/(rad·s^-1)	5
动态范围/dB	160
工作温度/℃	-40~70
尺寸/(mm×mm×mm)	200×200×200
质量/kg	4

The DP-Rots-3C performance parameters

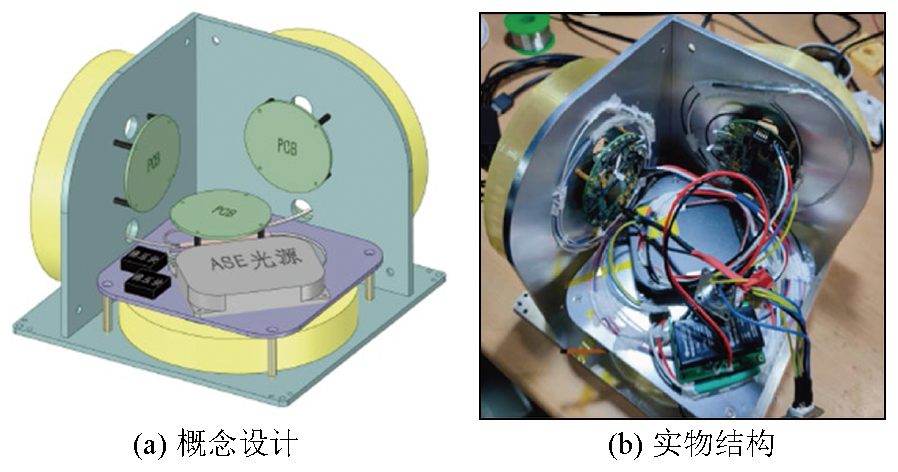

The internal architecture of the portable three-component rotational seismometer DP-Rots-3C

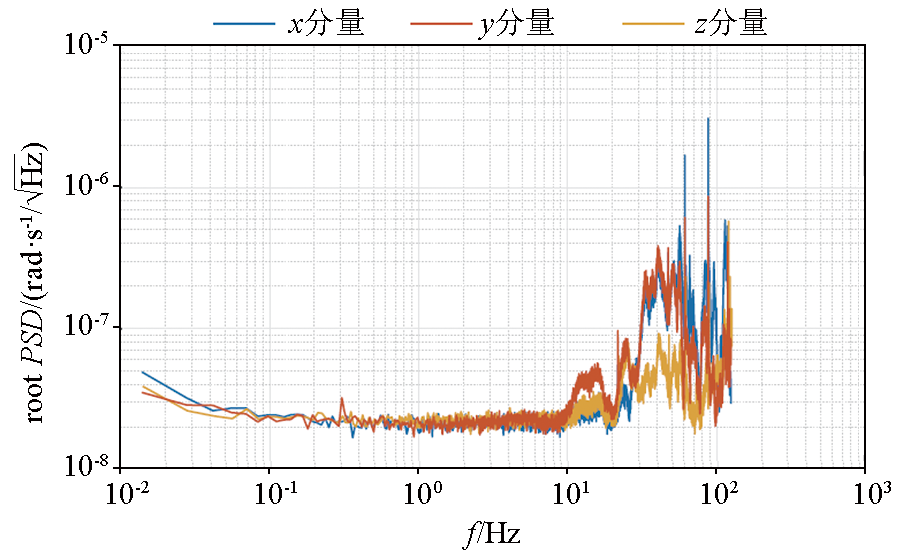

Self-noise power spectra of the three components of the DP-Rots-3C

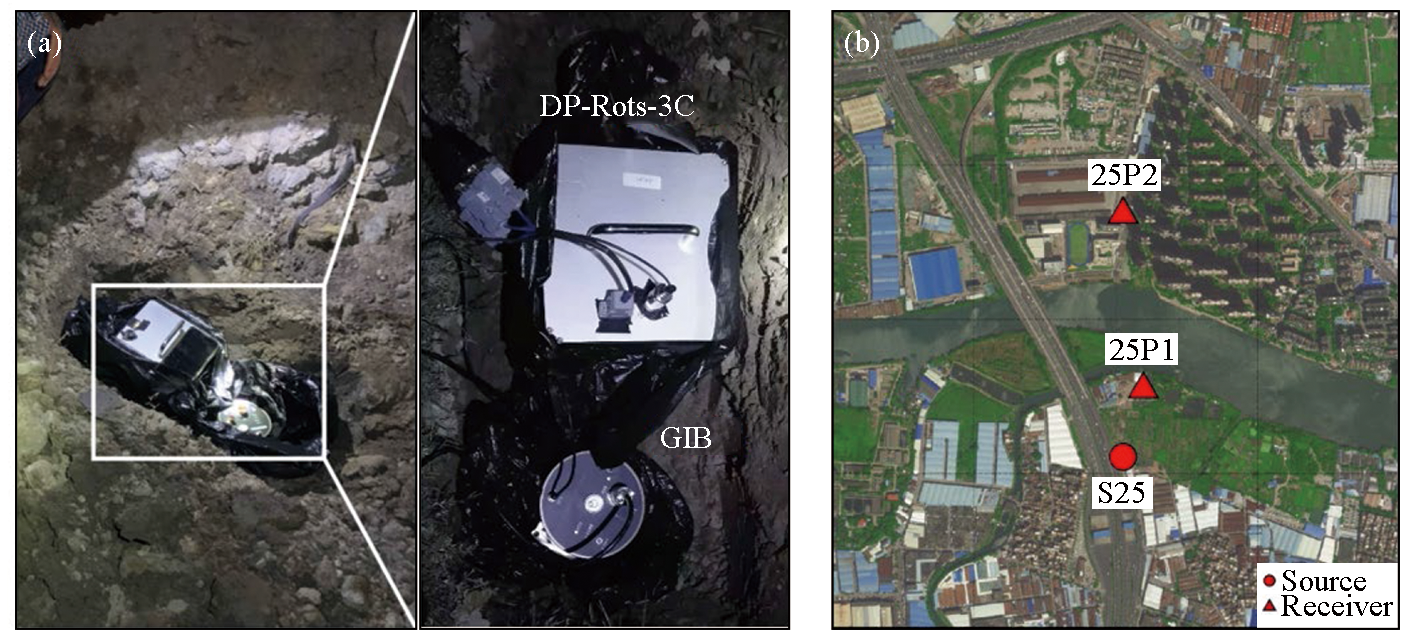

Setup for the single station six-component(a) and site map of the methane source S25 and receivers P1, P2(b)

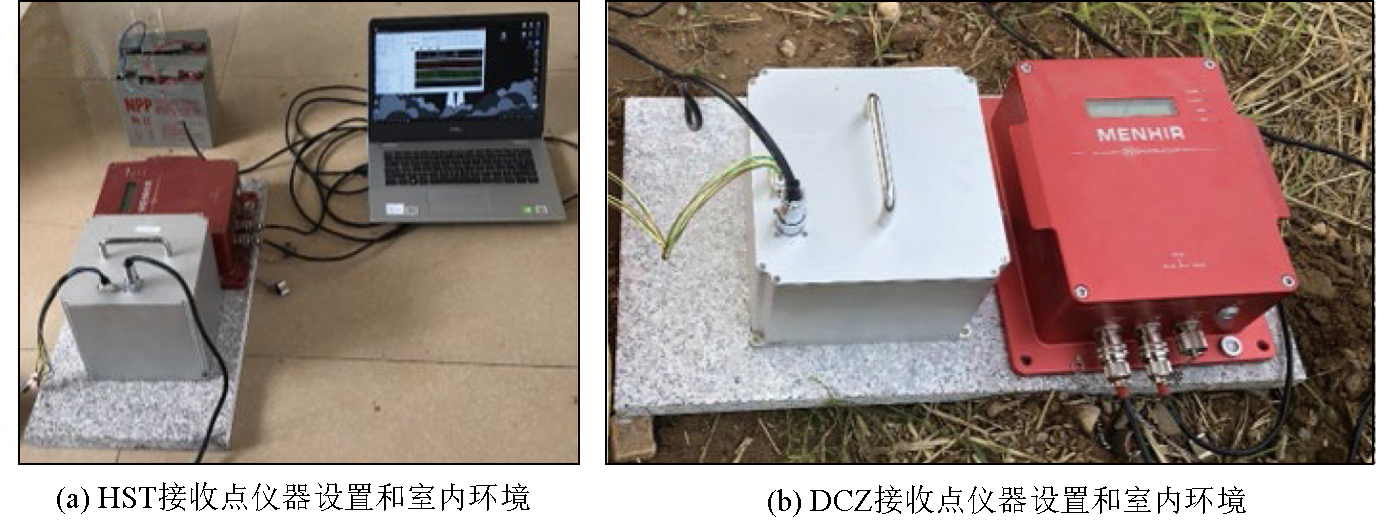

Setup for the single station six-component

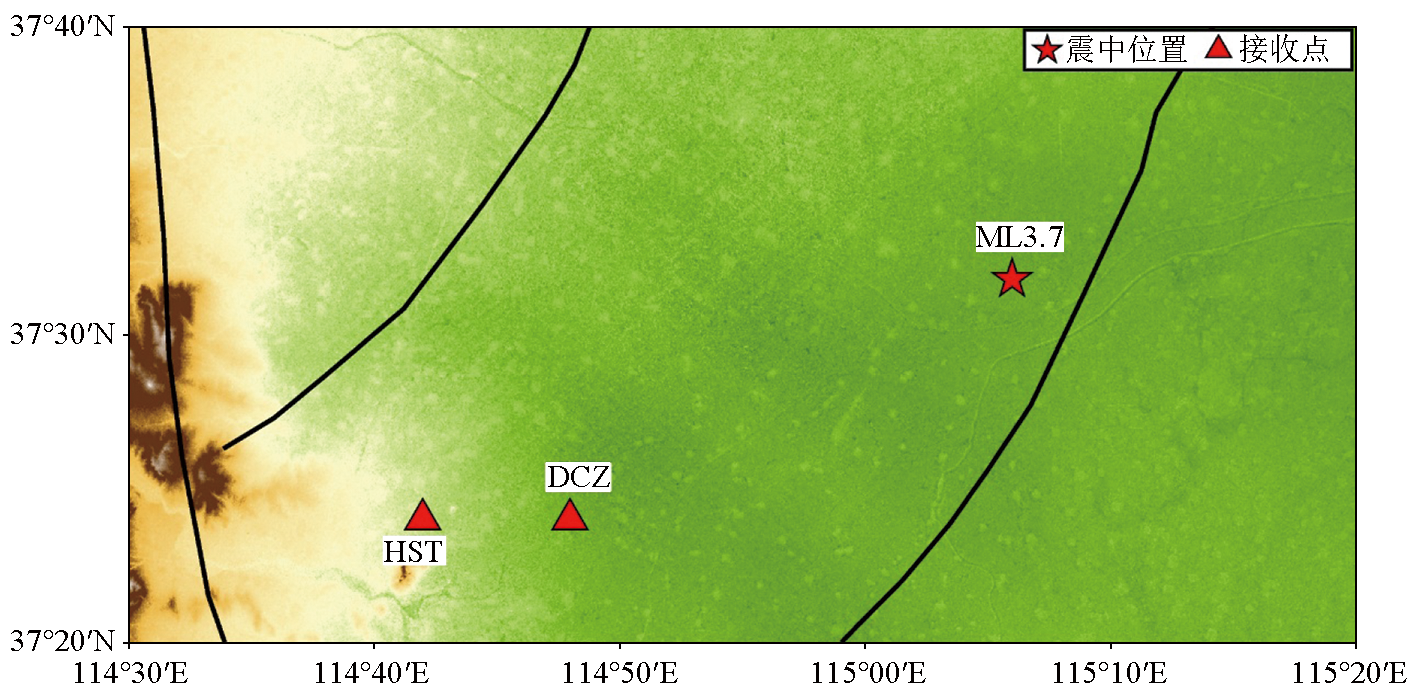

The epicenter and the receiver points DCZ and HST of the Xingtai M_L3.7 earthquake

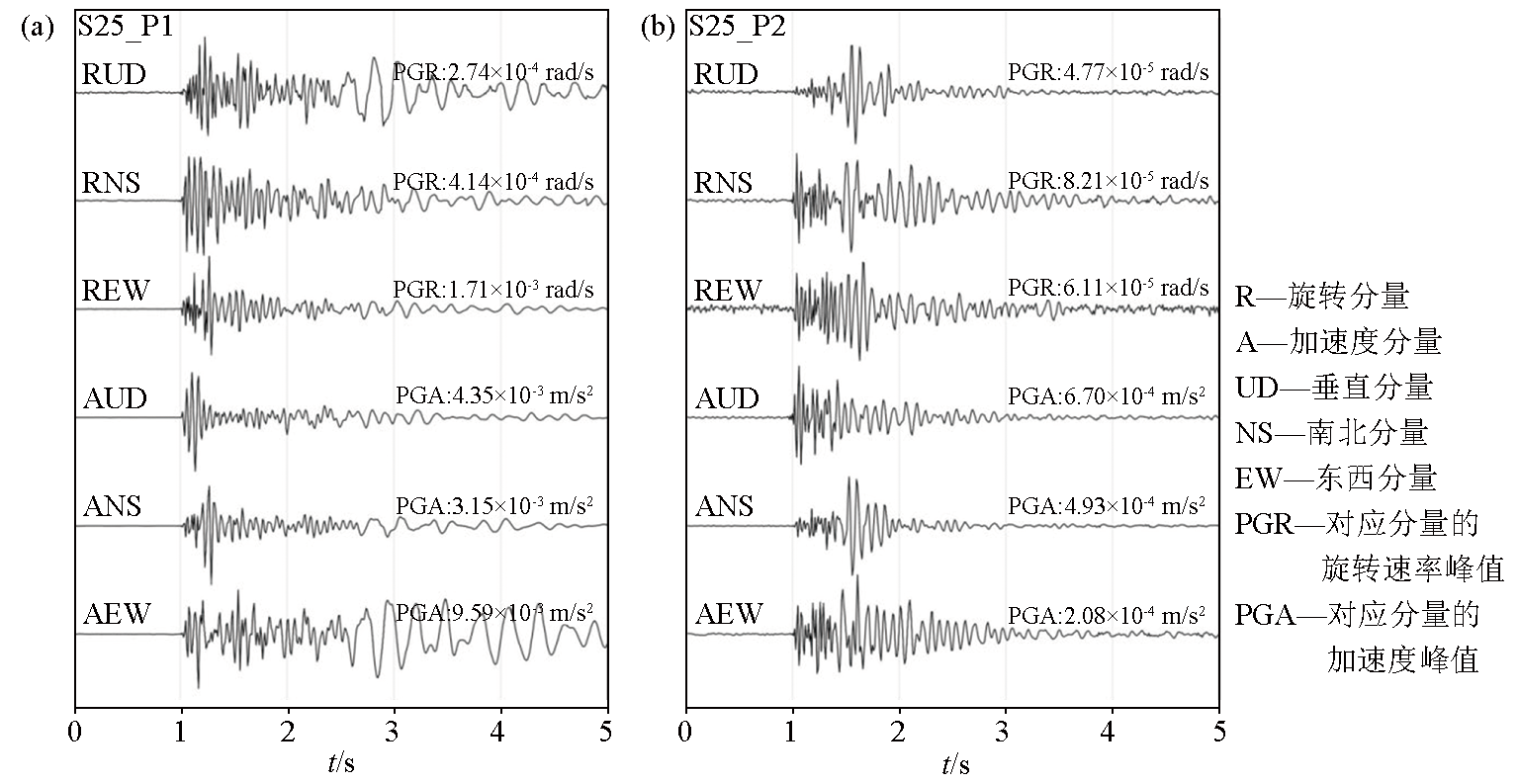

The waveforms of methane source receiver points P1(a) and P2(b)

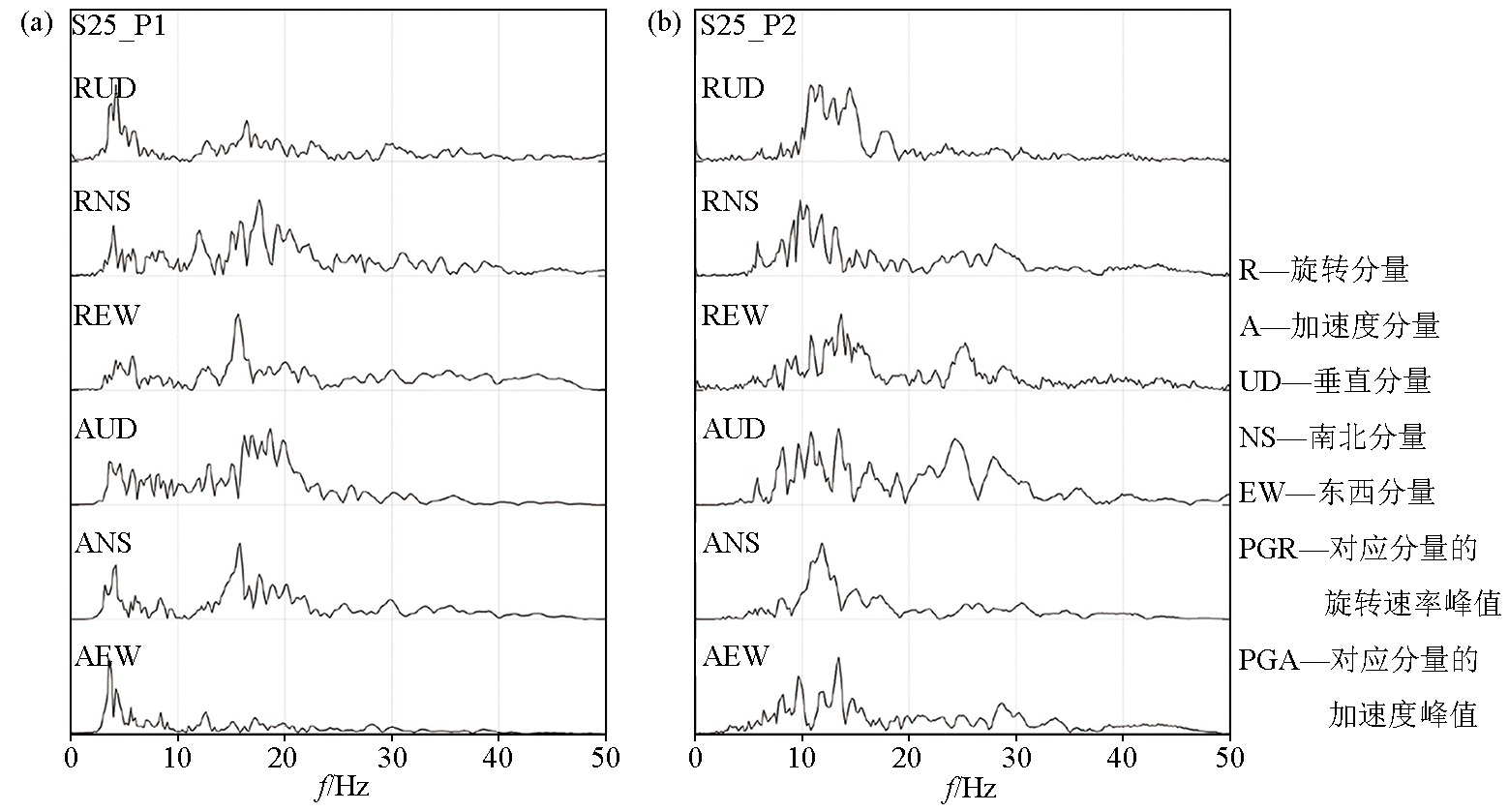

The amplitude spectrum of methane source receiver points P1(a) and P2(b)

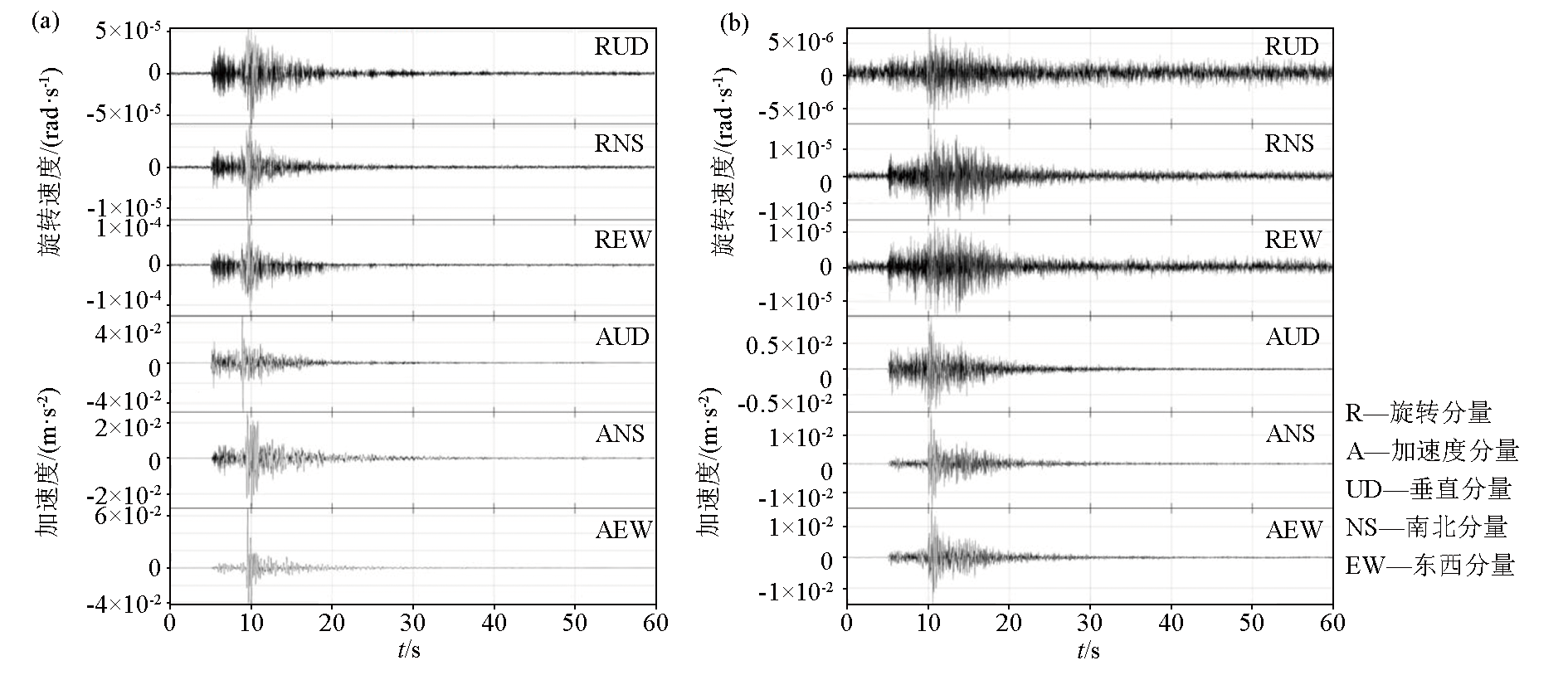

Waveforms of the DCZ(a) and HST(b) seismic stations for the Xingtai M_L3.7 earthquake

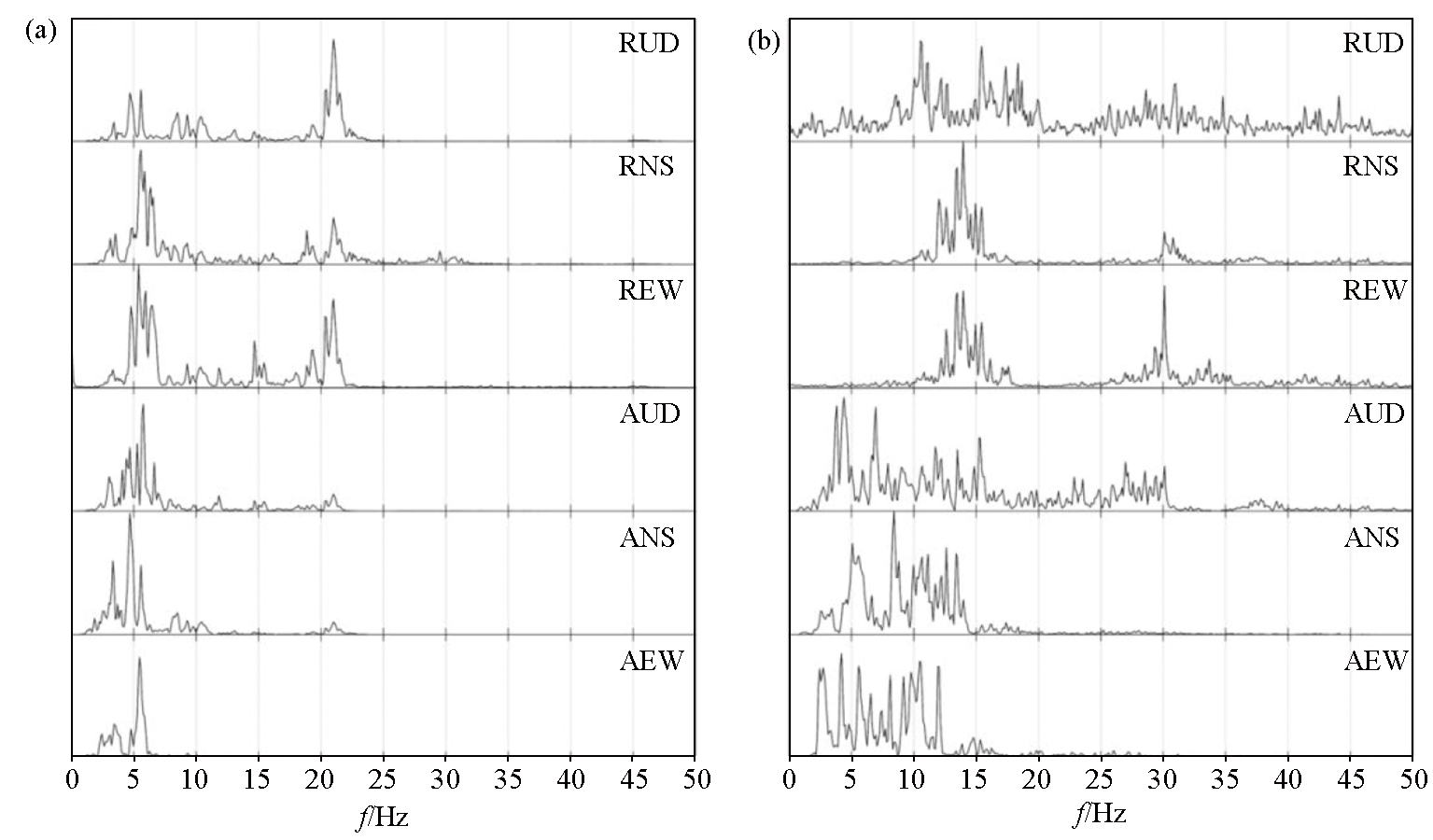

The amplitude spectrum of the Xingtai M_L3.7 earthquake receivers DCZ(a) and HST(b)

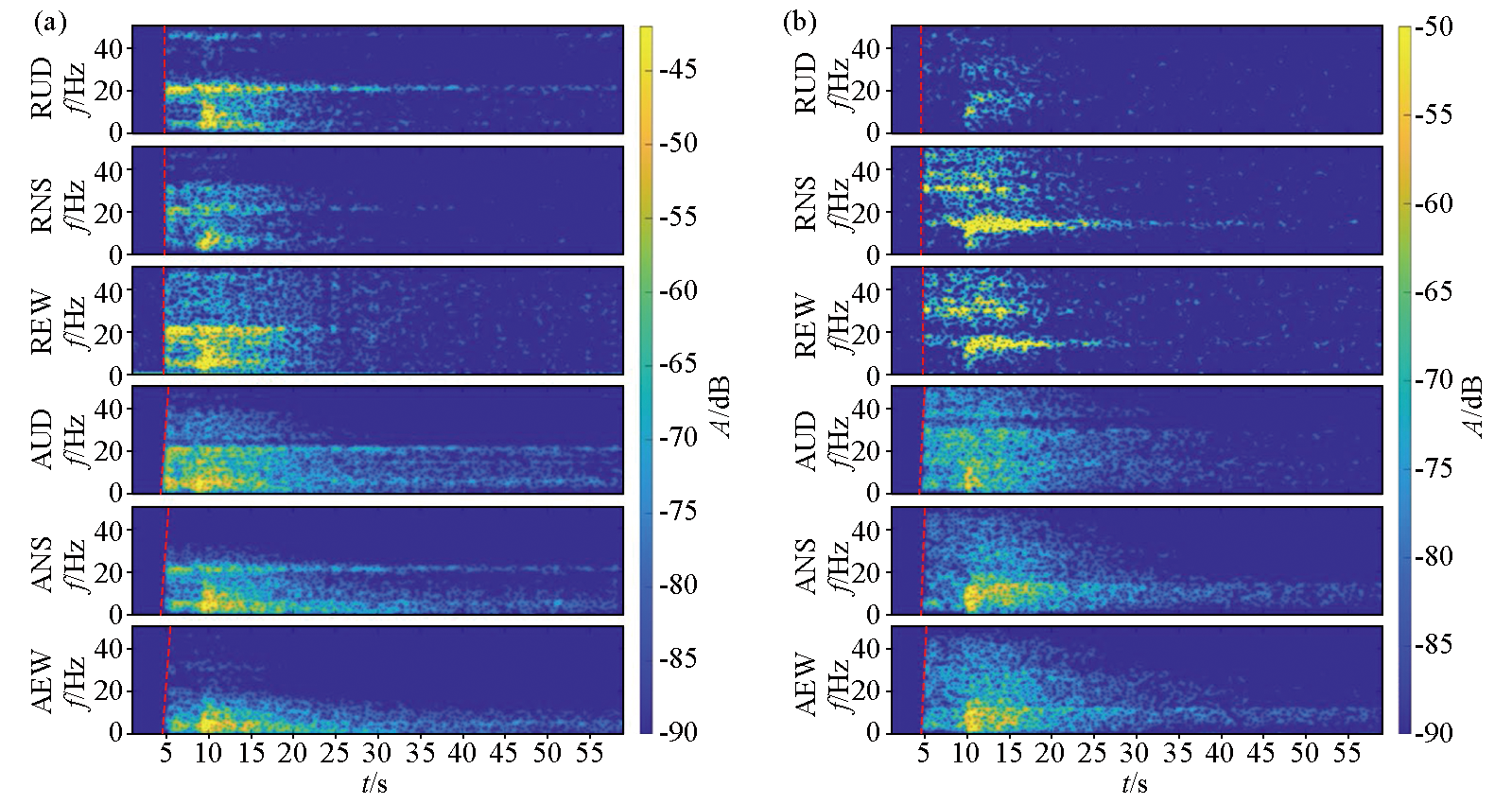

Time-frequency analysis of the Xingtai M_L3.7 earthquake receivers DCZ(a) and HST(b)

The Rotation database preprocessing parameters^[26]

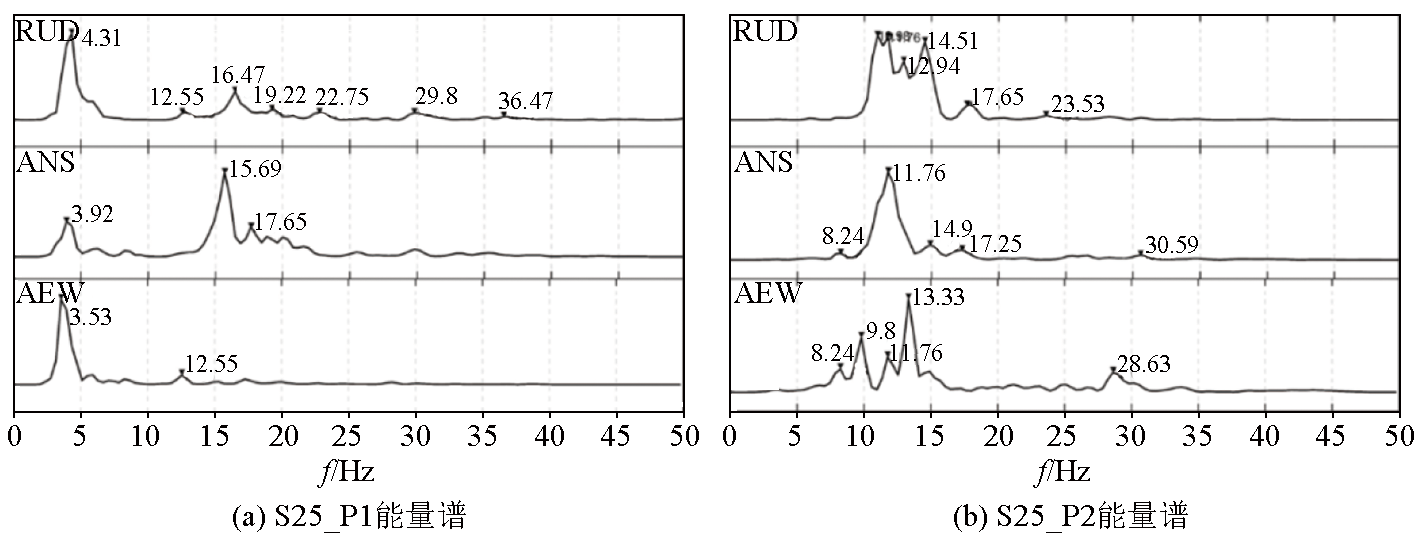

The spectral diagram of the three components RUD, ANS, and AEW, involved in the calculation of the azimuth angle for methane sources
(the numbers on the curve representing the frequency corresponding to the peak of the spectrum)

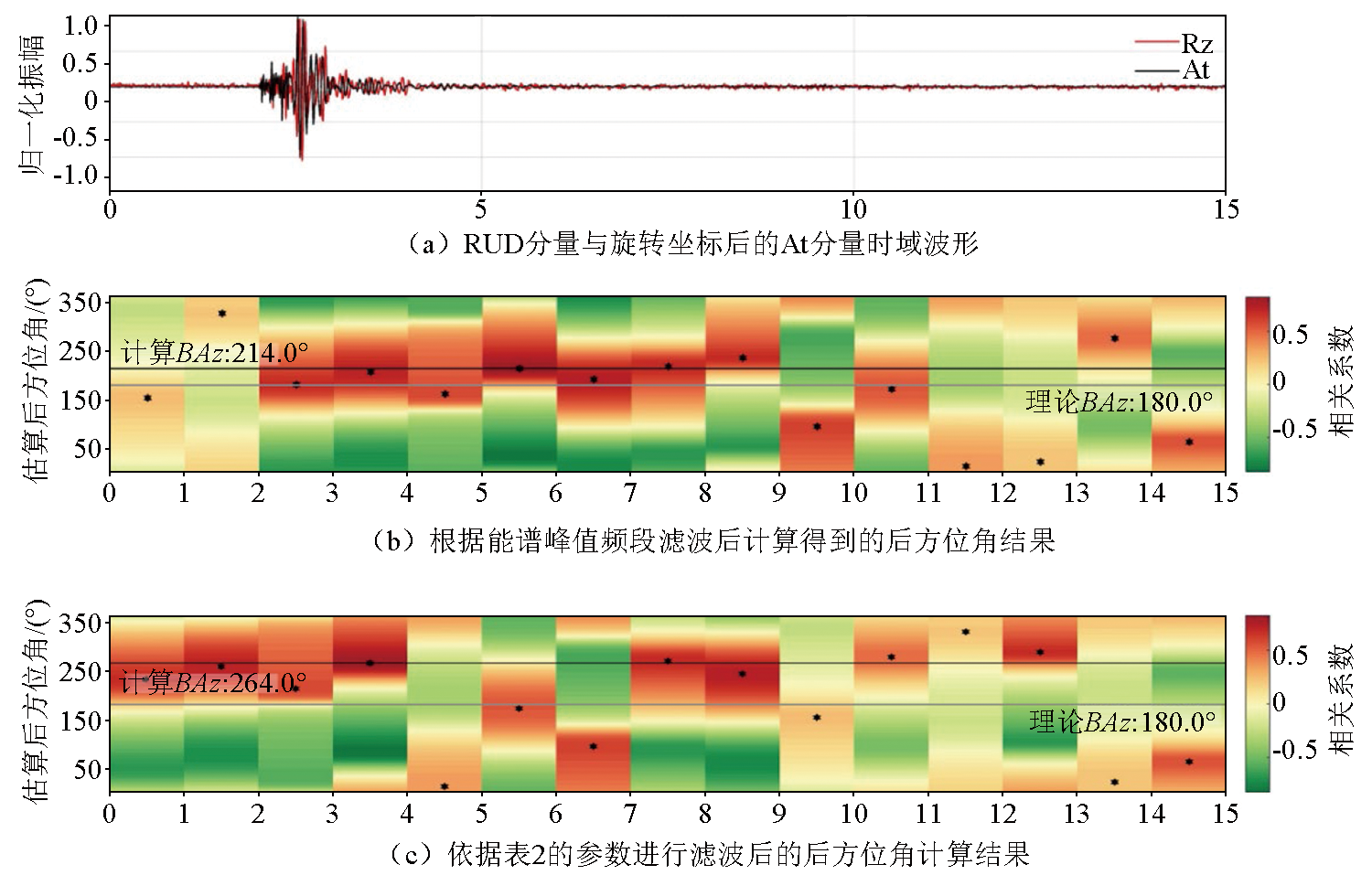

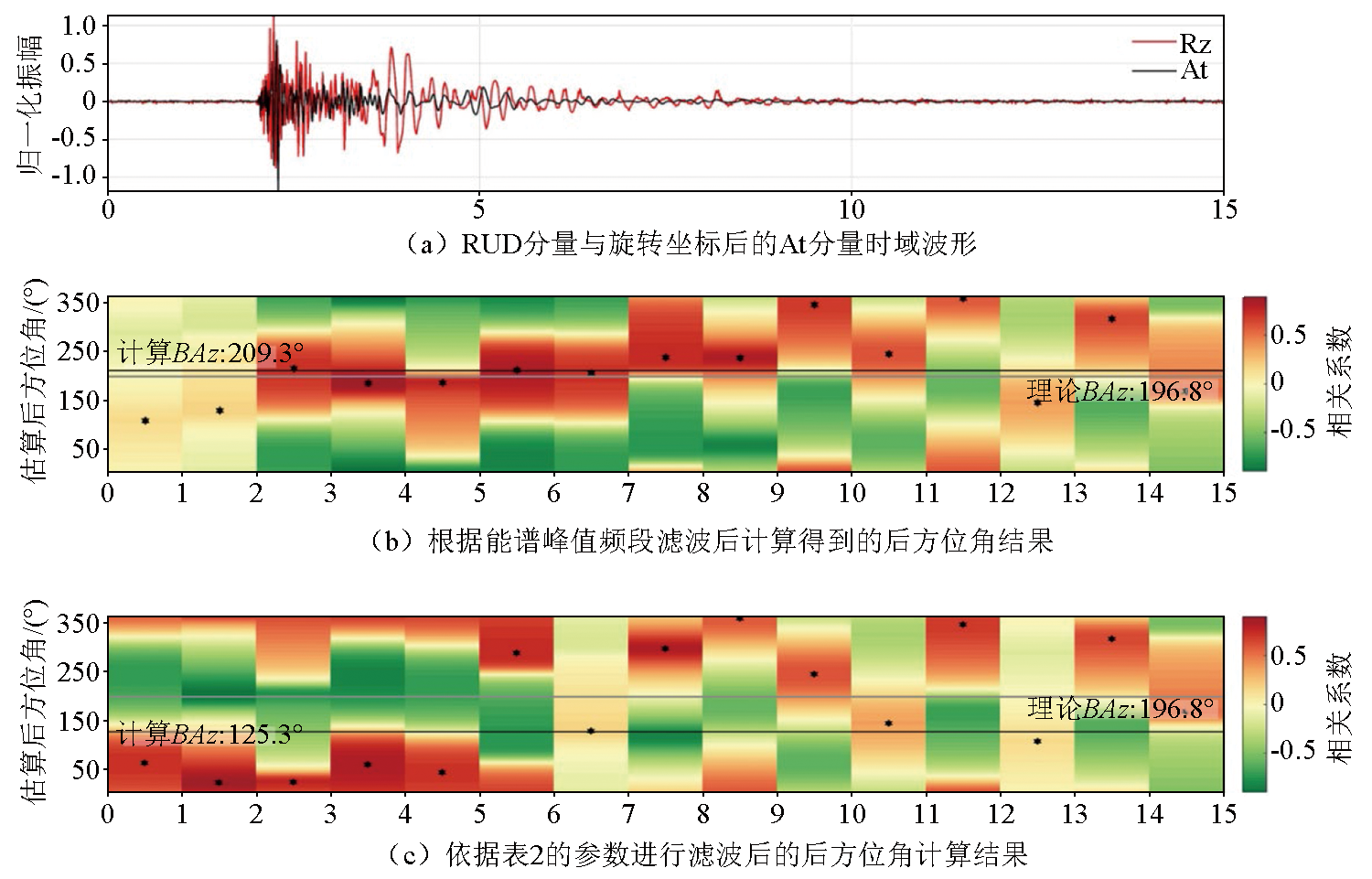

The backazimuth results of the methane source of the receiver point P1

The backazimuth results of the methane source of the receiver point P2

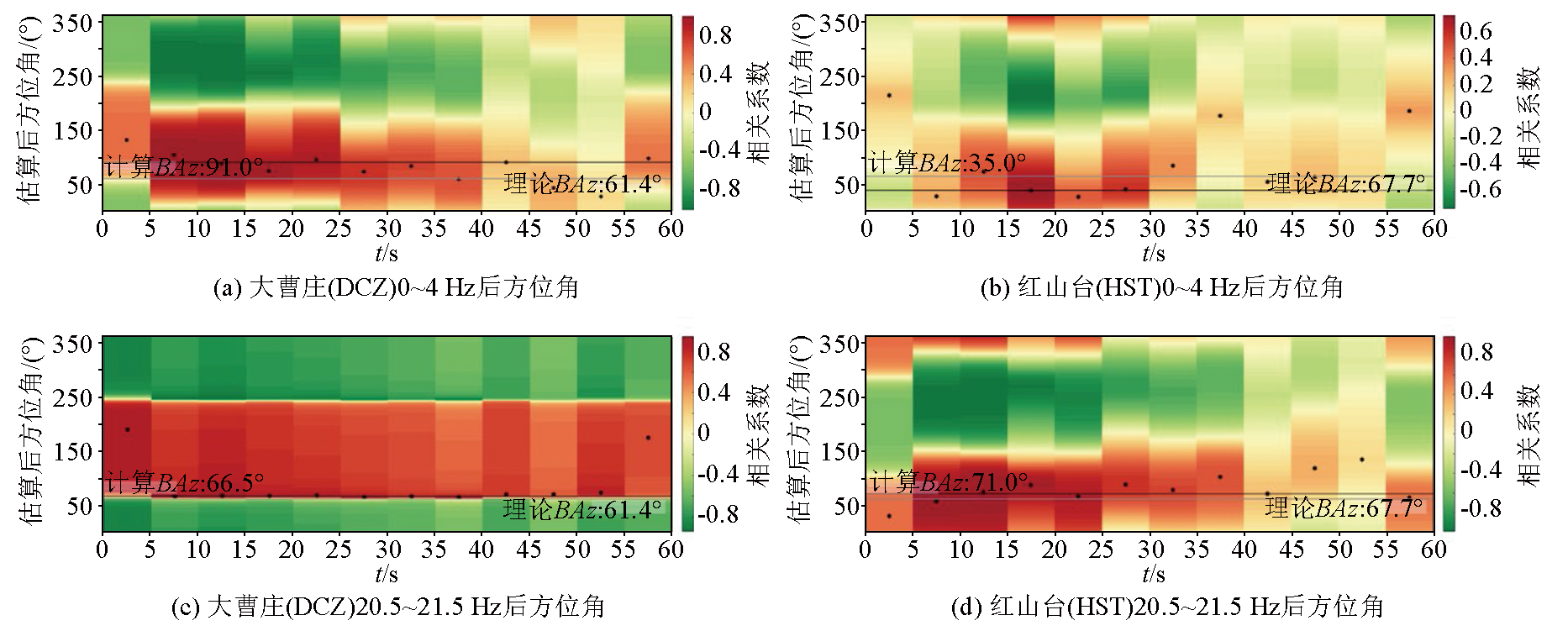

The backazimuth results of the Xingtai M_L3.7 earthquak

[1]	Aki K, Richards P G. Quantitative seismology(2^nd edition)[M]. Sausalito: University Science Books, 2002.
[2]	Lee W H K, Celebi M, Todorovska M I, et al. Introduction to the special issue on rotational seismology and engineering applications[J]. Bulletin of the Seismological Society of America, 2009, 99(2B):945-957.
[3]	Charles F R. Elementary seismology[M].San Francisco: W. H.Freeman, 1958.
[4]	Bouchon M, Aki K. Strain,tilt,and rotation associated with strong ground motion in the vicinity of earthquake faults[J]. Bulletin of the Seismological Society of America, 1982, 72(5):1717-1738.
[5]	Oldham R. Report on the great earthquake of June 12^th,1897[J]. Gedogical Magazine, 1900, 7(7):331-333.
[6]	刘庚, 刘文义, 路珍, 等. 地面运动旋转分量观测综述——以中国台湾地区旋转运动观测为例[J]. 地球物理学进展, 2020, 35(2):422-432.
[6]	Liu G, Liu W Y, Lu Z, et al. Review of the measurement of rotational component in ground motions:A case study of rotating motion observation in Taiwan,China[J]. Progress in Geophysics, 2020, 35(2):422-432.
[7]	王赟, 孙丽霞, 李栋青, 等. 勘探地震中的六分量观测[J]. 石油物探, 2021, 60(1):13-24,33.
[7]	Wang Y, Sun L X, Li D Q, et al. Six-component observation for exploration seismology[J]. Geophysical Prospecting for Petroleum, 2021, 60(1):13-24,33.
[8]	Stedman S J. Spoiler problems in peace processes[J]. International Security, 1997, 22(2):5-53.
[9]	Schreiber K U, Wells J P R. Invited Review Article:Large ring lasers for rotation sensing[J]. Review of Scientific Instruments, 2013, 84(4):87-281.
[10]	McLeod D P, Stedman G E, Webb T H, et al. Comparison of standard and ring laser rotational seismograms[J]. Bulletin of the Seismological Society of America, 1998, 88(6):1495-1503.
[11]	Muyzert E, Kashubin A, Kragh E, et al. Land seismic data acquisition using rotation sensors[C]// Proceedings 74^th EAGE Conference and Exhibition incorporating EUROPEC, 2012.
[12]	Igel H, Nader M F, Kurrle D, et al. Observations of Earth’s toroidal free oscillations with a rotation sensor:The 2011 magnitude 9.0 Tohoku-Oki earthquake[J]. Geophysical Research Letters, 2011, 38(21):L21303.
[13]	Tanimoto T, Hadziioannou C, Igel H, et al. Estimate of Rayleigh-to-Love wave ratio in the secondary microseism by colocated ring laser and seismograph[J]. Geophysical Research Letters, 2015, 42(8):2650-2655.
[14]	Bernauer F, Wassermann J, Guattari F, et al. BlueSeis3A:Full characterization of a 3C broadband rotational seismometer[J]. Seismological Research Letters, 2018, 89(2A):620-629.
[15]	Donner S, Bernauer M, Igel H. Inversion for seismic moment tensors combining translational and rotational ground motions[J]. Geophysical Journal International, 2016, 207(1):562-570.
[16]	Yuan S H, Gessele K, Gabriel A A, et al. Seismic source tracking with six degree-of-freedom ground motion observations[J]. Journal of Geophysical Research:Solid Earth, 2021, 126(3):1-22.
[17]	Yuan S H, Simonelli A, Lin C J, et al. Six degree-of-freedom broadband ground-motion observations with portable sensors:Validation,local earthquakes,and signal processing[J]. The Bulletin of the Seismological Society of America, 2020, 110(3):953-969.
[18]	Reinwald M, Bernauer M, Igel H, et al. Improved finite-source inversion through joint measurements of rotational and translational ground motions:A numerical study[J]. Solid Earth, 2016, 7(5):1467-1477.
[19]	周聪, 曾祥芝, 王庆良, 等. 基于地倾斜数据的九寨沟Ms7.0地震旋转运动场构建[J]. 中国科学:地球科学, 2019, 49(5):811-821.
[19]	Zhou C, Zeng X Z, Wang Q L, et al. Rotational motions of the Ms7.0 Jiuzhaigou earthquake with ground tilt data[J]. Scientia Sinica:Terrae, 2019, 49(5):811-821.
[20]	陈锋, 王赟, 李维, 等. 利用单点六分量地震提取面波频散谱的数值验证[J]. 地球物理学报, 2023, 66(10):4269-4278.
[20]	Chen F, Wang Y, Li W, et al. Numerical verification of extracting surface wave dispersion spectrum from a single point six-componentseismic observation[J]. Chinese Journal of Geophysics, 2023, 66(10):4269-4278.
[21]	李维, 郭高源, 王赟, 等. 两种可控震源的浅层地震六分量波场特征[J]. 工程地球物理学报, 2022, 19(5):716-728.
[21]	Li W, Guo G Y, Wang Y, et al. Six-component wave fields characteristics of shallow earthquake of two vibroseises[J]. Chinese Journal of Engineering Geophysics, 2022, 19(5):716-728.
[22]	Igel H, Schreiber U, Flaws A, et al. Rotational motions induced by the M8.1 Tokachi-Oki earthquake,September 25,2003[J]. Geophysical Research Letters, 2005, 32(8):235-256.
[23]	Chen Y J, Zhu L X, Wang W B, et al. Differential-mode and common-mode measurements based on fiber-optic gyroscopes[C]// AOPC:Optic Fiber Gyro, 2023.
[24]	He D, Wu Y J, Li Y L, et al. Stability improvement enabled by four-state modulation in dual-polarization fiber optic gyroscopes[J]. Optics Communications, 2019, 452(1):68-73.
[25]	Wang W T, Wang X, Meng C M, et al. Characteristics of the seismic waves from a new active source based on methane gaseous detonation[J]. Earthquake Research in China, 2019, 33(2):354-366.
[26]	Salvermoser J, Hadziioannou C, Hable S, et al. An event database for rotational seismology[J]. Seismological Research Letters, 2017, 88(3):935-941.
