| Development of a submarine optically pumped magnetometer |
GONG Yi-Xuan1( ), JIANG Kai1, GAO Jing-Yu2, ZHU Wan-Hua2, CHEN Kai1() |
1. School of Geophysics and Information Technology, China University of Geosciences (Beijing), Beijing 100083, China
2. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China |
|
|
|
|
Abstract The Autonomous Underwater Vehicle (AUV) equipped with a magnetometer conducts underwater magnetic anomaly detection, enabling long-duration and large-scale continuous sampling. It offers advantages such as concealment, high efficiency, high practicality, wide application range, strong maneuverability, and robust endurance. To improve measurement accuracy, synchronous seabed magnetic field data is needed as a reference to counteract environmental magnetic noise. To address this, a submarine optically pumped magnetometer was developed to provide a reference for processing AUV magnetic anomaly detection data.The submarine optically pumped magnetometer consists of a magnetic field measurement unit and an acoustic release unit, capable of high-precision autonomous acquisition of the total magnetic field on the seabed, as well as underwater acoustic release and recovery. The magnetic field measurement unit includes an optical pumping probe, electronic unit, counter, battery pack, and nylon pressure chamber. The acoustic release unit includes an acoustic transducer, acoustic communication board, electro-corrosion decoupler, cement block, buoyancy block, and frame. This design addresses key technical challenges such as miniaturization, autonomous acquisition, and underwater acoustic communication.In 2022, a magnetic anomaly detection test was conducted in the offshore waters of Qingdao. The test results verified the autonomous seabed magnetic field acquisition and the release and recovery functions of the submarine optically pumped magnetometer, providing effective reference data for underwater target detection.
|
|
Received: 01 April 2024
Published: 08 January 2025
|
|
|
|
|
|
|

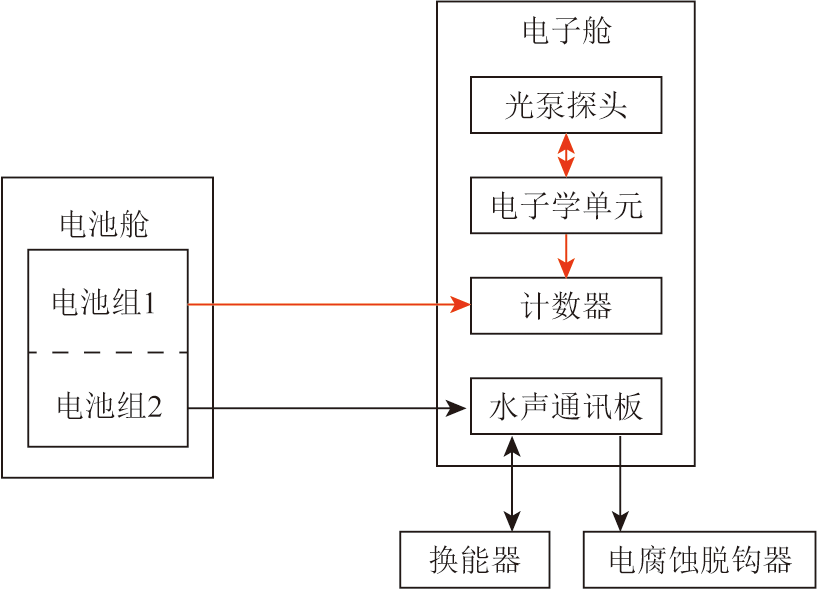

Hardware schematic of submarine optical pump magnetometer
|
|

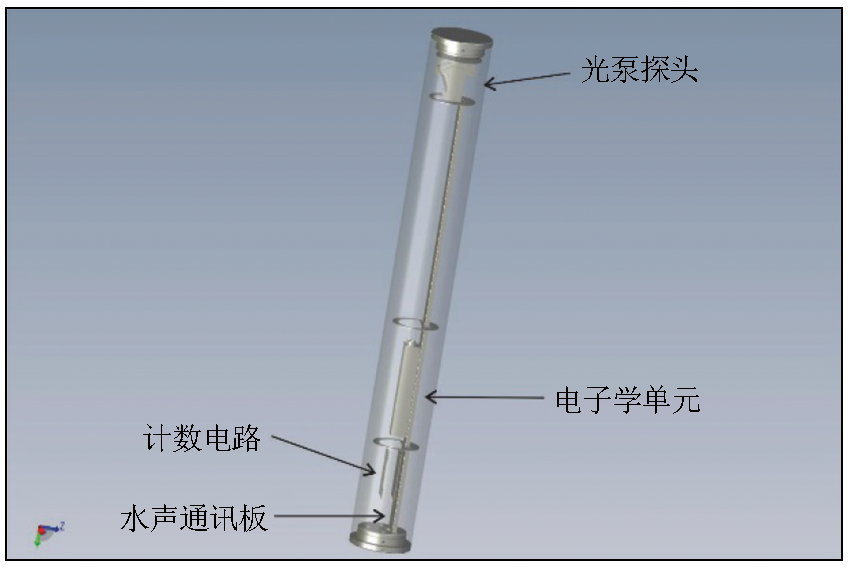

Schematic diagram of the structure inside the electronic chamber of the submarine optical pump magnetometer
|
|

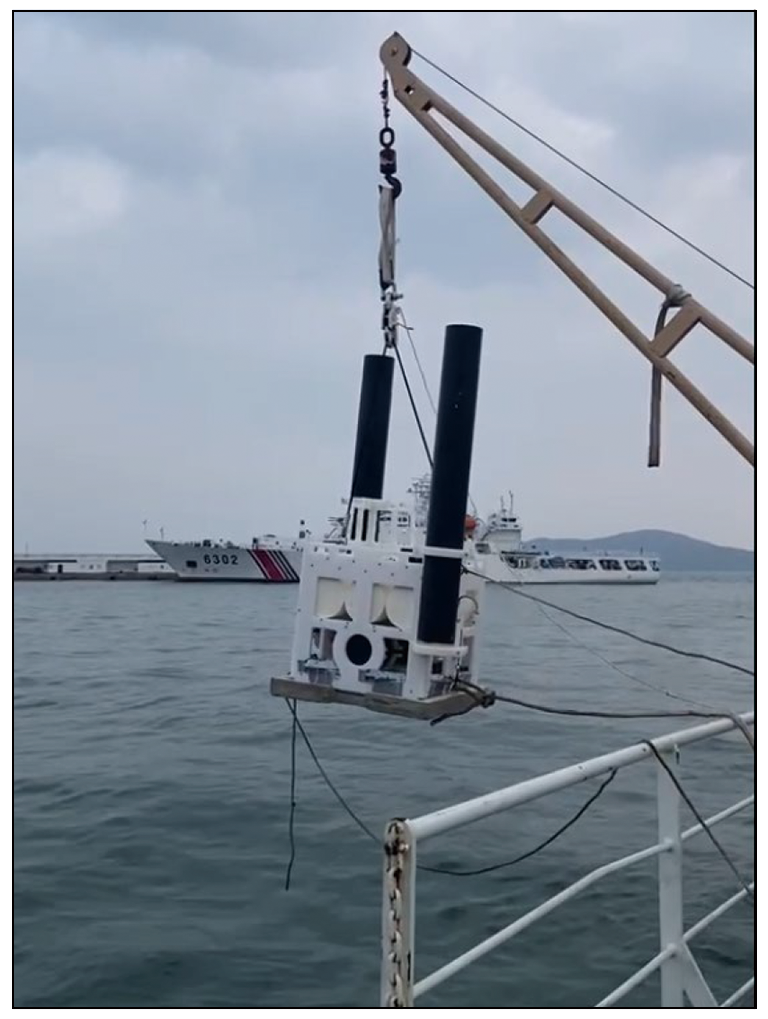

Deployment diagram of submarine optical pump magnetometer at sea
|
|

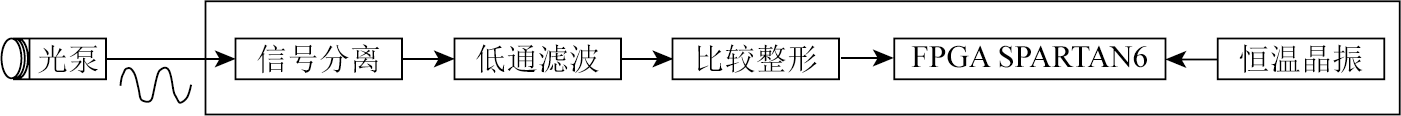

Block diagram of counting circuit
|
|

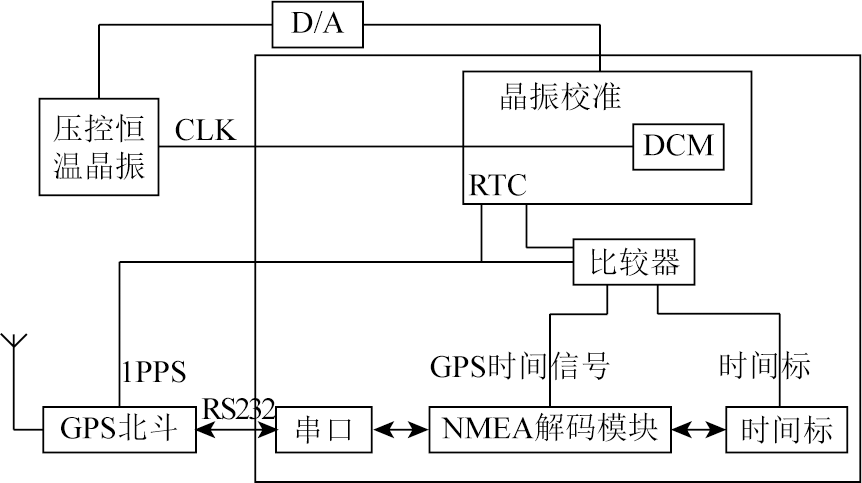

System clock source calibration schematic
|
|

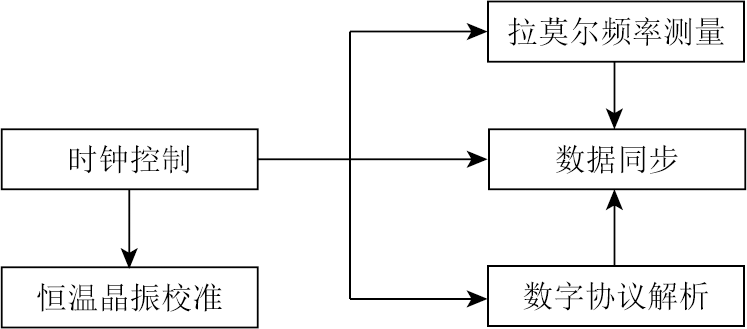

FPGA programming block diagram
|
|

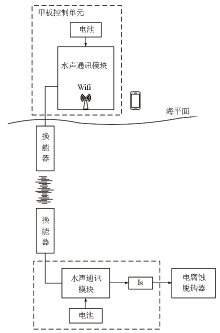

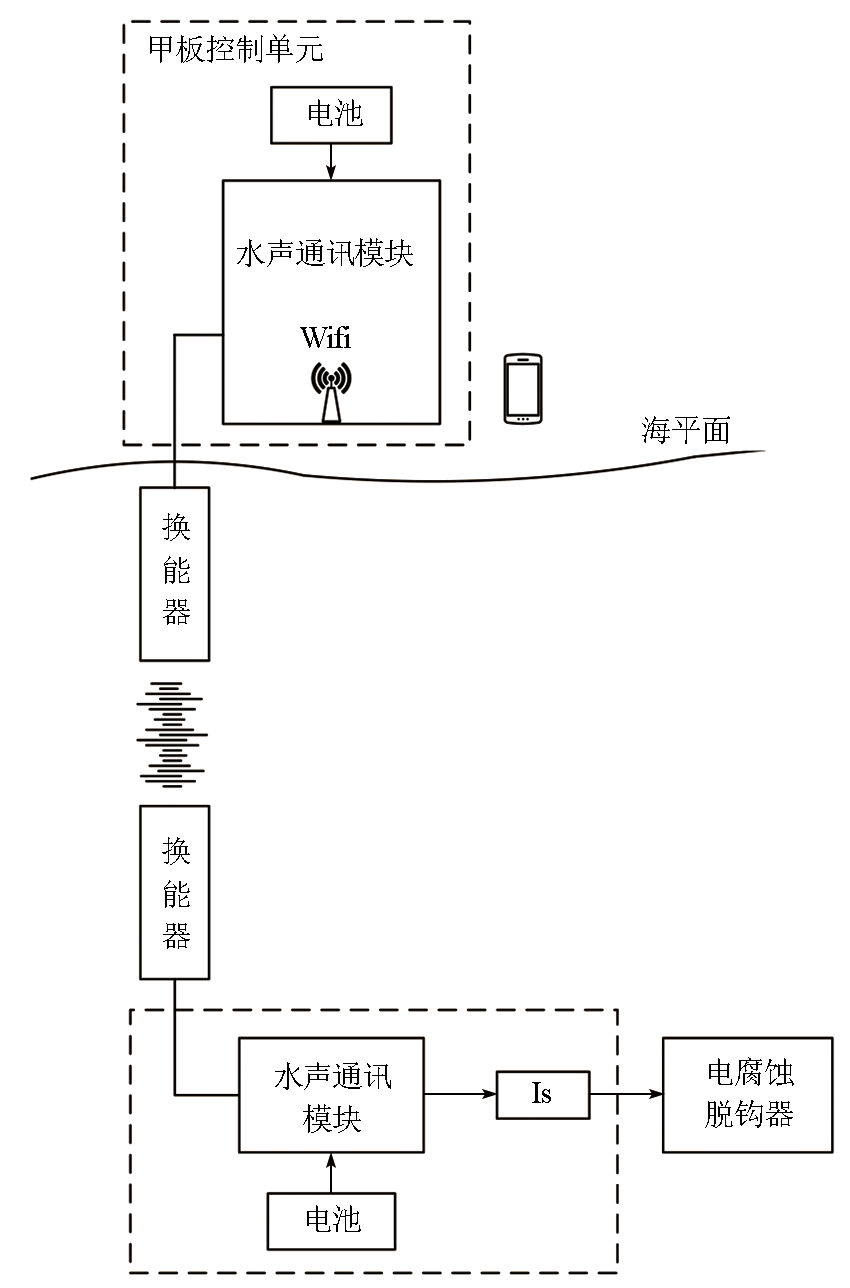

Schematic diagram of hydroacoustic release operation
|
|

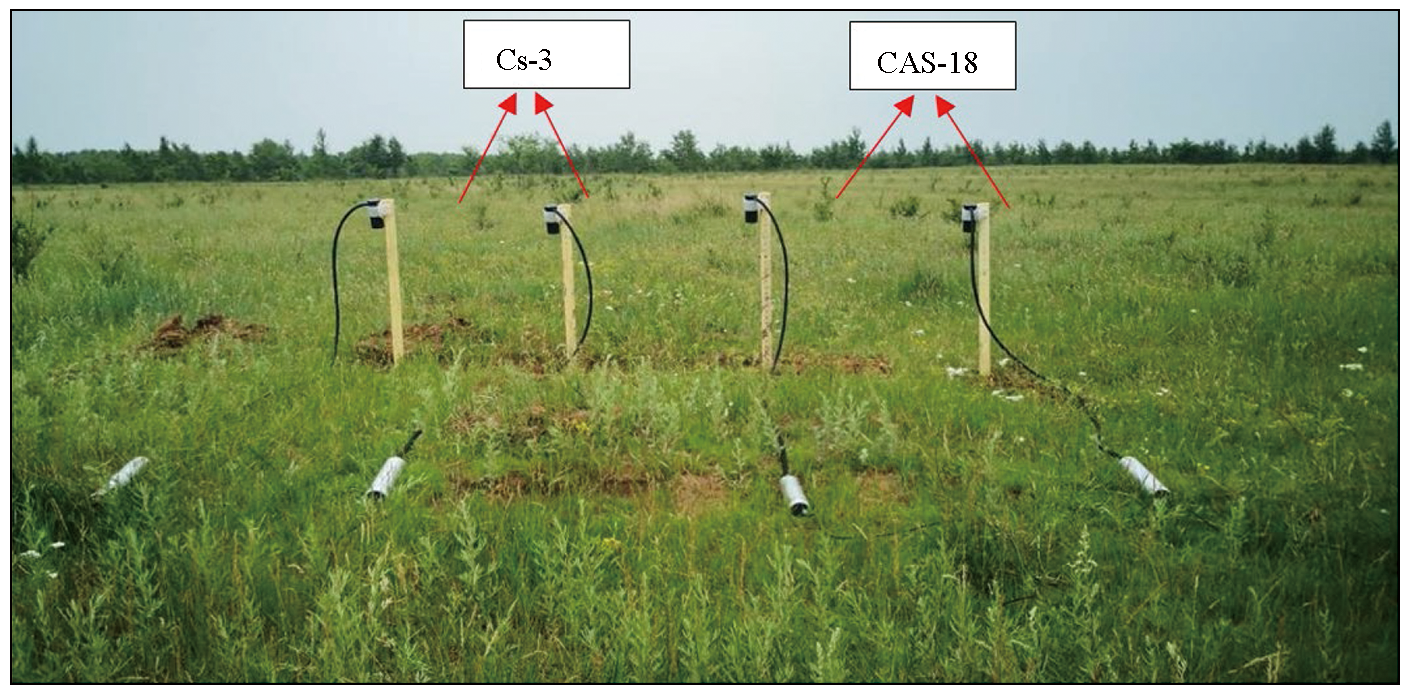

Optical pump magnetometer test site
|
|

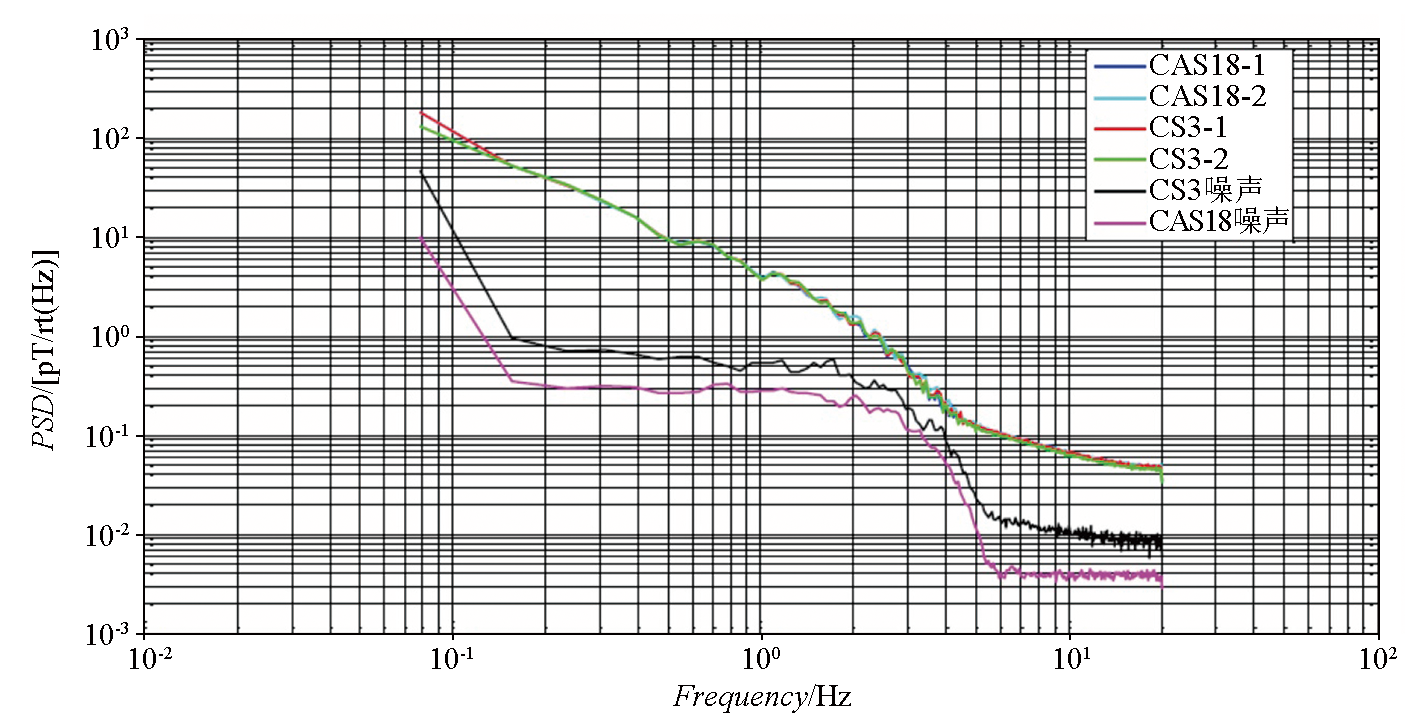

Results of background noise level comparison for different optical pump magnetometer
|
|

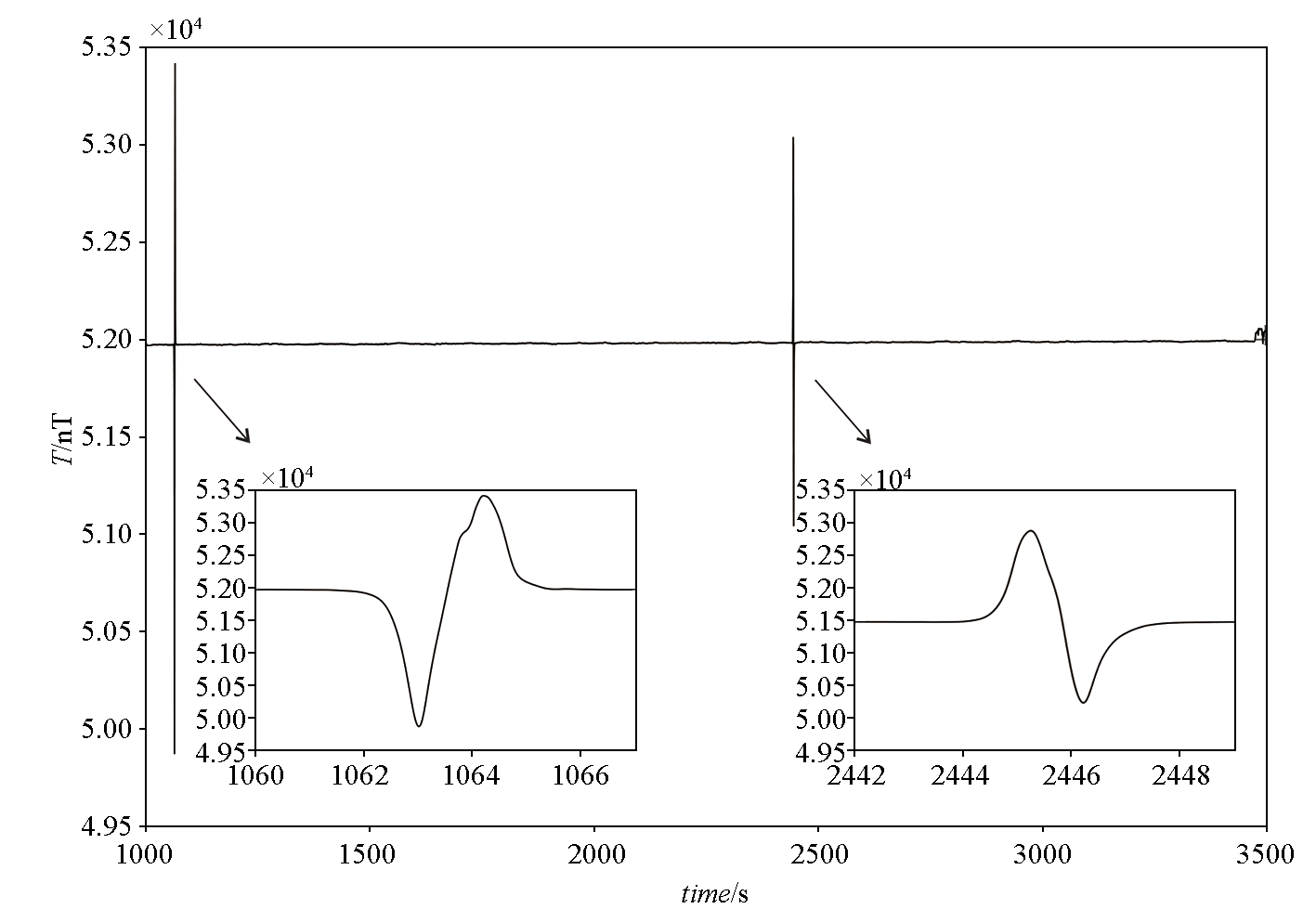

Land-based test results of the submarine optical pump magnetometer
|
|

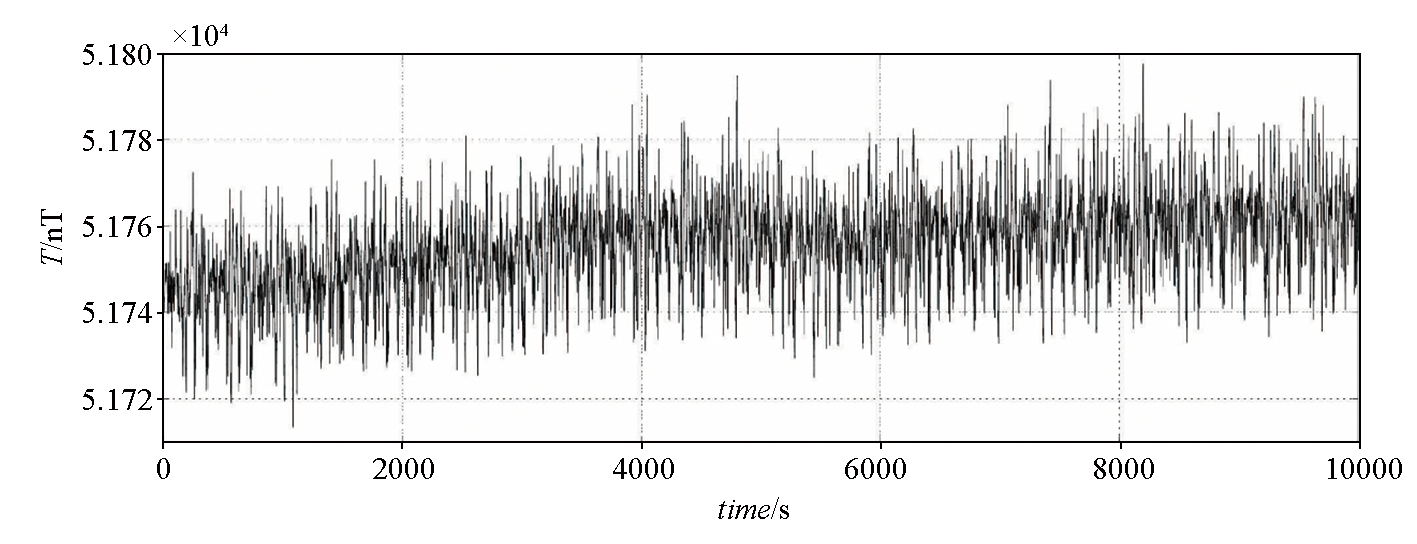

Partial time series of the total submarine geomagnetic field
|
|

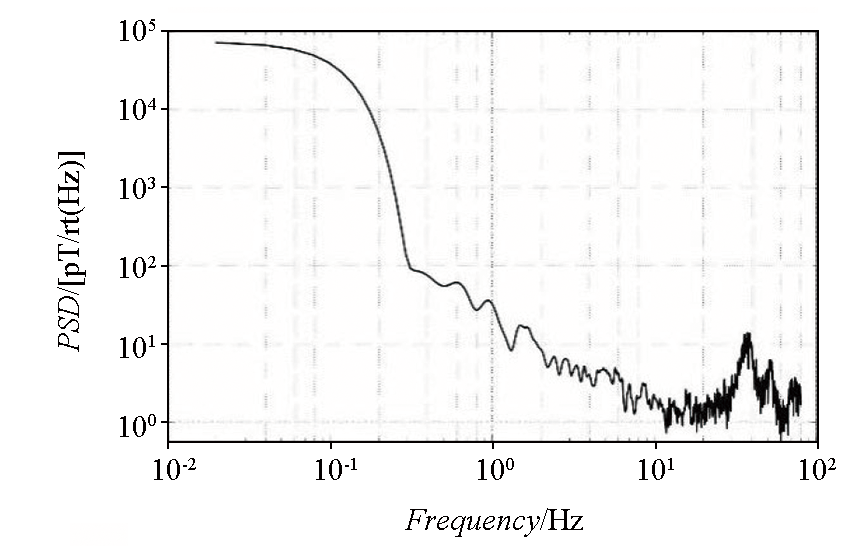

Power spectral density of the background field in the submarine geomagnetic environment
|
