Resistivity of moraine deposits in the Tangbu section, Dongcuoqu, southeastern Tibet |
JIANG Shou-Jin( ), CHEN Yong-Ling( ), LI Huai-Yuan, HU Jun-Feng |
Research Center of Applied Geology of China Geological Survey, Chengdu 610000, China |
|
|
Abstract Glacial landforms, such as cirques, razorback ridges, horn peaks, and alpine lakes, are commonly developed in the surrounding areas of the Tangbu section of Dongcuoqu in the Nujiang River Basin in southeastern Tibet, indicating that intensive glacial activities once occurred in this area. However, field surveys show that proluvium and alluvial-diluvial deposits are mainly distributed in the Quaternary surface of this section. The comprehensive analysis of the audio-frequency magnetotellurics and high-density measurement results of this area show that the electrical characteristics of the Quaternary in this section are highly consistent with the moraine deposit structure. Combined with the commonly developed glacial landforms in the surrounding area, it can be inferred that the Quaternary stratum in this section is mainly dominated by moraine deposits, which are covered with a layer of proluvium and alluvial-diluvial deposits. From the perspective of the electrical structure characteristics of the geophysical exploration results, the resistivity results of the audio-frequency magnetotellurics can effectively reflect the structural characteristics including the thickness of the moraine deposits, glacial valleys on the bedrock surface, and moraine lenses, and the resistivity results from high-density measurement can well reflect the characteristics of moraine melange, moraine lenses, and the long axis direction of large boulders.
|
Received: 17 March 2022
Published: 24 February 2023
|
|
Corresponding Authors:
CHEN Yong-Ling
E-mail: 3125007187@qq.com;476811938@qq.com
|
|
|
|
|

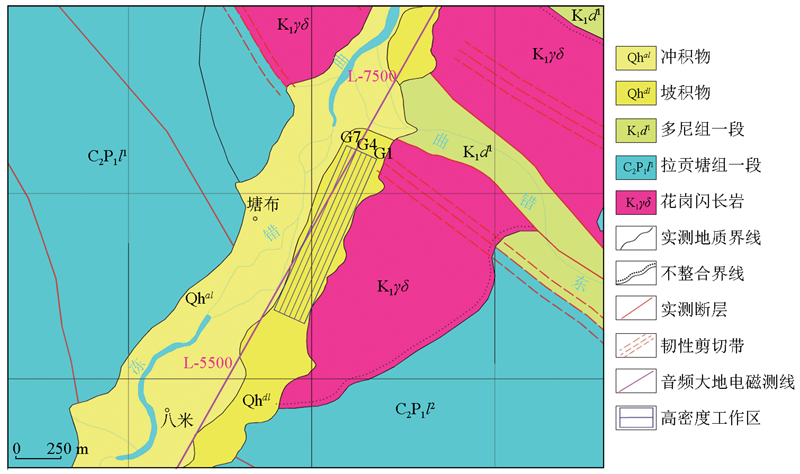

Geological overview of Tangbu section
|
岩性 | 视电阻率统计区间/ (Ω·m) | 视电阻率平均值/ (Ω·m) | 冲洪积物 | 334~868 | 523 | 残坡积物 | 746~3155 | 1704 | 花岗闪长岩 | 7356~14915 | 10902 | 砂质板岩 | 2268~9869 | 5279 | 石英砂岩 | 733~5225 | 1965 | 粉砂岩 | 431~2116 | 1073 | 砂岩 | 335~1163 | 687 | 板岩 | 186~680 | 305 |
|
Measured statistics of electrical parameters of typical rock and soil mass in the working area
|
|

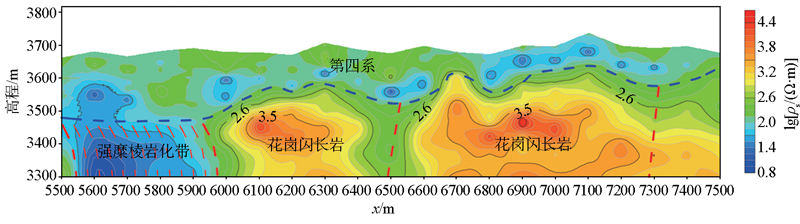

Quaternary audio magnetotelluric results of Tangbu section
|
|

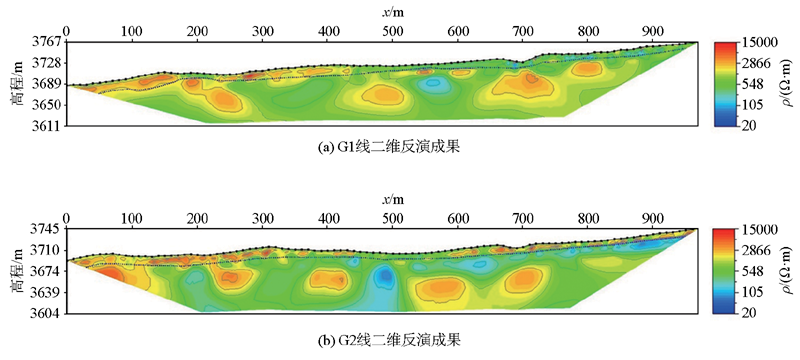

High density 2D inversion results
|
|

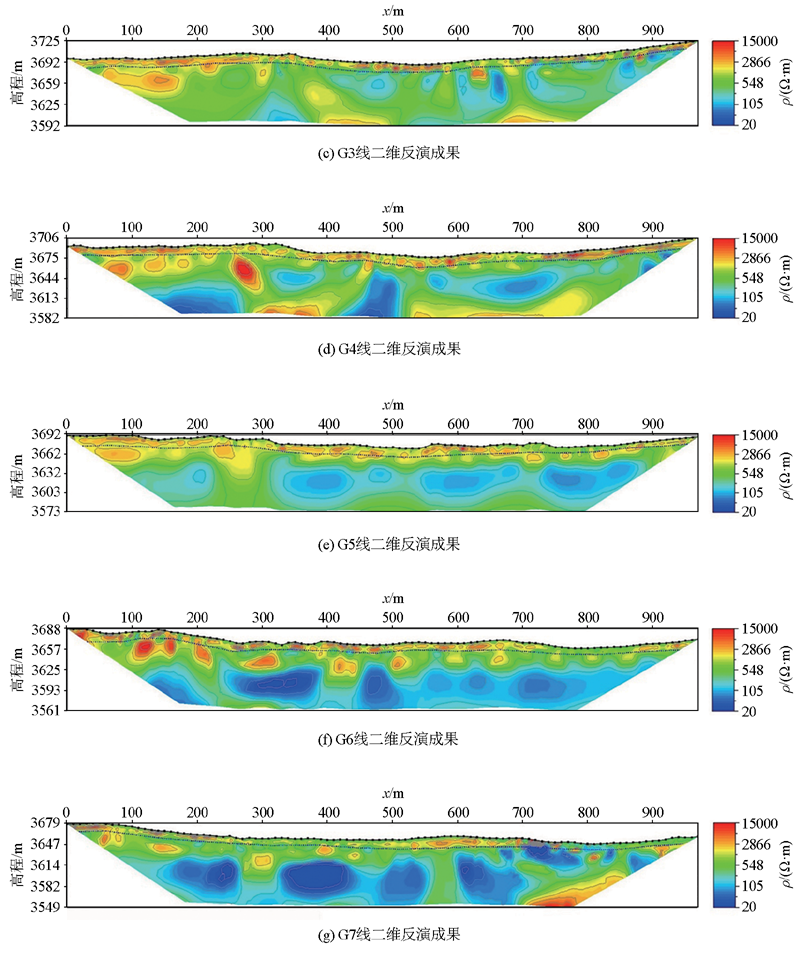

High density 2D inversion results
|
|

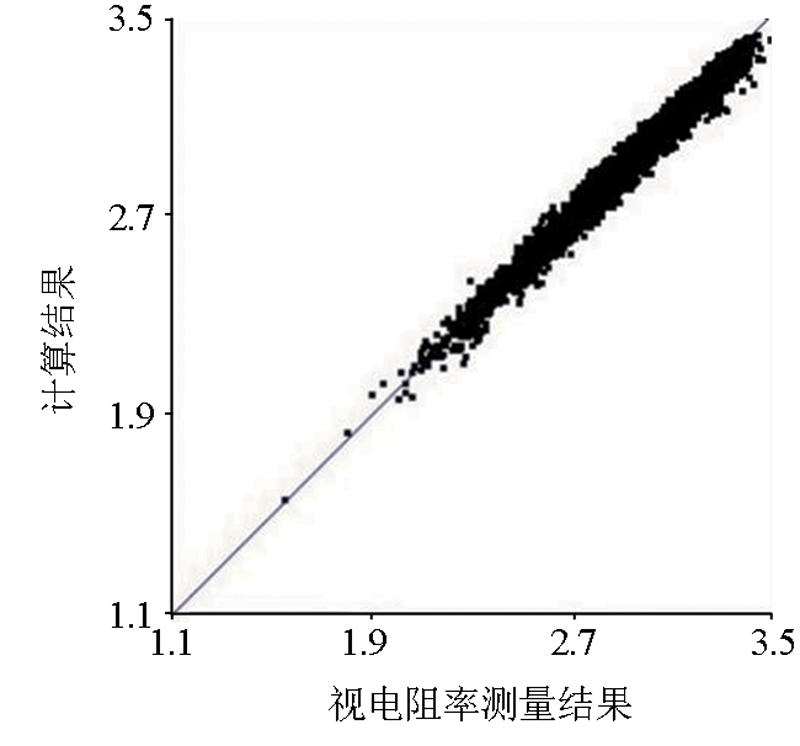

Convergence form of 3D inversion error
|
|

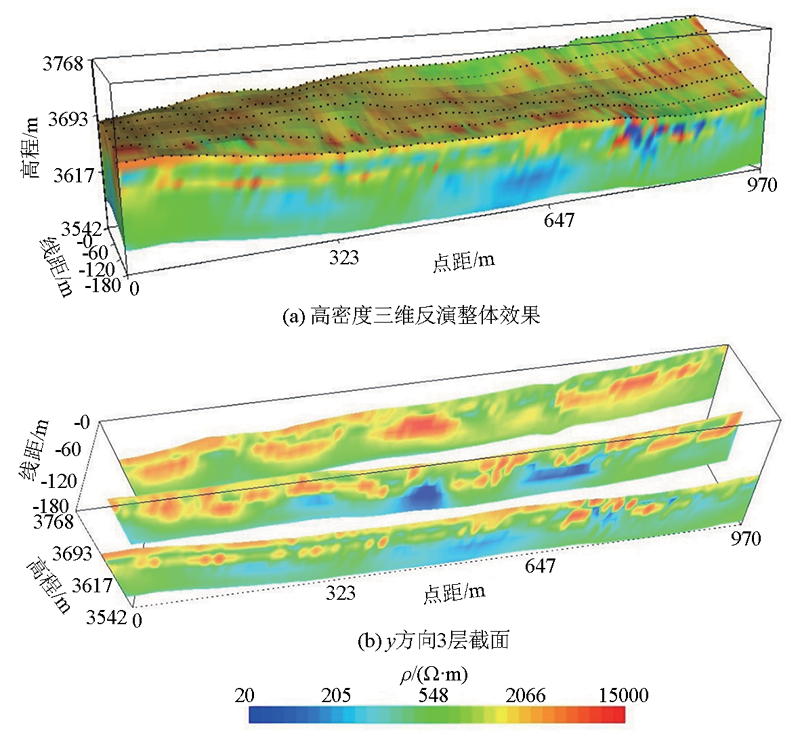

High density 3D inversion results
|
|

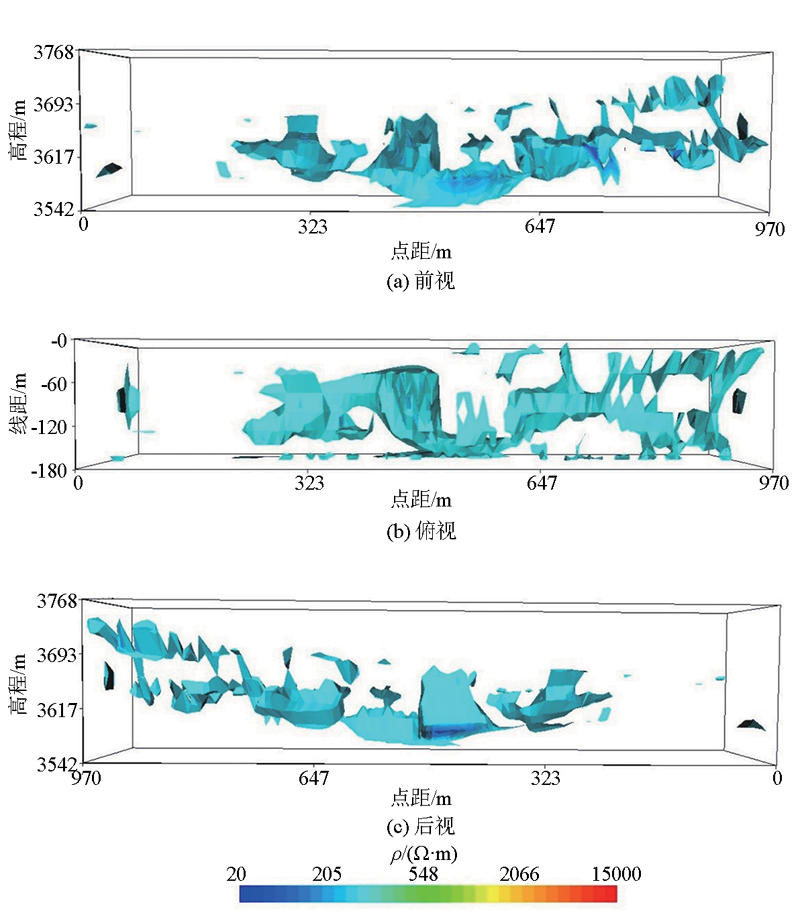

3D spatial structure of low resistance body
|
|

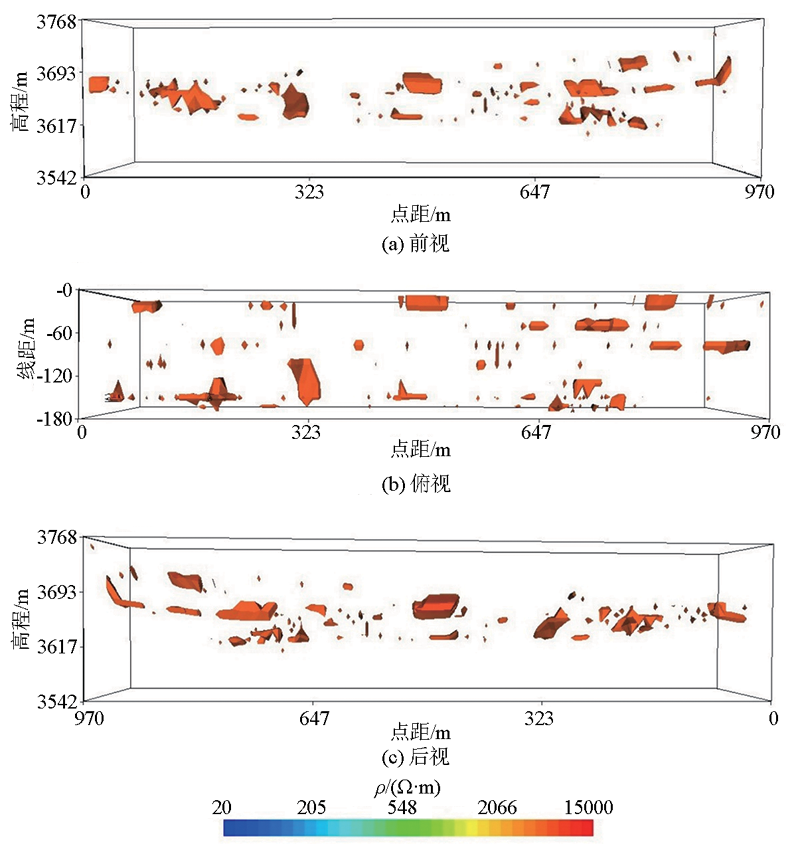

3D spatial structure of high resistance body
|
|

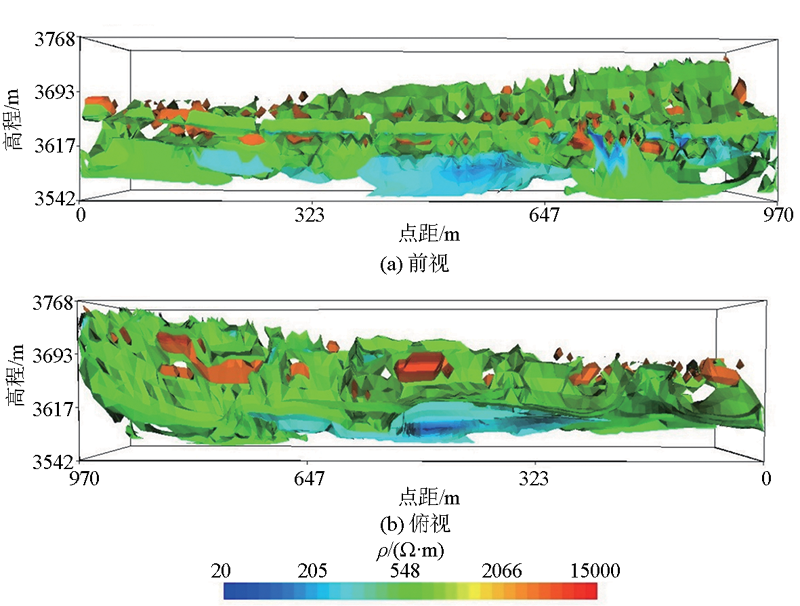

3D spatial relationship of high, medium and low resistivity bodies
|
