航空电磁技术在冻土调查中的探测能力分析

doi:10.11720/wtyht.2022.2480

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4295 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

It is critical for climate, water resources, ecology, and engineering construction in China to accurately assess the three-dimensional distribution and periodic change of permafrost. Permafrost is mainly distributed in high-elevation regions in China. Therefore, the surface geophysical prospecting suffers from low efficiency, high cost, and poor transportation in determining the thickness of permafrost in China. In contrast, the airborne electromagnetic methods using resistivity difference enjoy great advantages. This study established a geoelectric model based on the thickness and resistivity of permafrost in Qilian area, Qinghai Province. Then, by simulating the thickness and resistivity of permafrost, low resistance layer under permafrost, flight height, and changes in the angles of receiver coils, this study analyzed the differences in electromagnetic responses under different conditions obtained from one-dimensional forward modeling using time-domain and frequency-domain airborne electromagnetic systems AeroTEM and Impulse. Based on this, this study assessed the capability of airborne electromagnetic methods to detect the top and bottom interfaces of permafrost. According to the simulation results, frequency-domain airborne electromagnetic system Impulse can determine the top interface of the permafrost covered by a marsh, wetland, or moist meadow according to the thickness of melted permafrost under a low noise level. In comparison, time-domain airborne electromagnetic system AeroTEM can determine the bottom interface of the permafrost, with the determination accuracy significantly improving when low-resistivity layers occur beneath the permafrost. Therefore, the top and bottom interfaces of permafrost can be jointly determined using frequency and time-domain airborne electromagnetic data. The results of this study will provide theoretical support for the future application of airborne electromagnetic methods to permafrost surveys in China.

Key words： permafrost airborne electromagnetic method one-dimensional forward modelling thickness detection capability

Received: 12 October 2020 Published: 25 February 2022

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Si-Yuan SUN
	Xue-Zhong YU
	Ru-Kuan XIE
	Yi-Yuan HE
	Xi-Peng SHAN
	Shi-Jun LI

Cite this article:

Si-Yuan SUN,Xue-Zhong YU,Ru-Kuan XIE, et al. Capabilities of airborne electromagnetic methods to detect permafrost[J]. Geophysical and Geochemical Exploration, 2022, 46(1): 104-113.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.2480 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I1/104

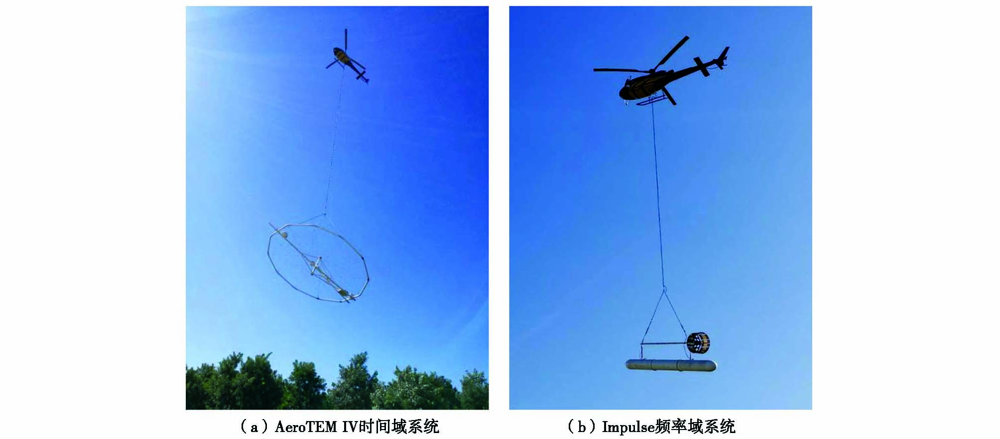

Helicopter airborne electromagnetic system

Parameters of time domain airborne electromagnetic system AeroTEM IV

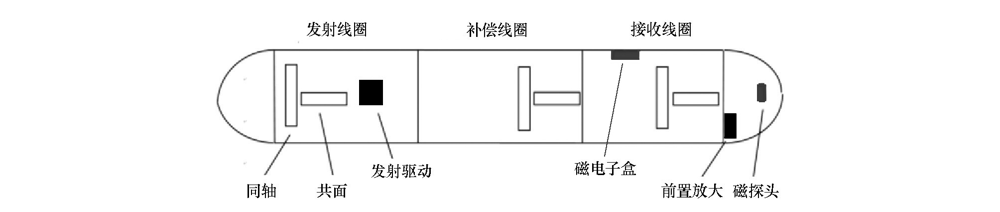

Bird sketch of Impulse system

Parameters of frequency domain airborne electromagnetic system Impulse

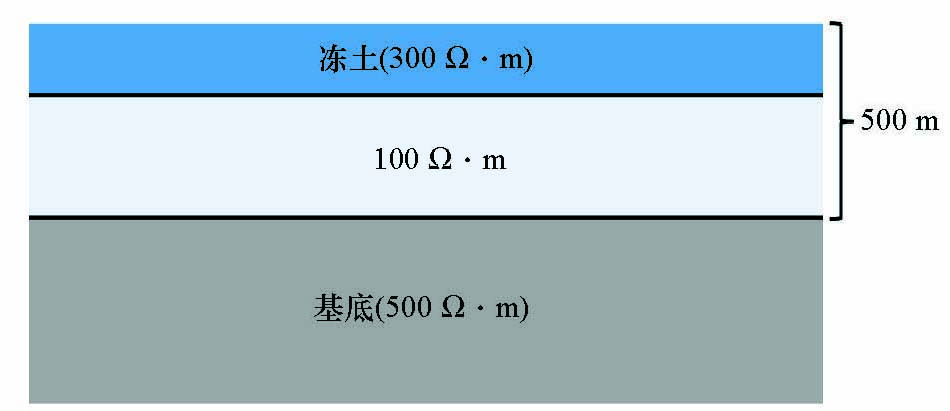

Geoelectric model 1 of frozen soil

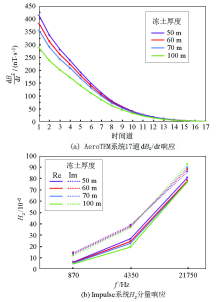

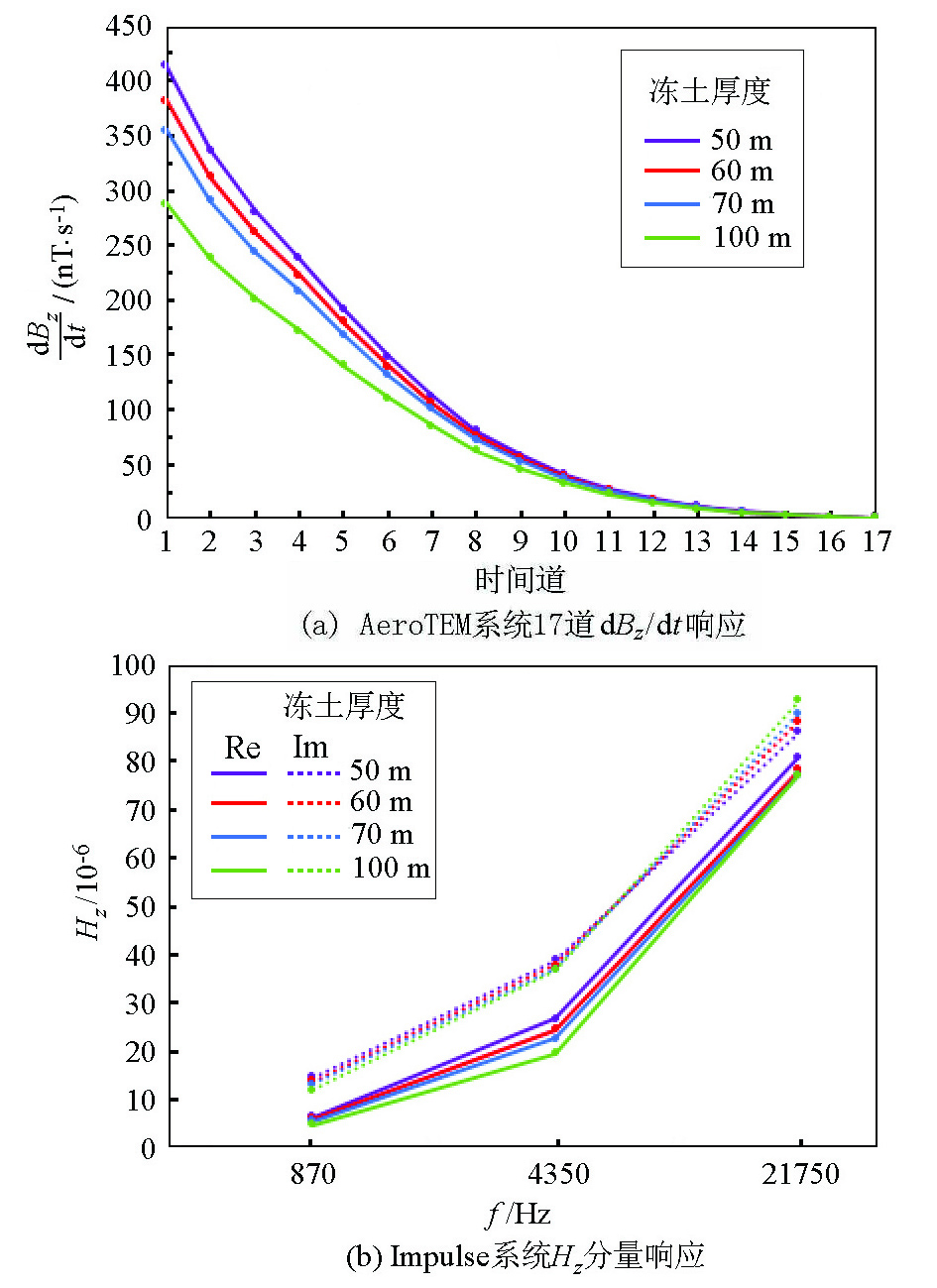

Response of permafrost models with different thickness

Geoelectric model 2 of frozen soil

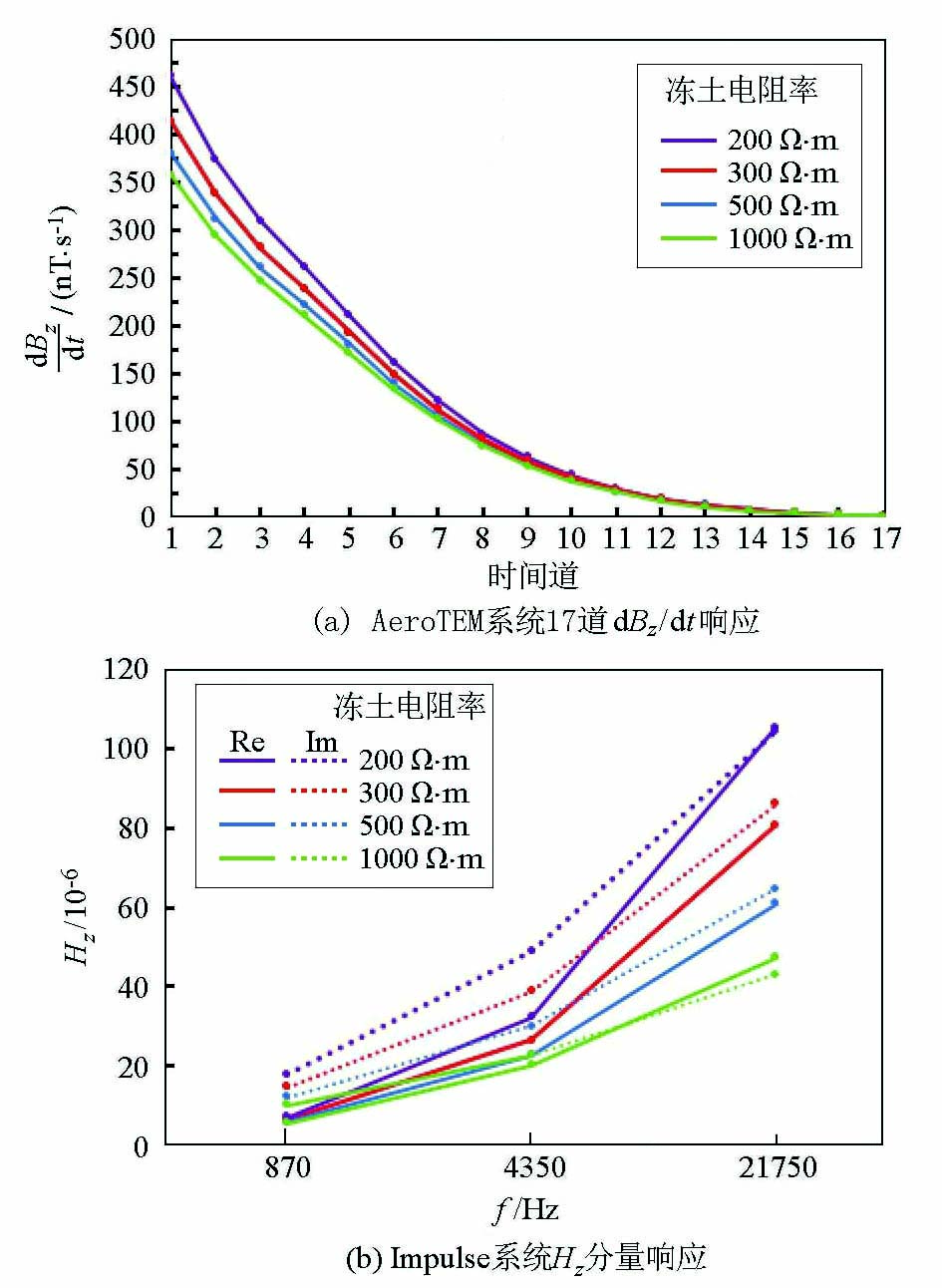

Response of permafrost models with different resistivities

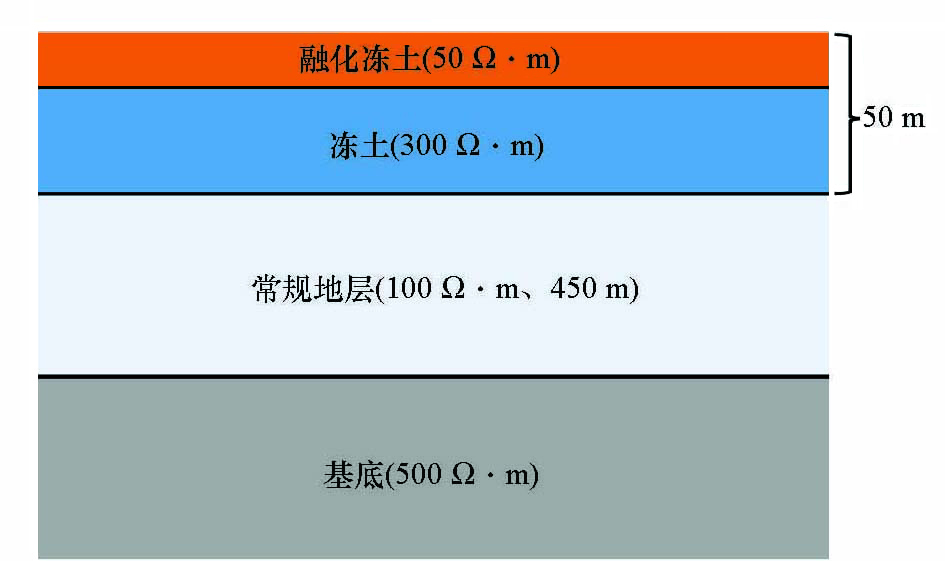

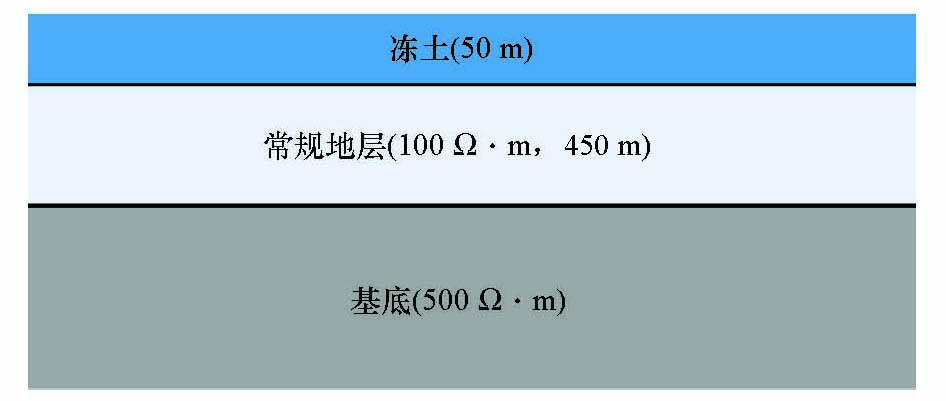

Geoelectric model 3 of frozen soil

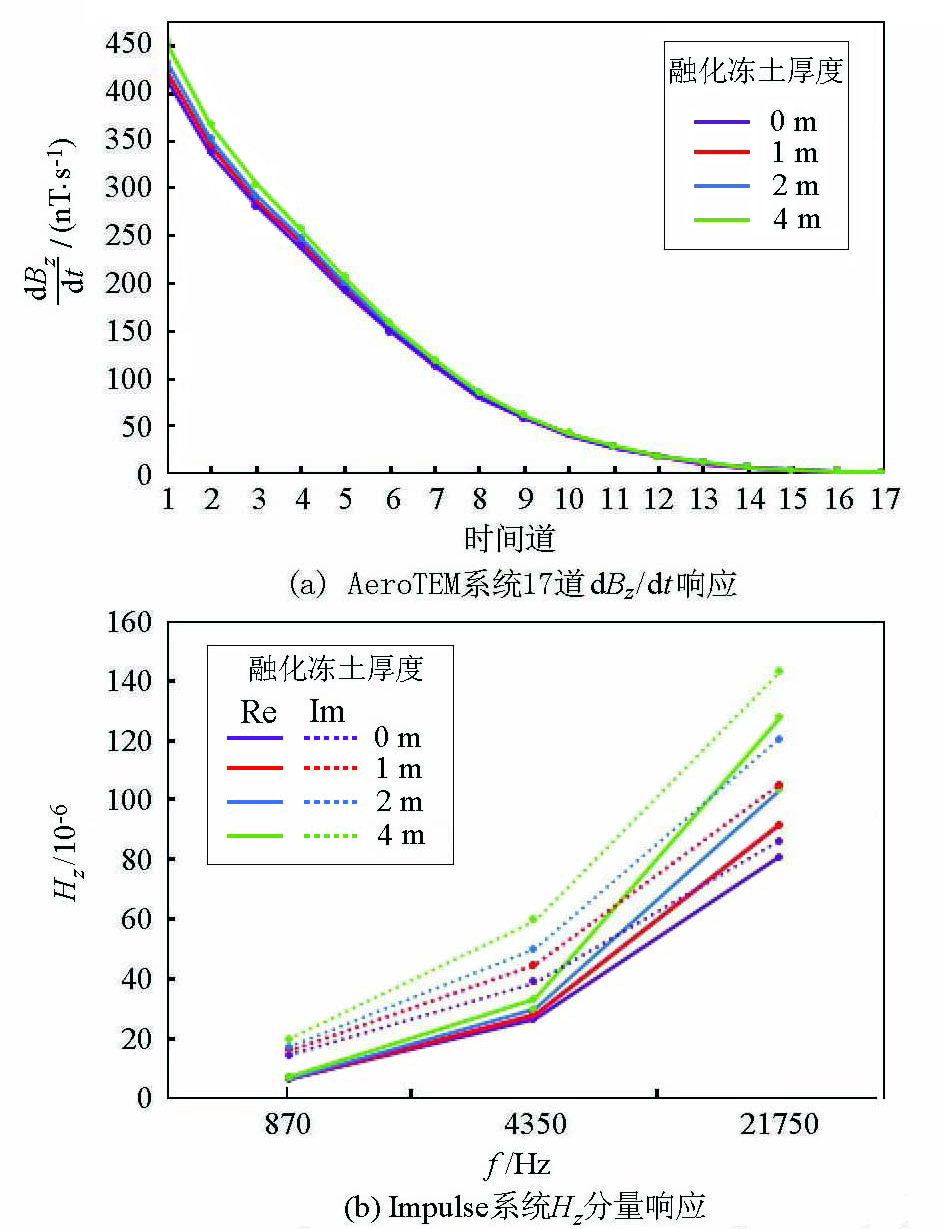

Response of melting permafrost models with different thickness

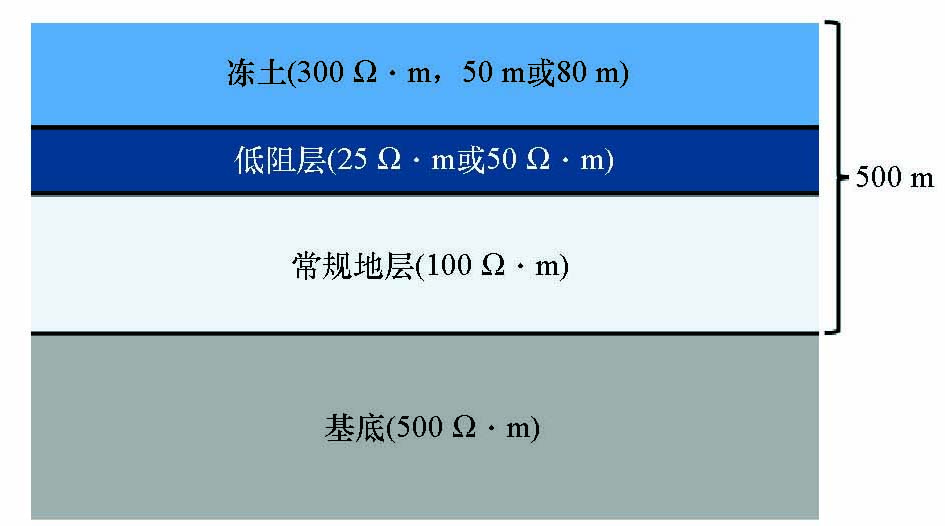

Geoelectric model 4 of frozen soil

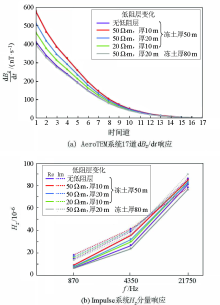

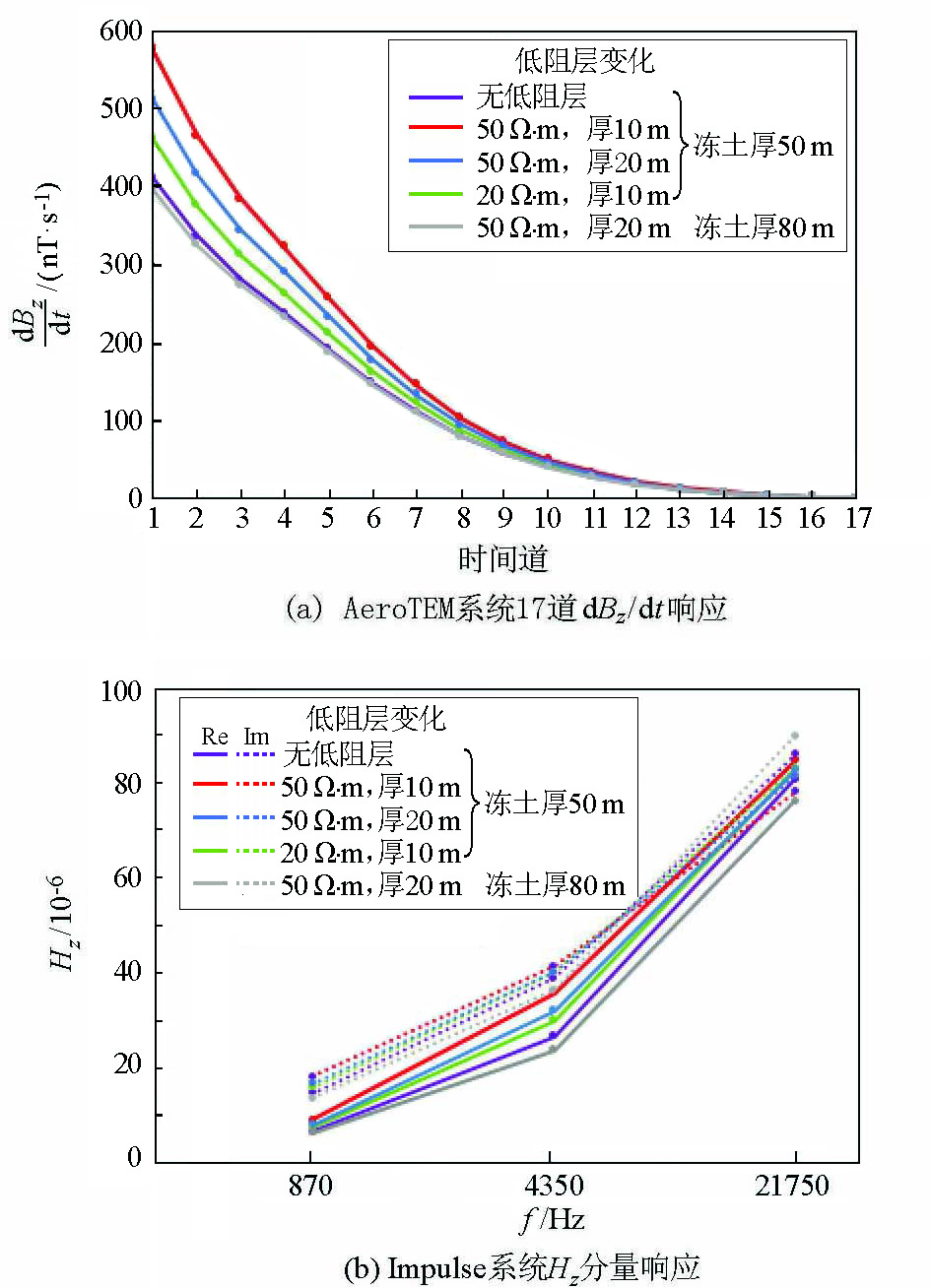

Response of permafrost models with different Low resistivity layers

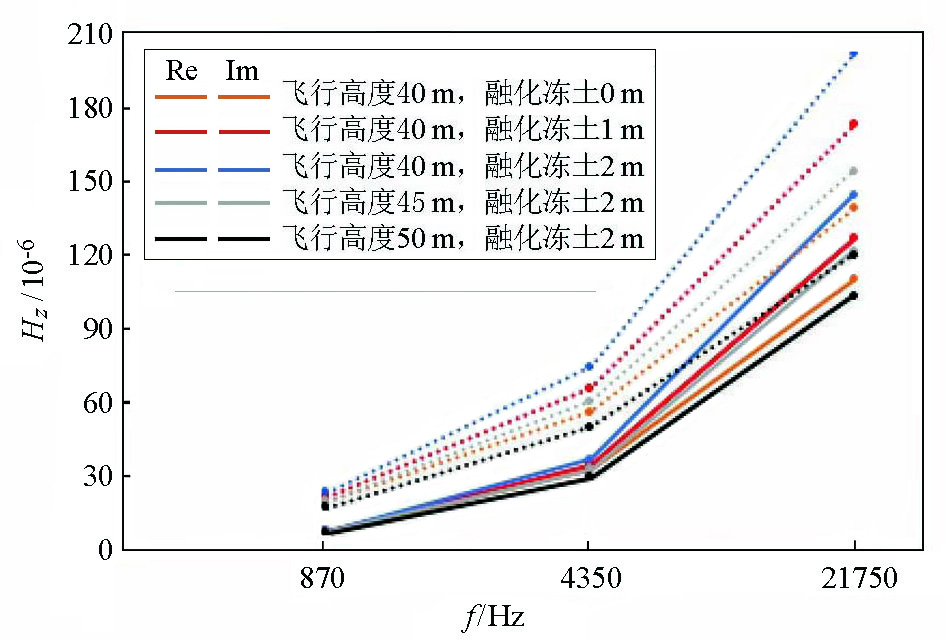

H_z response of Model 3 with different flight altitudes

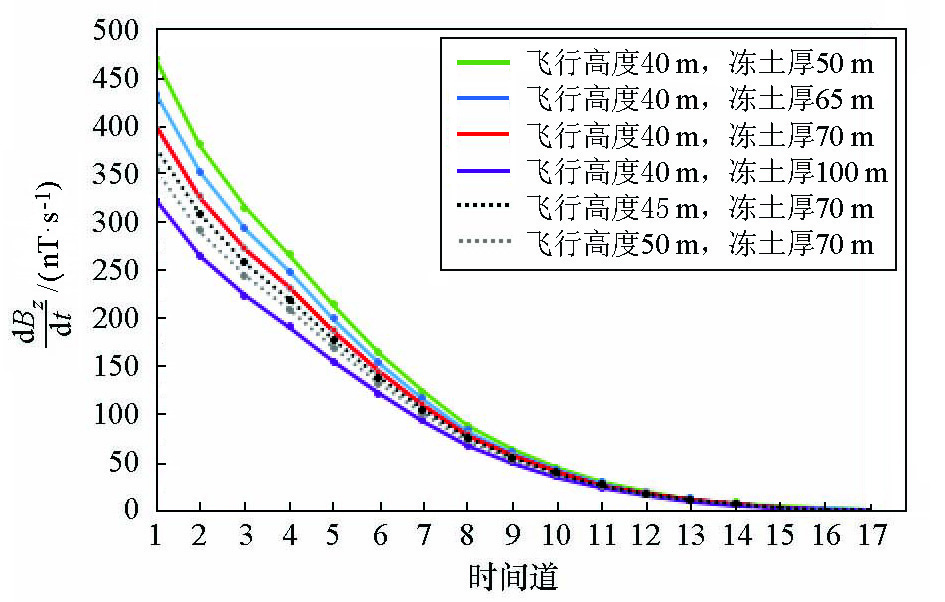

dB_z/dt response of Model 1 with different flight altitudes

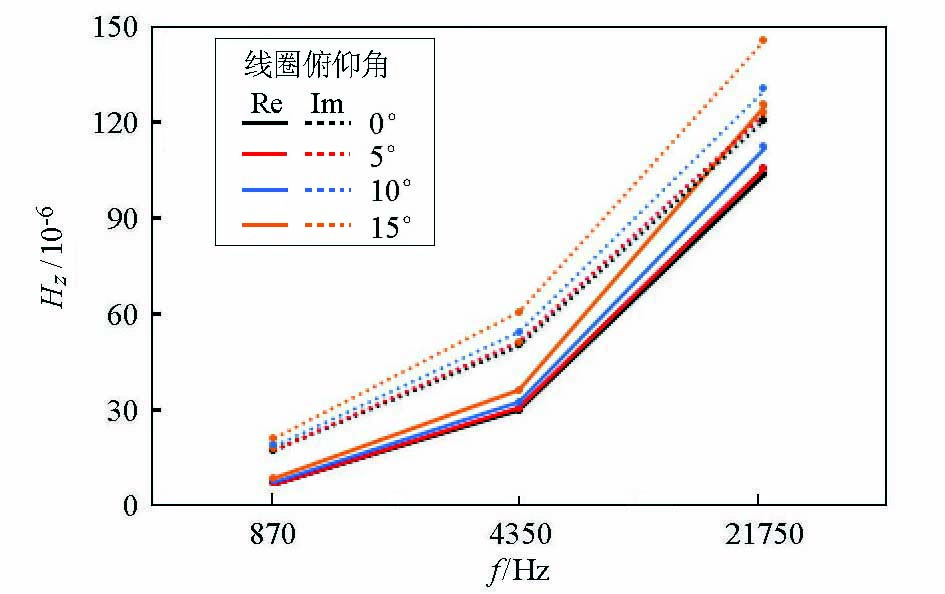

H_z response of Model 3 with different coil pitch Angles

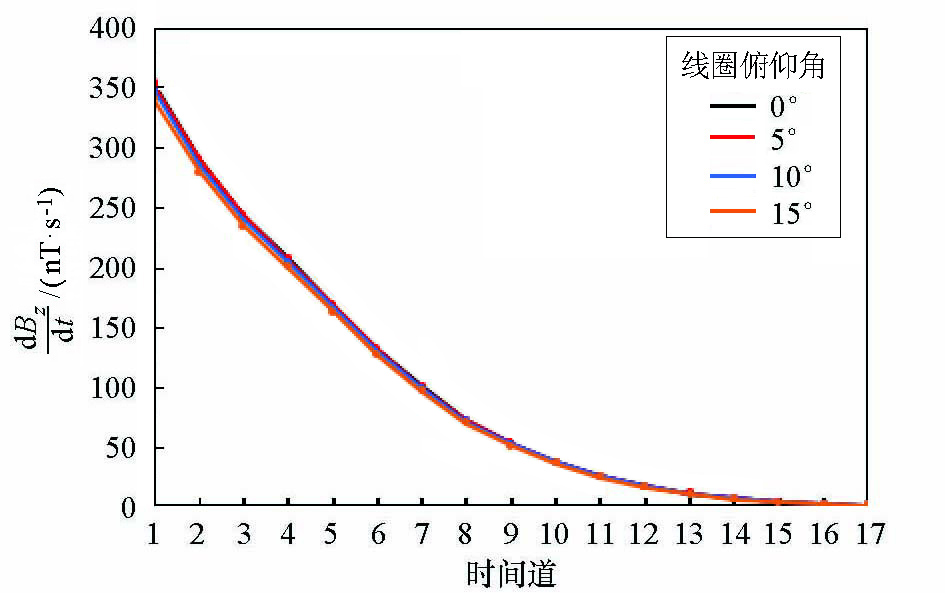

dBz/dt response of Model 1 with different coil pitch Angles
