菏泽市水系沉积物重金属特征及风险评估

doi:10.11720/wtyht.2022.1421

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4931 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study aims to investigate the characteristics, pollution sources, and ecological risks of heavy metals in the stream sediments in Heze City, which is an important catchment area in the east route of the South-to-North Water Diversion Project. To this end, stream sediment samples were collected from 25 sites of three major river basins in Heze City, and the contents of Cu, Zn, Ni, Cr, Cd, and Pb in the samples were analyzed. Moreover, this study assessed the ecological risks of these heavy metal elements using the pollution load index (PLI), potential ecological risk index (RI), and logarithmic regression model and determined the pollution sources of these heavy metal elements through correlation and principal component analysis. The results are as follows. The contents of the six heavy metal elements in the stream sediment samples were generally higher than their background values. The Ni and Cd contents at all investigated sites exceeded their background values, especially the Cd content at 40% of the investigated sites, which was more than three times the background value. The heavy metals in the stream sediments of the three river basins are unevenly distributed. The maximum values of the six heavy metals all originated from the samples of the Zhuzhaoxin River basin, of which the PLI, RI, and toxicity ratio Y were 1.67, 123 and 0.367, respectively. These values were higher than those of the other two basins, indicating that the heavy metals in sediments of the Zhuzhaoxin River basin reach moderate pollution and have high ecological risks and potential harm to aquatic organisms. The principal component analysis shows that the petroleum refining and related chemical enterprises in industrial parks are the main contributors to the enrichment of the six heavy metal elements.

Key words： stream sediment heavy metal risk assessment

Received: 01 August 2021 Published: 17 August 2022

ZTFLH:

P632

Corresponding Authors: LI Min E-mail: xuxiong@hz.shandong.cn;limin428@126.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiong XU
	Yan-Ting SUN
	Fang XIAO
	Pei-Ping XIAO
	Ying-Shang DONG
	Min LI

Cite this article:

Xiong XU,Yan-Ting SUN,Fang XIAO, et al. Characteristics and risk assessment of the heavy metals in stream sediments of Heze City[J]. Geophysical and Geochemical Exploration, 2022, 46(4): 1021-1029.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.1421 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I4/1021

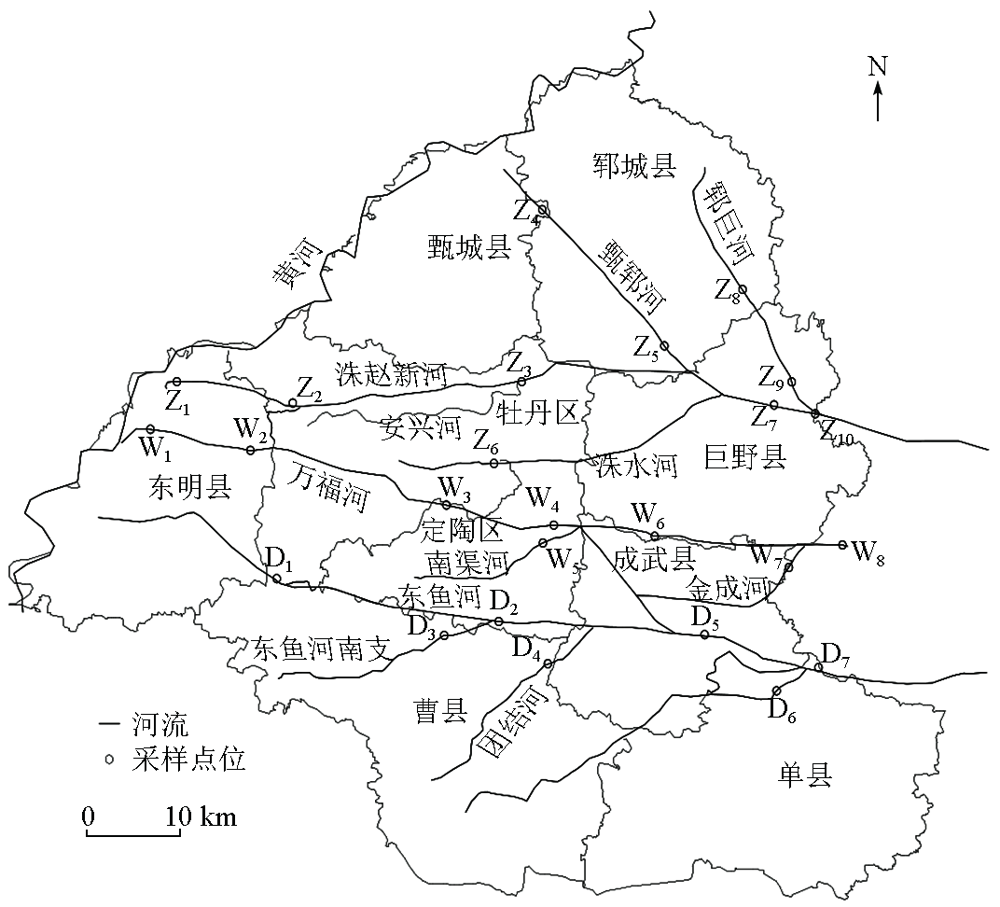

Researched area location and distribution of sampling sites

Levels and degrees of contamination corresponding to different PLI values

The grade criteria of E_r and RI and its corresponding risk level

Intercept and slope corresponding to different heavy metals in logistic regression model

	参数	Cu	Zn	Ni	Cr	Cd	Pb
洙赵新河流域	含量范围/10^-6	32.7~53.6	52.4~120.0	31.2~61.4	52.2~139.0	0.165~0.417	20.9~44.1
	平均值/10^-6	40.2	84.4	44.5	80.3	0.269	31.1
	标准偏差/10^-6	7.5	23.5	10.9	27.6	0.078	6.2
	变异系数/%	18.6	27.9	24.5	34.3	28.9	19.9
	背景值/10^-6	24.0	63.5	25.8	66.0	0.084	25.8
	C_f值	1.68	1.33	1.72	1.22	3.20	1.20
	$E r i$ 值	8.40	1.33	8.60	2.44	96.0	6.00
	超背景值点位占比/%	100	70	100	70	100	80
万福河流域	含量范围/10^-6	15.5~41.6	62.8~87.6	27.8~57.3	54.1~92.3	0.173~0.367	22.7~37.6
	平均值/10^-6	27.4	74.2	42.9	69.3	0.254	29.9
	标准偏差/10^-6	8.7	10.5	10.2	11.5	0.079	4.9
	变异系数/%	31.8	14.2	23.7	16.5	31.0	16.3
	背景值/10^-6	24.0	63.5	25.8	66.0	0.084	25.8
	C_f值	1.14	1.17	1.66	1.05	3.02	1.16
	$E r i$ 值	5.70	1.17	8.30	2.10	90.6	5.80
	超背景值点位占比/%	62.5	87.5	100	62.5	100	75
东鱼河流域	含量范围/10^-6	18.5~48.4	55.3~108.0	28.1~59.3	51.2~94.5	0.133~0.336	20.4~41.5
	平均值/10^-6	33.3	78.3	39.2	72.9	0.212	30.4
	标准偏差/10^-6	13.0	18.3	11.0	16.1	0.070	8.6
	变异系数/%	39.1	23.4	28.1	22.1	32.8	28.1
	背景值/10^-6	24.0	63.5	25.8	66.0	0.084	25.8
	C_f值	1.39	1.23	1.52	1.11	2.53	1.18
	$E r i$ 值	6.95	1.23	7.60	2.22	75.9	5.90
	超背景值点位占比/%	57.1	71.4	100	57.1	100	57.1

Descriptive statistics of heavy metals in sediments from different rivers

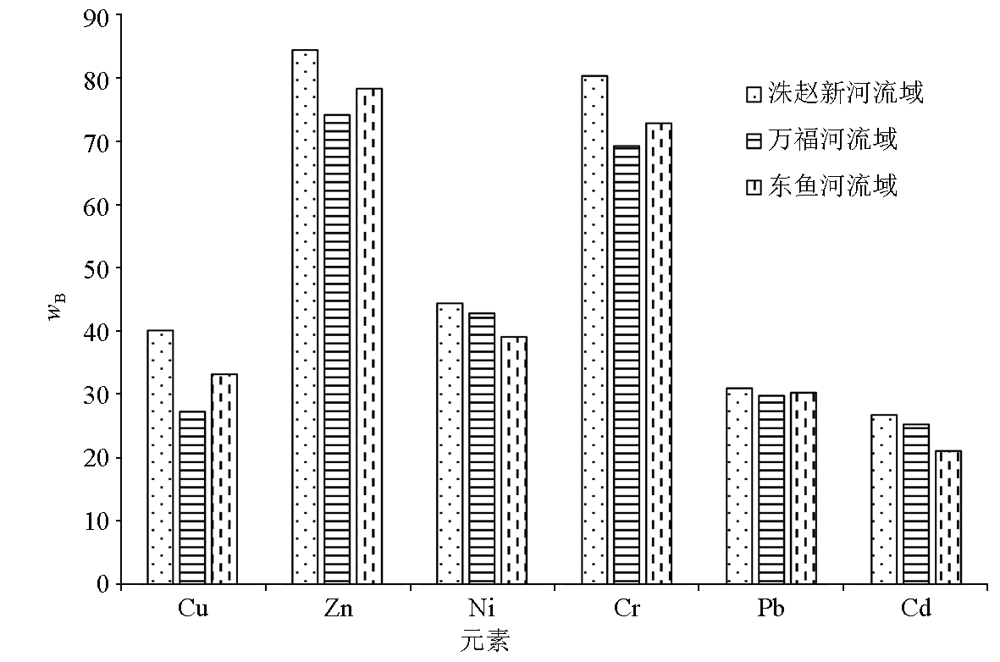

Difference of heavy metals in sediments in different watersheds

Evaluation results of contamination factors of heavy metals in sediments

Evaluation results of heavy metals in sediments from different polluted rivers

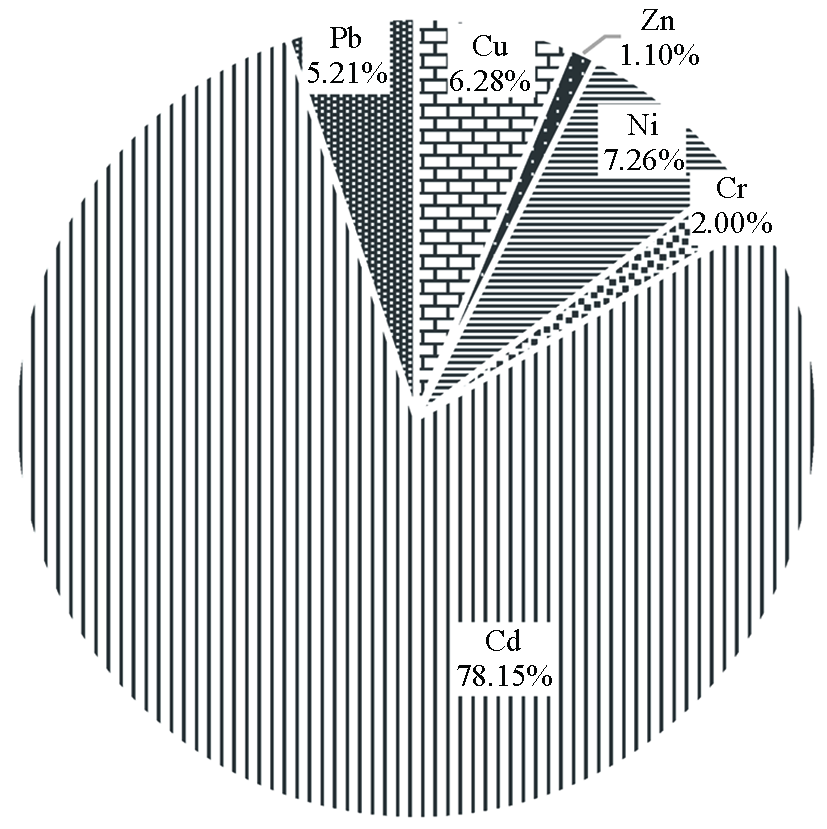

Contribution of different heavy metals to potential ecological risk index

P and Y values of heavy metals in sediments from three rivers

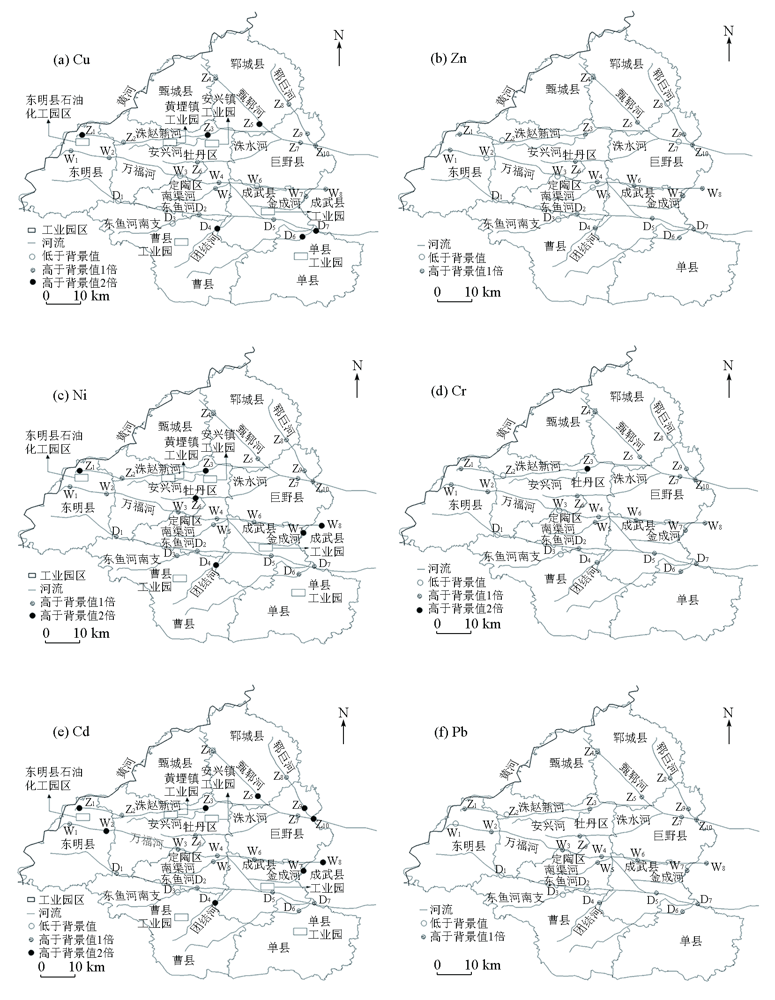

Distribution of heavy metal contents in sediments of researched area

Correlation coefficients among heavy metal contents

Principal component analysis result of heavy metals in sediments

[1]	Luoma S N. Bioavailability of trace metals to aquatic organisms—A review[J]. Science of the Total Environment, 1983, 28(1):1-22.
[2]	Sturm T W. Mobilization and fate of inorganic contaminants due to resuspension of cohesive sediments[J]. International Journal of Urology, 1996, 13(5):659-661.
[3]	Zhung Y, Allen H E, Fu G. Effect of aeration of sediment on cadmium binding[J]. Environmental Toxicology & Chemistry, 2010, 13(5):717-724.
[4]	王书锦, 刘云根, 王妍, 等. 洱海入湖河口湿地干湿季沉积物氮、磷、有机质垂向分布特征及污染风险差异性[J]. 环境科学, 2016, 37(12):4615-4625.
[4]	Wang S J, Liu Y G, Wang Y, et al. Vertical distribution and pollution risk assessment of nitrogen,phosphorus,and organic matter in sediment of inflowing rivers of Erhai Lake estuarine wetland in wet and dry seasons[J]. Environmental Science, 2016, 37(12):4615-4625.
[5]	王莉君, 吴思麟. 南京黑臭河道底泥污染特性及评价[J]. 科学技术与工程, 2018, 18(3):117-122.
[5]	Wang L J, Wu S L. Pollution characteristics and contamination assessment of sediment from black-odor rivers in Nanjing City[J]. Science Technology and Engineering, 2018, 18(3):117-122.
[6]	易文利. 宝鸡千河底泥营养盐及重金属风险评价[J]. 四川环境, 2018, 37(2):151-155.
[6]	Yi W L. Risk assessment of heavy metals and nutrients in sediments of the Qianhe River in Baoji[J]. Sichuan Environment, 2018, 37(2):151-155.
[7]	邬明鹏. 聚苯并噁嗪界面性质的调控及其对水中重金属离子Cr(Ⅵ)的脱除性能研究[D]. 武汉: 华中农业大学, 2018.
[7]	Wu M P. Regulation of interfacial properties of polybenzoxazine for removing heavy metal ion Cr(VI) from aqueous solution[D]. Wuhan: Huazhong Agricultural University, 2018.
[8]	Tomlinson D L, Wilson J G, Harris C R, et al. Problems in the assessment of heavy metal levels in estuaries and the formation of a pollution index[J]. Helgoländer Meeresunters, 1980(33):566-575.
[9]	中国环境监测总站. 中国土壤元素背景值[M]. 北京: 中国环境科学出版社, 1990:94-172.
[9]	China National Eenvironmental Monitoring Center. Background values of soil elements in China[M]. Beijing: China Environmental Science Press, 1990:94-172.
[10]	贾英, 方明, 吴友军, 等. 上海河流沉积物重金属的污染特征与潜在生态风险[J]. 中国环境科学, 2013, 33(1):147-153.
[10]	Jia Y, Fang M, Wu Y J, et al. Pollution characteristics and potential ecological risk of heavy metals in river sediments of Shanghai[J]. China Environmental Science, 2013, 33(1):147-153.
[11]	徐争启, 倪师军, 庹先国, 等. 潜在生态危害指数法评价中重金属毒性系数计算[J]. 环境科学与技术, 2008, 31(2):112-115.
[11]	Xu Z Q, Ni S J, Tuo X G, et al. Calculation of heavy metals’ toxicity coefficient in the evaluation of potential ecological risk index[J]. Environmental Science and Technology, 2008, 31(2):112-115.
[12]	马建华, 韩昌序, 姜玉玲. 潜在生态风险指数法应用中的一些问题[J]. 地理研究, 2020, 39(6):1233-1241.
[12]	Ma J H, Han C X, Jiang Y L. Some problems in the application of potential ecological risk index[J]. Geographical Research, 2020, 39(6):1233-1241.
[13]	Field L J, MacDonald D D, Norton S B, et al. Evaluating sediment chemistry and toxicity data using logistic regression modeling[J]. Environmental Toxicology and Chemistry, 1999, 18(6):1311-1322.
[14]	丁婷婷, 杜士林, 王宏亮, 等. 嘉兴市河网重金属的污染特征及生态风险评价[J]. 环境化学, 2020, 39(2):500-511.
[14]	Ding T T, Du S L, Wang H L, et al. Pollution characteristics and ecological risk assessment of heavy metals in Jiaxing River Network,Zhejiang Province,China[J]. Environmental Chemistry, 2020, 39(2):500-511.
[15]	王向辉, 张艺杰, 刘又华, 等. 海口市五源河底泥分析评价及资源化利用研究[J]. 海南师范大学学报:自然科学版, 2019, 32(2):221-226.
[15]	Wang X H, Zhang Y J, Liu Y H, et al. Analysis,evaluation and resource utilization of sediments in Wuyuan River of Haikou City[J]. Journal of Hainan Normal University:Natural Science, 2019, 32(2):221-226.
[16]	余永琪, 冯松宝. 宿州新汴河底泥重金属分布特征及污染评价[J]. 西部资源, 2018(3):123-124,126.
[16]	Yu Y Q, Feng S B. Distribution characteristics and pollution assessment of heavy metals in sediments from Xinbian River in Suzhou City[J]. Western Resources, 2018(3):123-124,126.
[17]	王冬莹, 庄涛, 李迎霞, 等. 济南市东泺河底泥及其雨水汇水区地表灰尘中重金属的污染特征研究[J]. 安全与环境学报, 2018, 18(4):1586-1592.
[17]	Wang D Y, Zhuang T, Li Y X, et al. Heavy metal pollution features in the sediment and surface dust of the rain-water catchment area of Dongluo river in Jinan City[J]. Journal of Safety and Environment, 2018, 18(4):1586-1592.
[18]	石先罗, 章卫. 赣江南昌段沉积物重金属空间分布特征及风险评价[J]. 水利科技与经济, 2017, 23(9):1-5.
[18]	Shi X L, Zhang W. Distribution characteristics and potential ecological risk assessment of heavy metals in the Nanchang section of Ganjiang River[J]. Water Conservancy Science and Technology and Economy, 2017, 23(9):1-5.
[19]	盛维康, 侯青叶, 杨忠芳, 等. 湘江水系沉积物重金属元素分布特征及风险评价[J]. 中国环境科学, 2019, 39(5):2230-2240.
[19]	Sheng W K, Hou Q Y, Yang Z F, et al. Distribution characteristics and ecological risk assessment of heavy metals in sediments from Xiang River[J]. China Environmental Science, 2019, 39(5):2230-2240.
[20]	张伯镇, 雷沛, 潘延安, 等. 重庆主城区次级河流表层沉积物重金属污染特征及风险评价[J]. 环境科学学报, 2015, 35(7):2185-2192.
[20]	Zhang B Z, Lei P, Pan Y A, et al. Pollution and ecological risk assessment of heavy metals in the surface sediments from the tributaries in the main urban districts,Chongqing City[J]. Acta Scientiae Circumstantiae, 2015, 35(7):2185-2192.
[21]	刘薇. 石油化工园区土壤土壤重金属空间分布特征、源解析及污染评价[D]. 乌鲁木齐: 新疆大学, 2017.
[21]	Liu W. Spatial distribution characteristics,source analysis and pollution evaluation of heavy metals in soil of petrochemical[D]. Urumqi: Xinjiang University, 2017.
[22]	徐争启, 倪师军, 张成江, 等. 应用污染负荷指数法评价攀枝花地区金沙江水系沉积物中的重金属[J]. 四川环境, 2004, 23(3):64-67.
[22]	Xu Z Q, Ni S J, Zhang C J, et al. Assessment of heavy metals in sediments from Jinsha River in Panzhihua area by pollution load index[J]. Sichuan Environment, 2004, 23(3):64-67.
