因子分析在地球化学分区中的应用及指示意义——以山东省莒县—五莲地区1:5万水系沉积物测量数据为例

doi:10.11720/wtyht.2025.2505

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4697 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study investigated data from a 1:50,000 stream sediment survey in the Juxian-Wulian area, Shandong Province using factor analysis. By extracting eight representative factors, this study identified element assemblage types. Then, this study performed geochemical zoning based on the factor scores and discussed the relationships between various sub-zones and their geological background. Based on the geochemical zoning results, as well as geological conditions for mineralization, this study determined favorable geological bodies and prospecting targets and discovered new prospecting clues.The most significant mineralization combination in this area is Au-Cu-Ag-Mo-Bi, followed by Pb-Zn; The V-Ti-Co-Mn combination and Ni-Cr combination can serve as exploration elements, indicating that there may be favorable mineralization mechanisms in the center and deep parts of the combination anomaly zone. Finding volcanic craters and hidden explosive breccia tubes in the distribution areas of volcanic rocks in this region or area is an important direction for mineral exploration; In the area of Shichang Fangzi Village in the eastern part of the research area, there is a comprehensive zoning with a F₂-F₄-F₁ three factor combination model. The Mesozoic Buliu sequence and Weideshan sequence rock bodies are favorable geological bodies for mineralization, and the NE trending structural belt is a favorable place for mineralization, indicating the direction of prospecting.

Key words： factor analysis geochemical zoning stream sediment metallogenic prediction prospecting target

Received: 20 November 2023 Published: 22 April 2025

ZTFLH:

P595

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wen-Dong LU
	Bin SUN
	Guang-Jie LI
	Wei WEI
	Xiao-Xing XIA
	Bing-Lei PAN
	Qing SHA
	Xiao-Hong LYU
	Yuan-Chun LI
	Na QIAO

Cite this article:

Wen-Dong LU,Bin SUN,Guang-Jie LI, et al. Application of factor analysis in geochemical zoning and its implications: A case study of 1:50,000 stream sediment survey in the Juxian-Wulian area, Shandong Province[J]. Geophysical and Geochemical Exploration, 2025, 49(2): 411-421.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2025.2505 OR https://www.wutanyuhuatan.com/EN/Y2025/V49/I2/411

7]) and regional geological map of the study area (b)
1—Quaternary system; 2—upper Cretaceous-Paleocene series Wangshi Group; 3—lower Cretaceous Dasheng Group; 4—lower Cretaceous Qingshan Group; 5—lower Cretaceous Laiyang Group; 6—Cambrian-Ordovician system; 7—Qingbaikou-Sinian Tumen Group; 8—middle Paleozoic Yishui Rock Group; 9—early Cretaceous Laoshan sequence; 10—early Cretaceous Dadian sequence; 11—early Cretaceous Weideshan sequence; 12—early Cretaceous Buliu sequence; 13—late Jurassic Linglong sequence; 14—late Triassic Liulinzhuang sequence; 15—Neoproterozoic Tieshan sequence; 16—Neoproterozoic Yuejishan sequence; 17—Neoproterozoic Suoluoshu sequence; 18—Neoproterozoic Rongcheng sequence; 19—Mesoproterozoic Haiyangsuo sequence; 20—Newarchean Hongmen sequence; 21—Newarchean Yishui sequence; 22—Neoarchean Taishan sequence; 23—early Cretaceous pyroxene diorite; 24—early Cretaceous andesite; 25—early Cretaceous diorite porphyry; 26—early Cretaceous Coarse andesite vein; 27—diorite porphyry vein; 28—granite porphyry vein; 29—syenite porphyry vein; 30—diorite vein; 31—Quartz porphyry vein; 32—diabase veins; 33—Shagou basalt; 34—compressive torsional fracture/fracture with unknown properties/tensile torsional fracture; 35—speculation of fracture; 36—geological boundary; 37—gold mine(point); 38—copper mine(point); 39—pyrite; 40—lead ore occurrence; 41—zinc ore occurrence; 42—multi metallic mineral occurrences; 43—lead zinc mineral occurrences; 44—iron ore deposit; 45—silver mining site; 46—potassium ore occurrence; 47—rare earth mineral occurrences; 48—scope of the research area
">

Geotectonic background map of the study area (a, modified by Zhang^[7]) and regional geological map of the study area (b)
1—Quaternary system; 2—upper Cretaceous-Paleocene series Wangshi Group; 3—lower Cretaceous Dasheng Group; 4—lower Cretaceous Qingshan Group; 5—lower Cretaceous Laiyang Group; 6—Cambrian-Ordovician system; 7—Qingbaikou-Sinian Tumen Group; 8—middle Paleozoic Yishui Rock Group; 9—early Cretaceous Laoshan sequence; 10—early Cretaceous Dadian sequence; 11—early Cretaceous Weideshan sequence; 12—early Cretaceous Buliu sequence; 13—late Jurassic Linglong sequence; 14—late Triassic Liulinzhuang sequence; 15—Neoproterozoic Tieshan sequence; 16—Neoproterozoic Yuejishan sequence; 17—Neoproterozoic Suoluoshu sequence; 18—Neoproterozoic Rongcheng sequence; 19—Mesoproterozoic Haiyangsuo sequence; 20—Newarchean Hongmen sequence; 21—Newarchean Yishui sequence; 22—Neoarchean Taishan sequence; 23—early Cretaceous pyroxene diorite; 24—early Cretaceous andesite; 25—early Cretaceous diorite porphyry; 26—early Cretaceous Coarse andesite vein; 27—diorite porphyry vein; 28—granite porphyry vein; 29—syenite porphyry vein; 30—diorite vein; 31—Quartz porphyry vein; 32—diabase veins; 33—Shagou basalt; 34—compressive torsional fracture/fracture with unknown properties/tensile torsional fracture; 35—speculation of fracture; 36—geological boundary; 37—gold mine(point); 38—copper mine(point); 39—pyrite; 40—lead ore occurrence; 41—zinc ore occurrence; 42—multi metallic mineral occurrences; 43—lead zinc mineral occurrences; 44—iron ore deposit; 45—silver mining site; 46—potassium ore occurrence; 47—rare earth mineral occurrences; 48—scope of the research area

Bartlett sphericity test and KMO test

Factor analysis eigenvalues and cumulative variance contribution rate of the study area

Factor analysis orthogonal rotation factor load matrix

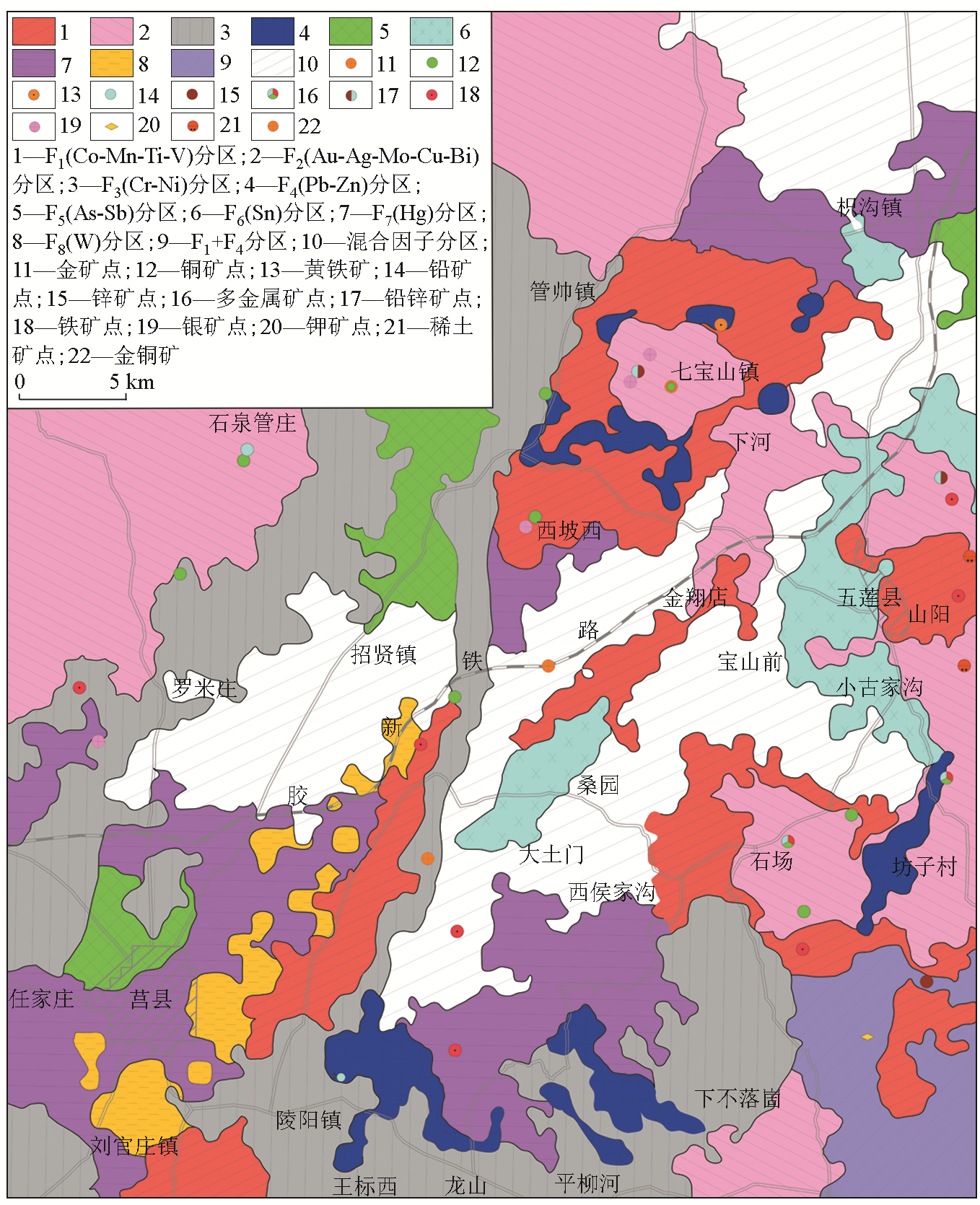

Geochemical subdivisions in the study area

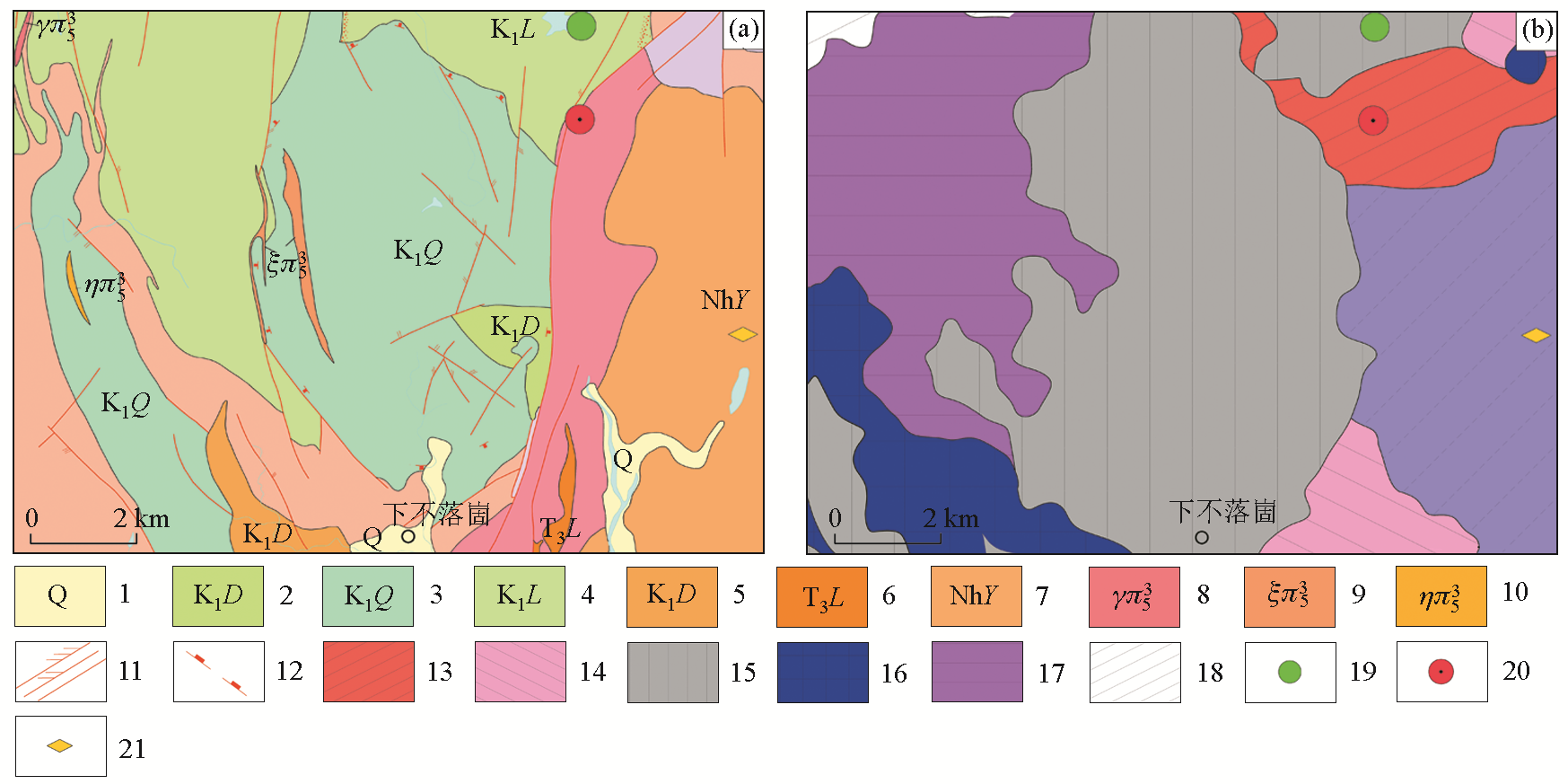

Geological sketch map (a) and factor analysis contrast map (b) of Xiabuluogu area in the study area
1—Quaternary system; 2—lower Cretaceous Dasheng Group; 3—lower Cretaceous Qingshan Group; 4—lower Cretaceous Laiyang Group; 5—early Cretaceous Dadian sequence; 6—late Triassic Liulinzhuang sequence; 7—Neoproterozoic Yuejishan sequence; 8—granite porphyry vein; 9—syenite porphyry vein; 10—monzonitic porphyry vein; 11—compression torsion fracture/tension torsion fracture/fracture of unknown nature; 12—volcanic institutions; 13—F₁(Co-Mn-Ti-V) partition; 14—F₂ (Au-Ag-Mo-Cu-Bi) partition; 15—F₃(Cr-Ni) partition; 16—F₄(Pb-Zn) zoning; 17—F₇(Hg) zone; 18—mixed factor zoning; 19—copper mine; 20—iron ore point; 21—potash occurrences

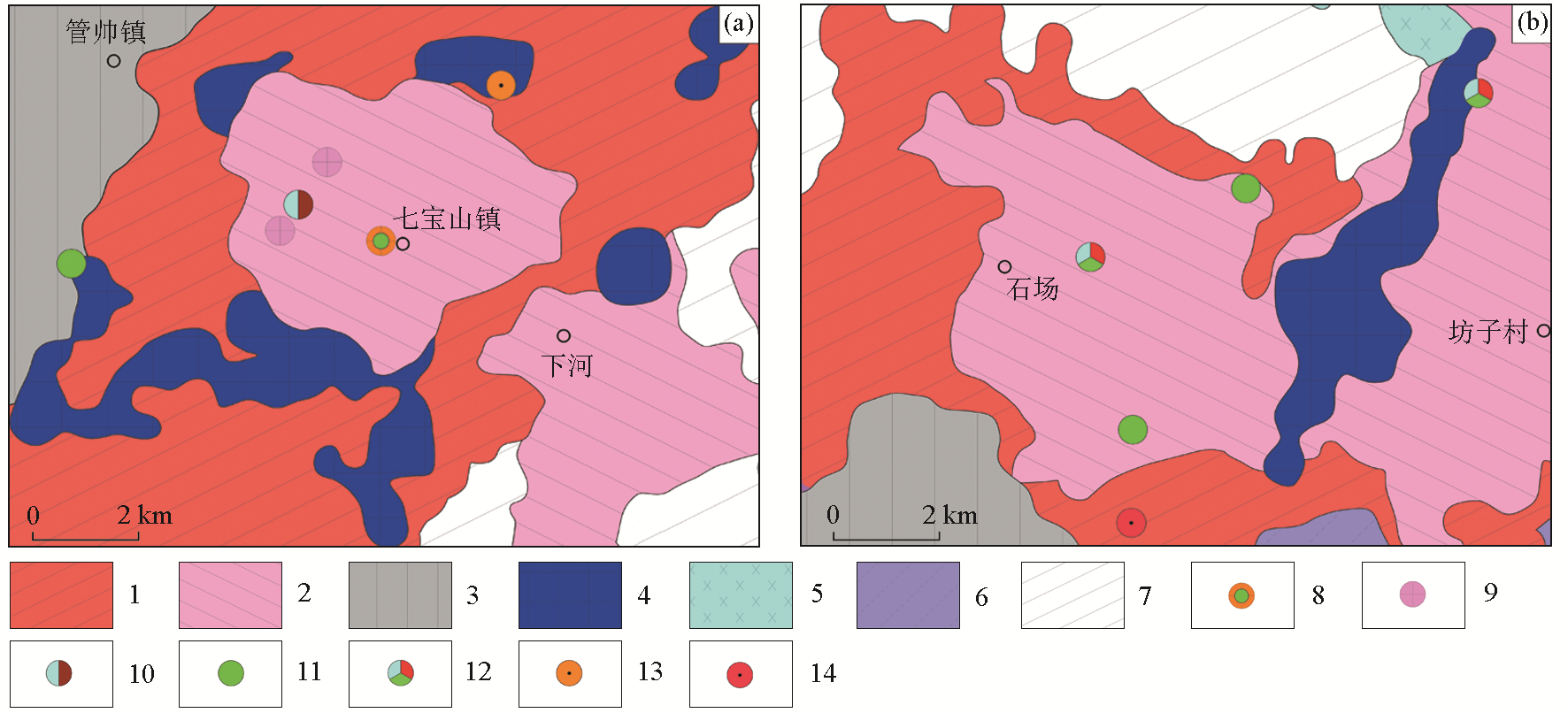

F₂-F₄-F₁ factor metallogenic model of Au-Cu and its peripheral polymetallic deposits in Qibaoshan(a), and F₂-F₄-F₁ factor metallogenic prediction map in Shichang-Fangzicun area (b)
1—F₁ (Co-Mn-Ti-V) partition; 2—F₂ (Au-Ag-Mo-Cu-Bi) partition; 3—F₃ (Cr-Ni) partition; 4—F₄ (Pb-Zn) zoning; 5—F₆ (Sn) partition; 6—F₂+F₄ partition; 7—mixed factor partition; 8—Qibaoshan gold copper mine; 9—Qibaoshan peripheral silver mine; 10—Qibaoshan peripheral lead zinc mine; 11—copper mine; 12—polymetallic occurrences; 13—pyrite; 14—iron ore point

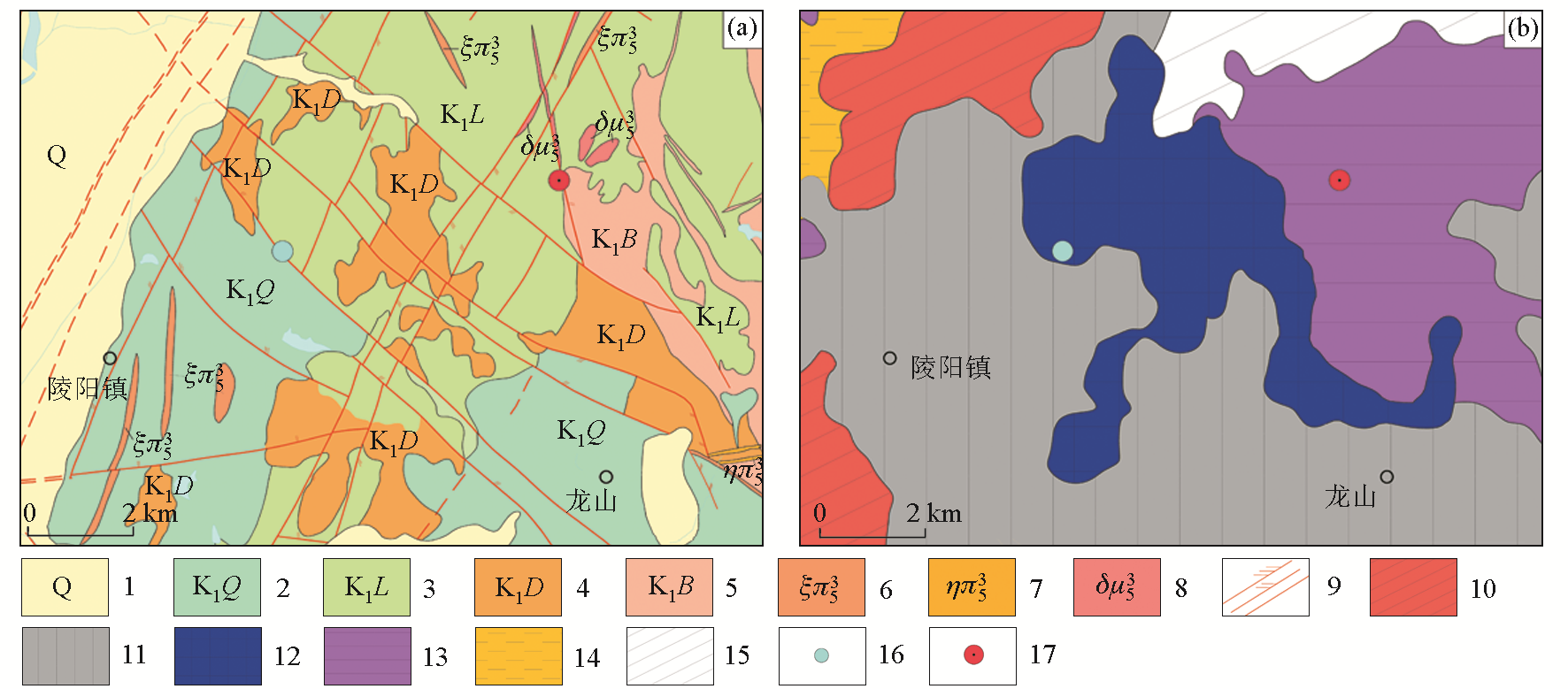

Geological sketch map (a) and factor analysis contrast map (b) of the eastern part of Lingyang town in the study area
1—Quaternary system; 2—lower Cretaceous Qingshan Group; 3—lower Cretaceous Laiyang Group; 4—early Cretaceous Dadian sequence; 5—early Cretaceous Buliu sequence; 6—syenite porphyry vein; 7—monzonitic porphyry vein; 8—diorite porphyrite vein; 9—compression torsion fracture/tension torsion fracture/fracture of unknown nature; 10—F₁ (Co-Mn-Ti-V) zoning; 11—F₃ (Cr-Ni) partition; 12—F₄(Pb-Zn) zoning; 13—F₇ (Hg) zone; 14—F₈ (W) zone; 15—mixed factor zoning; 16—lead ore occurrence; 17—iron ore point

[1]	高延光, 杨忠芳, 汪明启, 等. 青海北祁连中南沟水系沉积物地球化学特征[J]. 物探与化探, 2006, 30(5):382-386.
[1]	Gao Y G, Yang Z F, Wang M Q, et al. Geochemical characteristics of stream sediments in Zhongnangou of north Qilian mountains,Qinghai Province[J]. Geophysical and Geochemical Exploration, 2006, 30(5):382-386.
[2]	时艳香, 纪宏金, 陆继龙, 等. 水系沉积物地球化学分区的因子分析方法与应用[J]. 地质与勘探, 2004, 40(5):73-76.
[2]	Shi Y X, Ji H J, Lu J L, et al. Factor analysis method and application of stream sediment geochemical partition[J]. Geology and Prospecting, 2004, 40(5):73-76.
[3]	董毅. 因子分析在水系沉积物测量地球化学分区中的应用探讨——以青海都兰地区为例[J]. 矿产与地质, 2008, 22(1):78-82.
[3]	Dong Y. Discussion of applying factor analysis to the geochemical subareas measurement in stream sediment—A case study of Dulan area in Qinghai Province[J]. Mineral Resources and Geology, 2008, 22(1):78-82.
[4]	董毅, 范丽琨, 段焕春, 等. 青海大坂山地区水系沉积物测量元素组合分区[J]. 地质与勘探, 2009, 45(1):70-74.
[4]	Dong Y, Fan L K, Duan H C, et al. Zonation of association of elements from geochemical survey for stream sediments in Dabanshan region,Qinghai Province[J]. Geology and Exploration, 2009, 45(1):70-74.
[5]	王永华, 龚鹏, 龚敏, 等. 成矿带1:20万水系沉积物地球化学分区的方法及地质意义:以西藏冈底斯铜多金属成矿带为例[J]. 现代地质, 2010, 24(4):801-806.
[5]	Wang Y H, Gong P, Gong M, et al. Geochemical subdivisions in metallogenic belt with the 1:200,000 stream sediments and its geological significance:A case study in gangdese copper-polymetallic metallogenic belt[J]. Geoscience, 2010, 24(4):801-806.
[6]	赵少卿, 魏俊浩, 高翔, 等. 因子分析在地球化学分区中的应用:以内蒙古石板井地区1:5万岩屑地球化学测量数据为例[J]. 地质科技情报, 2012, 31(2):27-34.
[6]	Zhao S Q, Wei J H, Gao X, et al. Factor analysis in the geochemical subdivisions:Taking 1:50,000 debris geochemical survey in the Shibanjing area of Inner Mongolia as an example[J]. Geological Science and Technology Information, 2012, 31(2):27-34.
[7]	张增奇, 张成基, 王世进, 等. 山东省地层侵入岩构造单元划分对比意见[J]. 山东国土资源, 2014, 30(3):1-23.
[7]	Zhang Z Q, Zhang C J, Wang S J, et al. Views on classification and contrast of tectonic units in strata in Shandong Province[J]. Shandong Land and Resources, 2014, 30(3):1-23.
[8]	牛漫兰, 吴齐, 朱光, 等. 七宝山早白垩世火山岩地球化学特征及其构造意义[J]. 地质科学, 2011, 46(3):653-678.
[8]	Niu M L, Wu Q, Zhu G, et al. Geochemistry of early Cretaceous volcanic rocks from the Qibaoshan area and their tectonic implications[J]. Chinese Journal of Geology, 2011, 46(3):653-678.
[9]	吴齐. 郯庐断裂带山东段及其西侧晚中生代火山岩年代学及其地球化学对比研究[D]. 合肥: 合肥工业大学, 2011.
[9]	Wu Q. Comparative study on the chronology and geochemistry of late Mesozoic volcanic rocks in the Shandong section of Tanlu fault zone and its western flank[D]. Hefei: Hefei University of Technology, 2011.
[10]	邱检生, 王德滋, 任启江. 山东五莲七宝山金矿床成矿物理化学条件及矿床成因[J]. 矿产与地质, 1994, 39(8):12-18.
[10]	Qiu J S, Wang D C, Ren Q J. Metallogenic physicochemical conditions and genesis of the Qibaoshan gold deposit in Wulian,Shandong[J]. Mineral Resources and Geology, 1994, 39 (8):12-18.
[11]	刘洪, 邱检生, 王德滋, 等. 鲁东胶莱盆地青山组火山岩的⁴⁰Ar—³⁹Ar定年——以五莲分岭山火山机构为例[J]. 高校地质学报, 2001, 7(3):351-355.
[11]	Liu H, Qiu J S, Wang D Z, et al. ⁴⁰Ar-³⁹Ar dating for volcanic rocks of Qingshan formation in Jiaolai basin,eastern Shandong Province:A case study of the fenlingshan volcanic apparatus in Wulian County[J]. Geological Journal of China Universities, 2001, 7(3):351-355.
[12]	张小允, 刘立金, 陈恕昌. 山东五莲七宝山金铜矿控矿因素及找矿方向[J]. 山东地质, 2001, 17(3/4):82-85.
[12]	Zhang X Y, Liu L J, Chen S C. Ore controlling factors and prospecting direction of the Qibaoshan gold and copper deposit in Wulian,Shandong[J]. Shandong Geology, 2001, 17(3/4):82-85.
[13]	徐兴旺, 蔡新平, 王杰. 山东七宝山角砾岩筒成矿流体构造动力学过程.[J]. 黄金地质, 1999, 5(3):19-27.
[13]	Xu X W, Cai X P, Wang J. Tectonic dynamics of ore-forming fluid in Qibaoshan breccia tube,Shandong Province[J] .Gold Geology, 1999, 5 (3):19-27.
[14]	何其芬, 魏印涛, 陈宏杰, 等. 青海省裕龙沟地区水系沉积物测量元素组合分区[J]. 物探与化探, 2015, 39(2):306-310.
[14]	He Q F, Wei Y T, Chen H J, et al. Zonation of element association detected by geochemical stream sediment survey in Yulonggou area,Qinghai Province[J]. Geophysical and Geochemical Exploration, 2015, 39(2):306-310.
[15]	向东进. 实用多元统计分析[M]. 武汉: 中国地质大学出版社, 2005:157-171.
[15]	Xiang D J. Applied multivariate statistical analysis[M]. Wuhan: China University of Geosciences Press, 2005:157-171.
[16]	赵鹏大. 定量地质学理论与方法[M]. 北京: 地质出版社, 2004:178-180.
[16]	Zhao P D. Theory and method of quantitative geology[M]. Beijing: Geological Publishing House, 2004:178-180.
[17]	吴锡生. 化探数据处理方法[M]. 北京: 地质出版社, 1993:38-39.
[17]	Wu X S. Methods for processing geochemical data[M]. Beijing: Geological Publishing House, 1993:38-39.
[18]	董庆吉, 陈建平, 唐宇. R型因子分析在矿床成矿预测中的应用——以山东黄埠岭金矿为例[J]. 地质与勘探, 2008, 44(4):64-68.
[18]	Dong Q J, Chen J P, Tang Y. Application of r type factor analyses in mineralization prognosis:By an example of huangbuling gold deposit,Shandong Province[J]. Geology and Exploration, 2008, 44(4):64-68.
[19]	焦保权, 白荣杰, 孙淑梅, 等. 地球化学分区标准方法在区域化探信息提取中的应用[J]. 物探与化探, 2009, 33(2):165-169.
[19]	Jiao B Q, Bai R J, Sun S M, et al. Application of geochemical zoning standard method in regional geochemical exploration information extraction[J]. Geophysical and Geochemical Exploration, 2009, 33(2):165-169.
[20]	Norusis M J. SPSS professional statistics 6.1[M]. Chicago: SPSSINT, 1994.
[21]	宋明春, 王沛成. 山东省区域地质[M]. 济南: 山东省地图出版社, 2003:149-150.
[21]	Song M C, Wang P C. Regional geology of Shandong Province[M]. Jinan: Shandong Cartographic Publishing House, 2003:149-150.
[22]	周建波, 郑永飞, 赵子福. 山东五莲中生代岩浆岩的锆石U-Pb年龄[J]. 高校地质学报, 2003, 9(2):185-194.
[22]	Zhou J B, Zheng Y F, Zhao Z F. Zircon U-Pb dating on Mesozoic granitoids at Wulian,Shangdong Province[J]. Geological Journal of China Universities, 2003, 9(2):185-194.
