二连盆地芒来铀矿床铀镭平衡系数特征研究

doi:10.11720/wtyht.2025.1314

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4370 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The uranium-radium (U-Ra) equilibrium coefficient is a significant correction parameter for the resource and reserve estimation of in situ leached (ISL) sandstone uranium deposits, directly influencing the accuracy and scientificity of such estimations. Employing a high-purity germanium gamma-ray spectrometer, this study determined the U and Ra contents of 1 431 samples from the Manglai uranium deposit in the Erlian Basin, yielding U-Ra equilibrium coefficients for these samples. Statistical analyses were performed on the U-Ra equilibrium coefficients in terms of frequency distribution, U content, grain size, lithology, and spatial distribution, to explore the primary factors influencing the changes in U-Ra equilibrium coefficients and their implications. The results indicate that the Manglai uranium deposit showed a U-Ra equilibrium coefficient of 0.85, suggesting that the deposit is significantly richer in U. The U-Ra equilibrium coefficient was negatively correlated with U's concent and grade. Additionally, the U-Ra equilibrium coefficient exhibited distinct vertical zoning within ore bodies. Within uranium-mineralized sand bodies, the most favorable grain sizes were observed in sandy conglomerates, coarse- and fine-grained sandstones. The presence of grayish-black and dark black mudstones contributed to uranium enrichment and mineralization in adjacent mineralized sand bodies. The block I-1 in the southern main ore body exhibits significant uranium enrichment potential and the highest U enrichment degree. The uranium deposit is overall richer in U, with almost no Ra-richer zones, indicating that the uranium deposit experienced minimal oxidative transformation after its formation. The results of this study provide a scientific basis for the subsequent construction arrangement of in situ leaching at the Manglai uranium deposit while contributing to a deeper understanding of the deposit's mineralization regularity.

Key words： Manglai uranium deposit uranium and radium samples U-Ra equilibrium coefficient U-richer U enrichment

Received: 25 July 2024 Published: 23 October 2025

ZTFLH:

P632

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Pan XIONG
	Wei WANG
	Yan-Wei QIN
	Peng LI
	Ming-Xin CHEN
	Hao-Yu TIAN
	Bo LIU

Cite this article:

Pan XIONG,Wei WANG,Yan-Wei QIN, et al. Characteristics of U-Ra equilibrium coefficients in the Manglai uranium deposit, Erlian Basin[J]. Geophysical and Geochemical Exploration, 2025, 49(5): 1080-1089.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2025.1314 OR https://www.wutanyuhuatan.com/EN/Y2025/V49/I5/1080

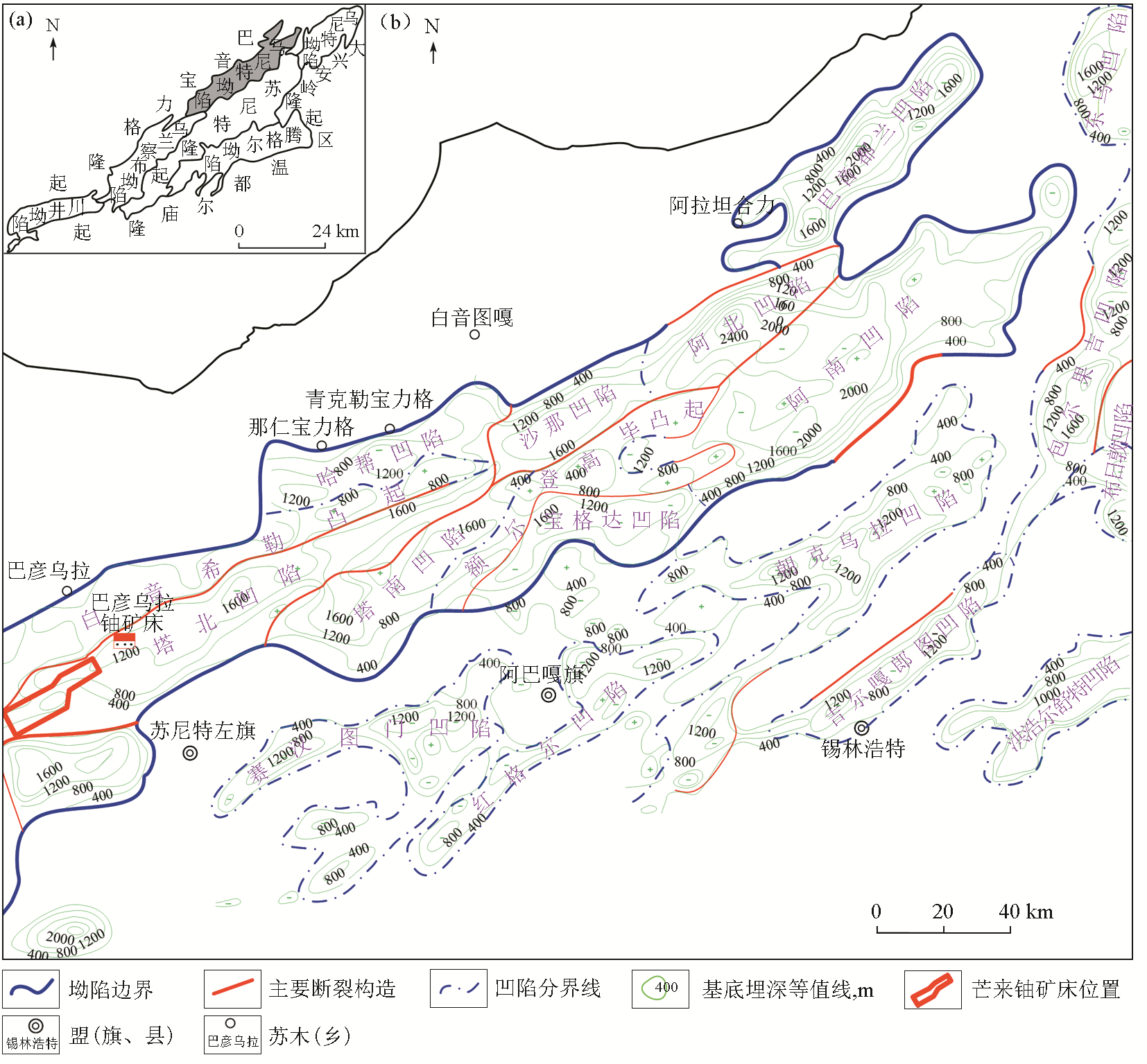

Schematic diagram of structural units in Erlian Basin (a) and Manit Depression (b)

10])
1—oxidized sand body; 2—grey sand body; 3—uranium ore body; 4—exploration line and number; 5—block ore body number; 6—mudstone; 7—siltstone; 8—gravel bearing fine sandstone; 9—gravel bearing sandstone; 10—gravel bearing coarse sandstone; 11—sandy conglomerate; 12—inconsistent stratigraphic angle; 13—quantitative gamma logging curve; 14—three lateral apparent resistivity logging curve
">

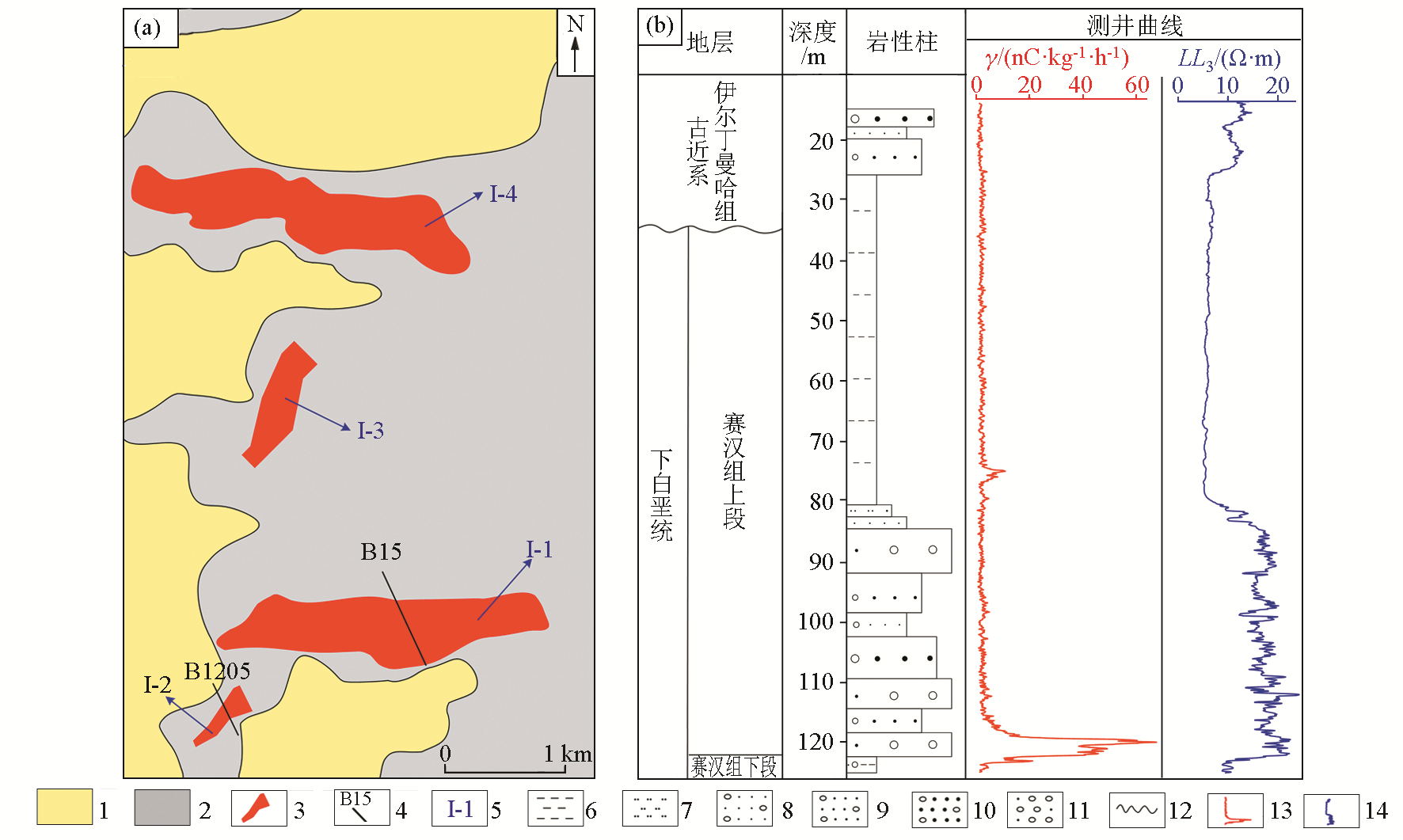

The planar distribution of the Manglai uranium deposit (a) and the braided river sedimentary of the upper section of the Saihan Formation (b) (modified according to reference [10])
1—oxidized sand body; 2—grey sand body; 3—uranium ore body; 4—exploration line and number; 5—block ore body number; 6—mudstone; 7—siltstone; 8—gravel bearing fine sandstone; 9—gravel bearing sandstone; 10—gravel bearing coarse sandstone; 11—sandy conglomerate; 12—inconsistent stratigraphic angle; 13—quantitative gamma logging curve; 14—three lateral apparent resistivity logging curve

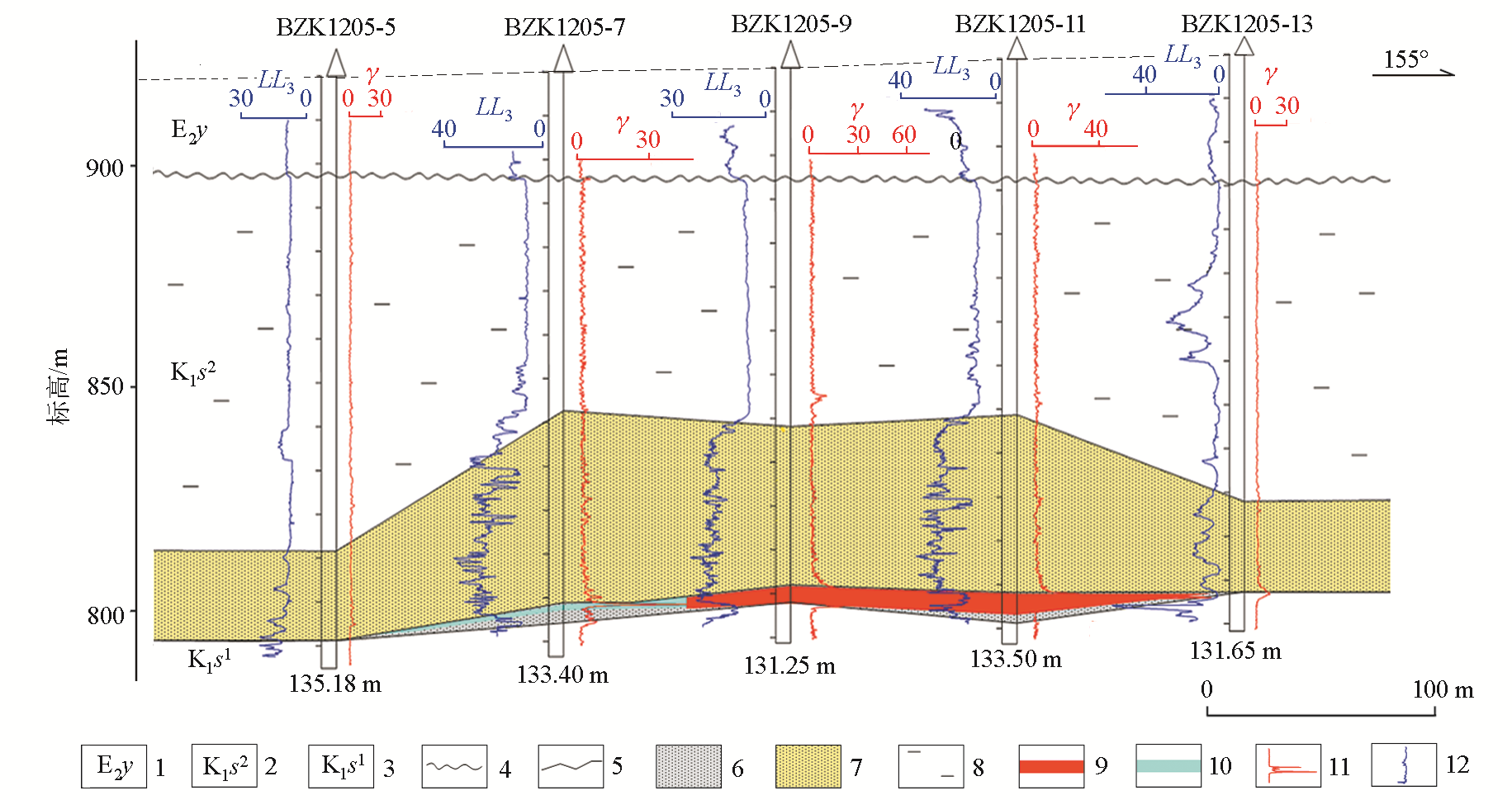

Geological profile map of B1205 line ore body in the southern part of Manglai uranium deposit
1—Irding Manha Formation; 2—upper section of Saihan Formation; 3—lower section of Saihan group; 4—inconsistent stratigraphic angle; 5—lithological boundary; 6—gray sand body; 7—oxidation sand body; 8—mudstone layer; 9—uranium ore body; 10—mineralized body; 11—quantitative gamma logging curve,γ/(nC·kg^-1·h^-1); 12—three lateral apparent resistivity logging curve,LL₃/(Ω·m)

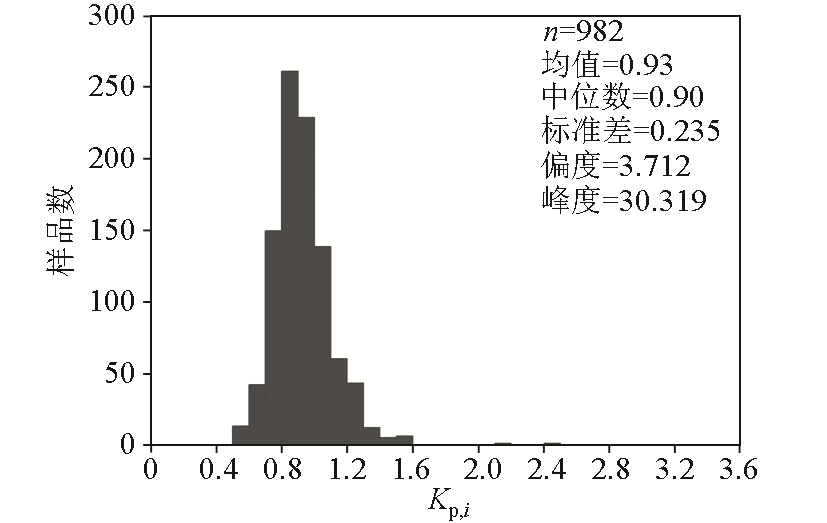

Frequency distribution histogram of uranium radium equilibrium coefficient of Manglai uranium deposit samples

Statistical analysis results of uranium radium equilibrium coefficient of Manglai uranium deposit

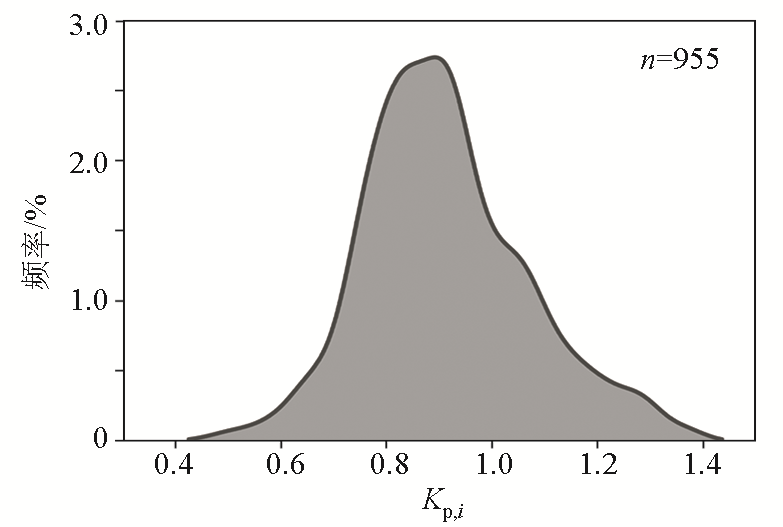

Density distribution curve of uranium radium equilibrium coefficient of samples

Uranium radium equilibrium coefficients for uranium content in different grade ranges

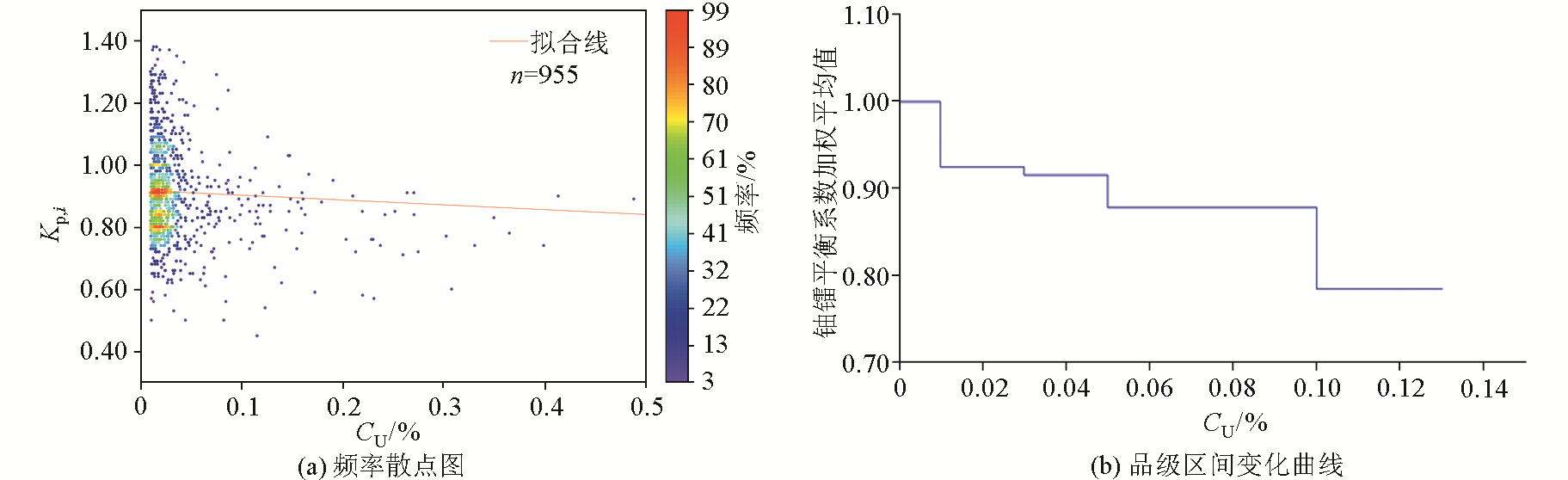

Relationship between uranium radium equilibrium coefficient and uranium content in ore

Relationship between uranium radium equilibrium coefficient and particle size change

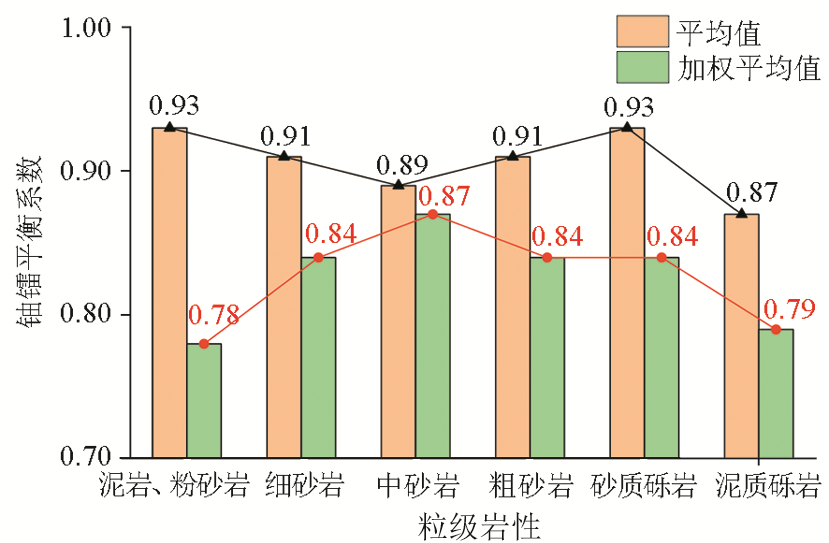

Uranium radium equilibrium coefficients of samples with different particle sizes

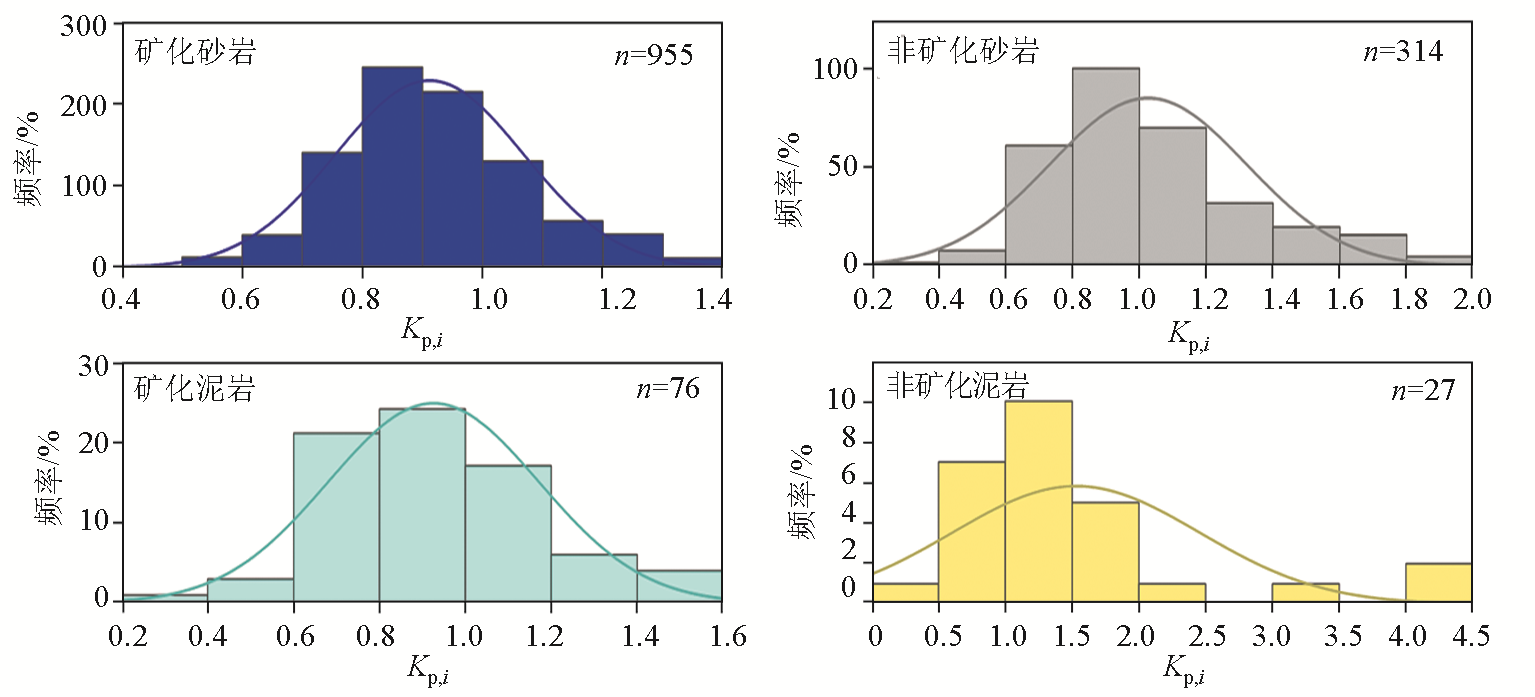

Frequency distribution map of uranium radium equilibrium coefficient in rocks of different mineralization types

Uranium and radium equilibrium coefficients for samples of different mineralization types

Statistical results of uranium and radium equilibrium coefficients in each block of the deposit

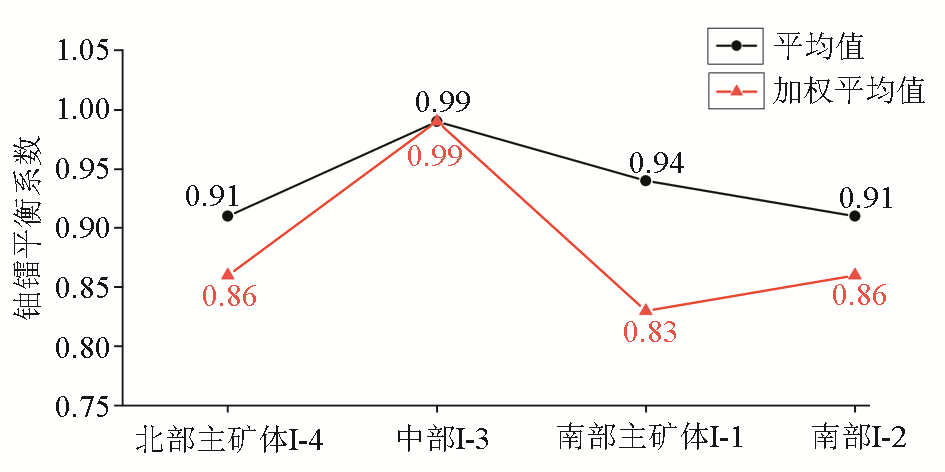

Changes in uranium and radium equilibrium coefficients of each block of the ore body

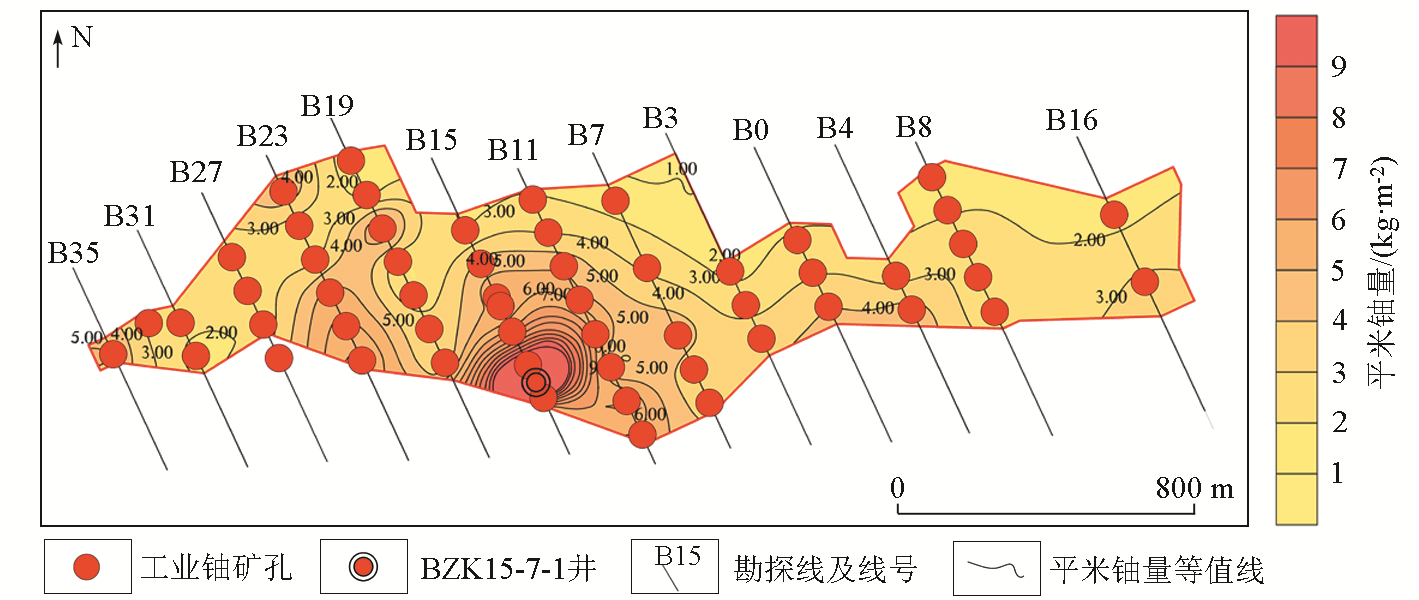

Contour map of uranium content per square meter in the I-1 ore body of the Manglai uranium deposit

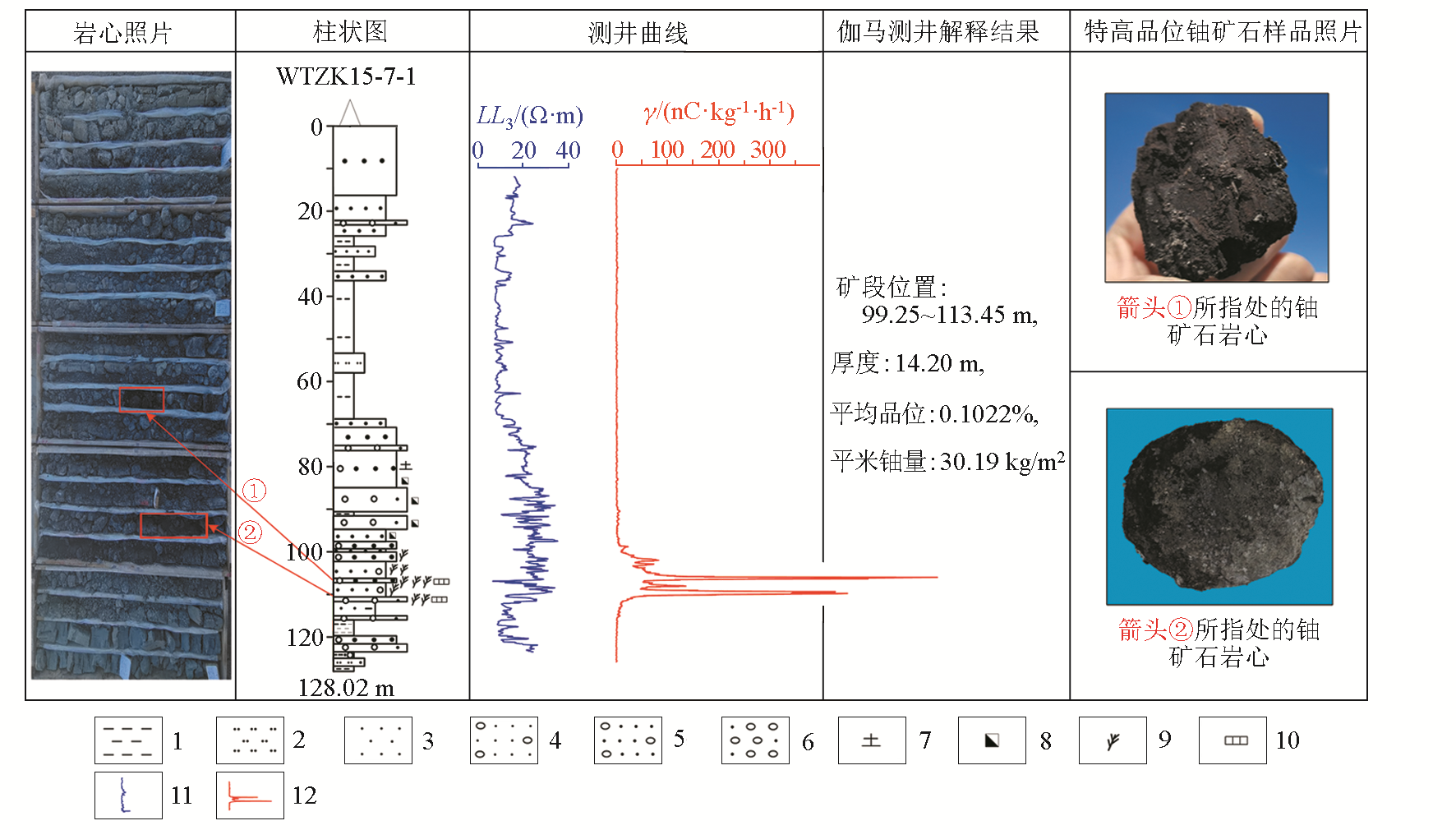

WTZK15-7-1 histogram and schematic diagram of core photos
1—mudstone; 2—siltstone; 3—fine sandstone; 4—sandstone with gravel; 5—gravel bearing coarse sandstone; 6—sandy conglomerate; 7—kaolinization; 8—brown iron mineralization; 9—carbonized plant debris; 10—pyrite; 11—lateral resistivity logging curve; 12—quantitative gamma logging curve
