| Application and indication of seismic methods in deep gold prospecting in the Xilin fault zone in the Jiaodong area |
KONG Xiao-Min1,3,4( ), SUN Chao2, ZHOU Yi-Kang1,3,4, TIAN Si-Qing2, SU Hai-Gang1,3,4, ZHOU Ming-Lei2() |
1. No. 6 Geological Team of Shandong Provincial Bureau of Geology and Mineral Resources(No.6 Institute of Geology and Mineral Resources Exploration of Shandong Province),Weihai 264200,China
2. Shandong Coalfield Geological Planning and Survey Research Institute,Jinan 250104,China
3. Ministry of Natural Resources Deep Gold Exploration and Mining Technology Innovation Center,Weihai 264200,China
4. Shandong Provincial Engineering Laboratory of Application and Development of Big Data for Deep Gold Exploration,Weihai 264200,China |
|
|
|
|
Abstract The Xilin fault zone,intimately associated with gold and polymetallic mineralization,exhibits high potential for gold resources.In deep exploration,identifying the deep structural characteristics of ore-controlling faults plays a critical role in achieving breakthroughs in gold exploration.Through the analysis of gold metallization regularity and the reflection seismic methods,this study clarified the seismic response to the changes in the attitude of the dominant ore-controlling fault zone in the Jiaodong area.It posited that the changes in energy intensity of the seismic event on the seismic time profile,as well as large continuity deterioration zones,can indicate the changes in the fault attitude,demonstrating high mineralization potential.Moreover,this study predicted and verified the metallization targets in the area.
|
|
Received: 28 September 2023
Published: 19 September 2024
|
|
|
|
|
|
|

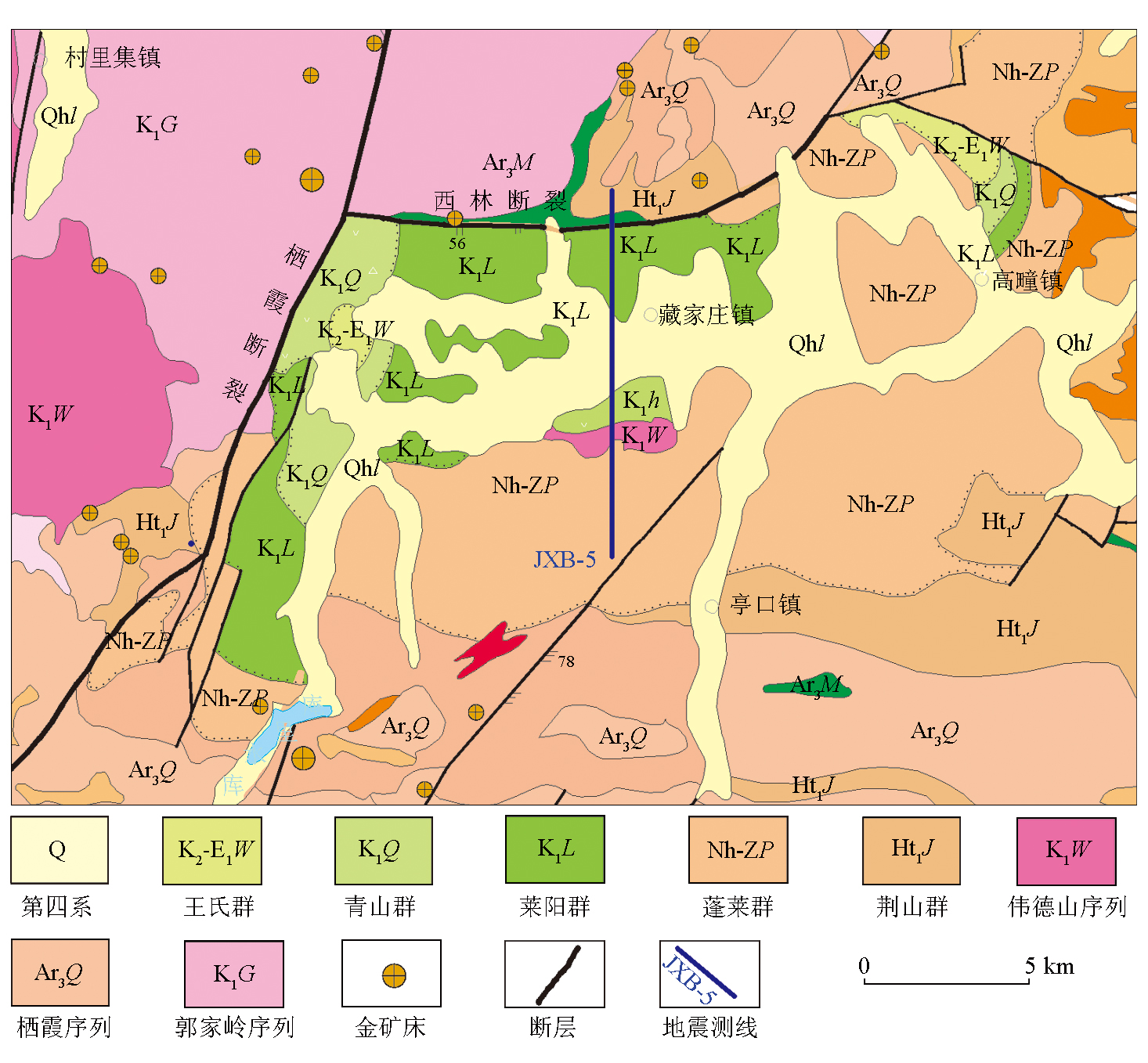

Geological structure diagram of the research area
|
| 序号 | 岩性 | 平均密度/(g·cm-3) | | 1 | 栖霞序列片麻状英云闪长岩 | 2.91 | | 2 | 粉山子群 | 2.76 | | 3 | 荆山群 | 2.78 | | 4 | 伟德山序列二长花岗岩 | 2.65 | | 5 | 郭家岭序列花岗闪长岩 | 2.63 | | 6 | 莱阳群 | 2.64 | | 7 | 蓬莱群 | 2.72 | | 8 | 黄铁矿化碎裂状花岗岩(断裂带) | 2.70 |
|
Density parametric statistics of intrusive rocks and strata in the research area[9]
|
14])
">
|

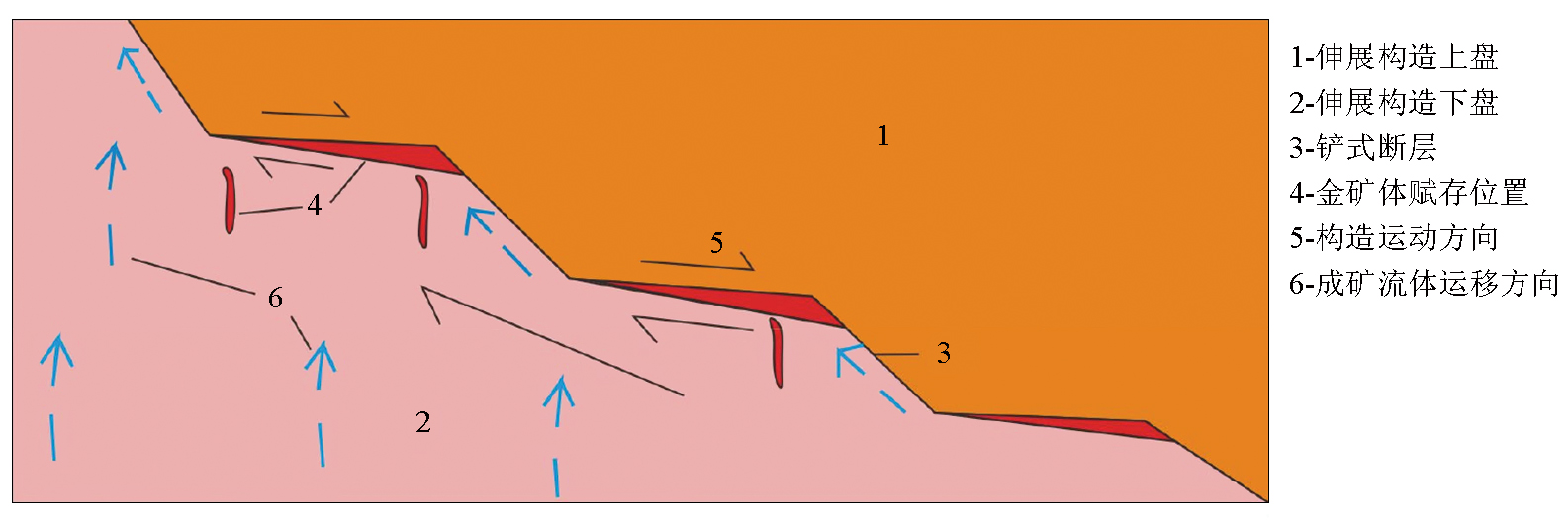

Schematic of stepped mineralization model(according to reference [14])
|
|

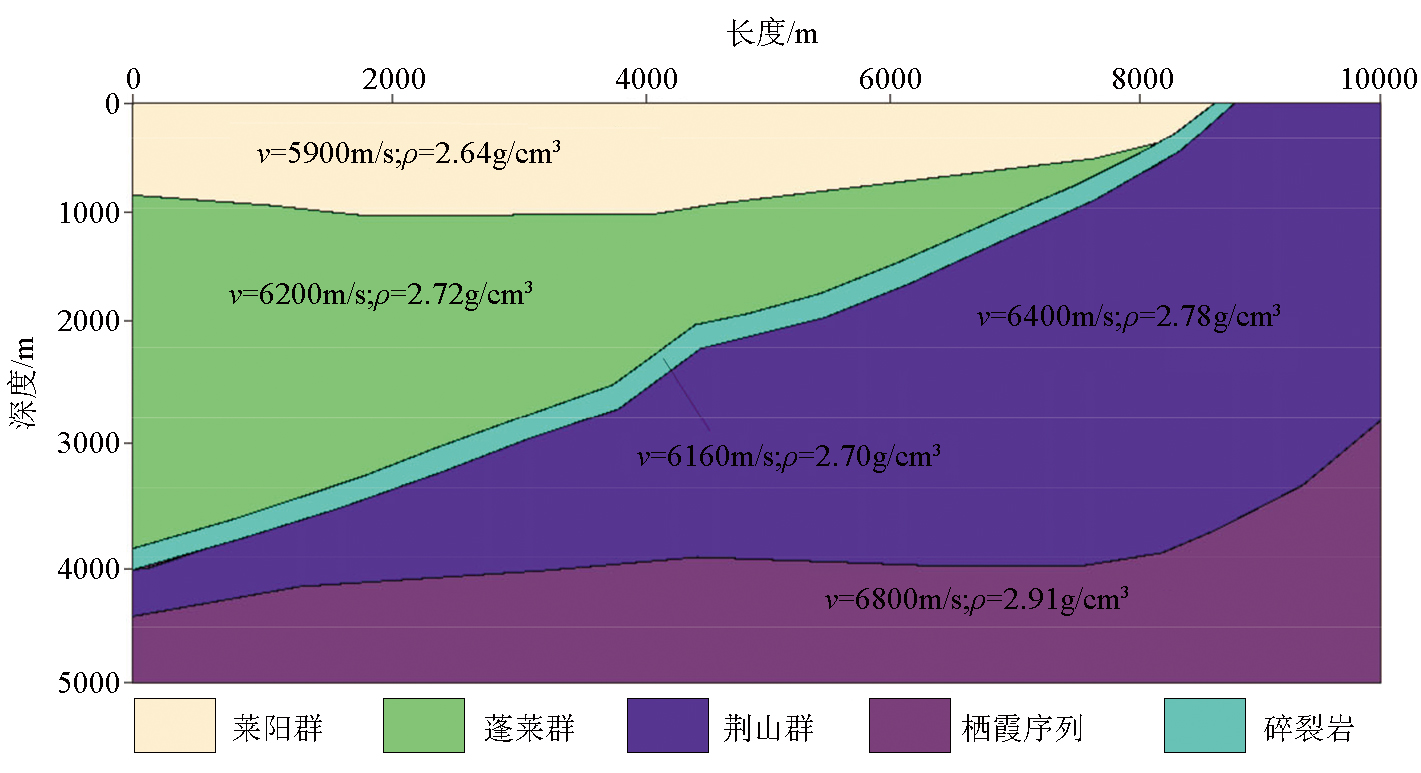

Geological model of the Xilin fault
|
|

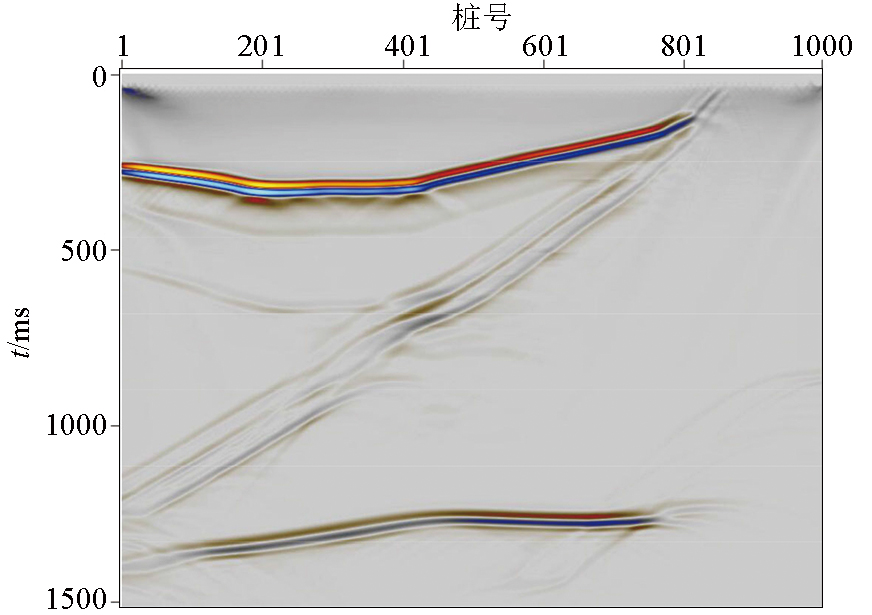

Seismic forward migration time section
|
|

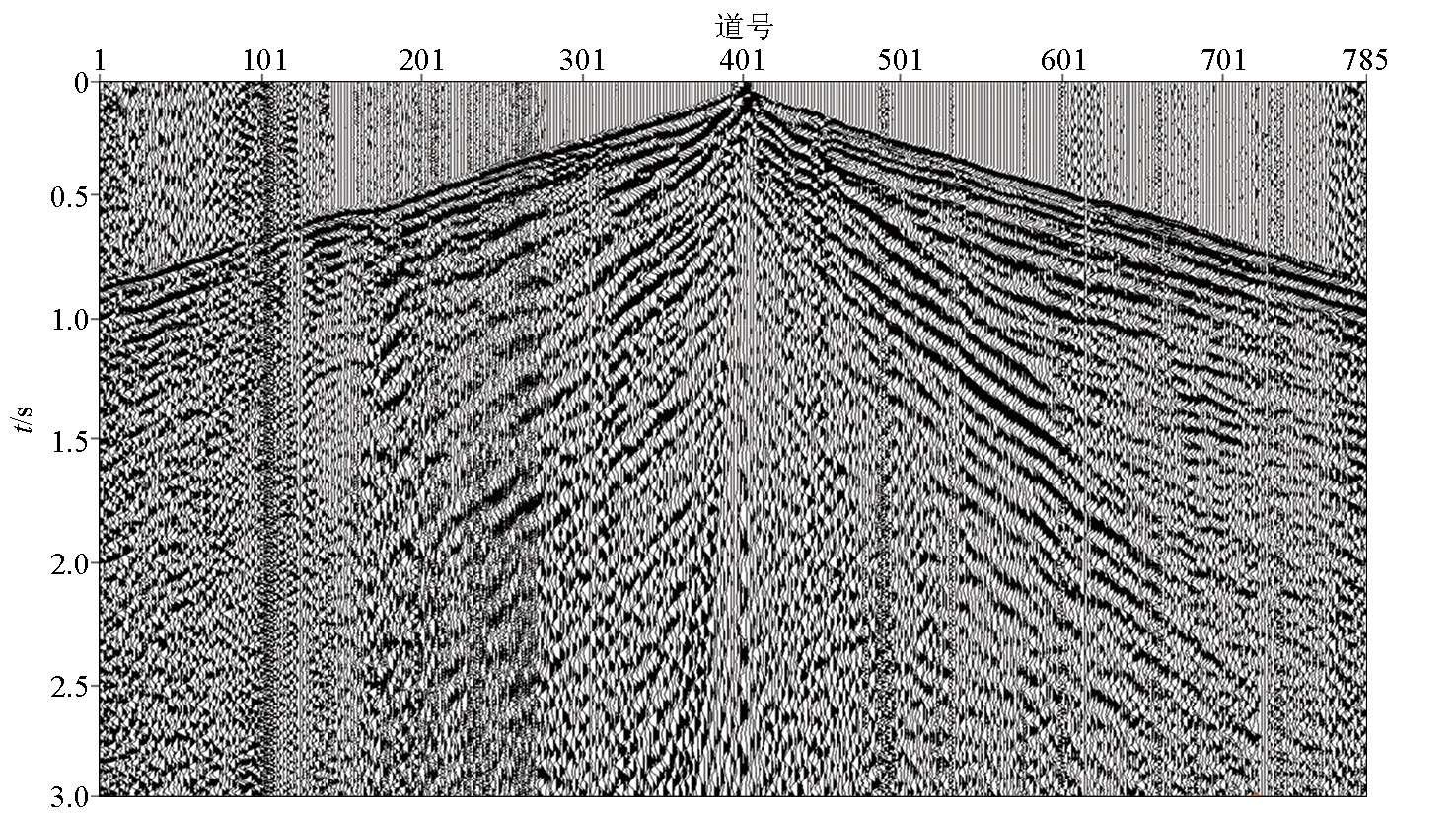

Single shot recording
|
|

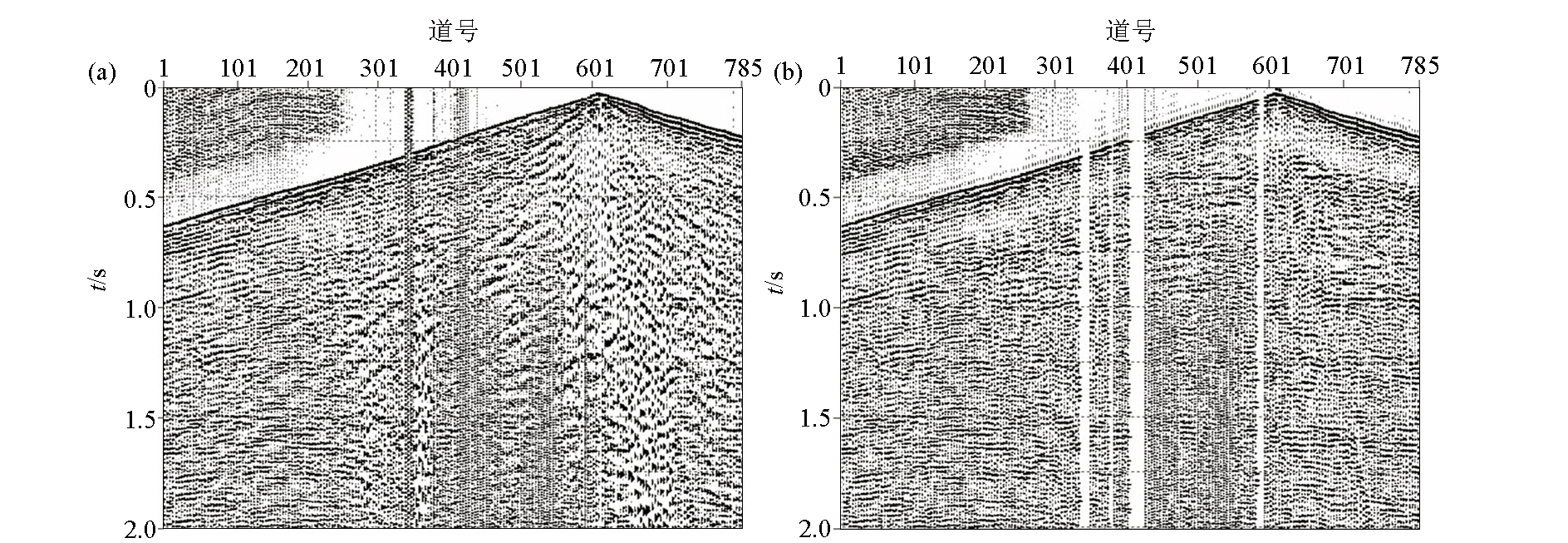

Comparison of single shot records before(a) and after(b) denoising
|
|

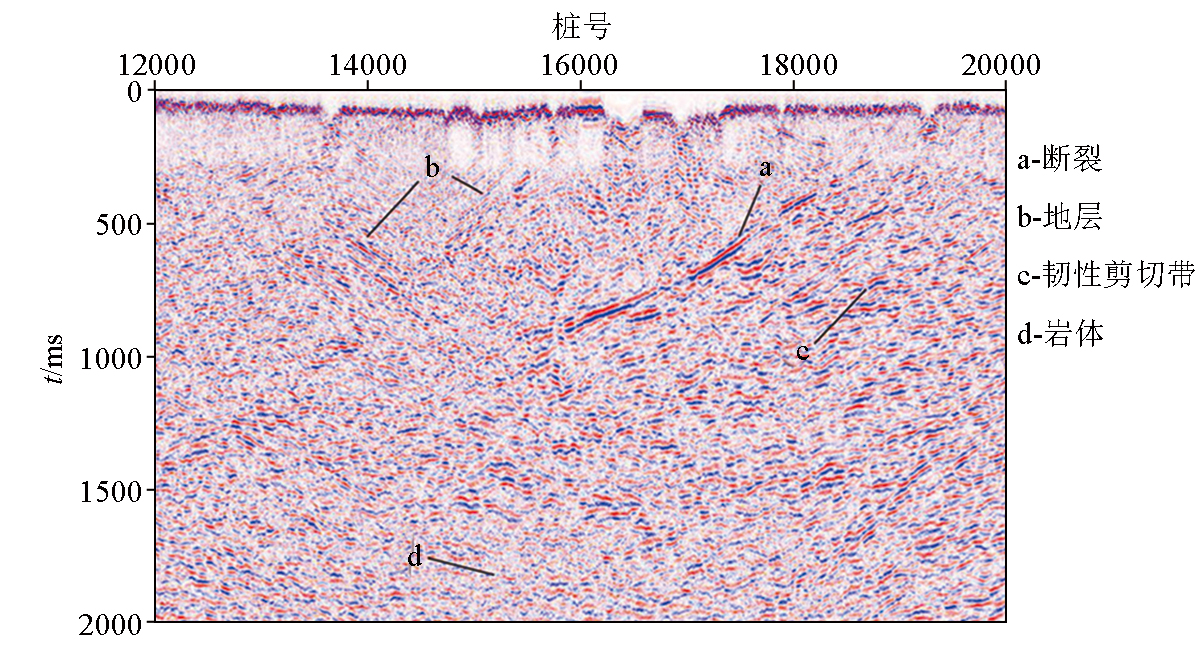

Characteristics of reflected waves in seismic migration time section
|
|

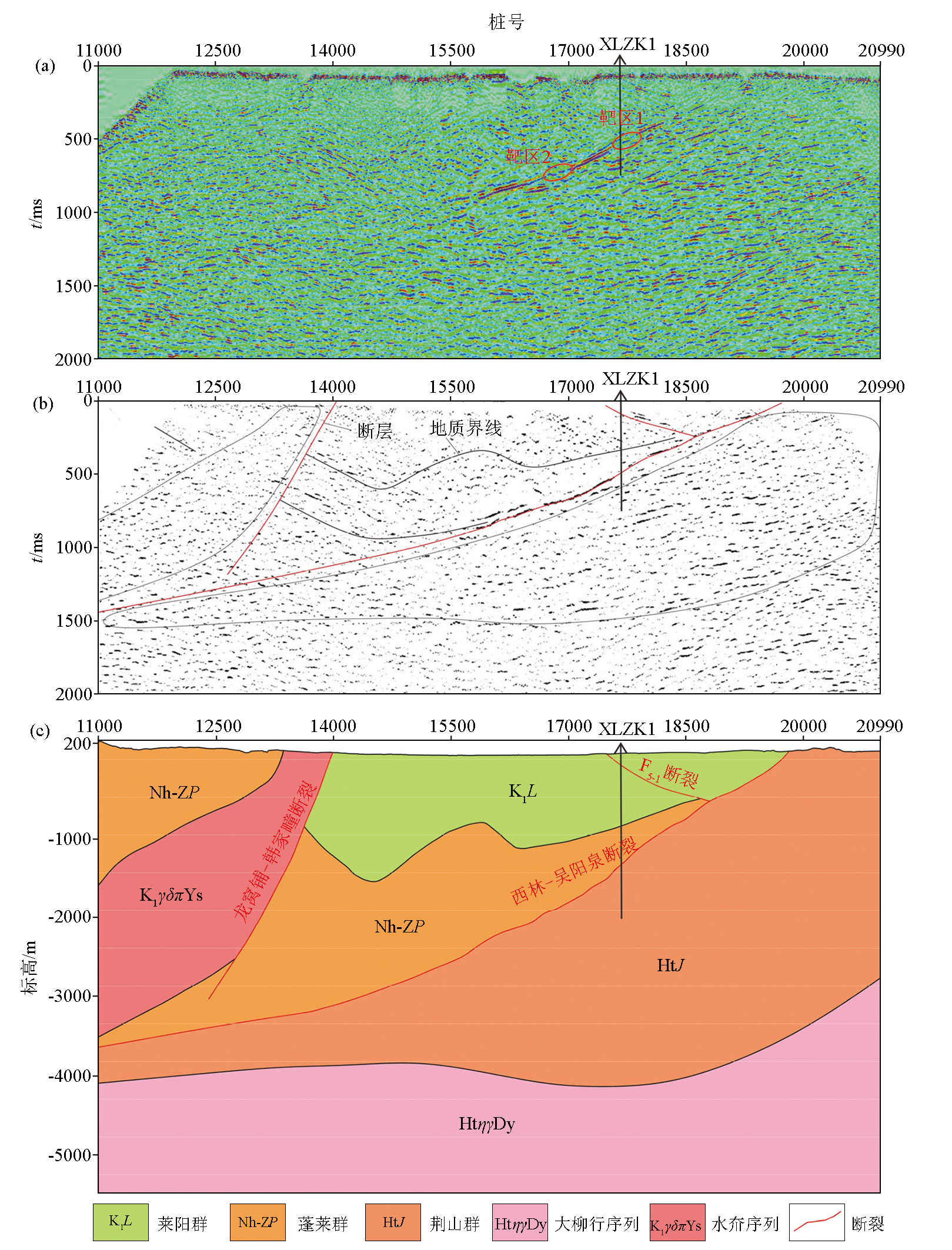

Seismic migration time section and geological interpretation
a—seismic time profile;b—amplitude opacity display;c—geological interpretation
|
| [1] |
宋明春, 宋英昕, 李杰, 等. 深部矿阶梯找矿方法:以胶东金矿集区深部找矿为例[J]. 中国地质, 2022, 49(1):1-15.
|
| [1] |
Song M C, Song Y X, Li J, et al. Stepwise prospecting method for deep-seated deposits:Take deep prospecting of ore concentration area of gold in Jiaodong Peninsula,China as an example[J]. Geology in China, 2022, 49(1):1-15.
|
| [2] |
陈大磊, 王润生, 贺春艳, 等. 综合地球物理探测在深部空间结构中的应用——以胶东金矿集区为例[J]. 物探与化探, 2022, 46(1):70-77.
|
| [2] |
Chen D L, Wang R S, He C Y, et al. Application of integrated geophysical exploration in deep spatial structures:A case study of Jiaodong gold ore concentration area[J]. Geophysical and Geochemical Exploration, 2022, 46(1):70-77.
|
| [3] |
王玉, 尹召凯, 王君伟. 胶西北焦家—仓上地区深部地球物理探测综合应用[J]. 黄金, 2023, 44(7):55-60.
|
| [3] |
Wang Y, Yin Z K, Wang J W. Comprehensive application of deep geophysical exploration in Jiaojia-Cangshang Area of Northwest Jiaodong[J]. Gold, 2023, 44(7):55-60.
|
| [4] |
王洪军, 熊玉新. 广域电磁法在胶西北金矿集中区深部探测中的应用研究[J]. 物探与化探, 2020, 44(5):1039-1047.
|
| [4] |
Wang H J, Xiong Y X. The application of wide field electromagnetic method to deep exploration in Jiaoxibei(northwest Shandong) gold concentration area[J]. Geophysical and Geochemical Exploration, 2020, 44(5):1039-1047.
|
| [5] |
吕庆田, 廉玉广, 赵金花. 反射地震技术在成矿地质背景与深部矿产勘查中的应用:现状与前景[J]. 地质学报, 2010, 84(6):771-787.
|
| [5] |
Lyu Q T, Lian Y G, Zhao J H. Application of reflection seismic technology in metallogenic geological background and deep mineral exploration:Status and prospects[J]. Acta Geologica Sinica, 2010, 84(6):771-787.
|
| [6] |
吕庆田, 董树文, 汤井田, 等. 多尺度综合地球物理探测:揭示成矿系统、助力深部找矿——长江中下游深部探测(SinoProbe-03)进展[J]. 地球物理学报, 2015, 58(12):4319-4343.
|
| [6] |
Lyu Q T, Dong S W, Tang J T, et al. Multi-scale and integrated geophysical data revealing mineral systems and exploring for mineral deposits at depth:A synthesis from SinoProbe-03[J]. Chinese Journal of Geophysics, 2015, 58(12):4319-4343.
|
| [7] |
王怀洪, 朱裕振, 孙超, 等. 反射地震在胶东西北部变质岩区深部构造探测中的应用[J]. 地球物理学进展, 2021, 36(1):267-273.
|
| [7] |
Wang H H, Zhu Y Z, Sun C, et al. Application of reflection seismic for determing deep structural of metamorphic rock area in the northwest of Jiaodong[J]. Progress in Geophysics, 2021, 36(1):267-273.
|
| [8] |
张宝林, 吕古贤, 梁光河, 等. 胶东金矿田的深部地球物理勘查模式初步研究[J]. 地质力学学报, 2019, 25(S1):150-156.
|
| [8] |
Zhang B L, Lyu G X, Liang G H, et al. Preliminary study on deep geophysical exploration model of gold ore fields in eastern Shandong,China[J]. Journal of Geomechanics, 2019, 25(S1):150-156.
|
| [9] |
李洪奎, 耿科, 禚传源, 等. 胶东金矿构造环境与成矿作用[M]. 北京: 地质出版社, 2016.
|
| [9] |
Li H K, Geng K, Zhuo C Y, et al. Tectonic environment and mineralization of Jiaodong gold deposit[M]. Beijing: Geological Publishing House, 2016.
|
| [10] |
侯爵, 武澄泷, 俞贵平, 等. 胶东金矿集中区深部结构研究进展[J]. 地球物理学进展, 2022, 37(3):952-963.
|
| [10] |
Hou J, Wu C L, Yu G P, et al. Research progress on the deep structure of Jiaodong gold deposit concentration area[J]. Progress in Geophysics, 2022, 37(3):952-963.
|
| [11] |
宋英昕, 宋明春, 丁正江, 等. 胶东金矿集区深部找矿重要进展及成矿特征[J]. 黄金科学技术, 2017, 25(3):4-18.
|
| [11] |
Song Y X, Song M C, Ding Z J, et al. Major ad vances on deep prospecting in Jiaodong gold ore cluster and its metallogenic characteristics[J]. Gold Science and Technology, 2017, 25(3):4-18.
|
| [12] |
宋明春. 胶东金矿深部找矿主要成果和关键理论技术进展[J]. 地质通报, 2015, 34(9):1758-1771.
|
| [12] |
Song M C. The main achievements and key theory and methods of deep-seated prospecting in the Jiaodong gold concentration area,Shandong Province[J]. Geological Bulletin of China, 2015, 34(9):1758-1771.
|
| [13] |
李洪奎, 陈国栋, 耿科, 等. 山东胶东金矿成矿地质背景初论[J]. 山东国土资源, 2018, 34(5):34-41.
|
| [13] |
Li H K, Chen G D, Geng K, et al. Primary discussion on mineralization geological background of Jiaodong gold deposits in Shandong Province[J]. Shandong Land and Resources, 2018, 34(5):34-41.
|
| [14] |
宋明春, 林少一, 杨立强, 等. 胶东金矿成矿模式[J]. 矿床地质, 2020, 39(2):215-236.
|
| [14] |
Song M C, Lin S Y, Yang L Q, et al. Metallogenic model of Jiaodong Peninsula gold deposits[J]. Mineral Deposits, 2020, 39(2):215-236.
|
