基于MapGIS和明码文件的数据集成

doi:10.11720/wtyht.2024.1367

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (3914 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Data integration based on MapGIS includes data conversion, data normalization, data fusion, and related research. A synthesis of existing research suggests that data conversion has been intensively studied, while there is a lack in studies of data normalization and data fusion. This study improved the data normalization method based on the complex and extensively applied geological maps, achieving the normalized annotation and color filling for thousands of geobodies at one time. A technical process for data fusion was established by analyzing the applicable conditions of various commonly used methods for data fusion and making some supplementation. Besides, ASCII code files were prepared for mapping small coal pillars in batches. The results of this study show that improving the data normalization method, establishing the technical process for data fusion, and making full use of ASCII code files can significantly enhance the efficiency of data integration and broaden the mind for problem solving.

Key words： data integration MapGIS ASCII code file geobody

Received: 25 August 2023 Published: 27 June 2024

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Hong-Yan ZHAO
	Cong LI
	Qiu-Ling CHANG
	Xiao-Rong GUAN
	Cheng-Yuan DU
	Xin CHEN
	Jing WANG

Cite this article:

Hong-Yan ZHAO,Cong LI,Qiu-Ling CHANG, et al. Data integration based on MapGIS and ASCII code files[J]. Geophysical and Geochemical Exploration, 2024, 48(3): 804-811.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1367 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I3/804

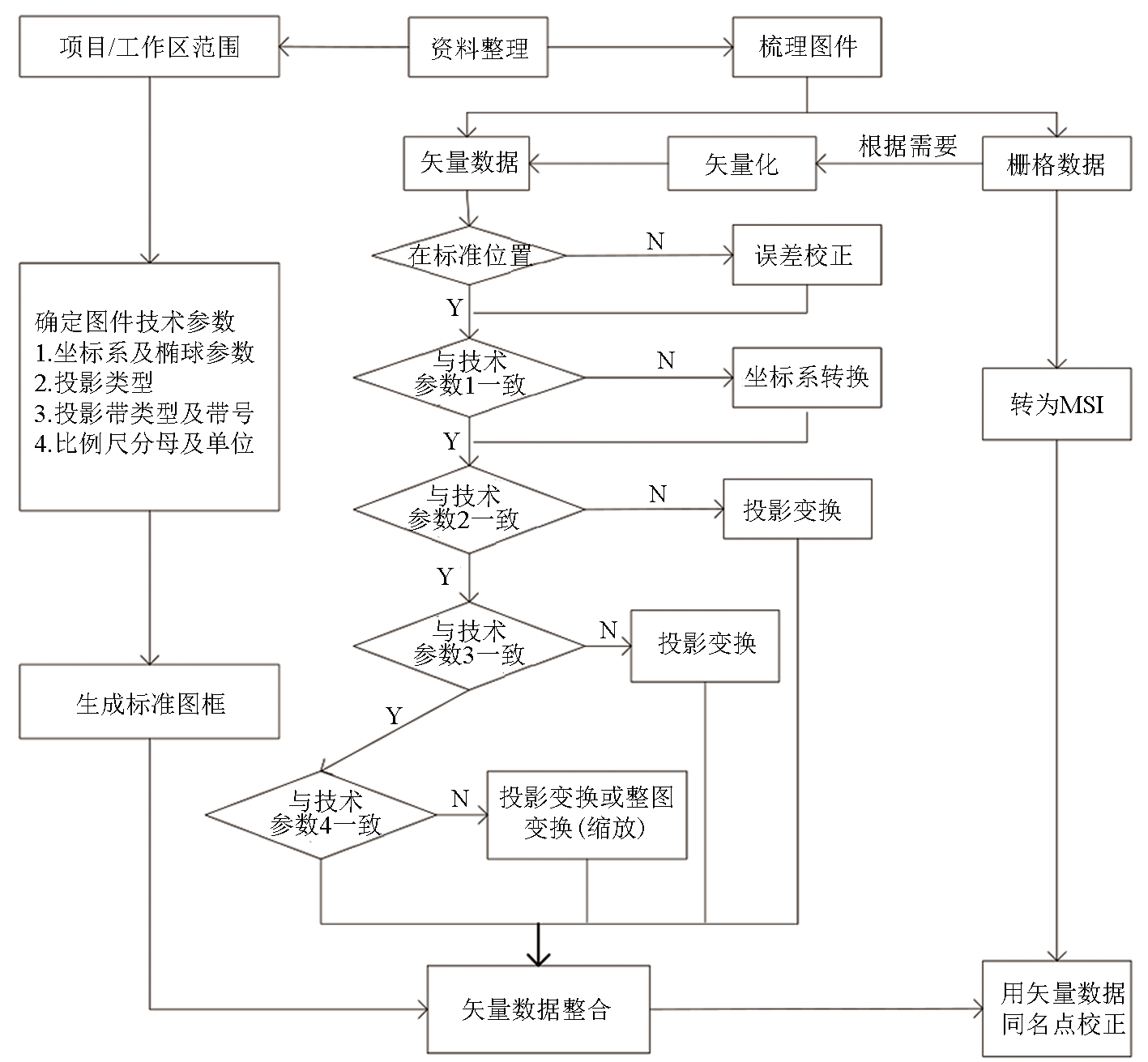

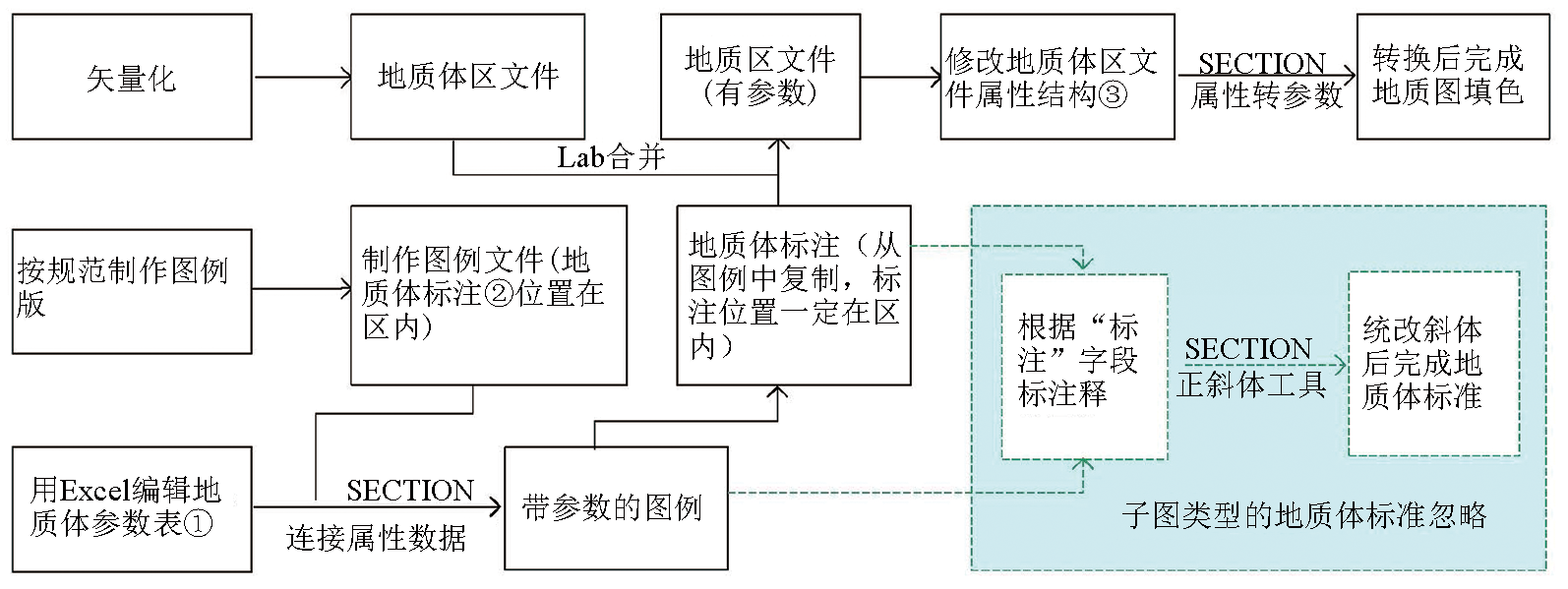

The technical process of geological body standardization

Parameters list of geological body in Nanzhao county

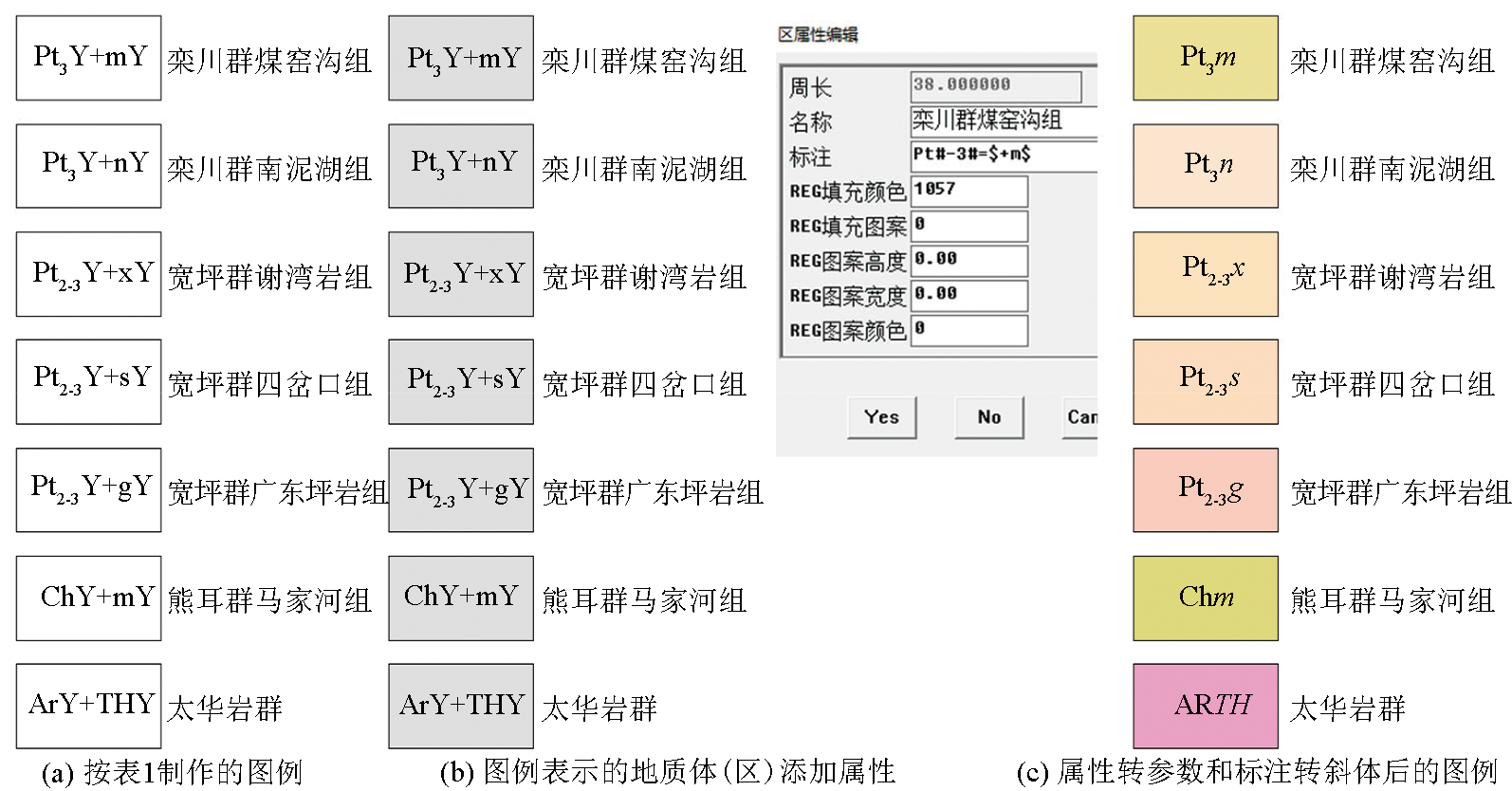

Legend standardized illustration of geological body in Nanzhao county

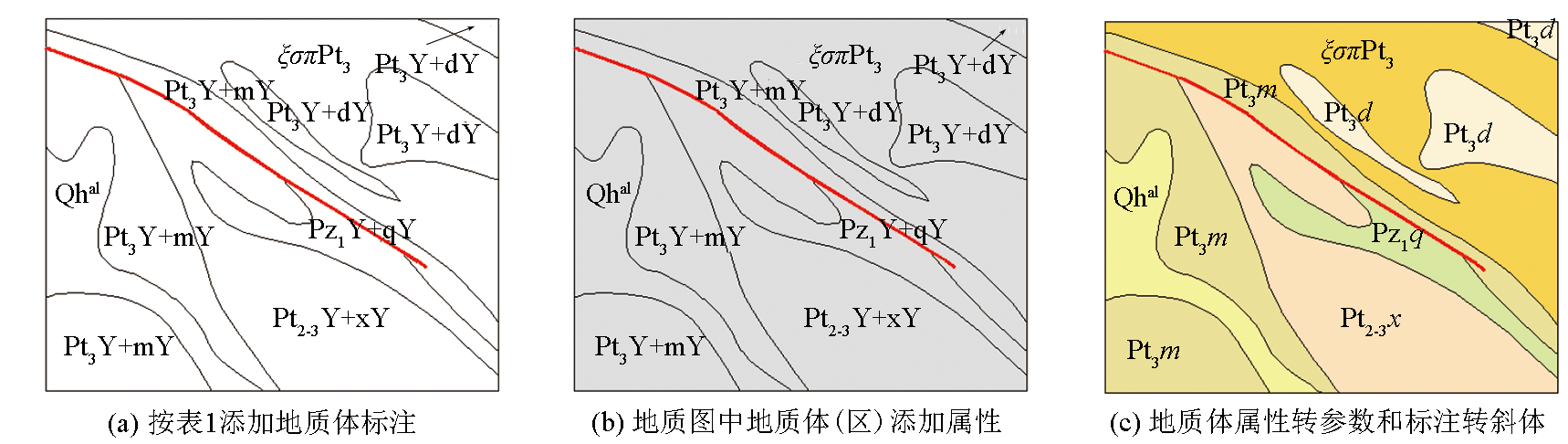

Geological body standardized illustration in Nanzhao county

The time spent on geological body standardization using different methods

Technology process data aggregation

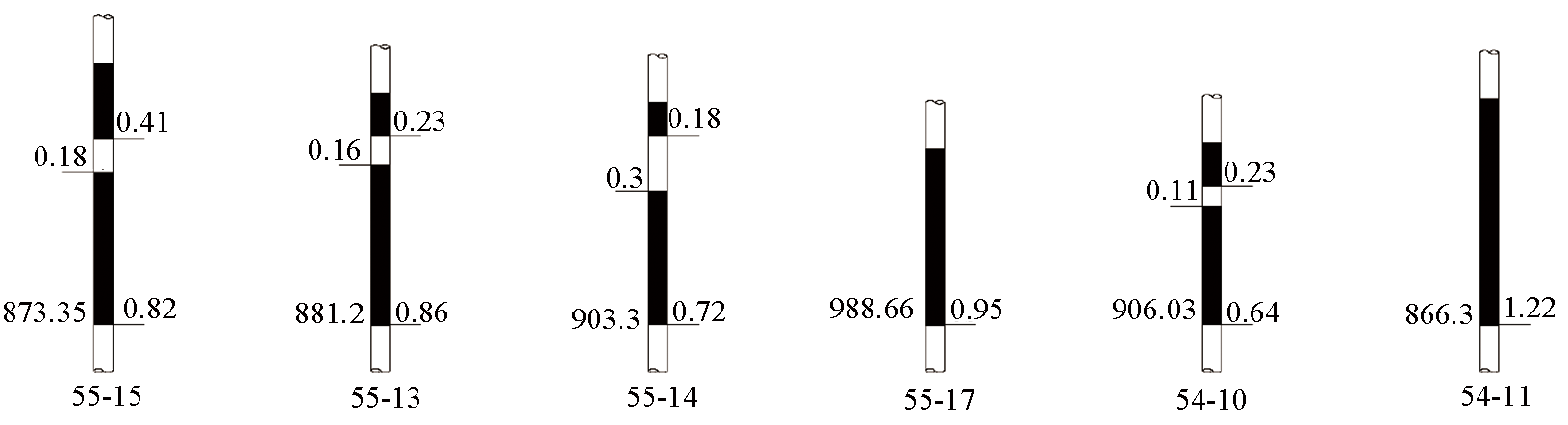

Coal seam Ⅳ₃comprehensive results of the boreholes

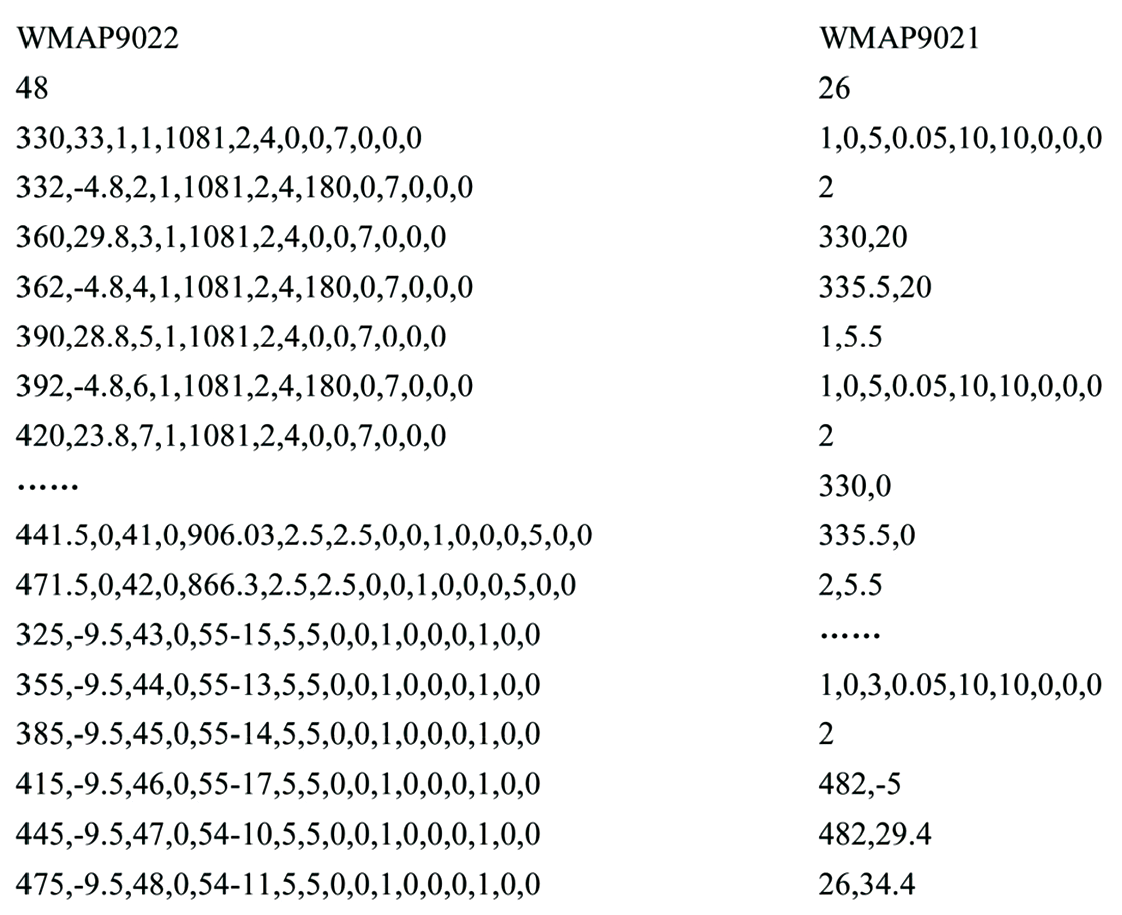

The ASCⅡ code files of coal seam Ⅳ₃ columns

Batch producing coal seam Ⅳ₃ columns by ASCⅡ code files
