岷江上游干旱河谷区汶川段风化壳剖面元素地球化学特征

doi:10.11720/wtyht.2024.1255

Abstract
Figure/Table
References
Related Citation (2)

Download: PDF (6076 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study conducted geochemical tests and analyses for vertical rock-soil profiles with different bedrock types in the Wenchuan section in the upper arid valley of the Minjiang River. Based on the above, this study explored the vertical distributions of elements in these weathering crust profiles to investigate the influence of bedrocks on the contents of chemical elements in soils. From a geological perspective, this study provided proposals for planting in agricultural production and eco-environmental restoration for the study area. The results of this study are as follows: (1) From top to bottom, weathering crust profiles can be divided into four layers: the humus layer (A), the illuvial layer (B), the soil parent material layer (C), and the bedrock layer (R). The humus layers exhibit higher average values of Al, Ca, K, Mg, Fe, Se, Zn, Cu, Cd, and Pb and lower average values of Si, Na, Mn, Cr, As, Cd, and Hg, compared to corresponding national average values in soils; (2) In weathering crust profiles with different bedrock types, except for elements with higher contents in both bedrocks and corresponding soil layers, the same elements manifest similar contents in other soil layers; (3) The chemical weathering intensity increased from the bedrock to the humus layers, with soil weathering degrees generally higher than bedrock weathering degrees; (4) In addition to characteristics inherited from soil parent materials, elements in weathering crust profiles show content differentiation, characterized by enriched Al, K, and Se in humus layers, enriched Na, Fe, Si, Pb, Cu, Zn, Mn, As, Cd, Cr, and Hg in illuvial layers, and enriched Mg and Ca in soil parent material layers.

Key words： arid valley rock-soil elemental characteristic planting proposal

Received: 09 June 2023 Published: 27 June 2024

ZTFLH:	P632
	X142

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xue-Ni ZHOU
	Ya-Ting CAO
	Yang JI

Cite this article:

Xue-Ni ZHOU,Ya-Ting CAO,Yang JI. Element geochemical characteristics of weathering crust profiles of the Wenchuan section in the upper arid valley of the Minjiang River[J]. Geophysical and Geochemical Exploration, 2024, 48(3): 597-608.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1255 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I3/597

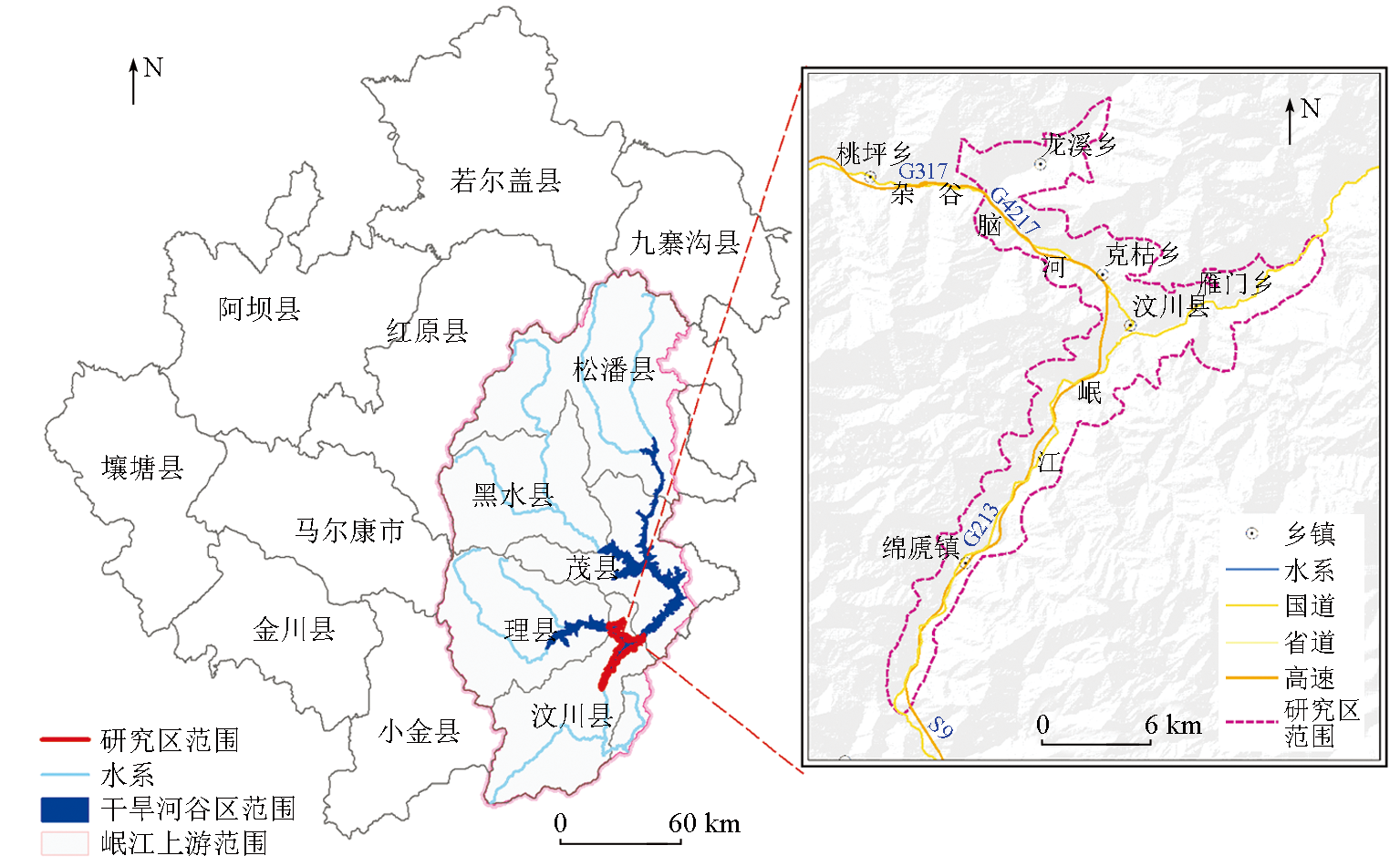

Location of the study area

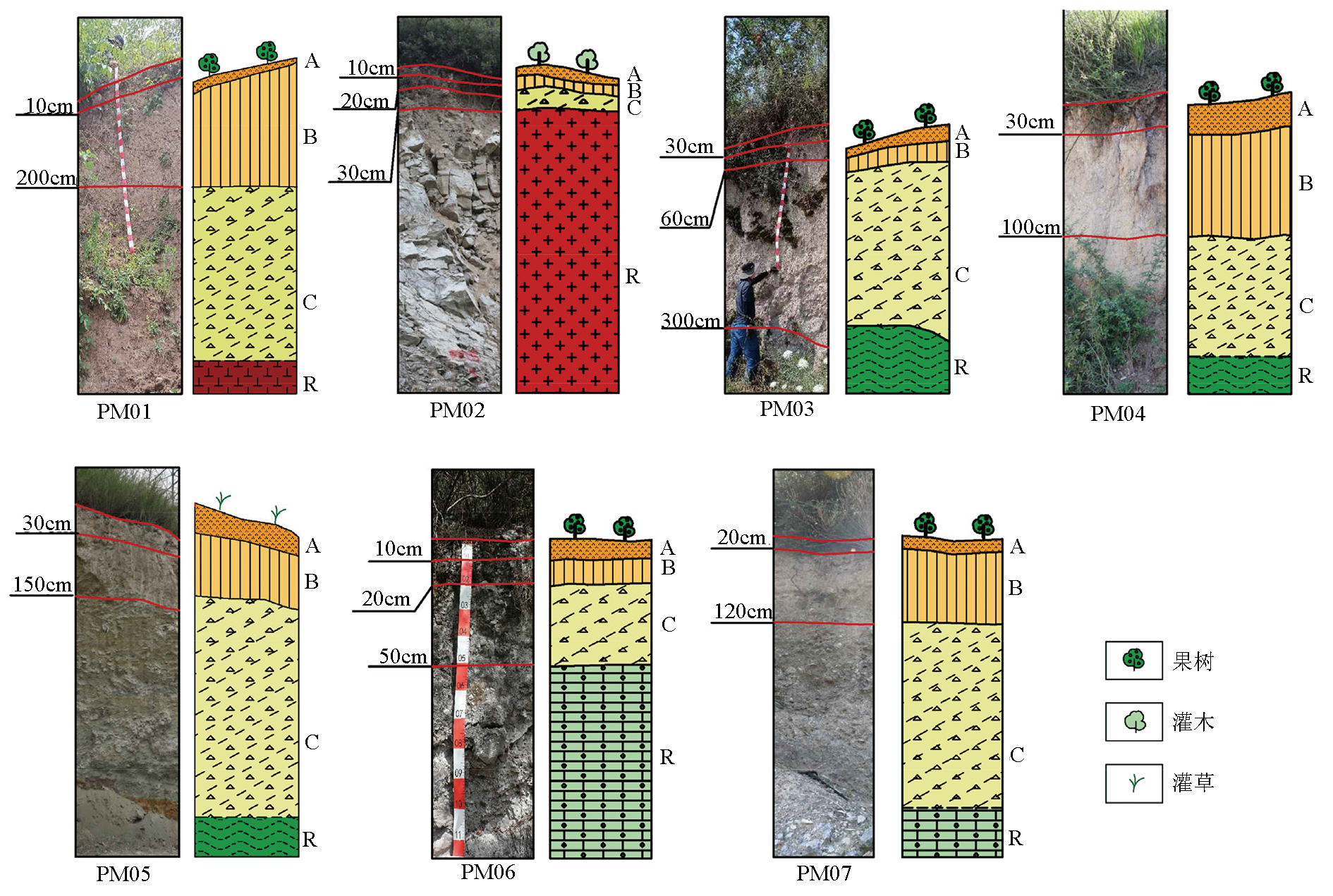

Schematic structure of weathered crust stratification in the sampling site profile

剖面号	坡度	成土母岩	成土母质类型	土地利用	备注
PM01	38°	闪长岩	闪长岩风化残积物+风成黄土	果林地为主	剖面位于汶川县绵虒镇半坡村,该处第四系松散堆积物较厚,大面积种植李子树。腐殖层为黑灰色壤土,深度0~10 cm;淀积层为棕色壤土,深度10~200 cm;母质层为黄褐色含砾石沙土,深度200~400 cm;基岩微风化、较完整
PM02	42°	花岗岩	花岗岩风化残积物	灌木林为主	剖面位于汶川县威州镇索桥村,植被主要为灌木胡枝子、少许草。腐殖层为黑灰色壤土,深度0~10 cm;淀积层为棕色壤土,深度10~20 cm;母质层为黄褐色含砾石沙土,深度20~30 cm;基岩微风化、较完整
PM03	30°	千枚岩	风成黄土+千枚岩风化残积物	果林地为主	剖面位于汶川县威州镇秉里村,该处第四系松散堆积物较厚,坡地改造为阶梯状,种植李子树。腐殖层为黑色壤土,深度0~30 cm;淀积层为黄色含砂砾质壤土,深度30~60 cm;母质层为黄色含砾石壤土,深度60~300 cm;基岩强风化、较破碎
PM04	30°	千枚岩	风成黄土+千枚岩风化残积物	果林地为主	剖面位于汶川县绵虒镇涂禹山村,大面积种植李子树。腐殖层为黑色壤土,深度0~30 cm;淀积层为红棕色—黄棕色壤土,深度30~100 cm;母质层为黄棕色含砾石沙土,深度100~250 cm;基岩中等风化、较完整
PM05	31°	千枚岩	风成黄土+千枚岩风化残积物	草地为主	剖面位于汶川县威州镇禹碑岭村,植被主要为草丛、局部灌丛。腐殖层为灰色壤土,深度0~30 cm;淀积层为黄色壤土,深度30~150 cm;母质层为灰黄色壤土,深度150~320 cm;基岩微风化、较完整
PM06	26°	结晶灰岩	风成黄土+结晶灰岩风化残积物	果林地为主	剖面位于汶川县威州镇禹碑岭村,主要种植李子树,少许核桃树。腐殖层为黑灰色壤土,深度0~10 cm;淀积层为深灰色壤土,深度10~20 cm;母质层为浅灰色粗骨土,深度20~50 cm;基岩中等风化、较完整
PM07	55°	结晶灰岩	风成黄土+结晶灰岩风化残积物	果林地为主	剖面位于汶川县威州镇禹碑岭村,该点位于半山坡上,主要种植樱桃树。腐殖层为黑灰色壤土,深度0~20 cm;淀积层为棕色壤土,深度20~120 cm;母质层为黄褐色含砾石沙土,深度120~400 cm;基岩中等风化、较完整

The basic characteristics for the weathering profiles in the study area

剖面号	岩性	采样层位	Al₂O₃	CaO	K₂O	MgO	Na₂O	TFe₂O₃	SiO₂	CIA	Na/K	ba
PM01	闪长岩	腐殖层	14.04	3.83	2.97	2.39	1.21	6.08	56.91	66.09	0.62	1.30
		淀积层	12.02	10.34	2.79	2.40	0.98	4.83	51.35	65.78	0.53	2.45
		母质层	11.62	10.41	2.46	2.69	1.35	5.21	51.04	62.04	0.83	2.63
		基岩层	12.04	0.48	3.92	0.26	3.99	1.44	76.60	54.36	1.55	-
PM02	花岗岩	腐殖层	11.58	5.40	3.39	3.79	1.84	7.94	50.68	54.33	0.82	2.25
		淀积层	12.50	4.69	2.28	3.36	2.63	7.33	55.29	52.91	1.75	1.91
		母质层	11.64	5.67	3.67	4.56	1.39	8.87	49.39	57.64	0.58	2.41
		基岩层	12.08	0.43	4.44	0.31	3.69	1.12	76.48	50.86	1.26	-
PM03	千枚岩	腐殖层	14.58	12.78	3.27	1.95	0.81	5.01	48.38	70.12	0.38	2.26
		淀积层	11.16	11.48	2.93	3.26	1.05	4.41	49.68	62.72	0.54	3.0
		母质层	12.83	17.58	3.08	2.27	0.69	4.25	43.61	69.57	0.34	3.28
		基岩层	18.55	0.35	2.56	1.14	0.36	7.03	63.87	82.23	0.21	-
PM04	千枚岩	腐殖层	15.10	2.88	2.62	2.06	1.04	6.15	58.14	70.68	0.60	0.99
		淀积层	15.34	2.48	2.91	2.46	1.16	6.63	57.45	68.74	0.61	1.03
		母质层	13.17	9.09	3.02	2.25	1.02	4.89	52.32	66.50	0.51	2.06
		基岩层	19.89	0.65	4.05	2.62	1.00	7.73	58.14	69.58	0.38	-
PM05	千枚岩	腐殖层	16.44	4.15	4.34	2.77	0.93	6.48	51.75	67.91	0.33	1.26
		淀积层	15.59	4.60	4.13	2.71	1.05	6.47	53.12	66.27	0.39	1.37
		母质层	14.05	10.01	3.92	2.55	0.97	5.23	50.18	65.36	0.38	2.17
		基岩层	20.54	0.20	4.53	2.98	1.42	7.96	56.26	72.95	0.48	-
PM06	结晶灰岩	腐殖层	10.04	27.33	2.18	3.38	0.46	2.76	39.26	72.13	0.32	6.11
		淀积层	9.80	18.85	2.47	3.26	0.32	3.14	45.12	72.41	0.20	4.67
		母质层	3.81	47.05	0.98	6.20	0.17	0.9	25.02	70.13	0.26	26.92
		基岩层	2.73	40.02	0.23	1.76	<0.3	1.22	21.7	68.83	1.98	-
PM07	结晶灰岩	腐殖层	11.29	24.26	2.30	2.26	0.53	3.10	41.26	72.70	0.35	4.71
		淀积层	10.45	27.24	2.13	2.40	0.50	2.76	40.66	72.54	0.36	5.61
		母质层	7.29	39.03	1.37	2.18	0.41	1.79	32.75	72.02	0.45	10.78
		基岩层	2.25	41.42	0.51	2.18	<0.30	1.71	<19.00	59.38	0.89	-
土壤样品平均值			12.11	14.25	2.82	2.91	0.98	4.96	47.78	66.60	0.53	4.25
中国土壤元素值^[18]			12.6	3.2	2.5	1.8	1.6	3.4	65.0	61.23	0.97	1.25
元江干旱河谷区局部区域土壤元素值^[19]			15.00	-	3.32	0.46	2.61	3.44	70.25	-	1.19	-
金沙江干旱河谷区局部区域土壤元素值^[19]			12.50	-	3.39	0.32	0.90	3.31	73.14	-	0.40	-

Macronutrient content and weathering index in weathered crust profiles

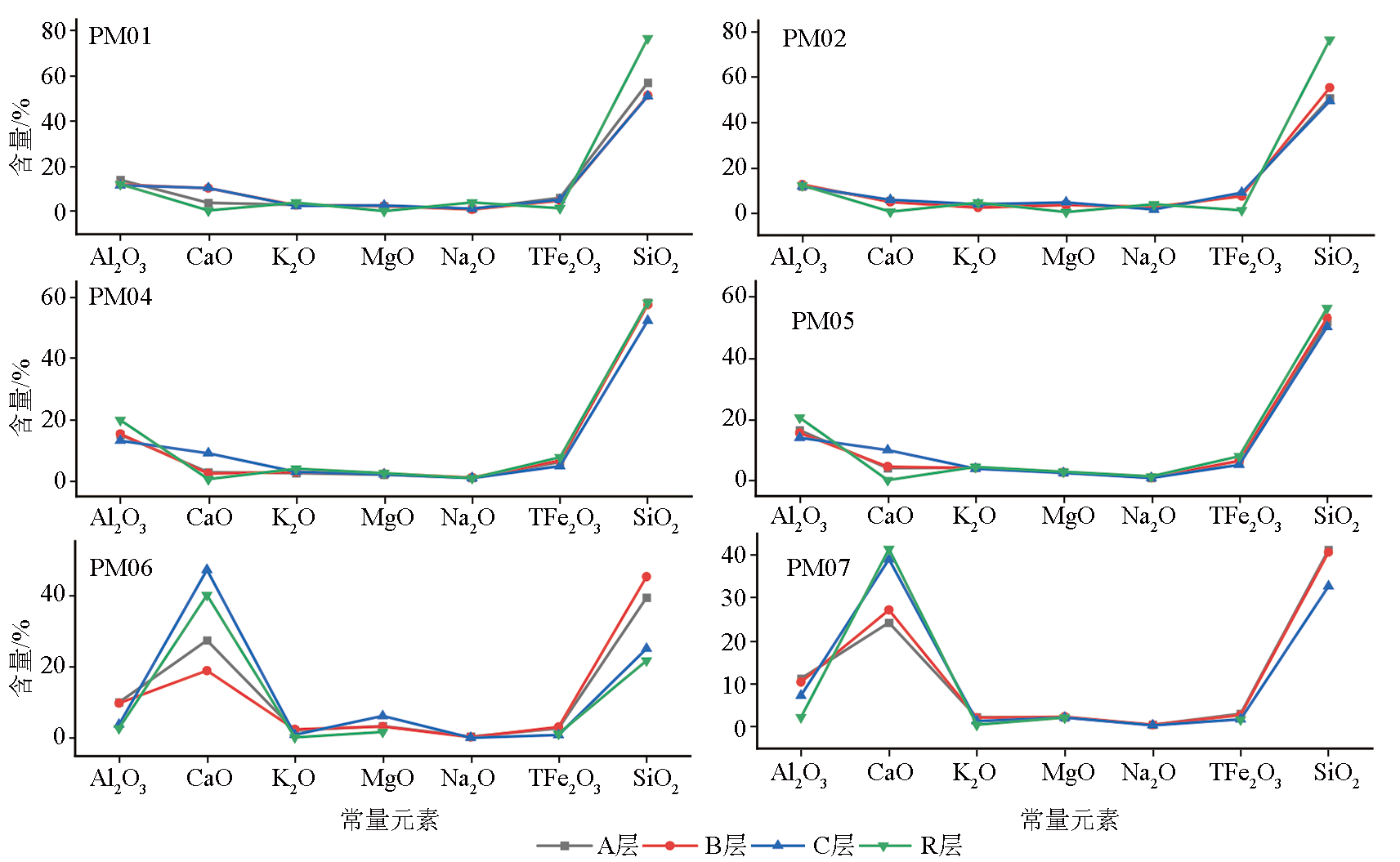

Constant element curve chart

Trace element content and heavy element content in weathering crust profiles 10^-6

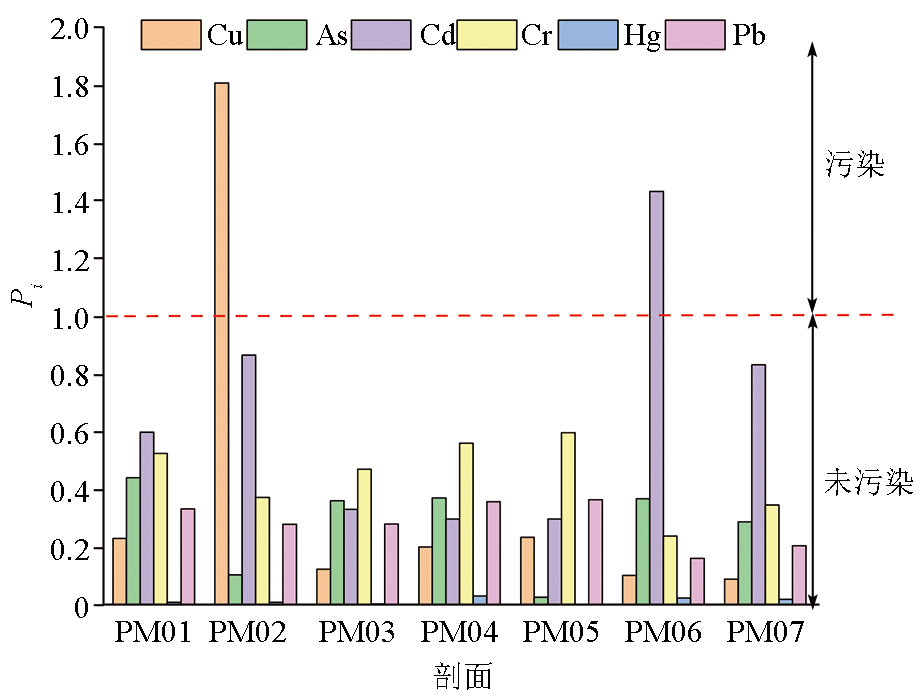

Soil heavy metal pollution index distribution

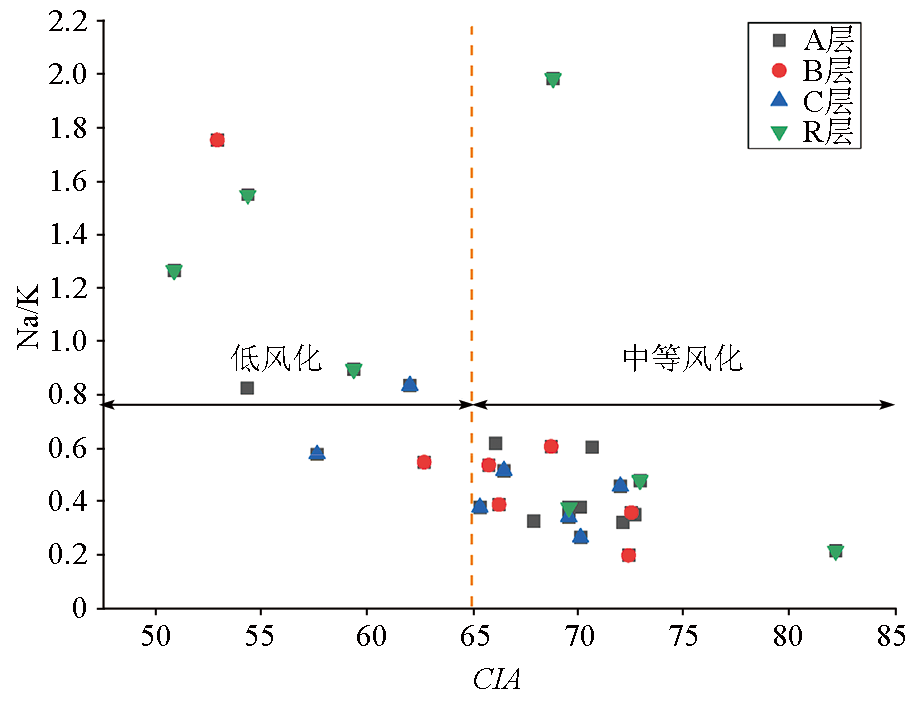

Scatter plot of CIA values versus Na/K values for weathered crust profiles

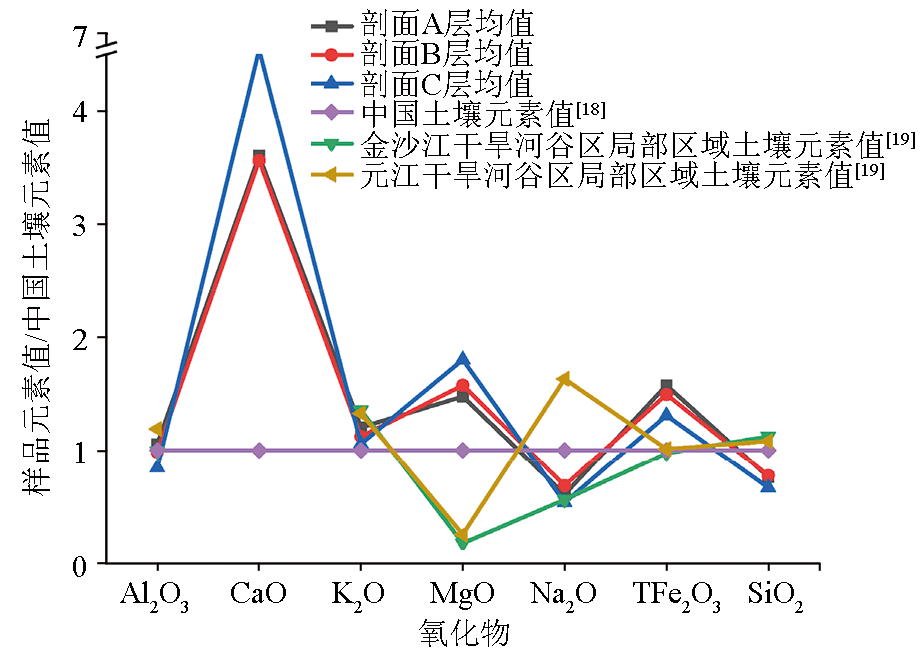

Distribution of macronutrients in weathered crust profiles in the Wenchuan section of the upper Minjiang arid valley

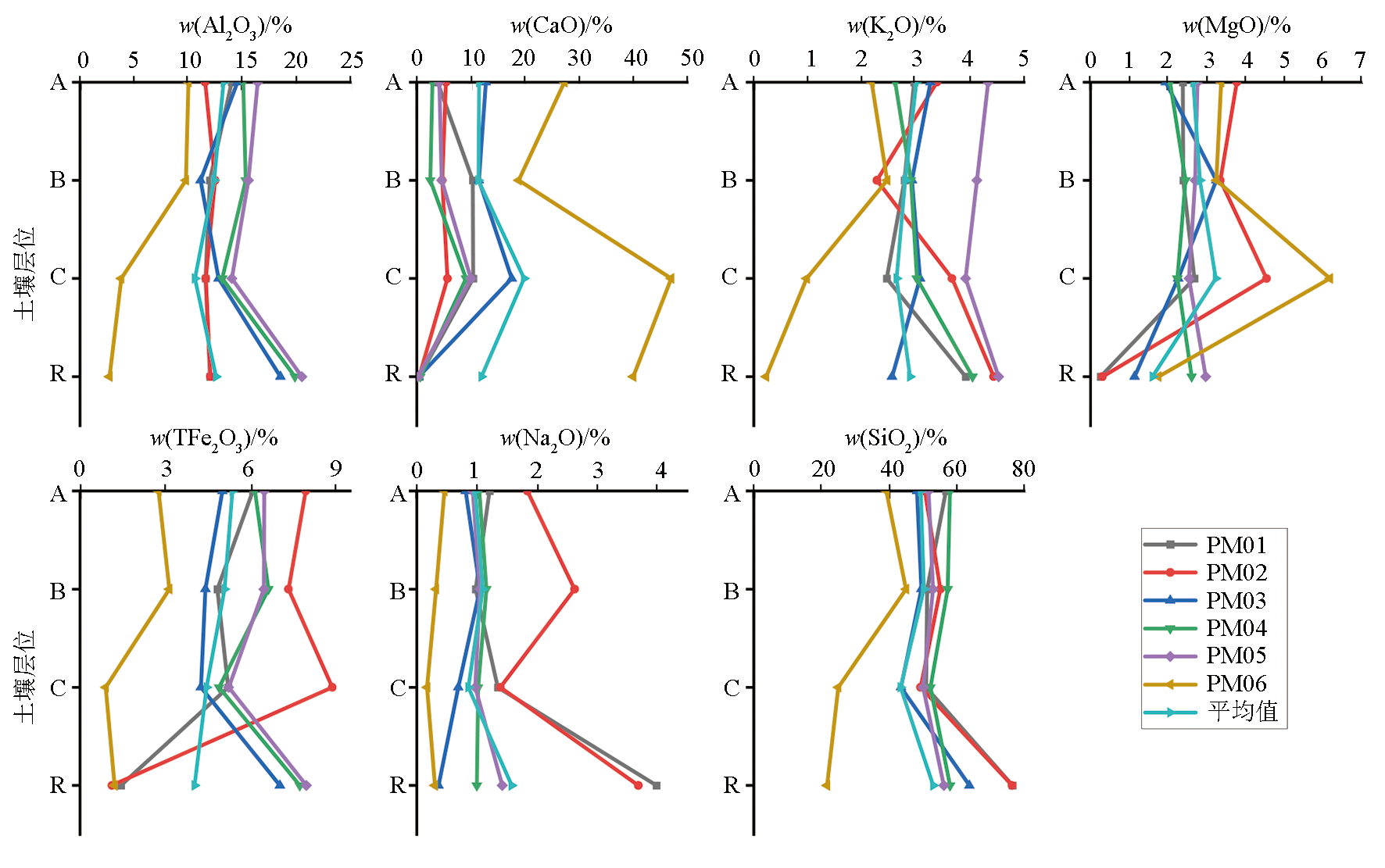

Variation of macronutrient content with depth in weathered crust profiles

Variation of heavy elemental content with depth in weathered crust profiles

Soil element correlation coefficients (n=21)

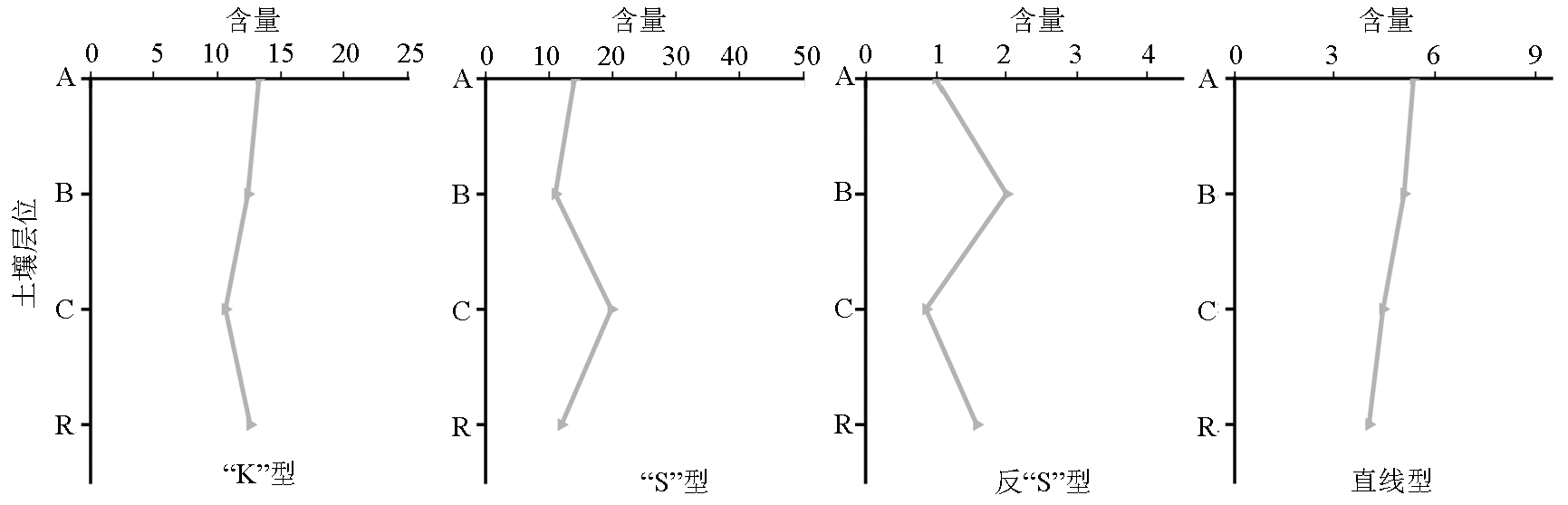

Map of the four types of distribution of elements in the vertical profile of weathered crusts

[1]	张荣祖. 横断山区干旱河谷[M]. 北京: 科学出版社,1992.
[1]	Zhang R Z. The dry valleys of the Hengduan Mountains region[M]. Beijing: Science Press,1992.
[2]	杨兆平, 常禹. 我国西南主要干旱河谷生态及其研究进展[J]. 干旱地区农业研究, 2007, 25(4):90-93,99.
[2]	Yang Z P, Chang Y. Ecological problems of primary dry valleys is Southwest China and advances in the researches into them[J]. Agricultural Research in the Arid Areas, 2007, 25(4):90-93,99.
[3]	周义贵. 岷江上游干旱河谷区不同土地利用/植被恢复类型土壤生态效益评价[D]. 雅安: 四川农业大学, 2014.
[3]	Zhou Y G. Evaluation on soil ecological benefits in different land use/vegetation restoration in the key region of the upper reaches of Minjiang river-valley[D]. Yaan: Sichuan Agricultural University, 2014.
[4]	丁明涛, 周鹏, 张永旺, 等. 岷江上游干旱河谷边界波动的定量判定及其演化特征[J]. 山地学报, 2017, 35(2):170-178.
[4]	Ding M T, Zhou P, Zhang Y W, et al. Quantitative determination of boundary fluctuation in arid valley of the upper Minjiang River and its evolution feature[J]. Mountain Research, 2017, 35(2):170-178.
[5]	伏耀龙. 岷江上游干旱河谷区土壤质量评价及侵蚀特征研究[D]. 杨凌: 西北农林科技大学, 2012.
[5]	Fu Y L. Study on evaluation of soil quality and erosion characters in dry valley of the upper Minjiang River[D]. Yangling: Northwest A & F University, 2012.
[6]	赵刚刚, 张东坡, 袁大刚, 等. 岷江上游杂谷脑河谷土壤发生特征与系统分类研究[J]. 土壤, 2022, 54(4):865-872.
[6]	Zhao G G, Zhang D P, Yuan D G, et al. Genetic characteristics and taxonomy of soils in zagunao area in upper reaches of Minjiang River[J]. Soils, 2022, 54(4):865-872.
[7]	杨子松, 杨灿, 黎云祥. 岷江上游干旱河谷荒坡植物群落的稳定性分析[J]. 生态与农村环境学报, 2013, 29(1):43-48.
[7]	Yang Z S, Yang C, Li Y X. Stability of plant communities on waste hillsides of dry valleys in the upper reaches of Minjiang River[J]. Journal of Ecology and Rural Environment, 2013, 29(1):43-48.
[8]	刘晔, 李鹏, 许玥, 等. 中国西南干旱河谷植物群落的数量分类和排序分析[J]. 生物多样性, 2016, 24(4):378-388.
[8]	Liu Y, Li P, Xu Y, et al. Quantitative classification and ordination for plant communities in dry valleys of Southwest China[J]. Biodiversity Science, 2016, 24(4):378-388.
[9]	何淑勤, 宫渊波, 郑子成. 岷江上游不同植被恢复模式枯落物层水源涵养能力[J]. 长江流域资源与环境, 2020, 29(9):1986-1994.
[9]	He S Q, Gong Y B, Zheng Z C. Water conservation capacity of litters in different vegetation restoration patterns in the upper reaches of Minjiang River[J]. Resources and Environment in the Yangtze Basin, 2020, 29(9):1986-1994.
[10]	张利, 徐舟, 单凤娇, 等. 岷江干旱河谷不同植被恢复技术模式植物多样性特征[J]. 四川林业科技, 2022, 43(5):34-40.
[10]	Zhang L, Xu Z, Shan F J, et al. Characteristics of plant diversity under different vegetation restoration models in the arid valley of the Minjiang River[J]. Journal of Sichuan Forestry Science and Technology, 2022, 43(5):34-40.
[11]	何淑勤. 山地森林—干旱河谷交错带不同植被恢复模式土壤生态功能研究[D]. 雅安: 四川农业大学, 2019.
[11]	He S Q. Study on soil ecological function of different vegetation restoration patterns in mountain forests-arid valley ecotone[D]. Yaan: Sichuan Agricultural University, 2019.
[12]	李先琨, 黄玉清, 苏宗明, 等. 隆安县不同地层岩石与土壤中的元素自然含量特征[J]. 广西科学, 1997, 4(2):6.
[12]	Li X K, Huang Y Q, Su Z M, et al. Characteristics of natural content of elements in rocks and soils of different strata in Longan County[J]. Guangxi Sciences, 1997, 4(2):6.
[13]	李正积. 时代前缘的全息探索——岩土植物大系统研究[J]. 地质论评, 1996, 42(4):369-372.
[13]	Li Z J. Large-scale system of rock-soil-plant[J]. Geological Review, 1996, 42(4):369-372.
[14]	Bern C R. Influence of tectonics and atmospheric deposition on nutrient sources to tropical forests of the Osa peninsula,Costa Rica[D]. Boulder: University of Colorado, 2006.
[15]	肖春蕾, 聂洪峰, 刘建宇, 等. 生态—地质作用模式:诠释表生地质过程与生态特征的耦合[J]. 中国地质调查, 2021, 8(6):9-24.
[15]	Xiao C L, Nie H F, Liu J Y, et al. Ecological and geological interaction model:The coupling of supergene geological processes and ecological characteristics[J]. Geological Survey of China, 2021, 8(6):9-24.
[16]	DZ/T 0130—2006地质矿产实验室测试质量管理规范[S]. 北京: 中国标准出版社, 2006.
[16]	DZ/T 0130—2006 The specification of testing quality management for geological laboratories [S]. Beijing: Standards Press of China, 2006.
[17]	DZ/T 0258—2014多目标区域地球化学调查规范(1∶250 000)[S].
[17]	DZ/T 0258—2014 Specification for multi-target regional geochemical survey(1∶250,000)[S].
[18]	鄢明才, 顾铁新, 迟清华, 等. 中国土壤化学元素丰度与表生地球化学特征[J]. 物探与化探, 1997, 21(3):161-167.
[18]	Yan M C, Gu T X, Chi Q H, et al. Abundance of chemical elements of soils in China and supergenesis geochemistry characteristics[J]. Geophysical and Geochemical Exploration, 1997, 21(3):161-167.
[19]	张桃林, 赵其国. 我国热带、亚热带干热地区土壤发生特性的研究[J]. 土壤学报, 1990, 27(2):207-218,237-238.
[19]	Zhang T L, Zhao Q G. The genetic properties of soils in arid tropical and subtropical regions of China[J]. Acta Pedologica Sinica, 1990, 27(2):207-218,237-238.
[20]	Nesbitt H W, Young G M. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites[J]. Nature, 1982,299:715-717.
[21]	McLennan S M. Weathering and global denudation[J]. The Journal of Geology, 1993, 101(2):295-303.
[22]	许良峰, 魏骥, 姜伟. 皖南网纹红土的剖面风化特征及其古气候意义[J]. 土壤通报, 2010, 41(1):7-12.
[22]	Xu L F, Wei J, Jiang W. The weathering characteristics of the reticulate red clay in southern Anhui Province and its paleo-environmental significance[J]. Chinese Journal of Soil Science, 2010, 41(1):7-12.
[23]	迟清华, 鄢明才. 应用地球化学元素丰度数据手册[M]. 北京: 地质出版社, 2007.
[23]	Chi Q H, Yan M C. Handbook of elemental abundance for applied geochemistry[M]. Beijing: Geological Publishing House, 2007.
[24]	环境保护部科技标准司. 中国环境保护标准全书2007-2008年下[M]. 北京: 中国环境科学出版社, 2008.
[24]	Department of Science and Technology Standards,Ministry of Environmental Protection. The complete book of Chinese environmental protection standards 2007-2008[M]. Beijing: China Environmental Science Press, 2008.
[25]	臧楠. 川西杂谷脑河流域黄土特征及成因分析[D]. 成都: 成都理工大学, 2021.
[25]	Zang N. Characteristics and genetic analysis of loess in zagnao river basin,western sichuan[D]. Chengdu: Chengdu University of Technology, 2021.
[26]	Fedo C M, Nesbitt H W, Young G M. Unraveling the effects of potassium metasomatism in sedimentary rocks and paleosols,with implications for paleoweathering conditions and provenance[J]. Geology, 1995, 23(10):921.
[27]	苟明忠, 文星跃, 吴勇, 等. 岷江上游营盘山遗址土壤理化特征及指示意义[J]. 地球与环境, 2019, 47(4):477-484.
[27]	Gou M Z, Wen X Y, Wu Y, et al. Physical and chemical characteristics of soils in the yingpanshan site and its environmental significance[J]. Earth and Environment, 2019, 47(4):477-484.
[28]	彭东, 曹俊, 杨俊义, 等. 四川九寨沟地区黄土的初步研究[J]. 中国区域地质, 2001, 20(4):359-365,451.
[28]	Peng D, Cao J, Yang J Y, et al. Study of loess in the Jiuzhaigou area,Sichuan[J]. Regional Geology of China, 2001, 20(4):359-365,451.
[29]	李徐生, 韩志勇, 杨守业, 等. 镇江下蜀土剖面的化学风化强度与元素迁移特征[J]. 地理学报, 2007, 62(11):1174-1184.
[29]	Li X S, Han Z Y, Yang S Y, et al. Chemical weathering intensity and element migration characteristics of Xiashu soil profile in Zhenjiang[J]. Acta Geographica Sinica, 2007, 62(11):1174-1184.
[30]	顾涛, 郑小战, 邱啸飞, 等. 中山市神湾镇晚中生代花岗岩风化壳剖面元素地球化学特征[J]. 华南地质, 2021, 37(4):406-417.
[30]	Gu T, Zheng X Z, Qiu X F, et al. Element geochemical characteristics of Mesozoic granite weathering crust profile in Shenwan town,Zhongshan city[J]. South China Geology, 2021, 37(4):406-417.
[31]	郝立波, 马力, 赵海滨. 岩石风化成土过程中元素均一化作用及机理:以大兴安岭北部火山岩区为例[J]. 地球化学, 2004, 33(2):131-138.
[31]	Hao L B, Ma L, Zhao H B. Elemental homogenization during weathering and pedogenesis of volcanic rocks from North Da Hinggan Ling[J]. Geochimica, 2004, 33(2):131-138.
[32]	韩张雄, 李敏, 端爱玲, 等. 矿区土壤重金属转运迁移的影响因素研究进展[J]. 应用化工, 2023, 52(6):1891-1895.
[32]	Han Z X, Li M, Duan A L, et al. Influencing factors of heavy metal transport and migration in mining area soil:A review[J]. Applied Chemical Industry, 2023, 52(6):1891-1895.
[33]	王海荣, 侯青叶, 杨忠芳, 等. 广东省典型花岗岩成土剖面元素垂向分布特征[J]. 中国地质, 2013, 40(2):619-628.
[33]	Wang H R, Hou Q Y, Yang Z F, et al. Vertical distribution of some elements in typical weathering-soil profiles of granite in Guangdong Province[J]. Geology in China, 2013, 40(2):619-628.
[34]	FZ/T 92025—1994土地质量生态地球化学评价规范[S].
[34]	FZ/T 92025—1994 Code for ecological geochemical evaluation of land quality[S].
