非零偏时延VSP资料处理关键技术

doi:10.11720/wtyht.2024.1161

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (14961 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Since non-zero-offset time-lapse vertical seismic profiling (VSP) data contain abundant near-well wave field information,the VSP reflection information and seismic attributes can be applied to effectively monitor the migration of injected fluids near wells,boasting a broad application prospect.Due to the limitation of observation methods,non-zero-offset time-lapse VSP data exhibit limited superposition times,thus demanding more stringent processing for two-phase VSP data.By introducing the repeatability analysis and consistency processing method of two-phase data into the conventional processing technology for non-zero-offset VSP data,this study developed a processing technology flow for non-zero offset time-lapse VSP data.Moreover,this study conducted analysis and tests of the methods for processing the intra-shot consistency of time-lapse data and the consistency of two-phase data.As verified by the application in well A,the processing flow and key technology for non-zero-offset time-lapse VSP data proposed in this study enjoy high operability and practicability and,thus,have the potential for wide applications.

Key words： non-zero-offset time-lapse VSP data processing consistency processing attribute analysis

Received: 23 April 2023 Published: 16 April 2024

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jie ZHANG
	Lei-Lei CHENG
	Zhao-Han ZENG
	Lin CHEN

Cite this article:

Jie ZHANG,Lei-Lei CHENG,Zhao-Han ZENG, et al. Key technologies of non-zero offset time-delay VSP data processing[J]. Geophysical and Geochemical Exploration, 2024, 48(2): 470-478.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1161 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I2/470

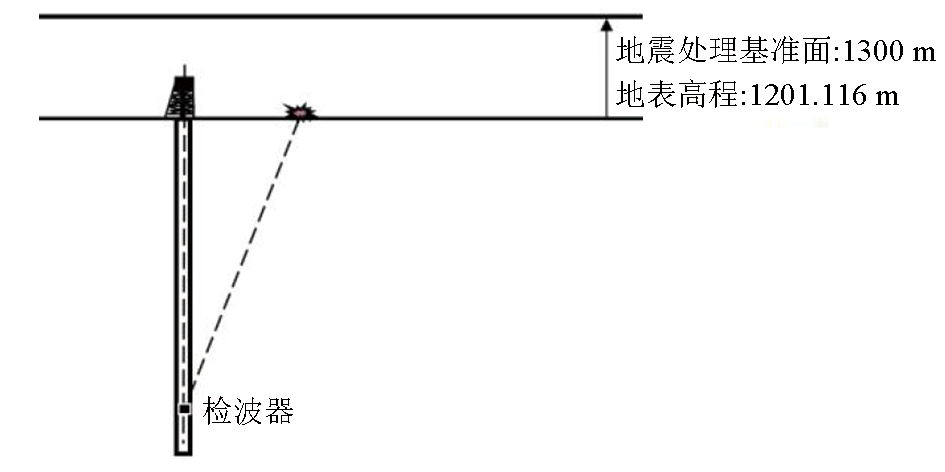

VSP seismic acquisition diagram

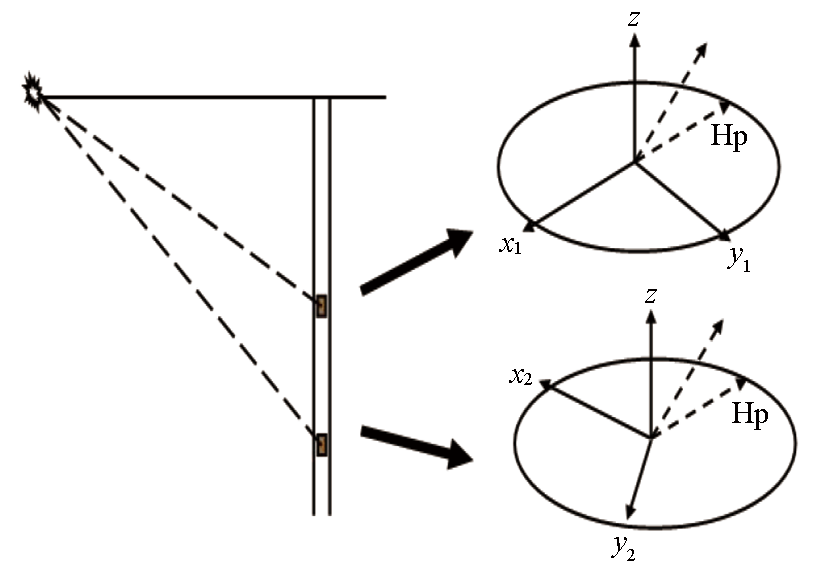

Three-component detector acquisition diagram

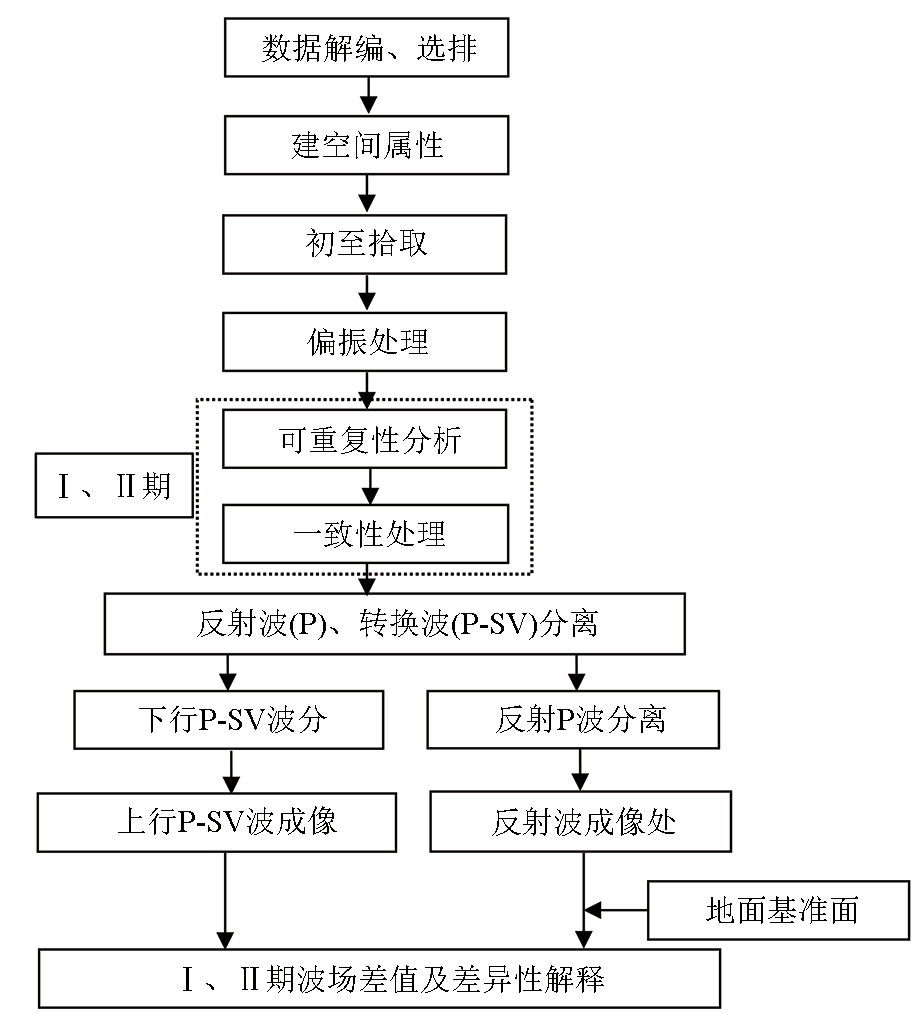

Non-zero offset time-delay VSP data processing flow

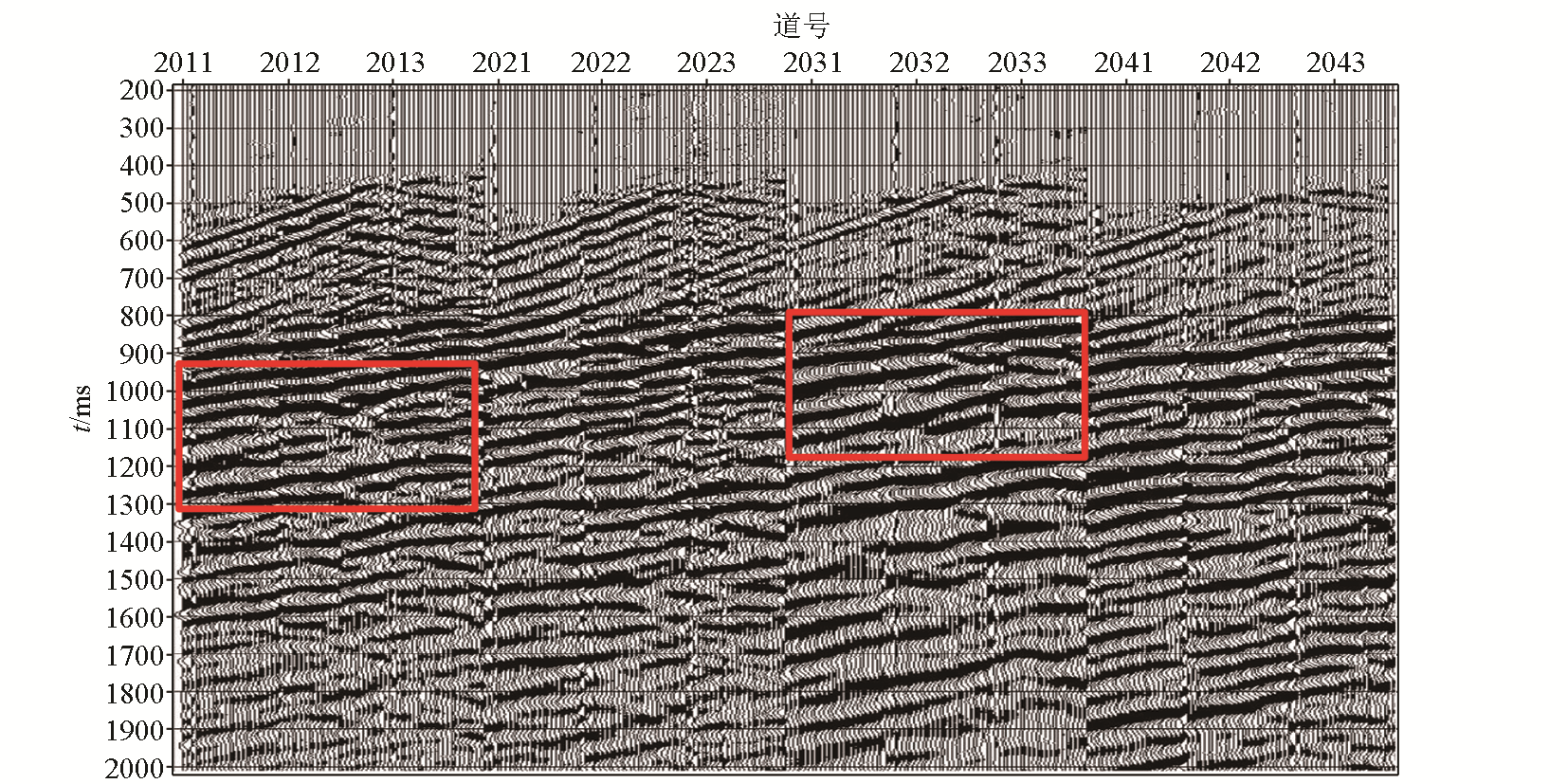

Source wavelet inconsistent single shot recording

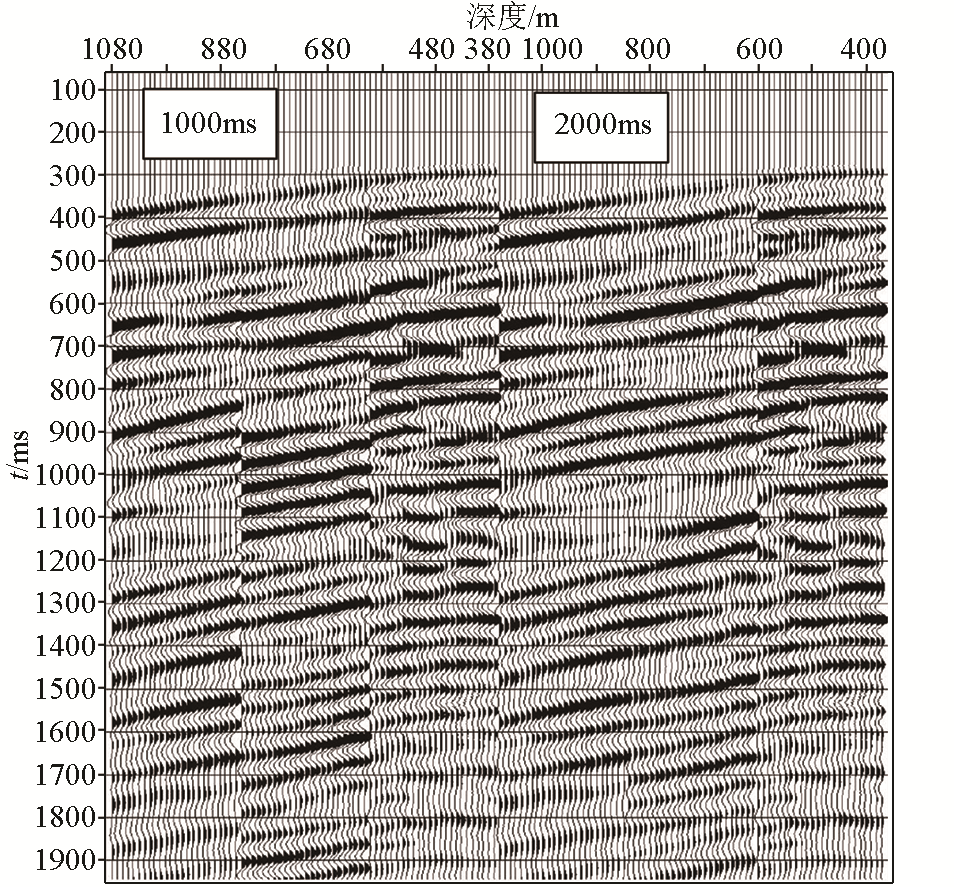

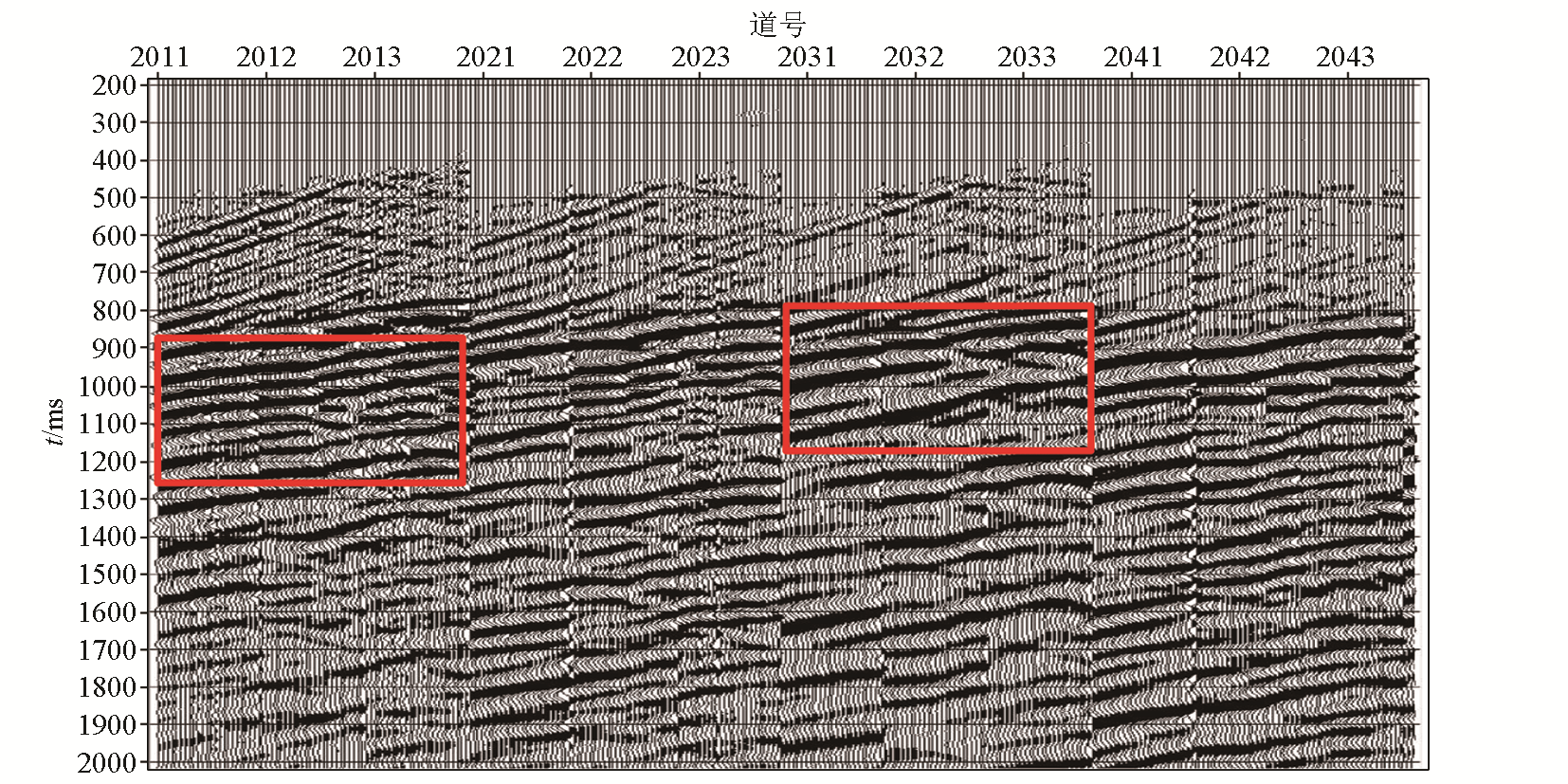

Consistency processing with 610~840 m as the standard channel

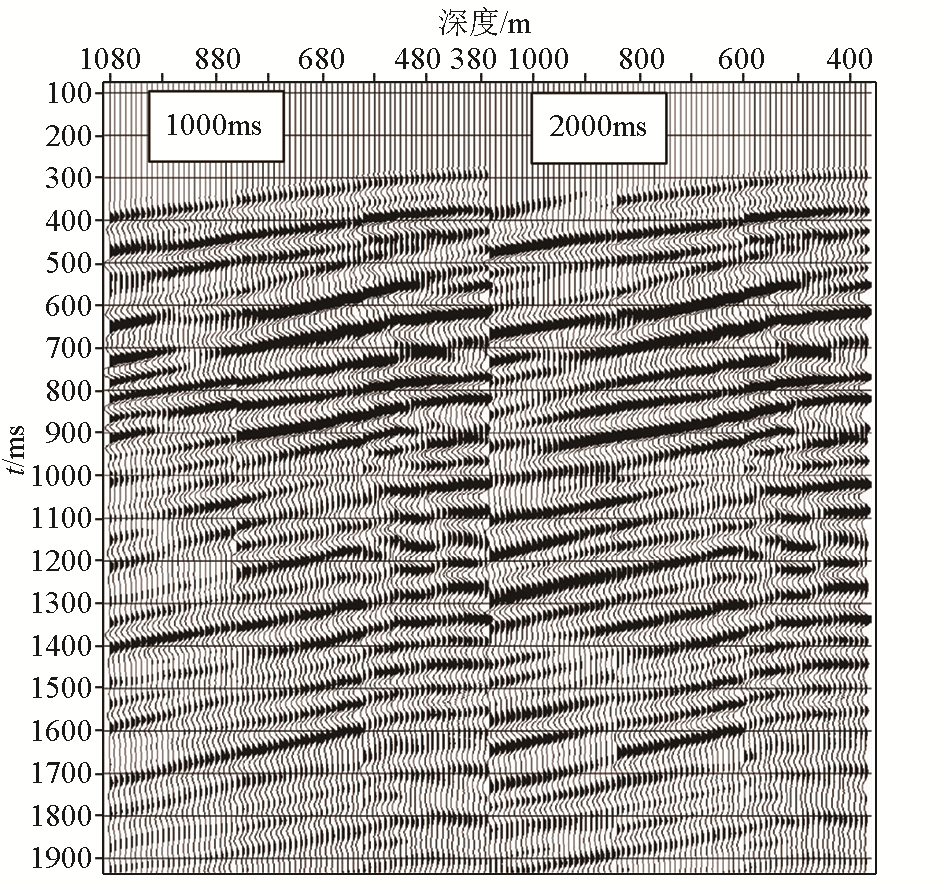

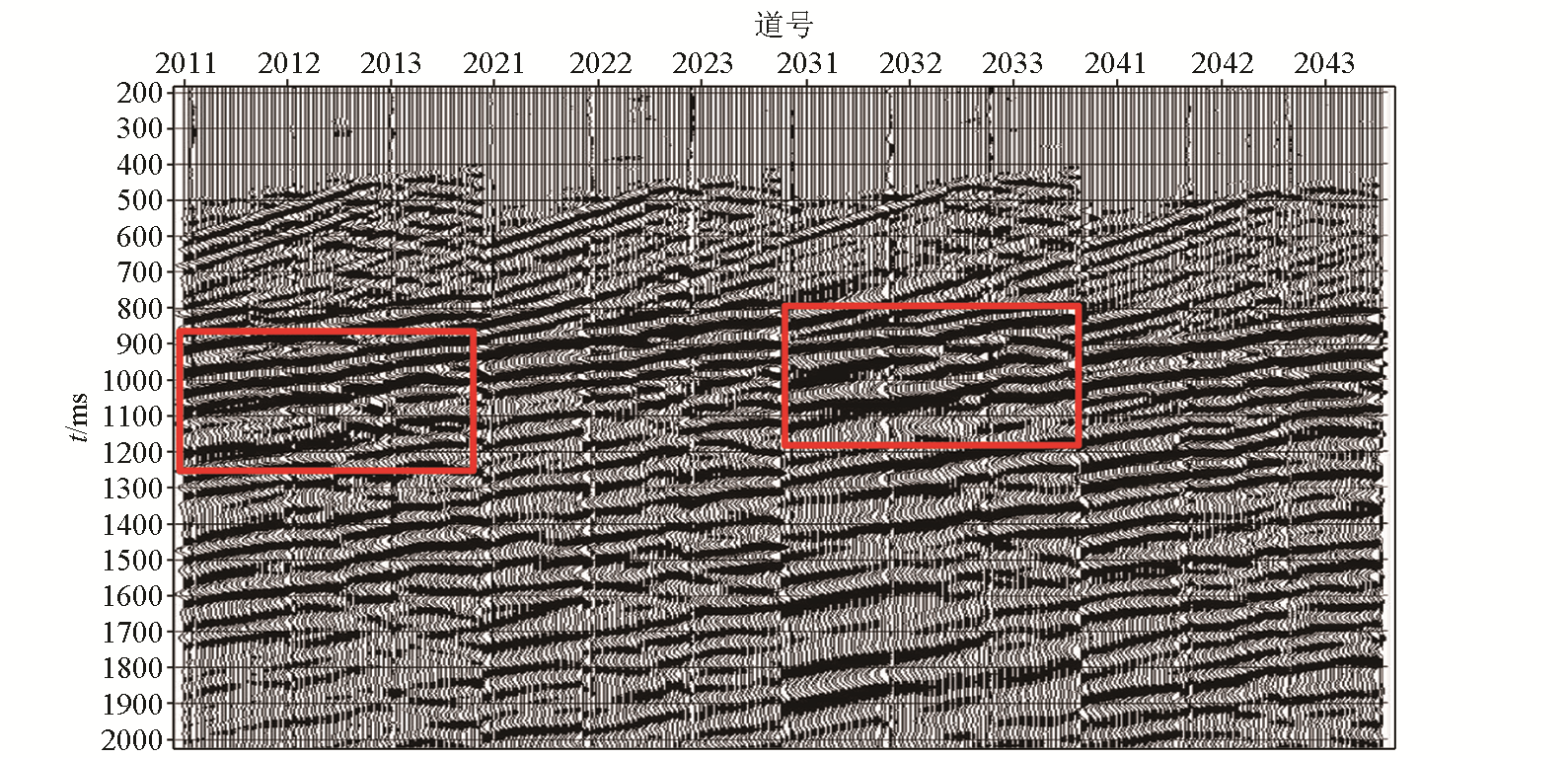

Consistency processing with 850~1 080 m as the standard channel

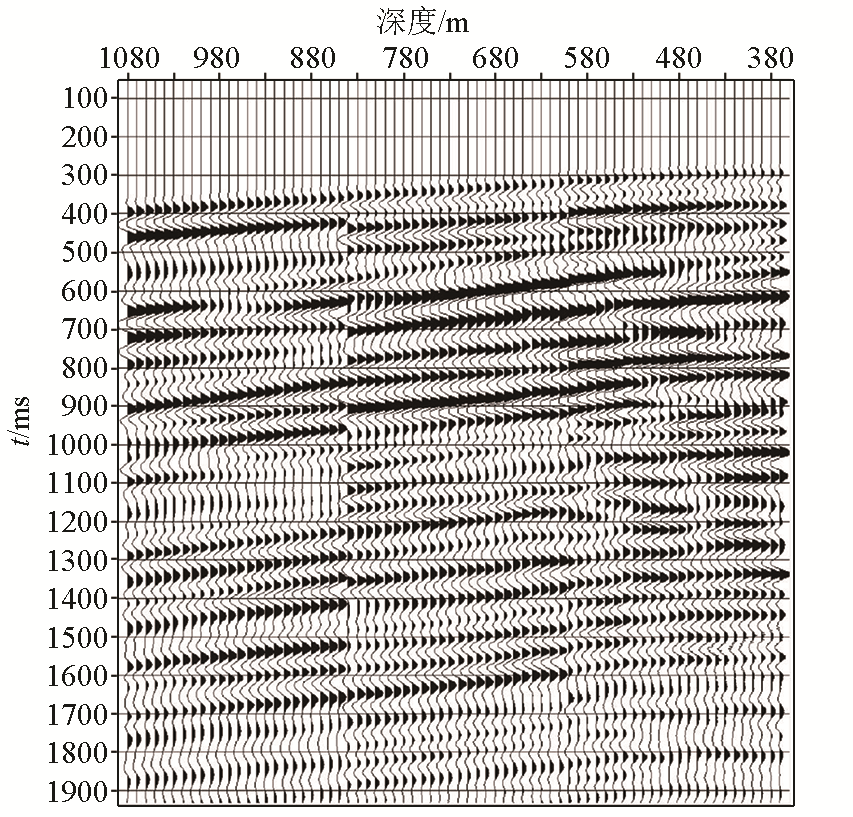

Radial VSP component of phase I

Radial VSP component of phase Ⅱ

Radial VSP component of phase Ⅱ after consistency treatment

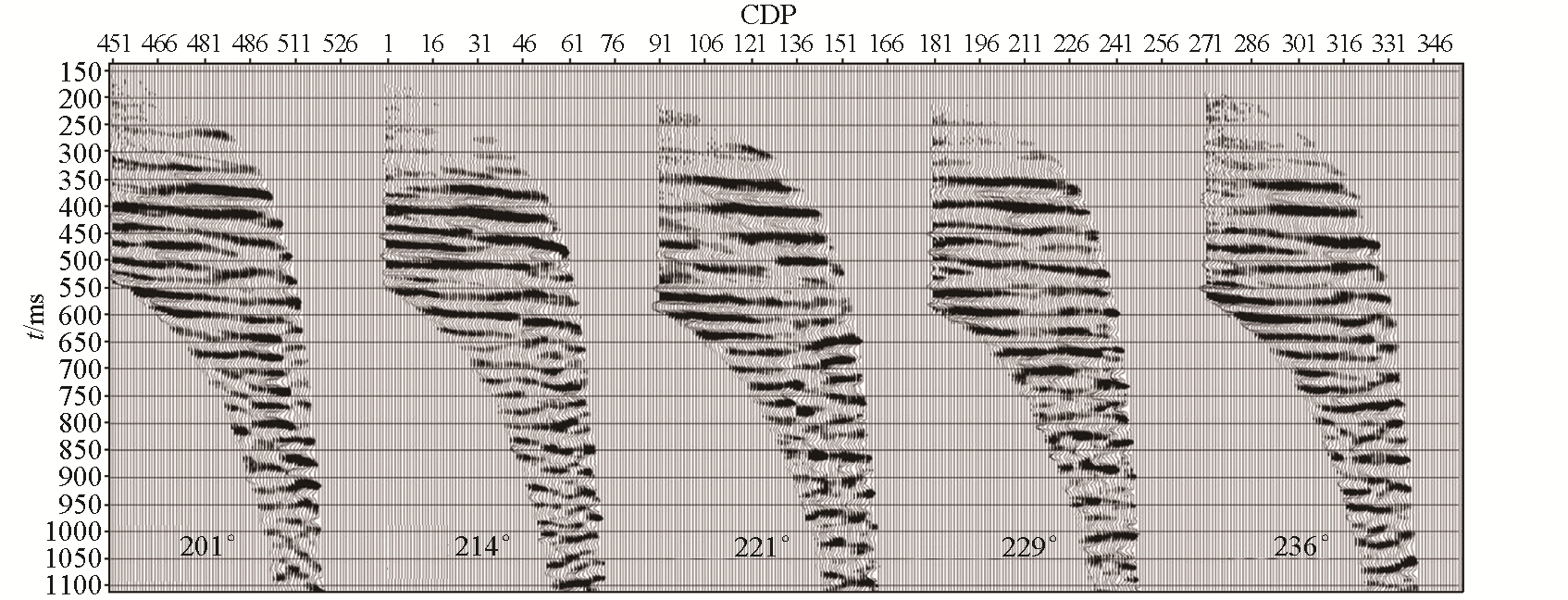

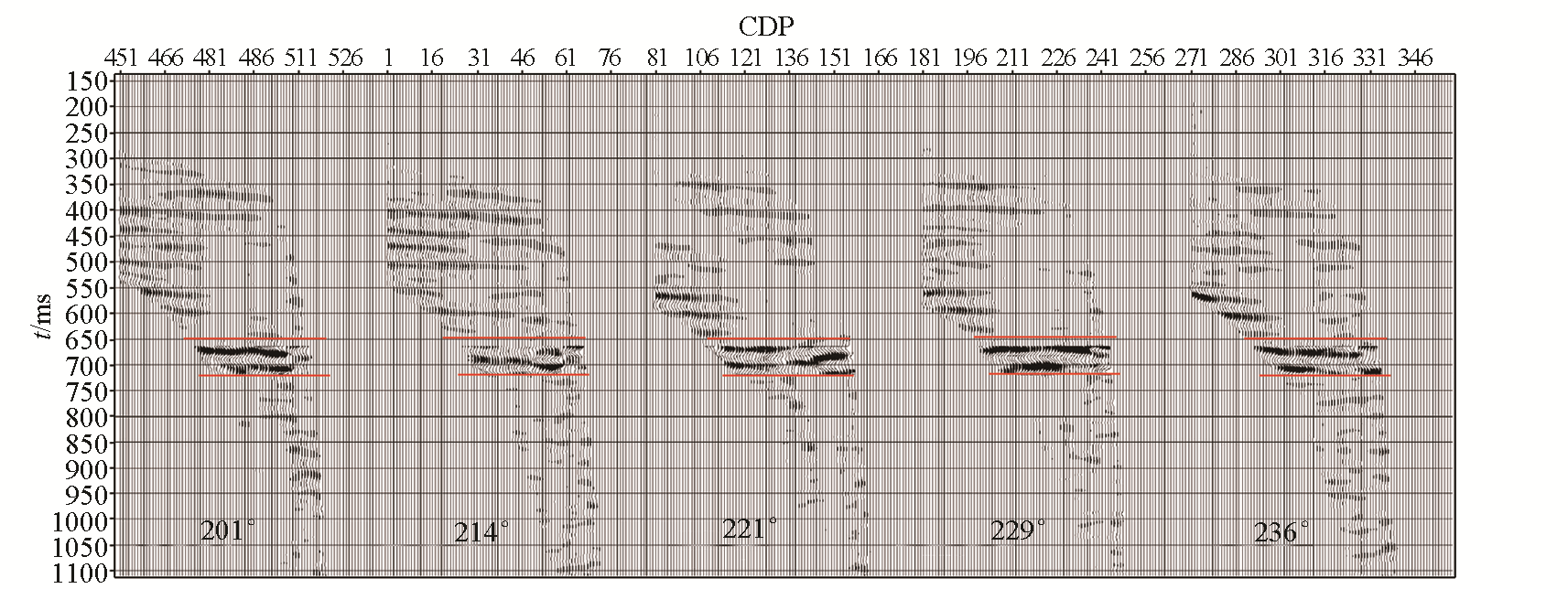

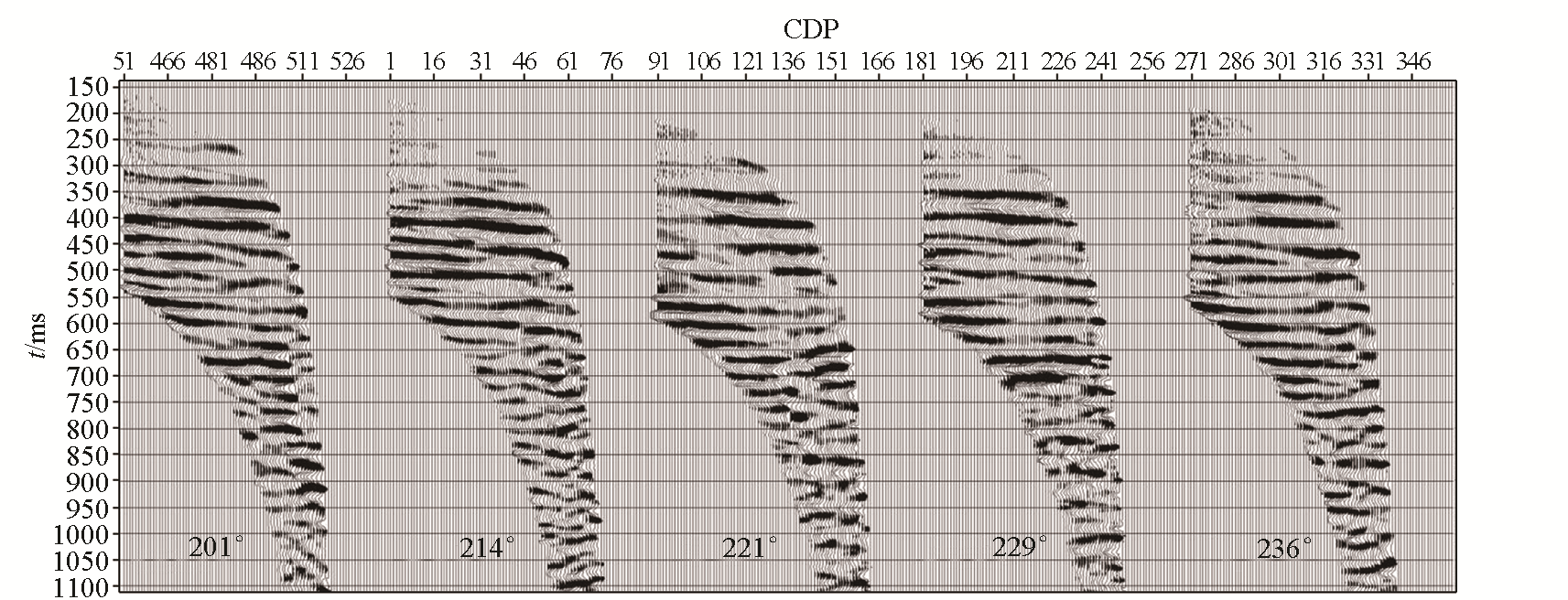

VSPCDP overlay imaging of phase Ⅰ

VSPCDP overlay imaging of phase Ⅱ after consistency treatment

Basic geological attributes and geological significance

The difference section of phaseⅠ and phase Ⅱ

[1]	Landrø M. Repeatability issues of 3-D VSP data[J]. Geophysics, 1999, 64(6):1673-1679.
[2]	Bergmann P, Diersch M, Götz J, et al. Review on geophysical monitoring of CO₂ injection at Ketzin,Germany[J]. Journal of Petroleum Science and Engineering, 2016, 139:112-136.
[3]	Wu H, Kiyashchenko D, Lopez J. Time-lapse 3D VSP using permanent receivers in a flowing well in the deepwater Gulf of Mexico[J]. The Leading Edge, 2011, 30(9):1052-1058.
[4]	Couëslan M L, Ali S, Campbell A, et al. Monitoring CO₂ injection for carbon capture and storage using time-lapse 3D VSPs[J]. The Leading Edge, 2013, 32(10):1268-1276.
[5]	Jack I. Time-lapse seismic in reservoir management[M]. Moscow: Society of Exploration Geophysicists,1997.
[6]	O’Brien J, Kilbride F, Lim F. Time-lapse VSP reservoir monitoring[J]. The Leading Edge, 2004, 23(11):1178-1184.
[7]	Daley T M, Myer L R, Peterson J E, et al. Time-lapse crosswell seismic and VSP monitoring of injected CO₂ in a brine aquifer[J]. Environmental Geology, 2008, 54(8):1657-1665.
[8]	Majer E L, Daley T M, Korneev V, et al. Cost-effective imaging of CO₂ injection with borehole seismic methods[J]. The Leading Edge, 2006, 25(10):1290-1302.
[9]	Huang L, Rutledge J, Zhou R. VSP monitoring of CO₂ injection at the Aneth oilfield in Utah[J]. American Geophysical Union Fall Meeting, 2008:S54A-04.
[10]	Zhou R, Huang L, Rutledge J, et al. Monitoring temporal changes of seismic velocity due to CO₂ injection using time-lapse VSP data and coda-wave interferometry[J]. American Geophysical Union Fall Meeting, 2008:S51A-1734.
[11]	Cheng A, Huang L J, Rutledge J. Time-lapse VSP data processing for monitoring CO₂ injection[J]. The Leading Edge, 2010, 29(2):196-199.
[12]	赵兴雷, 马瑞, 李国涛, 等. 神华咸水层CO₂封存监测安全评价体系的研究[J]. 化工进展, 2016, 35(S2):389-395.
[12]	Zhao X L, Ma R, Li G T, et al. Study on the safety evaluation system of CO₂ storage monitoring in Shenhua saline water layer[J]. Chemical Industry and Engineering Progress, 2016, 35(S2):389-395.
[13]	张二勇, 李旭峰, 何锦, 等. 地下咸水层封存CO₂的关键技术研究[J]. 地下水, 2009, 31(3):15-19.
[13]	Zhang E Y, Li X F, He J, et al. Key techniques research of CO₂ storage in salinity aquifer[J]. Ground Water, 2009, 31(3):15-19.
[14]	田宝卿, 徐佩芬, 庞忠和, 等. CO₂封存及其地球物理监测技术研究进展[J]. 地球物理学进展, 2014, 29(3):1431-1438.
[14]	Tian B Q, Xu P F, Pang Z H, et al. Research progress of carbon dioxide capture and store technique and geophysical monitoring research[J]. Progress in Geophysics, 2014, 29(3):1431-1438.
[15]	李军, 张军华, 谭明友, 等. CO₂驱油及其地震监测技术的国内外研究现状[J]. 岩性油气藏, 2016, 28(1):128-134.
[15]	Li J, Zhang J H, Tan M Y, et al. Research status of CO₂ flooding and its seismic monitoring technologies[J]. Lithologic Reservoirs, 2016, 28(1):128-134.
[16]	赵海英, 陈沅忠, 李彦鹏, 等. CO₂地质封存时移垂直地震监测技术[J]. 岩土力学, 2018, 39(8):3095-3102.
[16]	Zhao H Y, Chen Y Z, Li Y P, et al. CO₂ monitoring with time-lapse vertical seismic profile[J]. Rock and Soil Mechanics, 2018, 39(8):3095-3102.
[17]	蔡志东, 王艳华, 王玉伟, 等. 时移垂直地震剖面技术在准噶尔和塔里木盆地的应用分析[J]. 地球物理学进展, 2016, 31(1):159-163.
[17]	Cai Z D, Wang Y H, Wang Y W, et al. Time-lapse vertical seismic profile applied in Junggar and the Tarim Basin[J]. Progress in Geophysics, 2016, 31(1):159-163.
[18]	蔡志东, 王冲, 王艳华, 等. 时移VSP 在准噶尔盆地剩余油气勘探中的应用研究[C]//南京: SPG/SEG 南京2020年国际地球物理会议, 国际勘探地球物理学会, 2020:1170-1171.
[18]	Cai Z D, Wang C, Wang Y H, et al. Application of time-shifted VSP in residual oil and gas exploration in Junggar Basin[C]// Nanjing: SPG/SEG Nanjing 2020 International Geophysical Conference,International Society for Exploration Geophysics, 2020:1170-1171.
[19]	易维启. 时移地震方法概论[M]. 北京: 石油工业出版社, 2002:64-66.
[19]	Yi W Q. Introduction to time-lapse seismic methods[M]. Beijing: Petroleum Industry Press, 2002:64-66.
