绕射波与一次波联合黏声最小二乘逆时偏移

doi:10.11720/wtyht.2023.2636

Abstract
Figure/Table
References
Related Citation (2)

Download: PDF (4481 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Poor illumination poses great challenges to the imaging of small-scale faults and pores.Subsurface attenuation leads to amplitude loss and phase distortion of seismic waves,and ignoring such attenuation during imaging will blur migration amplitudes.The Q-compensated least-squares reverse time migration (QLSRTM) can improve the imaging of these small-scale structures,but it requires a huge amount of iterations and computational cost.To improve the imaging effect of these small-scale structures,this study proposed a geological-target-oriented joint QLSRTM (J-QLSRTM) that fully utilizes diffracted waves.In this method,a new objective function and gradient formula was constructed.Moreover,the Q-compensated wavefield propagation operators,Q-compensated adjoint operators,and Q-attenuated demigration operators were derived for both primary and diffracted waves based on the inversion and adjoint theories.The numerical examples verified that the proposed J-QLSRTM is superior to the conventional QLSRTM and the acoustic J-LSRTM.

Key words： least-squares reverse time migration viscoacoustic diffracted waves

Received: 11 December 2021 Published: 24 February 2023

ZTFLH:

P631.4

Corresponding Authors: QU Ying-Ming E-mail: quyingming@upc.edu.cn

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Lei-Liang XU
	Guo-Yong ZHAO
	Jian ZHANG
	Tian-Miao ZHONG
	Jia-Ying GU
	Jian YOU
	Ying-Ming QU

Cite this article:

Lei-Liang XU,Guo-Yong ZHAO,Jian ZHANG, et al. Joint Q-compensated least-squares reverse time migration using primary and diffracted waves[J]. Geophysical and Geochemical Exploration, 2023, 47(1): 91-98.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.2636 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I1/91

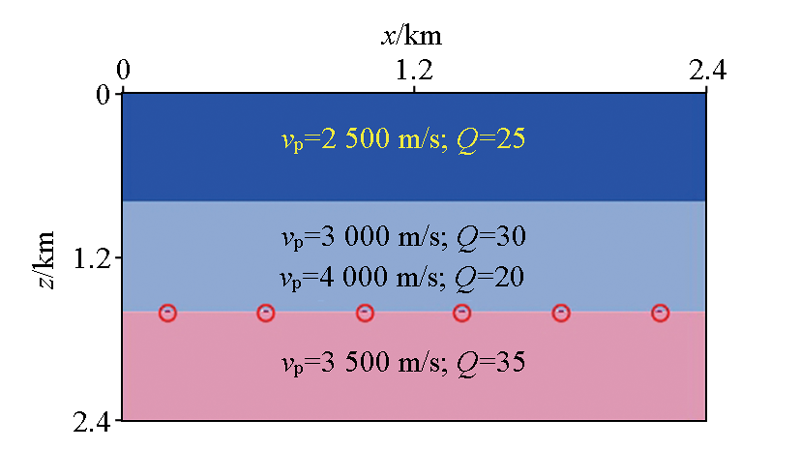

Three layer attenuation model with small-scale caves

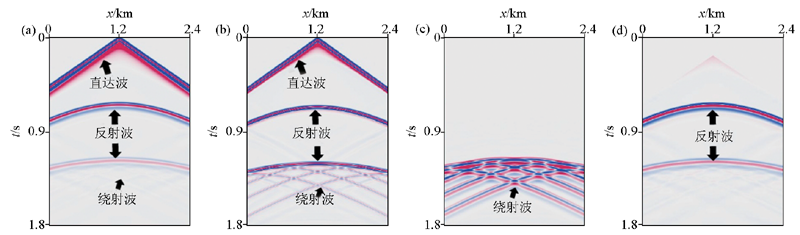

The shot records from the viscoelastic medium(a), acoustic medium(b),and the shot records of diffracted waves separated from the attenuating shot records(c) and separated reflected waves by cutting off the direct wave(d)

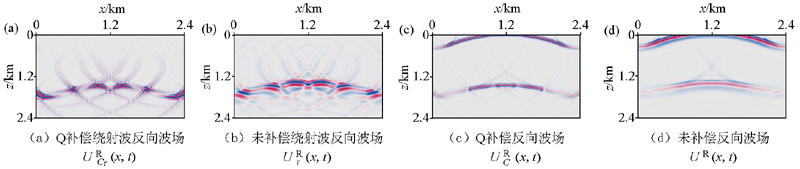

Wave field compensation test with 600 ms

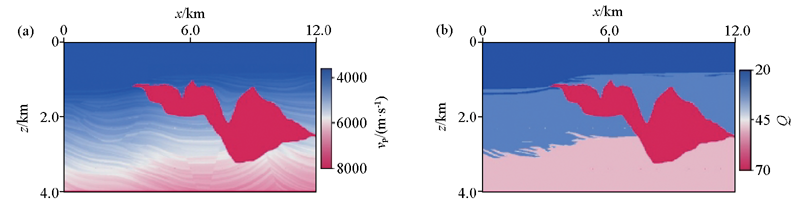

The attenuating Sigsbee2B velocity model(a)and Q model(b)

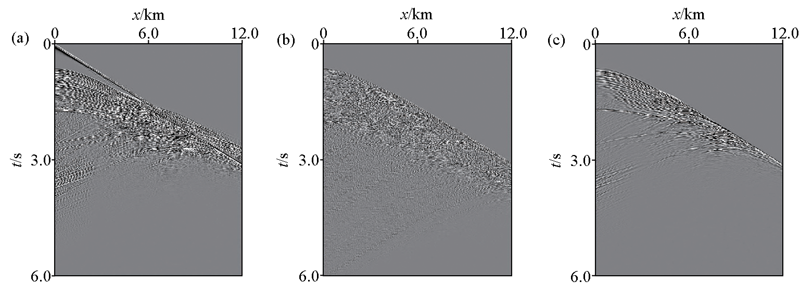

Shot record(a),separated diffractive wave shot records(b) and separated primary wave shot records(c)

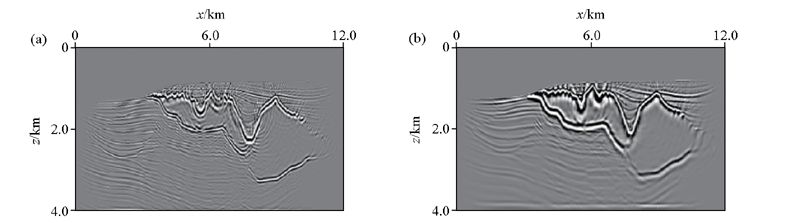

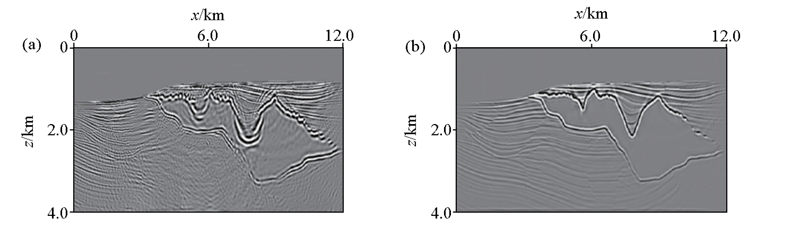

Images of the Sigsbee2B model after Laplacian filtering from QRTM(a) and noncompensated RTM(b)

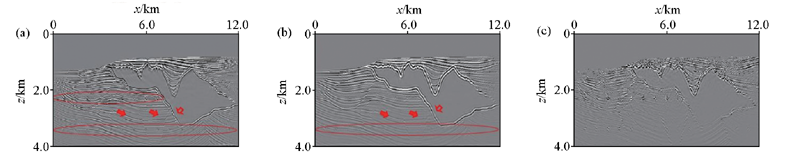

The imaging results after 30 iterations using the proposed J-QLSRTM(a) and the conventional QLSRTM(b) and prism wave(c)

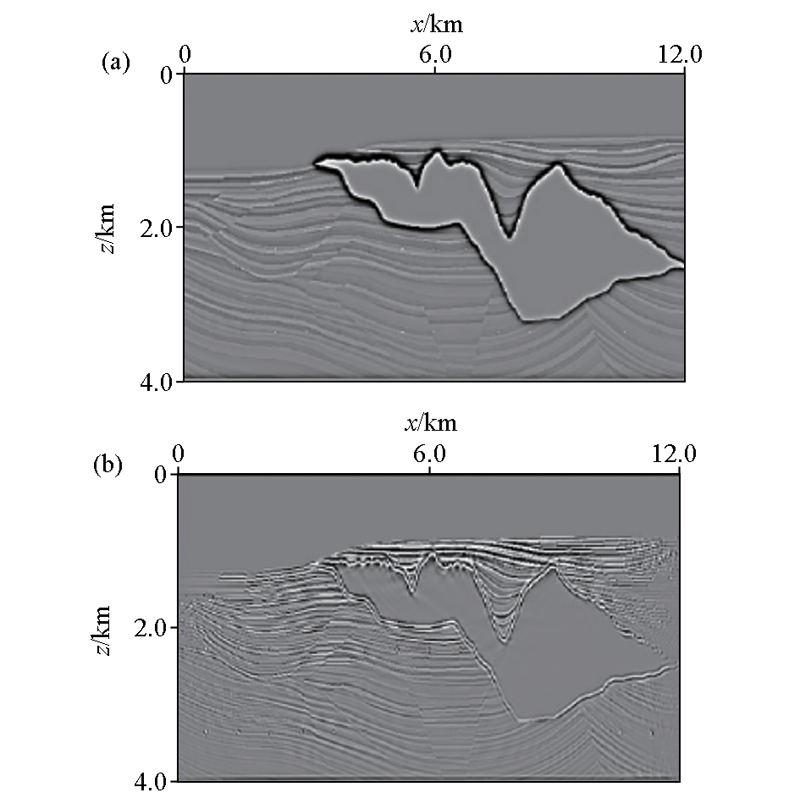

The reflectivity(a) and acoustic LSRTM image using acoustic data(b)

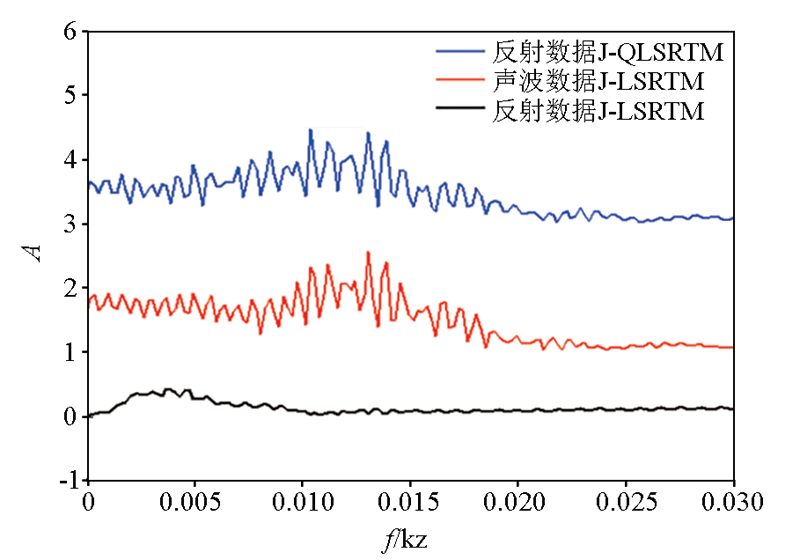

Wavenumber spectra at the distance of 4 500 m

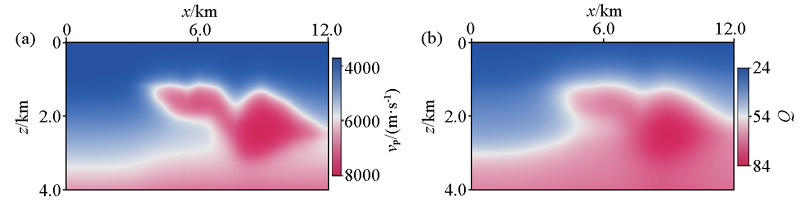

Velocity field(a) and Q field(b) with obvious errors

Fig.10a(a) and by using the Q field in Fig.10b(b)
">

J-QLSRTM imaging results obtained by using the velocity field in Fig.10a(a) and by using the Q field in Fig.10b(b)

[1]	Schuster G, Wang X, Huang Y, et al. Theory of multisource crosstalk reduction by phase-encoded statics[J]. Geophysical Journal International, 2011, 184(3):1289-1303.
[2]	Kozlov E, Barasky N, Korolev E. Imaging scattering objects masked by specular reflections[J]. Society of Exploration Geophsicists, 2004, 23(1):1131-1134.
[3]	Moser T J, Howard C B. Diffraction imaging in depth[J]. Geophysics, 2008, 56(5):641-656.
[4]	Koren Z, Ravve I. Specular/diffraction imaging by full azimuth subsurface angle domain decomposition[C]// SEG Technical Program Expanded Abstracts,Society of Exploration Geophysicists, 2010:3268-3272.
[5]	Berkovitch A, Belfer I, Hassin Y, et al. Diffraction Imaging by Multifocusing[J]. Geophysics, 2009, 74(6):75-81.
[6]	王楠, 程玖兵, 马在田. 表驱Kirchhoff叠前时间偏移角度域成像方法[J]. 石油物探, 2008, 47(4):328-333.
[6]	Wang N, Chen J B, Ma Z T. Surface drive Kirchhoff prestack time migration angle-domain imaging method[J]. Geophysical Prospecting for Petroleum, 2008, 47(4):328-333.
[7]	Landa E, Fomel S, Reshef M. Separation,imaging,and velocity analysis of seismic diffractions using migrated dip-angle gathers[J]. Society of Exploration Geophysicists, 2008, 27(1):2176-2180.
[8]	Bai Y Y, Xiao S, Tang M C, et al. Wide-angle scanning phased array with pattern reconfigurable elements[J]. IEEE Transactions on Antennas and Propagation, 2011, 59(11):4071-4076.
[9]	Reshef M. Velocity analysis in the dip-angle domain[C]// Conference Proceedings,69^th EAGE Conference and Exhibition incorporating SPE EUROPEC, 2007.
[10]	Reshef M, Landa E. Post-stack velocity analysis in the dip-angle domain using diffractions[J]. Geophysical Prospecting, 2009, 57(5):811-821.
[11]	刘定进, 印兴耀. 共炮检距道集波动方程保幅叠前深度偏移方法[J]. 地球物理学进展, 2007, 22(2):492-501.
[11]	Liu D J, Ying X Y. The method of wave equation preserved amplitude prestack depth migration for common offset gathers[J]. Progress in Geophysics, 2007, 22(2):492-501.
[12]	Kanasewich R E. Imaging discontinuities on seismic sections[J]. Geophysics, 1988, 53(3):334-346.
[13]	Nowak E, Imhof M G. Diffractor Localization Via Weighted Radon Transforms[C]// SEG Expanded Abstracts, 2004:2108-2111.
[14]	Khaidukov V, Landa E, Moser T J. Diffraction imaging by focusing-defocusing:An outlook on seismic superresolution[J]. Geophysics, 2004, 69(6):1478-1490.
[15]	Taner M, Fomel S, Landa E. Separation and imaging of seismic diffractions using Plane-Wave decomposition[C]// SEG Technical Program Expanded Abstracts,Society of Exploration Geophysicists, 2006:2401-2406.
[16]	Papziner U, Nick K P. Automatic detection of hyperbolas in georadargrams by slant-stack processing and migration[J]. First Break, 1998, 16(6):219-223.
[17]	Bansal R, Imhof M G. Diffraction enhancement in prestack seismic data[J]. Geophysics, 2005, 70(3):73-79.
[18]	Aki K, Richards P G. Quantitative seismology(2^nd ed.)[M]. University Science Books, 2002.
[19]	Carcione J M. Wave fields in real media:Theory and numerical simulation of wave propagation in anisotropic,anelastic,porous and electromagnetic media(2^nd ed.)[M]. Elsevier, 2007.
[20]	赵力, 魏建新, 狄帮让. 反Q滤波法对近地表吸收衰减补偿的效果分析[C]// 中国地球物理学会第二十九届年会论文集, 2013.
[20]	Zhao L, Wei J X, Di B R. Analysis of the effect of inverse Q filtering method on near-surface absorption attenuation compensation[C]// Proceedings of the 29^th Annual Meeting of Chinese Geophysical Society, 2013.
[21]	施羽. 地层吸收衰减与反Q滤波方法及研究应用[D]. 成都: 成都理工大学, 2018.
[21]	Shi Y. Layer Q absorption attenuation and inverse Q filtering methods research and application[D]. Chengdu: Chengdu University of Technology, 2018.
[22]	Zhang X, Han L, Zhang F, et al. An inverse Q-filter algorithm based on stable wavefeild continuation[J]. Applied Geophysicis, 2007, 4(4):263-270.
[23]	Xie Y, Xin K, Sun J, et al. 3D prestack depth migration with compensation for frequency dependent absorption and dispersion[C]// Expanded Abstracts of 79^th Annual Internat SEG Mtg., 2009, 42:2919-2922.
[24]	Zhang J, Wu J, Li X. Compensation for absorption and dispersion in prestack migration:An effective Q approach[J]. Geophysics, 2013: 78(1):S1-S14.
[25]	Qu Y, Li J. Q-compensated reverse time migration in viscoacoustic media including surface topography[J]. Geophysics, 2019, 84(4):S201-S217.
[26]	Sun J, Fomel S, Zhu T, et al. Q-compensated least-squares reverse time migration using low-rank one-step wave extrapolation[J]. Geophysics, 2016, 81(4):S271-S279.
[27]	Qu Y, Huang J, Li Z, et al. Attenuation compensation in anisotropic least-squares reverse time migration[J]. Geophysics, 2017, 82(6):S411 -S423.
[28]	Chen Y, Dutta G, Dai W, et al. Q-least-squares reverse time migration with viscoacoustic deblurring filters[J]. Geophysics, 2017, 82(6):S425-S438.
[29]	陈鑫, 王德利, 孟阁阁, 等. 基于平面波解构滤波的速度无关动校正及速度分析方法[J]. 世界地质, 2014, 33(4):895-903.
[29]	Chen X, Wang D L, Meng G G, et al. Velocity-independent NMO correction using plane-wave destruction filters and velocity analysis method[J]. Global Geology, 2014, 33(4):895-903.
[30]	Kuzuoglu M, Mittra R. Frequency dependence of the constitutive parameters of causal perfectly matched anisotropic absorbers[C]// IEEE Microwave and Guided Wave Letters, 1996, 12:447-449.
[31]	Levander A. Fourth-order finite-difference P-SV seismograms[J]. Geophysics, 1988, 53:1425-1436.
