一种重力异常向上延拓高度最优化确定方法

doi:10.11720/wtyht.2023.2356

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (5587 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Upward continuation is one of the important methods used to separate gravity anomalies. However, how to quantitatively select an appropriate upward-continuation height has always been a problem in the application of this method. Given this, this paper proposes a curvature analysis method based on the least square method to quantitatively determine a reasonable upward-continuation height. The steps of this method are as follows. Perform upward continuation to different adjacent heights for observation data, and then use the least square method to estimate the least square error of the upward continued value of adjacent heights.There is a maximum curvature in the least square curve of upward-continued values of all adjacent heights.At the point of the maximum curvature, the local anomalies are attenuated to the greatest extent, while the regional anomalies are preserved as far as possible. Therefore, this point can be approximately regarded as the optimal upward-continuation height. As indicated by tests using the data of a theoretical model, the method proposed in this paper can be used to qualitatively determine a suitable upward-continuation height, thus providing an important reference for the selection of upward-continuation height in practical applications.

Key words： gravity anomaly analytic continuation upward-continuation height

Received: 24 June 2021 Published: 24 February 2023

ZTFLH:

P631

Corresponding Authors: WANG Jun E-mail: 1010181224@cugb.edu.cn;wangj@cugb.edu.cn

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zheng SUN
	Jun WANG
	Peng DING
	Xin TAN

Cite this article:

Zheng SUN,Jun WANG,Peng DING, et al. Amethod for determining the optimal height for upward continuation of gravity anomalies[J]. Geophysical and Geochemical Exploration, 2023, 47(1): 162-170.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.2356 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I1/162

Geometric and physical parameters of spherical gravity anomaly

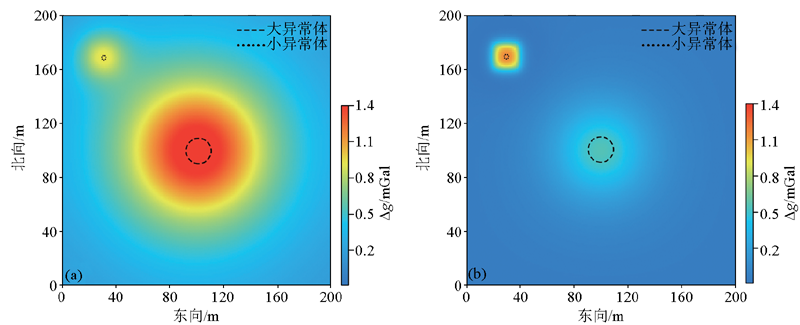

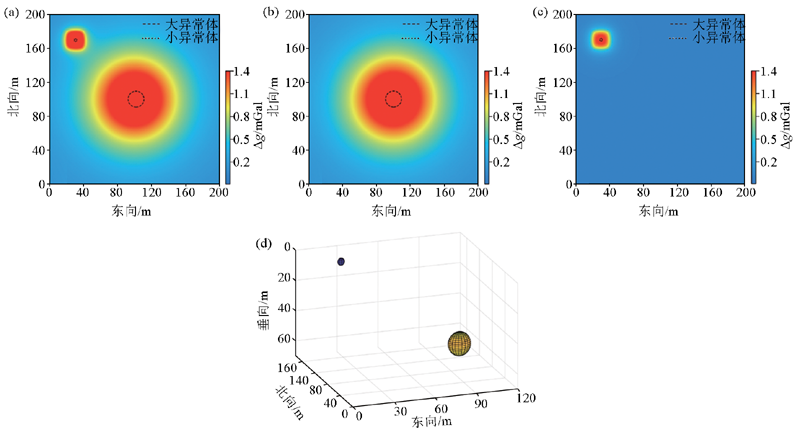

Theoretical gravity anomaly
a—total anomaly;b—regional anomaly;c—residual anomaly;d—patial location of the anomaly bodies

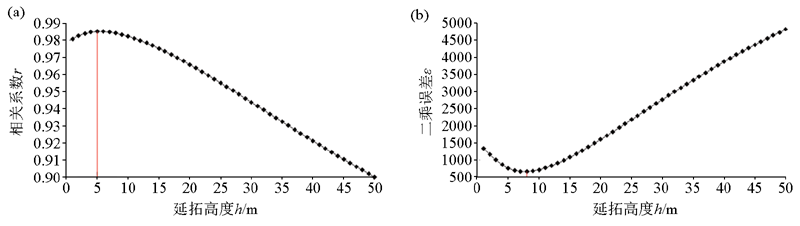

Analysis of the theoretical continuation height curves
a—best continuation height determined by the correlation coefficient method;b—best continuation height determined by the proposed method

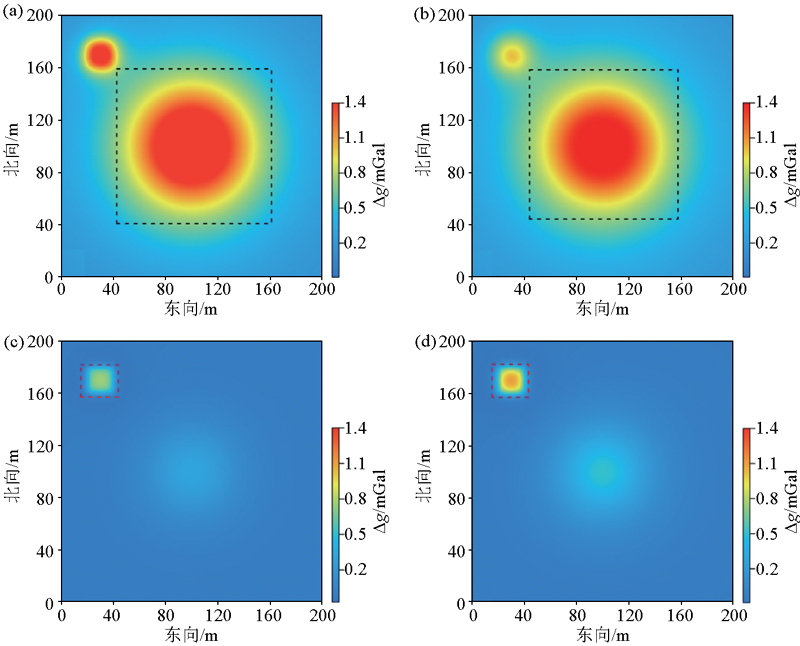

The continued anomaly at the best continuation height
a—continued anomaly at 5 m;b—continued anomaly at 8 m;c—residual anomaly at 5 m;d—residual anomaly at 8 m

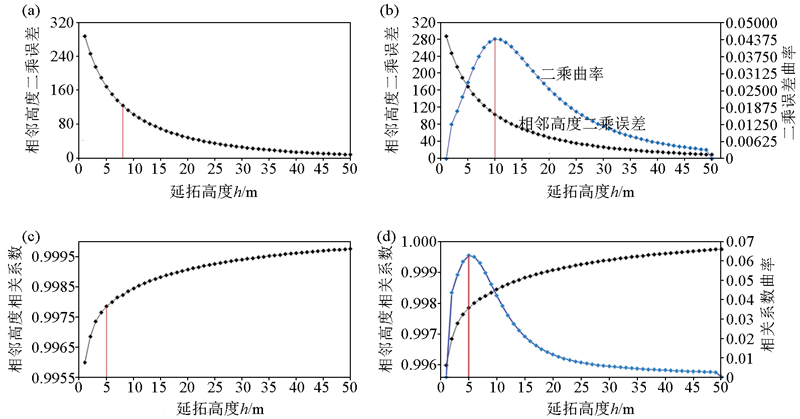

Adjacent height continuation analysis
a—the square curve of adjacent height;b—discrete curvature of the square curve;c—the correlation coefficient of adjacent height;d—discrete curvature of the correlation coefficient

The continued anomaly (a) and the residual field (b) at the optimal continuation height

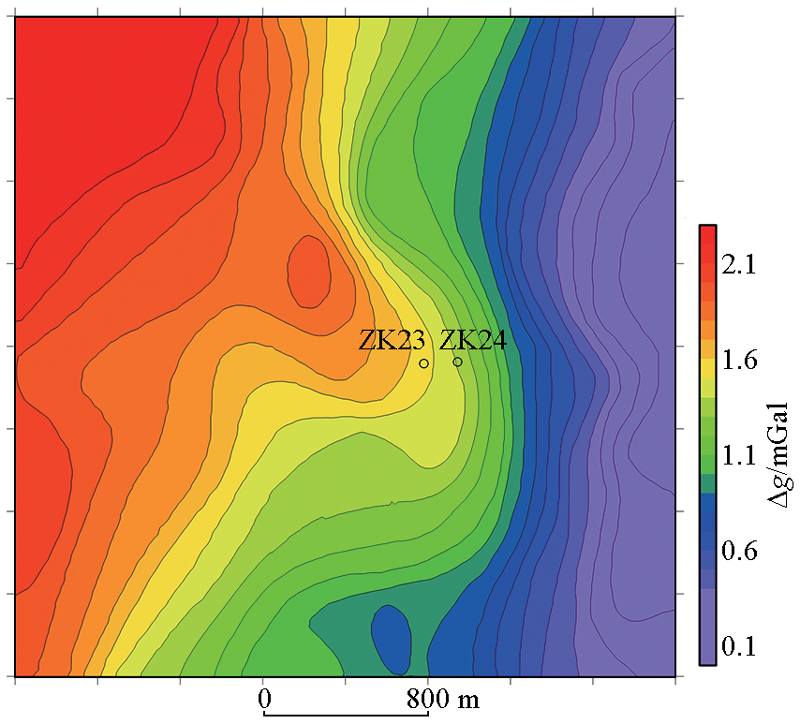

Bouguer gravity anomaly of a mining area of Jilin Province

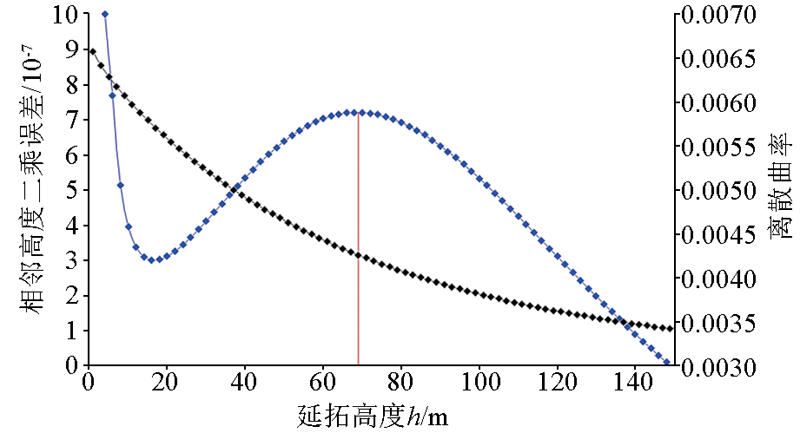

Continuation height analysis curve

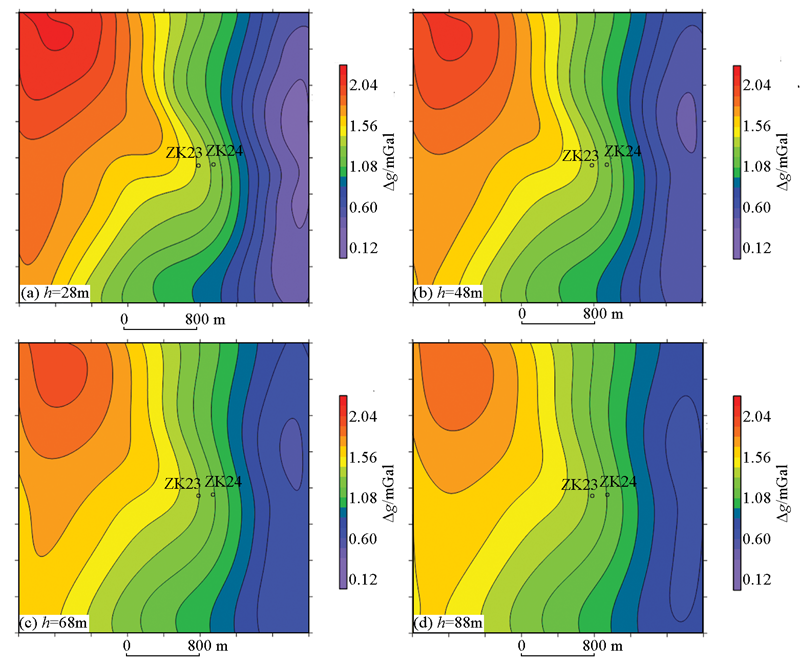

Continued anomaly at the height of h

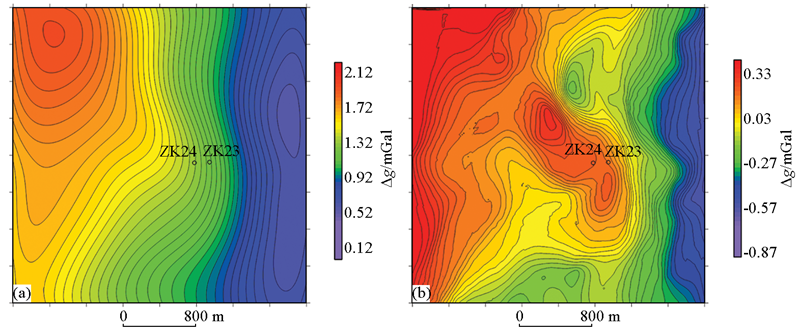

The continued anomaly (a) and the residual anomaly (b) at the optimal continuation height
