| First-arrival wave travel time-based tomography inversion with surface wave information as constraints |
ZHANG Li-Zhen( ), SUN Cheng-Yu(), WANG Zhi-Nong, LI Shi-Zhong, JIAO Jun-Feng, YAN Ting-Rong |
| China University of Petroleum(East China),Qingdao 266580,China |
|
|
|
|
Abstract The performance of ray-based tomography inversion is affected by many factors,such as initial model error and low-velocity interlayer.The conventional tomography method based on first-arrival wave travel time,which constrains or smooths models,destroys the relative relationship between model parameters and rays and affects the inversion stability.By testing the performance of first-arrival wave travel time-based tomography inversion under different initial models,this study proposed a first-arrival wave travel time-based tomography inversion method with surface wave information as constraints.The process of this method is as follows:(1)Given that surface waves feature high energy and frequency dispersion in seismic data,the surface-wave frequency dispersion curves are obtained through the multi-channel analysis of surface waves;(2)Using the damped least squares method,the shallow-surface shear wave (S-wave) velocities are determined through inversion;(3)With the S-wave velocity structure as the constraint,the initial compressional wave (P-wave) model is established,and accordingly,the first-arrival wave travel time-based tomography inversion that considers regularization is achieved.This method improves the accuracy and stability of shallow structure inversion by fully utilizing the surface wave information in seismic data to counteract the inherent defects of tomography inversion.The effectiveness of this method has been verified using actual data.
|
|
Received: 10 December 2022
Published: 27 October 2023
|
|
|
|
Corresponding Authors:
SUN Cheng-Yu
E-mail: 1753549195@qq.com;suncy@upc.edu.cn
|
|
|
|
| 层号 | 横波速度
/(m·s-1) | 纵波速度
/(m·s-1) | 泊松比 | 密度
/(g·cm-3) | | 1 | 300~410 | 800~1100 | 0.42 | 2.0 | | 2 | 340 | 800 | 0.39 | 2.0 | | 3 | 618 | 1200 | 0.32 | 2.0 | | 4 | 740 | 1500 | 0.34 | 2.0 |
|
Model parameters
|
|

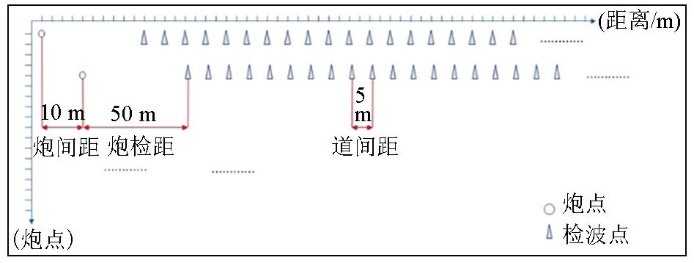

Schematic diagram of the observing system
|
|

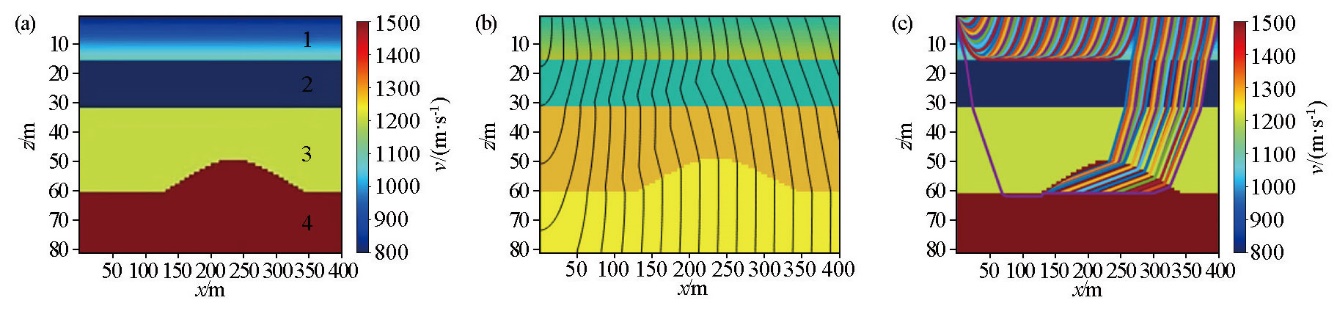

Forward modeling of first break wave tomography
a—theoretical models;b—travel-time;c—ray path diagram
|
|

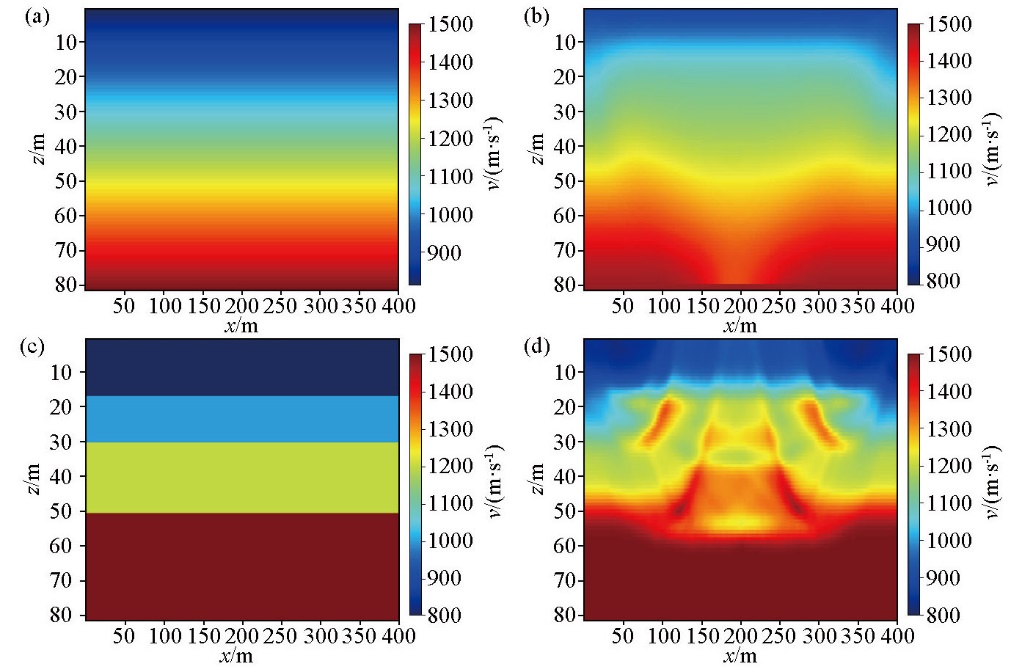

Inversion of incremental initial model
a—incremental initial model;b—tomography inversion map;c—layer initial model;d—tomography inversion diagram
|
|

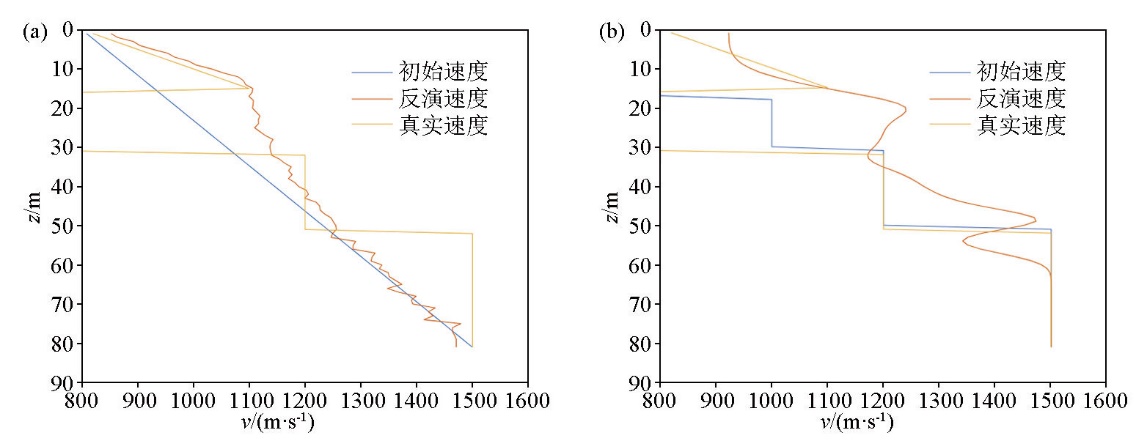

Comparison of pumping speed
a—comparison of incremental model tomographic inversion velocity;b—comparison of tomographic inversion velocity of layered model
|
|

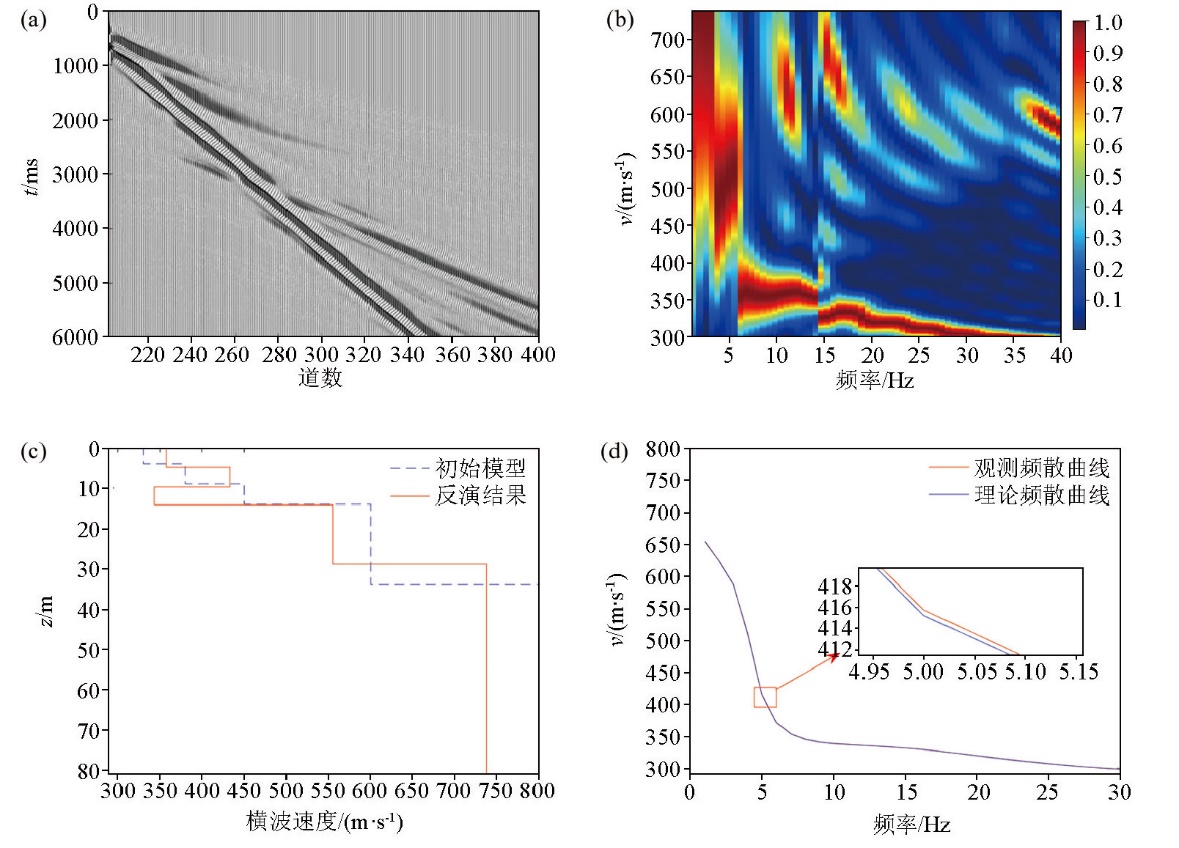

Surface wave data processing
a—surface wave recording;b—dispersion curve;c—inversion of shear wave velocity;d—comparison of fitting degree
|
|

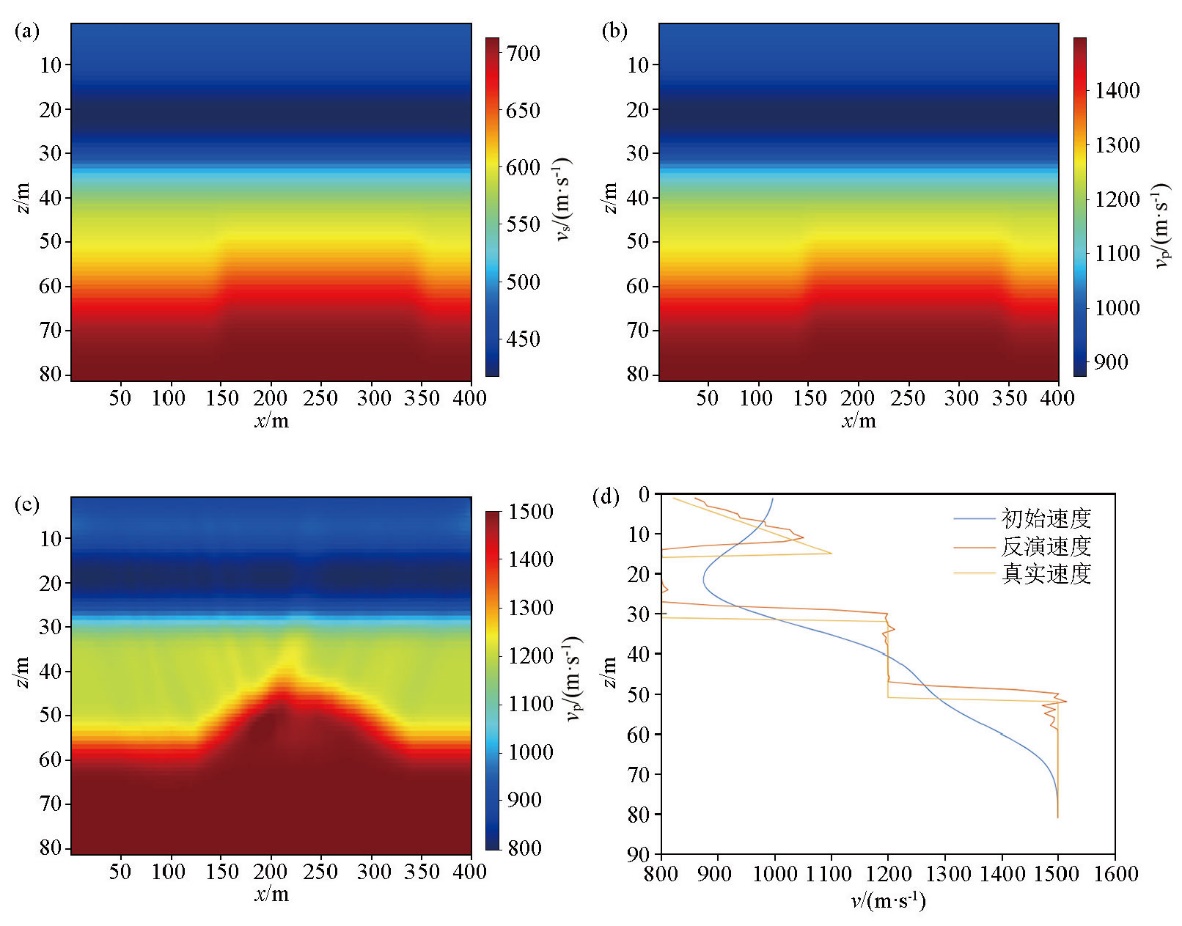

Surface wave constrained tomography inversion
a—S-wave velocity model;b—P-wave initial model;c—surface wave constrained tomography inversion results;d—comparison diagram of pumping speed
|
|

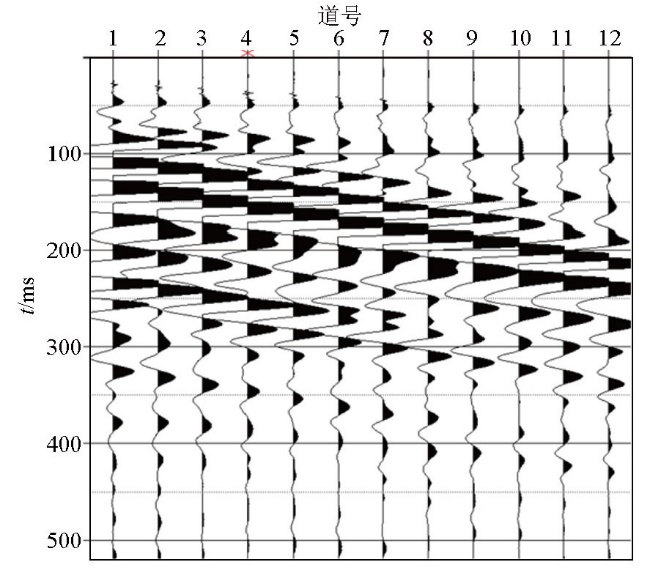

Actual data single-gun seismic records
|
|

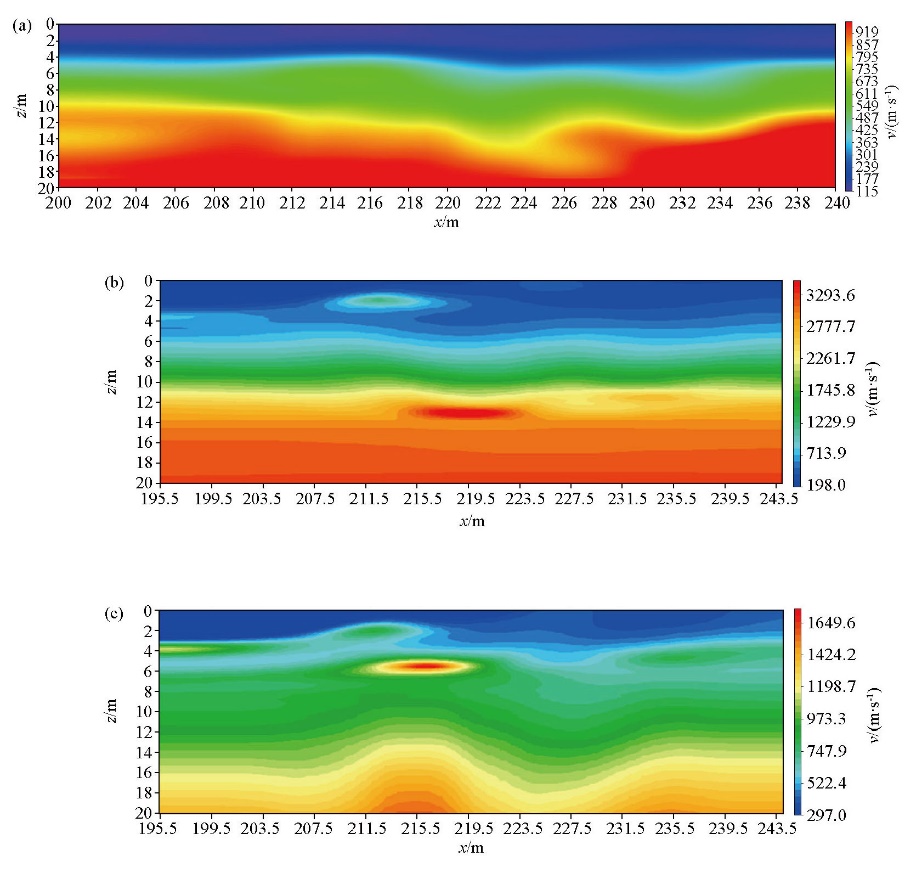

Actual data velocity profile
a—MASW inversion of S-wave velocity profile;b—P-wave velocity profile inversion by constrained tomography;c—P-wave velocity profile inversion by tomography
|
