| A technique for automatically extracting regions of interest from ground penetrating radar data of roads based on the row-column variance method |
XU Li1,2( ), FENG Wen-Ya3, JIANG Yan-Nan1,2(), WANG Jiao1,2, ZHU Si-Xin4, QIN Zi-Xin1,2, LI Qin-Lin1,2, ZHANG Shi-Tian3 |
1. School of Information and Communication,Guilin University of Electronic Technology,Guilin 541004,China
2. Guangxi Key Laboratory of Wireless Wideband Communication & Signal Processing,Guilin 541000,China
3. China Research Institute of Radio Propagation,Qingdao 266107,China
4. College of Geosciences and Engineering,North China University of Water Resources and Electric Power,Zhengzhou 450011,China |
|
|
|
|
Abstract With the rapid development of the economy and society,traffic loads have increased sharply,gradually causing a series of pavement diseases.Ground penetrating radar (GPR),which is a non-destructive testing technique,can present the echo information of subsurface targets on the GPR profile.The echo information of diseases,such as voids,cavities underneath the pavement,and loosely infilled voids,constitutes a region of interest(ROI) on the GPR profile.The traditional manual ROI extraction method features high technical requirements and high laborious intensity due to massive data.Therefore,this study proposed an automatic ROI extraction method that combines the threshold segmentation data and the row-column variance.The experimental results show that the method proposed in this study can effectively extract the location information of multi-type and multi-target ROIs.This method has great potential for improving road detection efficiency based on GPR.
|
|
Received: 13 April 2022
Published: 05 July 2023
|
|
|
|
|
|
|

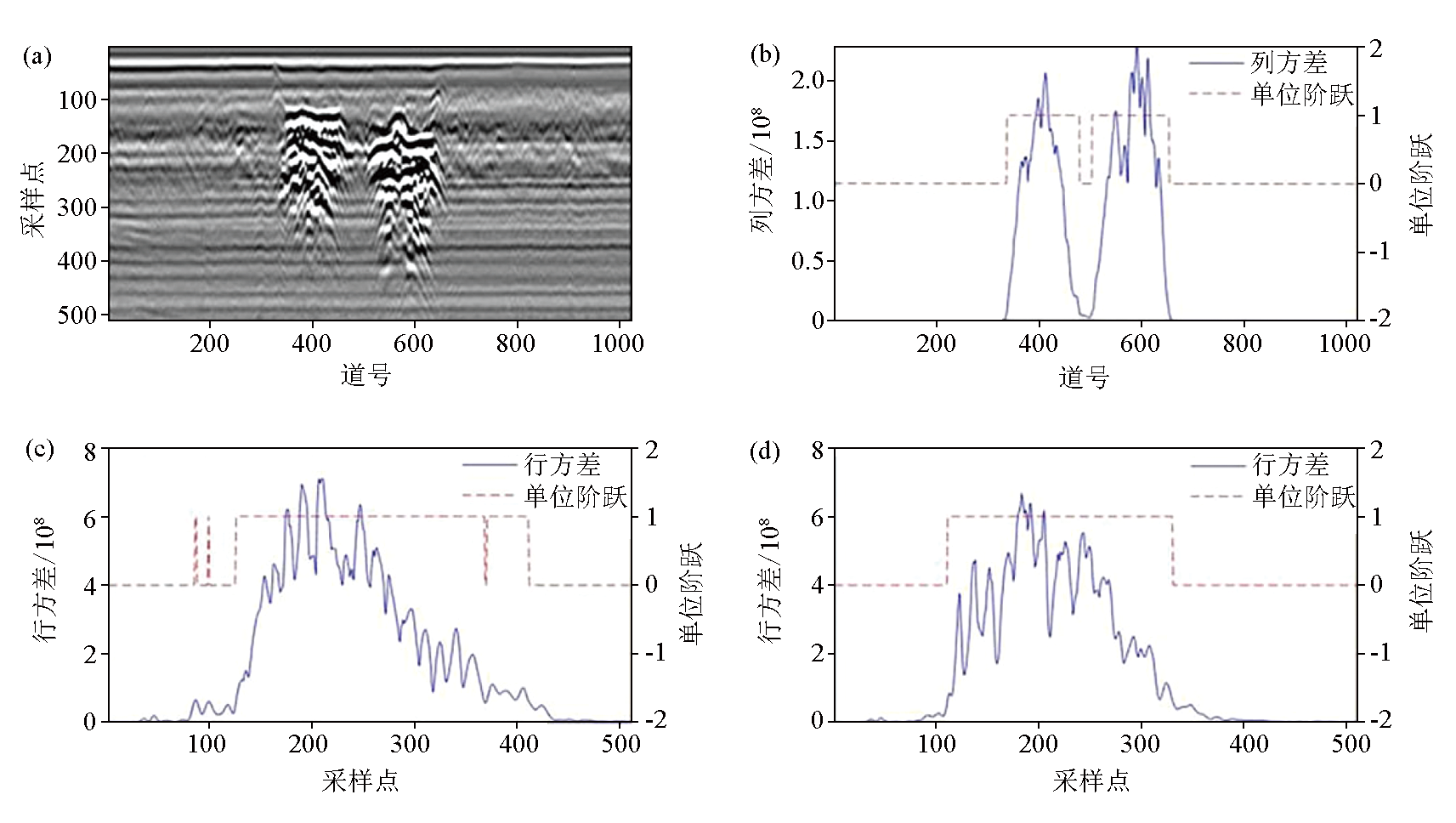

Radar profile and row-column variance distribution
a—original radar B-scan image;b—column variance and unit step;c—target 1 line variance and unit step;d—target 2 row variance and unit step
|
|

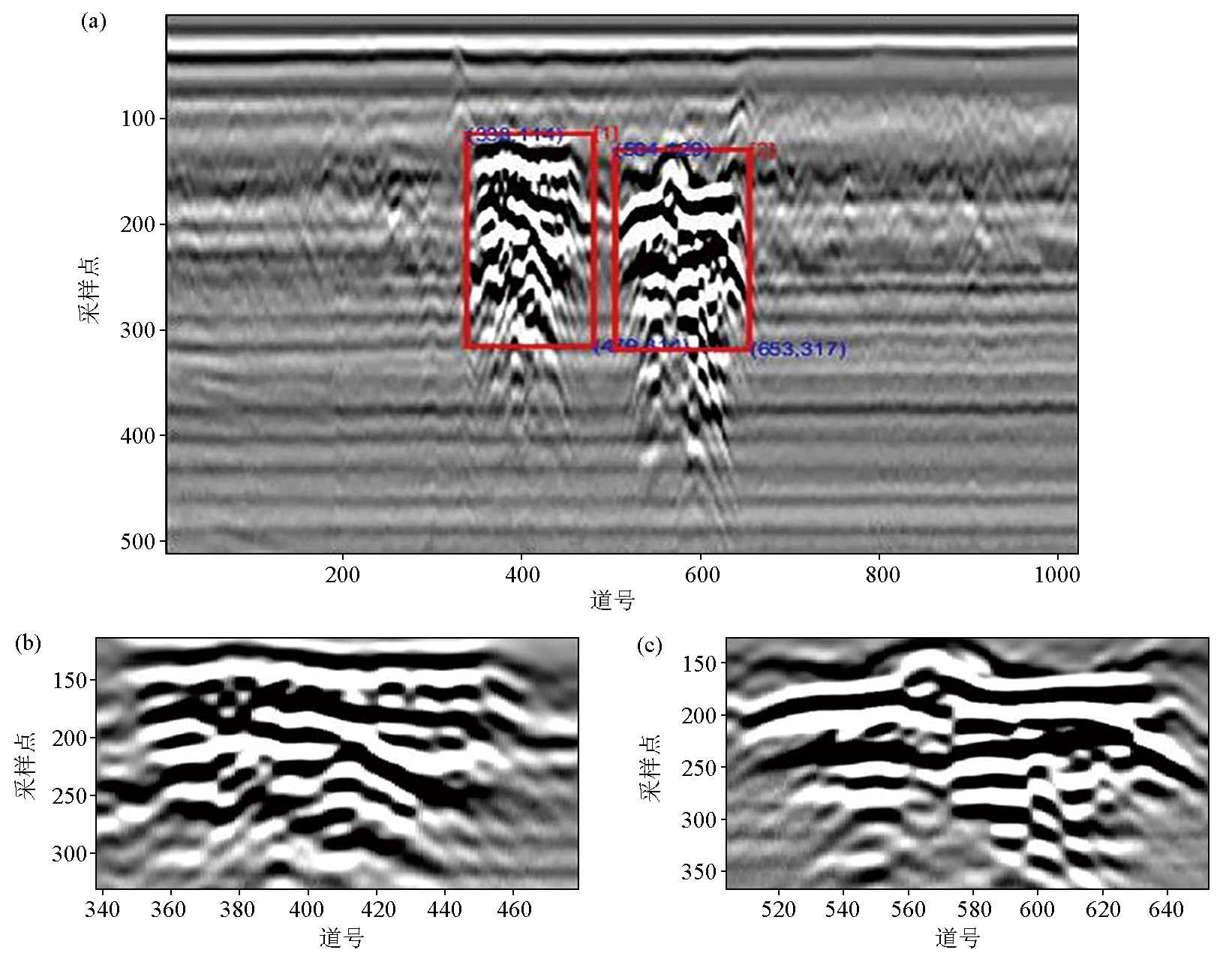

Row-column variance ROI extraction and labeling
a—ROI labeling;b—ROI of target No.1;c—ROI of target No.2
|
|

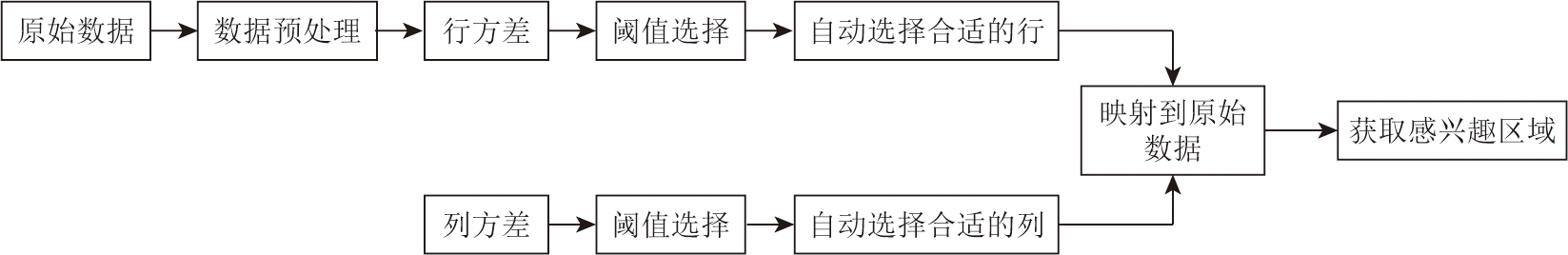

Flow chart of algorithm
|
|

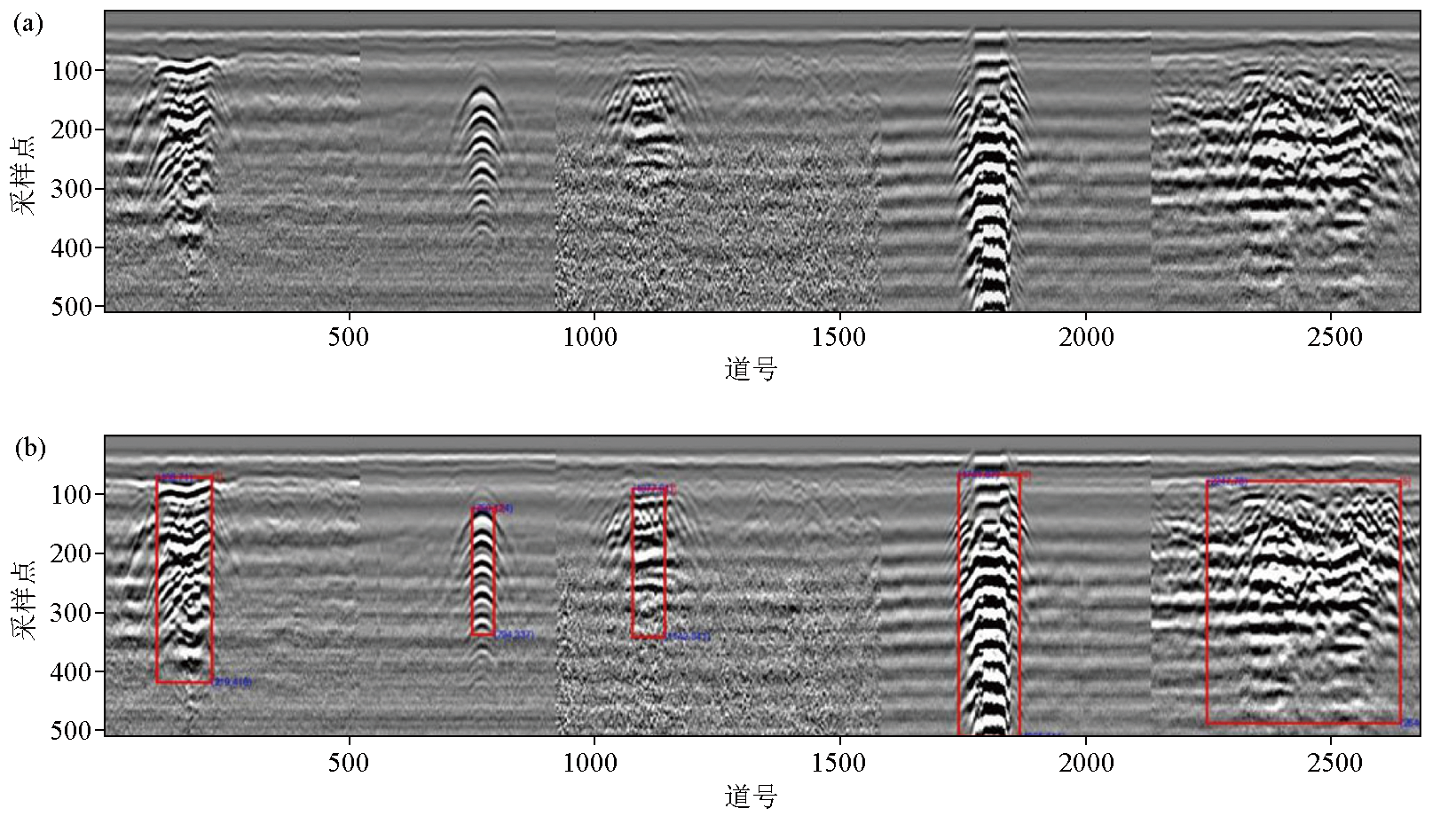

ROI extraction with multiple targets
a—radar B-scan original image;b—ROI extraction effect
|
| 目标类型 | 目标编号 | 目标位置 | | 空洞 | 1 | (108,71;219,418) | | 管线 | 2 | (750,124;794,337) | | 钢筋网 | 3 | (1077,91;1142,341) | | 雨污井 | 4 | (1741,67;1865,511) | | 疏松体 | 5 | (2147,78;2640,487) |
|
Multi-types,multi-targets and their location information
|
| 数据量/采样点×道号 | T0 | T | η/% | | 512×20000 | 24 | 23 | 95.8 |
|
ROI detection rate
|
| 目标类型 | 目标编号 | | 空洞、脱空 | 12, 23, 25, 28, 36, 37, 39, 40, 46 | | 疏松体 | 3, 17, 29, 31, 35, 38, 43 | | 钢筋网 | 15, 22 | | 雨污井 | 2, 18, 42 | | 管线 | 30, 41 |
|
Target types corresponding to ROI and their automatic extraction numbers
|
|

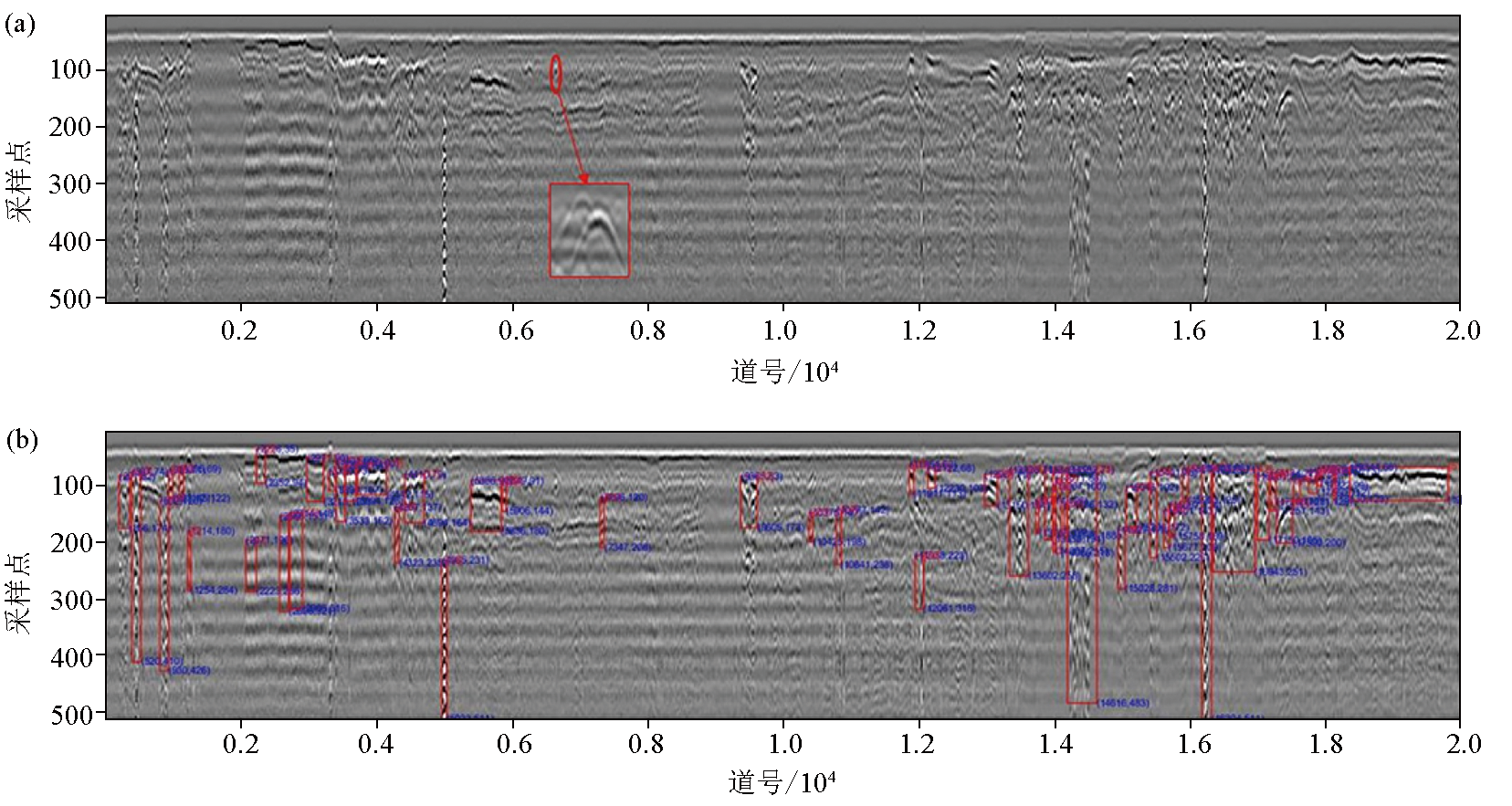

B-scan diagram of Jiangxi road in Qingdao and the extracted ROI
a—B-scan diagram of Jiangxi road,Qingdao(illustration is automatic extraction of missing ROI);b—automatically extracting ROI
|
