地下供水管线渗漏的探地雷达模拟探测试验分析

doi:10.11720/wtyht.2023.1199

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (7153 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

As an important part of urban infrastructure, underground water supply pipelines frequently leak or break due to disrepair,corrosion,and poor construction quality.It is of great significance to identify the leakage locations and affected areas of underground water supply pipelines using a non-destructive testing method for the purpose of early warning and follow-up treatment.This study conducted simulated detection experiments and analysis of underground water supply pipeline leakage using the ground penetrating radar (GPR) method.Firstly,this study established the leakage model of water supply pipelines in sandy soil using the SEEP/W module in the GeoStudio software and calculated the volumetric water content of different leakage locations and leakage times.Then,it established the relative dielectric constant and conductivity model for water supply pipeline leakage using the Topp equation and the empirical equations of electrical conductivity and water content.On this basis,this study conducted the GPR simulated detection of the water supply pipeline leakage model with different leakage locations and different leakage times using the finite difference time domain (FDTD) method and analyzed the simulation results.Finally,this study conducted the GPR-based physical simulated detection tests of water supply pipeline leakage and compared the test results with the numerical simulation results.The study results are as follows.Compared with the hyperbolic diffracted wave of the water supply pipelines without leakage,that of the water supply pipelines with leakage at different locations are stated as follows.For the leakage on the upper side,a longer leakage area and a larger leakage area were associated with an earlier present hyperbolic diffracted wave with weaker energy,while the horizontal position of the hyperbolic diffracted wave's vertex remained unchanged.For the leakage on the lower side,two hyperbolic diffracted waves appeared,which moved up and down individually.Moreover,a longer leakage time corresponded to two weaker and more separated hyperbolic diffracted waves.The horizontal positions of the hyperbolic diffracted waves' vertexes remained unchanged.For the leakage on the left (right) side,a longer leakage time was associated with a weaker hyperbolic diffracted wave,whose vertex deviated farther toward the upper left (right).The simulated detection results of this study can provide a reliable basis for early warning and follow-up treatment of water supply pipeline leakage.

Key words： water supply pipeline leakage GeoStudio software ground penetrating radar numerical simulation physical simulation

Received: 17 May 2022 Published: 05 July 2023

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yu-Cheng WANG
	Hong-Hua WANG
	Peng-Jin SU
	Jun-Bo GONG
	Yu-He XI

Cite this article:

Yu-Cheng WANG,Hong-Hua WANG,Peng-Jin SU, et al. Simulated detection experiments of underground water supply pipeline leakage based on ground penetrating radar[J]. Geophysical and Geochemical Exploration, 2023, 47(3): 794-803.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1199 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I3/794

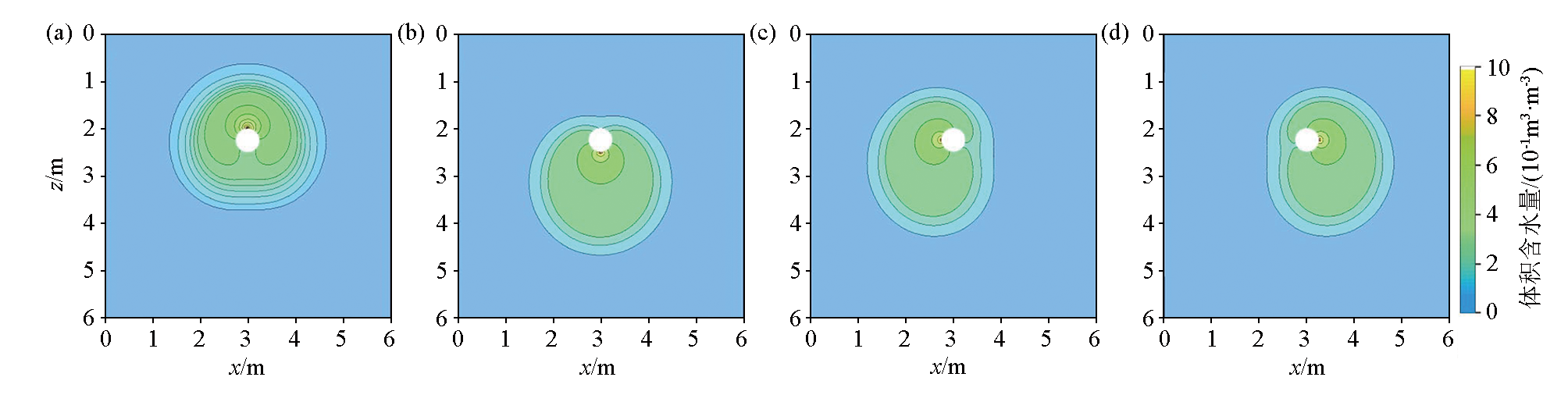

Volumetric water content distribution of water supply pipeline after 2.0 h leakage at different locations
a—upper leakage;b—lower leakage;c—left leakage;d—right leakage

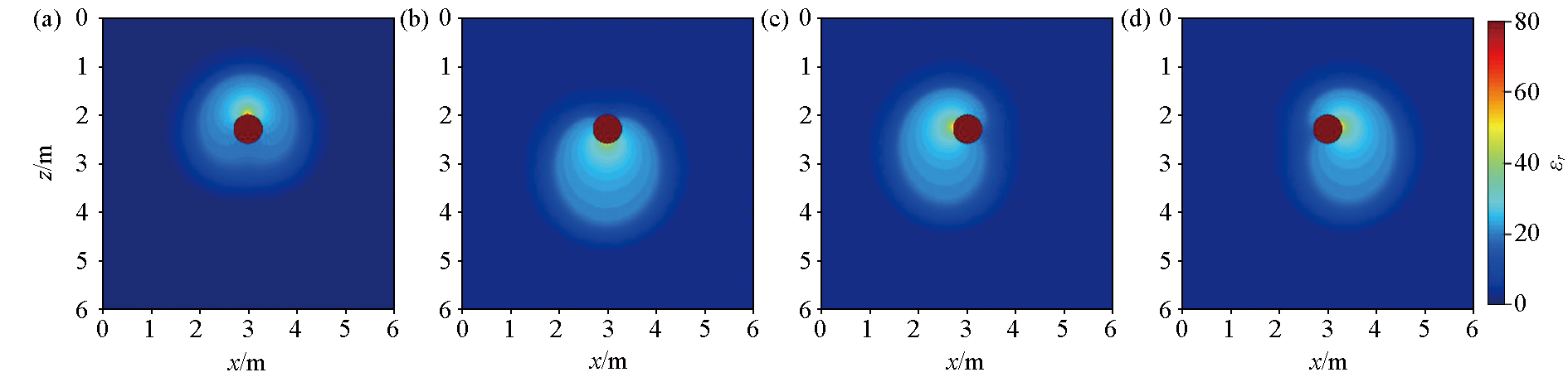

Relative permittivity distribution of water supply pipeline at different leakage position for 2.0 h leakage
a—upper leakage;b—lower leakage;c—left leakage;d—right leakage

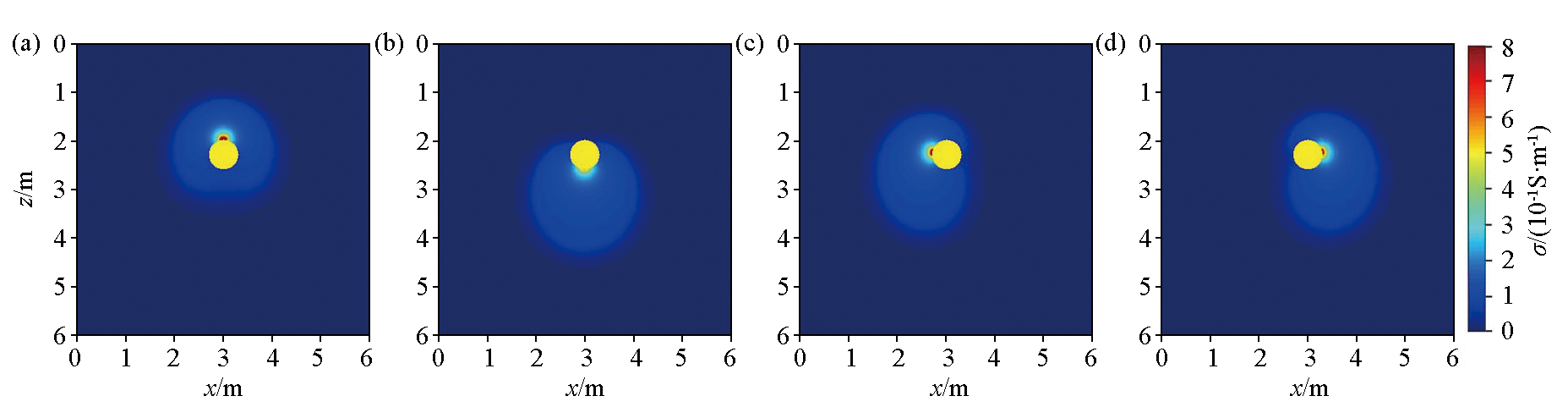

Distribution diagram of conductivity of water supply pipeline after leakage of 2.0 h at different locations
a—upper leakage;b—lower leakage;c—left leakage;d—right leakage

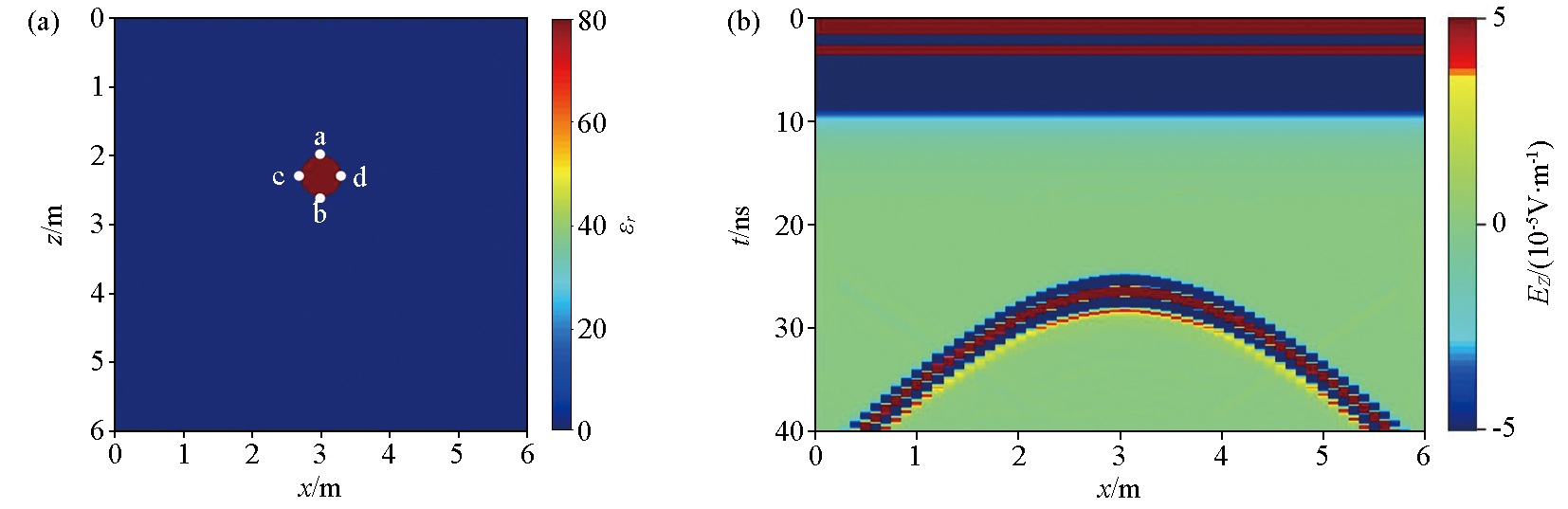

No leakage of water supply line relative permittivity model(a) and its simulated GPR profile(b)

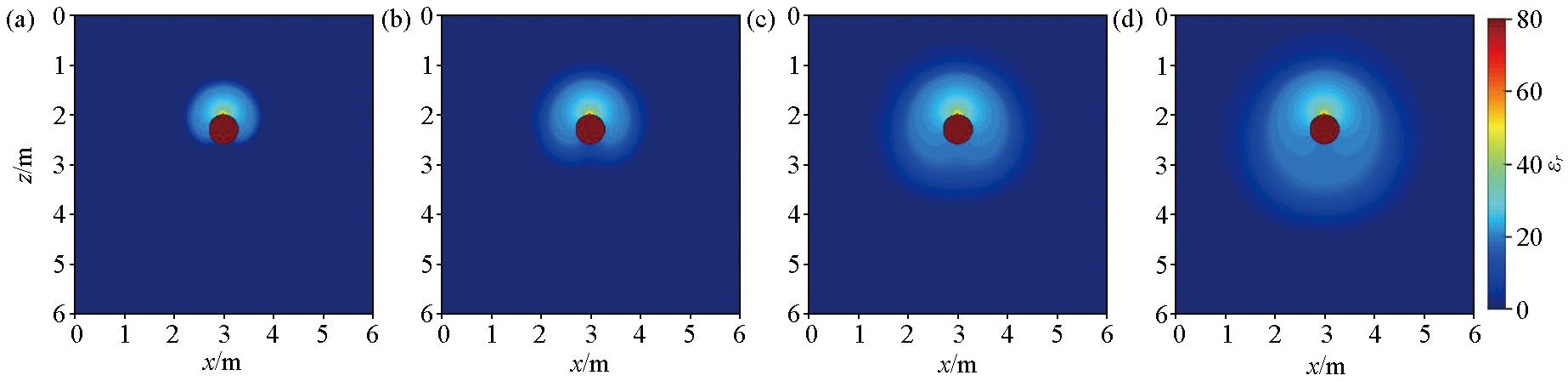

The permittivity model of water supply line after upper side leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

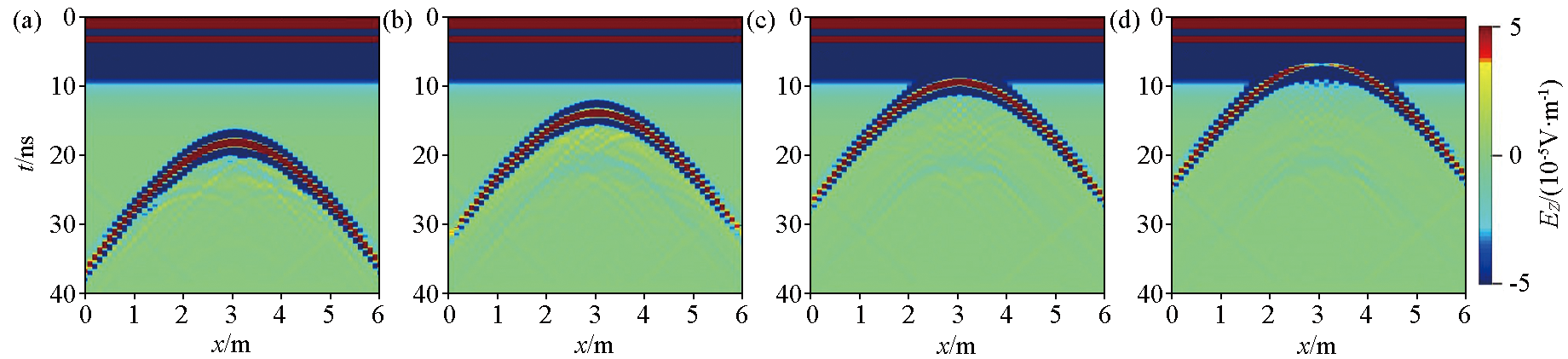

GPR simulated profile of water supply line after upper side leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

Fig.6
">

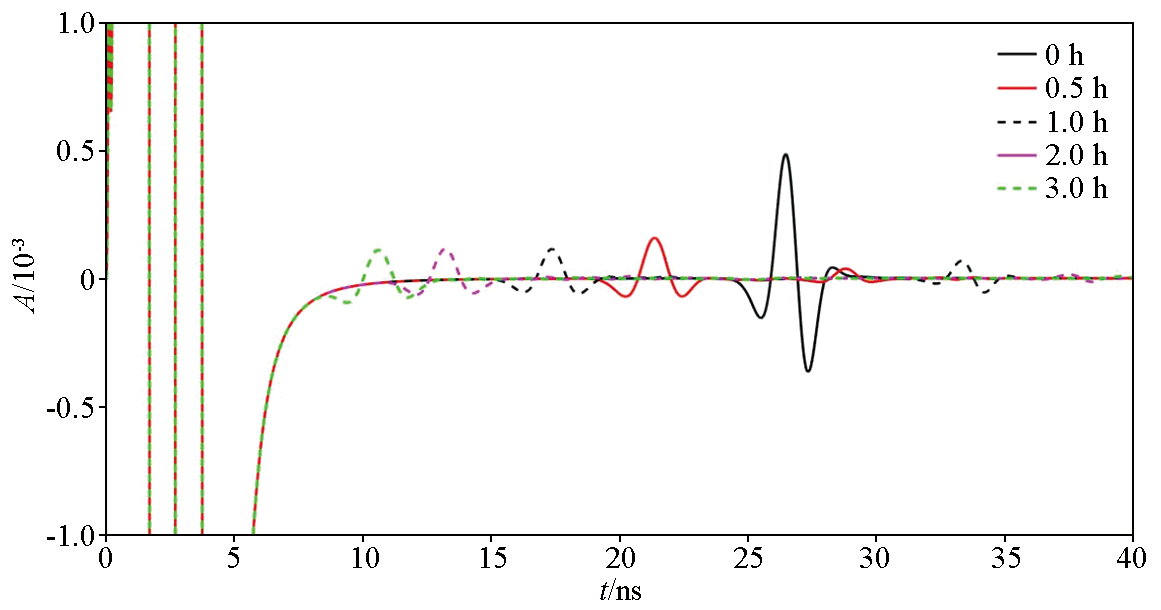

Comparison of Single waveform at horizontal center position in Fig.6

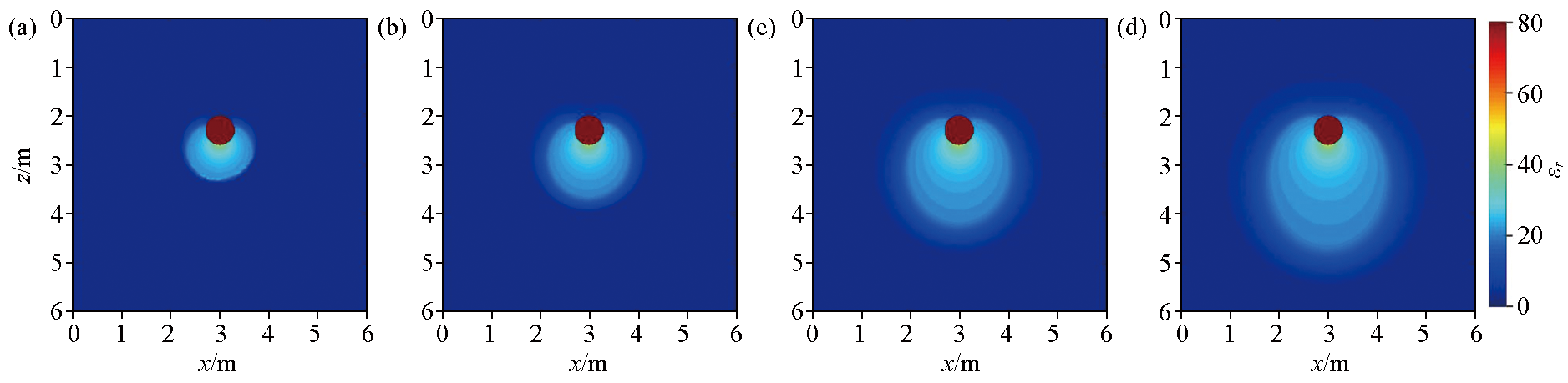

The permittivity model of water supply pipeline after below leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

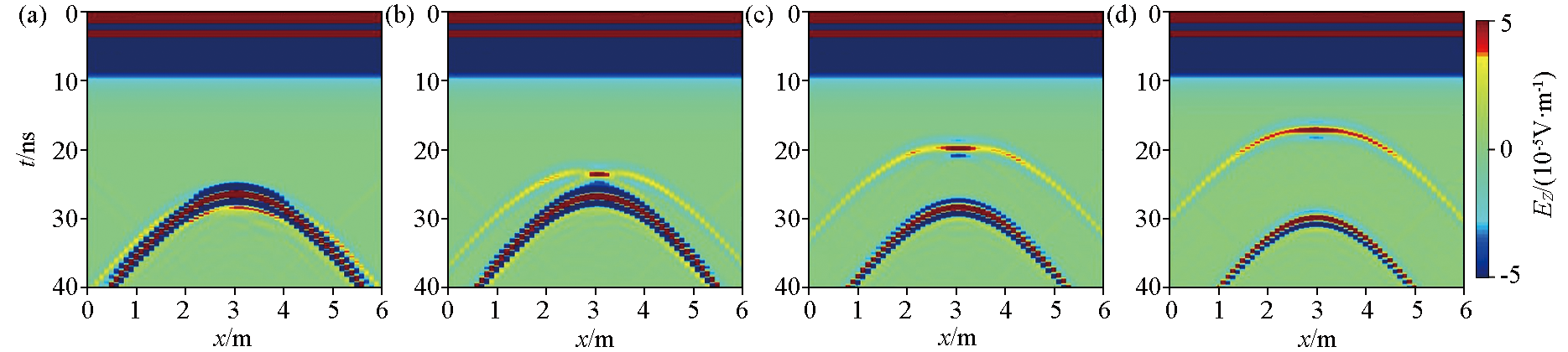

GPR simulated profile water supply pipeline after below leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

Fig.9
">

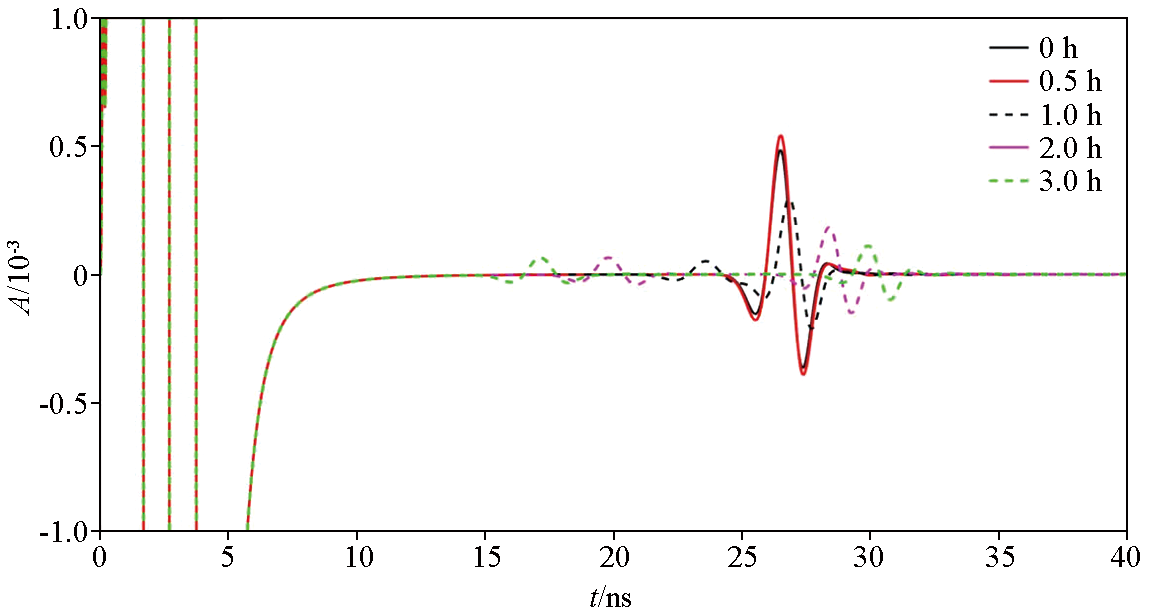

Comparison of Single waveform at horizontal center position in Fig.9

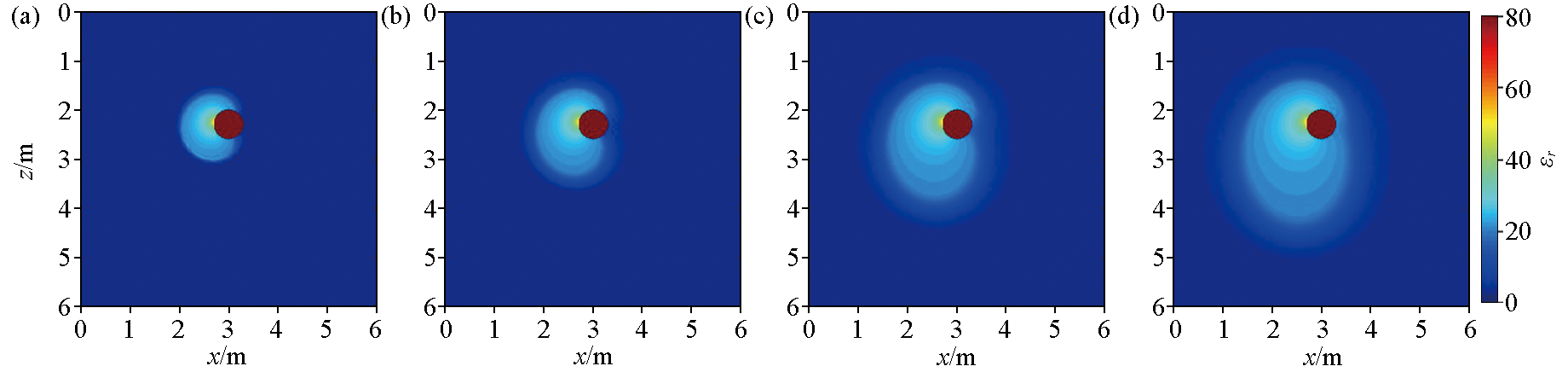

The permittivity model of water supply pipeline after left leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

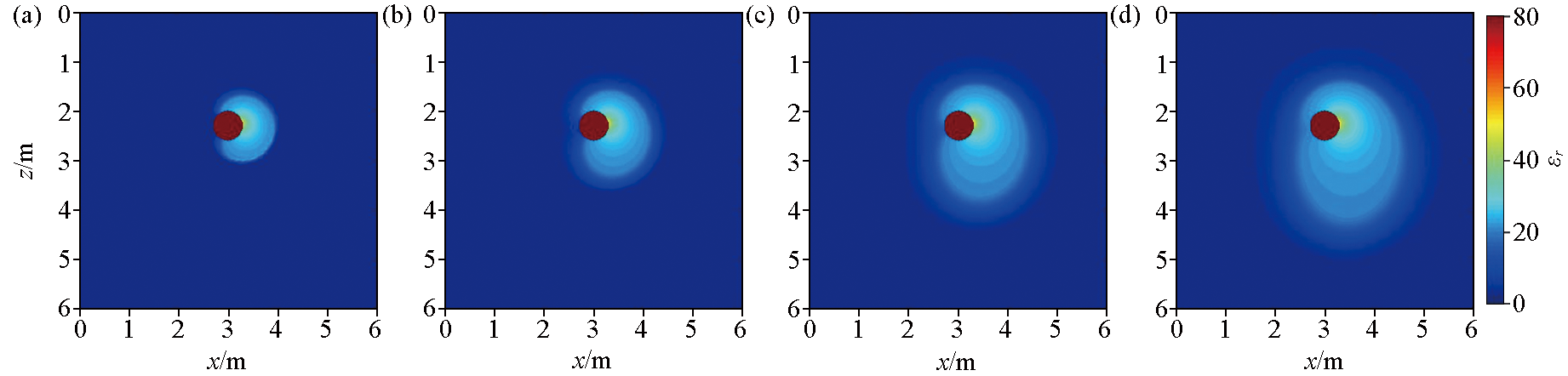

The permittivity model of water supply pipeline after right leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)

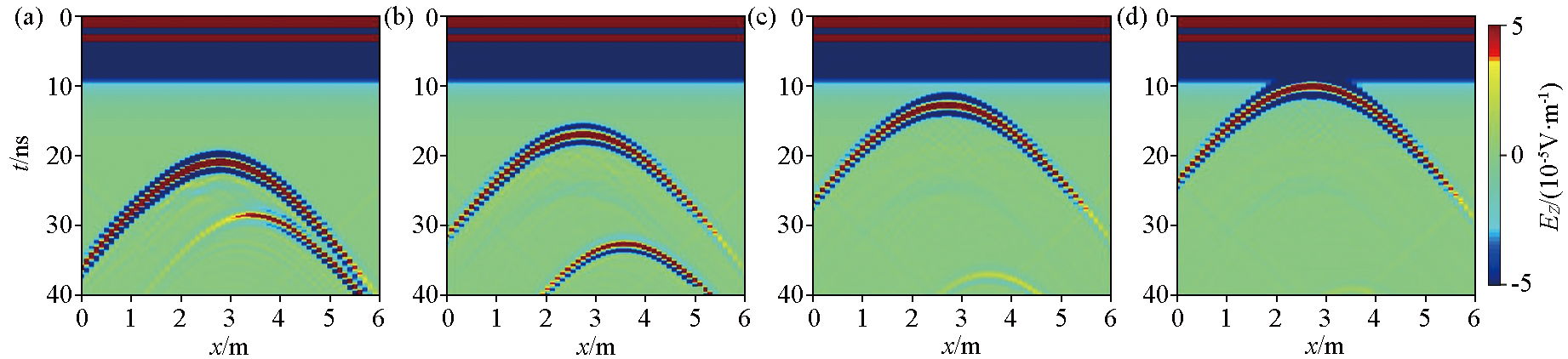

GPR simulated profile of water supply pipeline after left leakage 0.5 h(a), 1.0 h(b), 2.0 h(c) and 3.0 h(d)

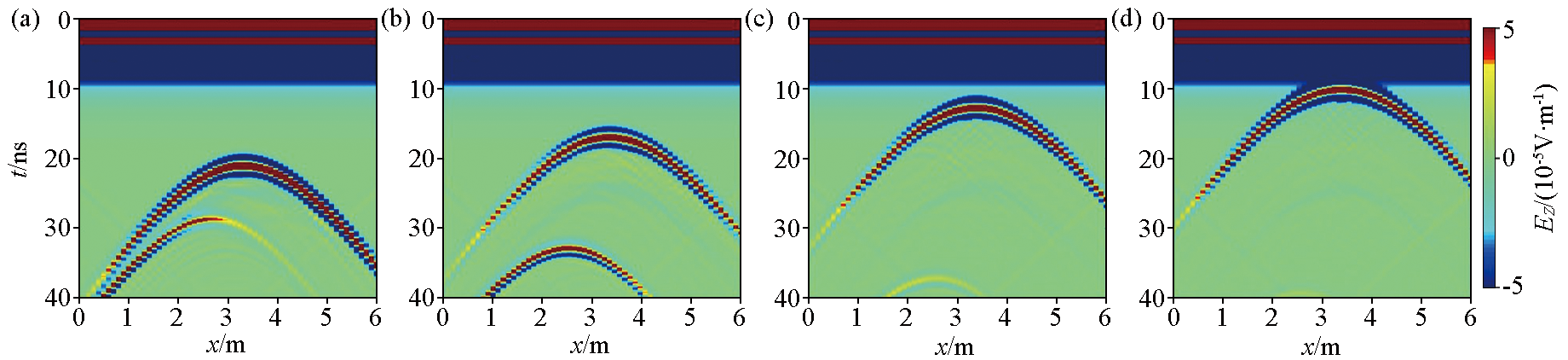

GPR simulated profile of water supply pipeline after right leakage 0.5 h(a), 1.0 h(b), 2.0 h(c) and 3.0 h(d)

Fig.13 or Fig.14
">

Single channel waveform comparison at horizontal center in Fig.13 or Fig.14

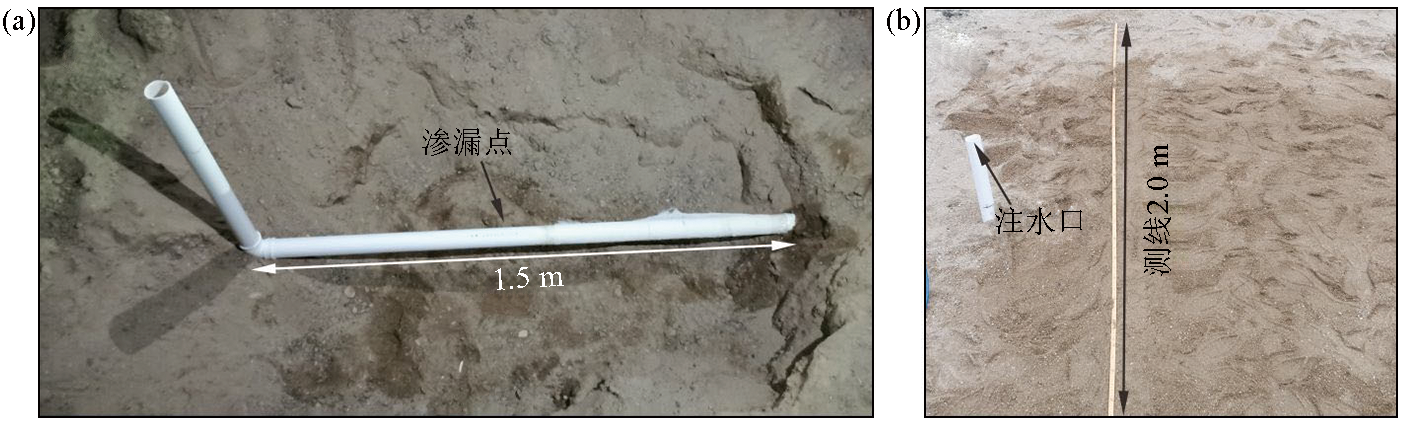

Physical model of underground water supply pipeline leakage(a) and layout of survey lines(b)

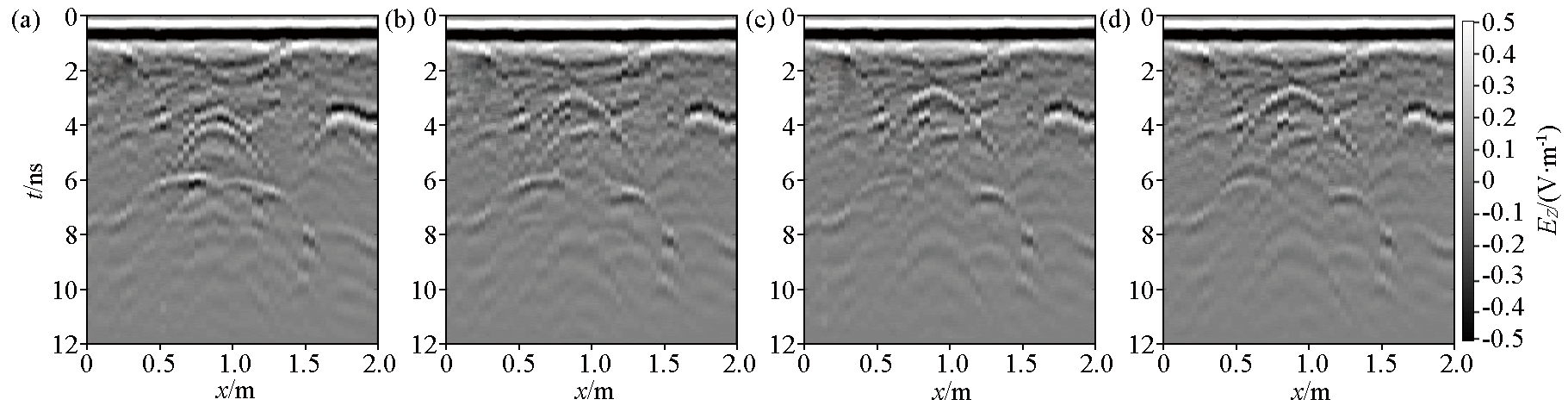

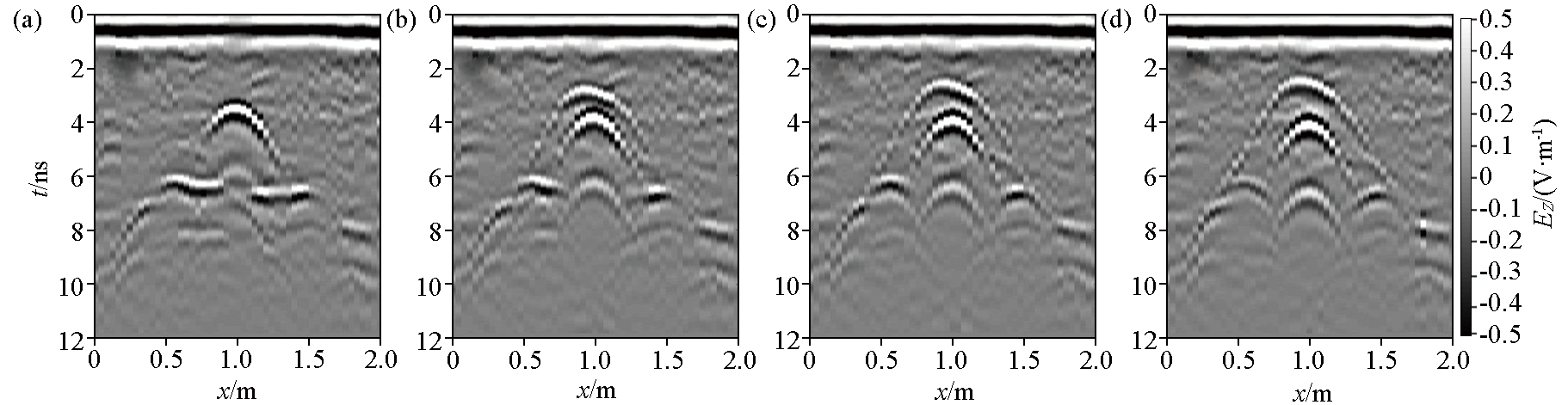

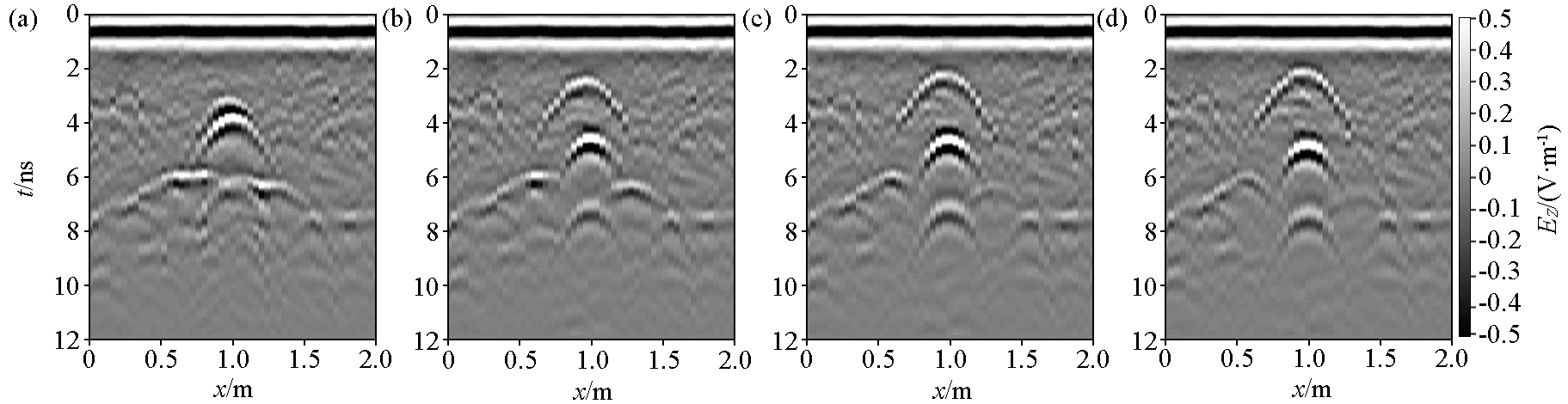

GPR physical simulation profile of water supply line after upper leakage 0 min(a), 20.0 min(b), 40.0 min(c) and 60.0 min(d)

GPR physical simulation profile of water supply pipeline after bellow leakage 0 min(a), 20.0 min(b), 40.0 min(c) and 60.0 min(d)

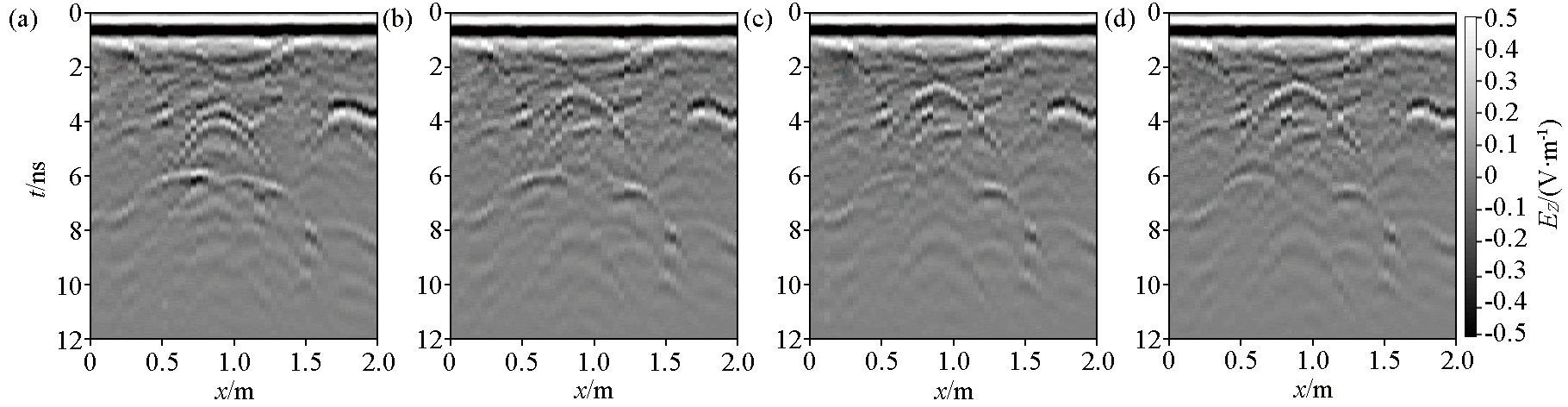

GPR physical simulation profile of water supply line after left leakage 0 min(a), 20.0 min(b), 40.0 min(c) and 60.0 min(d)

GPR physical simulation profile of water supply line after right leakage 0 min(a), 20.0 min(b), 40.0 min(c) and 60.0 min(d)
