多尺度时频空三域特征联合下的储层岩性识别方法

doi:10.11720/wtyht.2023.1020

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6331 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Conventional methods for reservoir lithology identification suffer low precision and efficiency since reservoir lithologies have various types and complex compositions and alternate frequently.This study proposed a reservoir lithology identification method based on multi-scale time-frequency-space feature combination.Based on the original logging characteristics,this method introduced the multi-scale frequency-domain components from the complementary ensemble empirical mode decomposition (CEEMD) to improve the longitudinal resolution of log curves.Moreover,a multi-scale convolutional neural network-bidirectional gated recurrent unit-attention mechanism (CNN-BiGRU-AT) model was constructed to extract the spatio-temporal features of log data containing multi-scale frequency-domain components.In this way,the joint learning of time-frequency-space features of log data was realized.Finally,the model output was optimized using the attention mechanism to reduce the propagation of error information.To verify the reliability of this method,an experimental analysis was conducted using the data from five wells that have relatively complete data.As revealed by the analysis results,the identification accuracy of training and verification sets containing multi-scale frequency-domain components was increased by 9.50% and 8.66%,respectively in the comparative experiments of different data combinations.The method proposed in this study yielded sample identification accuracy of 94.11%.Compared with support vector machine (SVM),backpropagation (BP) neural network,convolutional neural network (CNN),bidirectional gated recurrent unit (BiGRU),and CNN-BiGRU fusion models, the identification accuracy of this method increased by 16.21%,14.54%,11.69%,5.05%,and 3.38%,respectively.

Key words： CEEMD attention mechanism multi-scale neural network lithology identification

Received: 25 January 2022 Published: 24 February 2023

ZTFLH:

Corresponding Authors: WEN Chang E-mail: wangzongren1999@163.com;wenchang2016paper@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zong-Ren WANG
	Chang WEN
	Kai XIE
	Guan-Qun SHENG
	Jian-Biao HE

Cite this article:

Zong-Ren WANG,Chang WEN,Kai XIE, et al. Reservoir lithology identification method based on multi-scale time-frequency-space feature combination[J]. Geophysical and Geochemical Exploration, 2023, 47(1): 81-90.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1020 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I1/81

步骤	描述
Step 1:	将高斯白噪声 $n i t$ 加入待分解 $s t$ 中得到新信号 $x t$ , $i$ 为加入白噪声的次数, $i = 1,2, …, N$ : $x t = s t ± ε n i t$
Step 2:	对加入噪声的新信号进行EMD分解,并得出一阶本征模态分量 $C 1 t$ : $E x t = C 1 i t + r i$
Step 3:	对N个模态分量进行总体平均得到CEEMD分解的第一个本征模态分量: $C 1 t ˉ = 1 N ∑ i = 1 N C 1 i t$
Step 4:	去除第一个模态分量后的残差: $r 1 t = s t - C 1 t ˉ$
Step 5:	在 $r 1 t$ 中加入正负的高斯白噪声,再次进行EMD分解,得到一阶模态分量 $D 1$ ,由此可得到第2个本征模态分量 $C 2$ : $C 2 t ˉ = 1 N ∑ i = 1 N D 1 i t$
Step 6:	去除第二个本征模态分量后的残差: $r 2 t = r 1 t - C 2 t ˉ$
Step 7:	重复以上步骤,直到 $r n t$ 不能再次分解,算法结束。此时本征模态分量数量为K,原始信号 $s t$ 被分解为: $s t = ∑ k = 1 K C k t ˉ + r k t$

Algorithm process of CEEMD

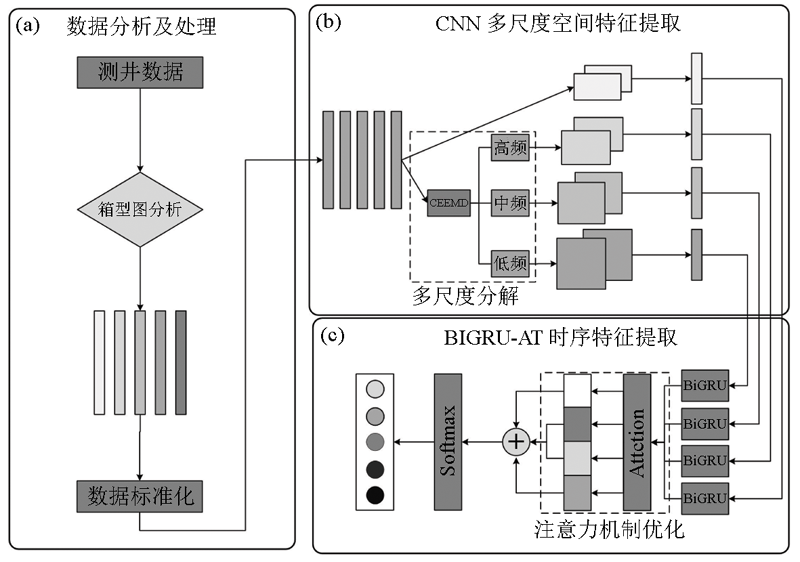

Flow chart of multi-scale CNN-BiGRU-AT lithology identification algoritm

CNN multi-scale space feature extraction

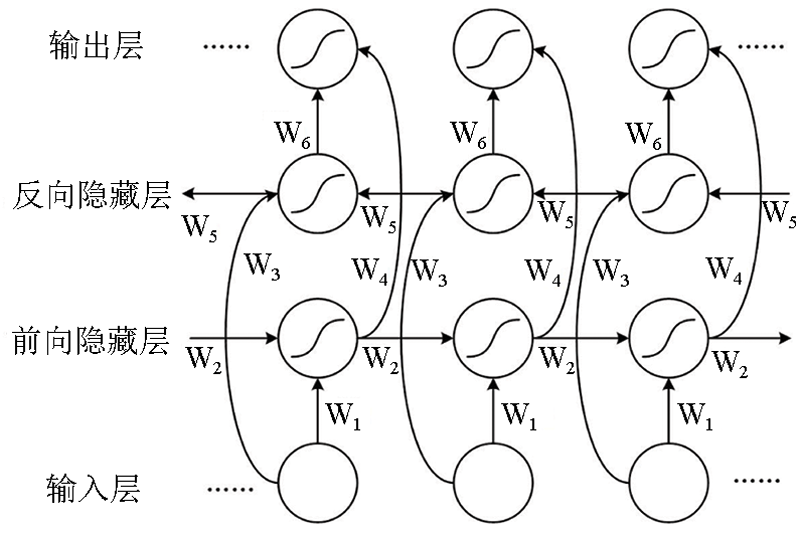

BiGRU network structure diagram

Cell structure of GRU

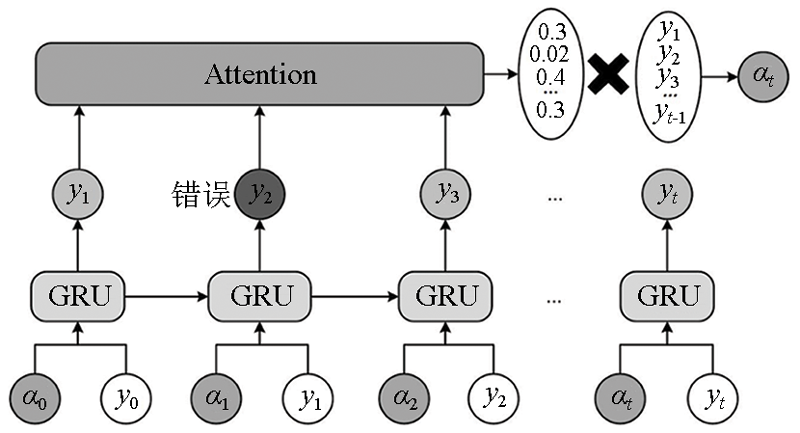

Attention mechanism optimization diagram

Partial logging lithology data

Logging lithology box diagram of Well Su 27

Experimental hyperparameter configuration

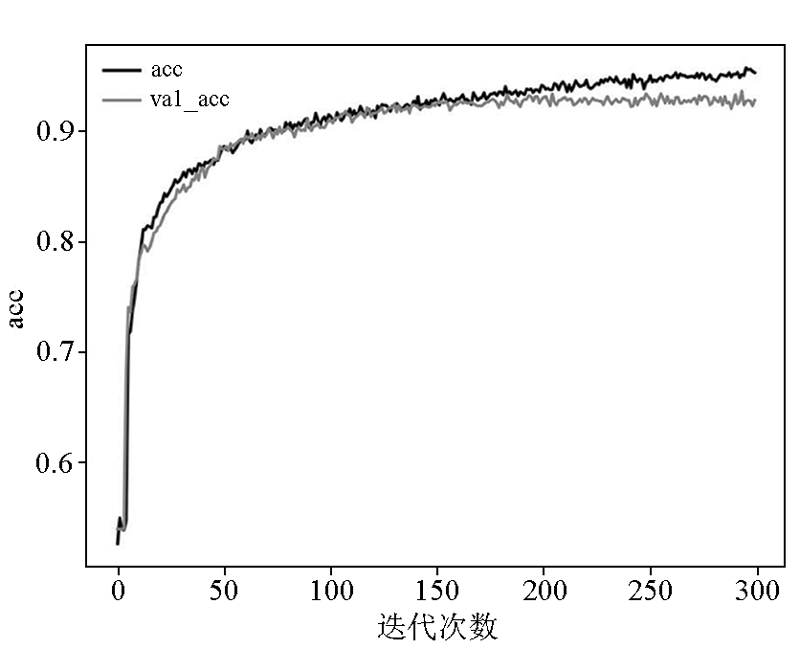

Relationship between accuracy rate and iteration times

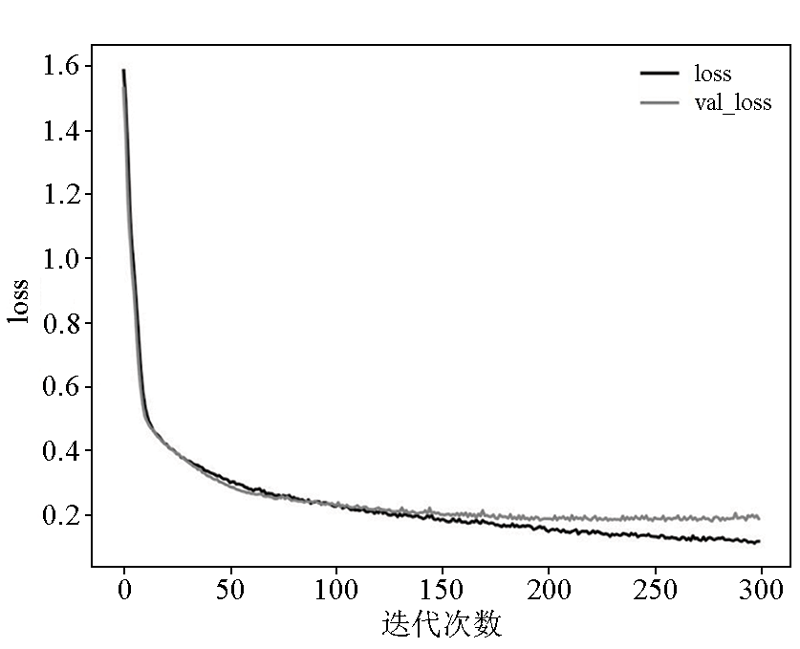

Relation diagram of loss value and iteration times

GR curve decomposition diagram of by different methods

Experimental results of different combinations of data

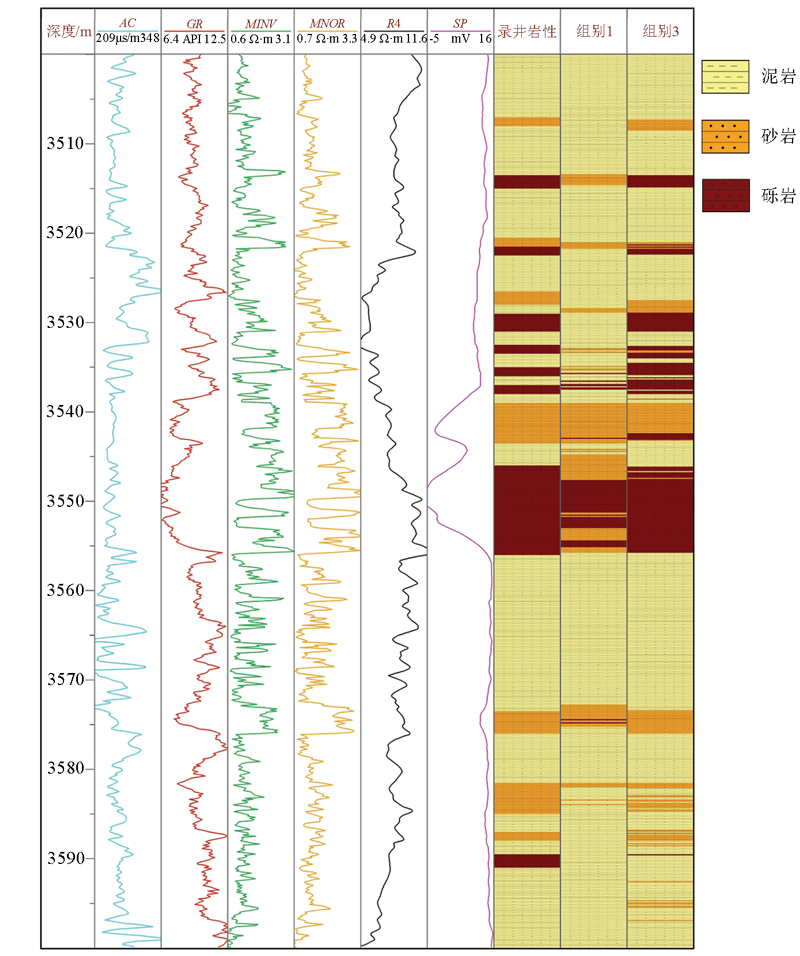

Lithology identification bar charts for groups 1 and 3

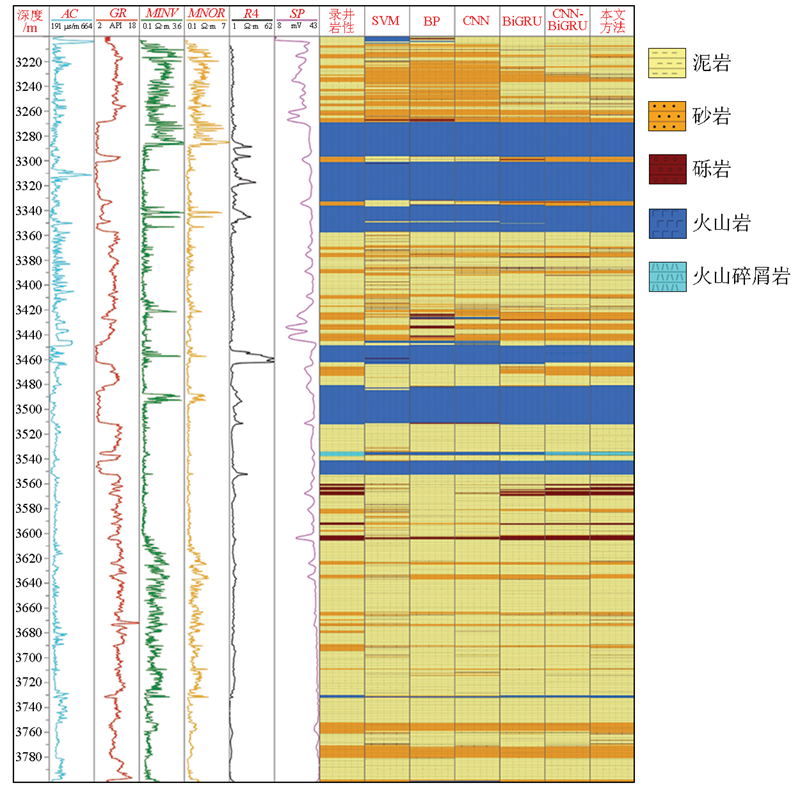

Lithology identification results of different models in Well Su 27

Histogram of lithology identification results of different models in Well Su 27

Confusion matrix of this method and CNN-BiGRU model for Well Su 27
