| A method for strong noise suppression based on DC-UNet |
ZHOU Hui( ), SUN Cheng-Yu(), LIU Ying-Chang, CAI Rui-Qian |
| School of Geosciences,China University of Petroleum(East China),Qingdao 266580,China |
|
|
|
|
Abstract Seismic data acquired from mature industrial areas frequently contain a large amount of local strong noise with high amplitude due to the continuous operation of production equipment.However,such local strong noise can be hardly suppressed using conventional denoising methods.This study integrated dilated convolution(DC) and U-Net into a DC-UNet network for suppressing local strong noise.For the circular DC blocks at the front end of the DC-Unet network,a circularly expanded DC kernel was used to extract the features of strong noise at different scales,with the receptive field being expanded.Meanwhile,an encoder was used at the back end of the network to extract the features of strong noise and restore the details of strong noise.Subsequently,the DC-UNet network was employed to perform a nonlinear mapping from noisy data to noise.On this basis,strong noise was suppressed by subtracting the learned strong noise from the noisy data.As indicated by the experimental results of synthetic and real data obtained from the training using the PyTorch framework in the GPU environment,the DC-UNet network can effectively suppress the local strong noise and improve the signal-to-noise ratio compared with DnCNN,U-Net,and PCA-UNet networks.
|
|
Received: 13 October 2022
Published: 27 October 2023
|
|
|
|
Corresponding Authors:
SUN Cheng-Yu
E-mail: 2577156309@qq.com;suncy@upc.edu.cn
|
|
|
|
|

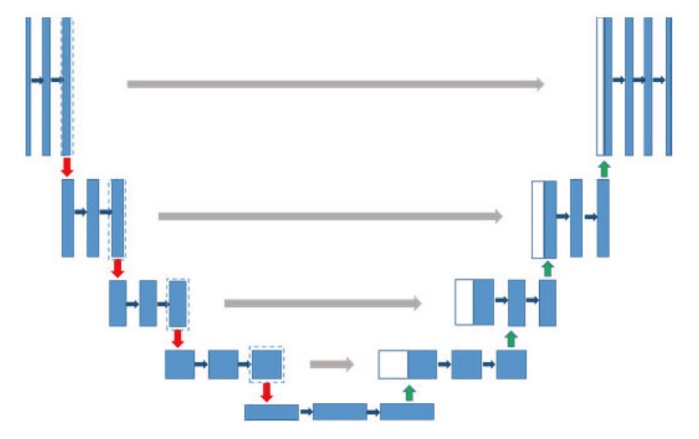

Network structure of conventional U-Net
|
|

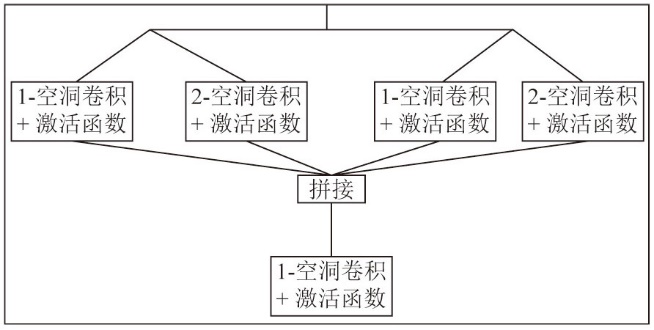

Circular dilated convolution block
|
|

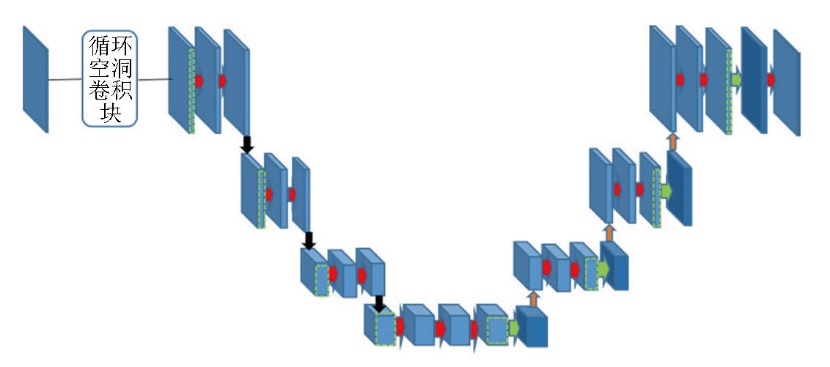

Network structure of DC-UNet
|
|

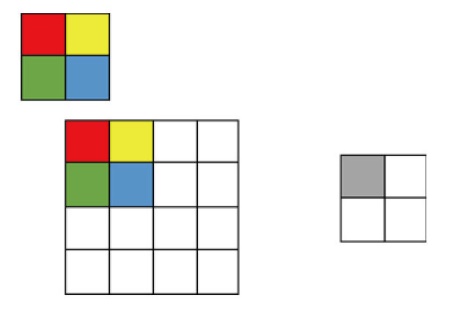

Schematic diagram of downsampling
|
|

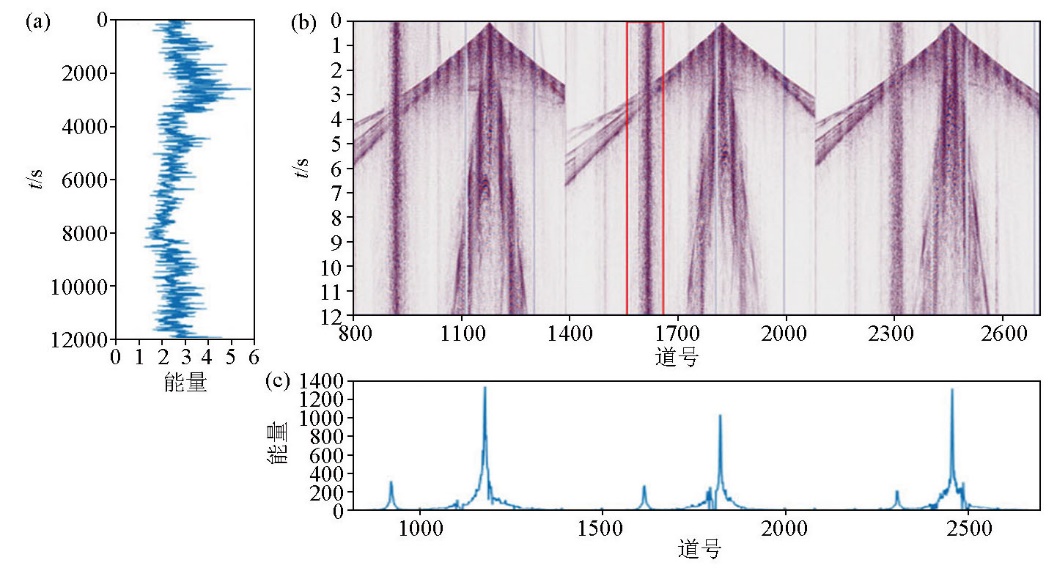

Actual line seismic data
a—stacking energy on time;b—3 shot seismic data from one of the lines;c—stacking energy on trace
|
|

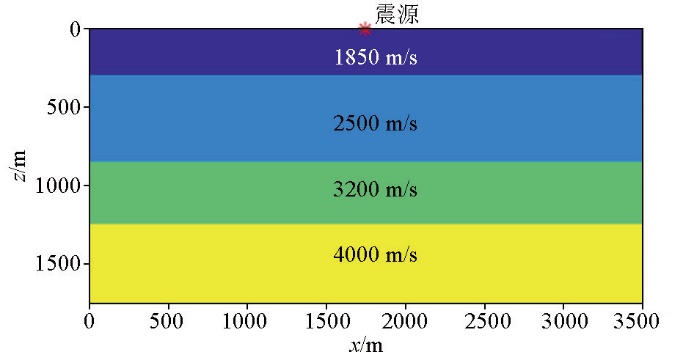

Layered medium model
|
|

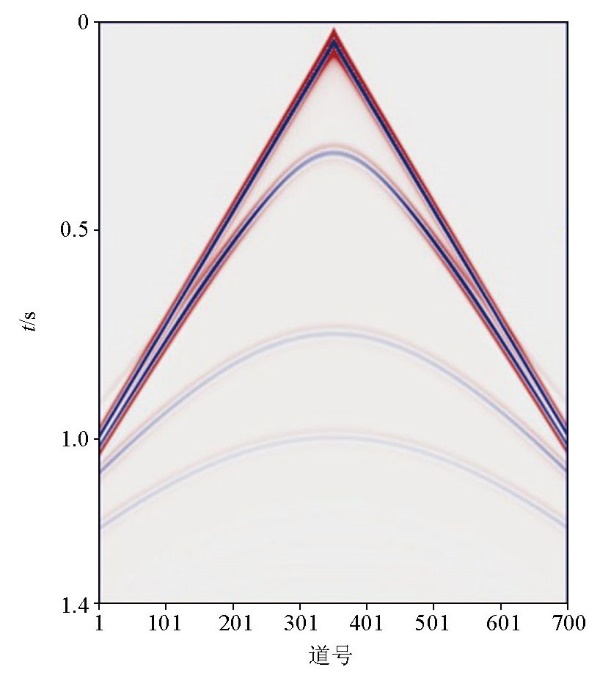

Synthetic seismic record corresponding to the model
|
|

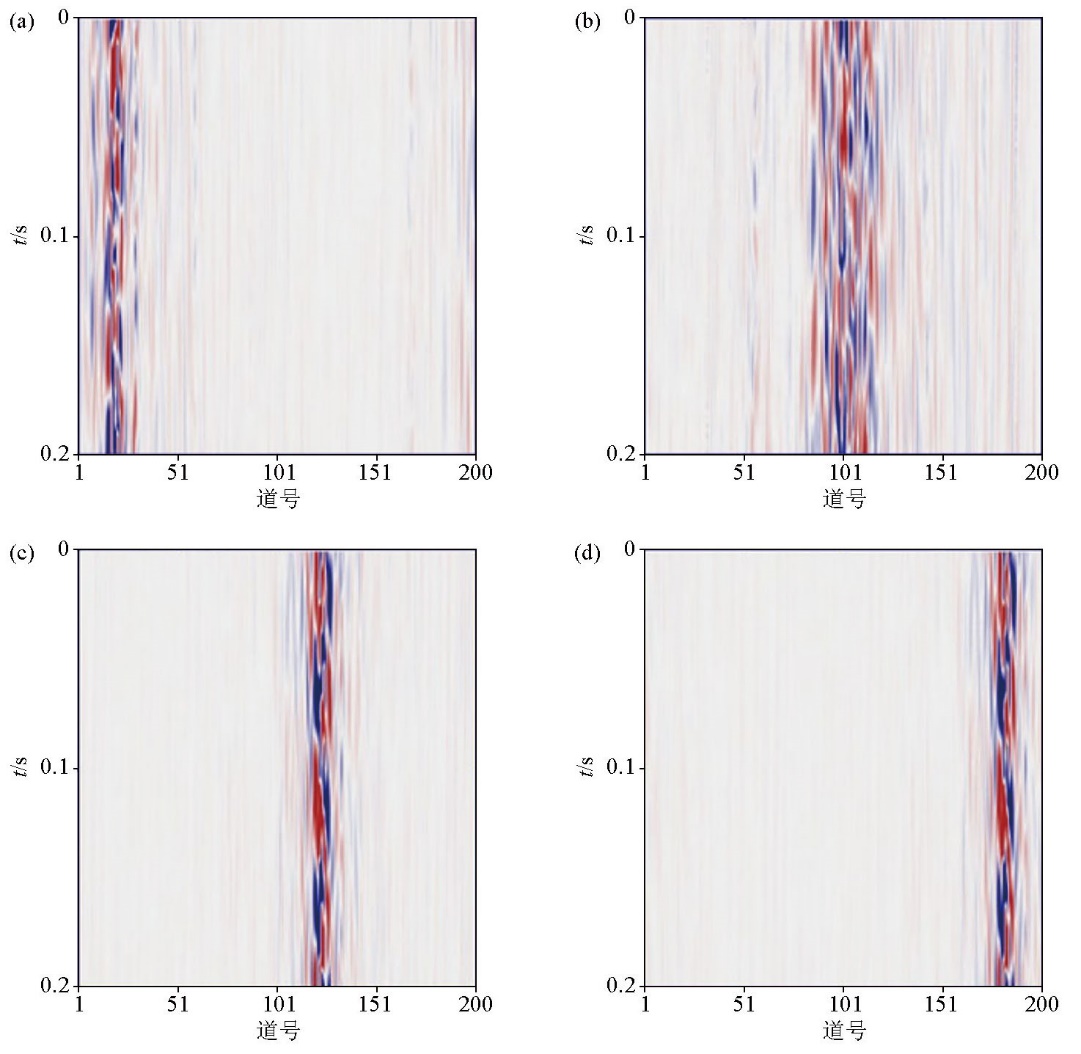

Strong noise in different positions
|
|

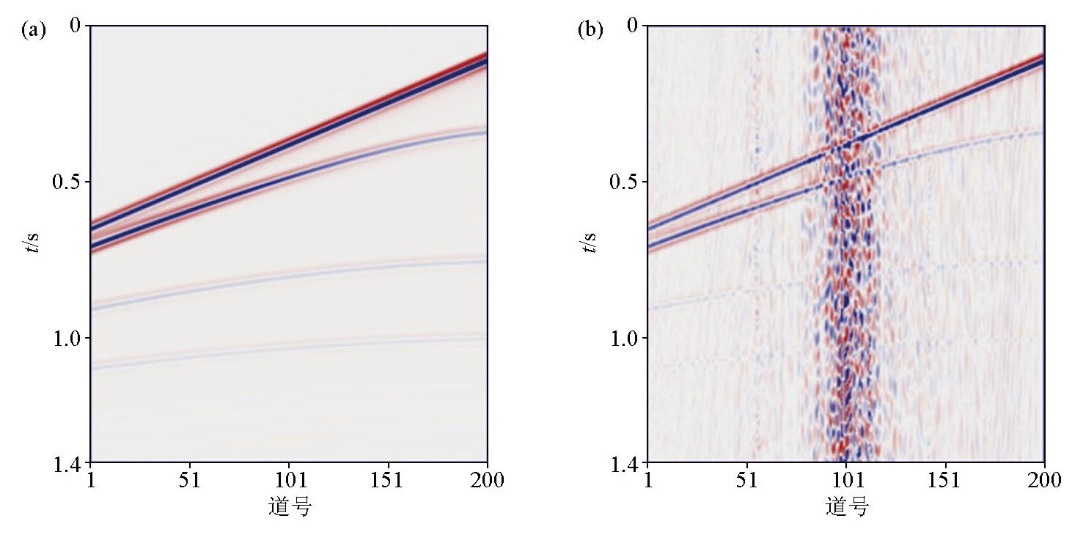

Noise-free data(a) and noisy data(b)
|
|

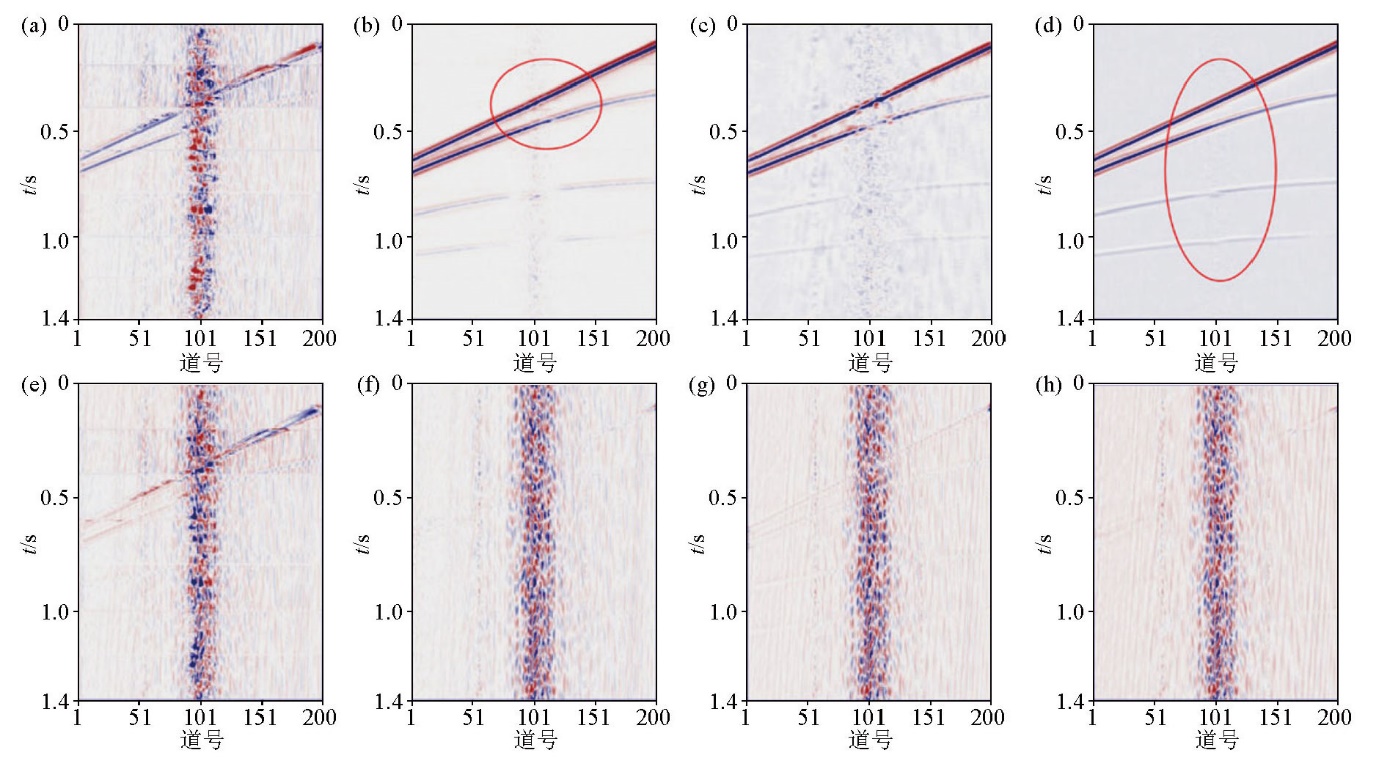

Denoising comparison of different denoising methods after the 30 training

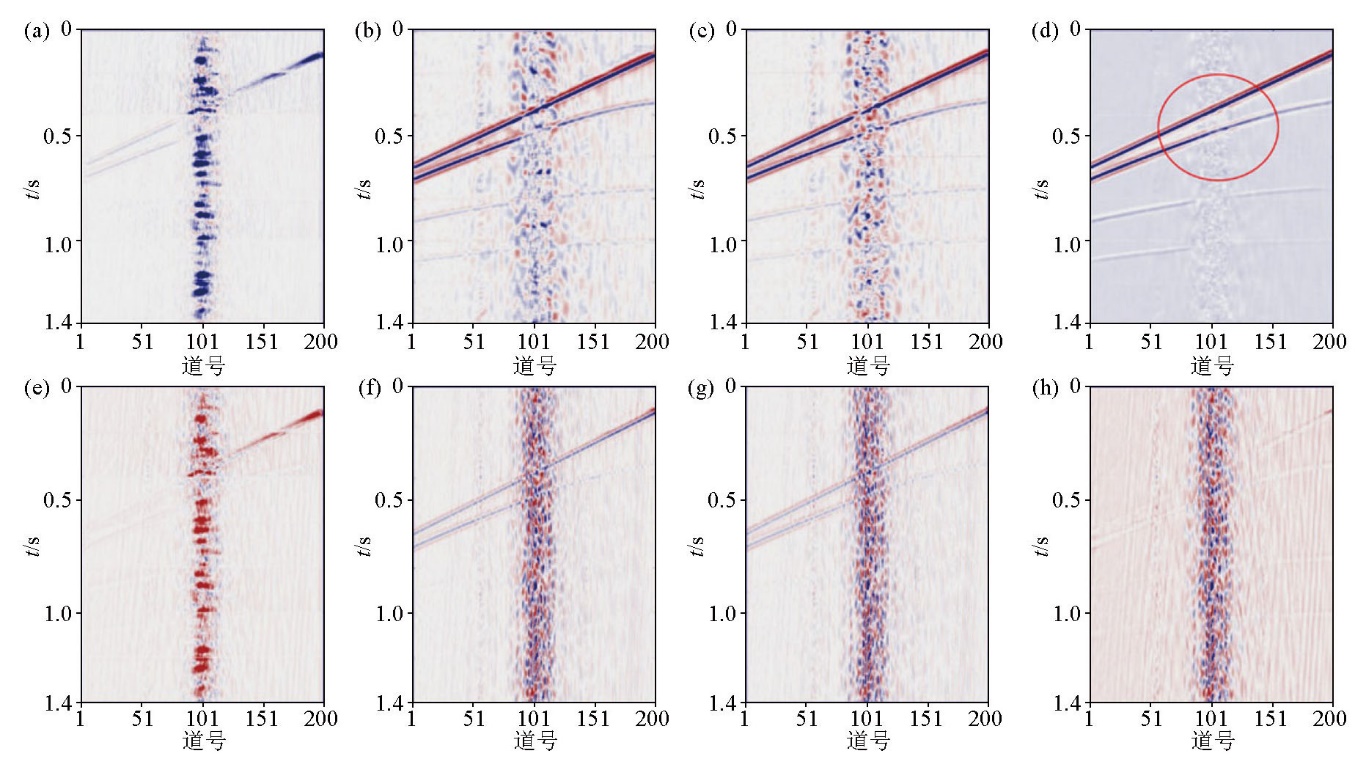

a—DnCNN denoising results;b—U-Net denoising results;c—PCA-UNet denoising results;d—DC-UNet denoising results;e—noise removed by DnCNN;f—noise removed by U-Net;g—noise removed by PCA-UNet;h—noise removed by DC-UNet
|
|
Denoising comparison of different denoising methods after 50 training
a—DnCNN denoising results;b—U-Net denoising results;c—PCA-UNet denoising results;d—DC-UNet denoising results;e—noise removed by DnCNN;f—noise removed by U-Net;g—noise removed by PCA-UNet;h—noise removed by DC-UNet
|
|

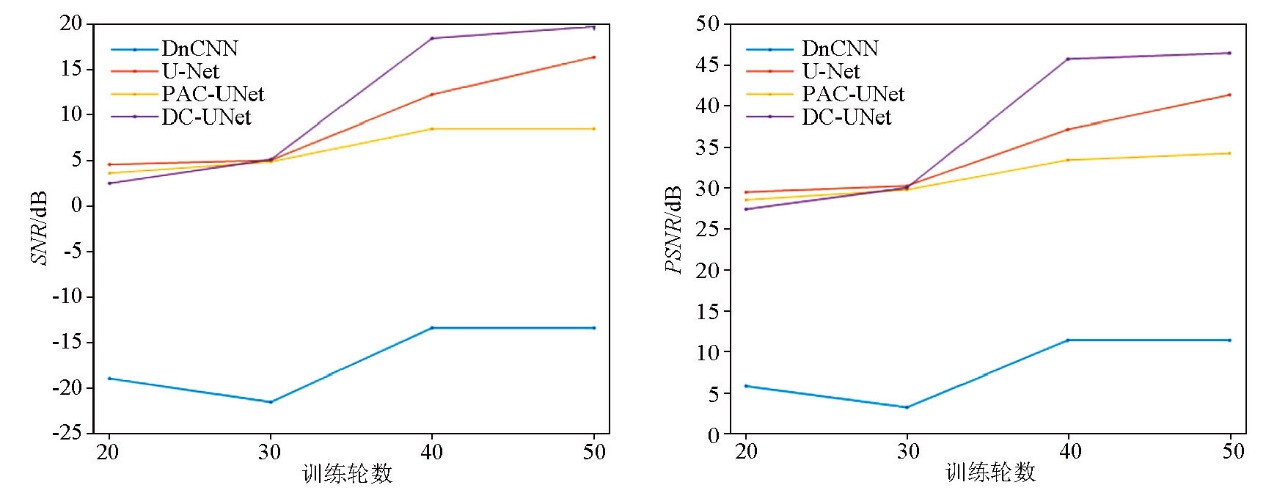

Denoising evaluation index
|
|

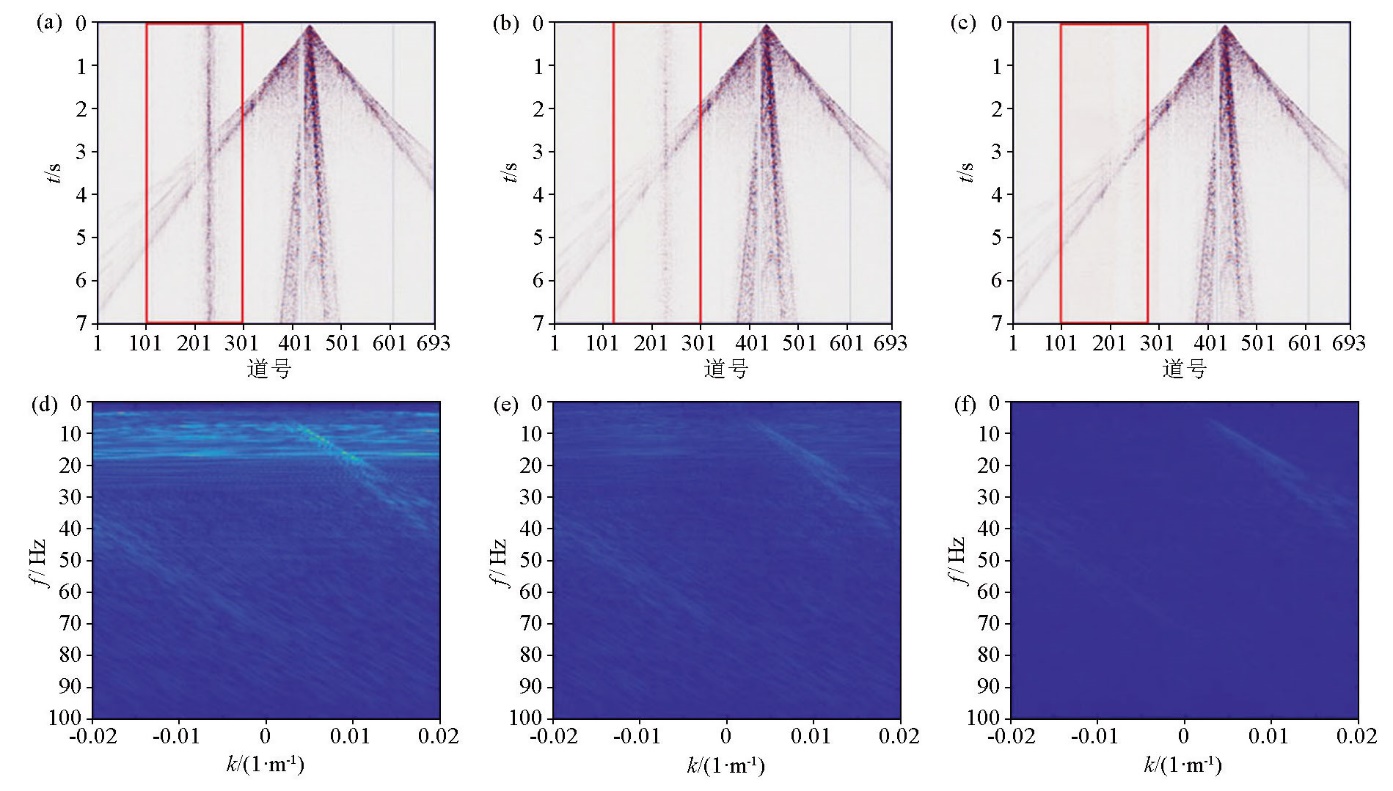

Compare the actual seismic data denoising results after the 30 training and the corresponding F-K spectrum
a—actual noisy seismic data;b—U-Net denoising results;c—DC-UNet denoising results;d—F-K spectra of noisy data;e—F-K spectra of U-Net denoising results;f—F-K spectra of DC-UNet denoising results
|
|
Compare the actual seismic data denoising results after the 50 training with the corresponding F-K spectrum and noise removal
a—U-Net denoising results;b—DC-UNet denoising results;c—F-K spectrum of U-Net denoising results;d—F-K spectrum of DC-UNet denoising results;e—noise removed by U-Net;f—noise removed by DC-UNet
|
