海上地震勘探斜缆采集中鬼波产生机理及压制效果分析

doi:10.11720/wtyht.2022.2337

Abstract
Figure/Table
References
Related Citation (3)

Download: PDF (3050 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In marine oil and gas exploration,for the purpose of accurately acquiring the high-precision and high-resolution reflection information of the exploration target and realizing more delicate imaging,broadband acquisition and processing technology of marine seismic has been greatly innovated and developed in recent years.In this paper,the generation mechanism of ghost wave,the classification and characteristics of ghost wave and its manifestation in actual seismic data are studied.The high-resolution radon transform in frequency domain is used as the main processing method to attenuate ghost wave in a broad-band data of a straight slant cable.After the ghost wave suppression processing,the source ghost wave and cable ghost wave of seismic data have been greatly attenuated,and the notch energy has been significantly enhanced.The broadband processing not only broadens the low-frequency component of seismic data,but also broadens the high-frequency component of seismic data;especially,the low-frequency component energy has been significantly enhanced.This method has achieved good results in the application of marine seismic data.

Key words： ghost wave attenuation notch slant cable acquisition broadband processing

Received: 01 November 2020 Published: 25 February 2022

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	De-Zhi MA
	Wei WANG
	Ming-Xia JIN
	Hai-Kun WANG
	Ming-Qiang ZHANG

Cite this article:

De-Zhi MA,Wei WANG,Ming-Xia JIN, et al. Generation mechanism of ghost wave in marine seismic exploration and ghost wave attenuation from marine seismic data[J]. Geophysical and Geochemical Exploration, 2022, 46(1): 175-181.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.2337 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I1/175

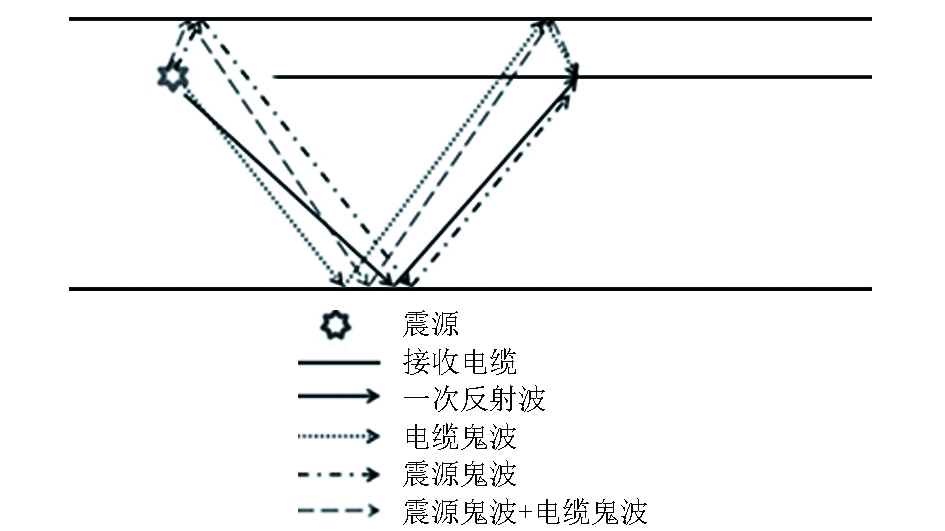

Diagram of seismic wave and ghost wave propagation

Reflected wave and ghost wave at the seabed of actual seismic data

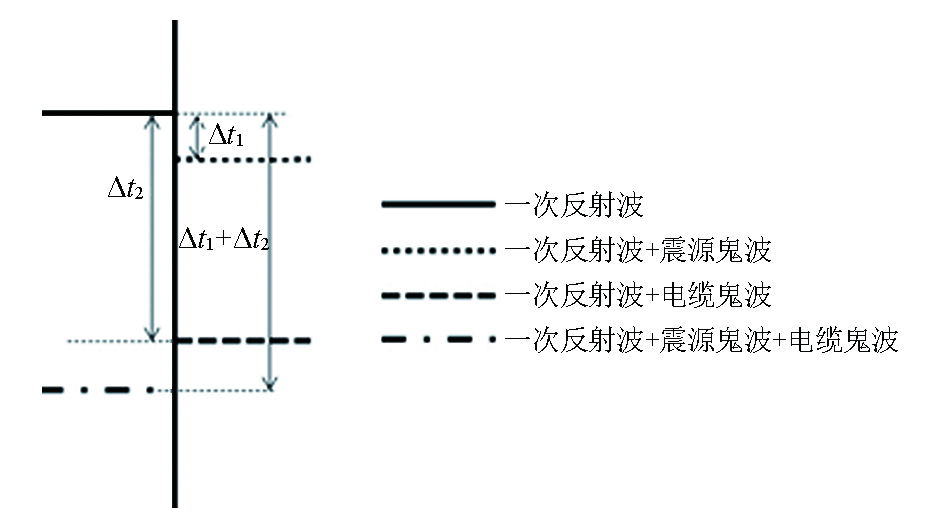

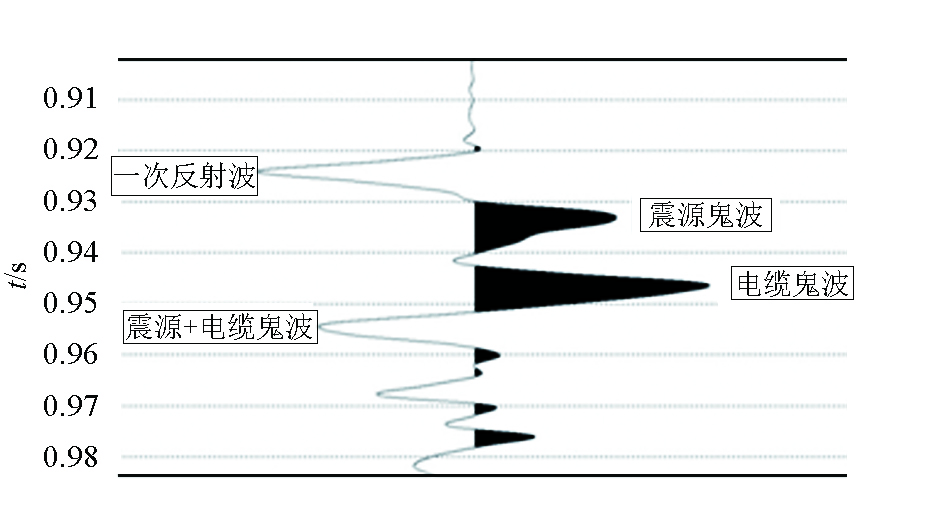

Ghost wave time series

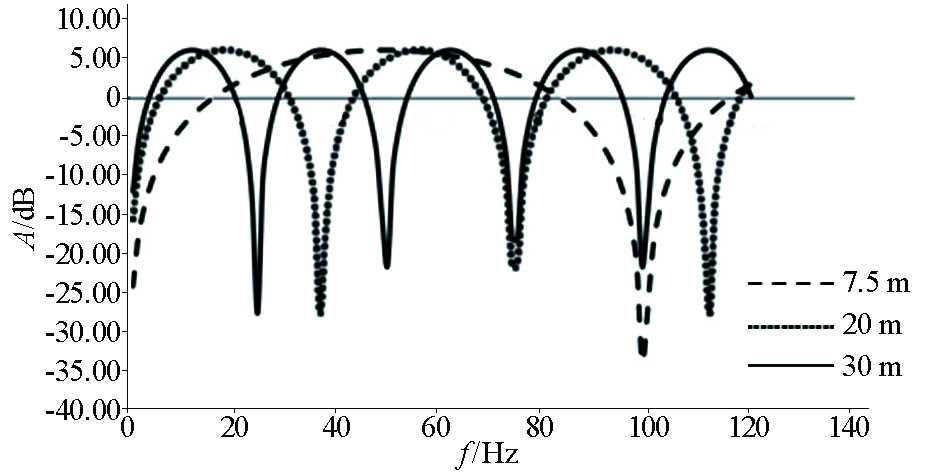

Frequency response curve of ghost wave

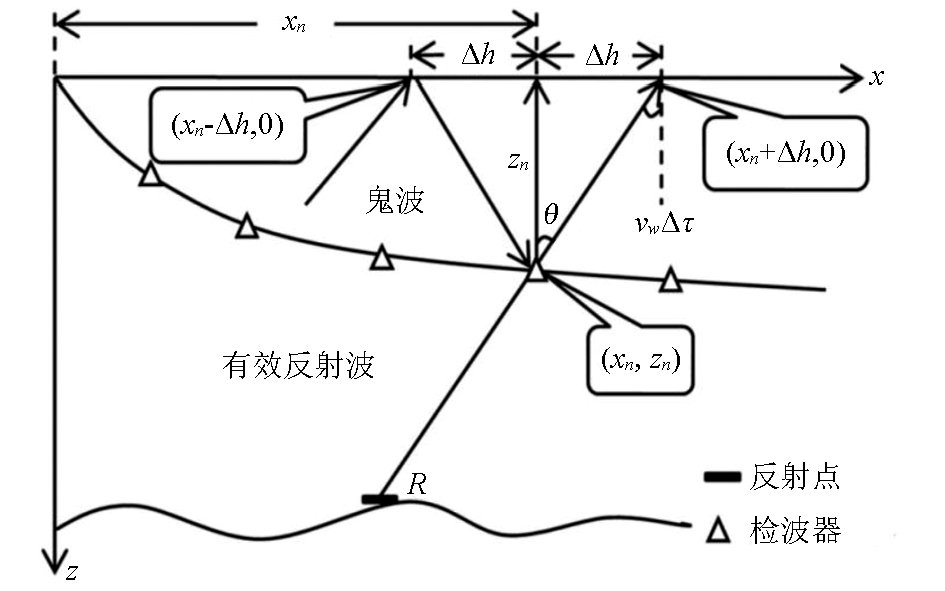

2D wave propagation diagram for slant cable exploration

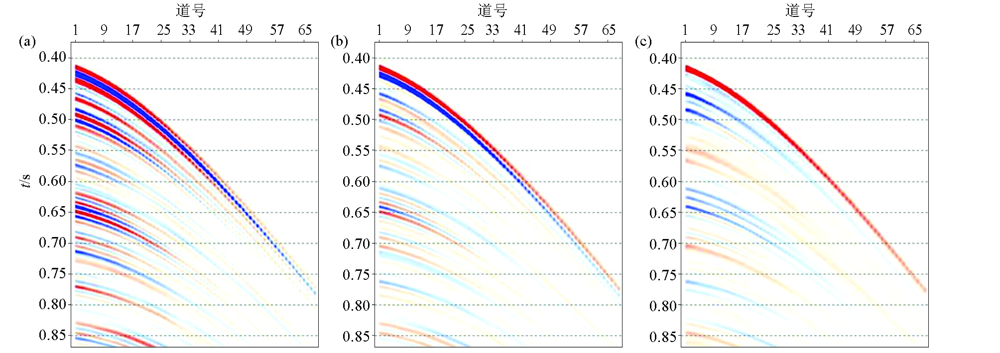

Comparison of straight slant cable before and after ghost attenuation
a—raw shot;b—receiver ghost attenuation;c—source and receiver ghost attenuation

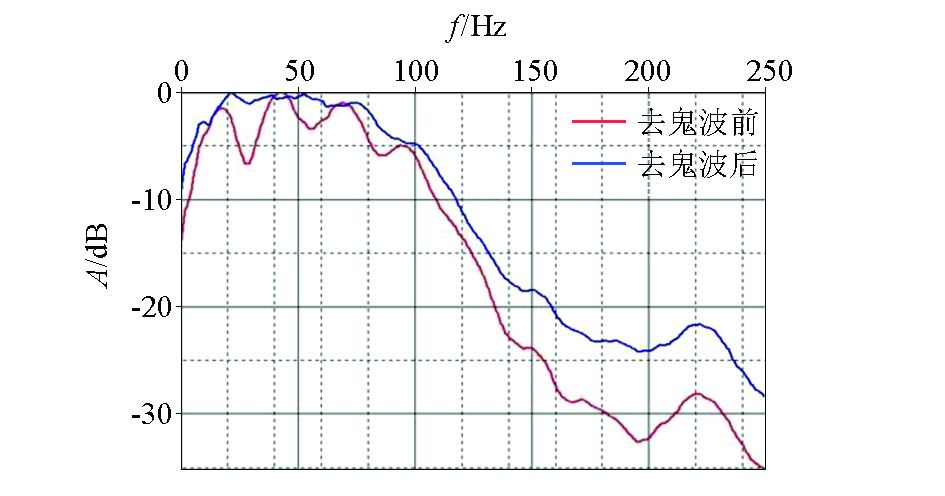

Spectrum comparison on shot gather of straight slant cable before and after ghost attenuation

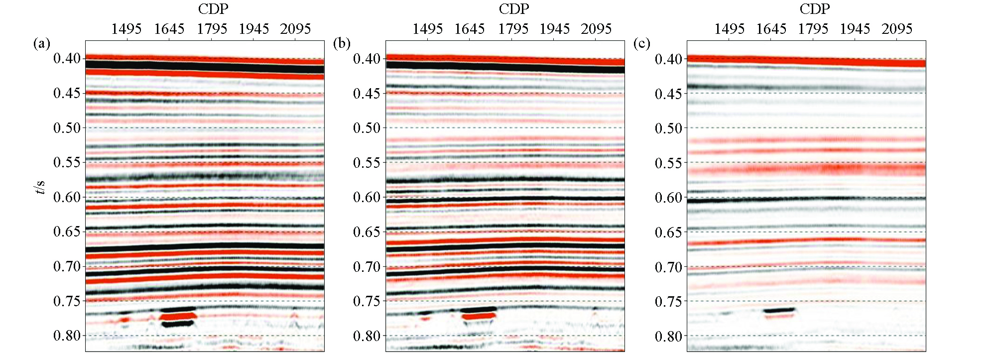

Stack section comparation of straight slant cable data before and after ghost attenuation
a—raw stack;b—receiver ghost attenuation;c—source and receiver ghost attenuation

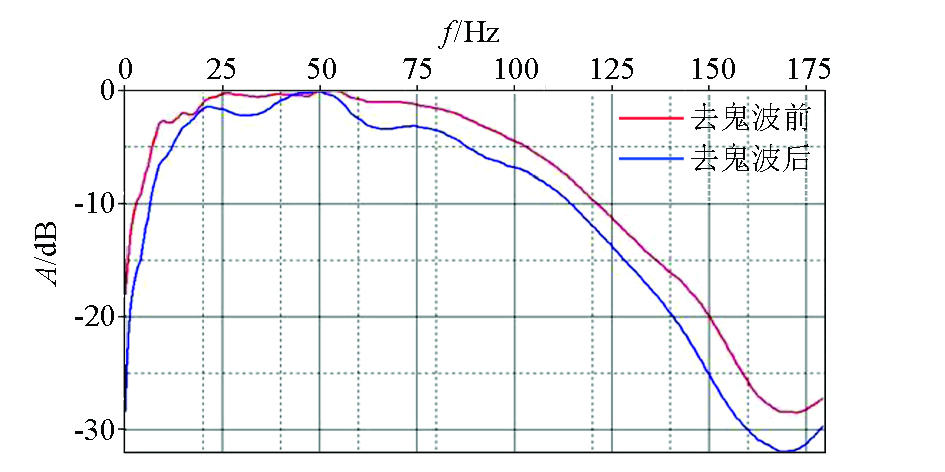

Spectrum comparison on stack profile of straight slant cable data before and after ghost attenuation
