基于曲波稀疏变换的拉伸校正方法

doi:10.11720/wtyht.2022.1328

Abstract
Figure/Table
References
Related Citation (8)

Download: PDF (8528 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

NMO correction is an important step in seismic data processing, but it will produce the wavelet stretching distortion effect in the process of correction. With the increase of offset, the dominant frequency will decrease and the amplitude will increase.Due to stretch distortion, the in-phase axis is not leveled, leading to non-in-phase stacking, which will lead to frequency distortion and resolution decrease of horizontal stacking profile. Therefore, stretch correction is the key to improve the resolution of horizontal stacking profile.The stretching distortion of wavelet is incoherent in the curved sparse domain, and the stretching correction can be regarded as a nonlinear optimization process.By measuring the sparsity of the data in the sparse domain, a fast and effective algorithm is used to optimize the nonlinear problem generated by the wavelet stretching distortion, and finally the purpose of eliminating the wavelet stretching distortion is realized.The curved sparse transform stretching correction method can eliminate the wavelet stretching distortion caused by NMO correction, recover the high frequency information at the far offset and level the in-phase axis.Combining model data and actual data processing, the curved wave sparse stretch correction method can significantly improve the resolution of horizontal superposition profile.

Key words： pre-stack gather processing stretch correction curvelet transform sparse reconstruction

Received: 15 June 2021 Published: 25 February 2022

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Shi-You LIU
	Ming-Lin ZHANG
	Wei-Qi SONG

Cite this article:

Shi-You LIU,Ming-Lin ZHANG,Wei-Qi SONG. Stretch correction method based on Curvelet sparse transform[J]. Geophysical and Geochemical Exploration, 2022, 46(1): 114-122.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.1328 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I1/114

Model 1 layered media parameters

Test model 1

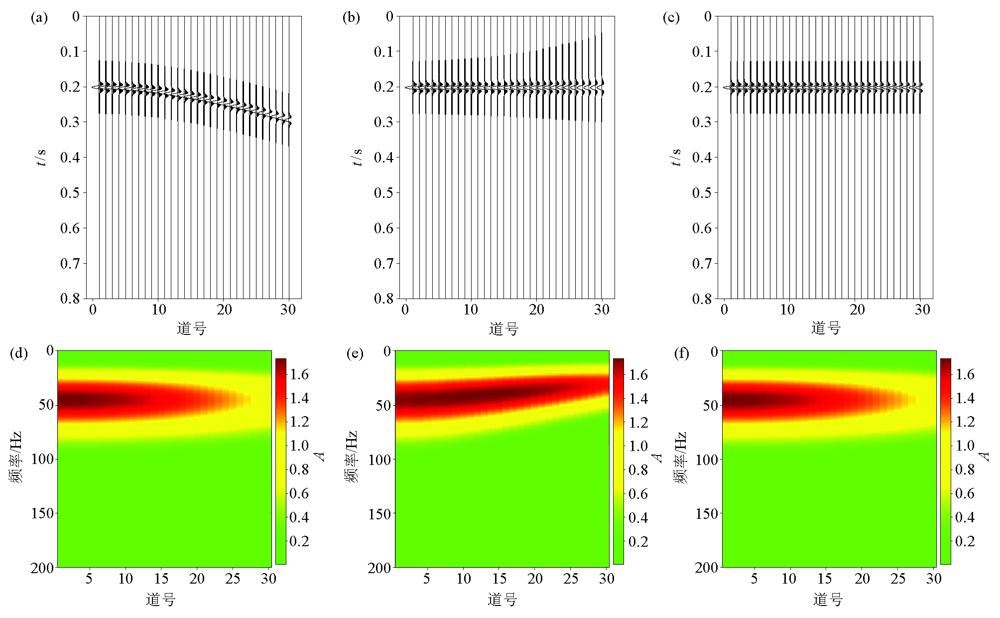

a—synthetic seismogram;b—conventional NMO correction results;c—curvelet sparse stretch correction;d—amplitude spectrum of the original seismic record;e—amplitude spectrum of NMO;f—amplitude spectrum of the tensile correction results by the method presented in this paper

Model 2 layered media parameters

Test model 2(no random noise)

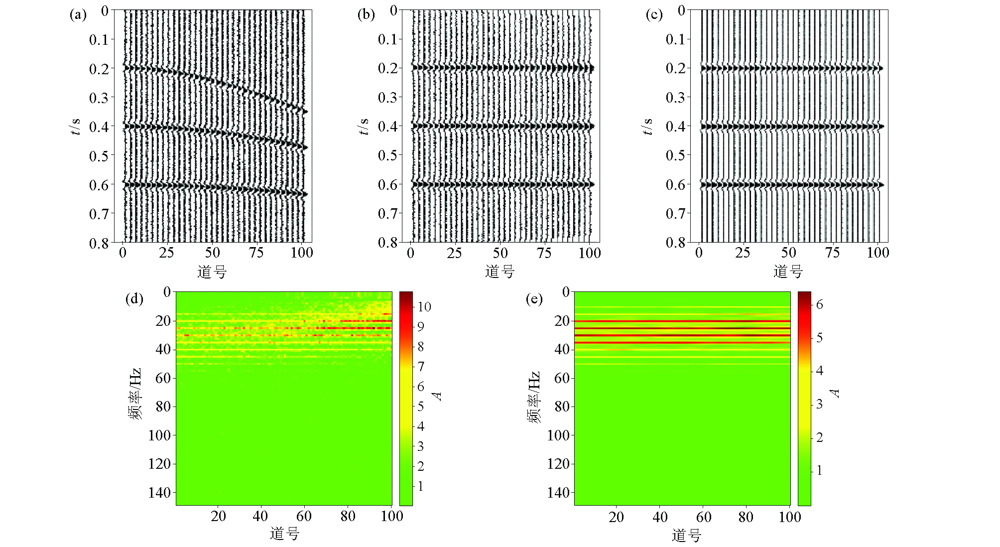

a—synthetic seismogram;b—conventional NMO correction results;c—curvelet sparse stretch correction;d—amplitude spectrum of NMO;e—amplitude spectrum of the tensile correction results by the method presented in this paper

Test model 2(containing random noise)

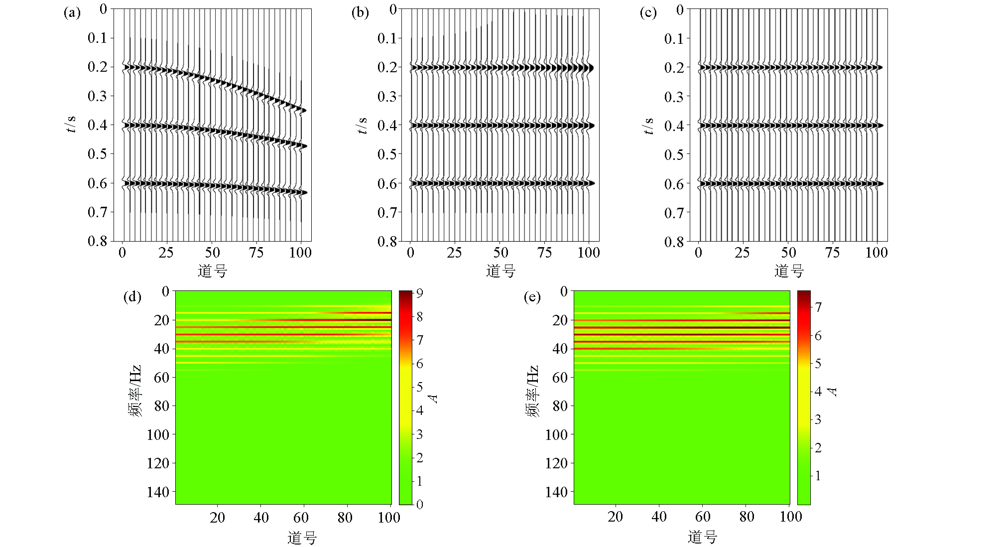

a—synthetic seismogram;b—conventional NMO correction results;c—curvelet sparse stretch correction;d—amplitude spectrum of the original seismic record;e—amplitude spectrum of NMO;f—amplitude spectrum of the tensile correction results by the method presented in this paper

Model 3 layered media parameters

Test model 3

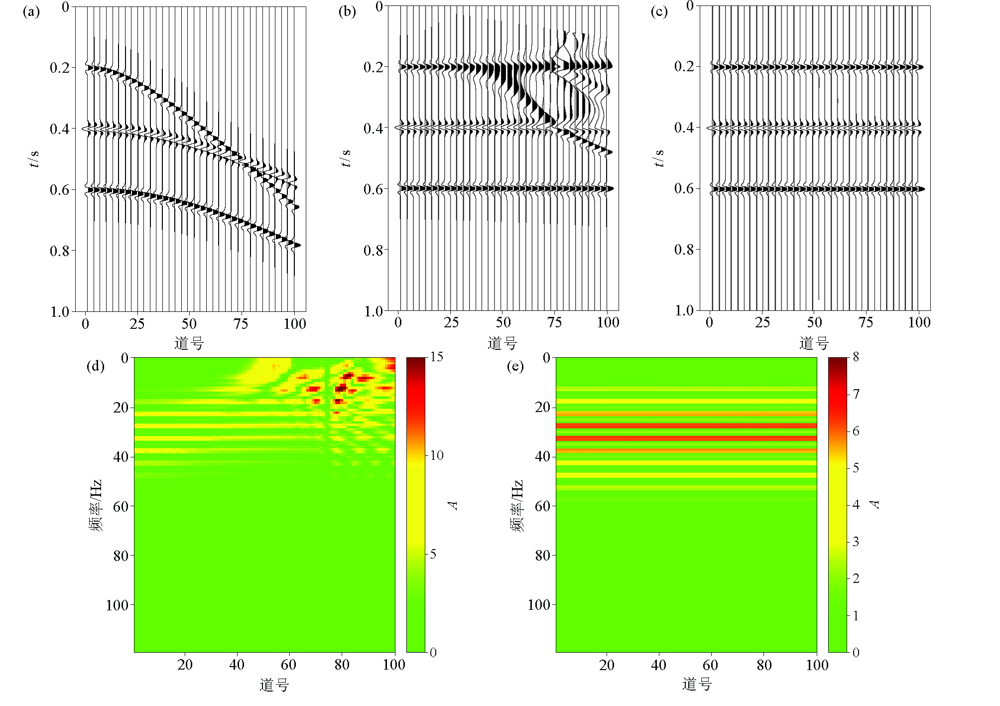

a—synthetic seismogram;b—conventional NMO correction results;c—curvelet sparse stretch correction;d—amplitude spectrum of NMO;e—amplitude spectrum of the tensile correction results by the method presented in this paper

Actual seismic data processing results

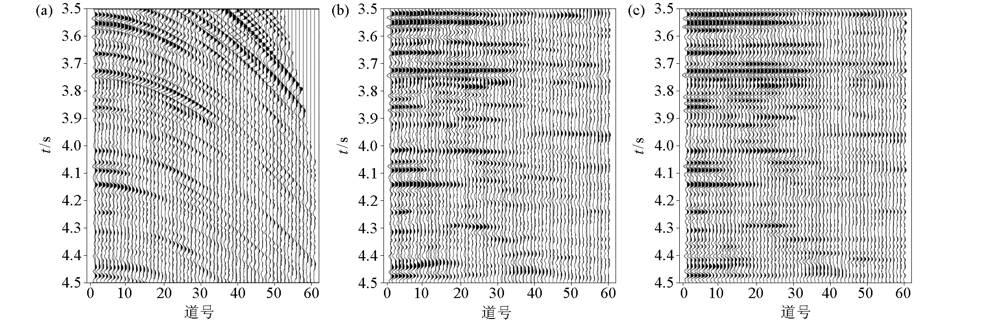

a—original CRP gathers;b—conventional NMO correction results;c—curvelet sparse stretch correction

Spectrum comparison before and after stretch correction

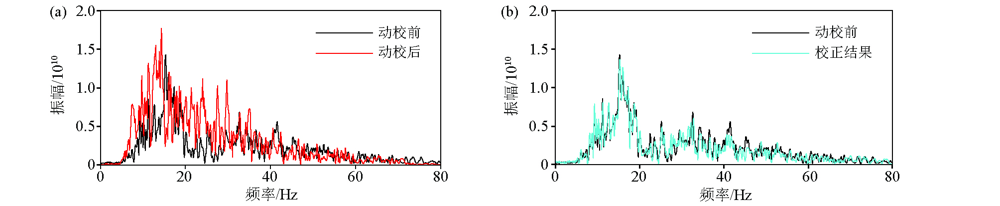

a—spectrum comparison between original CRP gathers and NMO correction results for long distance;b—spectrum comparison of original CRP gathers and curve sparse stretch correction results for long distance

Stacked section

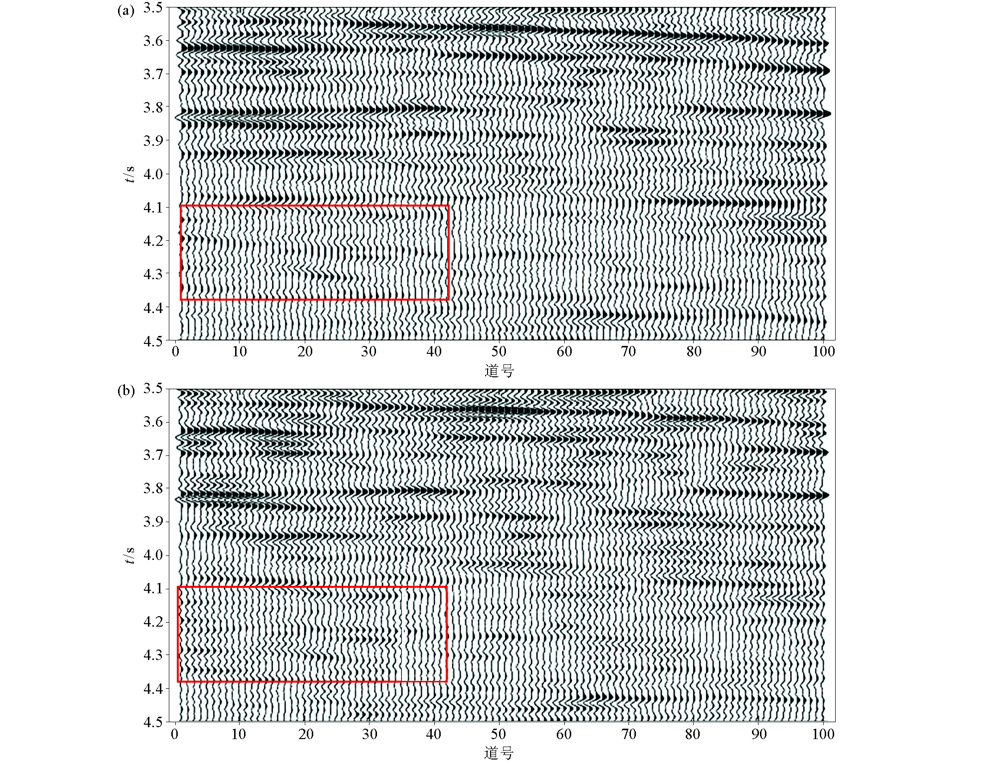

a—conventional NMO correction stack section;b—curvelet sparse stretch correction stack section
