Multi-scale full waveform inversion method using combined source encoding |
GUO Yun-Dong( ) |
Geophysical Exploration Research Institute,Zhongyuan Oilfield Company of Sinopec,Puyang 457001,China |
|
|
Abstract Full waveform inversion (FWI) is one of the most accurate velocity inversion tools.It can be used to obtain high-precision subsurface structures through iterative inversion and provide a more accurate velocity field for prestack imaging technology,thus satisfying the increasingly complex demand for petroleum exploration and development.However,FWI requires accurately estimated source wavelets,which are very difficult to extract from the seismic data collected in the field.Furthermore,in the inversion process,there is a strong nonlinear relationship between model parameters and observed data,which is liable to induce cycle skipping.To overcome the cycle skipping and the difficulty in extracting seismic wavelets in the inversion process of medium-low wavenumber,this paper developed a multi-scale waveform inversion method using combined source encoding.Specifically,the wavelets and seismic data were combined by applying time-shift stacking,and gradients can be determined through only one calculation of reverse time migration.According to the calculation results using a model,the FWI method using combined source encoding can be used to achieve multi-scale inversion and obtain more stable inversion results.Meanwhile,relatively accurate inversion results can be obtained by combining this method with a source-independent method.
|
Received: 12 April 2021
Published: 21 June 2022
|
|
|
|
|
|

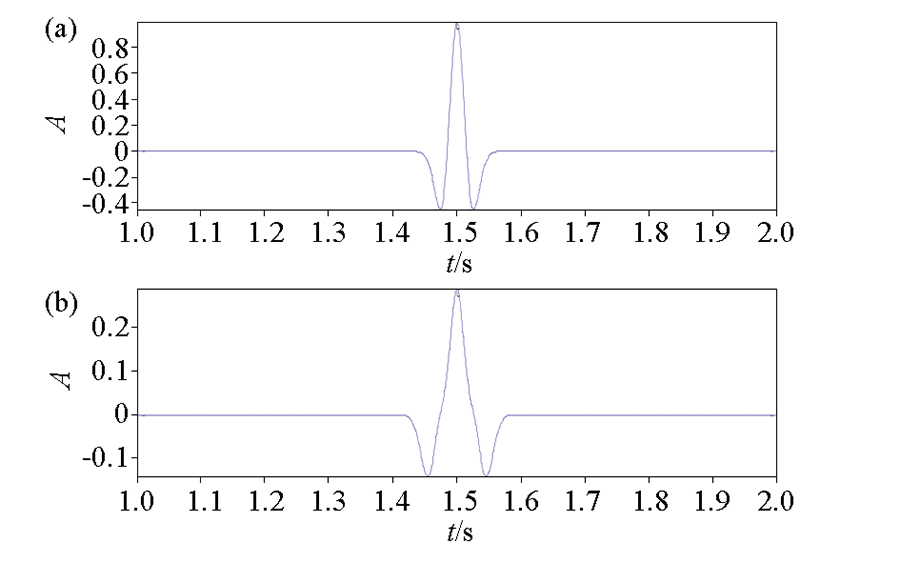

Waveform diagram in time domain of different wavelet a—Rake wavelet waveform with dominant frequency of 15 Hz;b—half wavelength combined source waveform
|
|

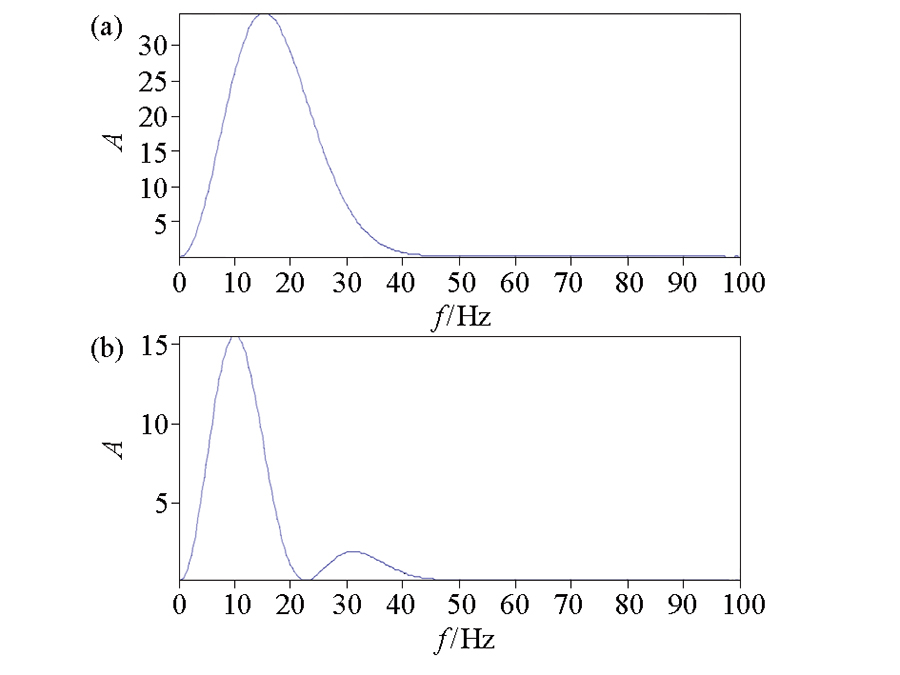

Spectrogram of different wavelet spectrum a—Rake wavelet spectrum with dominant frequency of 15 Hz;b—half wavelength combined source spectrum
|
|

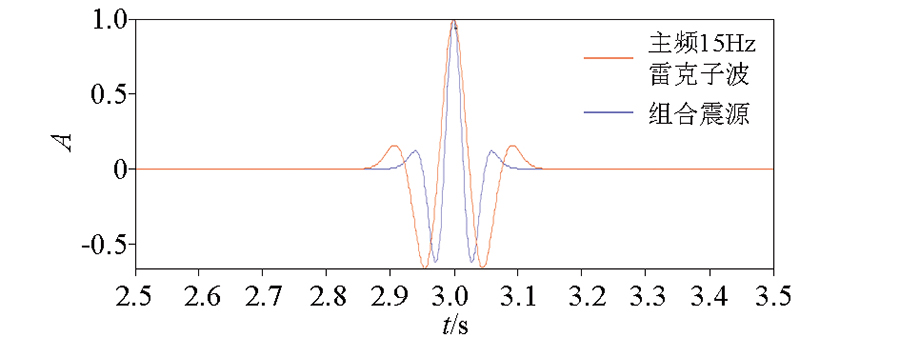

Cross correlation of different wavelets
|
|

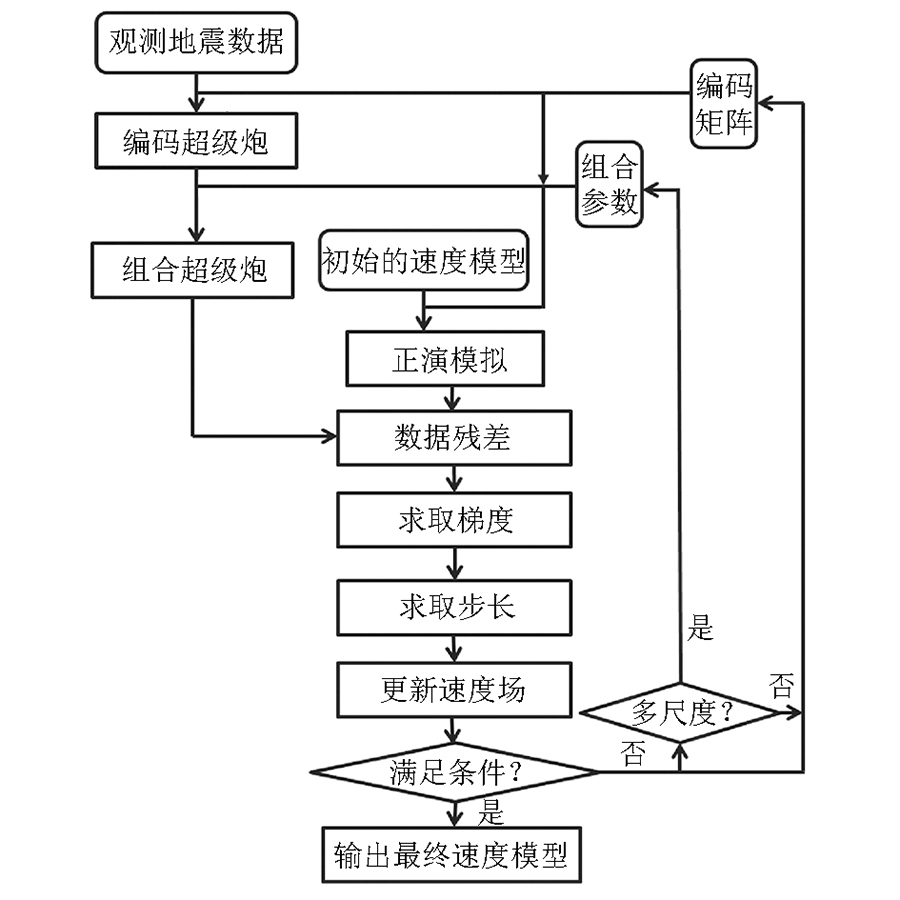

The flow of combine coding FWI
|
|

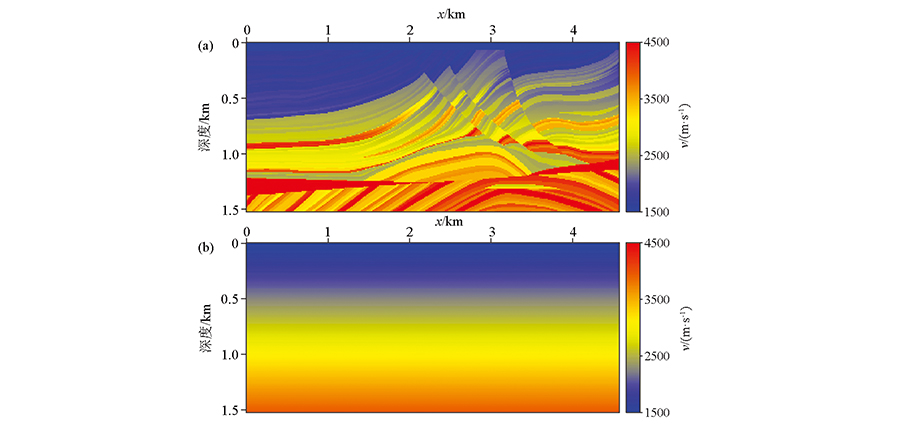

The waveform inversions velocity model with the real model(a) and the initial model(b)
|
|
Different shot gathers generated by the Marmousi model using the Rake wavelet and the combine gather of different shot gathers a—single shot gather generated by the Marmousi model using the Rake wavelet;b—single shot gather with the combined source;c—super shot gather with polarity coding;d—super shot gather with the combined source
|
|

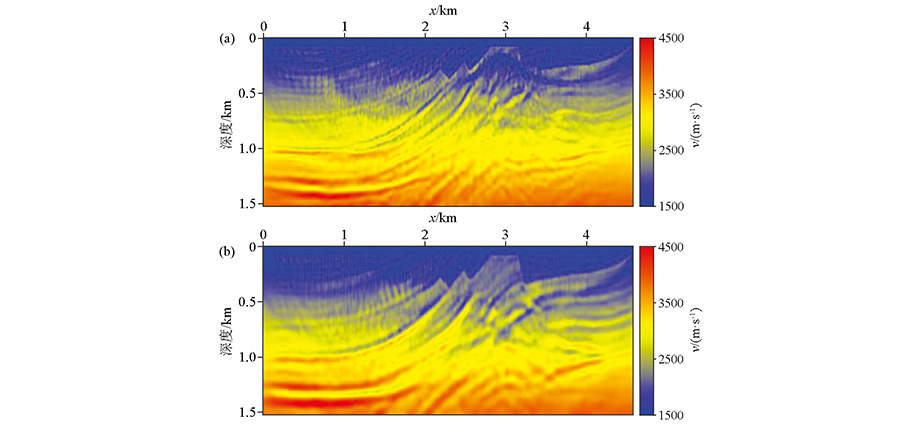

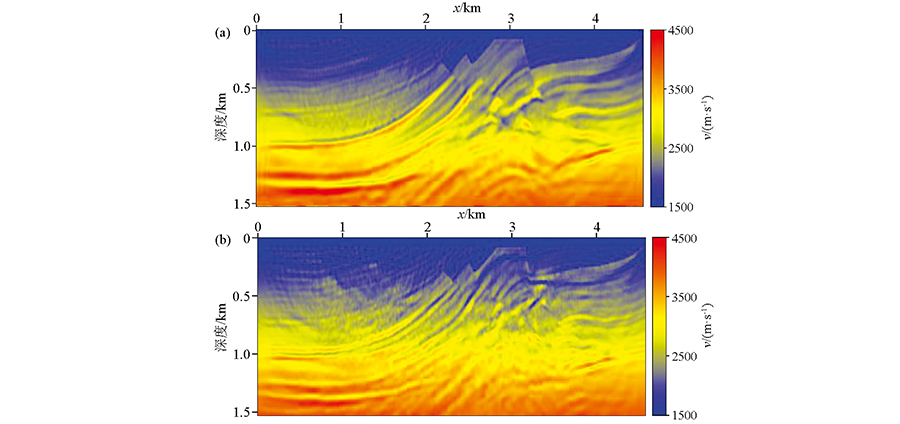

The inversion results for with conventional FWI(a) and FWI using combine source inversion strategy(b)
|
|

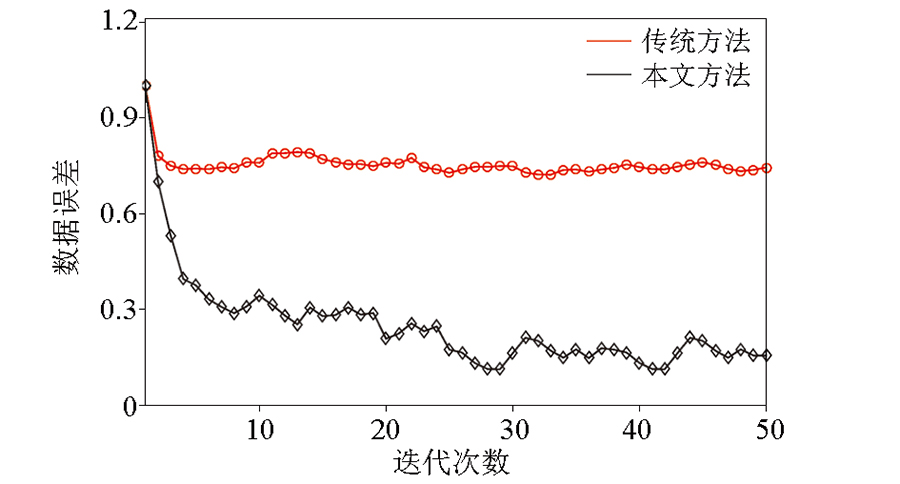

Convergence curves of different multi-source FWIs
|
|
The inversion results with different combined time shift parameter a—combined time shift parameters τ=0.25λ;b—combined time shift parameters τ=1.0λ
|
|

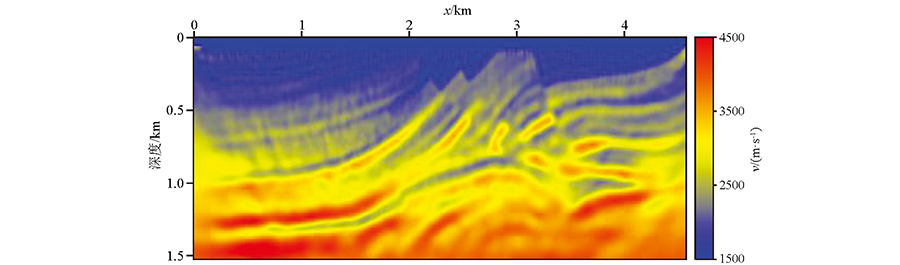

The inversion results using combine-source multi-scale source independent FWI
|
