Speciation and distribution of heavy metals in sediments in Haihe River Basin and their effects on ecological risk assessment |
LI Sheng-Qing |
No. 801 Hydrogeological and Engineering Geological Brigade of Shandong Provincial Bureau of Geology and Mineral Resources,Jinan 250014, China |
|
|
Abstract Since a large amount of domestic and industrial wastewater containing heavy metals has been discharged into the Haihe River Basin, many heavy metals enter the water environment and accumulate in the sediments. Traditional ecological risk assessment methods ignore the speciation and distribution of heavy metals, leading to the low reliability of ecological risk assessment. This study investigated the plain section of the Haihe River Basin and researched the speciation and distribution of heavy metals in the sediments in the Haihe River Basin and carried out the ecological risk assessment. Sediment samples were collected at the collection points deployed in the Haihe River Basin. Afterward, the samples were processed using mixed acids at the laboratory. Then, the contents of heavy metals in the samples were determined using atomic absorption spectrometry, and the speciation and distribution of heavy metals in the sediments were analyzed. For the ecological risk assessment, abundance calculation was adopted to improve the ecological risk assessment indices and design the ecological risk assessment standard of heavy metals. The experimental results show that the obtained evaluation of the sampling points and various heavy metals were closer to the actual situation, has higher reliability, and displayed better evaluation performance compared to results obtained using traditional assessment methods.
|
Received: 05 February 2021
Published: 21 June 2022
|
|
|
|
|
|

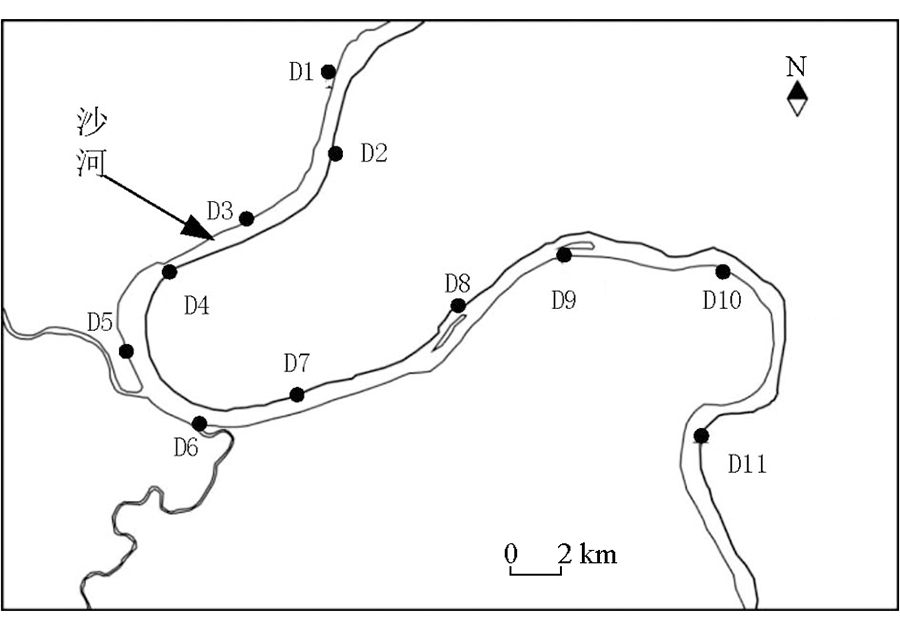

Schematic diagram of the distribution of sampling points
|
采样点编号 | 坐标 | 北纬 | 东经 | D1 | 39°51'52″ | 114°59'26″ | D2 | 38°28'26″ | 114°53'58″ | D3 | 39°53'54″ | 114°37'39″ | D4 | 37°14'25″ | 115°23'52″ | D5 | 36°26'53″ | 115°24'57″ | D6 | 38°58'33″ | 115°32'46″ | D7 | 39°34'32″ | 115°27'58″ | D8 | 36°54'35″ | 114°39'42″ | D9 | 37°31'41″ | 115°44'76″ |
|
Coordinates of sampling points
|
采样点 编号 | 重金属元素含量/10-6 | 铬 | 镉 | 砷 | 铅 | 汞 | D1 | 63.5 | 0.36 | 192.3 | 112.3 | 0.36 | D2 | 72.3 | 0.58 | 132.4 | 103.6 | 0.34 | D3 | 51.6 | 1.22 | 241.5 | 122.4 | 0.51 | D4 | 77.3 | 0.49 | 203.6 | 159.5 | 0.29 | D5 | 108.3 | 0.68 | 125.6 | 114.3 | 0.59 | D6 | 54.3 | 0.91 | 144.7 | 126.3 | 0.67 | D7 | 166.8 | 1.32 | 156.8 | 142.8 | 0.84 | D8 | 553.5 | 0.97 | 165.4 | 114.7 | 0.61 | D9 | 221.3 | 0.42 | 177.3 | 135.0 | 0.55 | 平均值 | 152.1 | 0.77 | 171.1 | 125.7 | 0.53 | 背景值[12] | 60 | 0.5 | 15 | 25 | 0.25 |
|
Results of determination of heavy metal content in samples at 40 cm of the sediment
|
|

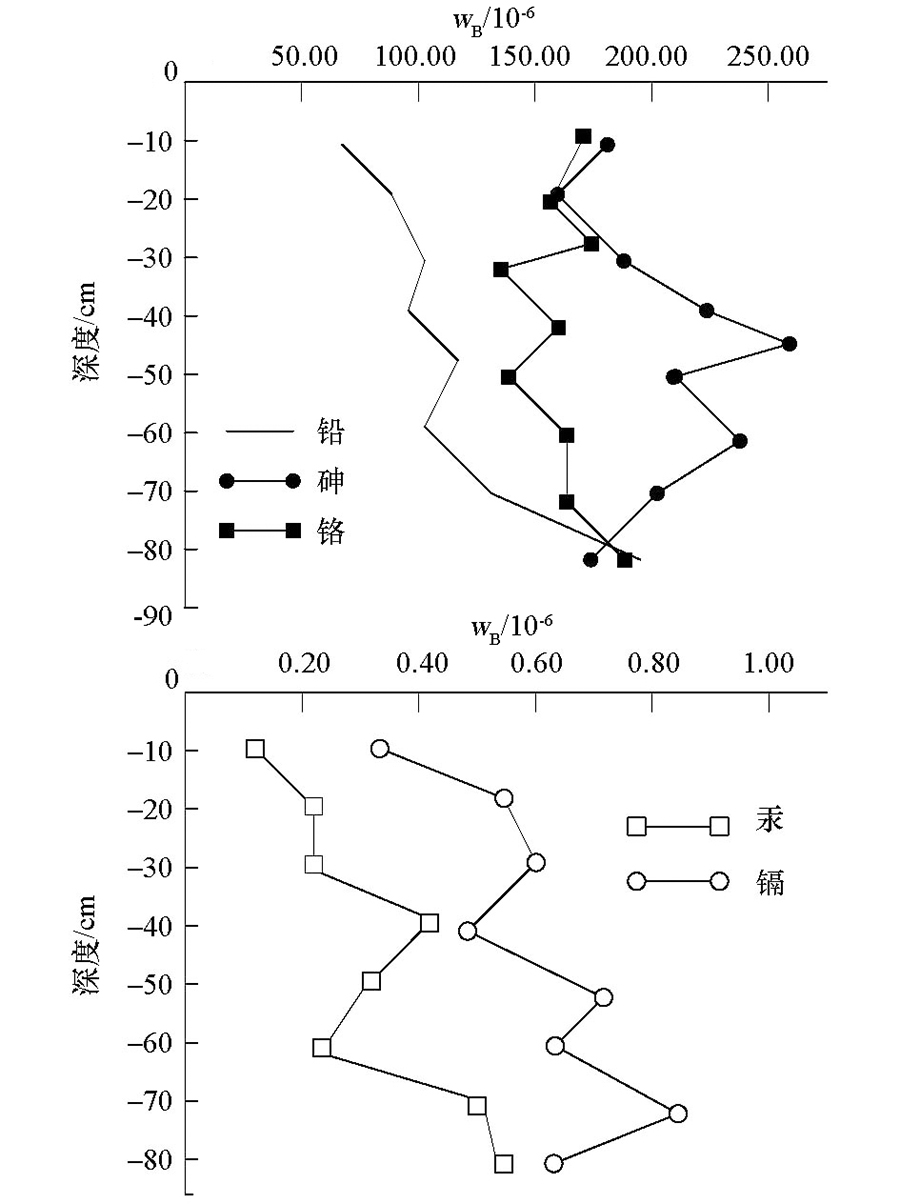

Vertical distribution characteristics of heavy metals
|
风险评估等级 | 潜在生态风险评估指数 | 污染程度 | Z | <5 | 无污染 | Ⅰ | 10~20 | 极轻度污染 | Ⅱ | 20~40 | 轻度污染 | Ⅲ | 40~80 | 中度污染 | Ⅳ | 80~160 | 强污染 | Ⅴ | 160~320 | 极强污染 | Ⅵ | ≥320 | 严重污染 |
|
Classification of heavy metal ecological risk assessment standards
|
采样点编号 | 重金属元素含量/10-6 | 铬 | 镉 | 砷 | 铅 | 汞 | ① | 77.2 | 0.56 | 106.3 | 112.3 | 0.15 | ② | 66.7 | 0.82 | 89.6 | 103.7 | 0.28 | ③ | 43.8 | 1.08 | 92.5 | 122.4 | 0.33 | ④ | 58.3 | 0.66 | 117.3 | 159.5 | 0.34 | ⑤ | 99.5 | 0.89 | 159.7 | 114.3 | 0.29 | 平均值 | 69.1 | 0.80 | 113.1 | 122.4 | 0.28 | 背景值[12] | 44 | 0.6 | 70 | 48 | 0.30 |
|
Results of determination of heavy metal content in samples at 40 cm of sediment in the experimental watershed
|
采样点 | 传统方法 | 本文方法 | 铬 | 镉 | 砷 | 铅 | 汞 | 铬 | 镉 | 砷 | 铅 | 汞 | ① | Ⅲ | Ⅰ | Ⅴ | Ⅵ | Ⅴ | Ⅱ | Z | Ⅲ | Ⅲ | Z | ② | Ⅱ | Ⅲ | Ⅲ | Ⅱ | Ⅰ | Ⅰ | Ⅰ | Ⅱ | Ⅳ | Z | ③ | Ⅱ | Ⅲ | Ⅲ | Ⅲ | Ⅲ | Z | Ⅱ | Ⅱ | Ⅲ | Ⅰ | ④ | Ⅳ | Ⅱ | Ⅱ | Ⅱ | Ⅱ | Ⅰ | Ⅰ | Ⅲ | Ⅴ | Ⅰ | ⑤ | Ⅲ | Ⅳ | Ⅳ | Ⅱ | Ⅱ | Ⅲ | Ⅱ | Ⅳ | Ⅳ | Z |
|
Comparison of the evaluation results of the two evaluation methods
|
[1] |
向语兮, 王晓, 单保庆, 等. 白洋淀表层沉积物重金属形态分布特征及生态风险评价[J]. 环境科学学报, 2020, 40(6):309-318.
|
[1] |
Xiang Y X, Wang X, Shan B Q, et al. Distribution characteristics and ecological risk assessment of heavy metals in surface sediments of Baiyangdian Lake[J]. Acta Scientiae Circumstantiae, 2020, 40(6): 309-318.
|
[2] |
刘刚, 范博博, 王育来, 等. 引江济淮输水通道派河沉积物重金属形态分布特征及生态风险评价[J]. 安徽农业科学, 2019, 47(4):98-102.
|
[2] |
Liu G, Fan B B, Wang Y L, et al. Distribution characteristics and ecological risk assessment of heavy metals in the sediments of Paihe in the water diversion channel from the Yangtze River to the Huaihe River[J]. Journal of Anhui Agricultural Sciences, 2019, 47(4): 98-102.
|
[3] |
Al-Saady Y I, Al-Obaydi M M, Othman A A, et al. Distribution pattern of heavy minerals assemblages in recent sediments of Lesser Zab River Basin (LZRB), NE Iraq[J]. Environmental Earth Sciences, 2021, 80(4): 155-159.
|
[4] |
万瑞安, 胡恭任, 韩璐, 等. 厦门西港近岸海域柱状沉积物重金属形态分布及生态风险评价[J]. 华侨大学学报:自然科学版, 2019, 40(4):515-521.
|
[4] |
Wan R A, Hu G R, Han L, et al. Distribution and ecological risk assessment of heavy metals in columnar sediments in the coastal waters of Xigang, Xiamen[J]. Journal of Huaqiao University:Natural Science Edition, 2019, 40(4): 515-521.
|
[5] |
李宏伟, 张彦峰, 阳金希, 等. 海河流域沉积物中典型重金属的生态风险评估及验证[J]. 生态毒理学报, 2020, 15(2):154-164.
|
[5] |
Li H W, Zhang Y F, Yang J X, et al. Ecological risk assessment and verification of typical heavy metals in the sediments of the Haihe River Basin[J]. Journal of Ecotoxicology, 2020, 15(2): 154-164.
|
[6] |
赵斌, 朱四喜, 杨秀琴, 等. 草海湖沉积物中重金属污染现状及生态风险评价[J]. 环境科学研究, 2019, 32(2):235-245.
|
[6] |
Zhao B, Zhu S X, Yang X Q, et al. Pollution status of heavy metals in Caohai Lake sediments and ecological risk assessment[J]. Environmental Science Research, 2019, 32(2): 235-245.
|
[7] |
李政, 陈虎林, 余璨, 等. 拉萨河表层沉积物重金属时空分布特征及生态风险评价[J]. 高原科学研究, 2019, 3(1):64-76,119.
|
[7] |
Li Z, Chen H L, Yu C, et al. Temporal and spatial distribution characteristics of heavy metals in surface sediments of Lhasa River and ecological risk assessment[J]. Plateau Science Research, 2019, 3(1): 64-76,119.
|
[8] |
赵艳民, 秦延文, 曹伟, 等. 洞庭湖表层沉积物重金属赋存形态及生态风险评价[J]. 环境科学研究, 2020, 33(3):60-68.
|
[8] |
Zhao Y M, Qin Y W, Cao W, et al. Occurrence forms and ecological risk assessment of heavy metals in surface sediments of Dongting Lake[J]. Environmental Science Research, 2020, 33(3): 60-68.
|
[9] |
刘蔚怡, 孟媛, 靳百川, 等. ICP-OES研究北运河表层沉积物中重金属的空间分布特征及生态风险评价[J]. 光谱学与光谱分析, 2020, 40(12):3912-3918.
|
[9] |
Liu W Y, Meng Y, Jin B C, et al. ICP-OES research on the spatial distribution characteristics and ecological risk assessment of heavy metals in the surface sediments of the North Canal[J]. Spectroscopy and Spectral Analysis, 2020, 40(12): 3912-3918.
|
[10] |
Choleva T G, Tsogas G Z, Giokas D L. Determination of silver nanoparticles by atomic absorption spectrometry after dispersive suspended microextraction followed by oxidative dissolution back-extraction[J]. Talanta, 2019, 196: 255-261.
|
[11] |
杨辉, 王书言, 黄继勇, 等. 同时检测土壤中铅镉铬汞砷重金属元素含量方法的优化[J]. 河南科技大学学报:自然科学版, 2020, 41(1):74-79,9.
|
[11] |
Yang H, Wang S Y, Huang J Y, et al. Optimization of methods for simultaneous determination of Pb, Cd, Cr, Hg, and As heavy metal elements in soil[J]. Journal of Henan University of Science and Technology:Natural Science Edition, 2020, 41(1): 74-79,9.
|
[12] |
李艳玲, 陈卫平, 杨阳, 等. 济源市平原区农田重金属污染特征及综合风险评估[J]. 环境科学学报, 2020, 40(6):2229-2236.
|
[12] |
Li Y L, Chen W P, Yang Y, et al. Heavy metal pollution characteristics and comprehensive risk assessment of farmland in the plain area of Jiyuan City[J]. Acta Scientiae Circumstantiae, 2020, 40(6): 2229-2236.
|
[13] |
陈朝述, 李艺, 何梅, 等. 广西马尾河沉积物重金属赋存形态及其风险特征研究[J]. 生态环境学报, 2019, 28(9):1850-1858.
|
[13] |
Chen C S, Li Y, He M, et al. Study on the occurrence and risk characteristics of heavy metals in the sediments of Mawei River in Guangxi[J]. Acta Eco-Environmental Sciences, 2019, 28(9): 1850-1858.
|
[14] |
李波, 喻庆国, 危锋, 等. 滇西北剑湖表层沉积物重金属分布特征和生态风险[J]. 环境污染与防治, 2019, 41(4):468-473.
|
[14] |
Li B, Yu Q G, Wei F, et al. Distribution characteristics and ecological risks of heavy metals in the surface sediments of Jianhu Lake, Northwestern Yunnan[J]. Environmental Pollution & Control, 2019, 41(4): 468-473.
|
[15] |
孙康康, 董旭辉. 广州市流花湖沉积物重金属污染特征及潜在生态风险评估[J]. 亚热带水土保持, 2020, 32(1):19-26.
|
[15] |
Sun K K, Dong X H. Heavy metal pollution characteristics and potential ecological risk assessment of sediments in Liuhua Lake, Guangzhou[J]. Subtropical Soil and Water Conservation, 2020, 32(1): 19-26.
|
[16] |
Ojekunle O Z, Ojekunle O V, Adeyemi A A, et al. Evaluation of surface water quality indices and ecological risk assessment for heavy metals in scrap yard neighbourhood[J]. SpringerPlus, 2016, 5(1): 1-16.
|
[17] |
Huang L, Rad S, Xu L, et al. Heavy metals distribution, sources, and ecological risk assessment in Huixian wetland, South China[J]. Water, 2020, 12(2): 431-437.
|
[18] |
Keshavarzi A, Kumar V. Ecological risk assessment and source apportionment of heavy metal contamination in agricultural soils of Northeastern Iran[J]. International journal of environmental health research, 2019, 29(5): 544-560.
|
