基于压电效应的大地极化声子模拟研究

doi:10.11720/wtyht.2021.1279

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (904 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Geodetic polarization exploration technology is a passive source geophysical electromagnetic exploration method using natural electromagnetic radiation. Based on the piezoelectric effect of rock, the expression of electromagnetic radiation produced in the process of rock fracturing was derived. The influence factors of electromagnetic radiation frequency were analyzed, and the frequency response characteristics of electromagnetic radiation from fracturing were studied by numerical simulation. The results show that the geodetic polarization exploration technology based on the piezoelectric effect of rock has similar electromagnetic response characteristics to other electromagnetic detection methods, and the geodetic polarization exploration technology has potential application value.

Key words： geodetic polarization piezoelectric effect electromagnetic radiation forward modeling

Received: 27 May 2020 Published: 27 July 2021

ZTFLH:

P631

Corresponding Authors: YAN Jia-Bin E-mail: wuyangcsu@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yang WU
	Jia-Bin YAN

Cite this article:

Yang WU,Jia-Bin YAN. A study of the simulation of geodetic polarization based on piezoelectric effect[J]. Geophysical and Geochemical Exploration, 2021, 45(3): 742-749.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.1279 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I3/742

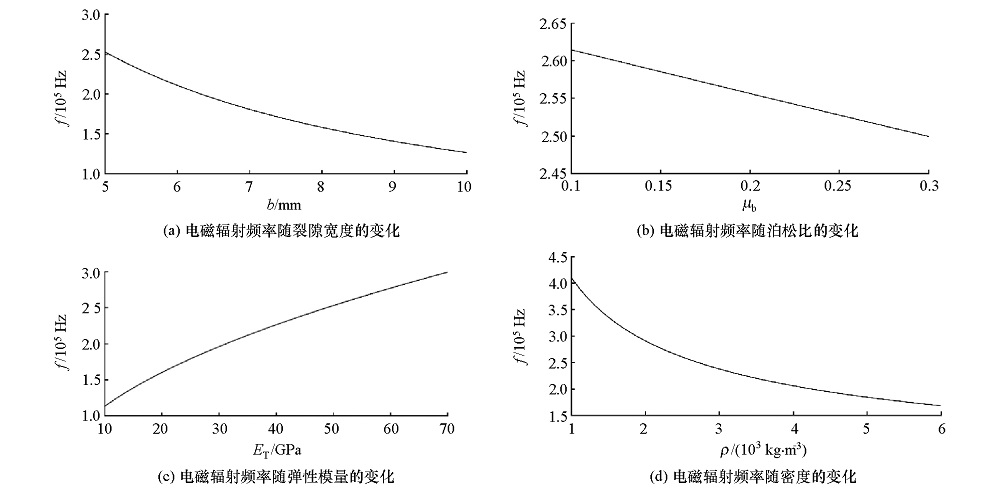

Variation curve of electromagnetic radiation frequency with rock parameters

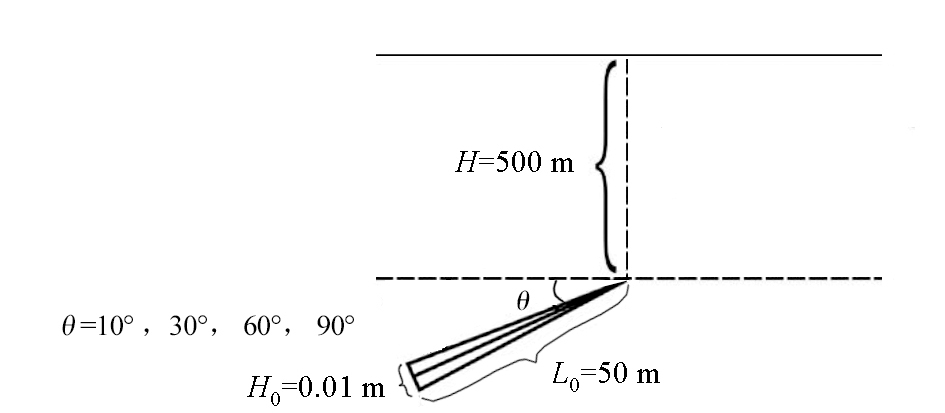

Schematic diagram of inclined fracture model

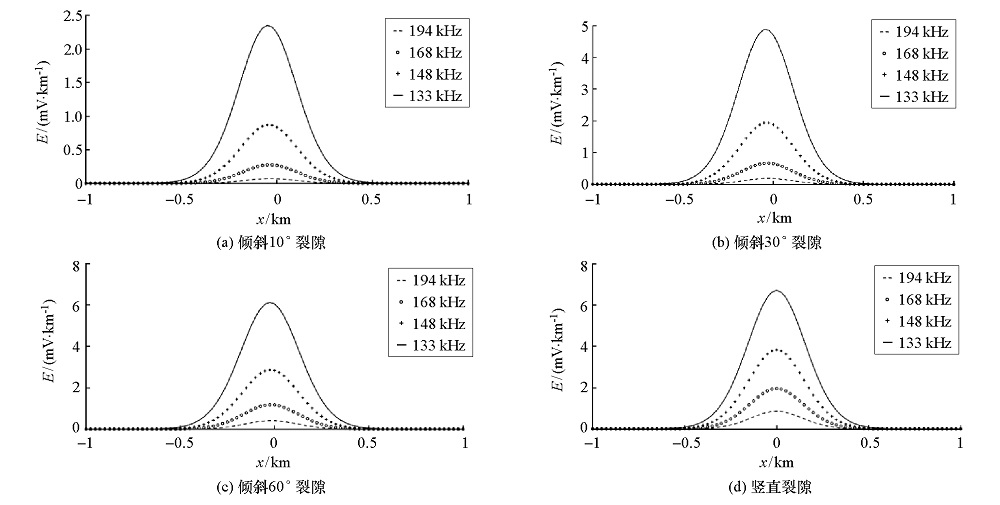

The electric field amplitude of the fissure varies with the inclination angle

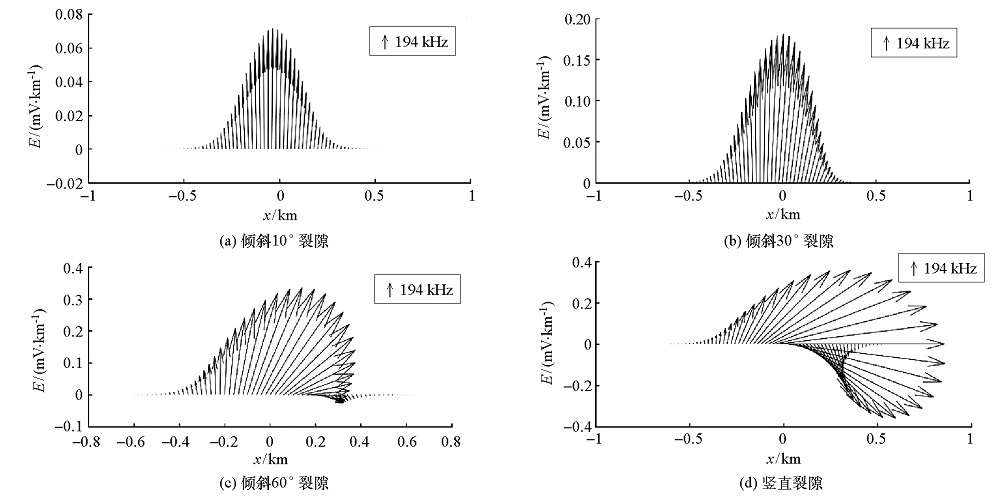

Crack electric field vector changes with inclination angle

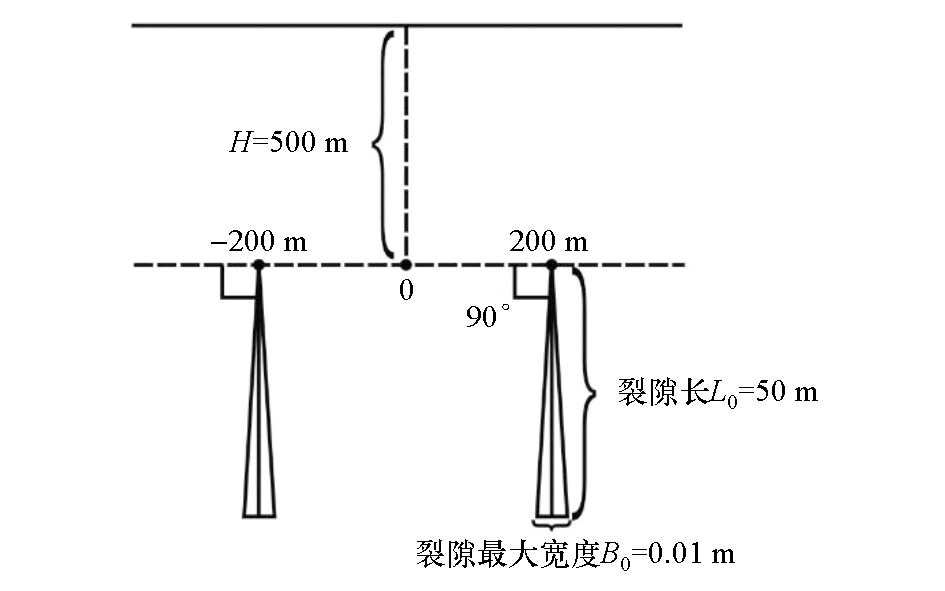

Schematic diagram of combined fracture model

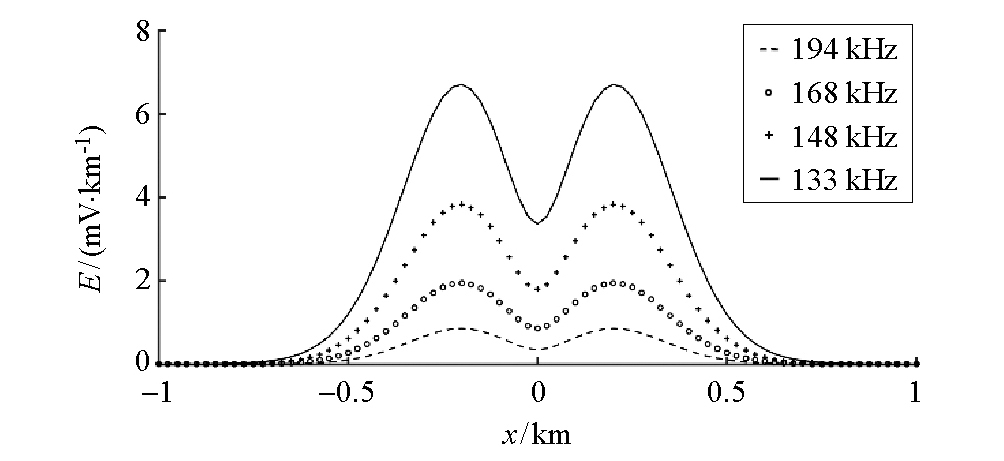

The electric field amplitude of the combined fracture

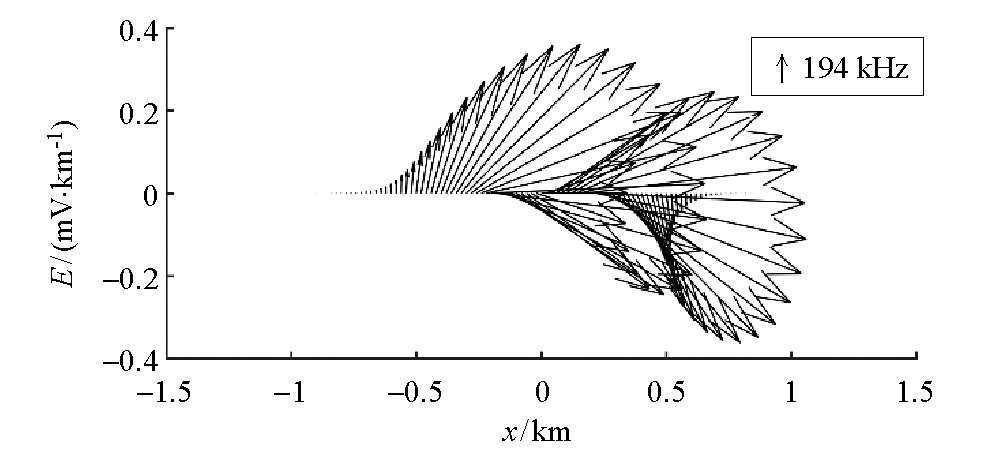

Electric field vector of combined fracture
