| Joint application of surface nuclear magnetic resonance and high-density resistivity method in the exploration of potassium ore in salt lake brine in Tibet |
HE Sheng1,2,3,4( ), MA Wen-Xin3,4, GAN Bin1,2 |
1. Qinghai Bureau of Environmental Geological Exploration, Xining 810008,China
2. Qinghai Provincial Key Laboratory of Environment and Geology, Xining 810008,China
3. Qinghai 906 Engineering Survey and Design Institute, Xining 810008,China
4. Qinghai Institute of Geology and Environment, Xining 810008,China |
|
|
|
|
Abstract Surface nuclear magnetic resonance (SNMR) can be used to directly find groundwater (brine), and the high-density resistivity method is suitable to distinguish brine from fresh water. This study introduces the joint exploration using the above two geophysical methods in two major salt lake study areas in Tibet-Chagcam Caka and Chalico salt lakes, in order to make full use of the advantages of the two methods while avoiding the limitations and one sidedness of a single method. As a result, the distribution of underground brine in the two salt lakes was identified, thus providing a basis for the overall layout of the exploration and development of potassium ore in brine in the two salt lakes. Furthermore, the joint exploration results of the two geophysical methods were highly consistent with the geological survey results of shallow wells. It can be concluded that the joint application of the above two geophysical methods in Tibet serves as an efficient and accurate exploration mode for the exploration of underground brine.
|
|
Received: 04 January 2021
Published: 21 December 2021
|
|
|
|
|
|
|

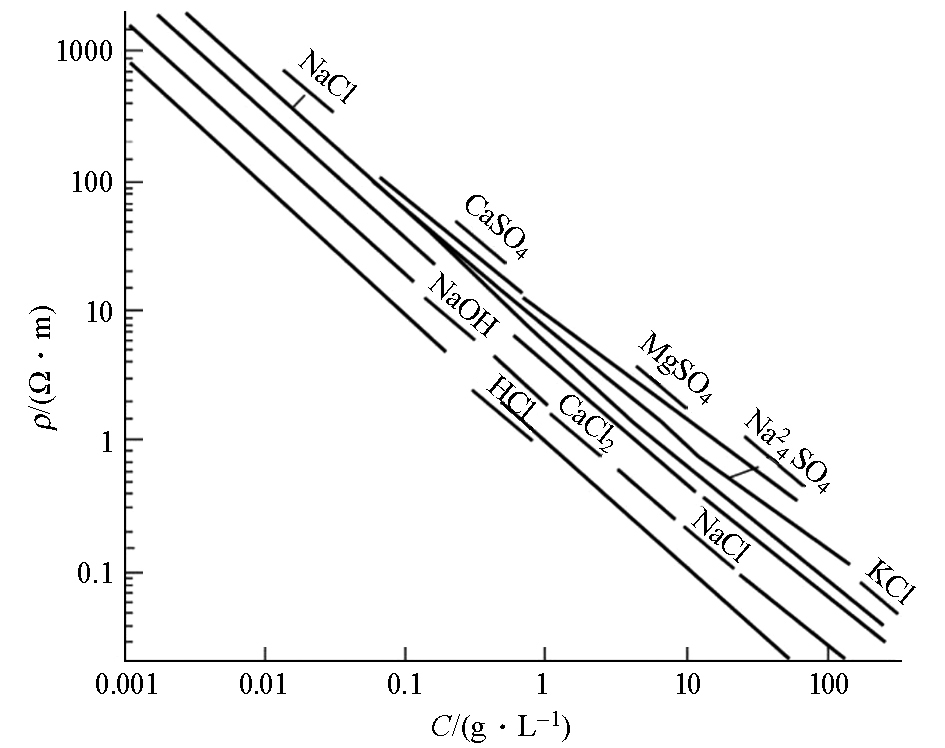

The relationship between resistivity of various solutions and their mineralization degree
(according to B.H. Dakhonov)
|
|

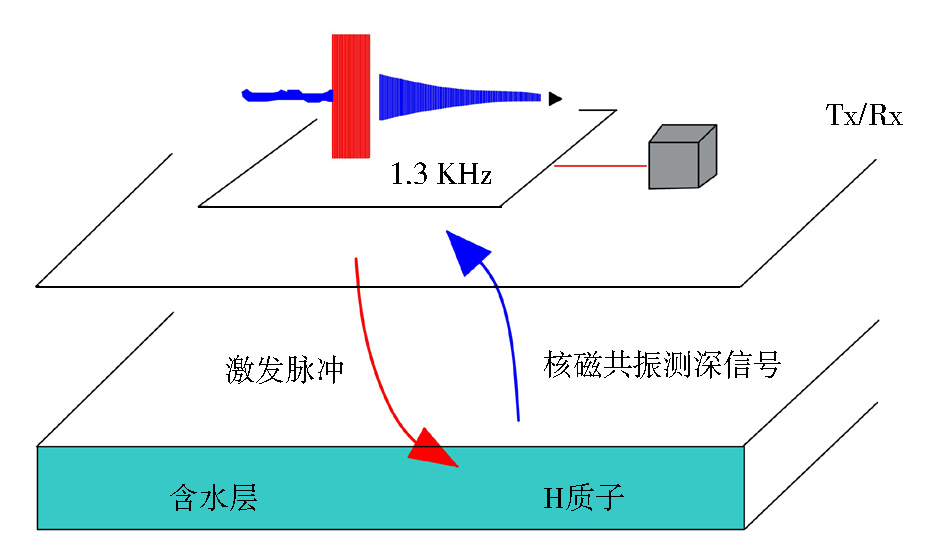

The working principle of SNMR water
|
|

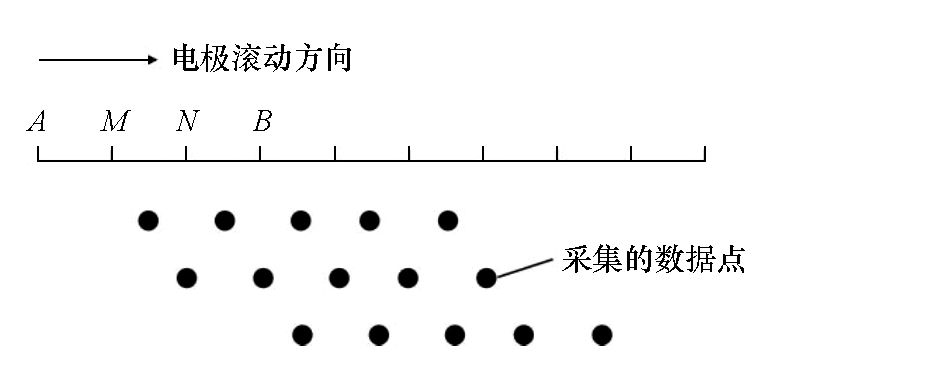

Schematic view of electrode arramgement in high-density electrical method
|
|
Working layout of Zhacangchaka salt lake
|
|
Working layout of Chalicuo salt lake
|
|
Comprehensive result map of electrical resistvity imaging 1 Section
|
|

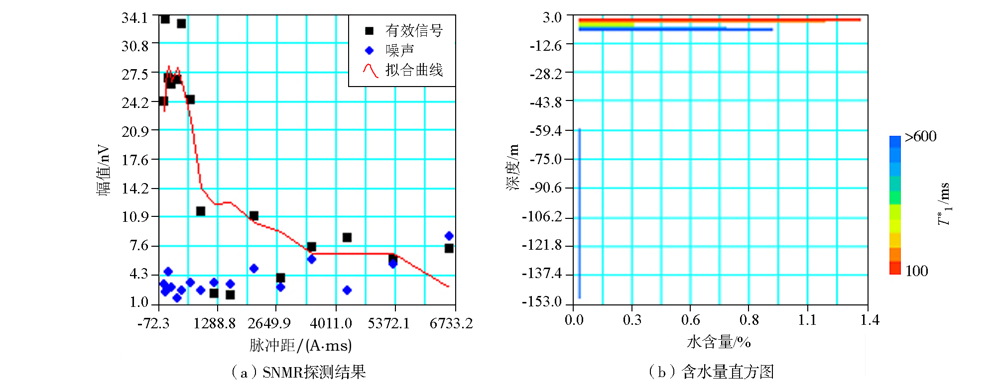

Comprehensive result map of SNMR site 1
|
|

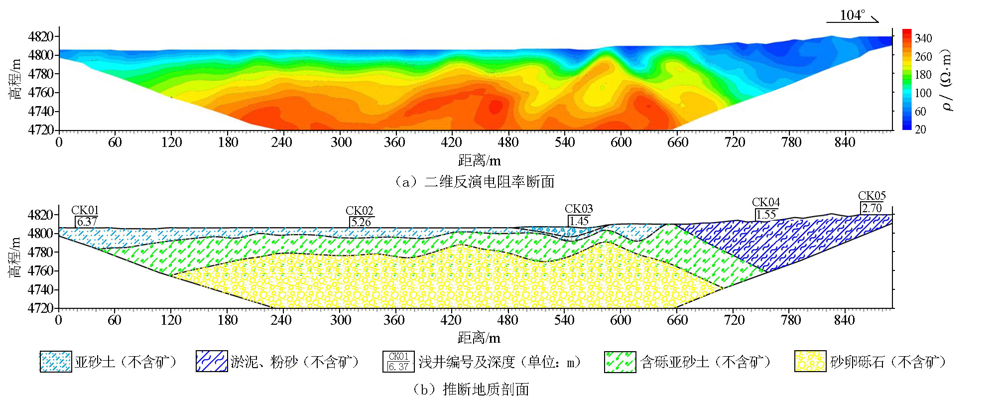

Comprehensive result map of electrical resistvity imaging 2 Section
|
|

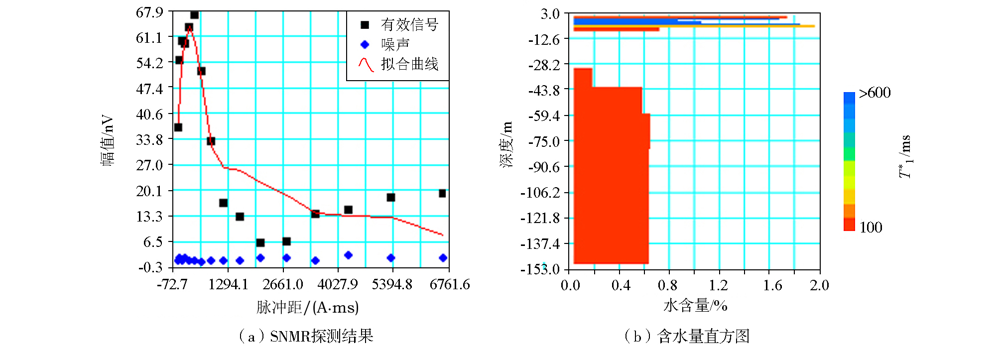

Comprehensive result map of SNMR site 2
|
| 盐湖 | 浅井编号 | 岩性 | 结果 | | 扎仓茶卡盐湖 | ZK01 | 0~1.35 m,砂砾层;1.35~2.13 m,硼砂、芒硝层;2.13~5.32 m,淤泥、粉砂层 | 晶间卤水:KCl,27 799 mg/L;
LiCl,3 583 mg/L;B2O3,2 193 mg/L | | ZK02 | 0~1.5 m,人工堆积含硼镁石砂层;1.5~1.95 m,黏土质砂层;1.95~2.18 m,淤泥层 | 未达到边界品位 | | 茶里错盐湖 | CK01 | 0~0.21 m,含盐类亚砂土层;0.21~1.23 m,砂质黏土与腐殖土互层;1.23~2.02 m,淤泥层、冻土层;2.02~6.37 m,亚砂土 | 未达到边界品位 | | CK02 | 0~0.18 m,含盐类亚砂土层;0.18~1.65 m,砂质黏土与腐殖土互层;1.65~2.24 m,淤泥层、冻土层;2.24~5.26 m,亚砂土 | 未达到边界品位 | | CK03 | 0~1.45 m,砾砂层 | 未达到边界品位 | | CK04 | 0~0.97 m,淤泥质粉砂层;0.97~1.55 m,淤泥层 | 未达到边界品位 | | CK05 | 0~0.35 m,含盐类砂质黏土;0.35~2.70 m,砂质黏土与腐殖土互层 | 未达到边界品位 |
|
Statistical table of geological shallow well data in study area
|
