高密度电阻率法在弃渣堆积体分布调查中的应用

doi:10.11720/wtyht.2020.1387

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4042 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In the construction of large-scale hydropower stations, a large amount of waste slag is produced and is often deposited in the nearby site, thus forming a large scale waste accumulation body. Under the condition that the thickness and trend of the slag accumulation body are not ascertained, the excessive heap load will easily cause the collapse accident, so it is very important to investigate the distribution of the slag accumulation body. In this paper, the high density resistivity method was used as the main method, and the high density resistivity method was used to verify the abnormal area and key position of the electrical method. At the same time, drilling holes were arranged at the site for comparative analysis. The results show that the high density electrical processing results are in good agreement with the results of transient Rayleigh surface wave method and borehole data. Through this investigation, the authors basically detected the distribution of abandoned slag deposits. High density electrical method and transient Rayleigh surface wave method are effective methods for investigating slag deposits.

Key words： hydropower station waste slag accumulation body high density resistivity method transient Rayleigh wave method drill hole

Received: 27 July 2019 Published: 22 April 2020

P631

Corresponding Authors: Zhen-Ping HUANG E-mail: zhphuang@126.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yi-Huang XU
	Zhen-Ping HUANG
	Zhi-Wei CHENG
	Shao-Bo CHEN
	Zhan-Ming CHEN

Cite this article:

Yi-Huang XU,Zhen-Ping HUANG,Zhi-Wei CHENG, et al. The application of high density electrical resistivity method to the investigation of the distribution of slag accumulation in hydropower station[J]. Geophysical and Geochemical Exploration, 2020, 44(2): 435-440.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1387 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I2/435

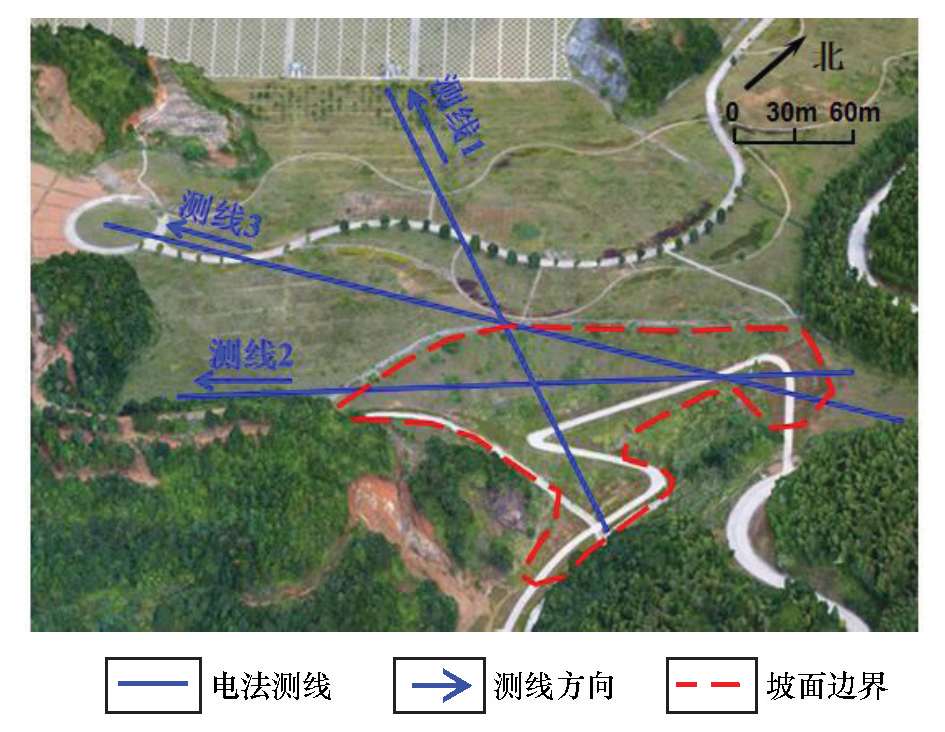

Terrain and survey line layout

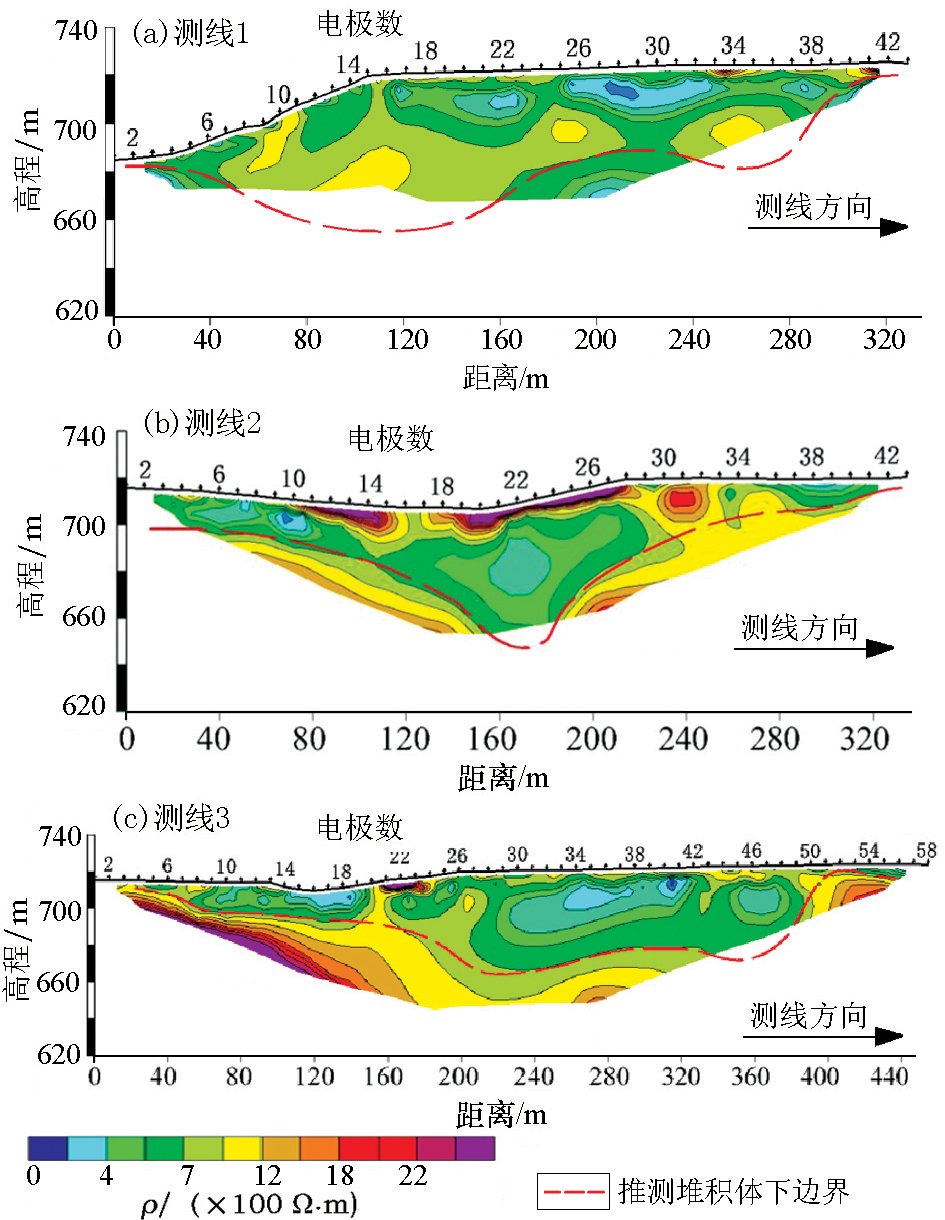

Inversion resistivity profile of 3 survey lines

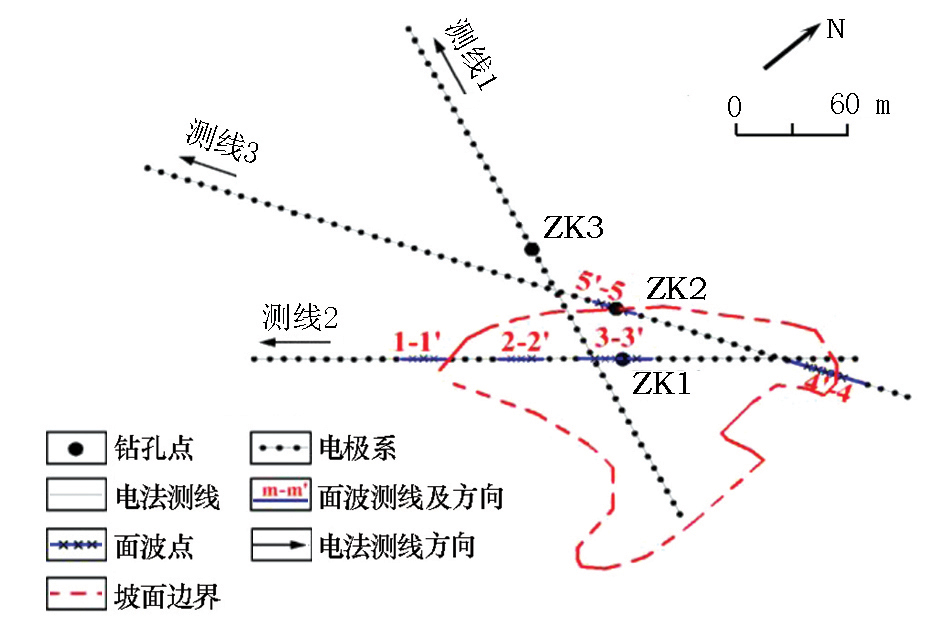

Schematic diagram of surface wave measuring line and drilling arrangement

Layout parameter table of surface wave observation system

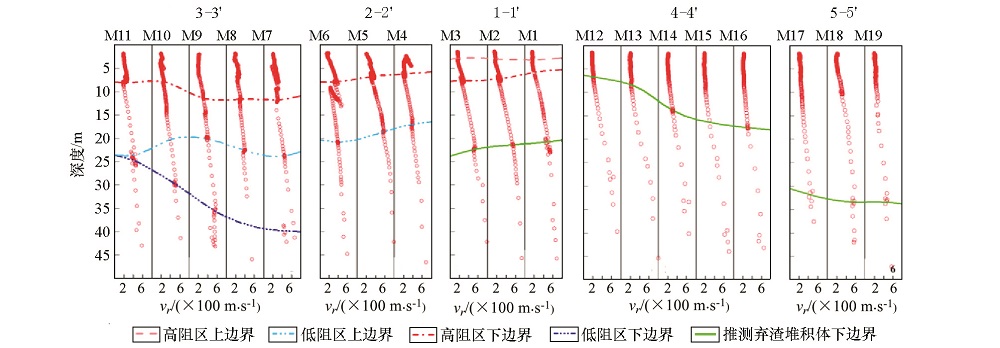

The surface wave point frequency scatter diagram

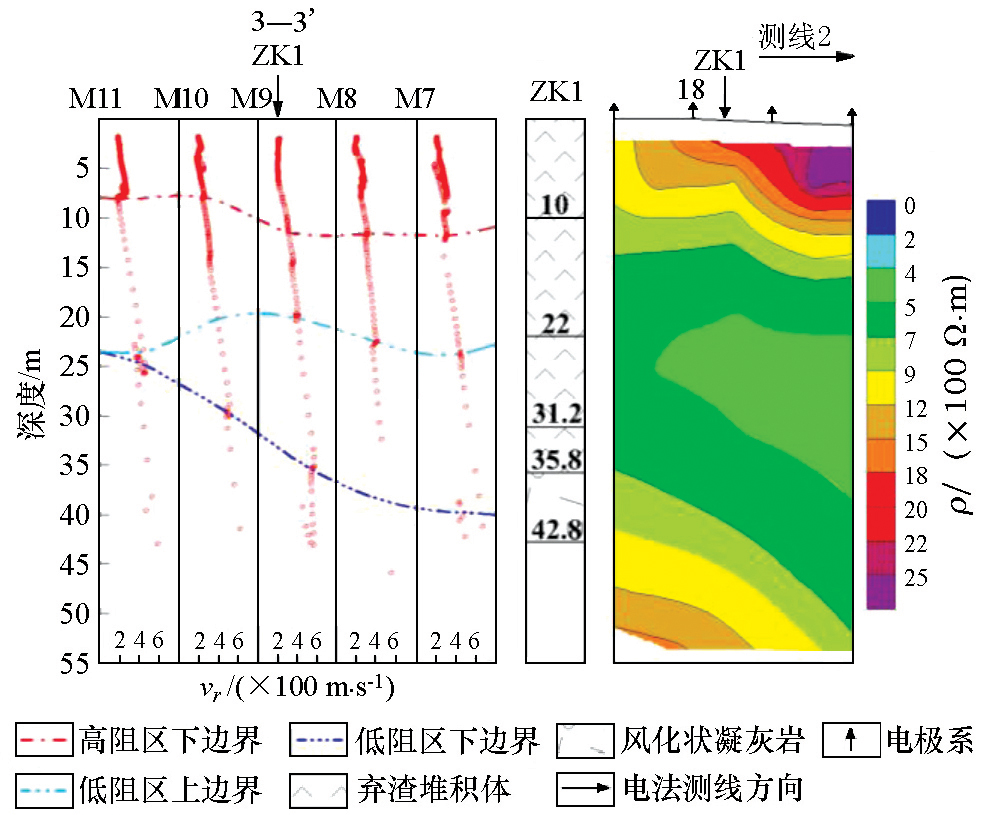

Comparison of borehole data and geophysical data at ZK1

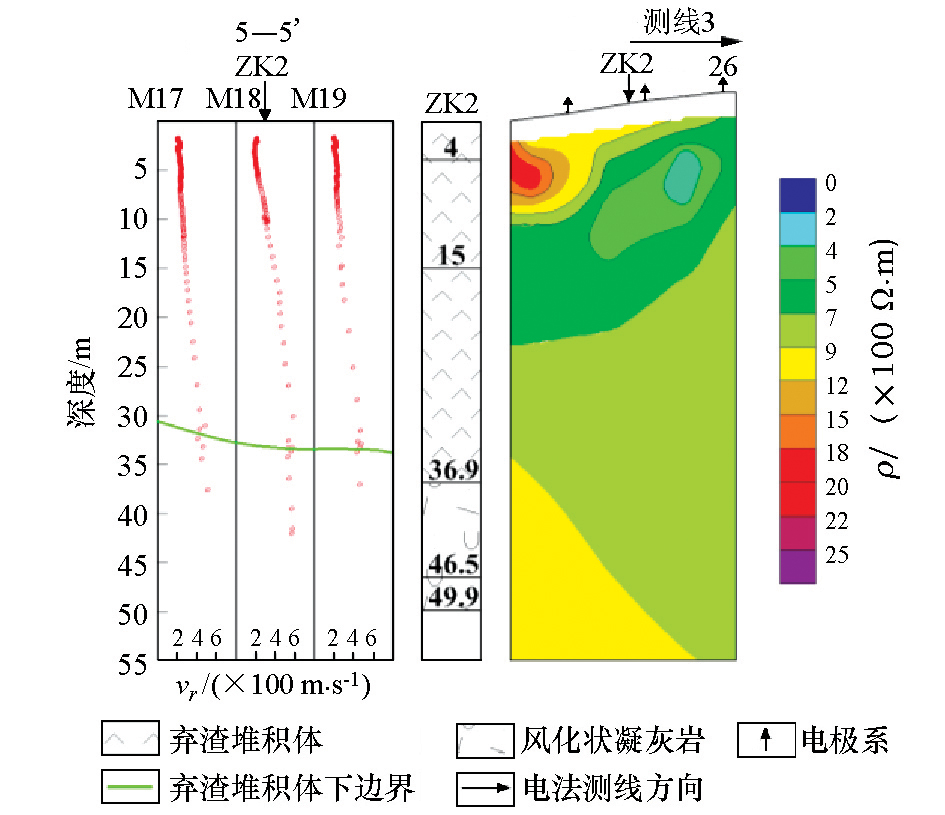

Comparison of borehole data and geophysical data at ZK2

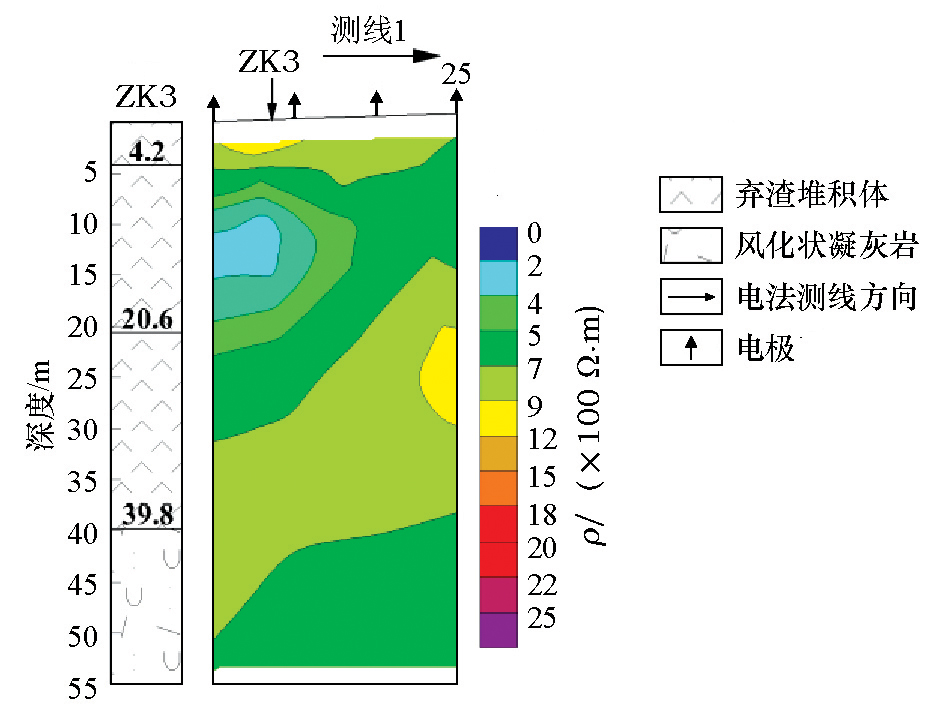

Comparison of borehole data and geophysical data at ZK3
