河南省西簧钒矿岩石地球化学特征及矿床成因

doi:10.11720/wtyht.2020.1110

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (3497 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Xihuang vanadium deposit is located in the black rock series of the lower Cambrian Shuigoukou Formation in southern Qinling Mountain. The orebody is large, and the ore-bearing horizon and grade are relatively stable. The ore types are mainly carbonaceous mudstone and siliceous mudstone. The analysis of petro-geochemical elements and REE indicates that the vanadium deposit was formed in the hypoxic reductive environment from the continental margin to the deep sea, and the rock material source came from sea water, hydrothermal jet and terrigenous debris, with the biological activity playing an important role in the aggregation and precipitation of the vanadium deposit. Based on the comprehensive geological and geochemical characteristics, it is concluded that the vanadium deposit belongs to the biogenesis of hot water deposition, and that the vanadium deposit should be of biological and hydrothermal sedimentary origin.

Key words： vanadium deposit geochemical characteristics genesis

Received: 04 March 2019 Published: 26 October 2020

:	P618.61
	P632

Corresponding Authors: WANG Jie E-mail: 43571649@qq.com;404817633@qq.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiao-Gao WANG
	Ying-Chao WANG
	Bao-Cheng CHENG
	Yong-Qian YANG
	Jie WANG
	Peng CHEN

Cite this article:

Xiao-Gao WANG,Ying-Chao WANG,Bao-Cheng CHENG, et al. Rock geochemical characteristics and genesis of the Xihuang vanadium deposit in Henan Province[J]. Geophysical and Geochemical Exploration, 2020, 44(5): 1116-1124.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1110 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I5/1116

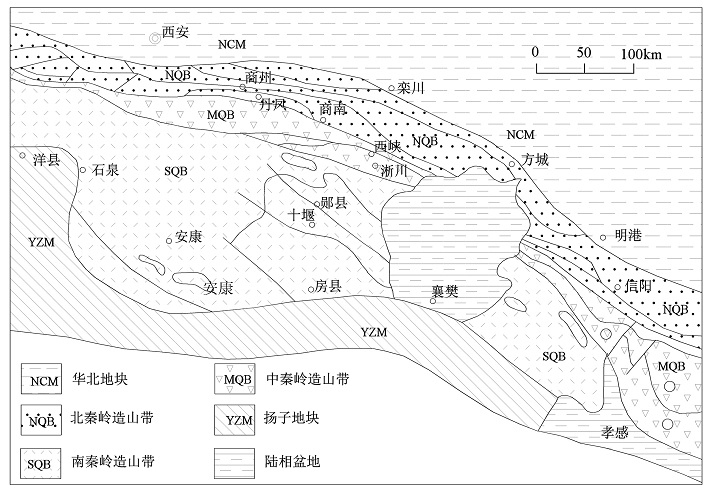

The regional geologic structure(revised according to reference[10])

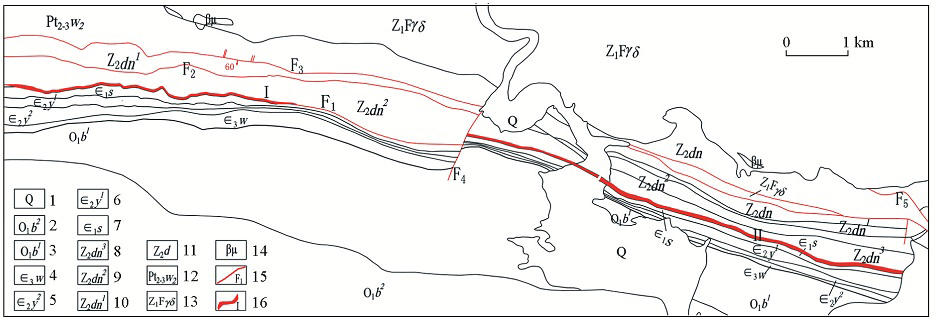

Geological sketch of the Xihuang vanadium deposit
1—Quaternary; 2—Ordovician second section in Bailongmiao formation; 3—Ordovician first section in Bailongmiao formation; 4—Cambrian Wugongya formation; 5—Cambrian second section in Yuejiaping formation; 6—Cambrian first section in Yuejiaping formation; 7—Cambrian Shuigoukou formation; 8—Sinian third section in Dengying formation; 9—Sinian second section in Dengying formation 2; 10—Sinian first section in Dengying formation; 11—Sinian Doushantuo formation; 12—upper rock formation of Mesoproterozoic Wudang group; 13—Sinian Fengzishan granodiorite; 14—diabase vein; 15—fault and its number; 16—ore body and number

Lithological feature of strata exposed in Xihuang district

The photograph of clay rocks(a) and siliceous rocks(b) under the microscope

Petrochemical analysis and related parameters of Xihuang vanadium deposit

REE analyses and relavent parameters in Xihuang area

24])
">

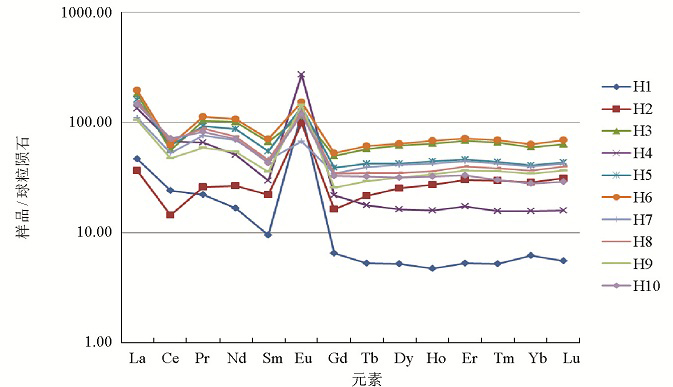

REE distribution patterns of ores in Xihuangvandium deposit(modified from Sun et al^[24])

26])
">

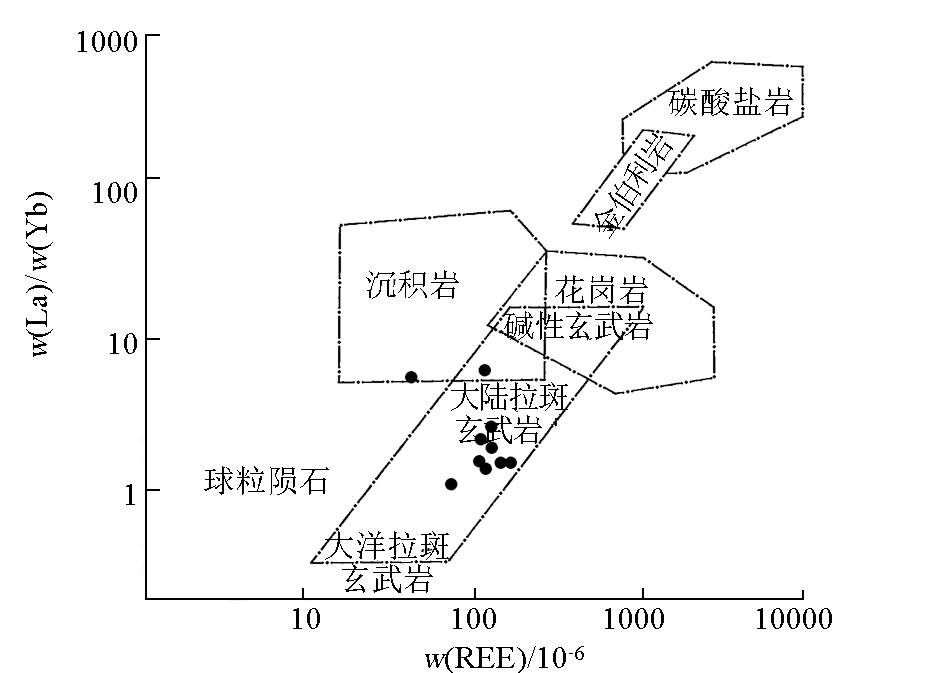

w(La)/w(Yb)-w(REE) diagram for the Xihuang formation black rock series (modified from Allegre et al^[26])

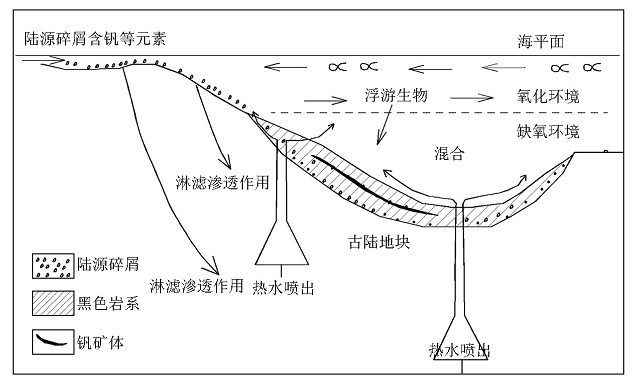

The genetic model of vanadium deposit

[1]	张国伟, 程顺有, 郭安林, 等. 秦岭大别中央造山带南缘勉略古缝合带的的再认识——兼论中国大陆主体的拼合[J]. 地质通报, 2004(S2):846-853.
[1]	Zhang G W, Chen S Y, Guo A L, et al. Mianlue paleo-suture on the southern margin of the Central Orogenic System in Qinling-Dabie with a discussion of the assembly of the main part of the continent of China[J]. Geological Bulletin of China, 2004(S2):846-853.
[2]	王立社, 侯俊富, 张复新, 等. 北秦岭庙湾组黑色岩系稀上元素地球化学特征及成因意义[J]. 地球学报, 2010,31(1):73-82.
[2]	Wang L S, Hou J F, Zhang F X, et al. REE geochemical characteristics of the miaowan formation black rock series in north Qinling mountain and their genetic significance[J]. Acta Geoscientica Sinica, 2010,31(1):73-82.
[3]	杨恩林, 吕新彪, 陈焕, 等. 注溪钒矿床元素地球化学意义[J]. 金属矿山, 2013,42(9):108-112.
[3]	Yang E L, Lyu X B, Chen H, et al. Element geochemical significance of Zhuxi Vanadium deposit[J]. Metal Mine, 2013,42(9):108-112.
[4]	陈明辉, 胡祥昭, 卢兵, 等. 湘西北岩头寨钒矿成矿地质特征及成因[J]. 矿产勘查, 2014,5(5):751-761.
[4]	Chen M H, Hu X Z, Lu B, et al. Metallogenic characteristic and genesis of the Yantouzhai vanadium deposit in the northwestern Hunan[J]. Mineral Exploration, 2014,5(5):751-761.
[5]	侯俊富. 南秦岭下寒武统黑色岩系中金—钒成矿特征及成矿规律[D]. 西安:西北大学, 2008.
[5]	Hou J F. Metallogenetic characteristics and regularities of Au-mineralization in lower cambrian black rock series, southern Qinling moutain,China[D]. Xi’an: Northeast University, 2008.
[6]	朱红周, 侯俊富, 原连肖, 等. 南秦岭千家坪钒矿床钒赋存状态研究[J]. 地质与勘探, 2010,46(4):643-648.
[6]	Zhu H Z, Hou J F, Yuan L X, et al. Study on occurrence of vanadium in the Qianjiaping vanadium deposit of the South Qinling[J]. Geology and Exploration, 2010,46(4):643-648.
[7]	杨剑, 易发成. 黔北下寒武统黑色岩系元素赋存状态及富集模式[J]. 矿物学报, 2012,32(2):281-287.
[7]	Yang J, Yi F C. A study on occurrence modes and enrichment patterns of lower cambrian black shale series in northern Guizhou Province,China[J]. Acta Mineralogica Sinica, 2012,32(2):281-287.
[8]	河南省地矿厅. 河南省岩石地层[M]. 武汉: 中国地质大学出版社, 1997: 200-240.
[8]	Henan Provincial Department of Geology and Minerals. Henan province lithostratigraphy [M]. Wuhan: China University of Geosciences Press, 1997: 200-240.
[9]	张振生, 胡呈祥, 张文昭. 河南省庙咀钒矿地质特征及成矿浅析[J]. 地质找矿论丛, 2014,29(2):217-222.
[9]	Zhang Z S, Hu C X, Zhang W Z. Geological feature and genesis of Miaozui vanadium deposit in Xichuan county,Henan province[J]. Contributions to Geology and Mineral Resources Research, 2014,29(2):217-222.
[10]	任明, 张生奇, 程文厚, 等. 鄂西北下寒武统黑色岩系中的钒矿床[J]. 矿产与地质, 2012,26(4):271-279.
[10]	Ren M, Zhang S Q, Cheng W H, et al. The vanadium deposit in lower Cambrian black rock series in northwest Hubei[J]. Mineral Resources and Geology, 2012,26(4):271-279.
[11]	张智勇. 河南淅川下寒武统水沟口组黑色岩系沉积环境分析[D]. 焦作:河南理工大学, 2012.
[11]	Zhang Z Y. Sedimentary environmental analyses of the lower cambrian Shuigoukou formation black rock series in Xichuan, Henan[D]. Jiaozuo: Henan Polytechnic University, 2012.
[12]	游军, 曹宏远, 张锋军, 等. 南秦岭地区水沟口组黑色岩系地层地球化学特征及其找矿意义[J]. 物探与化探, 2018,42(3):453-460.
[12]	You J, Cao H Y, Zhang F J, et al. Geochemical characteristics of strata of lower Cambrian Shuigoukou Formation in Southern Qinling and their implication for prospecting[J]. Geophysical and Geochemical Exploration, 2018,42(3):453-460.
[13]	吕文献, 周世全, 别建芳. 河南浙川李家湾钒矿床地质特征及成因初步研究[J]. 矿产与地质, 2010,24(3):235-240.
[13]	Lyu W X, Zhou S Q, Bie J F. Study on geological characteristics and genesis of vanadium deposit in Lijiawan, Xichuan country, Henan Province[J]. Mineral Resources and Geology, 2010,24(3):235-240.
[14]	陈孝红, 汪啸风, 毛晓冬. 湘西地区晚震旦世黑色岩系地层层序沉积环境与成因[J]. 地球学报, 1999,20(1):87-95.
[14]	Chen X H, Wang X F, Mao X D. Sequence stratigraphy and depositional enviroments of the late simian-early cambrian black rock series in western Hunan and its origins[J]. Acta Geoscientica Sinica, 1999,20(1):87-95.
[15]	Tavlor S R, Mclenan S M. The Coutinental Crust:Its composition and Evolution[M]. Oxford:Blackwell Scientific Publication, 1985.
[16]	李赛赛, 魏刚锋, 聂江涛, 等. 南秦岭水沟钒矿床地质地球化学特征及成因[J]. 现代地质, 2012,26(2):243-253.
[16]	Li S S, Wen G F, Nie J T, et al. The geological and geochemical characteristics of Shuigou vanadium deposit in southern Qinling and its genesis[J]. Geoscience, 2012,26(2):243-253.
[17]	Jewell P W, Stallard R F. Geochemistrv and paleoceanographic setting of central Nevada bedded barites[J]. Journal of Geology, 1991,99(2):151-170.
[18]	Rangin C, Steinberg M, Bonnot-courtiois C. Geochemistry of the Mesozoic bedded cherts of Central Baja California (Vizcaino-Cedros-San Benito):Implications for paleo geographic reconstruction of an old ocean basin[J]. Earth and Planetary Science Letters, 1981,54(2):313-322.
[19]	Aitchison J C, Flood P. Geochemical constraints on the depositional setting of Paleozoic cherts from the New England orogen,NSW,Eastern Australia[J]. Marine Geology, 1990,94(2):79-95.
[20]	Murray R W, Buchholtz T, Jones D L, et al. Rare earth elements as indicators of different marine depositional environments in chert and shale[J]. Geology, 1990,18:268-271.
[21]	施春华, 曹剑, 胡凯. 等. 黑色岩系矿床成因及其海水、热水与生物有机成矿作用[J]. 地学前缘, 2013,20(1):19-31.
[21]	Shi C H, Cao J, Hu K, et al. A review of origins of mineral deposits hosted in black rock series and the mineralizing functions of their sea water, hydrothermal fluid and bio-organics[J]. Earth Science Fronliers, 2013,20(1):19-31.
[22]	范德廉, 张焘, 叶杰, 等. 中国的黑色岩系及其有关矿床[M]. 北京: 科学出版社, 2004.
[22]	Fan D L, Zhang D, Ye J, et al. Black rock series in China and its related deposits [M]. Beijing: Science Press, 2004.
[23]	Haskin L A, Haskin M A, Frey F A. Relative and absolute terrestrial abundances of the rare earth elements[G]// Ahrens L H.Origin and distribution of elements. Oxford:Pergamon, 1968: 889-910.
[24]	Sun S S, Mcdonough W F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes[J]. Geological Society of London Special Publications, 1989,42:313-345.
[25]	张海全, 王正和, 王鹤, 等. 黔南地区早石炭世黑色岩系稀土元素地球化学特征及沉积—构造环境分析[J]. 沉积与特提斯地质, 2016,36(3):30-36.
[25]	Zhang H Q, Wang Z H, Wang H, et al. REE geochemistry and sedimentary-tectonic setting of the Early Carboniferous black rock series in southern Guizhou[J]. Sedimentary Geology and Tethyan Geology, 2016,36(3):30-36.
[26]	Allegre C J, Minster J F. Quantitative models of trace element behavior in magmatic processes[J]. Earth Planet. Sci.Lett., 1978,38(1):1-25.
[27]	舒多友, 侯兵德, 张命桥, 等. 黔东北地区钒矿床地球化学特征及成因研究[J]. 矿床地质, 2014,33(4):857-869.
[27]	Shu D Y, Hou B D, Zhang M Q, et al. Geochemistry and genesis of vanadium deposits in northeastern Guizhou[J]. Mineral Deposits, 2014,33(4):857-869.
