The application of geophysical prospecting technology to tunnel advance prediction in Thousand-island Lake water distribution project |
Jun-Jie LI, Qing-Qiang XU, Jian-Qiang LI, Jian-She HE, Jia-Hao GUO |
Zhejiang Design Institute of Water Conservancy and Hydroelectric Power, Hangzhou 310002, China |
|
|
Abstract The authors adopted TSP, ground penetrating radar and infrared acquisition technology to tunnel advance prediction of Thousand-island Lake water distribution project. Several conclusions have been drawn as follows: Firstly, TSP has a low resolution for detecting karst caves but has a good effect for detecting fractured rock mass, its anomaly features show that the Young’s modulus, density and P-wave velocity are low. Secondly, ground penetrating radar is very suitable for tunnel prediction in limestone area, radar reflection profile exhibiting strong amplitude and hyperbolic event usually indicates the development of karst caves. Thirdly, infrared acquisition is greatly influenced by hydration heat of shotcrete in tunnel so that it cannot be used alone in tunnel geological prediction; the defect is especially obvious when the quality of surrounding rock is poor.
|
Received: 14 September 2018
Published: 10 April 2019
|
|
|
|
|
|

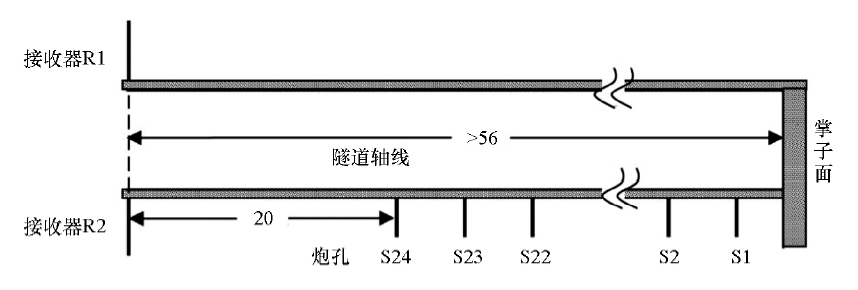

The observation system of TSP
|
岩性 | 围岩 类别 | 纵波波速 /(m·s-1) | 横波波速 /(m·s-1) | 密度 /(g·cm-3) | 杨氏模量 /GPa | 泥质粉砂岩 | Ⅳ~Ⅲ2 | 3699~4912 | 2081~2755 | 2.32~2.63 | 12~34 | 灰岩 | Ⅲ1~Ⅱ | 5200~6200 | 3100~3600 | 2.76~3.00 | 56~90 |
|
Statistical results of TSP for common lithologic of Thousand Island Lake water transfer project
|
|

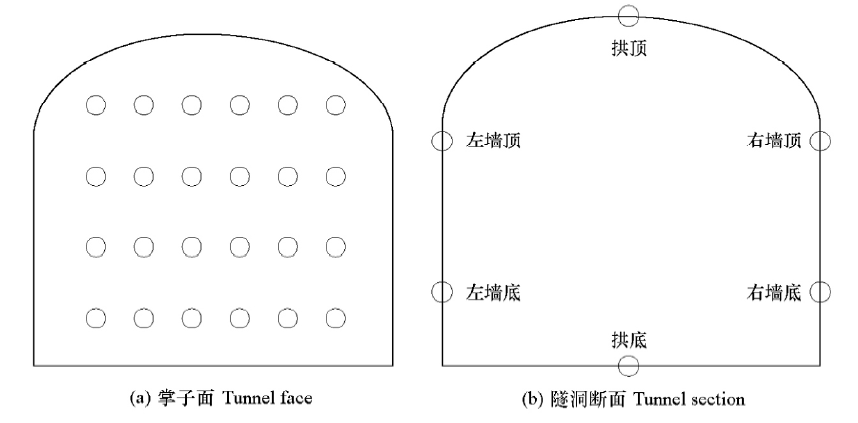

Schematic diagram of infrared measuring points arrangement
|
|

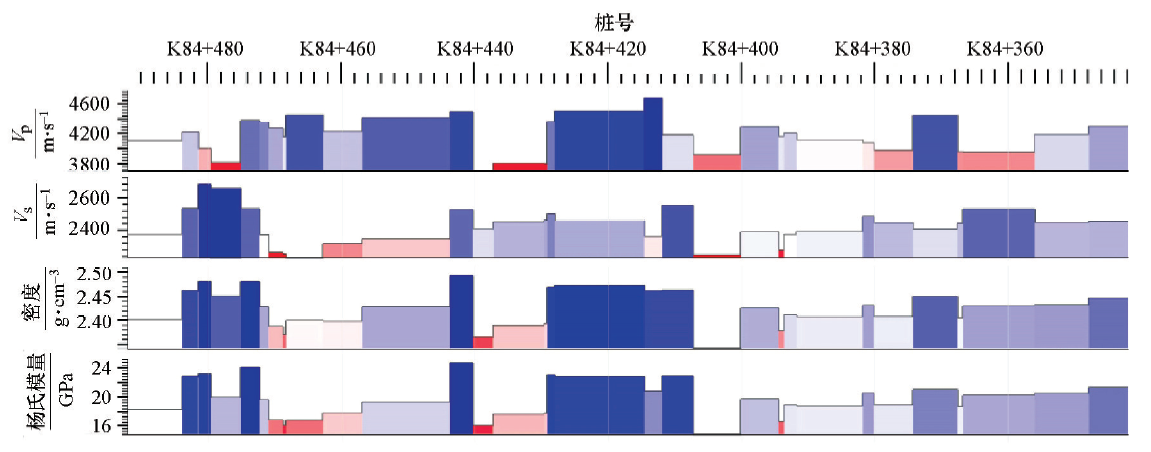

Prediction results of TSP of stake number K84+492~K84+342 in Wangjia tunnel
|
|

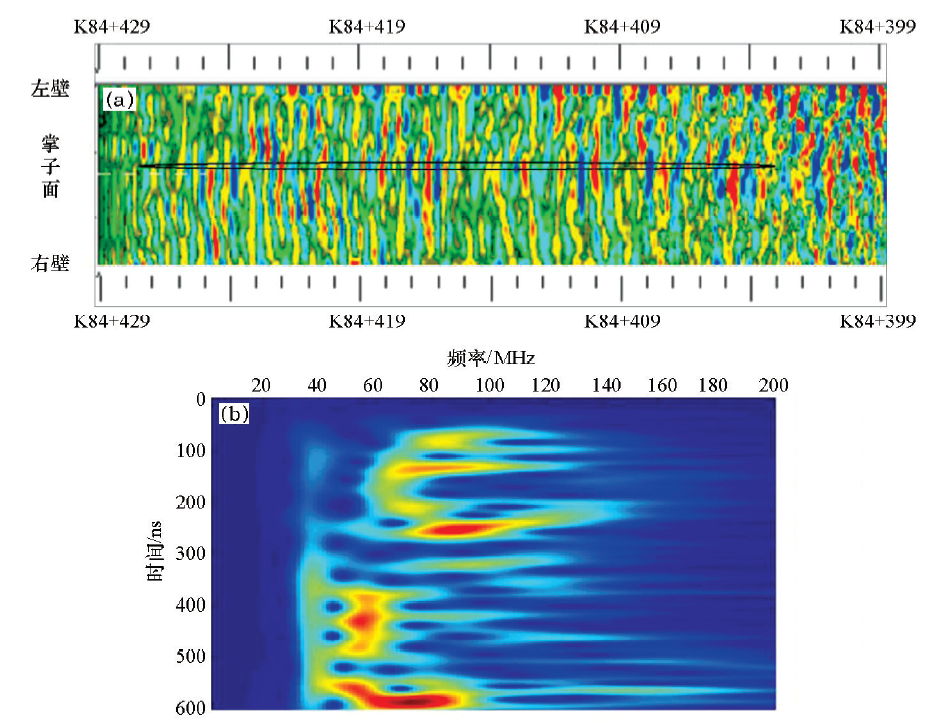

GPR profiles of stake number K84+429~K84+399 as well as frequency spectrums of typical single-trace in Wangjia tunnel a—GPR profile;b—time-frequency spectrum of the 32nd trace
|
|

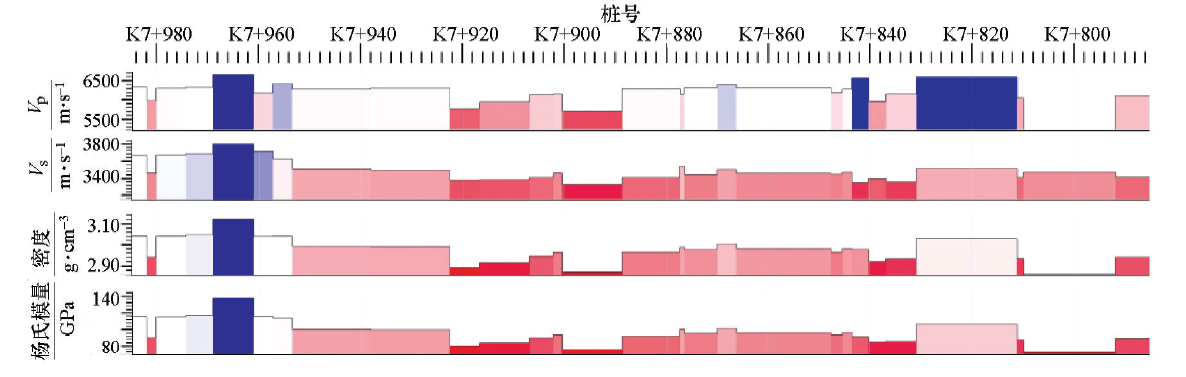

Prediction results of TSP of stake number K7+985~K7+785 in Hong Qiu-tang tunnel
|
|

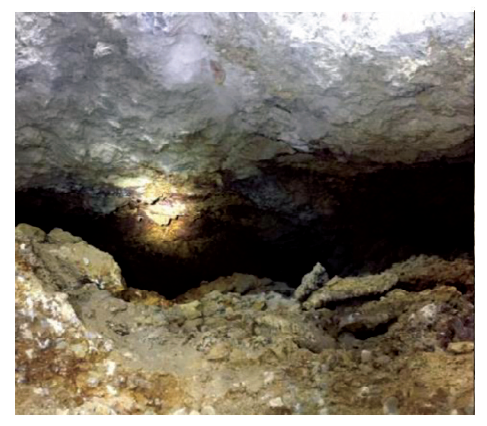

The karst cave extends toward the left side of tunnel
|
|

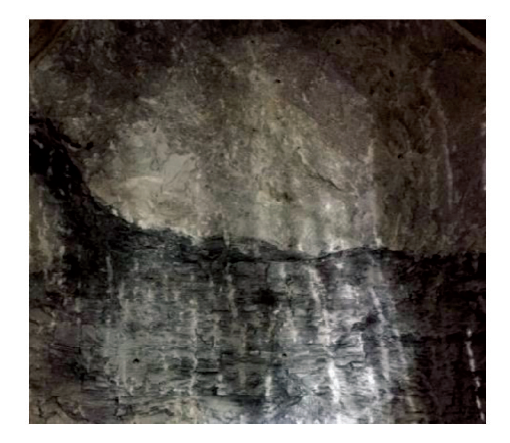

Thin layer mudstone in tunnel face
|
|

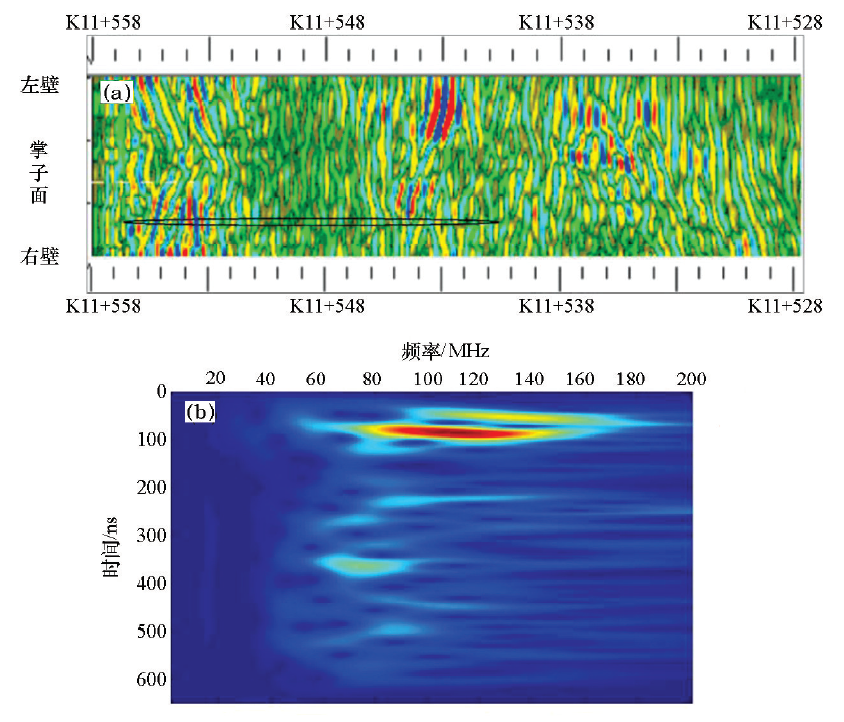

GPR profiles of stake number K11+558~K11+528 as well as frequency spectrums of typical single-trace in Lianhua tunnel a—GPR profile;b—time-frequency spectrum of the 62nd trace
|
|

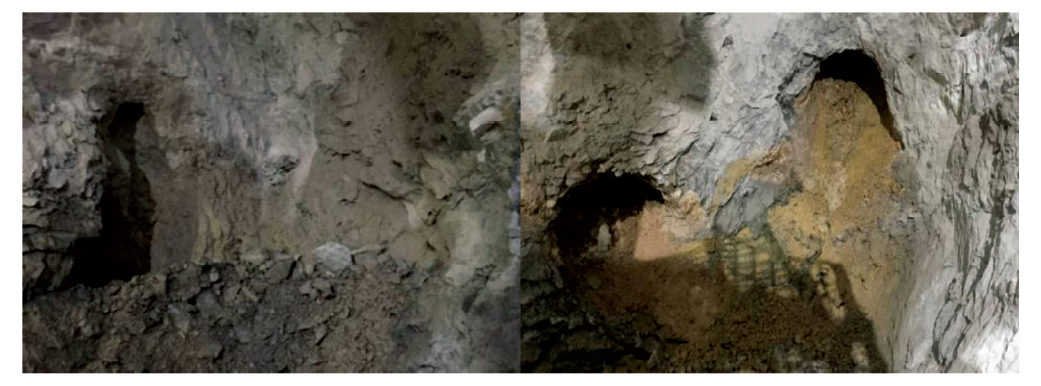

Mud filled karst cave on the left and right sides of the tunnel near stake number K11+556 in Lianhua tunnel
|
测点号 | 1 | 2 | 3 | 4 | 5 | 6 | 横向极差 | 1 | 254 | 252 | 253 | 253 | 253 | 253 | 2 | 2 | 253 | 252 | 253 | 254 | 253 | 253 | 2 | 3 | 252 | 253 | 254 | 253 | 253 | 252 | 2 | 4 | 251 | 251 | 252 | 251 | 250 | 251 | 2 | 纵向极差 | 3 | 2 | 2 | 3 | 3 | 2 | |
|
Infrared detection results in Tunnel face in Xueao tunnelμW/cm2
|
|

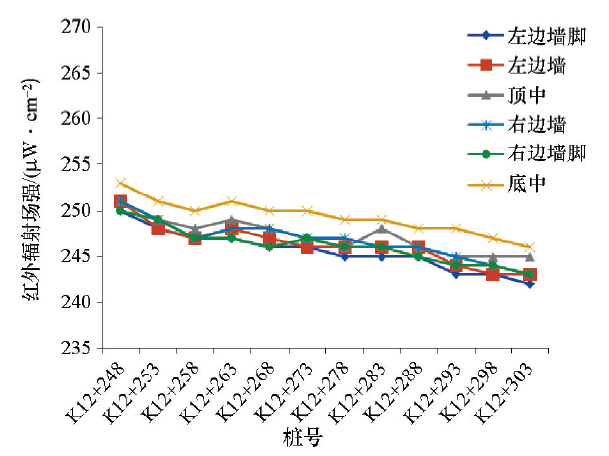

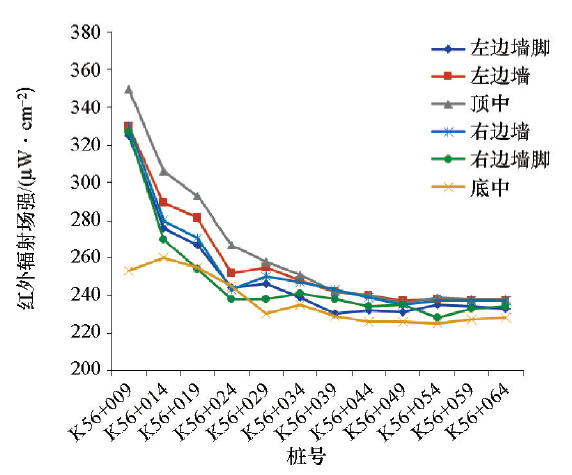

Infrared detection results along axial direction of tunnel in Xueao tunnel
|
测点号 | 1 | 2 | 3 | 4 | 5 | 6 | 横向极差 | 第一行 | 262 | 263 | 257 | 258 | 260 | 261 | 6 | 第二行 | 261 | 260 | 257 | 254 | 255 | 260 | 7 | 第三行 | 257 | 252 | 251 | 246 | 251 | 252 | 11 | 第四行 | 250 | 252 | 248 | 245 | 247 | 248 | 7 | 纵向极差 | 12 | 11 | 9 | 13 | 13 | 13 | |
|
Infrared detection results in Tunnel face in Fenshuijiang tunnelμW/cm2
|
|
Infrared detection results along axial direction of tunnel in Fenshuijiang tunnel
|
[1] |
张杨, 杨君, 周黎明 , 等. TSP 在隧道工程施工中的常见干扰和对岩体裂隙水及软弱夹层等的预报研究[J]. 地球物理学进展, 2018,33(2):892-899.
|
[1] |
Zhang Y, Yang J, Zhou L M , et al. Common interference and the prediction of rock fissure water and weak interlayer in tunnel construction using TSP[J]. Progress in Geophysics, 2018,33(2):892-899.
|
[2] |
肖启航, 谢朝娟 . TST 技术在岩溶地区隧道超前预报中的应用[J]. 岩土力学, 2012,33(5):1416-1420.
|
[2] |
Xiao Q H, Xie C J . Application of tunnel seismic tomography to tunnel prediction in karst area[J]. Rock and Soil Mechanics, 2012,33(5):1416-1420.
|
[3] |
陈礼彪, 刘泉声, 张国华 , 等. 非可溶岩隧道突涌灾害预测研究及工程应用[J]. 岩石力学与工程学报, 2014,33(4):786-796.
|
[3] |
Chen L B, Liu Q S, Zhang G H , et al. Prediction of inrush disaster in non-soluble rock tunnel and its engineering application[J]. Chinese Journal of Rock Mechanics and Engineering, 2014,33(4):786-796.
|
[4] |
刘兆勇, 王羿磊, 杨威 . 相对坐标测量系统在TRT法隧道地质超前预报中的应用[J]. 现代隧道技术, 2018,55(2):146-151.
|
[4] |
Liu Z Y, Wang Y L, Yang W . Relative coordinate measuring system applied in the geological advanced prediction with tunnel reflection tomography[J]. Modern Tunnelling Technology, 2018,55(2):146-151.
|
[5] |
赵国军, 李俊杰, 江宗高 , 等. AGI-T3在输水隧洞超前地质预报中的应用[J]. 水利水电技术, 2018,49(6):164-170.
|
[5] |
Zhao G J, Li J J, Jiang Z G , et al. Application of AGI-T3 to advance geological prediction for construction of water conveyance tunnel[J]. Water Resources and Hydropower Engineering, 2018,49(6):164-170.
|
[6] |
Kaus A, Boening W . Beam-geoelectrical ahead monitoring for TBM-drives[J]. Geomechanics and Tunneling, 2008,1(5):442-450.
|
[7] |
李术才, 刘斌, 孙怀凤 , 等. 隧道施工超前地质预报研究现状及发展趋势[J]. 岩石力学与工程学报, 2014,33(6):1090-1113.
|
[7] |
LI S C, Liu B, Sun H F , et al. State of art and trends of advanced geological prediction in tunnel construction[J]. Chinese Journal of Rock Mechanics and Engineering, 2014,33(6):1090-1113.
|
[8] |
韩进国, 陈琦, 曾友强 , 等. 井巷瞬变电磁法在某金矿超前预报中的应用[J]. 地质与勘探, 2018,54(2):344-347.
|
[8] |
Han J G, Chen Q, Zeng Y Q , et al. Application of mine transient electromagnetic method to advanced prediction of a gold mine[J]. Geology and Exploration, 2018,54(2):344-347.
|
[9] |
李俊杰, 朱红雷, 赵国军 , 等. 探地雷达电磁干扰分析及在隧洞岩溶探测中的应用[J]. 中国岩溶, 2018,37(2):286-293.
|
[9] |
Li J J, Zhu H L, Zhao G J , et al. Electromagnetic interference analysis of ground penetrating radar and its application in karst detection in tunnel[J]. Carsologica Sinica, 2018,37(2):286-293.
|
[10] |
罗利锐, 刘志刚, 陈文涛 , 等. 红外探测技术在海底隧道地质预报中的应用[J]. 地下空间与工程学报, 2010,6(4):775-780.
|
[10] |
Luo L R, Liu Z G, Chen W T , et al. Application of infrared acquisition technology in geological prediction of sub-sea tunnel[J]. 2010,6(4):775-780.
|
[11] |
王洪勇, 张继奎, 李志辉 . 长大隧道红外辐射测温超前预报含水体方法研究与应用实例分析[J]. 物探化探计算技术, 2003,25(1):11-17.
|
[11] |
Wang H Y, Zhang J K, Li Z H . The theory and case analysis for prediction of water-bearing bodies in over-length and over-size tunnel using infrared ray method[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2003,25(1):11-17.
|
[12] |
Irving J, Knight R . Numerical modeling of ground-penetrating radar in 2-D using MATLAB[J]. Computers & Geosciences, 2006,32(9):1247-1258.
|
