Refined detection method of underground pipeline based on GPRMax2D |
Jun-Wei ZHANG1, Bing-Feng LIU1, Xue LI1, Quan-Bing ZHU2, Yue-Qin REN2 |
1. School of Geoscience and Technology,Southwest Petroleum University,Chengdu 610500,China 2. Chengdu Hydropower Construction Engineering Co.,Ltd.,China Water Conservancy and hydropower Seventh Engineering Bureau,Chengdu 610081,China |
|
|
Abstract Ground penetrating radar (GPR) is an important shallow geophysical detection method for detecting underground structures and their distribution regularity.It has the advantages of high resolution,non-destructiion,strong anti-interference capability and intuitive results,and is widely used in the field of engineering geophysical exploration.In order to improve the understanding of the characteristics of the underground pipeline radar image,determine the location of the abnormal body of pipeline,and improve the interpretation precision of GPR,the authors used FDTD method to detect the underground pipeline,which includes the numerical simulation of the factors affecting the depth of pipeline,material,filling material and pipeline disease.On such a basis,a forward modeling synthetic library of underground pipelines was established to guide the interpretation of the ground-penetrating radar images.The field pipeline detection results show that the ground penetrating radar can accurately detect the buried position and operation status of underground pipelines,and provide a basis for future maintenance.
|
Received: 03 September 2018
Published: 10 April 2019
|
|
|
|
|
|

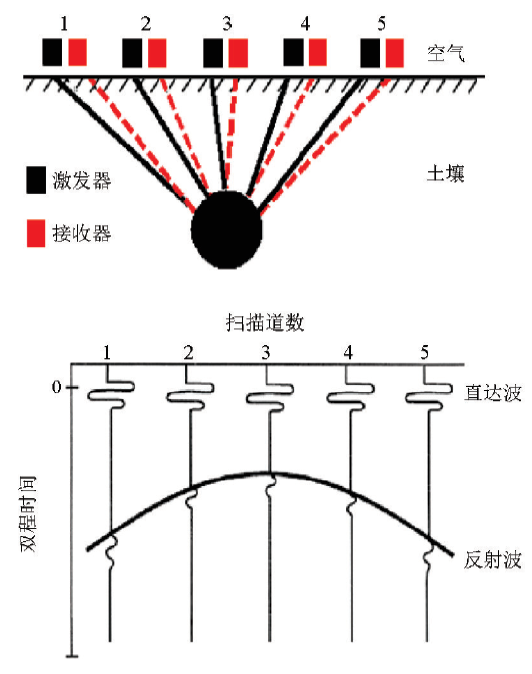

Working principle of ground penetrating radar
|
名称 | 参数 | 模型尺寸 | 2 m×0.5 m | 天线中心频率 | 900 MHz | 网格步长 | Δx=Δy=0.0025 m | 时窗 | 1.4×10-8 | 计算步数 | 93 | 天线步长 | 20 mm |
|
Model parameters
|
名称 | 相对介电常数εr | 导电率σ | 空气 | 1 | 0 | 围岩1 | 3 | 0.01 | 围岩2 | 8 | 0.05 | 碎石 | 30 | 0.1 | PVC管线 | 3 | 0.01 | 金属管线 | 300 | 108 | 水 | 81 | 0.003 |
|
Dielectric parameters of media
|
|

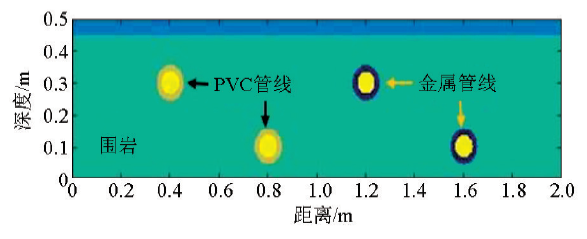

Forward simulation of pipeline-material-buried depth
|
|

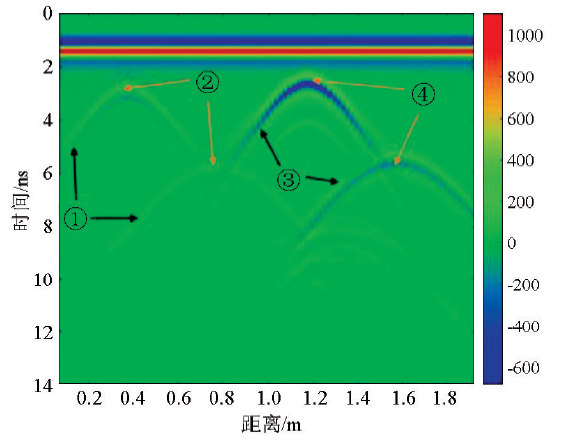

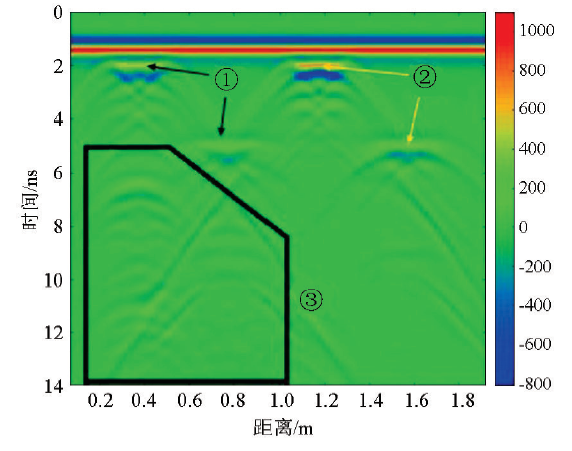

FDTD forward simulation of pipeline-material-buried depth
|
|

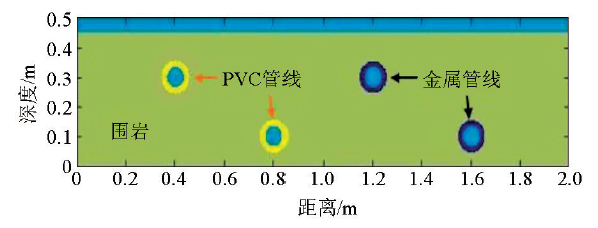

Forward simulation of water filling pipeline-material-buried depth
|
|

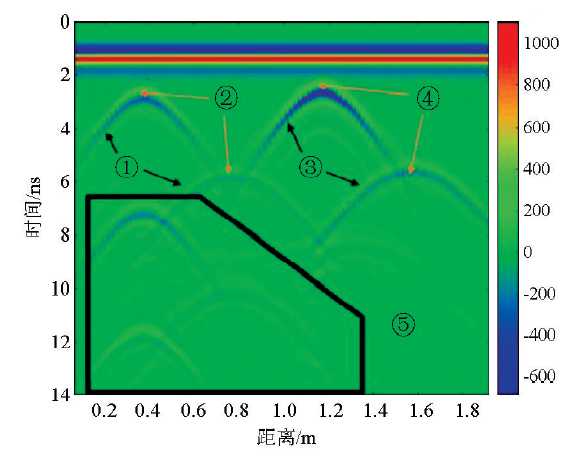

FDTD forward simulation of water filling pipeline-material-buried depth
|
|

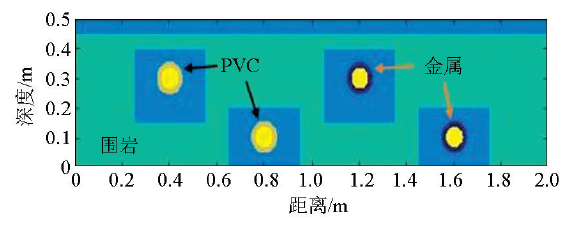

Forward simulation of water filling pipeline-material-buried depth-cavity
|
|

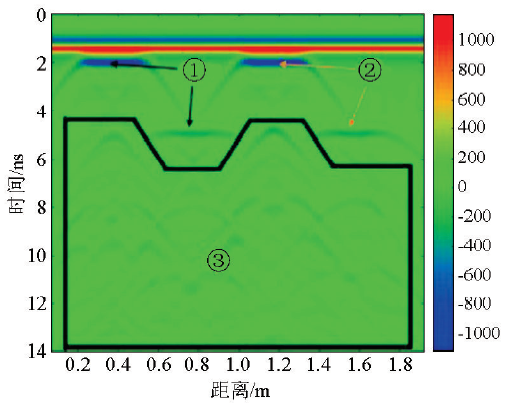

FDTD forward simulation of water filling pipeline-material-buried depth-cavity
|
|

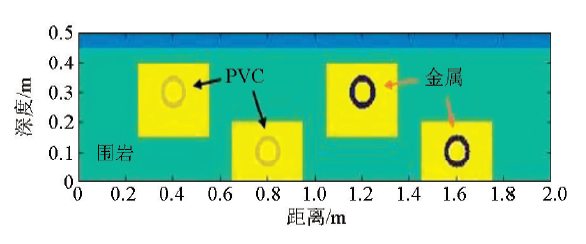

Forward simulation of water filling pipeline-material-buried depth-leakage
|
|
FDTD forward simulation of water filling pipeline-material-buried depth-cavity
|
|

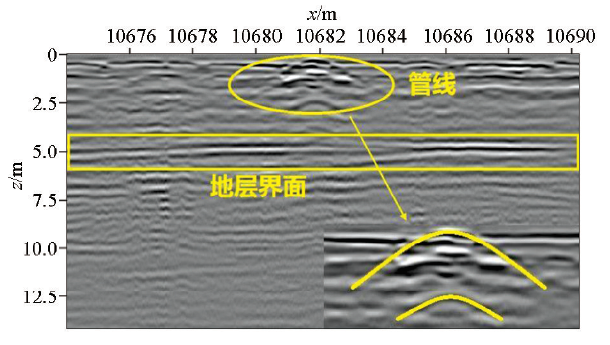

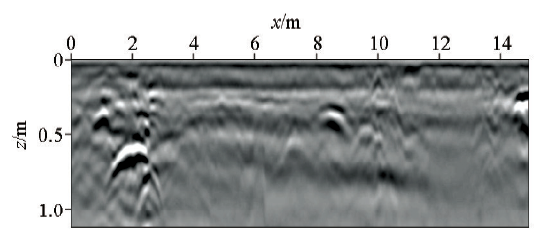

Image of GPR detection
|
|
Image of GPR detection
|
[1] |
曹振 . 西安地铁盾构施工安全风险评估及施工灾害防控技术[D]. 西安:西安科技大学, 2013.
|
[1] |
Cao Z . The research on safety risk assessment and disater control technology of metro shield construction in Xi’an[D]. Xi’an:Xi’an University of Science and Technology, 2013.
|
[2] |
梁小强, 杨道学, 张可能 , 等. FDTD数值模拟在GPR管线探测中的应用[J]. 地球物理学进展, 2017,32(4):1803-1807.
|
[2] |
Liang X Q, Yang D X, Zhang K N , et al. Application of FDTD numerical simulation of Ground Penetrating Radar inpipeline detection[J]. Progess in Geophysics, 2017,32(4):1803-1807.
|
[3] |
孔令翔 . 探地雷达检测地下缺陷的应用研究[D]. 杭州:中国计量大学, 2016.
|
[3] |
Kong L X . Application research of GPR in detecting the underground defects[D]. Hangzhou:China Jiliang University, 2016.
|
[4] |
洪琦 . 盾构隧道施工对既有管线影响研究[D]. 杭州:浙江大学, 2012.
|
[4] |
Hong Q . The effects of the shield tunneling on the existing underground pipelines[D]. Hangzhou:Zhejiang University, 2012.
|
[5] |
刘新荣, 刘永权, 杨忠平 , 等. 基于地质雷达的隧道综合超前预报技术[J]. 岩土工程学报, 2015,37(s2):51-56.
|
[5] |
Liu X R, Liu Y Q, Yang Z P , et al. Synthetic advanced geological prediction technology for tunnels based on GPR[J]. Chinese Journal of Geotechnical Engineering, 2015,37(s2):51-56.
|
[6] |
岳彬, 钟凌云, 王贵和 . 地质雷达技术在客专隧道超前地质预报中的应用[J]. 工程勘察, 2014,42(9):89-93.
|
[6] |
Yue B, Zhong L Y, Wang G H . Application of ground penetrating radar in advance geological forecast for the tunnels of passenger dedicated line[J]. Geotechnical Investigation & Surveying, 2014,42(9):89-93.
|
[7] |
范占锋, 李天斌, 孟陆波 . 探地雷达在公路隧道超前地质预报中的应用[J]. 物探与化探, 2010,34(1):119-122.
|
[7] |
Fan Z F, Li T B, Meng L B . Adavanced geological forecast of application of GPR in road tunnel[J]. Geophysical & Geochemical Exploration, 2010,34(1):119-122.
|
[8] |
高阳, 余湘娟, 夏波 , 等. 泡沫混凝土路基病害地质雷达正演模拟研究[J]. 河南科学, 2018,36(4):559-565.
|
[8] |
Gao Y, Yu X J, Xia B , et al. Forward simulation of the data from ground penetrating radar for foamed concrete of roadbed diseases[J]. Henan Science, 2018,36(4):559-565.
|
[9] |
周轮, 李术才, 许振浩 , 等. 隧道施工期超前预报地质雷达异常干扰识别及处理[J]. 隧道建设, 2016,36(12):1517-1522.
|
[9] |
Zhou L, Li S C, Xu Z H , et al. Interpretation and treatment of interfering factors in advance geological prediction by ground penetrating radar of tunnel construction[J]. Tunnel Construction, 2016,36(12):1517-1522.
|
[10] |
鲁建邦 . 地质雷达探测过程中干扰物的图像识别[J]. 隧道建设, 2011,31(6):686-689.
|
[10] |
Lu J B . Interpretation of interfering factors in detection by geological radar[J]. Tunnel Construction, 2011,31(6):686-689.
|
[11] |
师学明, 张剑, 刘梦花 , 等. 小波变换在地质雷达干扰波压制中的应用[J]. 工程地球物理学报, 2008,5(3):279-286.
|
[11] |
Shi X M, Zhang J, Liu M H , et al. Application of wavelet transform in de-nosing ground penetrating radar data[J]. Chinese Journal of Engineering Geophysics, 2008,5(3):279-286.
|
[12] |
周奇才, 李炳杰, 郑宇轩 , 等. 基于GPRMax2D的探地雷达图像正演模拟[J]. 工程地球物理学报, 2008,5(4):396-399.
|
[12] |
Zhou Q C, Li B J, Zheng Y X , et al. Forward simulation of GPR image based on GPRMax2D[J]. Chinese Journal of Engineering Geophysics, 2008,5(4):396-399.
|
[13] |
孙忠辉, 刘金坤, 张新平 , 等. 基于GPRMax2D的隧道衬砌地质雷达检测正演模拟与实测数据分析[J]. 工程地球物理学报, 2013,10(5):730-735.
|
[13] |
Sun Z H, Liu J K, Zhang X P , et al. The tunnel lining detection forward numeral simulation and measured data analysis based on GprMax[J]. Chinese Joural of Engineering Geophysics, 2013,10(5):730-735.
|
[14] |
张家鸣 . 提高地质雷达隧道衬砌质量检测效果的几点措施[ C]//南宁:第十三届海峡两岸隧道与地下工程学术及技术研讨会, 2014.
|
[14] |
Zhang J M . Measures to improve effect of tunnel lining testing by means of ground penetrating radar[ C]//Nanning:The 13 th Cross-strait Tunnel and Underground Engineering Symposium , 2014.
|
[15] |
郝建新, 魏玉峰 . 地质雷达探测干扰因素及图像识别研究[J]. 华东公路, 2009,( 2):74-76.
|
[15] |
Hao J X, Wei Y F . Study on interference factors and image recognition in geological radar detection[J]. East China Highway, 2009,2:74-76.
|
[16] |
Yee K S . Numerical solution of initial boundary value problems involving maxwell’s equations in isotropic media[J]. IEEE Transactions on Antennas & Propagation, 1966,14(3):302-307.
|
[17] |
郭立, 崔喜红, 陈晋 . 基于GPRMax正演模拟的探地雷达根系探测敏感因素分析[J]. 地球物理学进展, 2012,27(4):1754-1763.
|
[17] |
Guo L, Cui X H, Chen J . Sensitive factors analysis in using GPR for detecting plant roots based on forward modelling[J]. Progess in Geophysics, 2012,27(4):1754-1763.
|
[18] |
吴庆全, 杨子龙, 罗伟斌 . 基于GPRMax正演模拟及工程实例的地质雷达钢筋探测研究[J]. 矿产与地质, 2017,36(3):652-656.
|
[18] |
Wu Q Q, Yang Z L, Luo W B . A study on rebar detection by using geological radar based on GprMax forward modelling and engineering project examples[J]. Mineral Resources and Geology, 2017,36(3):652-656.
|
