Overthrust belt forward analysis and interpretation:A case study of Yingxiongling area |
Ye-Gang XIONG, Zheng LUO, Qi-Quan ZHANG, Hai-Feng WANG, Xiang LI, Bo ZHU, Zhen-Qiang WANG |
Qinghai Oilfield Company Exploration and Development Research Institute of PetroChina,Dunhuang 736202,China |
|
|
Abstract In the Qaidam Basin,the overthrust is developed and,because of the influence of fracture,the footwall imaging is difficult and complex.Based on the seismic numerical simulation technology,the authors integrated seismic and logging data to set up a geological model so as to guide the seismic processing and interpretation.The forward results of the Yingxiongling area show that,due to the high speed formation on the hanging wall,there appear monoclinic,local pseudo faults,bedrock pull-up and fault shape change in the footwall.The results obtained in this paper can be used for reference to the seismic data processing and interpretation in Yingxiongling area and exploration target areas of other structural reservoirs in the Qaidam Basin.
|
Received: 08 March 2018
Published: 31 May 2019
|
|
|
|
|
|

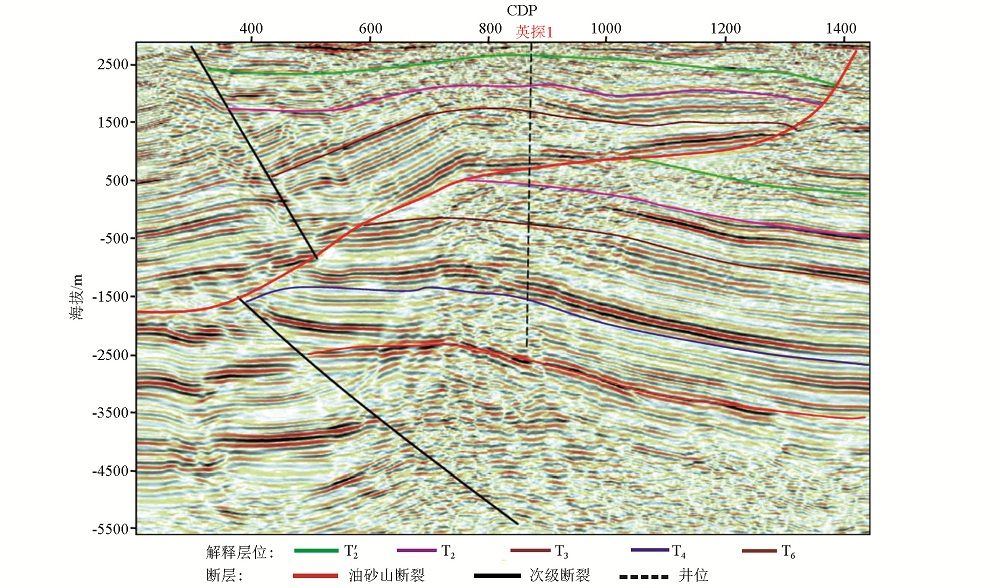

Two-dimensional prestack time migration profile of Yingtan1
|
|

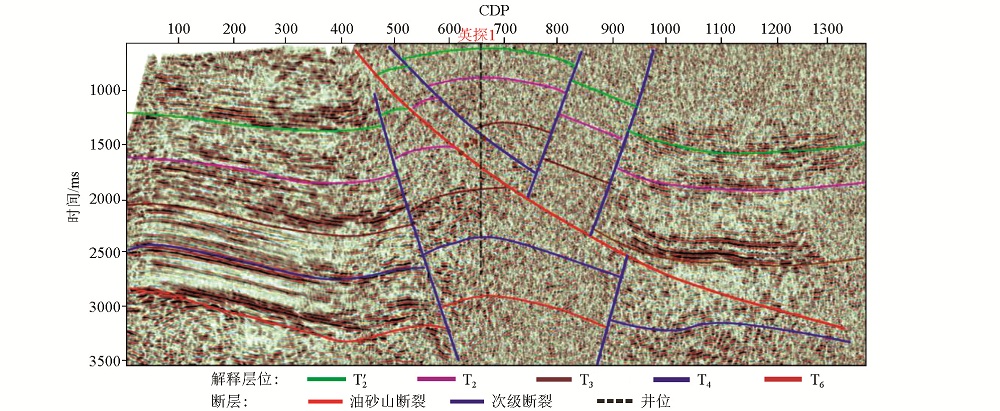

Three-dimensional prestack depth migration profile of Yingtan1 well
|
|

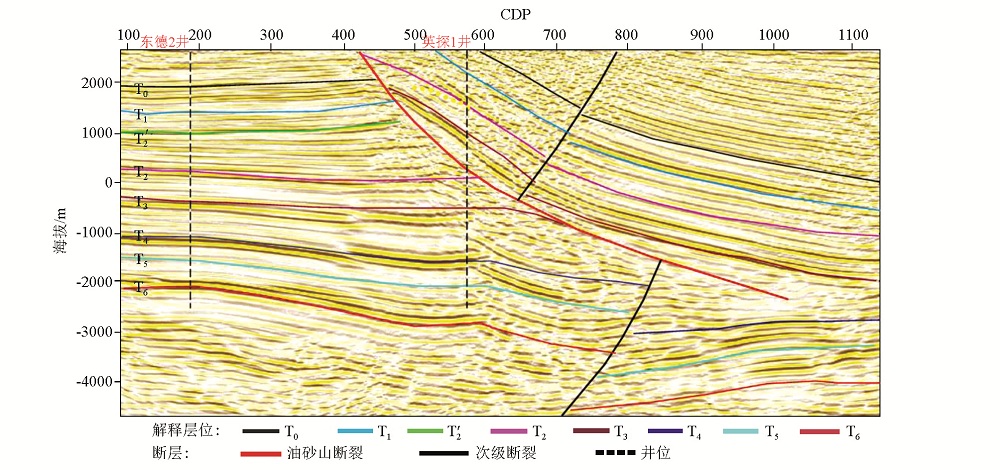

Seismic profile cross Dongde2 well and Yingtan1 well
|
|

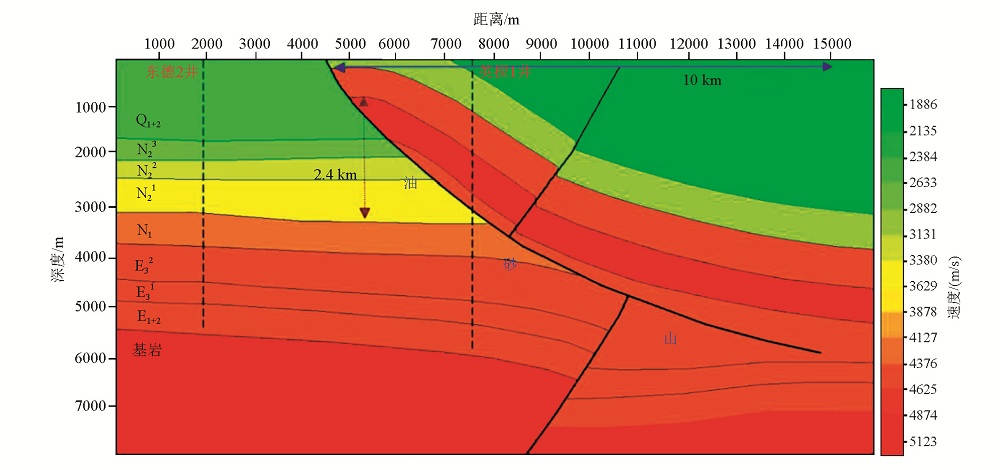

Overthrust belt geological model
|
地质层位 | 深度/m | 层速度AC/(m·s-1) | 层速度VSP/(m·s-1) | | 103 | 1637 | 1081 | | 1756 | 4484 | 4894 | N1 | 2430 | 5400 | 5468 |
|
Velocity tables of hanging wall of Youshashan fault with Yingtan 1 well
|
地质层位 | 深度/m | 层速度VSP/(m·s-1) | Q1+2 | 794 | 2513 | | 1200 | 2710 | | 1540 | 3215 | | 2350 | 3450 | N1 | 2866 | 4380 | | 3592 | 4503 | | 3928 | 4530 | E1+2 | 4420 | 4587 | 基岩 | 4498 | 5372 |
|
Velocity Tables of foot wall of Youshashan fault with Dongde 2 Well
|
|

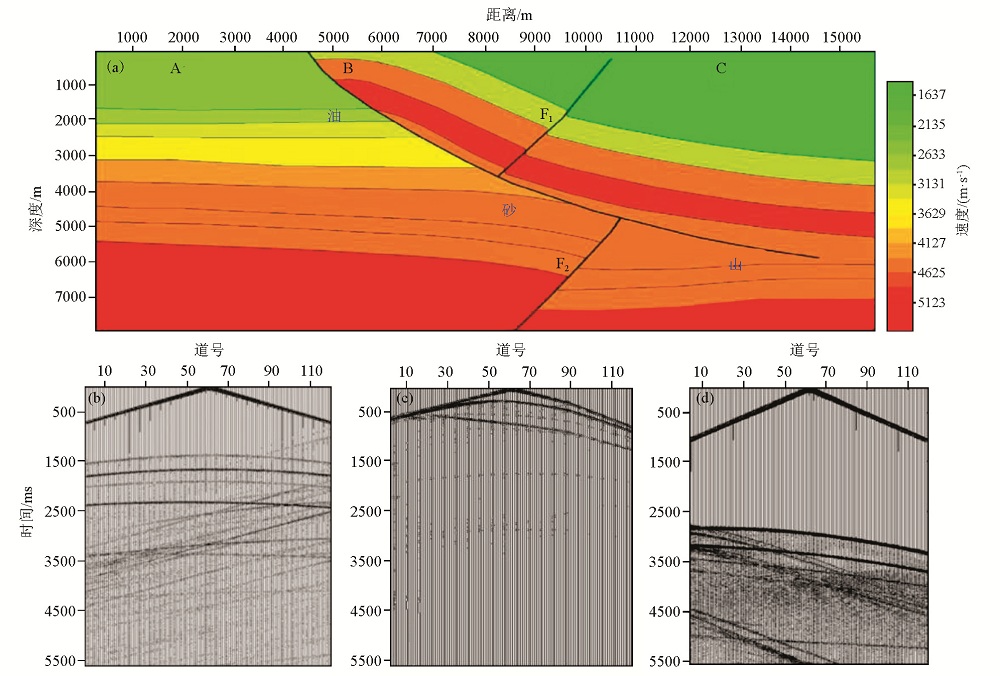

Actual geological model and single shot record a—Actual geological model;b—Single shot record of A point;c—Single shot record of B point;d—Single shot record of C point
|
|
Horizontal stacking profile of model data
|
|

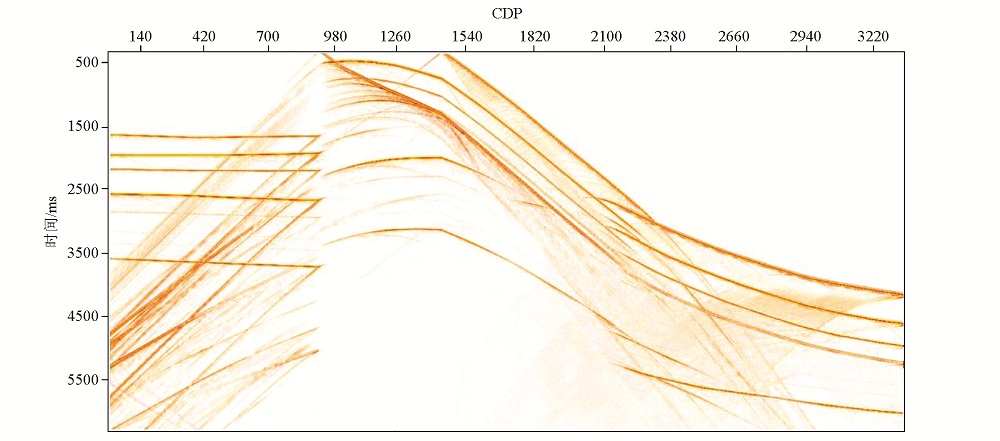

Prestack time migration profile of model data
|
|

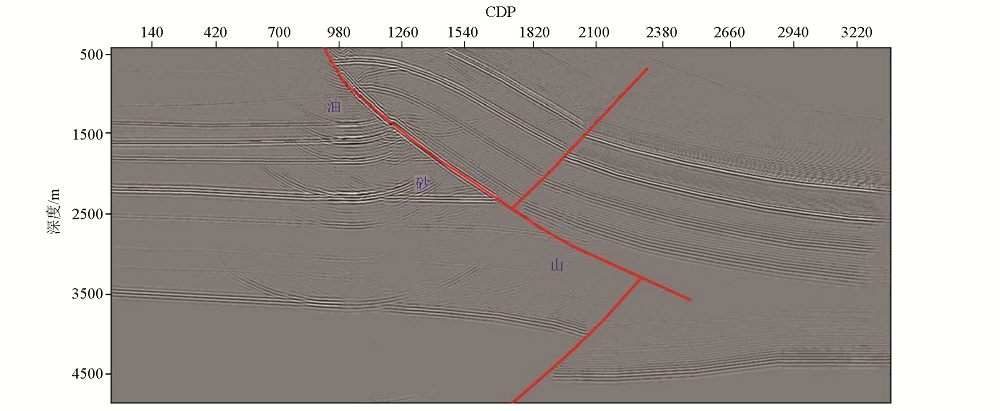

Prestack depth migration profile of modeling data
|
