辽河外围北部秀水盆地大地电磁测深研究

doi:10.11720/wtyht.2019.0090

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4924 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Xiushui Basin is a small-sized Mesozoic fault depression located in the south of Zhangqiang fault depression where good indications of oil and gas have been drilled in its volcanic reservoirs in recent years. In order to find out the boundary, internal framework and stratigraphic distribution of the Xiushui Basin, the authors conducted magnetotelluric sounding and gravity and magnetic profile measurement along two survey lines and, as a result, obtained the magnetic anomaly curves and the shallow electrical structures of the Xiushui Basin and its peripheral east and west sides. Constrained by drilling, geological and petrophysical data, the electrical structure characteristics of strata in different ages were determined, and the regional geological-geophysical model was synthetically established. The results show that the overall caprock of Xiushui Basin has low resistivity, which is apparently different from that of underlying basement. The basement of Xiushui Basin consists mainly of Upper Paleozoic strata, and the composition of the basement in the north is different from that in the south. In addition, the basement on east and west sides of the periphery of the basin consists of Precambrian metamorphic rock series. The basin has a structural pattern of two concaves and one uplift, relatively larger in the eastern sub-depression. The understanding obtained by the authors provides reliable geophysical basis for the oil and gas resources evaluation in the Xiushui Basin and Mesozoic basins in the periphery of the Songliao Basin.

Key words： magnetotelluric sounding Xiushui Basin basin structure stratigraphic distribution oil and gas resources evaluation

Received: 20 February 2019 Published: 25 October 2019

:	P622
	P631.3+25

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Peng-Hui ZHANG
	Xiao-Bo ZHANG
	Yong-Zhen YUAN
	Hui FANG
	Jian-Xun LIU
	Chun-Xiang JIANG

Cite this article:

Peng-Hui ZHANG,Xiao-Bo ZHANG,Yong-Zhen YUAN, et al. A study of magnetotelluric sounding of Xiushui Basin in the northern periphery of Liaohe[J]. Geophysical and Geochemical Exploration, 2019, 43(5): 986-996.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2019.0090 OR https://www.wutanyuhuatan.com/EN/Y2019/V43/I5/986

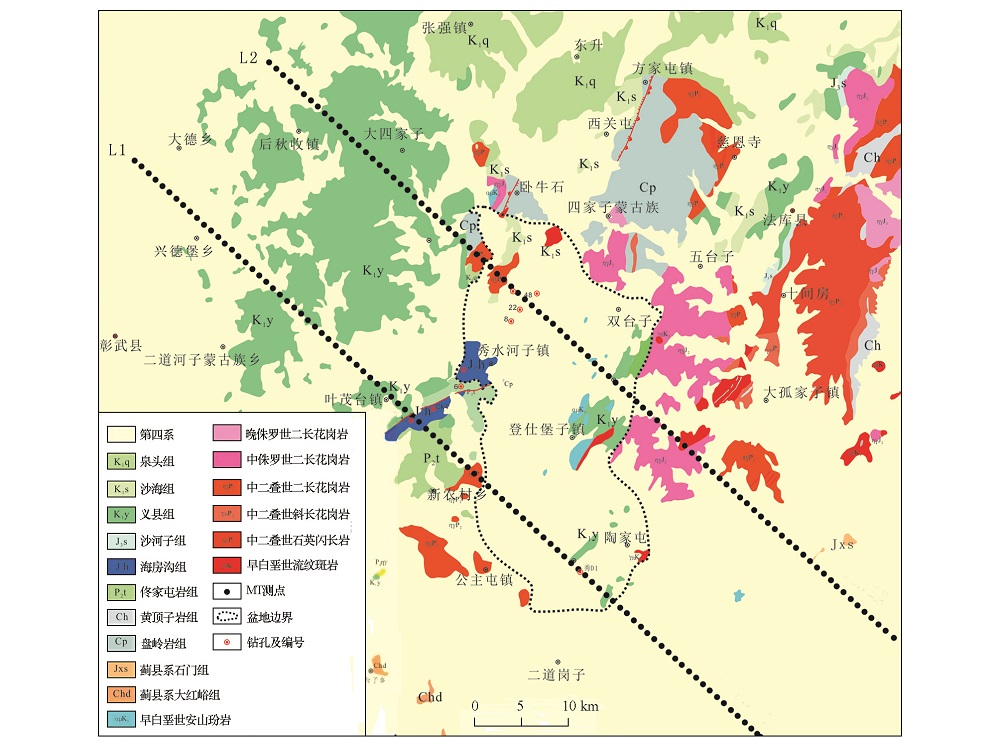

Regional geology and magnetotelluric sounding profile location in Xiushui Basin

Analysis results of resistivity parameters for field rocks and first branch resistivityparameters for magnetotelluric sounding

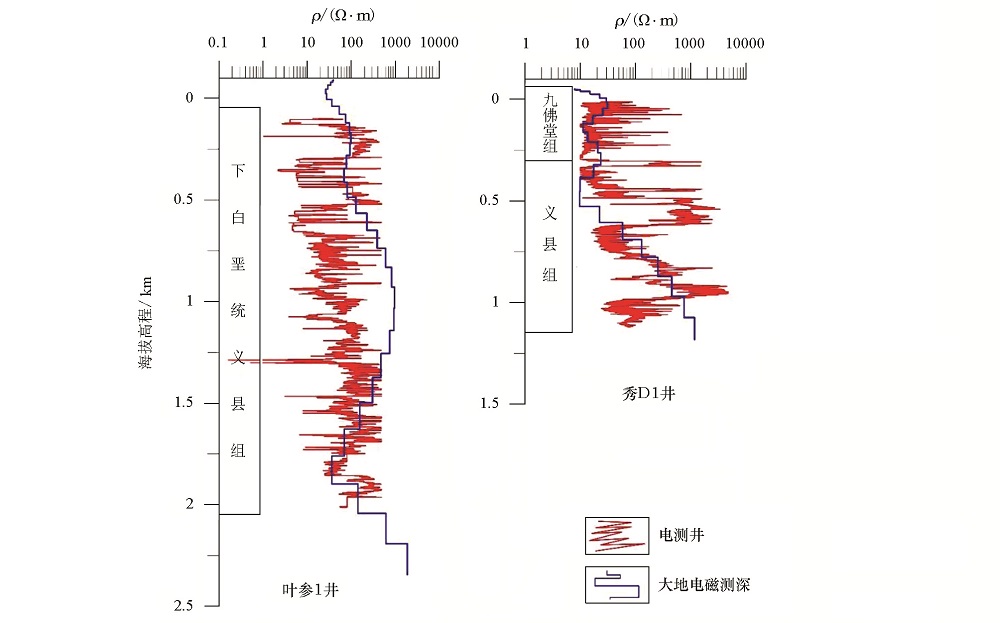

Comparison of resistivity log and near-well bathymetric data in Xiushui basin

Analysis results of density parameters for field rocks

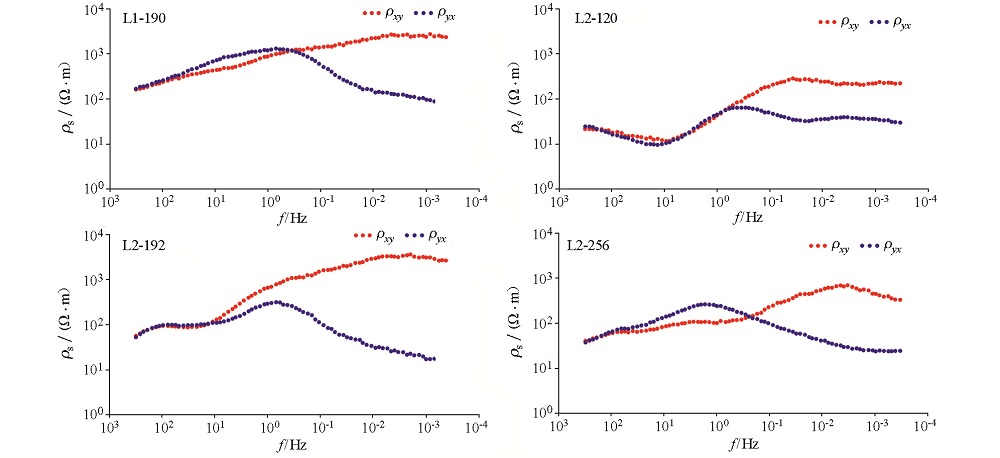

Apparent resistivity curves for MT station along the profile

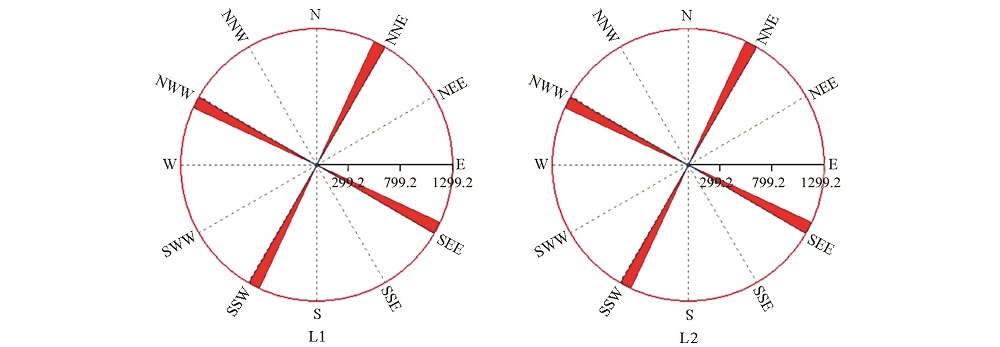

Statistical rose diagrams of multi-measuring point multi-frequency point major electrical axis based on decomposition of the impedance tensor

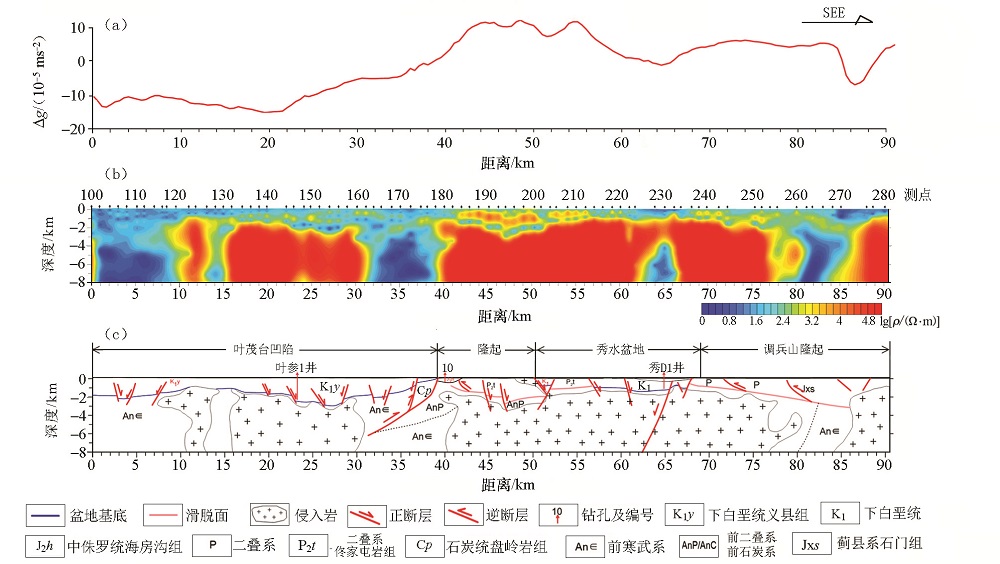

Gravity anomaly curve(a)、Magnetotelluric sounding two-dimensional inverted electrical section(b) and geological interpretation(c)of L1 line

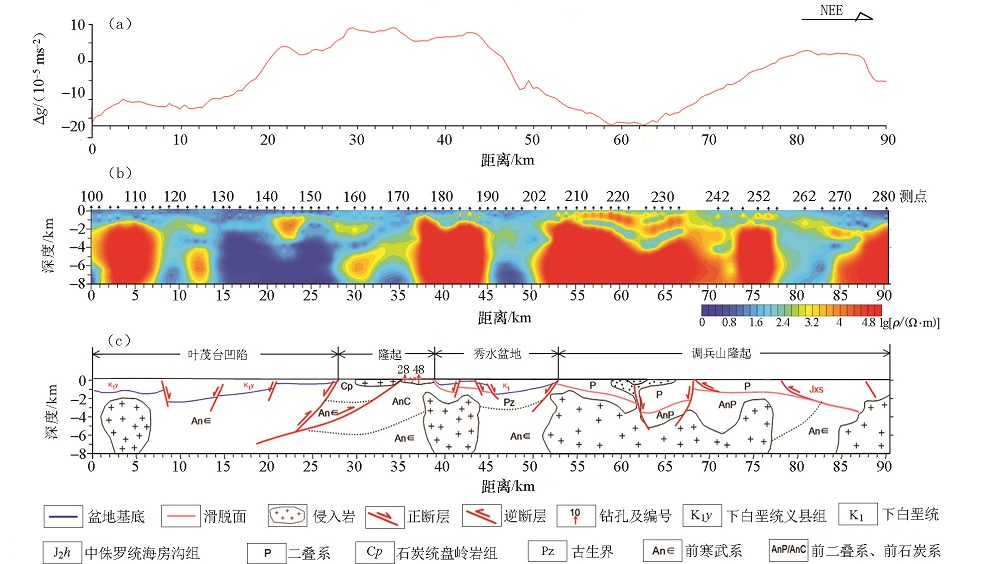

Gravity anomaly curve(a)、Magnetotelluric sounding two-dimensional inverted electrical section(b) and geological interpretation(c)of L2 line
