The evaluation of geological hazard of Xiangtan manganese ore deposit based on geophysical information |
Chuang-Hua CAO, Zhuan DENG, Fang-Ping KANG, Cheng-Liang PENG, Jie PENG, Zheng-Bin DUAN |
Geology Survey Institute of Hunan Province,Changsha 410116, China |
|
|

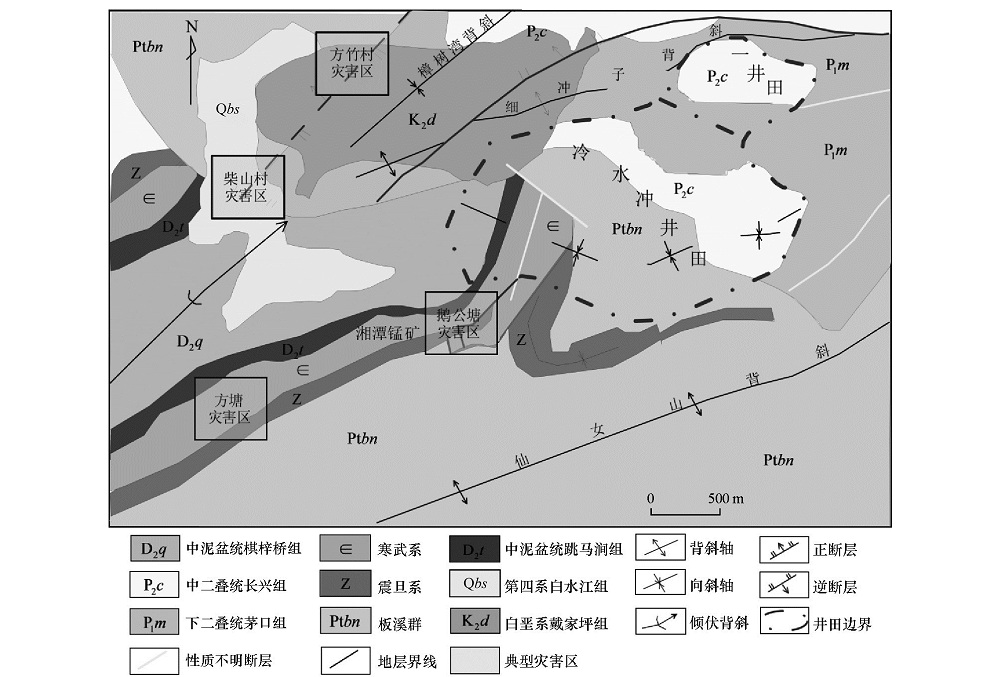

Abstract In the process of geological disaster investigation in the Xiangtan manganese ore district and its surrounding areas, the geological achievements were studied, the present situation of collapse in the area was analyzed, and the geophysical detection technology was used to make evaluation quickly and effectively. Firstly, the characteristics of geological, strata and structure in the area were described. Secondly, the existing subsidence area was studied and the geophysical methods were designed according to different typical areas. Finally, according to the drilling results, the evaluation of the collapse in the area was realized. The research results show that the detection effect is obvious, the regional collapse can be divided into four categories, and the geological disasters caused by it have unique characteristics. The results obtained by the authors provide the basic data for later treatment.
|
Received: 13 February 2017
Published: 04 June 2018
|
|
|
|
|
|
|
岩性 | ρ/(Ω·m) | 岩性 | ρ/(Ω·m) | 测定方法 | 范围 | 常见值 | 测定方法 | 范围 | 范围 | 亚黏土 | 露头小四极 | 30~160 | 50 | 灰质砾岩 | 孔旁电测深 | 109~2000 | 1500 | 网纹状亚黏土 | 露头小四极 | 322~666 | 495 | 炭、泥质灰岩 | 测井 | 70~300 | 173 | 砂砾岩 | 孔旁电测深 | 85~200 | 133 | 变质砂板岩 | 测井 | 420~4200 | 1890 | 砂岩 | 露头小四极 | 460~2560 | 1510 | 砾岩 | 测井 | 40~1500 | 583 | 粉砂岩 | 露头小四极 | 30~70 | 55 | 未充填裂隙破碎带 | 测井 | 70~840 | 341 | 泥岩 | 露头小四极 | 58~193 | 125 | 充填裂隙破碎带 | 测井 | 20~300 | 106 | 灰岩、白云岩 | 测井 | 490~3800 | 2590 | 未充填溶洞 | 测井 | 70~1000 | 343 |
|
|
材料 | 介电常数 | 材料 | 介电常数 | 材料 | 介电常数 | 材料 | 介电常数 | 空气 | 1 | 花岗岩 | 5~8 | 黏土(湿) | 8~15 | 砂岩(湿) | 6 | 水(淡) | 81 | 石灰岩 | 7~9 | 黏土(干) | 3 | 煤 | 4~5 | 水(咸) | 81 | 白云岩 | 6.8~8 | 农业耕地 | 15 | 石英 | 4.3 | 砂(干燥) | 3~6 | 玄武岩(湿) | 8 | 畜牧土地 | 13 | 混凝土 | 6~8 | 砂(湿的) | 25~30 | 泥岩(湿) | 7 | “平均土壤” | 16 | 沥青 | 3~5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] |
李统桂, 王新建, 刘国才 , 等. 湖南省长株潭地区水文地质工程地质环境地质综合勘查报告[R]. 湖南地质矿产局水文地质工程地质一队、二队, 1990: 1-36.
|
[2] |
李厚登, 王迪 . 湖南湘潭锰矿区矿山地质环境治理示范工程(2013年)具体实施方案[R]. 湖南省地质环境监测总站, 2014.
|
[3] |
甘伏平, 吕勇, 喻立平 , 等. 氡气测量与CSAMT联合探测地下地质构造[J]. 地质通报, 2012,31(2-3):389-395.
|
[4] |
甘伏平, 喻立平, 卢呈杰 , 等. 岩溶区利用地震速度成像研究地下地质结构及特征[J]. 工程勘察, 2012(8):89-94.
|
[5] |
胡让全, 黄健民 . 综合物探方法在广州市金沙洲岩溶地面塌陷、地面沉降地质灾害调查中的应用[J]. 物探与化探, 2014,38(3):610-615.
|
[6] |
赵成斌, 刘保金, 姬继法 , 等. 综合物探方法在地质灾害调查中的应用研究[J]. 物探与化探, 2001,25(6):464-468.
|
[7] |
董杰, 孟庆生, 尹明泉 , 等. 综合物探方法在采空塌陷区调查中的应用[J]. 物探与化探, 2013,37(3):557-560.
|
[8] |
杨耀, 羊春华, 曾国 . 探地雷达在隧道岩溶普查中的应用[J]. 物探与化探, 2010,34(3):410-414.
|
[9] |
杨天春, 冯建新, 王战军 . 探地雷达在桥塔塔基岩溶勘查中的应用及信号分析[J]. 物探与化探, 2010,35(2):280-284.
|
[10] |
周官群, 翟福勤, 郝志超 , 等. 高密度电阻率法及地震反射共偏移法在九华山滑坡体探查中的应用[J]. 物探与化探, 2015,39(4):872-876.
|
[11] |
赵斌, 王臖璐, 孙礼钊 , 等. 地球物理方法在渭北地裂缝勘探中的应用[J]. 物探与化探, 2015,37(3):406-410.
|
[12] |
湖南省地质矿产局. 湖南省区域地质志[M]. 北京: 地质出版社, 1988, 1-121.
|
[13] |
吴敦敖 . 湖南湘潭锰矿区域水文地质条件[J]. 中南矿冶学院学报, 1958,3(1):31-45.
|
[14] |
刘求康, 文婷, 武红伟 . 湖南省湘潭县九潭冲早震旦系锰矿床成因浅析[J]. 南方金属, 2013,195:8-14.
|
[15] |
Reynolds, John . 应用和环境地球物理入门[M]. 纽约: 约翰威利森斯出版社, 1997: 1-55.
|
