A calculation method for the effective electrical properties of rocks based on digital core technology |
Zhao JIN, Fan WANG, Chen GUO, Zhi-Li HE, Xiao-Li WANG |
Electromagnetic Exploration Technology Laboratory School of Information Engineering, Chang’an University, Xi’an 710064, China |
|
|
Abstract The study of the effective electrical properties of reservoir rocks can be used to determine the distribution of underground oil and gas storage and identify the oil and water layers. The accurate evaluation of the effective electrical properties of rock models by digital means is of great significance not only forthe theoretical rock physics but also for the development of experimental methods and the application of electrical logging methods. As a new core analysis method, digital rock core technology has gradually become one of the effective methods for studying the effective electrical properties of rocks. Based on the technology of digital core and electromagnetic simulation, the data processing for sample image dataset, the authors carried out the numerical 3D rock model transformation and the computation of the effective electrical properties systematically. Furthermore, four types of rock samples such as sandstone and shale were investigated to discuss the validity and accuracy of the numerical core analysis method. This set of methods for data processing, numerical model conversion and calculation of electromagnetic parameters for scanned core images can be used to efficiently and accurately analyze different types of digital core dielectric constant, conductivity and other properties, which can provide important reference for such fields as rock physics, logging interpretation and reservoir evaluation.
|
Received: 02 May 2018
Published: 19 December 2018
|
|
|
|
|
|
|
|
|
|
|

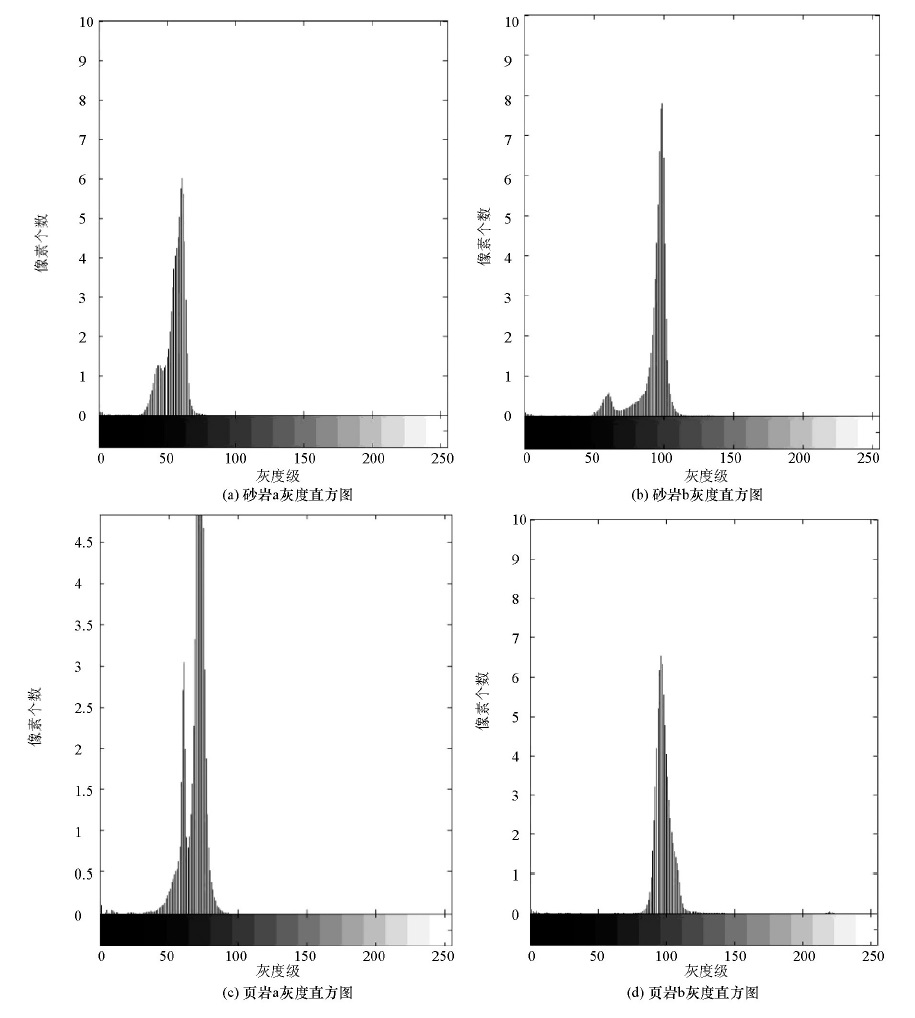

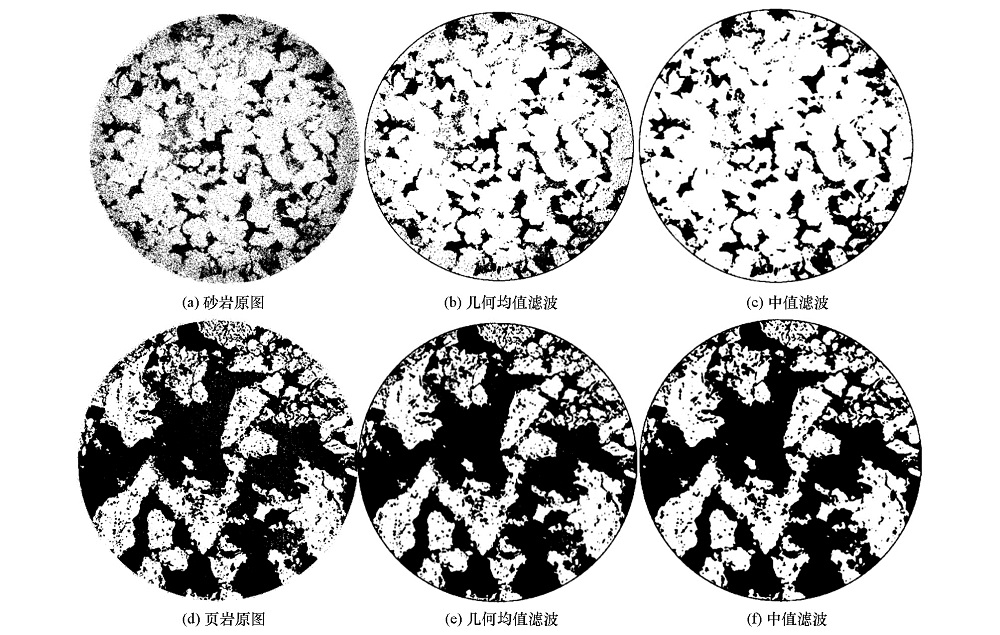

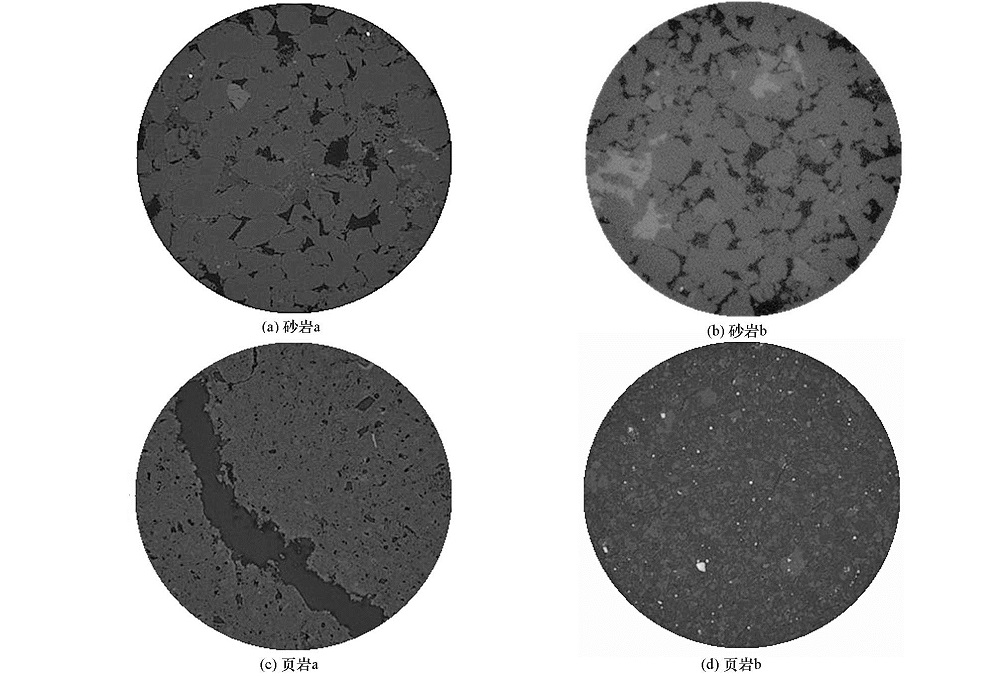

岩石种类 | 孔隙度 | 理想分割阈值 | 膏岩 | 26.26% | T=g2+(g1-g2)×0.9=0.9×g1+0.1×g2 | 泥岩 | 26.62% | T=g2+(g1-g2)×0.9=0.9×g1+0.1×g2 | 煤 | 0.51% | T=g2+(g1-g2)×0.1=0.1×g1+0.9×g2 | 泡沫混凝土 | 28.58% | T=g2+(g1-g2)×0.6=0.6×g1+0.4×g2 | 油页岩 | 14.7% | T=g2+(g1-g2)×0.4=0.4×g1+0.6×g2 | 砂岩 | 15.11% | T=g2+(g1-g2)×0.6=0.6×g1+0.4×g2 |
|
|
算法名称 | 实际测量值 | 阈值 | 算法计算值 | 相对误差 | 砂岩a | 12.6% | 27 | 12.45% | 1.19% | 砂岩b | 19.9% | 52 | 19.19% | 3.56% | 页岩a | 24.4% | 67 | 24.17% | 0.94% | 页岩b | 7.09% | 64 | 6.72% | 5.2% |
|
|
|
|
|
|
|
|
|
|

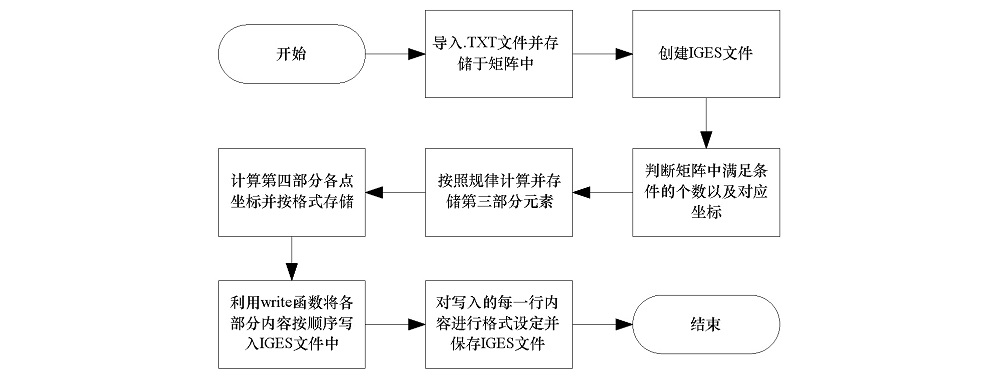

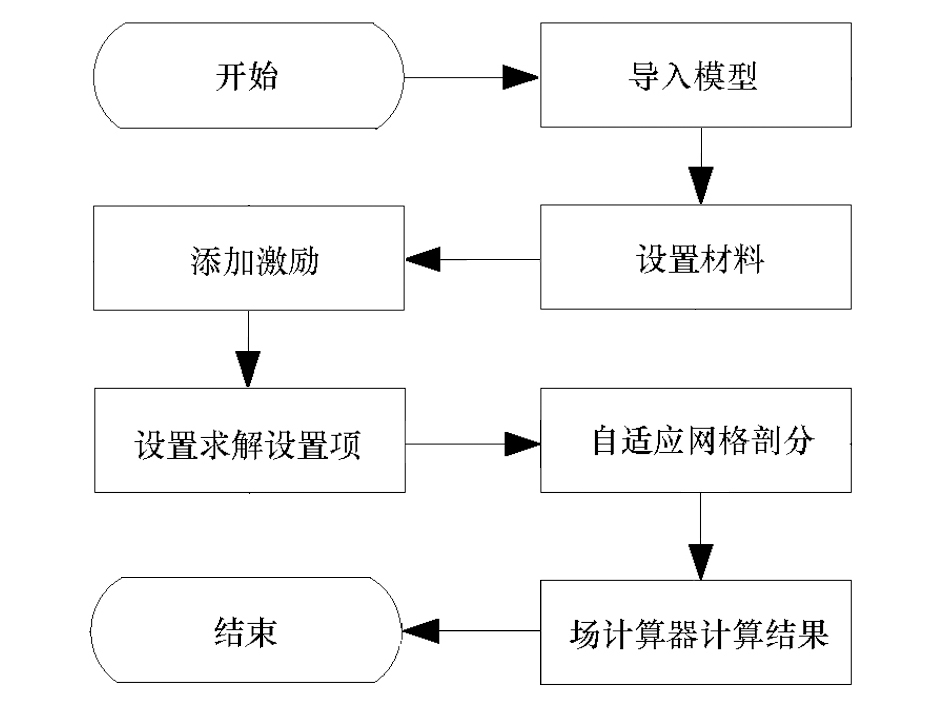

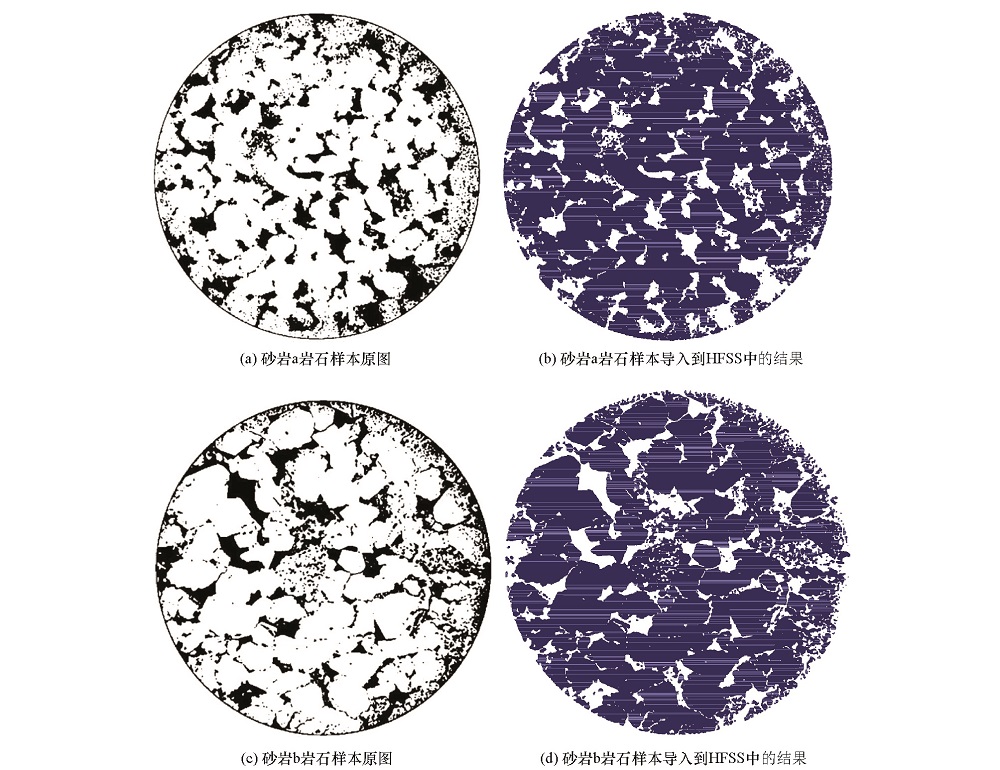

样本名称 | 测量系统 的结果 | 仿真计算 的结果 | 相对误差 | 砂岩a | 4.5536 | 4.8349 | 6.18% | 石灰岩 | 8.2273 | 8.8877 | 8.03% | 页岩a | 7.6352 | 7.4076 | 2.98% | 碳酸盐岩 | 7.4631 | 7.0891 | 5.01% |
|
|
[1] |
栗猛 . 岩石介电频散实验及介电饱和度模型模拟[D]. 吉林:吉林大学, 2017.
|
[2] |
聂昕 . 页岩气储层岩石数字岩心建模及导电性数值模拟研究[D]. 北京:中国地质大学(北京), 2014.
|
[3] |
Reint de Boer . Reflections on the development of the theory of porous media[J]. Applied Mechanics Reviews, 2003,56(6):R27-R42.
|
[4] |
孙建孟, 姜黎明, 刘学锋 , 等. 数字岩心技术测井应用与展望[J]. 测井技术, 2012,36(1):1-7.
|
[5] |
刘善琪, 李永兵, 田会全 , 等. 含湿孔隙岩石有效热导率的数值分析[J]. 地球物理学报, 2012,55(12):4239-4248.
|
[6] |
Golab A N, Knackstedt M, Averdunk H . 3D porosity and mineralogy characterization in tight gas sandstones[J]. Leading Edge, December 2010: 1476-1483.
|
[7] |
Andersson L, Jones A, Knackstedt M , et al. Permeability pore connectivity and critical pore throat control of expandable polymeric sphere template macroporous alumina[J]. Acta Materlia, 2010,59(3):1239-1248.
|
[8] |
朱伟, 单蕊 . 虚拟岩石物理研究进展[J]. 石油地球物理勘探, 2014,49(6):1138-1147.
|
[9] |
杨永飞, 王晨晨, 姚军 , 等. 页岩基质微观孔隙结构分析新方法[J]. 地球科学, 2016,41(6):1067-1073.
|
[10] |
张强, 李炎龙, 徐平 , 等. 基于有限元法的数字岩心导电性数值模拟[J]. 地球物理学进展, 2017,32(5):2148-2151.
|
[11] |
赵丽 . 基于周期微结构模型的岩石等效电特性数值仿真与分析[D]. 西安:长安大学, 2017.
|
[12] |
陈超 . 基于CT图像的地质样品孔隙度测量技术研究[D]. 重庆:重庆大学, 2013.
|
[13] |
Barrett H, Swindell W. Radiological Imaging[M]. New York: Academic Press, 1981.
|
[14] |
Ostu. A Threshold selection method from Gray-Level Histograms[J]. systems man and cybernetics, IEEE Transactions on, 1979,9(1):62-66.
|
[15] |
Hays J D, Pfirman S B , Blumenthal. Earth Science in struction with digital data. Computer & Geosciences[J]. Journal of systems and software, 2000,26(6):657-668.
|
[16] |
许文博 . 岩石电特性自动化测量系统的设计与实现[D]. 西安:长安大学, 2017.
|
