Simultaneous separation and reconstruction of multisource seismic data based on the iterative shrinkage-thresholding algorithm and the accelerated linearized Bregman method
MO Zi-Fen1(), QIU Da-Xing2, ZHANG Hua2(), ZHANG Chun-Lei2, HE Cheng-Jun2, YANG Xi-Xi2,3
1. The Sixth Geological Brigade of Jiangxi Geological Bureau,Nanchang 330011,China 2. National Key Laboratory of Uranium Resources Exploration-Mining and Nuclear Remote Sensing,East China University of Technology,Nanchang 330013,China 3. PowerChina Jiangxi Electric Power Engineering Co.,Ltd.,Nanchang 330096,China

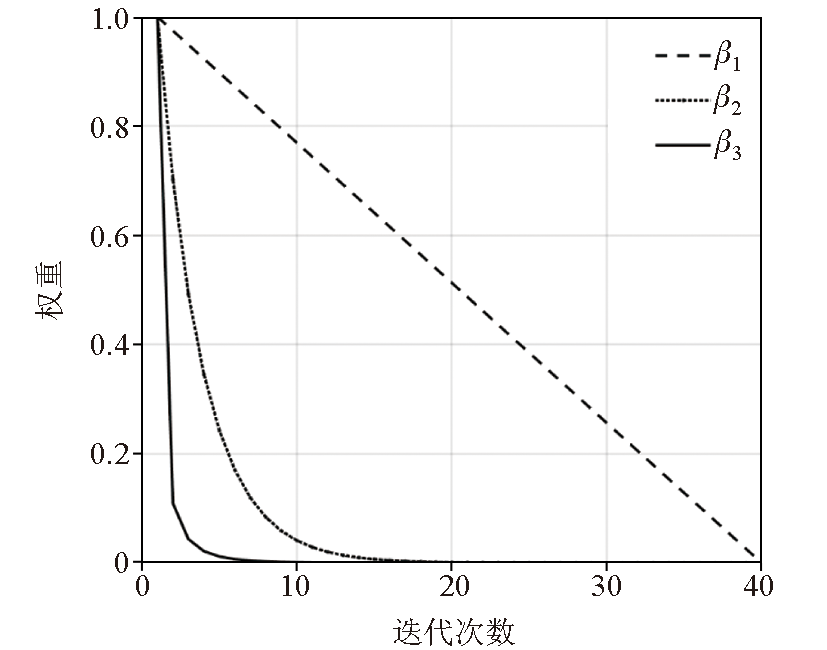

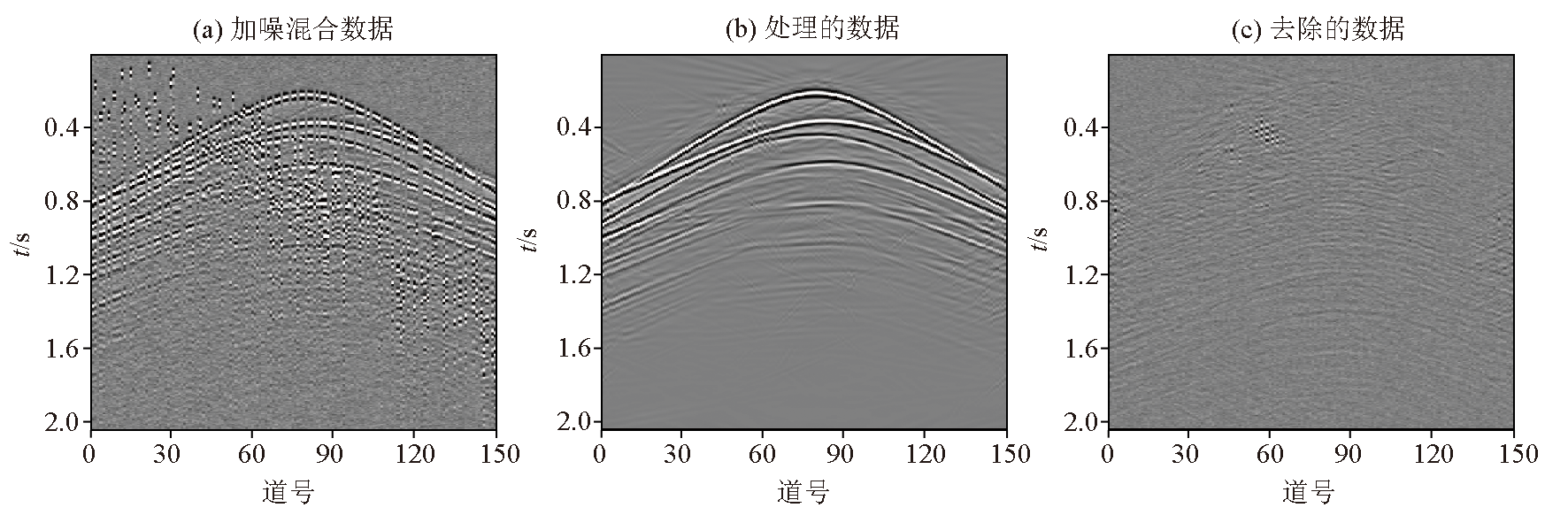

Multisource technology has significantly improved the acquisition efficiency of seismic data.However,the acquired data often suffer from severe aliasing and channel missing,necessitating effective reconstruction of missing channels during data separation.Since an individual separation and reconstruction algorithm cannot improve accuracy and computational efficiency simultaneously,this study proposed a method combining the iterative shrinkage-thresholding algorithm(ISTA) and the accelerated linearized Bregman method(ALBM) to leverage ISTA's high post-processing accuracy and ALBM's fast convergence speed for simultaneous separation and reconstruction of multisource data.The simultaneous separation and reconstruction process employed curvelet transform(as a sparse basis),hard threshold function,exponential threshold and acceleration factors,and a novel exponential weighting factor.Finally,the single-source data were separated and reconstructed.The results obtained from the combined method were compared with those obtained using ISTA and ALBM,respectively.Additionally,the noise robustness and denoising capability of the combined method were examined.Both theoretical simulation and practical application demonstrate that the combined method achieves higher accuracy and faster computational efficiency in separating and reconstructing complete single-source signals.
莫子奋, 邱达星, 张华, 张春雷, 何承峻, 杨熙熙. 基于阈值迭代法和加速线性Bregman联合的多震源地震数据同时分离和重建[J]. 物探与化探, 2025, 49(3): 653-660.
MO Zi-Fen, QIU Da-Xing, ZHANG Hua, ZHANG Chun-Lei, HE Cheng-Jun, YANG Xi-Xi. Simultaneous separation and reconstruction of multisource seismic data based on the iterative shrinkage-thresholding algorithm and the accelerated linearized Bregman method. Geophysical and Geochemical Exploration, 2025, 49(3): 653-660.
Guo J H, Cheng J W, Chen Z R, et al. Seismic data separation of simultaneous source based on an improved iterative denoising method[J]. Geophysical and Geochemical Exploration, 2019, 43(5):1054-1063.
Shi T K, Xu H, Huang L, et al. Progress in high-efficiency and high-precision separation of blended seismic data[J]. Geophysical Prospecting for Petroleum, 2020, 59(5):703-712.
doi: 10.3969/j.issn.1000-1441.2020.05.
Zhu Y K, Zhao J H, Miao X H, et al. Application of comprehensive geophysical survey in Bengbu uplift gold polymetallic ore exploration:A case study of Huaiyuan Shuanggou exploration area[J]. East China Geology, 2023, 44(1):82-92.
Tang H H, Mao W J. Multi-path Radon transform and its application in denoising and wave field separation[J]. Chinese Journal of Geophysics, 2022, 65(1):333-348.
Si Y X. Multi-source seismic data separation method via robust hyperbolic Radon transform sparse inversion[D]. Beijing: China University of Petroleum(Beijing), 2023.
Xue Y R, Tang H H, Chen X H, et al. Seismic data reconstruction based on high order high resolution Radon transform[J]. Oil Geophysical Prospecting, 2014, 49(1):95-100,131.
Wei Y J, Zhang P, Xu Z. Separation of 3D blending seismic data based on sparse constrained inversion[J]. Chinese Journal of Geophysics, 2019, 62(10):4000-4009.
Chen H L. Research on the separation of simultaneous sources data based on sparse inversion method[D]. Beijing: China University of Petroleum(Beijing), 2018.
Bai L S, Liu Y K, Lu H Y, et al. Curvelet-domian joint iterative seismic date reconstruction based on compressed sensing[J]. Chinese Journal of Geophysics, 2014, 57(9):2937-2945.
Yang X X, Zhang H, Wu Z Q, et al. Separation of multi-source seismic data based on curvelet-transfrom and fast exponential threshold iteration method[J]. Science Technology and Engineering, 2024, 24(13):5296-5303.
Zhang H, Chen X H. Seismic data reconstruction based on jittered sampling and curvelet transform[J]. Chinese Journal of Geophysics, 2013, 56(5):1637-1649.
Dong L Q, Zhou H, Guo S L, et al. An optimized blending noise suppression based on seislet domain iterative threshold denoising approach[J]. Geophysical and Geochemical Exploration, 2020, 44(3):568-572.
[15]
吴庚. 不同地震数据缺失情况下数据插值方法研究[D]. 长春: 吉林大学, 2023.
[15]
Wu G. Research on seismic data interpolation methods for different data missing cases[D]. Changchun: Jilin University, 2023.
Wang D W, Zhou H, Li L, et al. Application of Seislet transform in separation of multi-source acquisition data of offshore streamer[J]. Geological Science and Technology Information, 2018, 37(5):247-253.
[18]
Huang B, Ma S, Goldfarb D. Accelerated linearized Bregman method[J]. Journal of Scientific Computing, 2012, 54(2-3):428-453.
Pang Y, Zhang H, Hao Y J, et al. Joint seismic data reconstruction based on the accelerated Bregman method and threshold iteration method[J]. Oil Geophysical Prospecting, 2022, 57(5):10351045.
Wei Y J, Cao J J. Research on simultaneous separation and reconstruction of under sampled mixed source data[C]// Proceedings of the Annual Conference of China Earth Sciences Union(29):2022.
