Matching pursuit algorithm-based strong seismic reflection separation method under the constraints of seismic wave frequency of overlying strata |
LI Dong1( ), ZHU Bo-Hua2( ) |
1. Nanjing Engineering Branch, Jiangsu Union Technical Institute, Nanjing 211135, China 2. Sinopec Geophysical Research Institute Co.,Ltd., Nanjing 211103, China |
|
|
Abstract The strong seismic reflection separation method based on the matching pursuit algorithm has yielded encouraging results in practical applications.However,this method faces some challenges in the selection of key parameters and has been scarcely investigated.This study thoroughly investigated the optimization of frequency parameters in the method thereof and established a technical process.First,this study analyzed the spatial variations in the frequency of seismic waves from the perspective of seismic wave propagation and attenuation and proposed a matching pursuit algorithm under the constraints of frequency.Then,this study designed corresponding geological models,conducted frequency optimization tests,and separated the strong seismic reflections using the matching pursuit algorithm under the constraints of the seismic wave frequency of the overlying strata.The test results verify the accuracy and effectiveness of the strong reflection separation method.Finally,the strong reflection separation method was applied to the fracture-vug carbonate reservoirs in the Tarim Basin.The great application effects indicate that the separation method can separate strong reflection events more reasonably and effectively,making the characteristics of underlying small-sized fractures and vugs more significant.This study further optimizes the strong reflection separation method based on matching pursuit and improves the adaptability and application performance of seismic data,thus laying a better foundation for further promotion and application of this method.
|
Received: 18 October 2022
Published: 27 October 2023
|
|
Corresponding Authors:
ZHU Bo-Hua
E-mail: lidong_dearl@163.com;zhubohua1987@163.com
|
|
|
|
|

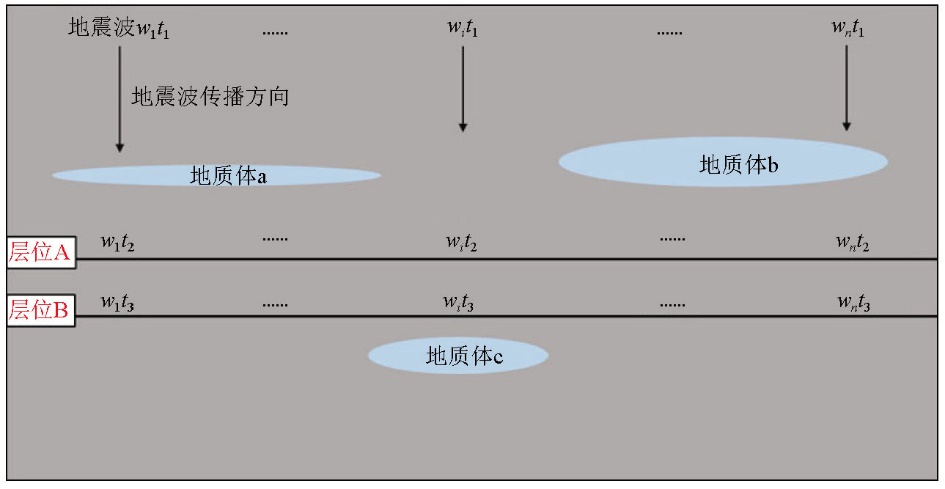

Schematic model of seismic wave propagation
|
|

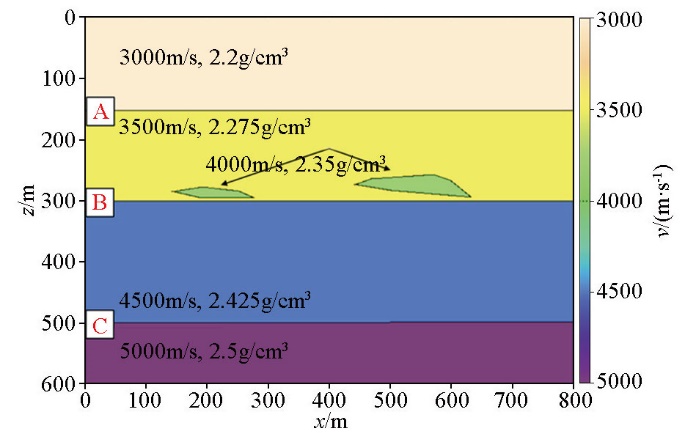

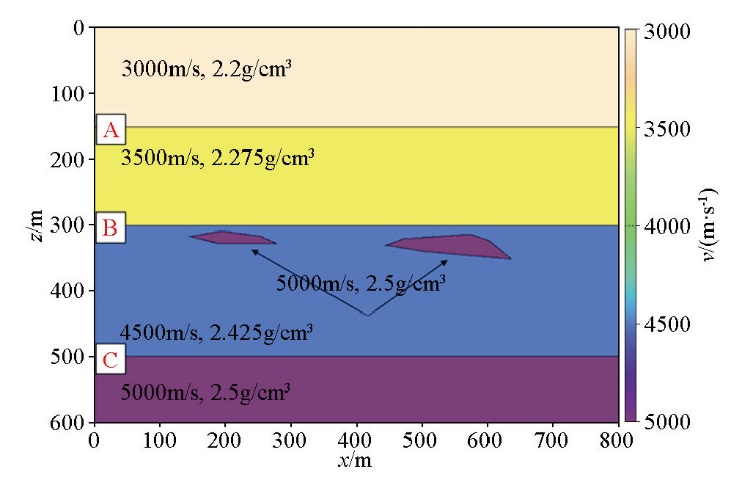

Geological model 1
|
|

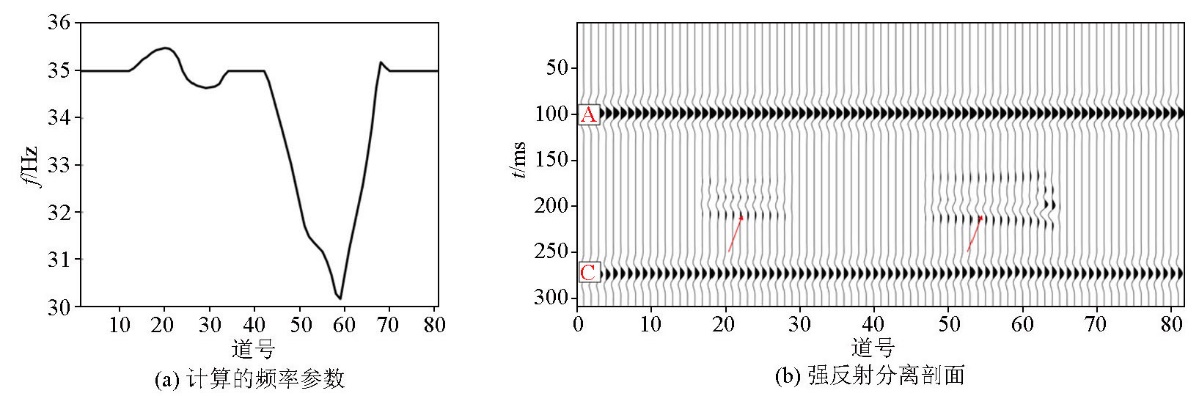

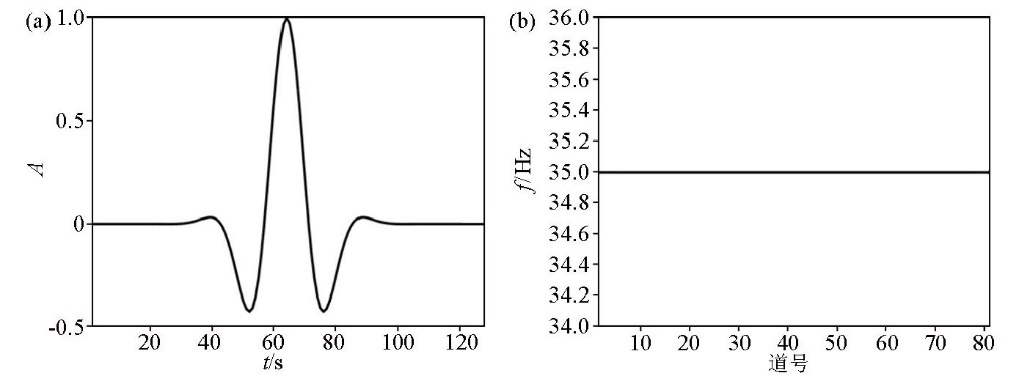

Morlet wavelet(a) and main frequency value(b) for seismic forward modelling
|
|

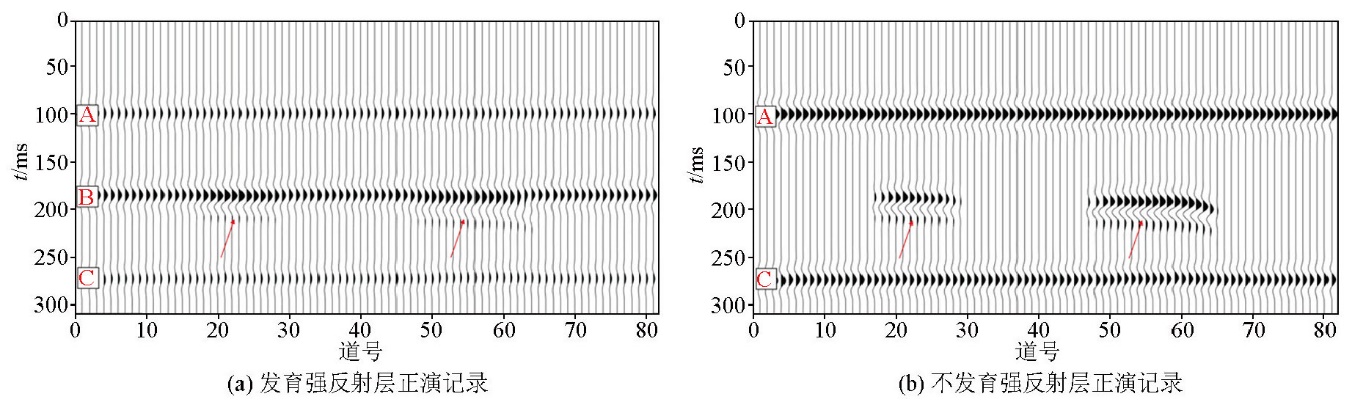

Profile by seismic forward modelling
|
|
Result by conventional strong seismic reflection separation method
|
|
Result by frequency constraint strong seismic reflection separation method
|
|

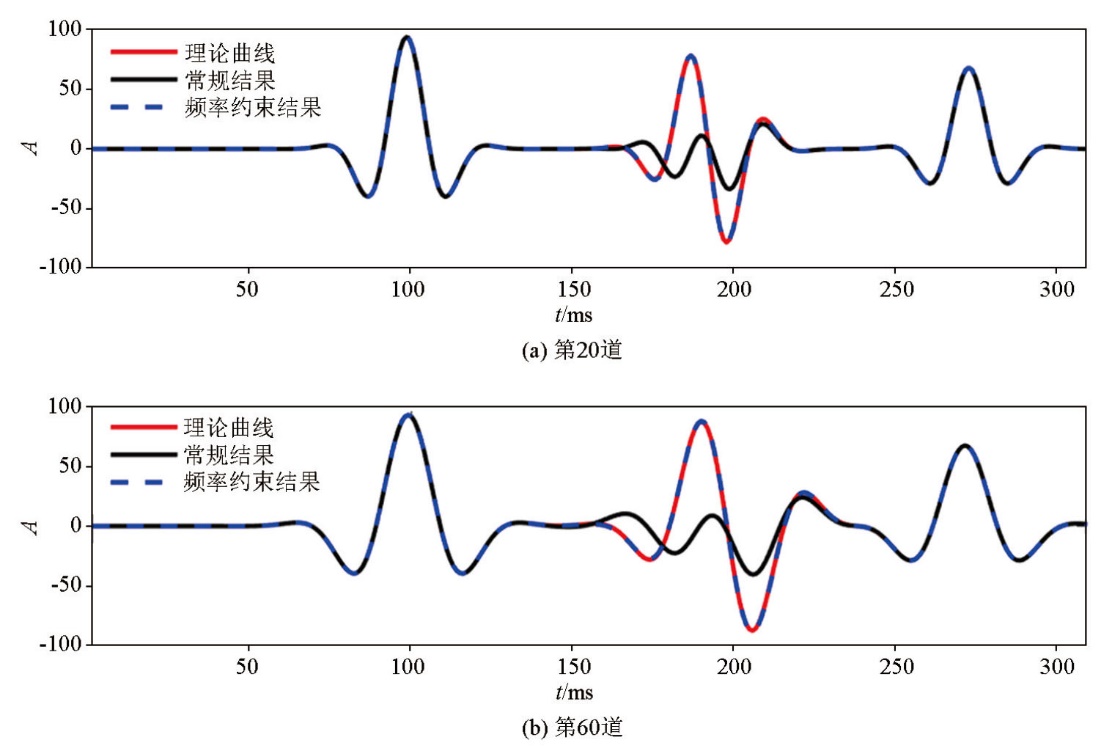

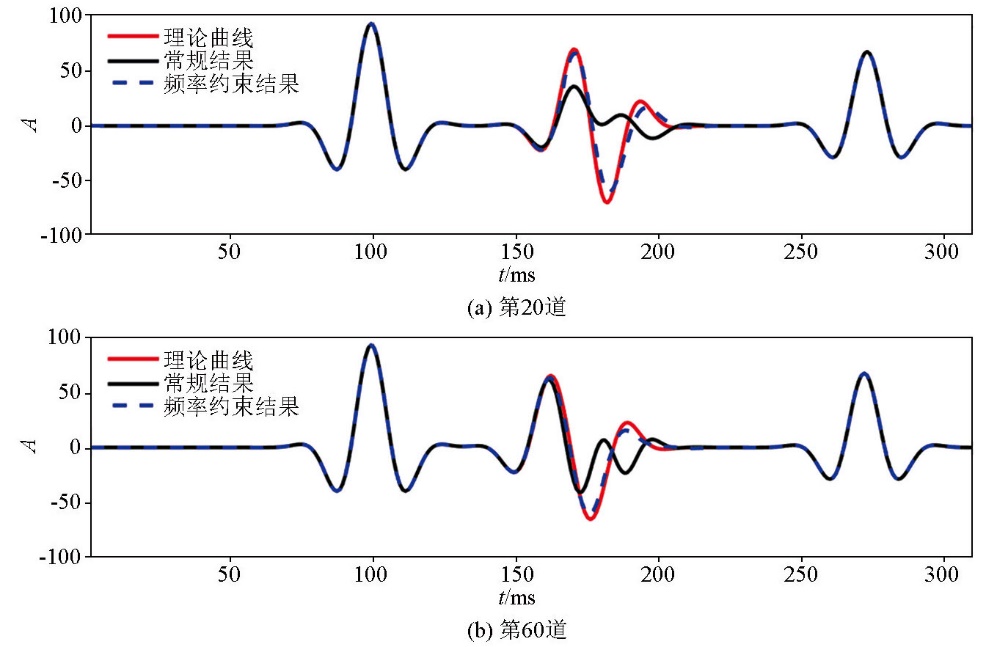

Reflection waveform comparison of reservoir
|
|
Geological model 2
|
|

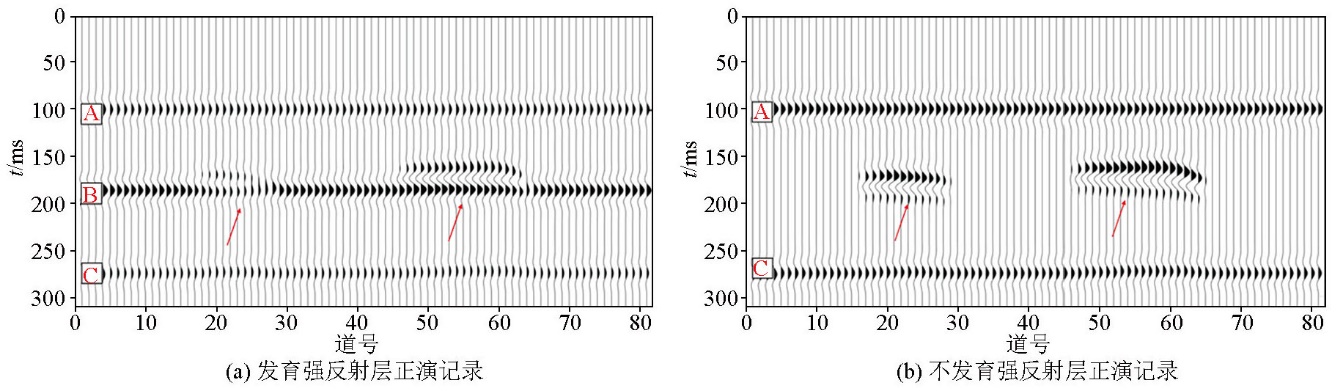

Profile by seismic forward modelling
|
|

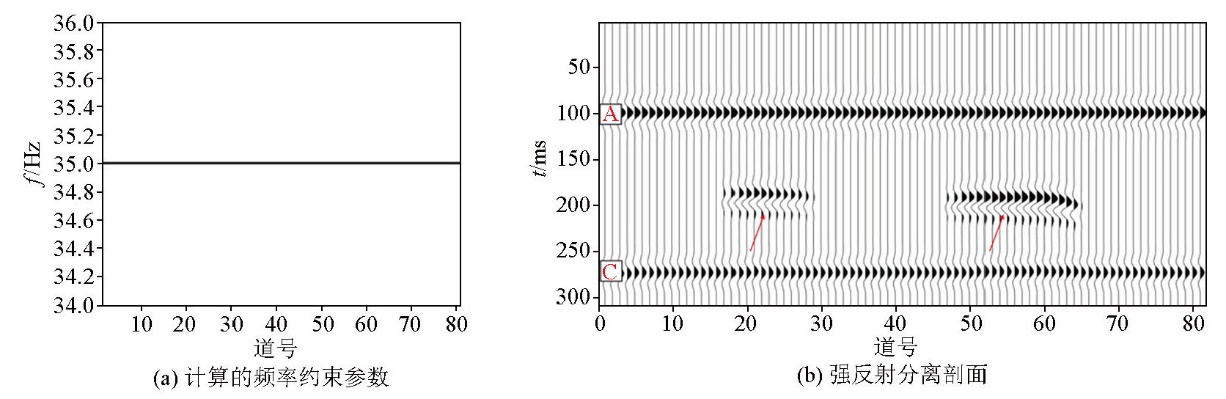

Result by conventional strong seismic reflection separation method
|
|

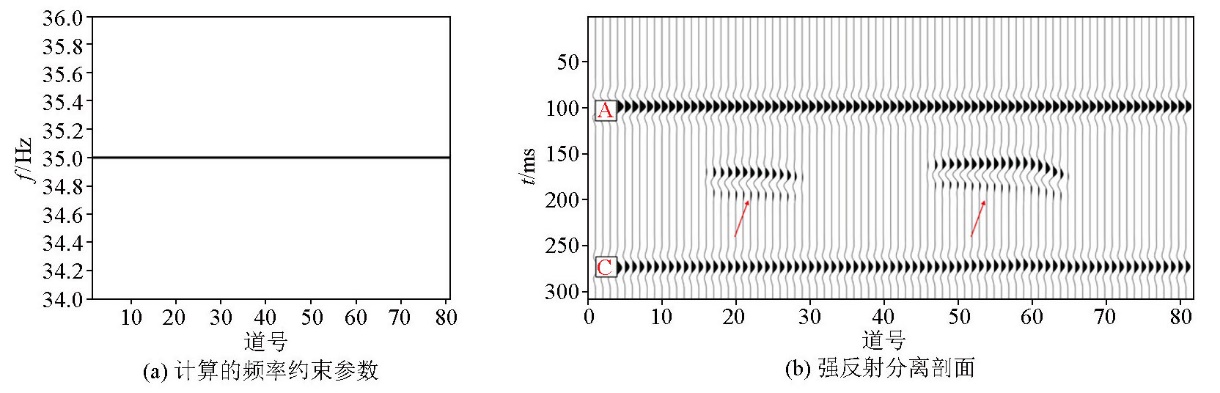

Result by frequency constraint strong seismic reflection separation method
|
|

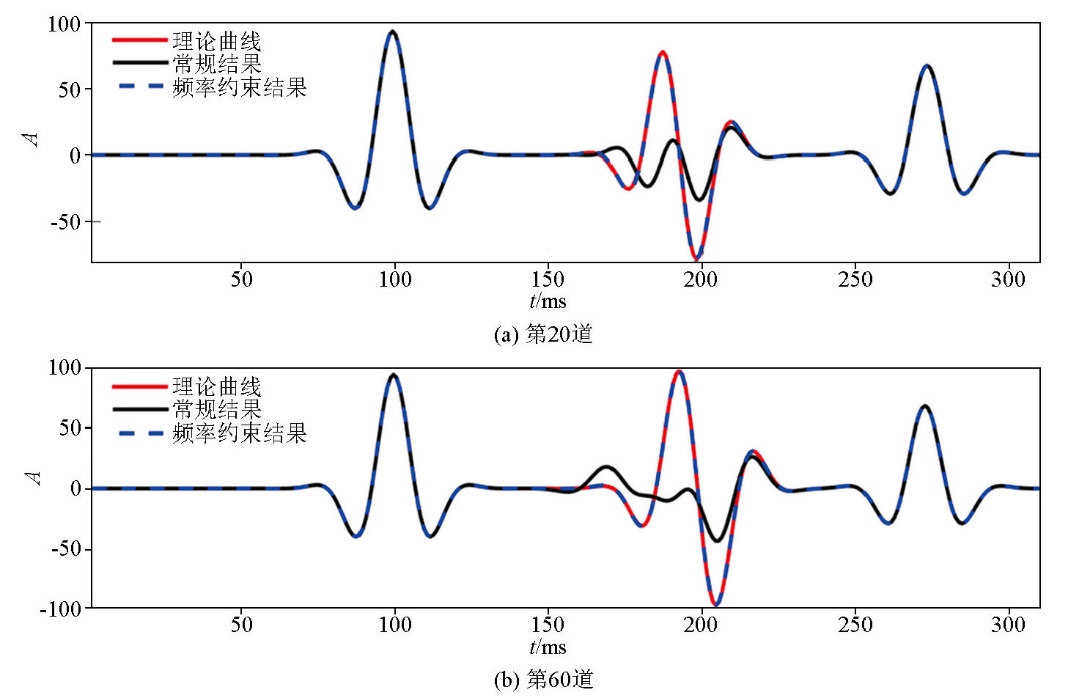

Reflection waveform comparison of reservoir
|
|

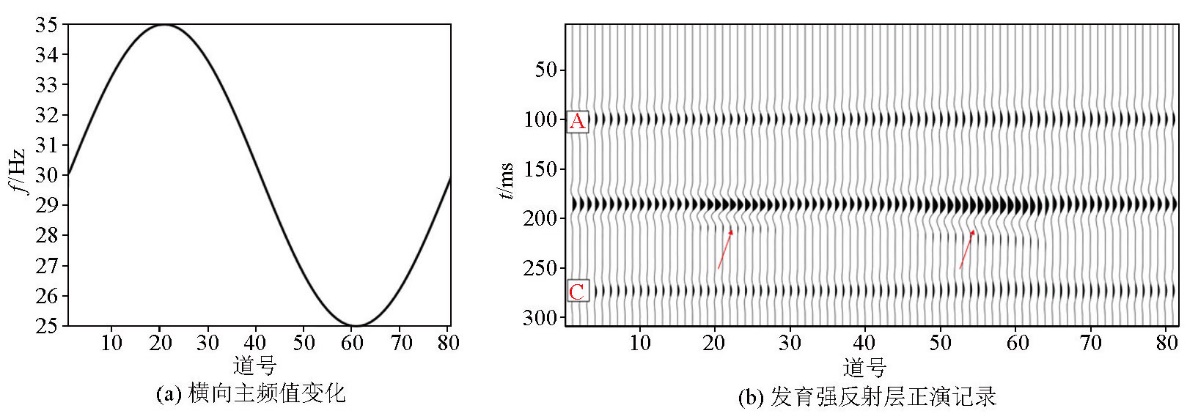

Forward simulation of lateral dominant frequency variation
|
|
Result by conventional strong seismic reflection separation method
|
|

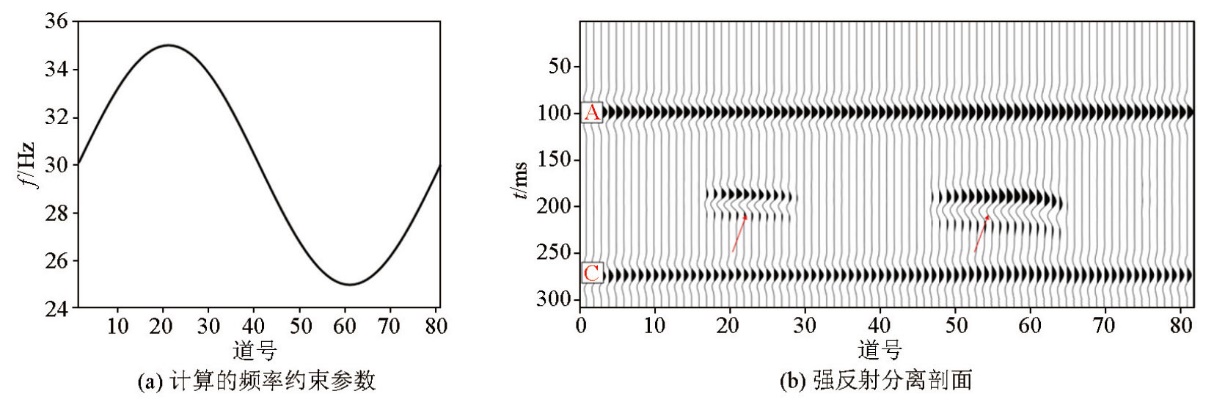

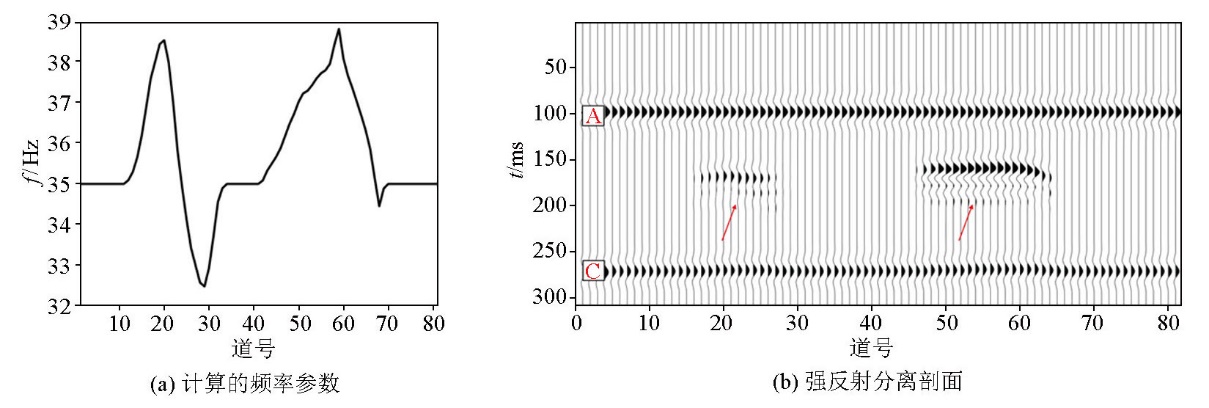

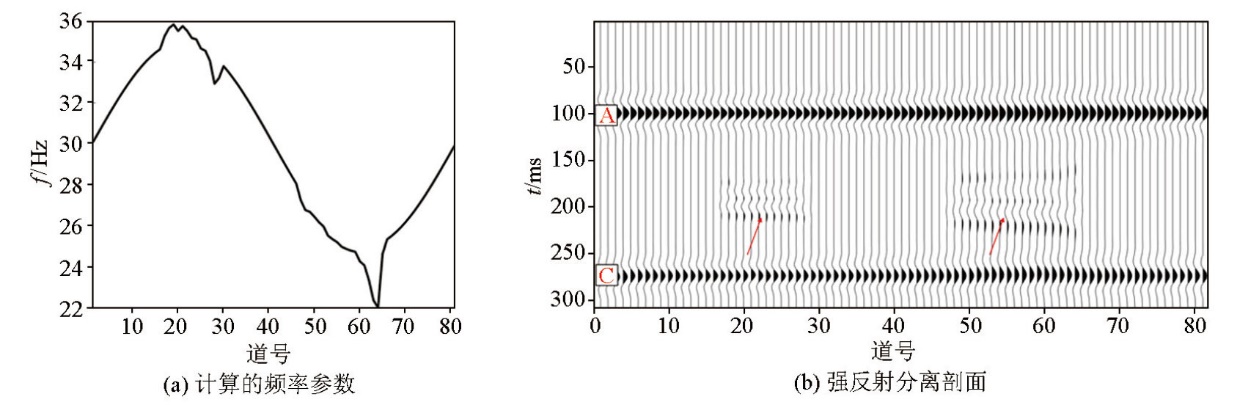

Result by frequency constraint strong seismic reflection separation method
|
|
Reflection waveform comparison of reservoir
|
|

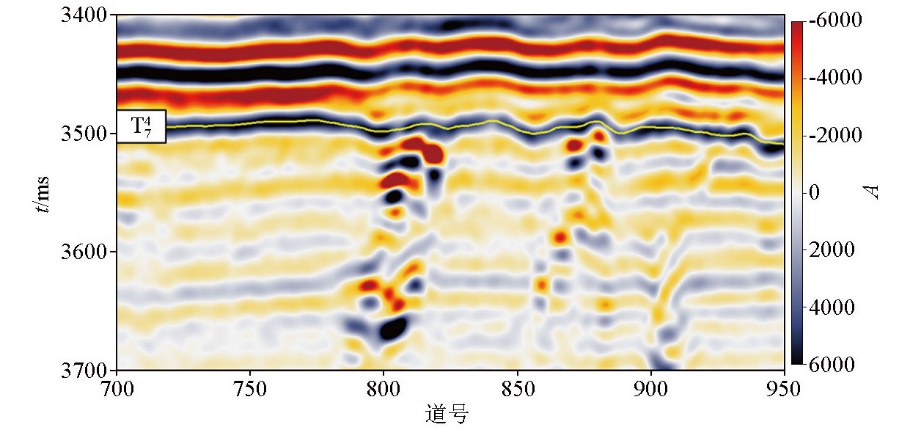

Seismic profile of Ordovician fracture-cavity reservoir in Tarim Basin
|
|

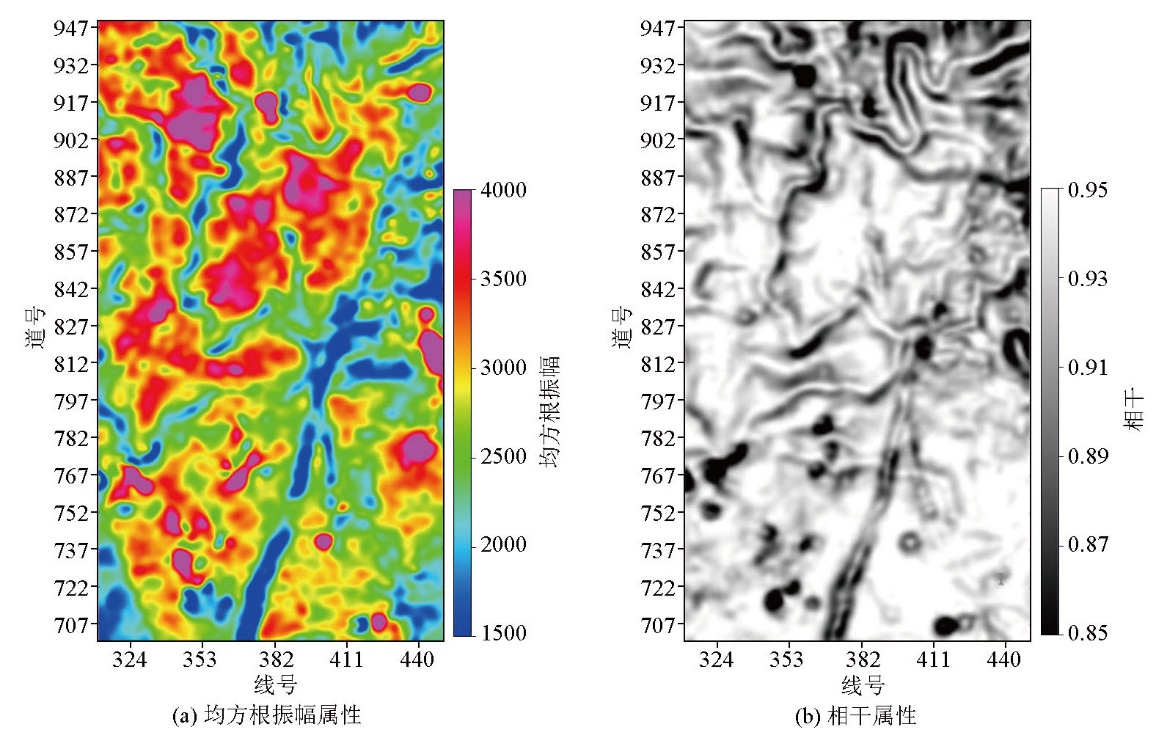

Plane attribute extraction of the study area
|
|

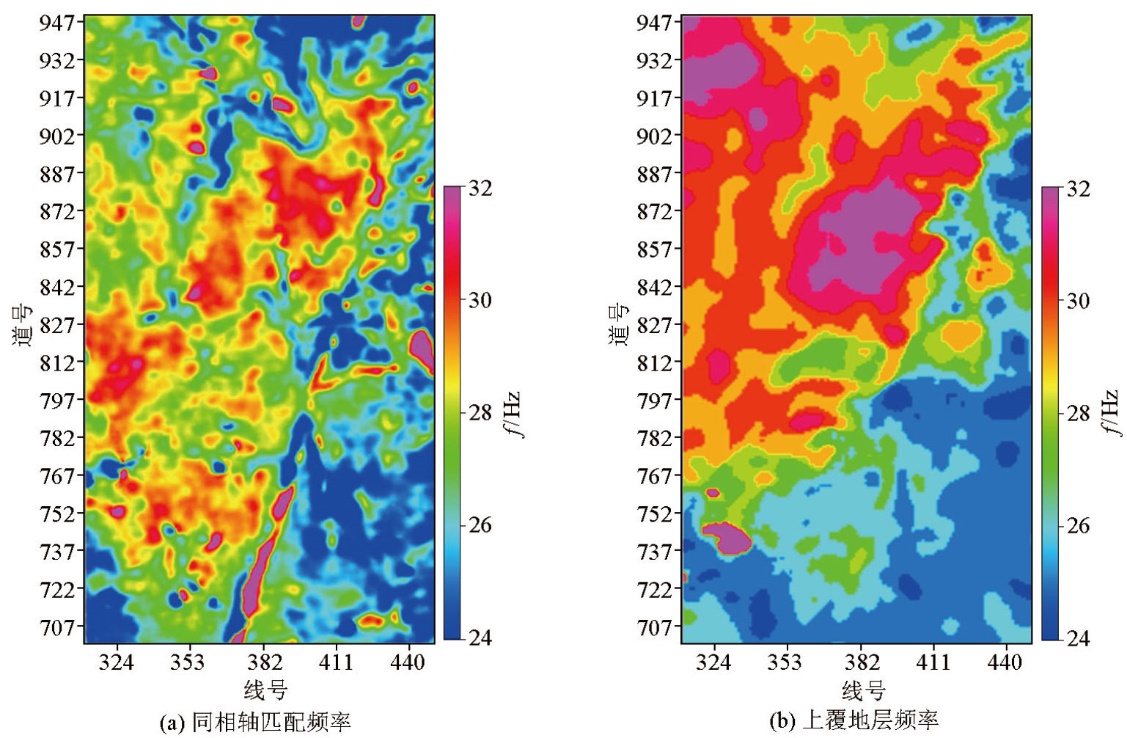

Frequency attribute map of target layer
|
|

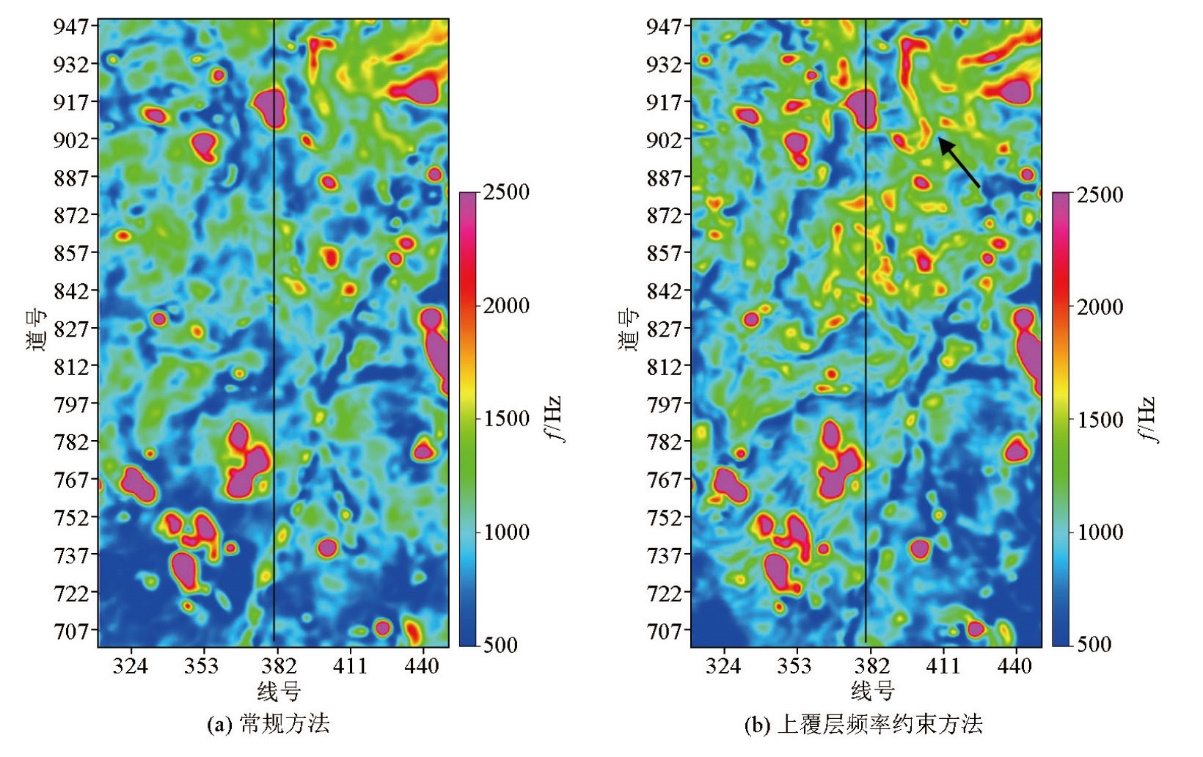

Amplitude attribute comparison of different strong reflection separation method
|
|

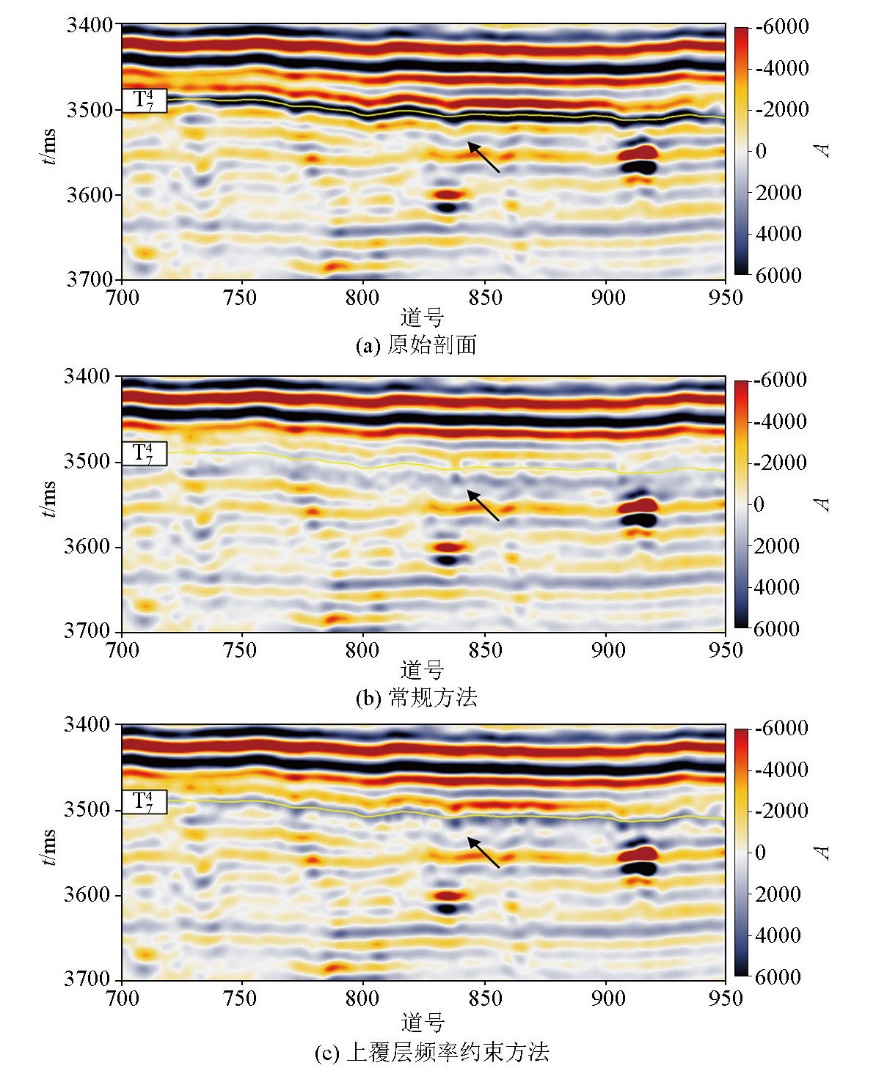

Seismic profile comparison of different strong reflection separation method
|
