动力滑翔机航磁测量系统的研发与应用

doi:10.11720/wtyht.2020.1276

Abstract
Figure/Table
References
Related Citation (1)

Download: PDF (1776 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This paper gives an account of the development and application of the aeromagnetic measuring system of a power glider equipped with cesium optical pump magnetometer. The model selection, support modification, magnetic interference elimination, aeromagnetic system integration and other aspects are fully studied, and the integrated aeromagnetic system performance indexes are tested. On the whole, the indexes accord with the technical specification for aviation magnetic survey DZ/T 0142-2010 (hereinafter referred to as the aeromagnetic specification) requirements. The production operation was conducted, and a comparison was made between the aeromagnetic survey results and the previous aeromagnetic results; an analysis was conducted in the aspects of economy, applicability and green environmental protection. It is shown that the system is an effective method in the low-level aeromagnetic survey, and the use of the system to carry out large scale aeromagnetic survey and geomagnetic survey has obvious advantages.

Key words： power glider seromagnetic survey integration and modification test and application

Received: 15 May 2019 Published: 03 March 2020

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiang-Ping YUE
	Jian ZHANG

Cite this article:

Xiang-Ping YUE,Jian ZHANG. The development and application of aeromagnetic measurement system for power glider[J]. Geophysical and Geochemical Exploration, 2020, 44(1): 171-178.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1276 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I1/171

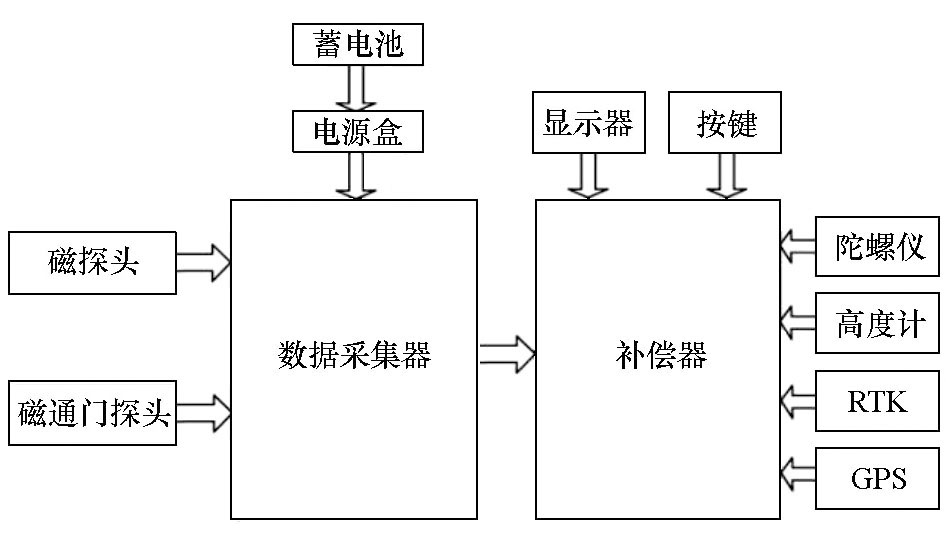

Frame of aeromagnetic system

Main performance parameters of power glider

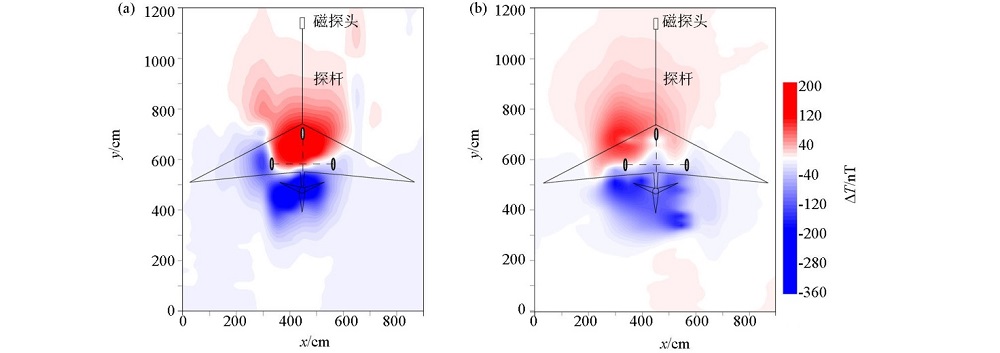

Aircraft static magnetic field distribution (a) and dynamic magnetic field distribution (b)

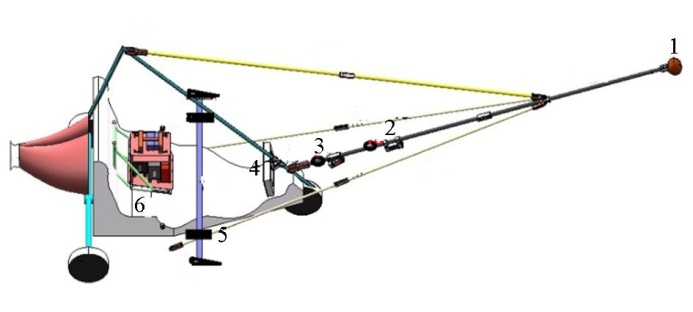

Design drawing of hang-glider aeromagnetic system support
1—cesium optical pump magnetic probe;2—fluxgate three component sensor;3—real time differential GPS antenna;4—navigation display;5—altimeter;6—data collector,compensator

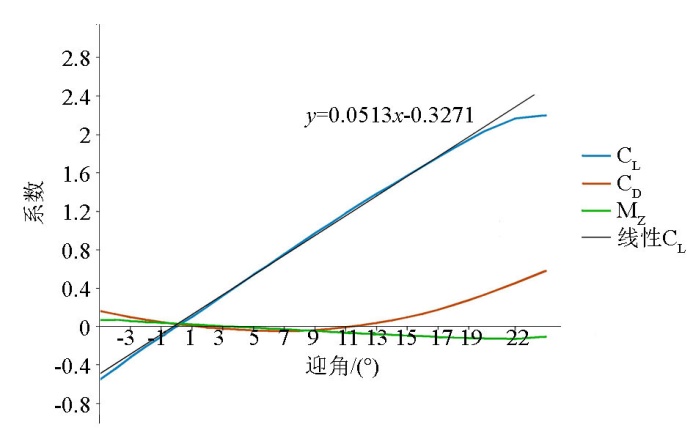

Glider flight dynamics test

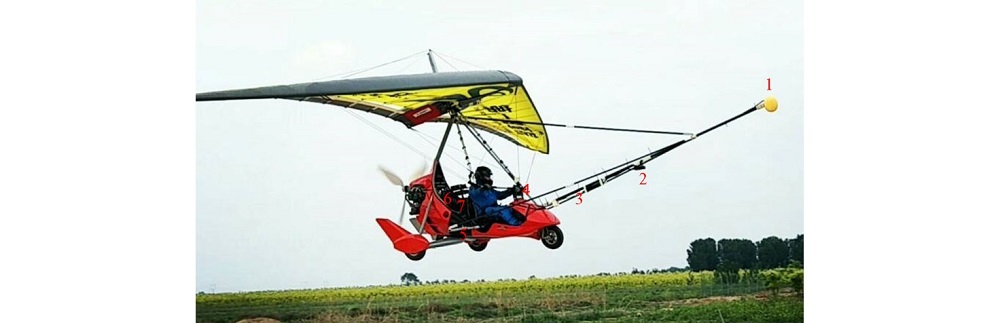

The aeromagnetic system of a powered glider
1—cesium optical pump magnetic probe;2—fluxgate three component sensor;3—real-time differential GPS antenna;4—navigation display;5—altimeter;6—data collector;7—compensator

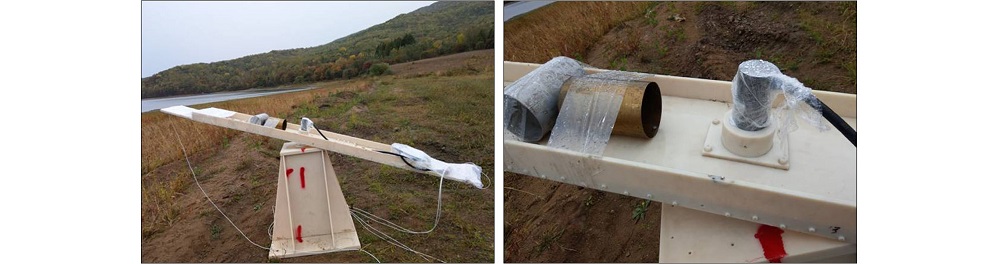

Magnetic compensation simulation experimental model

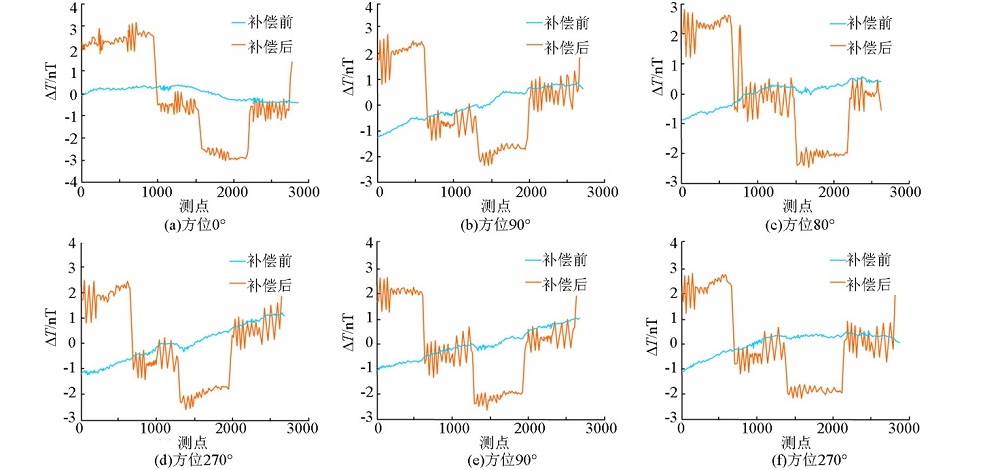

Magnetic compensation simulation experiment graph

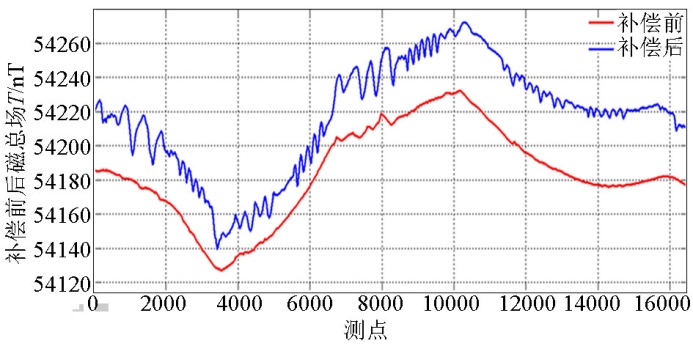

Verify the magnetic complement flight graph

Standard deviation before and after magnetic compensation

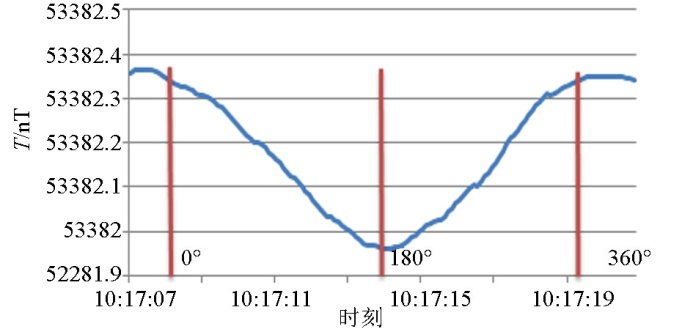

Curve of magnetometer steering difference test

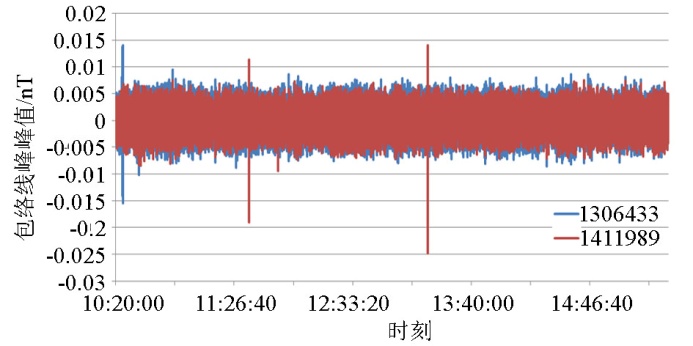

Curve of stability test of magnetic probe

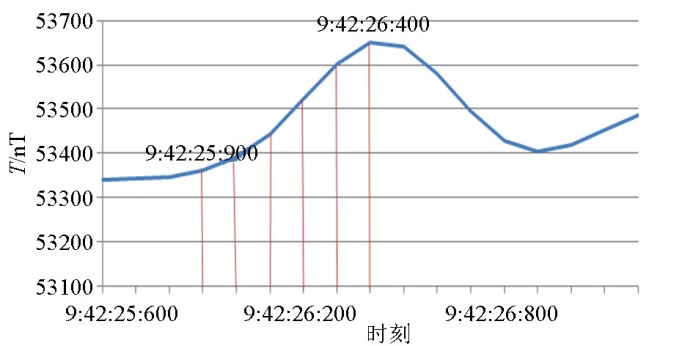

Test curve of magnetometer step response rise time

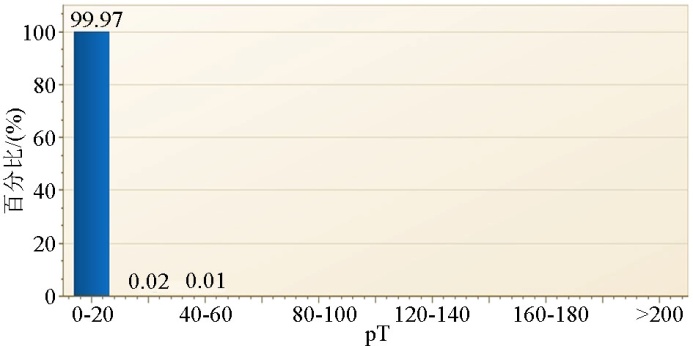

Magnetic fourth order difference static noise distribution diagram

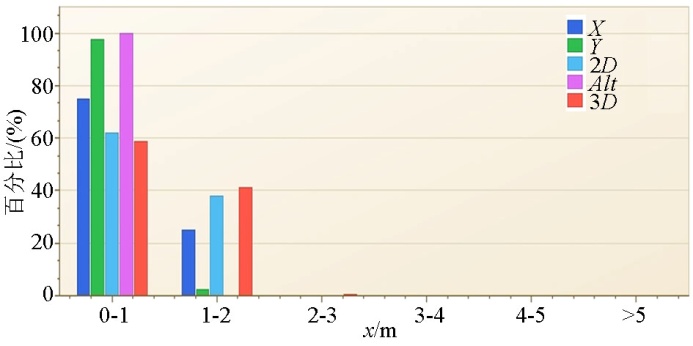

Positioning accuracy distribution diagram

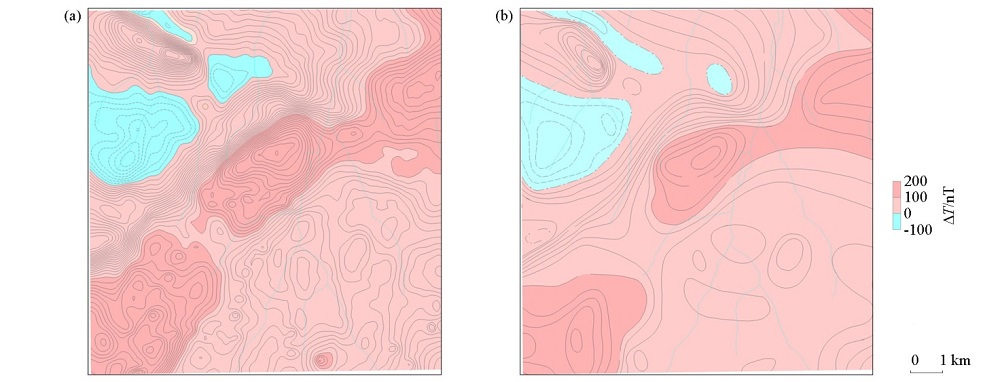

The 1∶10 000 aeromagnetic △T isoline map (a) is the same as the previous 1∶50 000 aeromagnetic isoline map (b)

Comparison of aeromagnetism and geomagnetism at different scales

[1]	DZ/T 0142-2010 航空磁测技术规范[S]. 北京: 中国标准出版社, 2010.
[1]	Z/T 0142-2010 Technical specifications for aeronautical magnetic testing[S]. Beijing: China Standard Press, 2010.
[2]	熊盛青 . “十五”以来我国航空物探进展与展望[J]. 物探与化探, 2007,31(6):479-484.
[2]	Xiong S Q . The progress and prospect of aviation exploration in China since the "Fifth Five-Year Plan"[J]. Geophysical and Geochemical Exploration, 2007,31(6) : 479-484.
[3]	张洪瑞, 范正国 . 2000 年来西方国家航空物探技术的若干进展[J]. 物探与化探, 2007,31(1):451-457.
[3]	Zhang H R, Fan Z G . Some advances in aerial exploration technology in Western countries since 2000[J]. Geophysical and Geochemical Exploration, 2007,31(1) : 451-457.
[4]	崔志强, 胥值礼, 孟庆敏 . 国内主要航空物探飞行平台特点及发展[J]. 物探与化探, 2014,38(6):1107-1113.
[4]	Cui Z Q, Xu Z L, Meng Q M . Characteristics and development of major aviation exploration platforms in China[J]. Geophysical and Geochemical Exploration, 2014,38(6) : 1107-1113.
[5]	王波, 贾学天, 刘建生 , 等. 基于无人飞艇平台的航磁系统试验与应用[J]. 物探与化探, 2016,40(6):1138-1143.
[5]	Wang B, Jia X T, Liu J S , et al. Aviation magnetic system test and application based on unmanned airship platform[J]. Geophysical and Geochemical Exploration, 2016,40(6) : 1138-1143.
[6]	王庆乙, 行英弟, 蒋彬 , 等. MAMSS-1 超低高精度航磁系统的研制[J]. 物探与化探, 2010,34(6):712-716.
[6]	Wang Q Y, Xing Y D, Jiang B , et al. Development of ultra-low and high-precision aeronautical magnetic system[J]. Geophysical and Geochemical Exploration, 2010,34(6) : 712-716.
[7]	张健, 鲍世才, 彭小珂 . 绿色勘查新方法—低空航磁测量[J]. 甘肃地质, 2018,27(2):78-82.
[7]	Zhang J, Bao S C, Peng X K . New method of green exploration-low-altitude aerial magnetic measurement[J]. Gansu Geology, 2018,27(2) : 78-82.
[8]	刘晓杰 . 航磁补偿技术研究[D]. 长春: 吉林大学, 2009.
[8]	Liu X J . Research on aeronautical magnetic compensation technology[D]. Changchun: Jilin University, 2009.
[9]	何敬礼 . 飞机磁补偿、磁补偿器的历史、现状及发展趋势[J]. 地学仪器, 1991(3):1-7.
[9]	He J L . History, current situation and development trend of aircraft magnetic compensation and magnetic compensation[J]. Geological Instruments, 1991(3) : 1-7.
[10]	王林飞, 薛典军, 熊盛青 , 等. 航磁软补偿质量评价方法及软件实现[J]. 物探与化探, 2013,37(6):1027-1030.
[10]	Wang L F, Xue D J, Xiong S Q , et al. The quality evaluation method and software realization of aeromagnetic soft compensation[J]. Geophysical and Geochemical Exploration, 2013,37(6) : 1027-1030.
[11]	李标芳, 王振东 . 飞机的磁干扰及电子补偿方法[J]. 物探与化探, 1979,3(1):35-43.
[11]	Li B F, Wang Z D . Magnetic interference and electronic compensation methods for aircraft[J]. Geophysical and Geochemical Exploration, 1979,3(1) : 35-43.
[12]	熊盛青 . 中高山区高精度航磁方法技术[M]. 北京: 地质出版社, 2009.
[12]	Xiong S Q . High-precision aeronautical magnetic method technology in the mid-high mountain area[M]. Beijing: Geological Press, 2009.
[13]	岳想平, 张健, 彭小珂 . 甘肃省通渭华家岭—黄家窑一带矿调航磁报告[R]. 天水:甘肃地矿局第一地质勘查院, 2018.
[13]	Yue X P, Zhang J, Peng X K . Report on the magnetic transfer of minerals along Tonghuajialing-Huangjia kiln in Gansu Province[R]. Tianshui: Gansu Bureau of Land and Mines, First Geological Survey Institute, 2018.
[14]	范正国, 黄旭钊, 熊盛青 . 磁测资料应用技术要求[M]. 北京: 地质出版社, 2010.
[14]	Fan Z G, Shang X Z, Xiong S Q , Technical requirements for the application of magnetic data[M]. Beijing: Geological Press, 2010.
[15]	李宏录, 卫岗, 曾宪刚 , 等. 应用航磁资料在野马泉地区寻找以铁为主多金属矿产[J]. 物探与化探, 2009,33(2) : 117-122.
[15]	Li H L, Wei G, Zeng X G , et al. Application of aeromagnetic data in the Mustang Springs area to find iron-based polymetallic minerals[J], Geophysical and Geochemical Exploration, 2009,33(2) : 117-122.
[16]	于长春, 范正国, 王乃东 , 等. 高分辨率航磁方法及在大冶铁矿区的应用[J]. 地球物理学进展, 2007,22(3) : 979-983.
[16]	Yu C C, Fan Z G, Wang L D , et al. High-resolution aeronautical magnetic method and application in daye iron ore area[J]. Advances in Geophysics, 2007,22(3) : 979-983.
[17]	宋新华, 尹秉喜, 闫红 , 等. 航磁资料在卫宁北山寻找多金属矿中的应用[J]. 物探与化探, 2010,34(3) : 289-290.
[17]	Song X H, Yin B X, Yan H , et al. Application of aeronautical magnetic data in the search for polymetallic ore in Weining Beishan[J], Geophysical and Geochemical Exploration, 2010,34(3) : 289-290.
[18]	骆遥, 王林飞, 何辉 . 航空地球物理勘探资料微调平处理[J]. 物探与化探, 2012,36(5) : 851-855.
[18]	Luo Y, Wang L F, He H . Fine-tuning flat treatment of aeronautical geophysical exploration data[J], Geophysical and Geochemical Exploration, 2012,36(5) : 851-855.
[19]	王林飞, 薛典军, 段树岭 , 等. 航磁软补偿动作规范性评价[J]. 物探与化探, 2016,40(2) : 365 369.
[19]	Wang L F, Xue D J, Duan S L , et al. Standardized evaluation of aeromagnetic soft compensation action[J]. Geophysical and Geochemical Exploration, 2016,40(2) : 365-369.
[20]	王卫平, 周锡华, 王守坦 . 吊舱式直升机频率域电磁系统性能及应用效果[J]. 地球物理学进展, 2008,31(3):185-190.
[20]	Wang W P, Zhou X H, Wang S J . Performance and application effect of electromagnetic system in the frequency domain of the pod helicopter[J]. Advances in Geophysics, 2008,31(3):185-190.
