黄土塬区多道瞬态面波数据采集试验分析

doi:10.11720/wtyht.2020.1204

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (5495 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In order to apply the method of multi-channel analysis surface wave (MASW) to geological survey,the authors studied multi-channel transient surface wave data acquisition in loess plateau.The effect of some acquisition parameters,such as different excitation sources,number of receiving channels,station intervals and the minimum offset,on the record quality of the data was analyzed.In addition,the suitable data acquisition method and parameters for the loess plateau were pointed out.The processing results of the actual data reflect the velocity structure and the loess type characteristics in the near surface of the work area,which indicates that the selection method of the data acquisition parameters is reasonable,which lays a foundation for the application of MASW in the geological survey in the loess plateau area.

Key words： loess plateau multi-channel transient surface wave data acquisition

Received: 10 April 2019 Published: 03 March 2020

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wen TANG
	Jiang LI
	Tie-Wang WANG

Cite this article:

Wen TANG,Jiang LI,Tie-Wang WANG. Test analysis of multi-channel transient surface wave data acquisition in loess plateau[J]. Geophysical and Geochemical Exploration, 2020, 44(1): 165-170.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1204 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I1/165

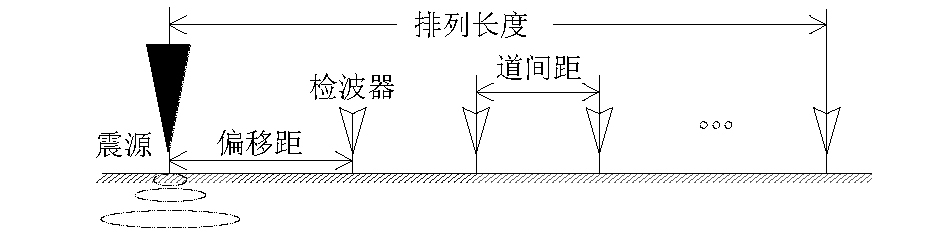

Schematic diagram of multi-channel transient surface wave geometry

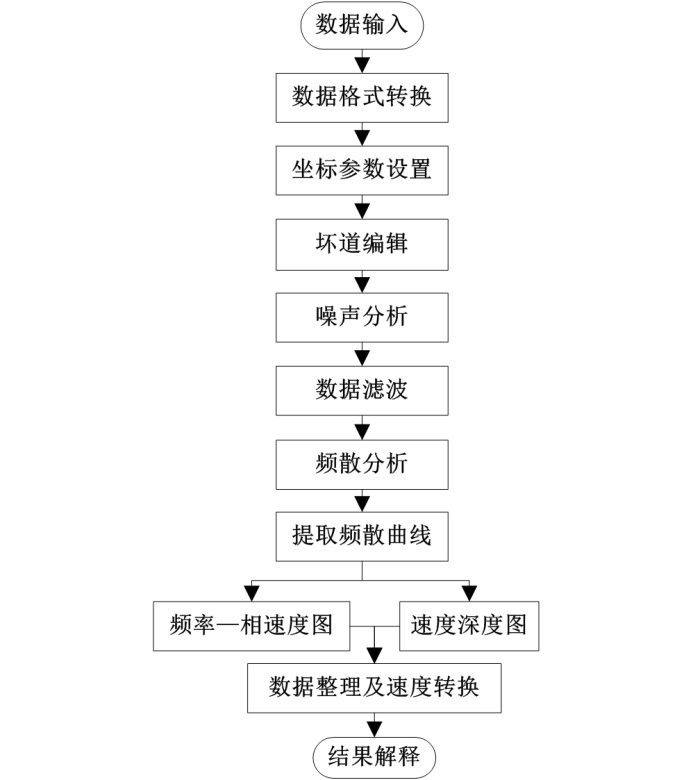

Process flow of multi-channel transient surface wave data

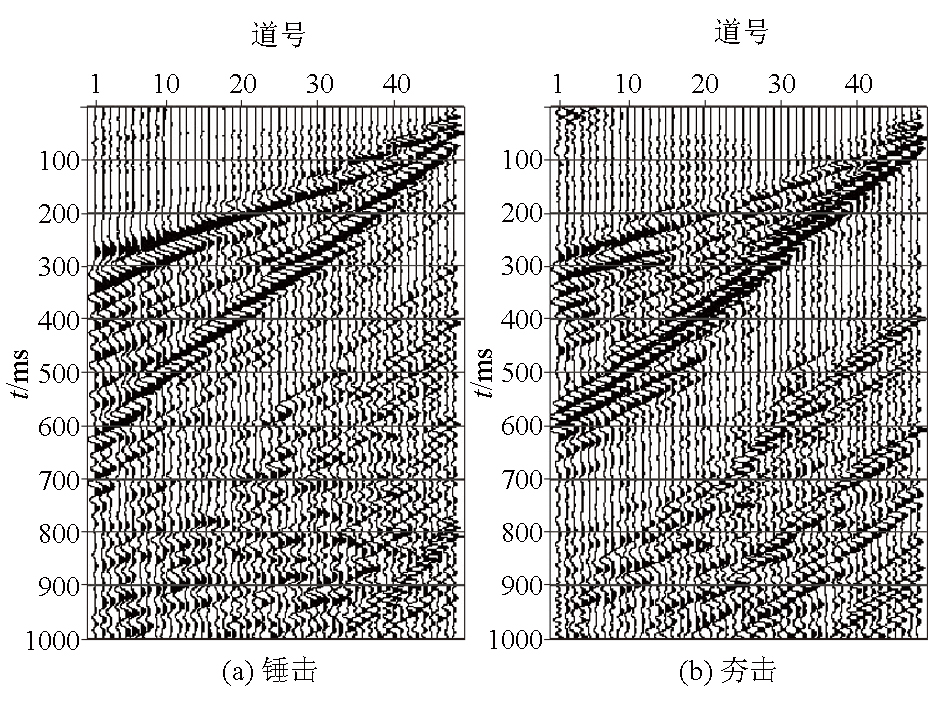

Seismic recording of different sources

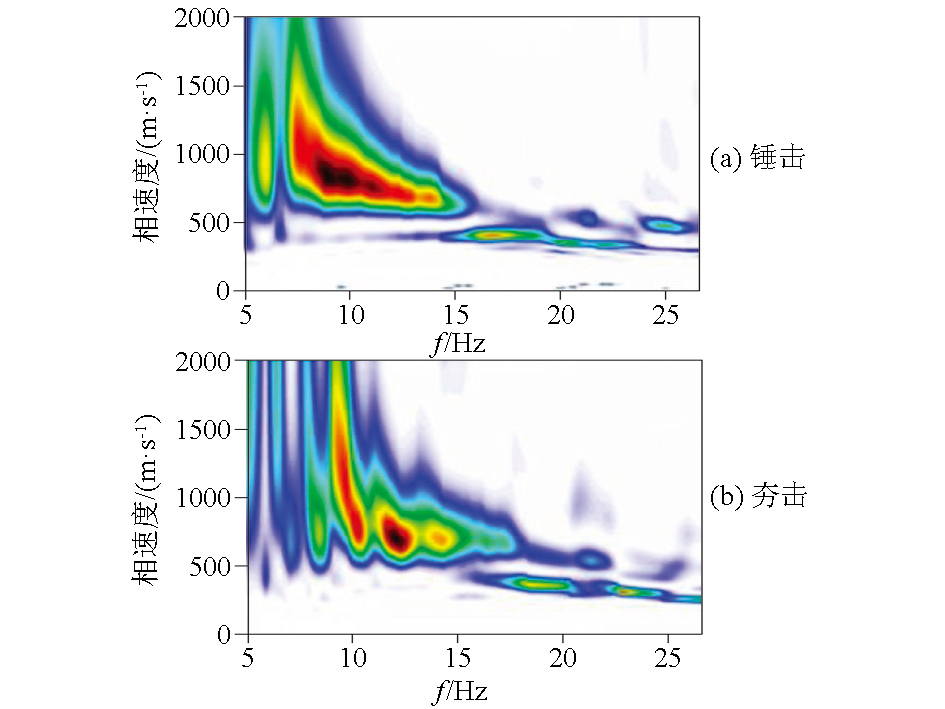

Comparison of dispersion curve of seismic recording of different sources

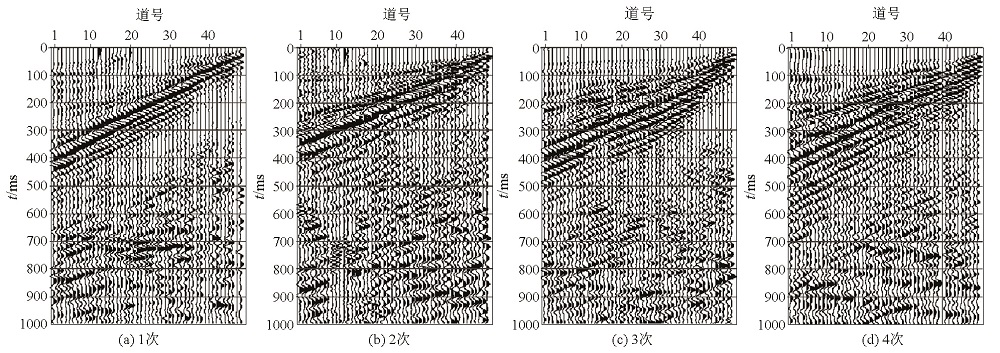

Comparison of different hammering stacking folds (1~4 stacking folds from left to right)

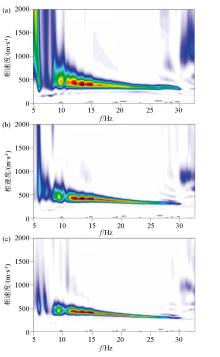

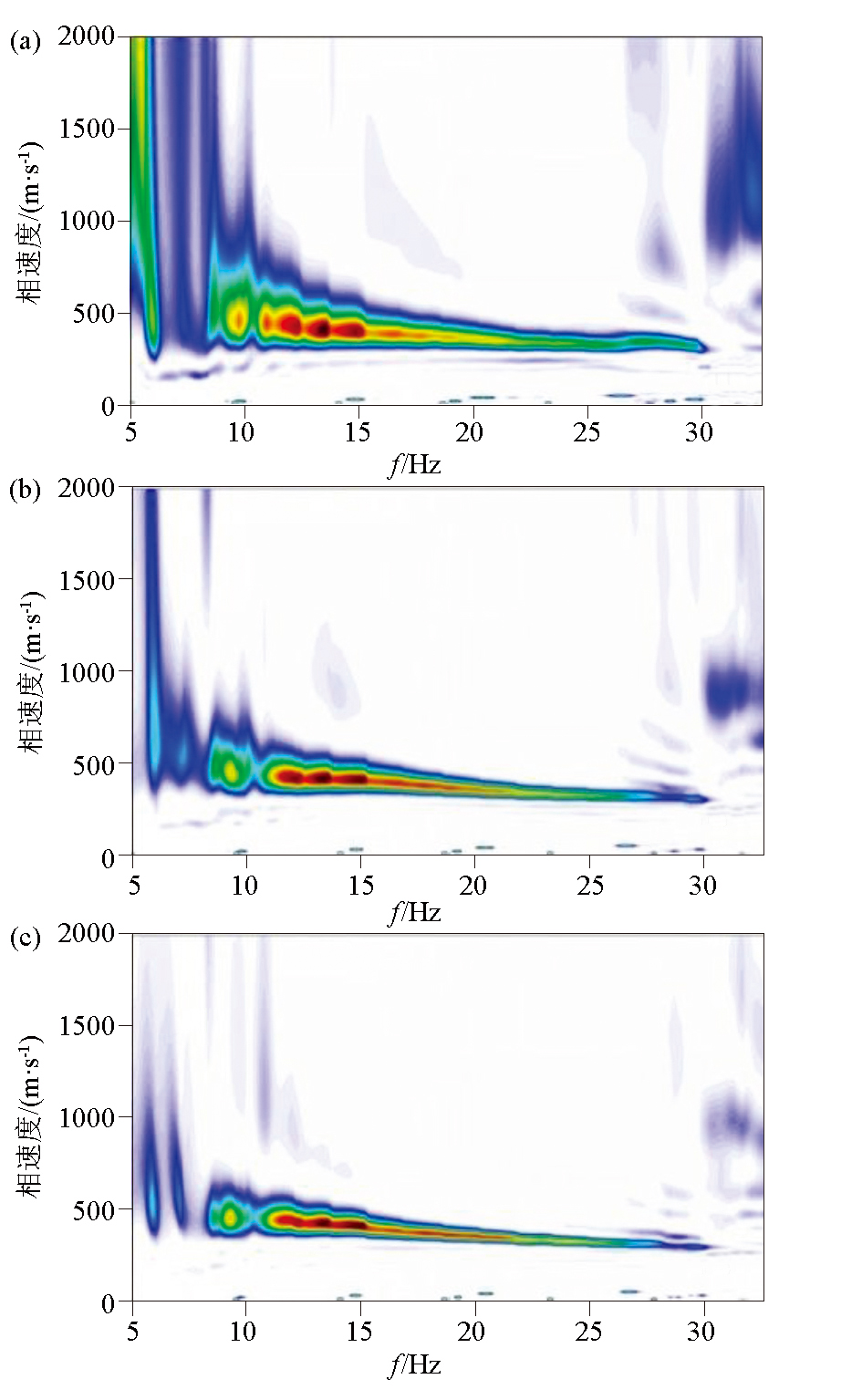

Comparison of dispersion curve with different receiving channels

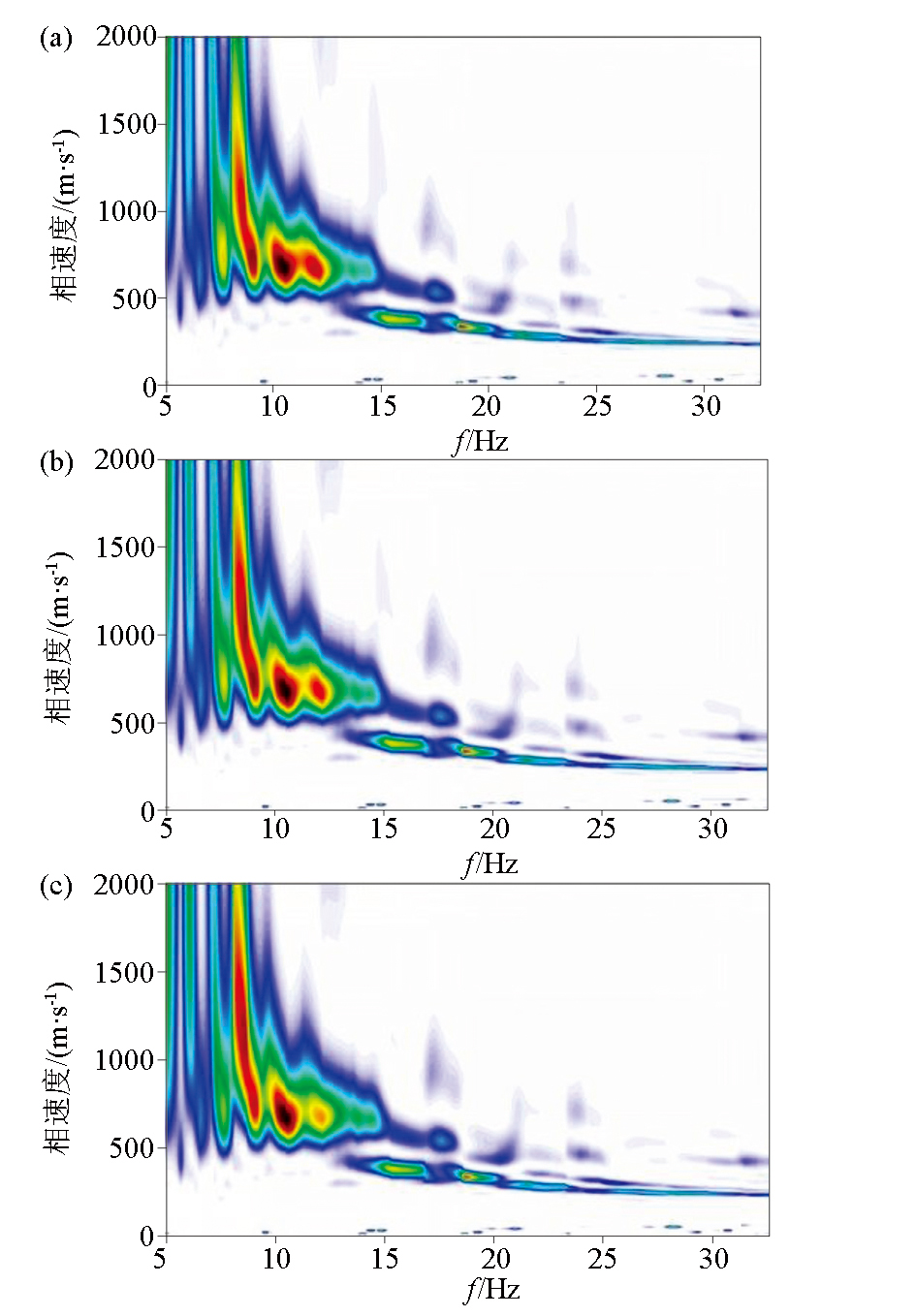

Dispersion curve characteristics with different offsets

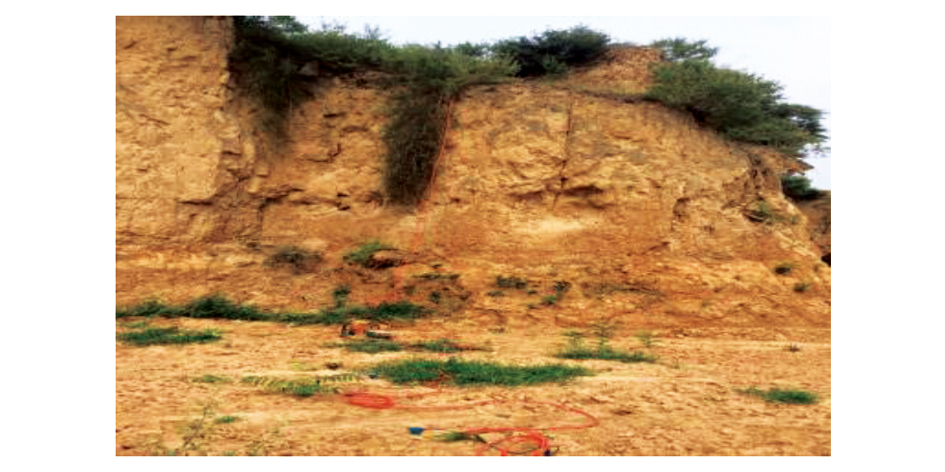

Shallow lithology and outcrop in the work area

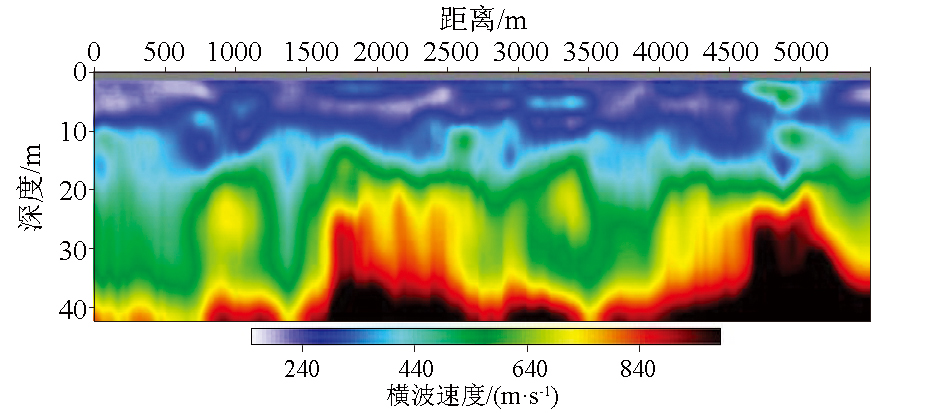

Processed profiles of surface wave
