Relationships between inverted structures and sandstone-hosted uranium deposits in the Tabei Sag, Erlian Basin |
CHEN Nian-Nan1,2( ), LI Man-Gen1,2( ), SONG Zhi-Jie1, GUAN Bao-Wen1, DUAN Jian-Bing2, LI Xi-De3, LIU Wu-Sheng3, FAN Peng-Fei1, LIU Ying1 |
1. School of Earth Sciences, East China University of Technology, Nanchang 330013, China 2. State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang 330013, China 3. Beijing Research Institute of Uranium Geology, Beijing 100029, China |
|
|
Abstract Using seismic reflection profiles and drilling data, this study determined the types and styles of inverted structures in the Tabei Sag, Erlian Basin. Accordingly, this study explored the genetic mechanisms of the inverted structures and their relationships with sandstone-hosted uranium mines. The results indicate that the eastern and western parts of the Tabei Sag experienced different degrees of normal and inverted tectonism. As a result, the eastern part exhibits typical inverted structural styles. In contrast, in the western part, the Saihan Formation on the hanging wall of inverted fault F1 in the Bayanwula and Manglai area was uplifted and almost completely eroded, with the original geometries of inverted structures being destroyed. During the late depositional stage of the Early Cretaceous Saihan Formation (113~98.9 Ma) and from the Late Cretaceous to the Early Paleocene (66~42 Ma), the subduction direction of the Paleo-Pacific Plate shifted from NW to NWW. This change altered the stress regime in the Tabei Sag from extension to compressional inversion, leading to the formation of a series of compressional and compressional-torsional structures. Consequently, the Saihan Formation and the Upper Cretaceous strata were uplifted and eroded, resulting in the formation of regional angular unconformities. The structural inversion transformed the sedimentary system of the Saihan Formation in the Tabei Sag from lacustrine to fluvial facies. Meanwhile, it caused differential uplift and uneven erosion of the Saihan Formation and its overburden, leading to the formation of erosion windows. This facilitated the infiltration and migration of uranium- and oxygen-bearing fluids toward deep parts. These processes controlled the morphologies and development of interlayer oxidation zones, thereby promoting the enrichment of uranium deposits.
|
Received: 26 October 2023
Published: 26 February 2025
|
|
|
|
|
13]) ">
|

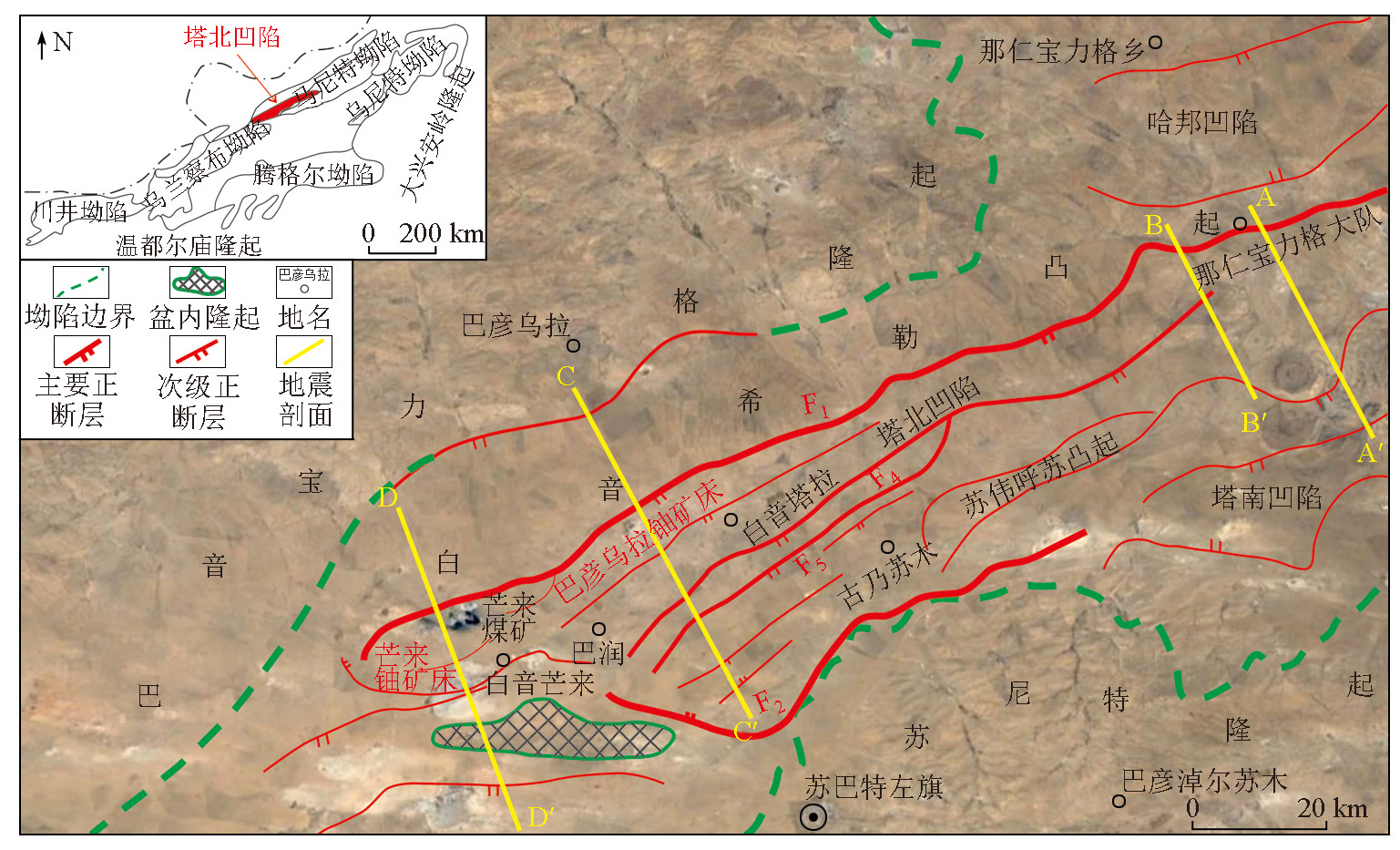

Regional location and structural outline of Tabei Sag (modified according to Lu[13])
|
7]) ">
|

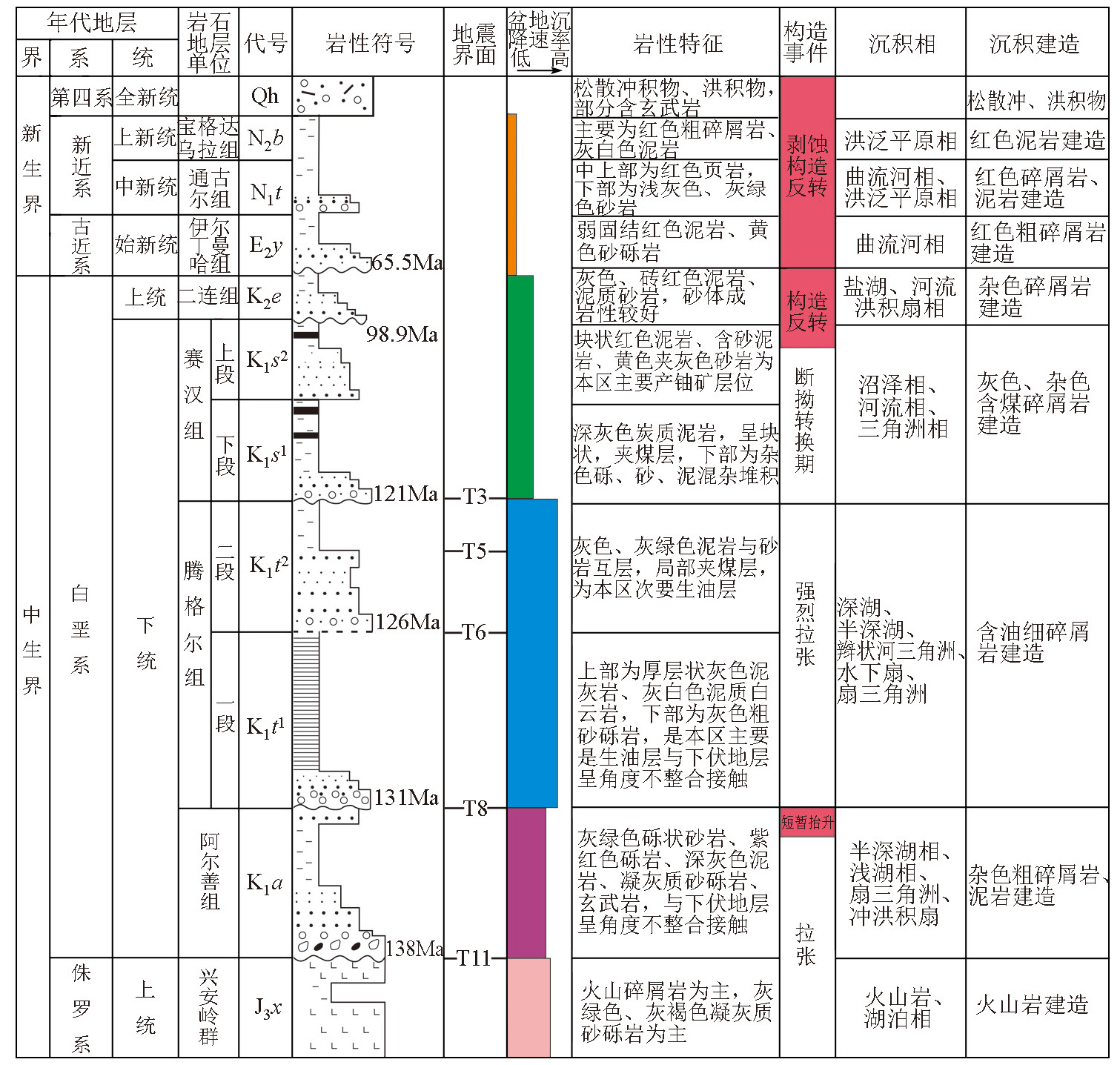

Comprehensive stratigraphic histogram of Erlian Basin (modified according to Liu[7])
|
13],the location of the profile is shown in Fig.1) ">
|

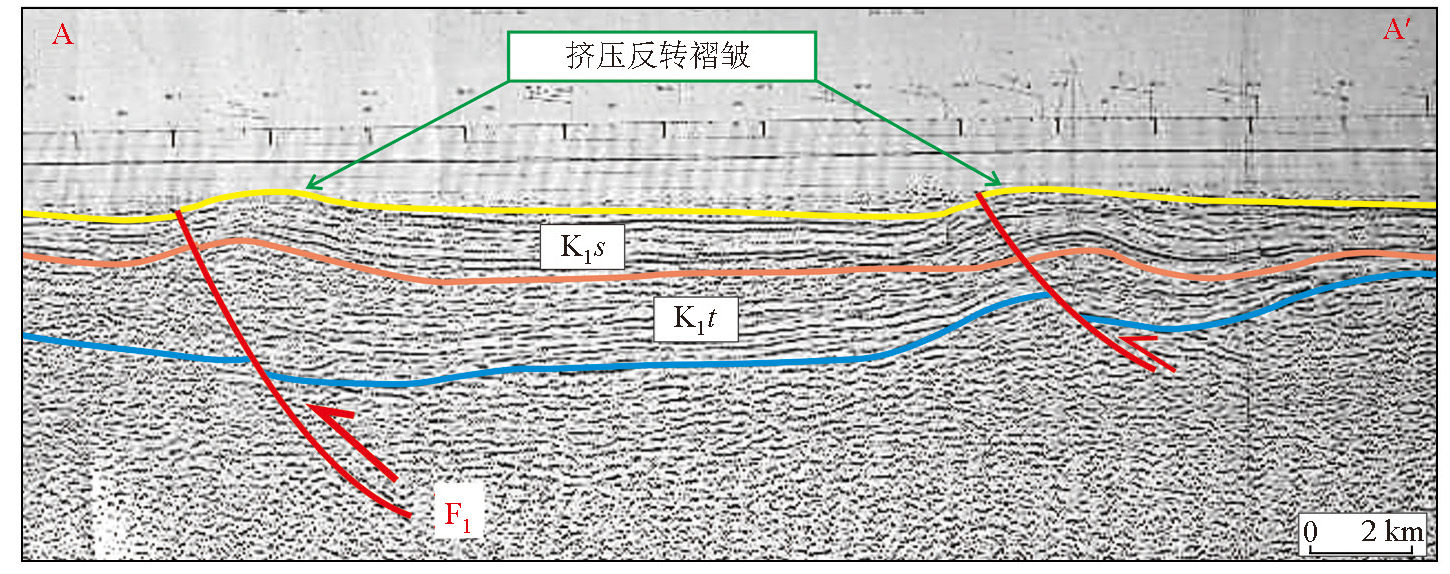

A-A' seismic profile in the east of Tabei Sag (modified according to Lu[13],the location of the profile is shown in Fig.1)
|
14], the location of the profile is shown in Fig.1) ">
|

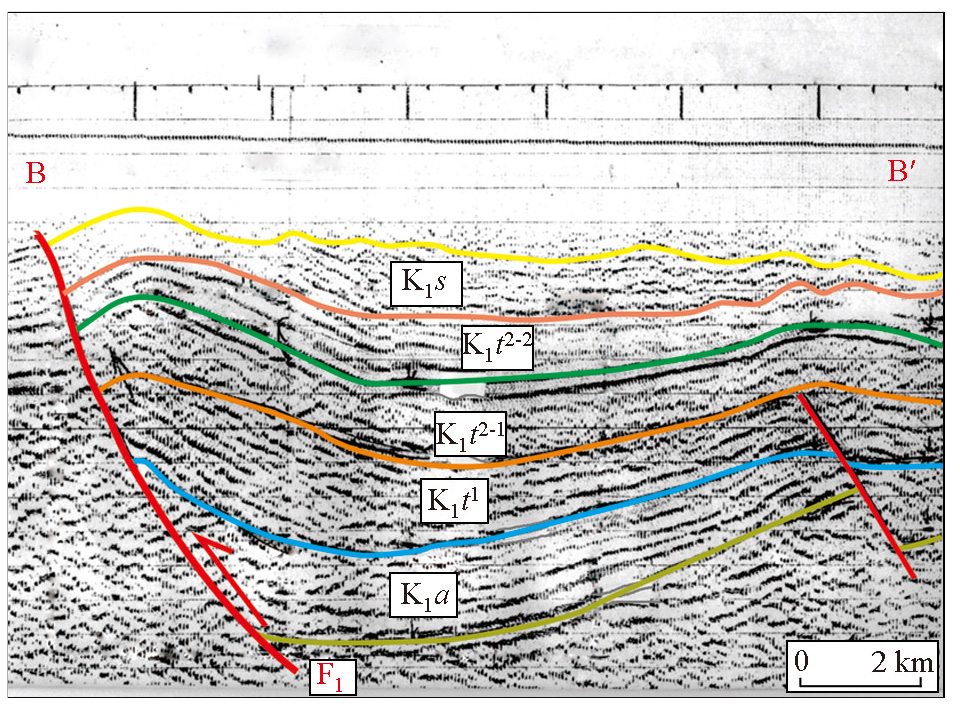

B-B' seismic profile in the east of Tabei Sag (modified according to Jiao[14], the location of the profile is shown in Fig.1)
|
15], and the well connection column section is modified according to Nie et al.[16]. the location of the profile is shown in Fig.1) ">
|

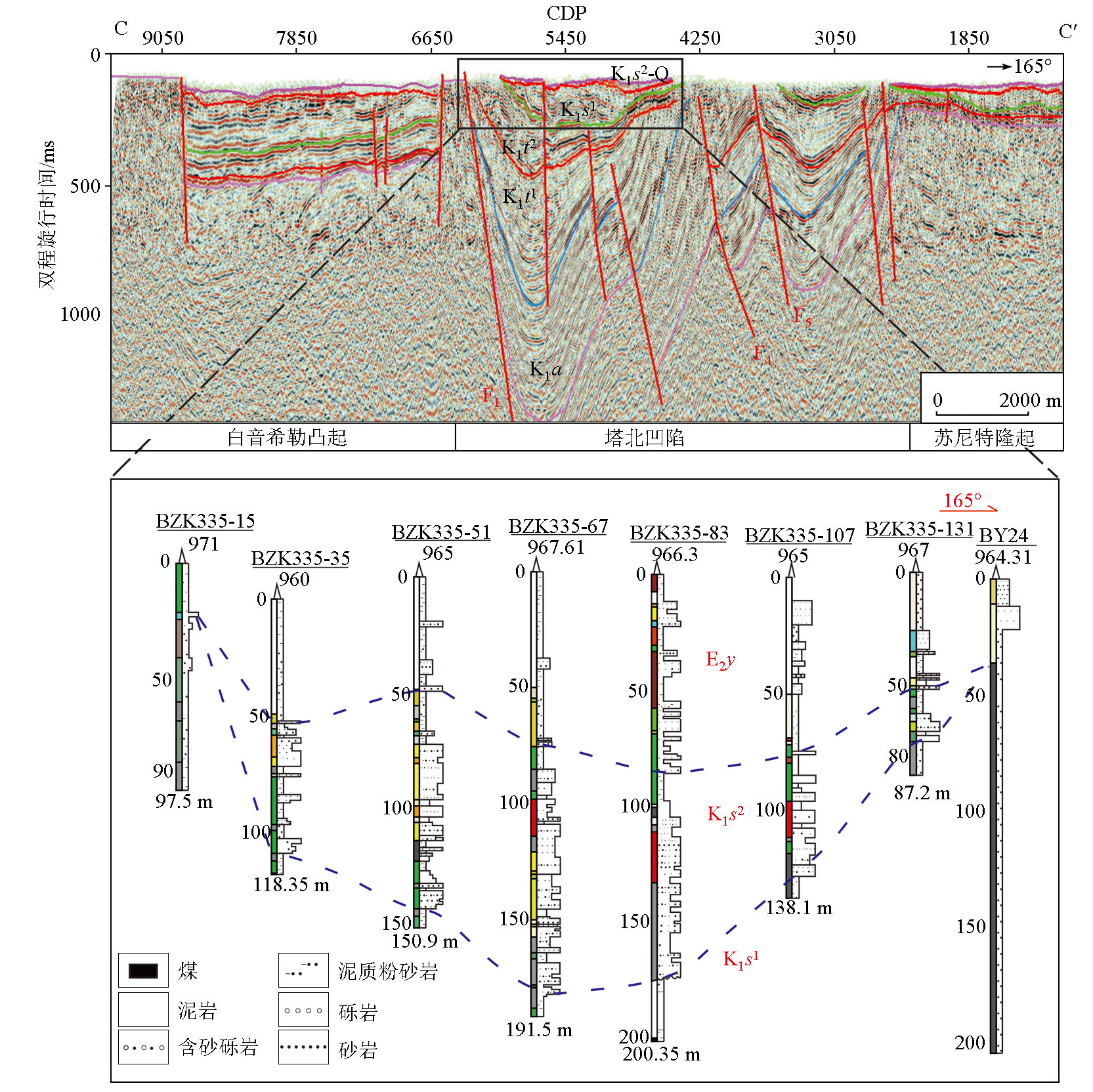

C-C' seismic profile and its corresponding well connection section of Bayanwula area, west of Tabei Sag (seismic retlection section is modified according to Peng et al.[15], and the well connection column section is modified according to Nie et al.[16]. the location of the profile is shown in Fig.1)
|
15], and the well connection column section is modified according to Nie et al.[16], the location of the profile is shown in Fig.1) ">
|

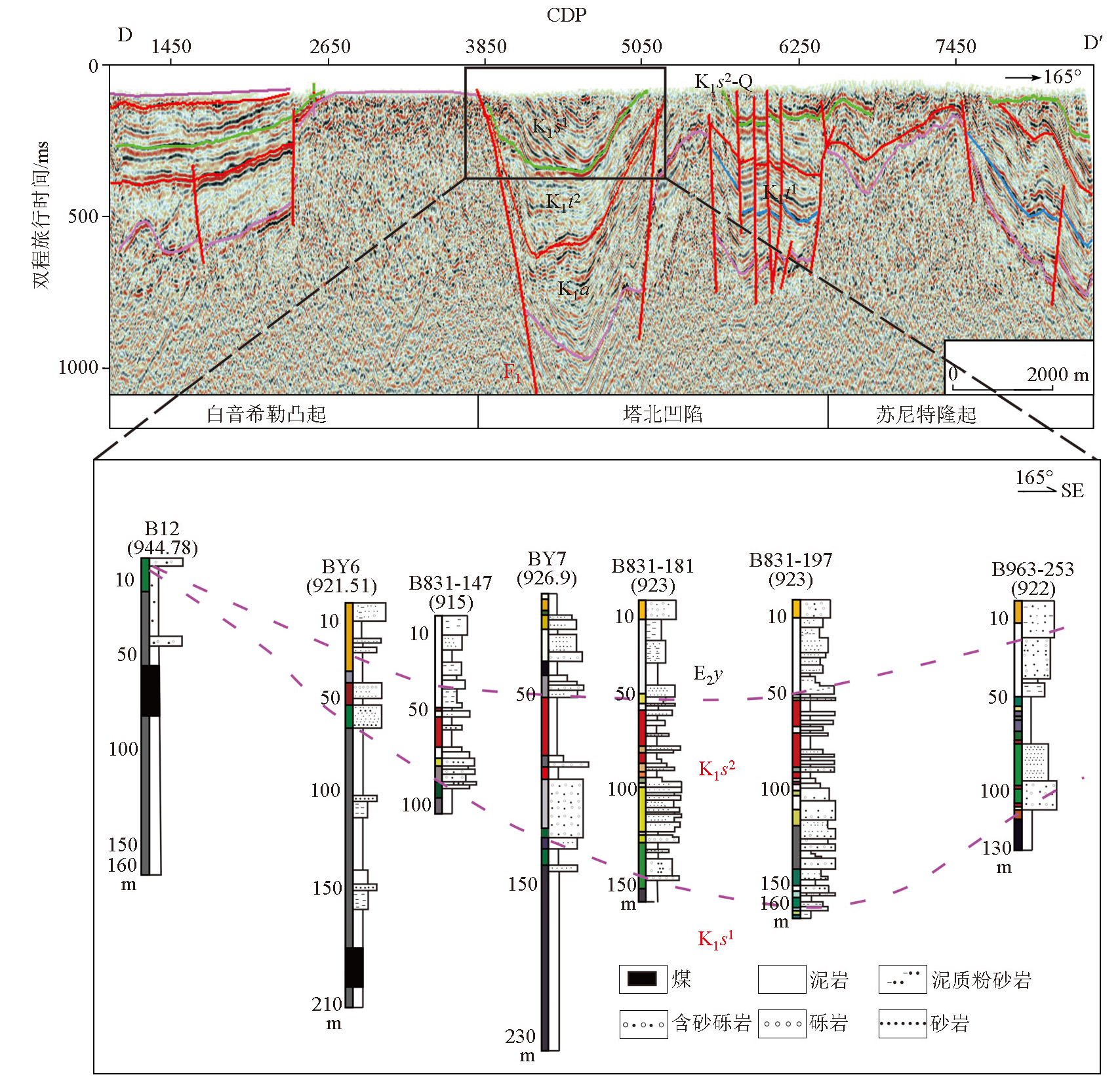

D-D' seismic profile and its corresponding well connection section of Manglai area, west of Tabei Sag (seismic reflection section is modified according to Peng et al.[15], and the well connection column section is modified according to Nie et al.[16], the location of the profile is shown in Fig.1)
|
6]) ">
|

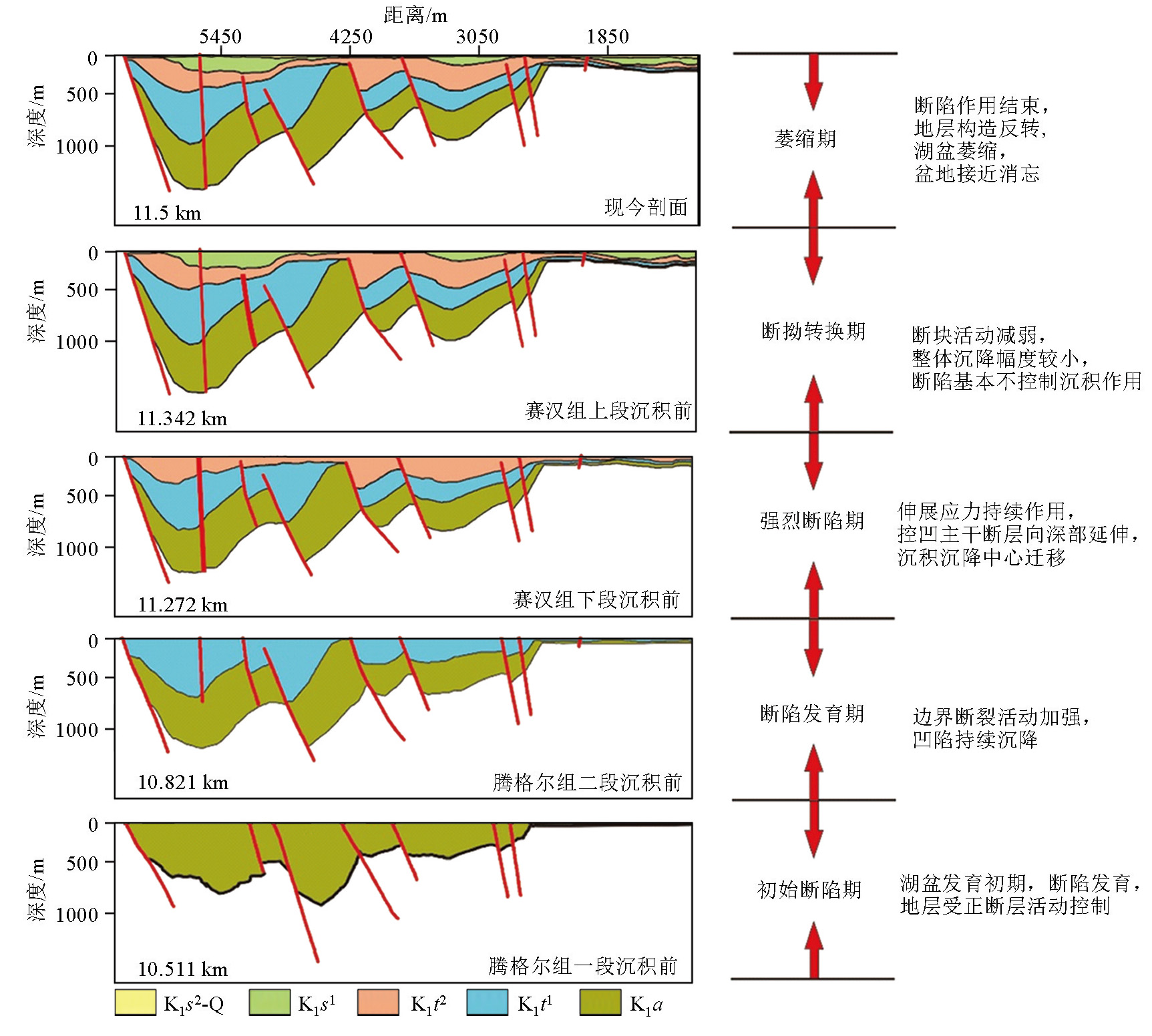

C-C' seismic profile structural evolution of Bayawula uranium deposit in Tabei Sag (modified according to Chen et al.[6])
|
23]) ">
|

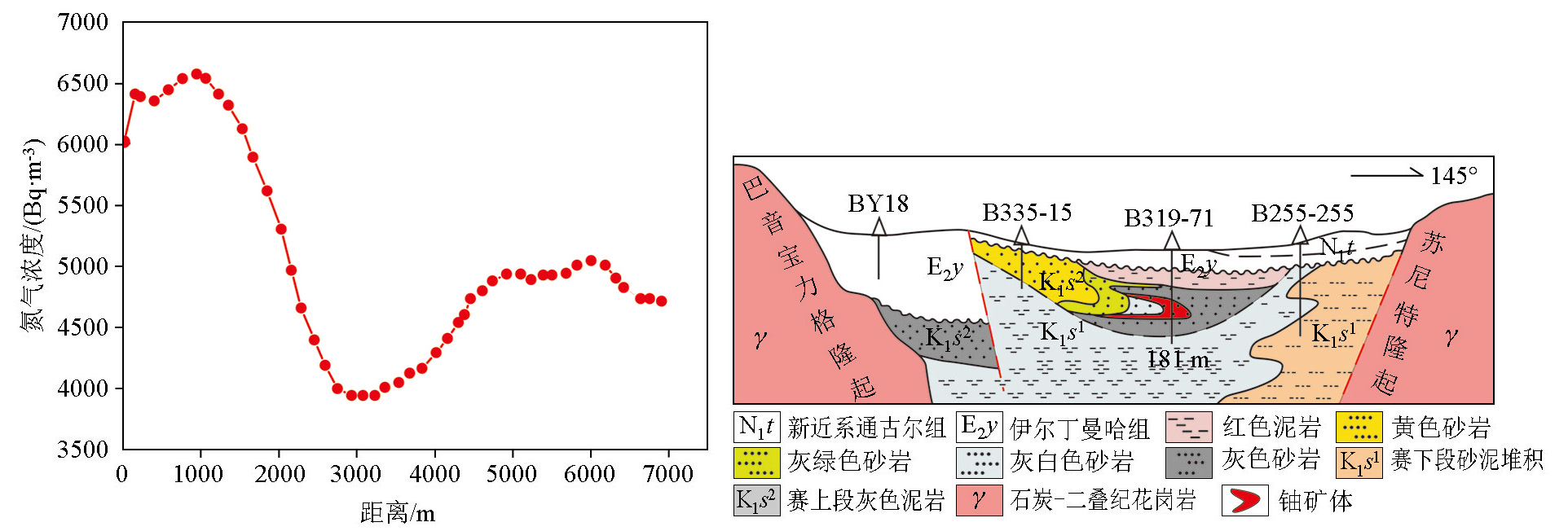

Soil radon concentration profile (a) and typical geologic profile (b) in Bayanwula area (modified according to Wu et al.[23])
|
16]) ">
|
Uranium mineralization model for Bayanwula deposit (modified according to Nie et al.[16])
|
