海岸效应对大地电磁测深数据畸变影响研究

doi:10.11720/wtyht.2024.1528

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (14816 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Magnetotelluric (MT) data collected from offshore areas are generally distorted due to coastal effects, posing challenges in obtaining true subterranean electrical structures. Based on the model of half-space with seawater, 2D electrical isotropy and anisotropy models, and 3D electrical isotropy model, this study analyzed the distortion patterns of MT responses under coastal effects through forward modeling. Moreover, it conducted 2D and 3D inversions of MT data with or without seawater constraints. Key findings are as follows: (1) The initial frequency points of distortion in MT apparent resistivity curves are closely correlated to the distances from survey points to seawater; (2) Compared to MT responses free from coastal effects, the high-frequency sections exhibit increased amplitudes in real induction vectors only at survey points in offshore areas and higher phase tensor ellipticity, whereas the low-frequency sections display expanded influence areas subjected to coastal effects; (3) Excluding seawater constraints, the inversion results show false anomalies in offshore areas and poor reconstruction effects on subsurface anomalies. Considering seawater constraints, the constrained inversion can effectively suppress the distortion caused by coastal effects. Overall, this study will provide a significant reference for the collection, processing, and interpretation of MT data from offshore areas.

Key words： magnetotellurics coastal effect electrical anisotropy 2D and 3D forward and inverse modeling

Received: 08 December 2024 Published: 21 October 2024

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Fu-Qiang YANG
	Hai-Zhi LIAO
	Zheng WANG
	Ya-Jun MO
	Ye-Fei LI
	Ying LIU

Cite this article:

Fu-Qiang YANG,Hai-Zhi LIAO,Zheng WANG, et al. Impacts of coastal effects on the distortion of magnetotelluric data[J]. Geophysical and Geochemical Exploration, 2024, 48(5): 1284-1293.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1528 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I5/1284

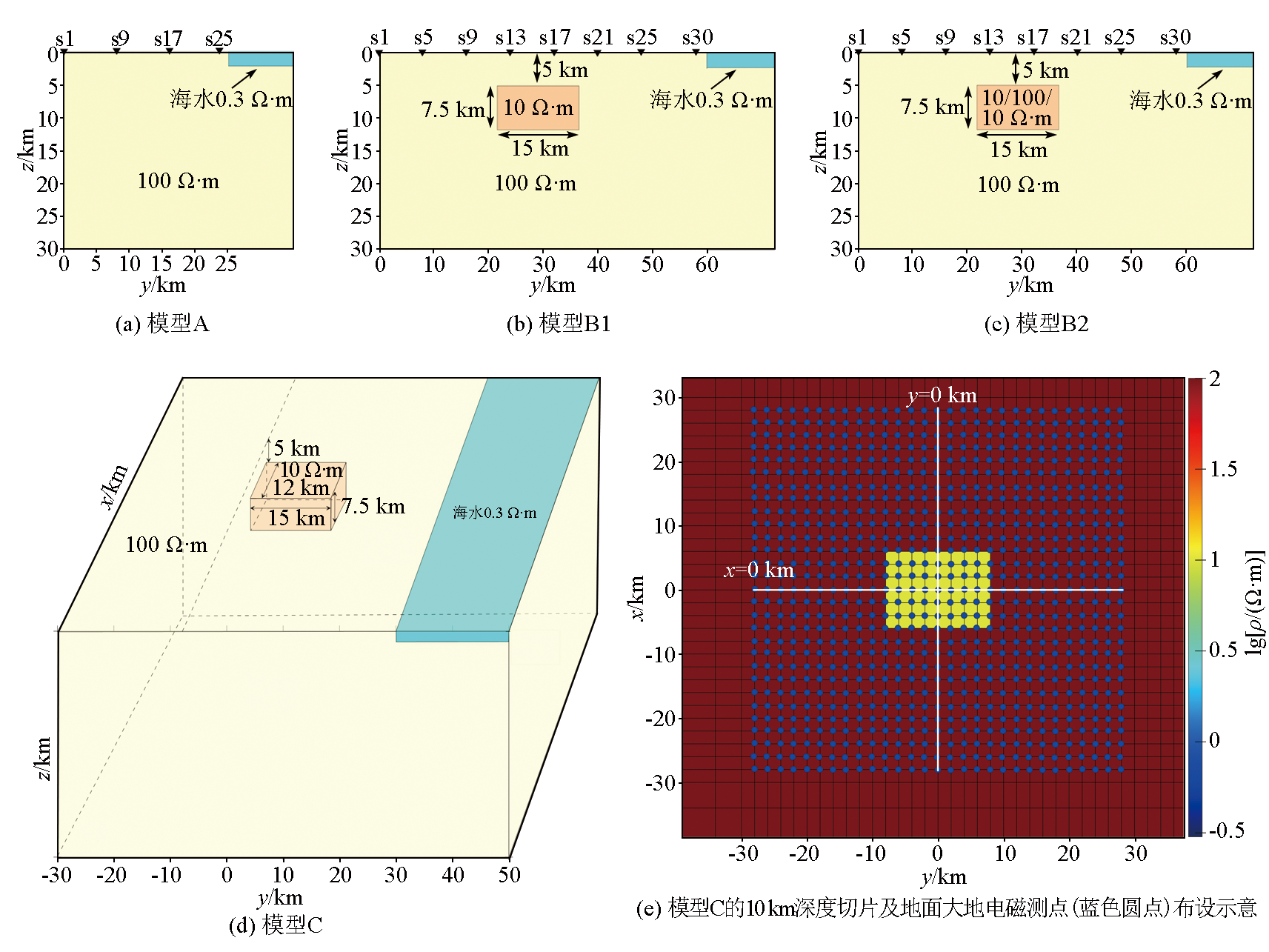

Electrical resistivity models with sea waterlayer

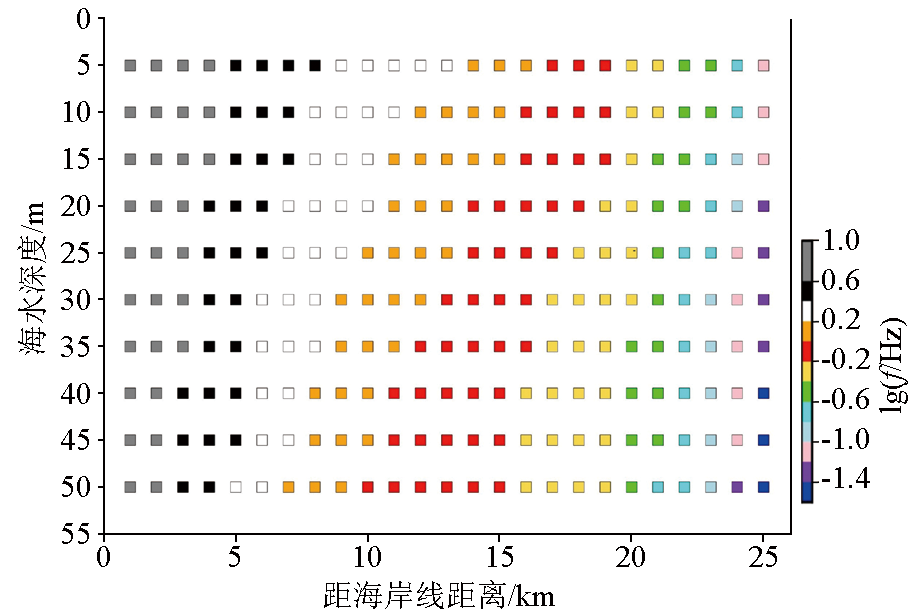

The initial distortion frequencies of apparent resistivity curves of MT sites in model A, changing with the site distance to sea water and the sea water depth

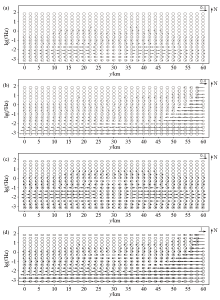

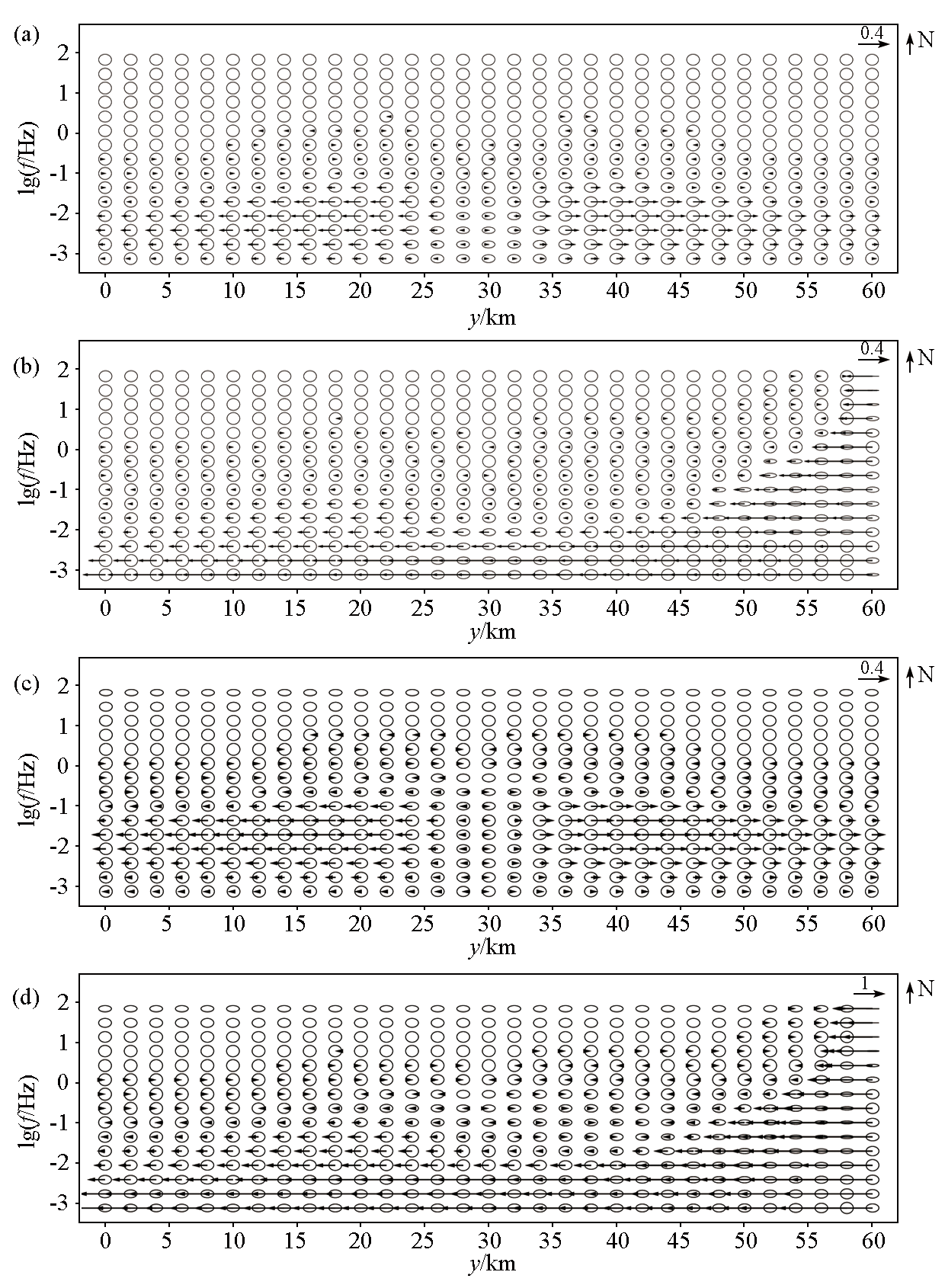

The phase tensor ellipses and real induction vectors from the models B1 and B2 with/without sea water
a、c—the responses from the models B1 and B2 without sea water; b、d—the responses from the models B1 and B2 with sea water

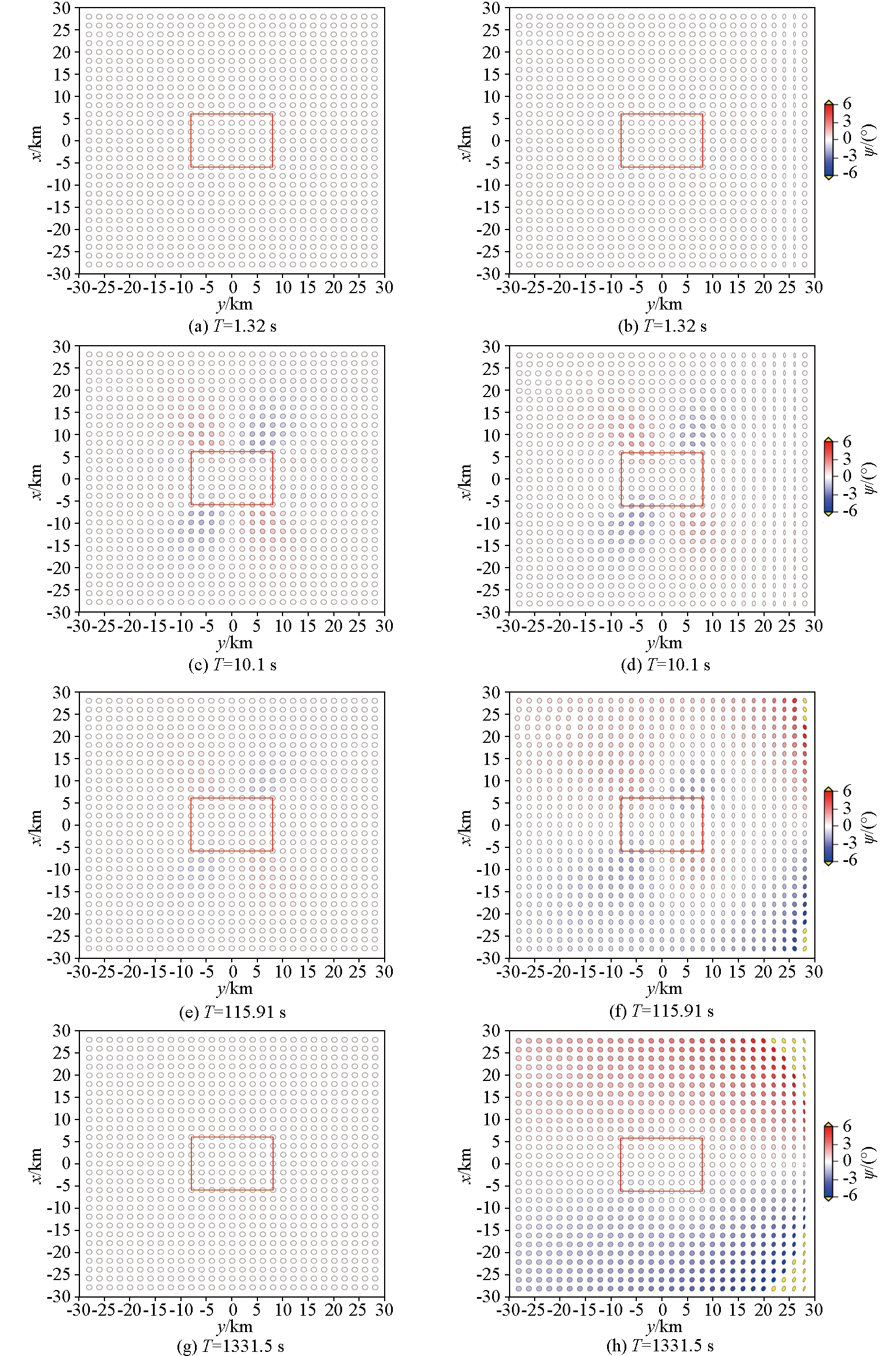

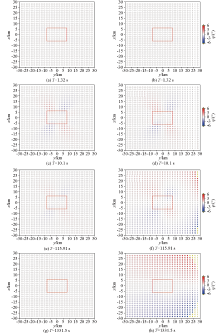

The phase tensor ellipses of different periods from the model C with/without sea water
a、c、e、g—the responses of different periods from the model C without sea water; b、d、f、h—the responses of different periods from the model C with sea water

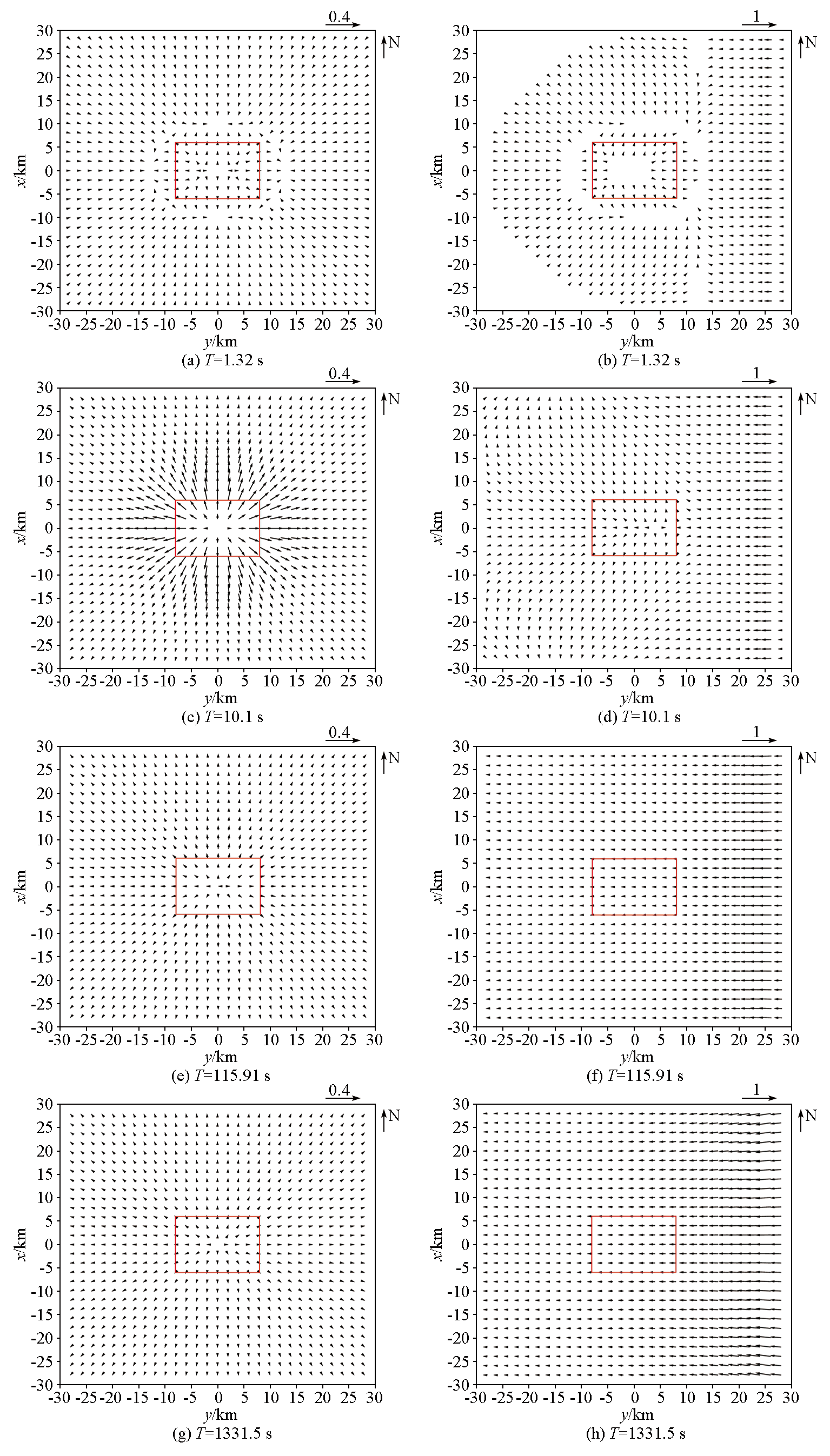

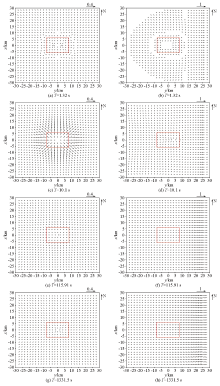

The real induction vectors of different periods from the model C with/without sea water
a、c、e、g—the responses of different periods from the model C without sea water; b、d、f、h—the responses of different periods from the model C with sea water

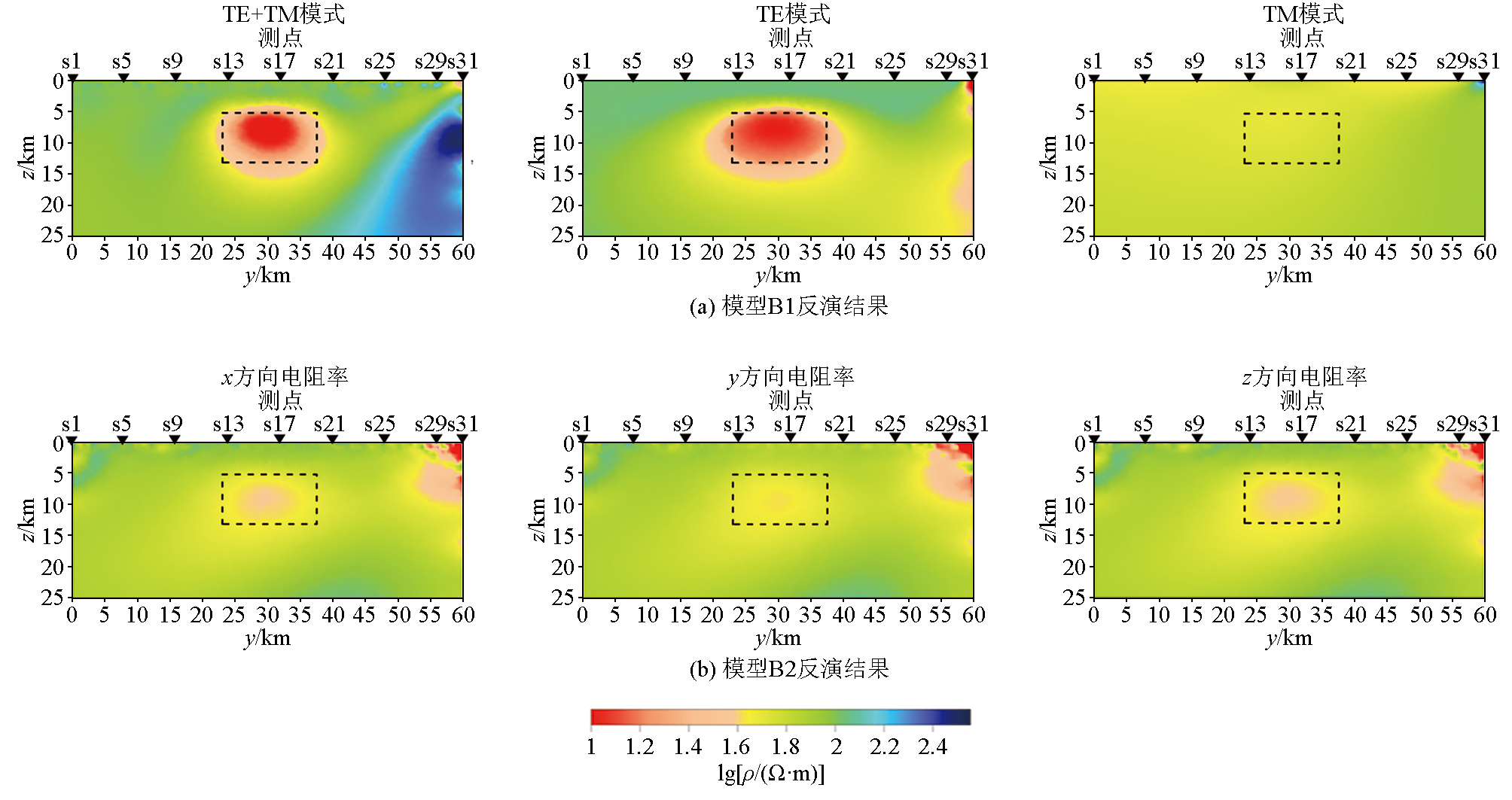

The 2D inversion results without sea water constraint for the responses of models B1 (a) and B2 (b)

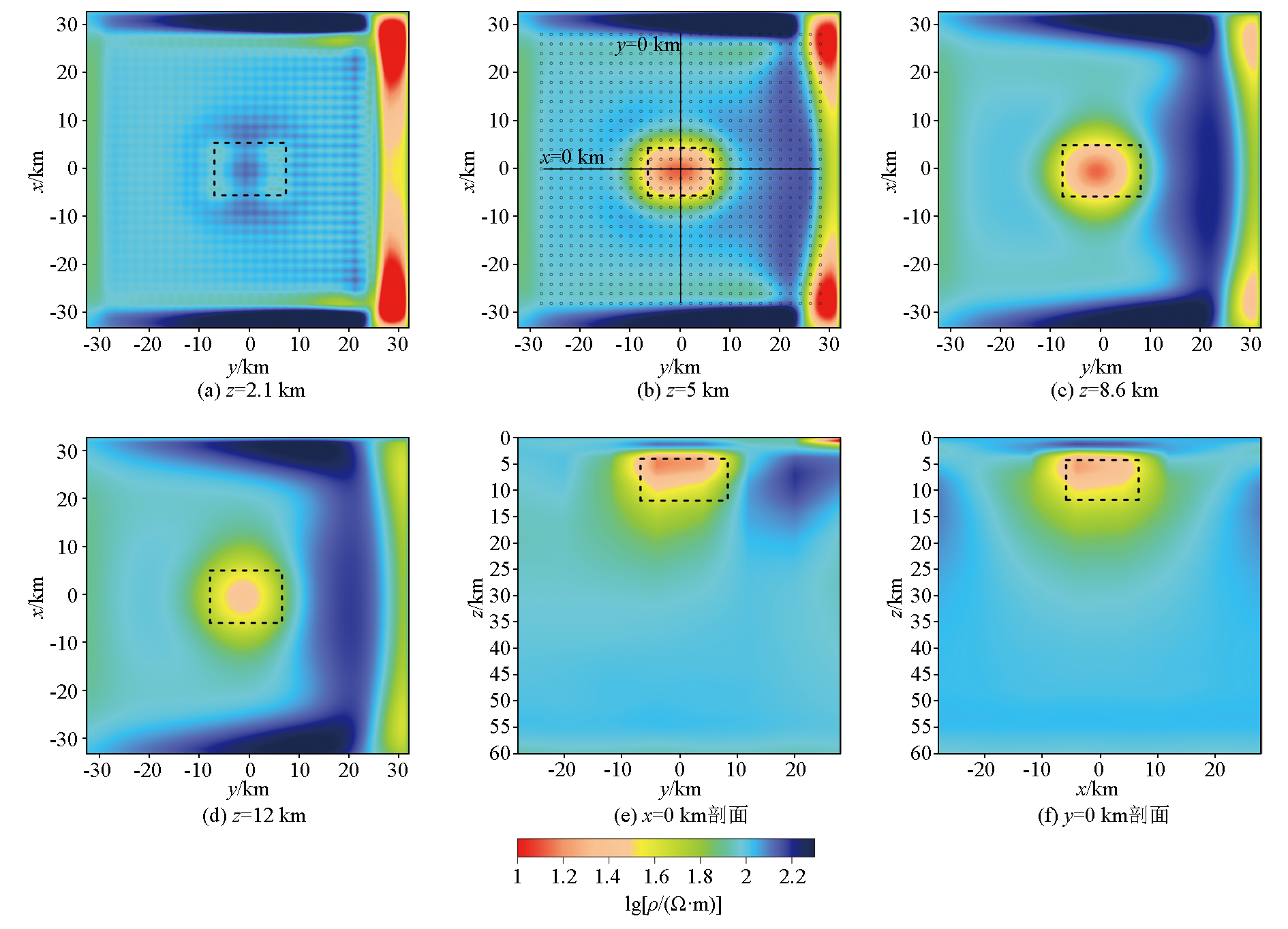

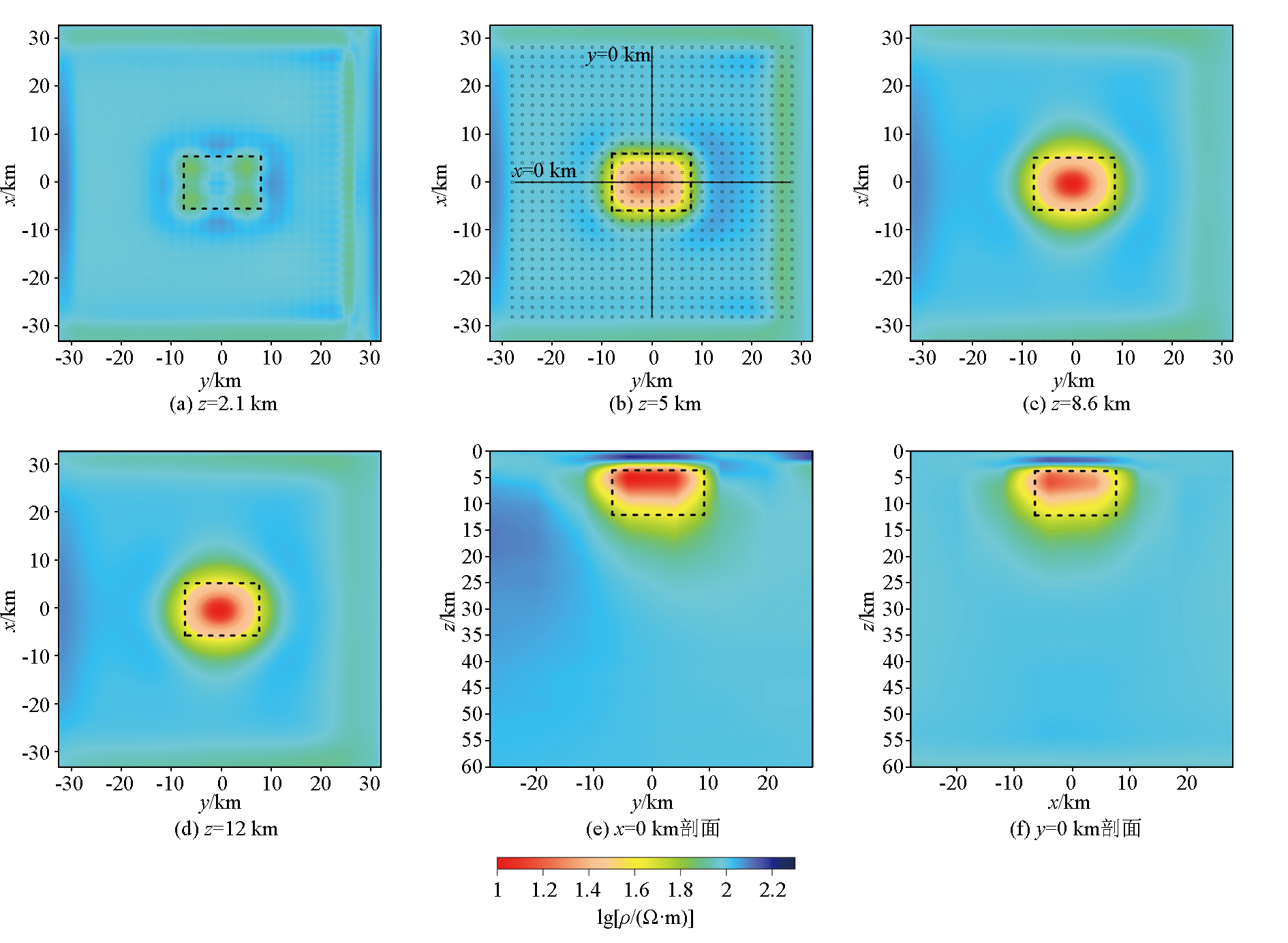

The 3D inversion results without sea water constraint for the responses of model C
a~d—Horizontal tangents at depths of 2.1 km, 5 km, 8.6 km and 12 km; e—profile result at x=0 km; f—profile result at y=0 km. The locations of two profiles are indicated in b. The black dotted line indicates the location of anomaly body. The white dots represent site locations

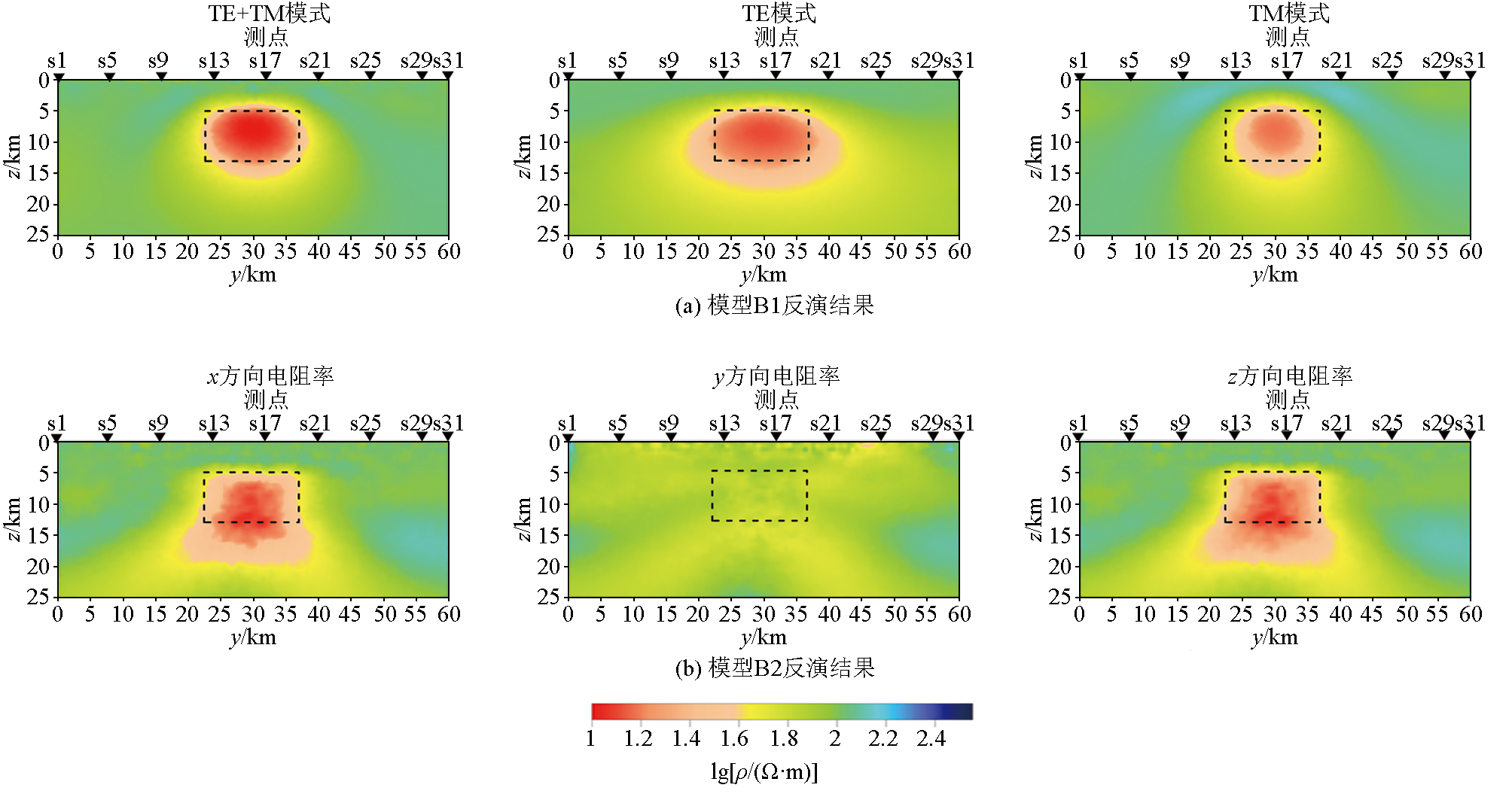

The 2D inversion results with sea water constraint for the responses of models B1 (a) and B2 (b)

The 3D inversion results with sea water constraint for the responses of model C
a~d—Horizontal tangents at depths of 2.1 km, 5 km, 8.6 km and 12 km; e—profile result at x=0 km; f—profile result at y=0 km. The locations of two profiles are indicated in b. The black dotted line indicates the location of anomaly body. The white dots represent site locations
