辽东郑屯地区基于广域电磁法的深孔验证

doi:10.11720/wtyht.2024.1428

Abstract
Figure/Table
References
Related Citation (3)

Download: PDF (5860 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The development of gold deposits in the Liaodong region is considered to be controlled by the superimposed detachment fault zone of the metamorphic core complex system. The traditional view holds that the thickness of the cap rocks of the Yongning Formation in the Yongning Basin can exceed thousands of meters, thus hindering the migration of ore-bearing fluids and the formation of large-scale metal deposits. The exploration of deposits in the Liaodong region has remained within a depth of 1 km due to limited exploration efforts and insufficient research. This study obtained the resistivity distribution characteristics within a depth of 3 km in the Zhengtun area using the wide-field electromagnetic method (WFEM), ascertaining that the thickness of the cap rocks in the Liaodong region is around 1 km, in sharp contrast to the extremely thick cap rocks in the Yongning Formation. As verified by the 2 km deep drilling, an unconformable contact between the Yongning Formation and the underlying Archean basement was observed at a hole depth of 1 345 m, without significant structural detachment near the boundary. This study demonstrates that the thickness of the cap rocks in the Yongning Basin is merely around 1 km. Considering multistage active fault structures and densely distributed hypabyssal rock vein swarms in the area, it is preliminarily determined that the geological setting for mineralization in the Yongning Basin is akin to that of the Jiaodong gold ore concentration area. The ore-bearing metamorphic fluids or magmatic-hydrothermal fluids might have migrated to the upper part of the boundary for mineralization during the destruction of the North China craton. Overall, the Liaodong region has the potential to achieve breakthroughs in polymetallic prospecting, and the WFEM pinpoints the deep mineralization prediction.

Key words： North China craton Liaodong cap rock wide-field electromagnetic method (WFEM) deep drilling

Received: 13 October 2023 Published: 27 June 2024

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei-Tian LIANG
	Di-Quan LI
	Xin-Sheng SUN
	Dong-Bo WANG
	Jia-Xin FENG
	Hao LI
	Jin-Hu FAN

Cite this article:

Wei-Tian LIANG,Di-Quan LI,Xin-Sheng SUN, et al. Deep-hole verification of wide-field electromagnetic method-derived results in the Zhengtun area of the Liaodong region[J]. Geophysical and Geochemical Exploration, 2024, 48(3): 675-683.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1428 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I3/675

7],Zhu R X,et al^[6])
">

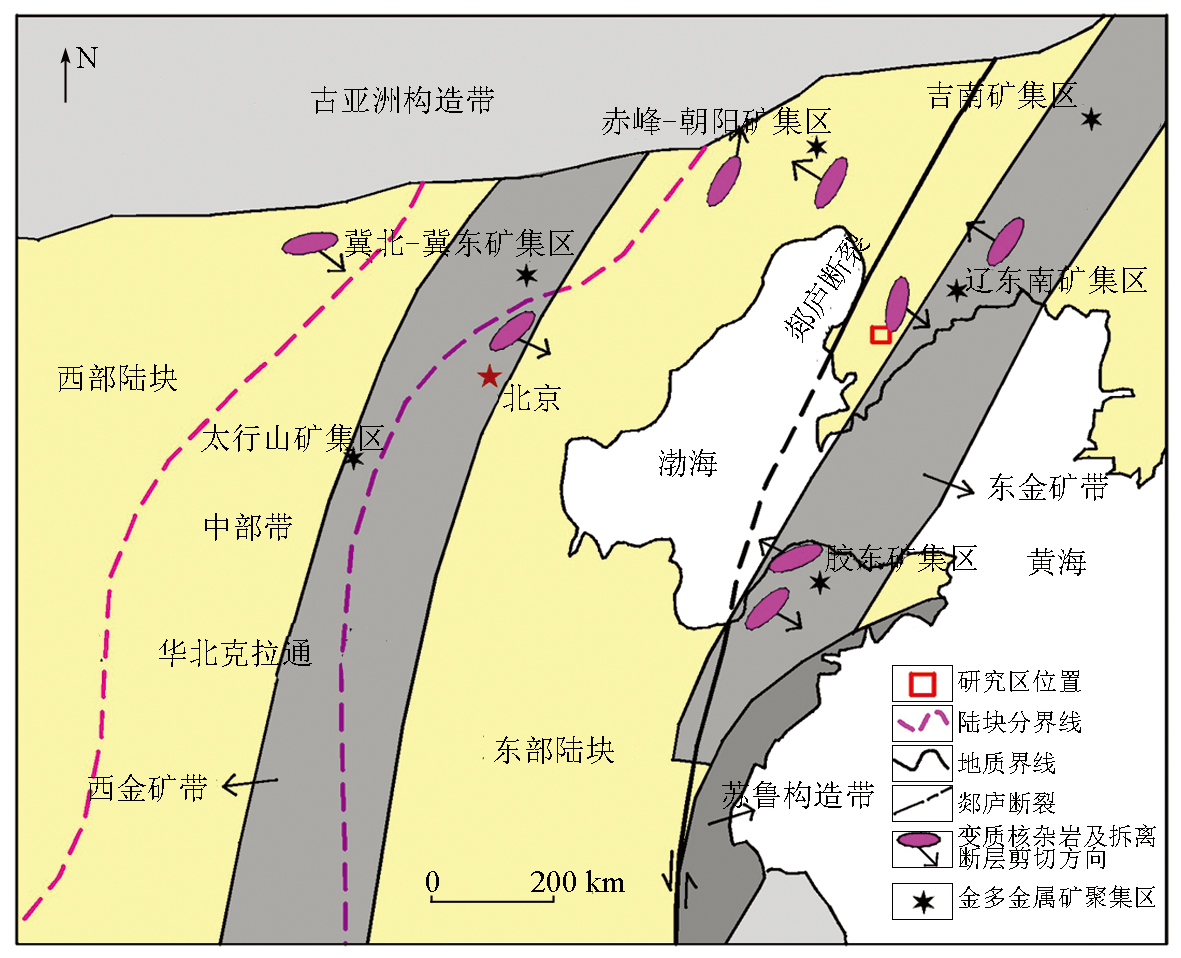

Geodetic structure diagram of working area(Sun X M,et al^[7],Zhu R X,et al^[6])

Statistical table of physical properties in work area

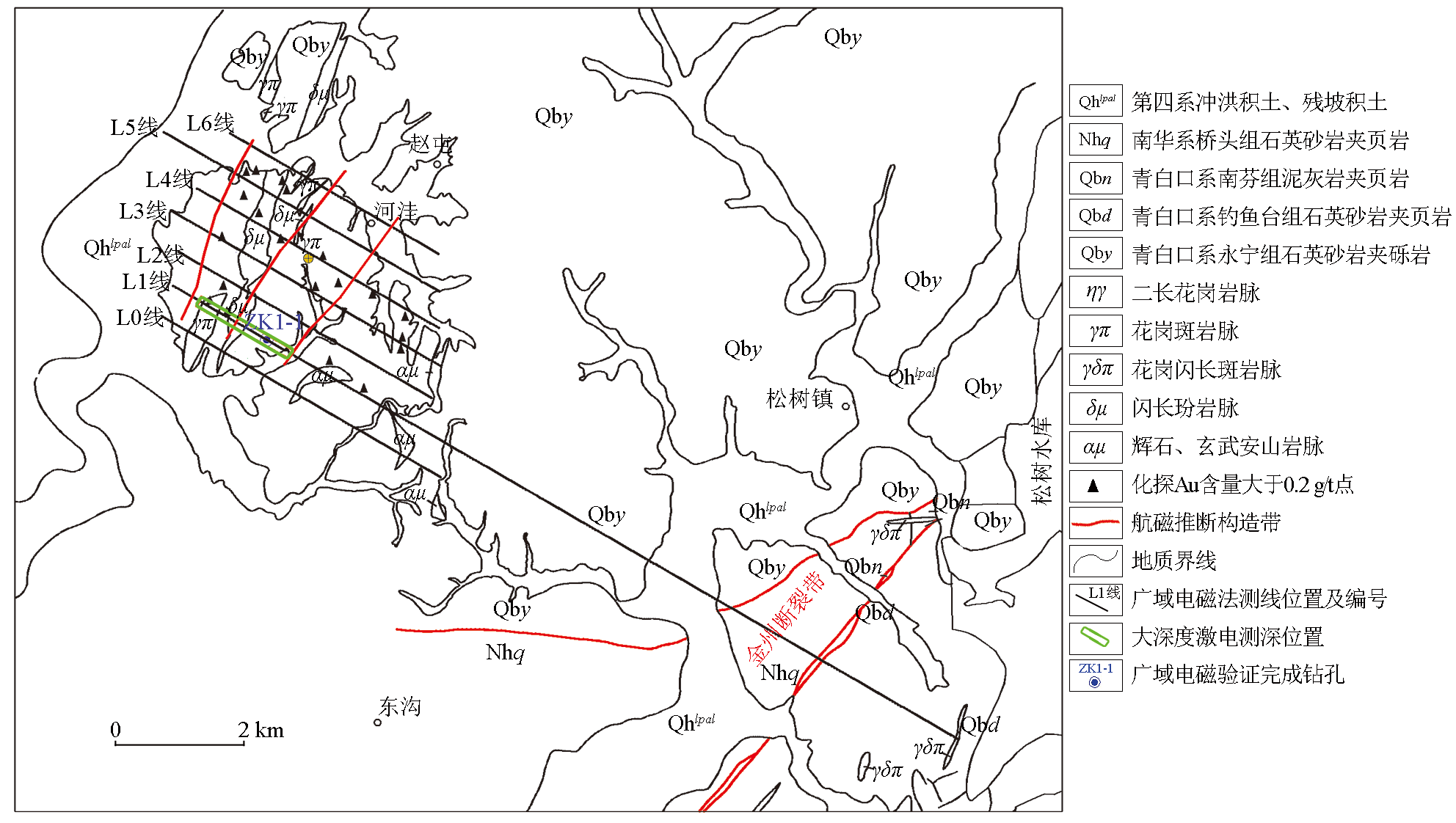

Geological sketch of project layout

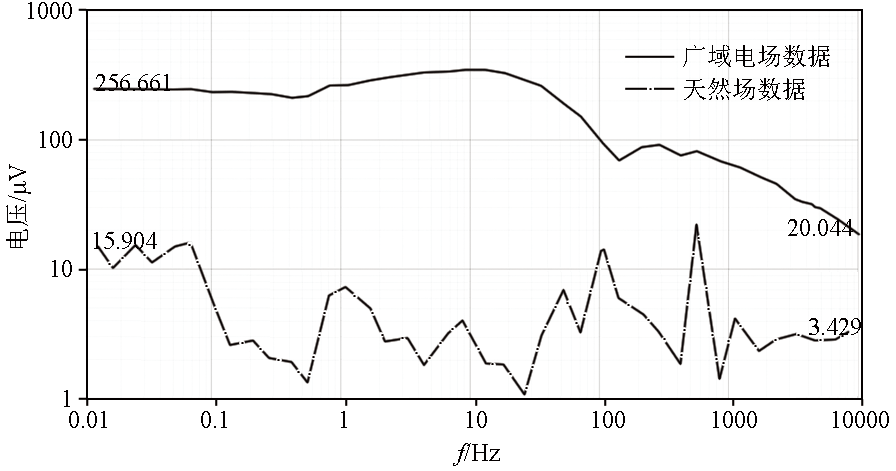

Comparison between wide field electric field and natural field

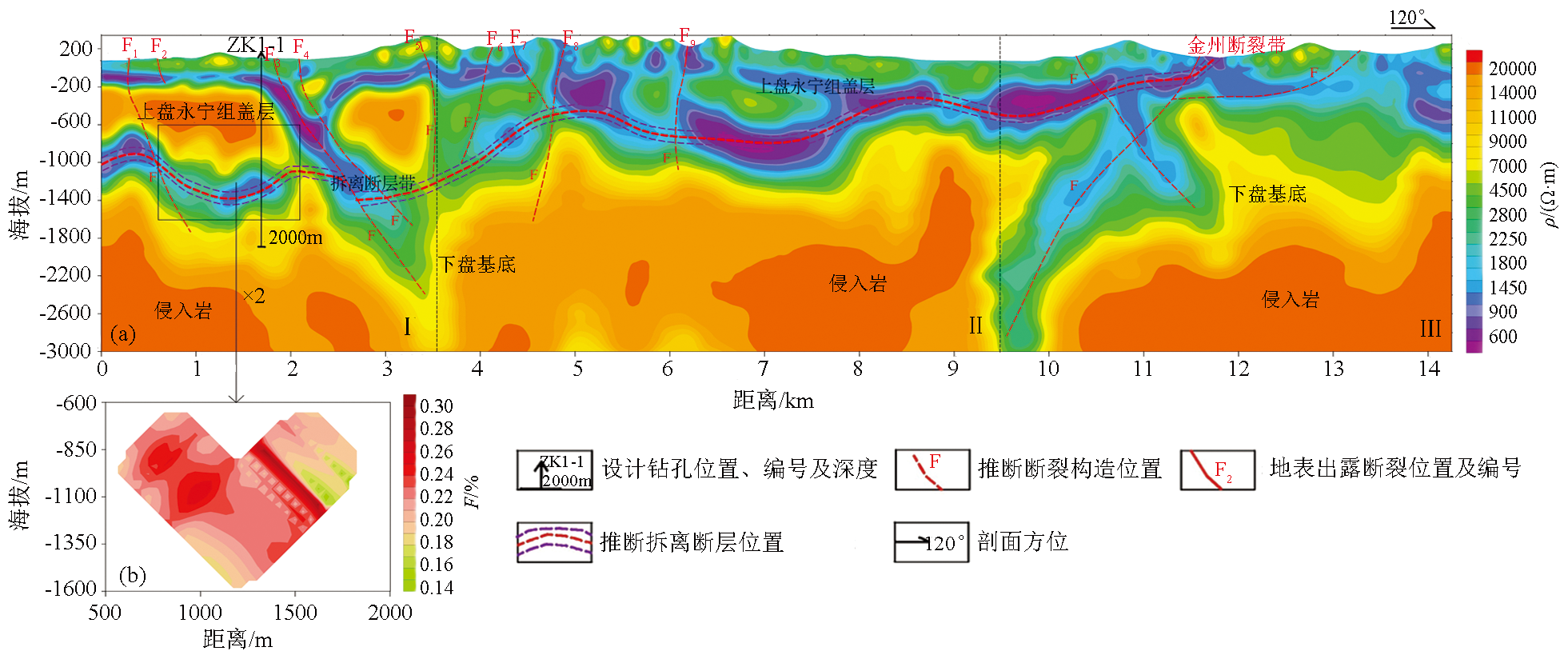

Comprehensive analysis diagram of WFEM (a) and large depth IP (b)

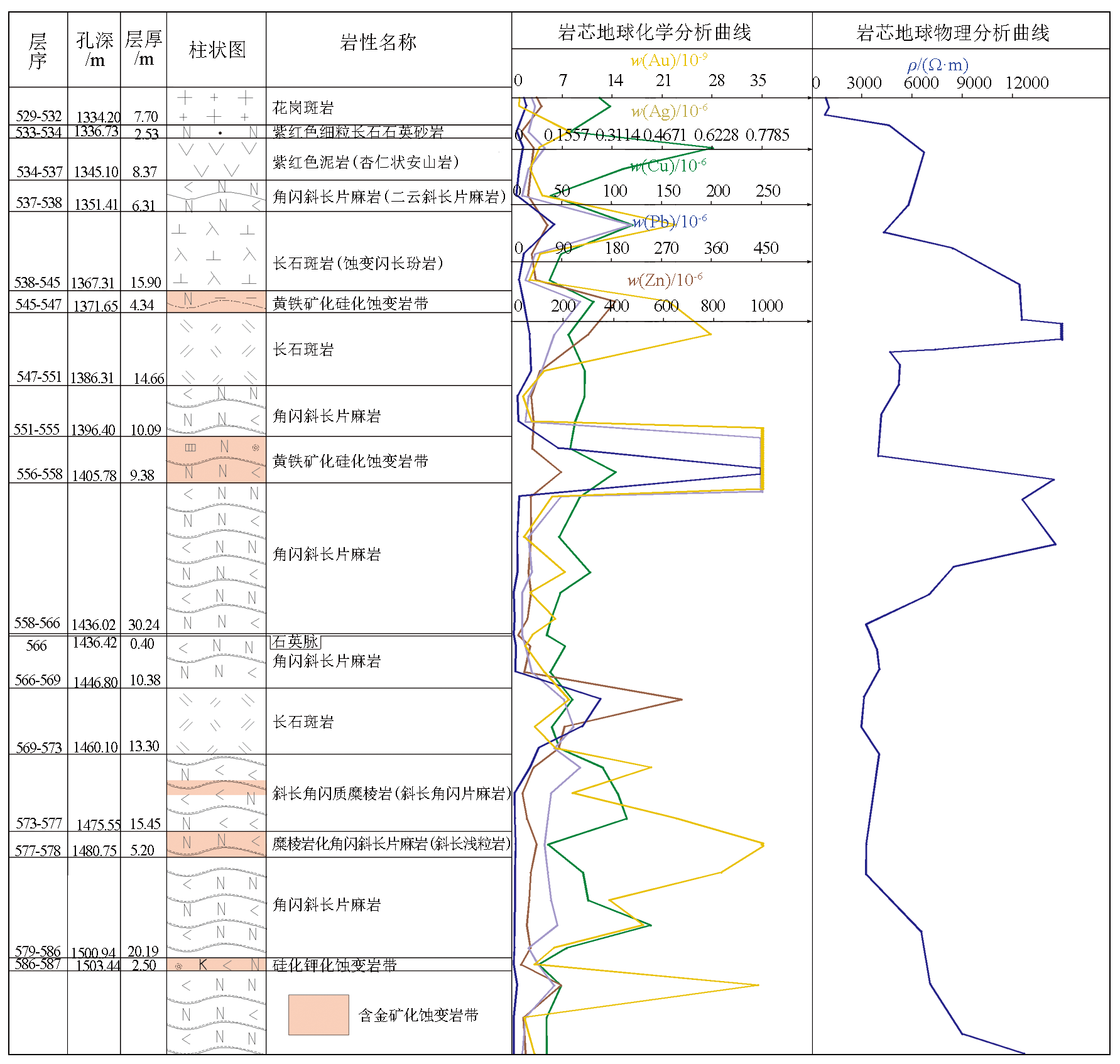

Histogram of contact surface between cover and base

Rock and ore samples and microscopic photos

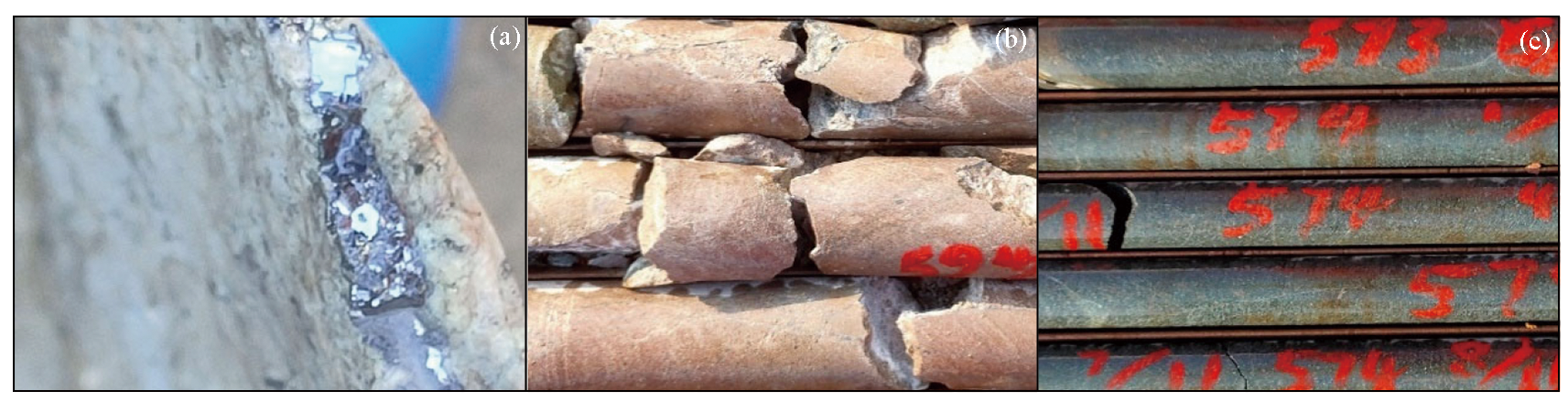

a—Polymetallic sulfide veins within the surface gold mineralization alteration zone;b—Core photo of 120 m deep gold bearing structural altered rock zone;c—Core photos of 1 400 m deep gold bearing structural altered rock zone

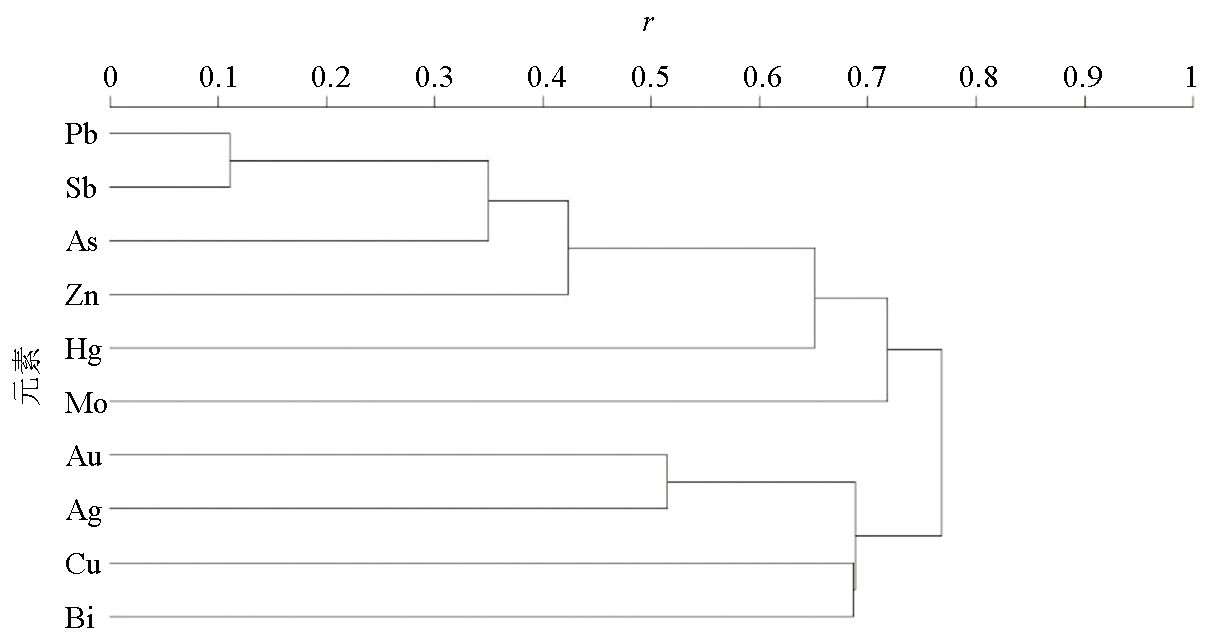

R-type cluster analysis diagram of borehole verification geochemical survey

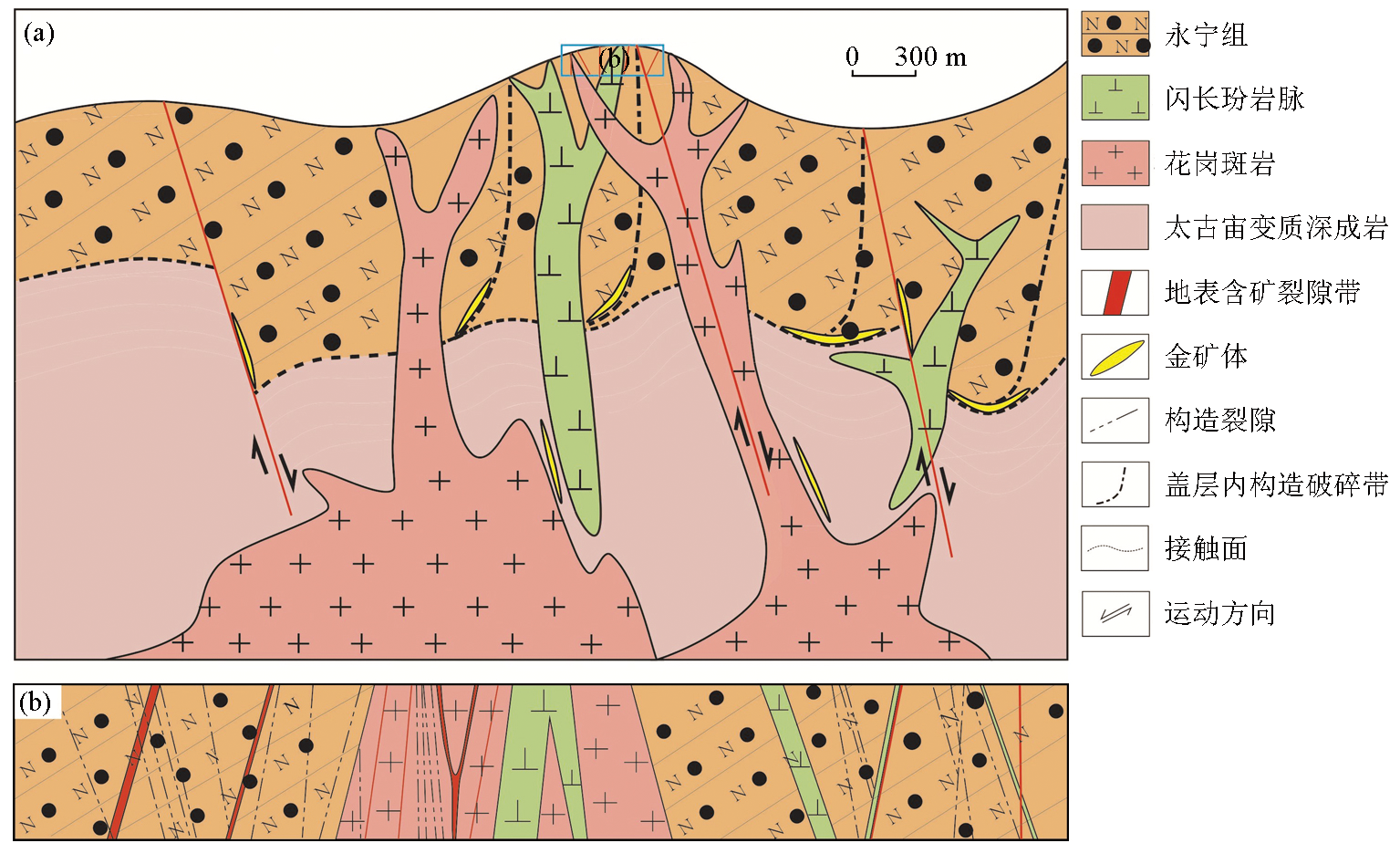

Metallogenic model map of Zhengtun area
a—Metallogenic pattern map ; b—Local measured geological profile
