川中地区茅口组碳酸盐岩储层类型测井识别

doi:10.11720/wtyht.2024.1289

Abstract
Figure/Table
References
Related Citation (5)

Download: PDF (9463 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Maokou Formationcarbonate reservoirs in the central Sichuan Basinexhibit well-developed dissolutionpores, vugs, and fractures, pronounced heterogeneity, and diverse types. This study aims to identify their types and establish the log-based identification criteria for various reservoir types. First, this study classified the reservoir types based on the analysis of casting thin sections, core photos, and micro-resistivity imaging logs.Moreover, it determined the conventional log response characteristics of different reservoir types. Finally, it conducted log-based identification of reservoir types using the fracture porosity (φ_f) -secondary porosity index (R_P) cross-plotting method. The results are as follows: (1)The Maokou Formation carbonate reservoirs in the central Sichuan Basin can beclassified into four types, i.e., fractured-vuggy, fractured-porous, porous-vuggy, and matrix porous reservoirs;(2) Fracture porosities calculated from different models are more similar in the case of more developed fractures, and dissolution pores and vugscan affect the fracture porositycalculation results to some extent;(3) The φ_f-R_P cross-plotting method can effectively identify reservoir types. These research results provide technical support for the log-based identification of carbonate reservoir types.

Key words： Maokou Formation carbonate reservoir reservoir type classification log-based identification

Received: 07 July 2023 Published: 27 June 2024

ZTFLH:

TE122

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yu LIU
	Liang WANG
	Yang LUO
	Shu-Te SU
	Lin-Fang YAO
	Yu-Chao LIU
	Chun-Run ZHOU
	Meng-Die HU

Cite this article:

Yu LIU,Liang WANG,Yang LUO, et al. Log-based identification of the types of the Maokou Formation carbonate reservoirs in the central Sichuan Basin[J]. Geophysical and Geochemical Exploration, 2024, 48(3): 629-639.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1289 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I3/629

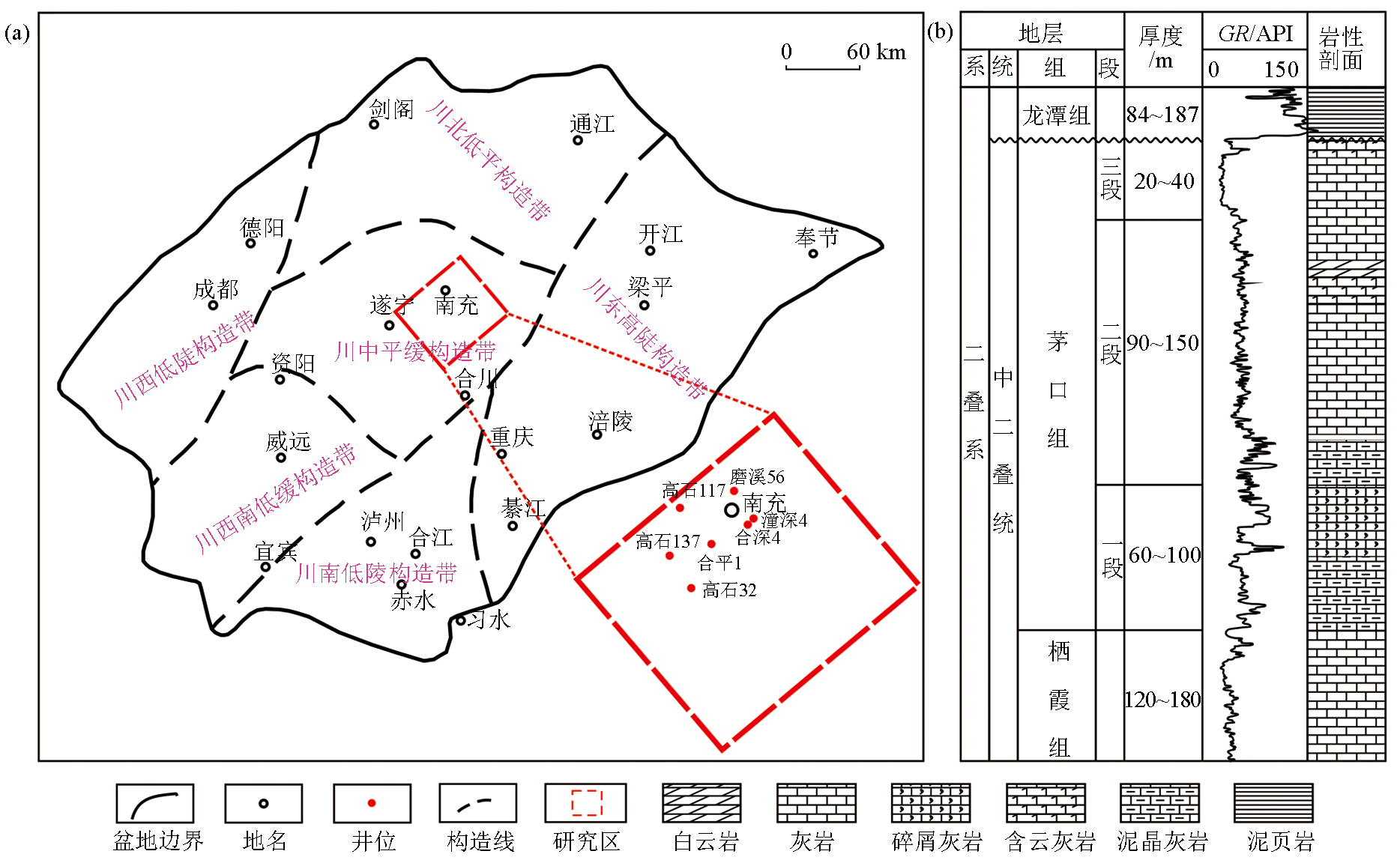

The diagrammatic plan of geographic position and Maokou Formation lithological column of research area

Photograph of reservoir characteristics of Member 2 of Maokou Formation in the study area

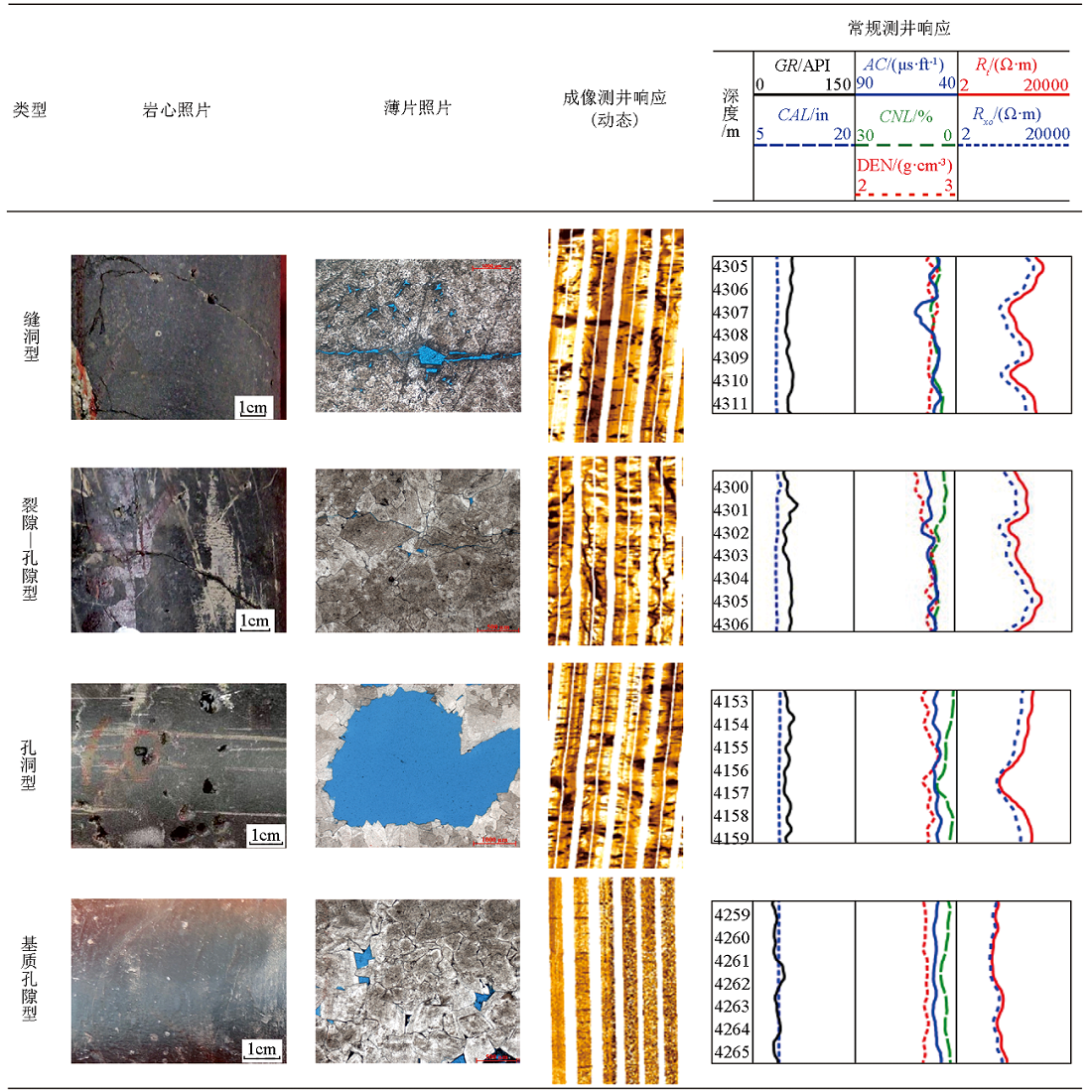

Comparison of core and thin section, imaging logging and conventional logging response of different reservoirs

Constant values corresponding to different farcture states

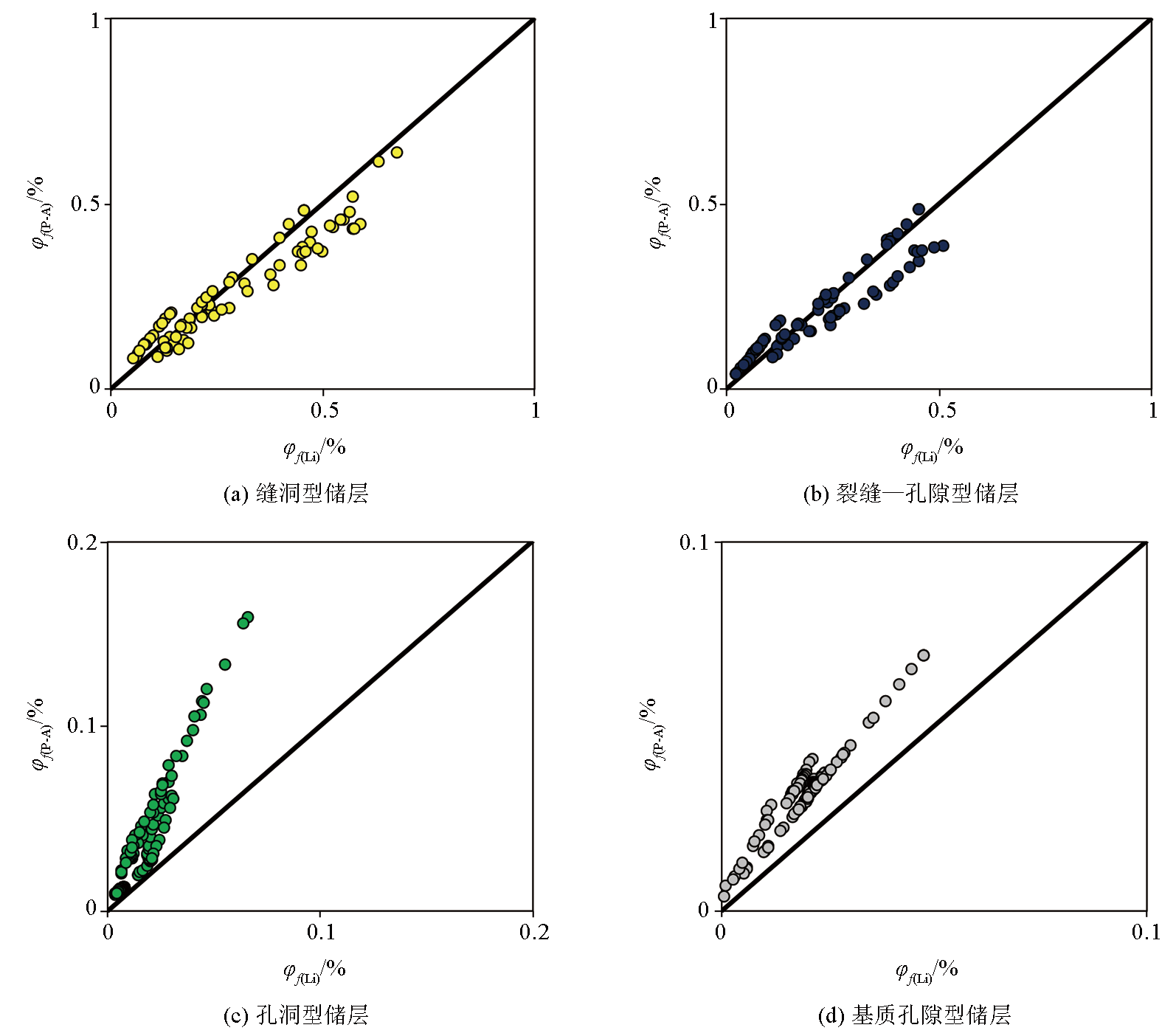

Comparison of fracture porosity calculated by two methods in each reservoir

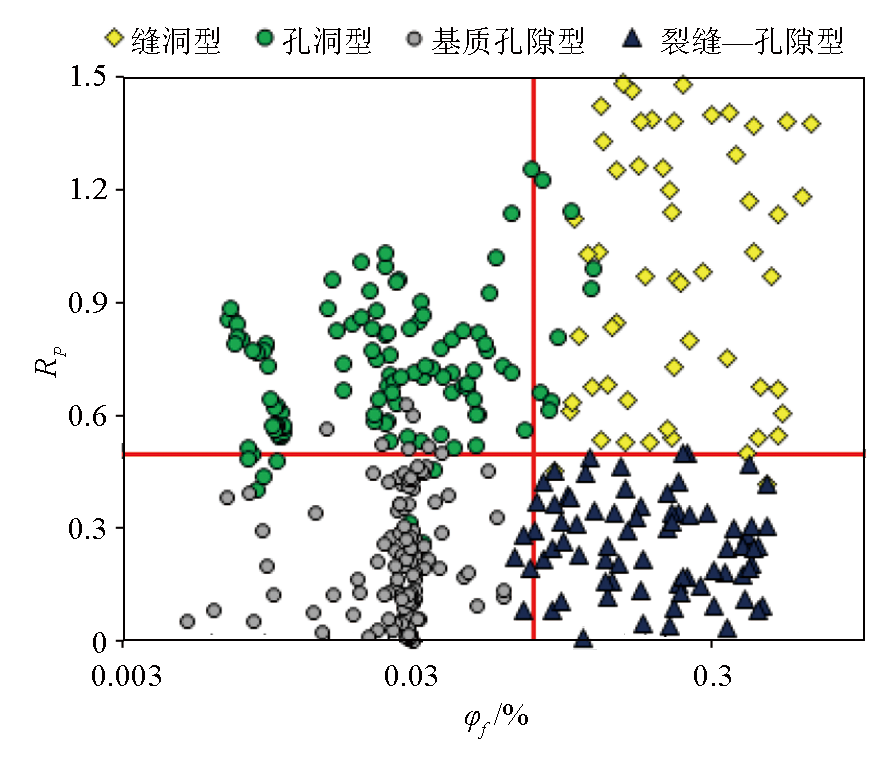

Reservoir type identification chart

储层类型	$φ f$ /%	$R P$
缝洞型储层	≥0.075	≥0.5
裂缝—孔隙型储层	≥0.075	<0.5
孔洞型储层	<0.075	≥0.5
基质孔隙型储层	<0.075	<0.5

Criteria for quantitative identification of reservoir types

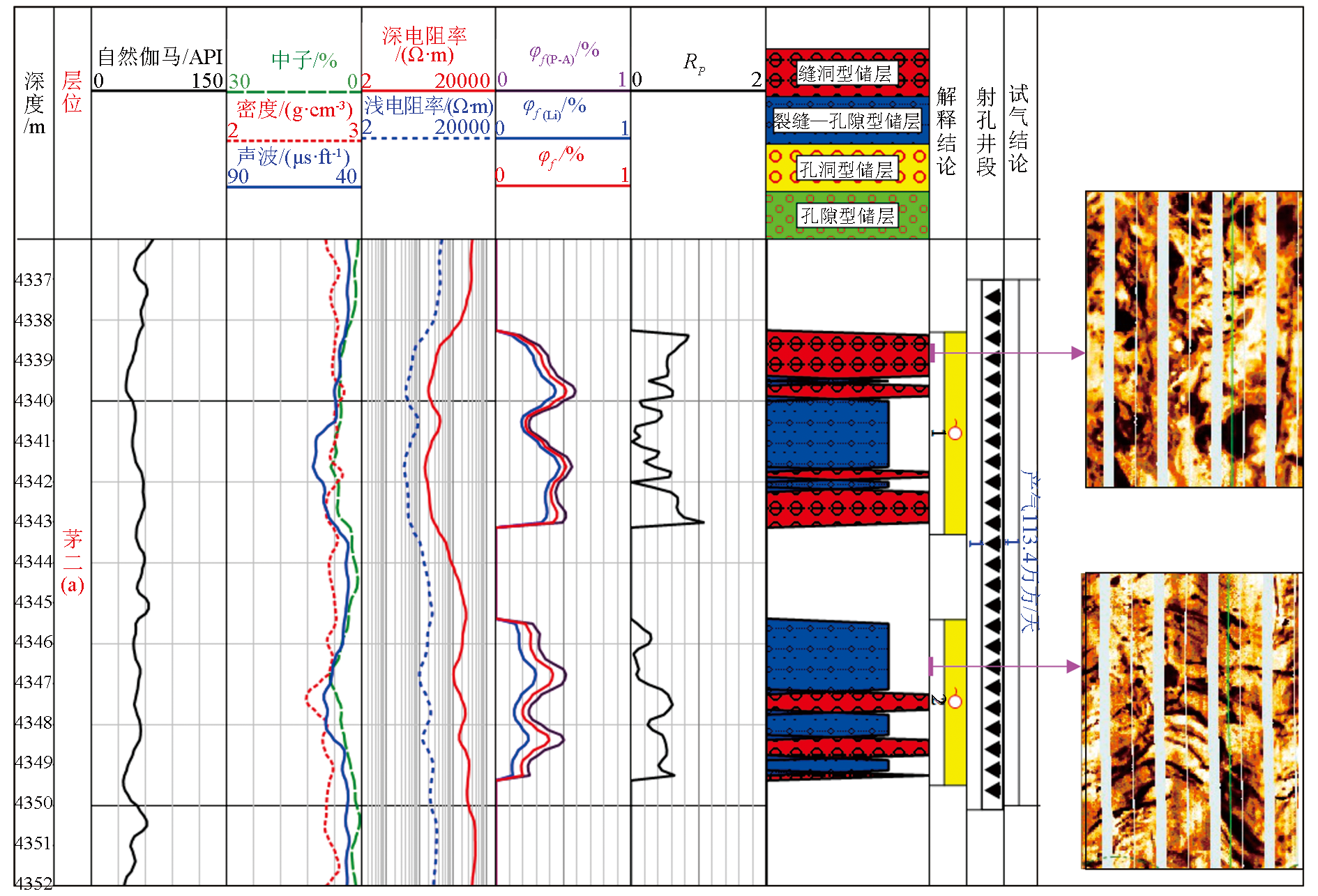

X1 well Maokou Formation reservoir type identification results

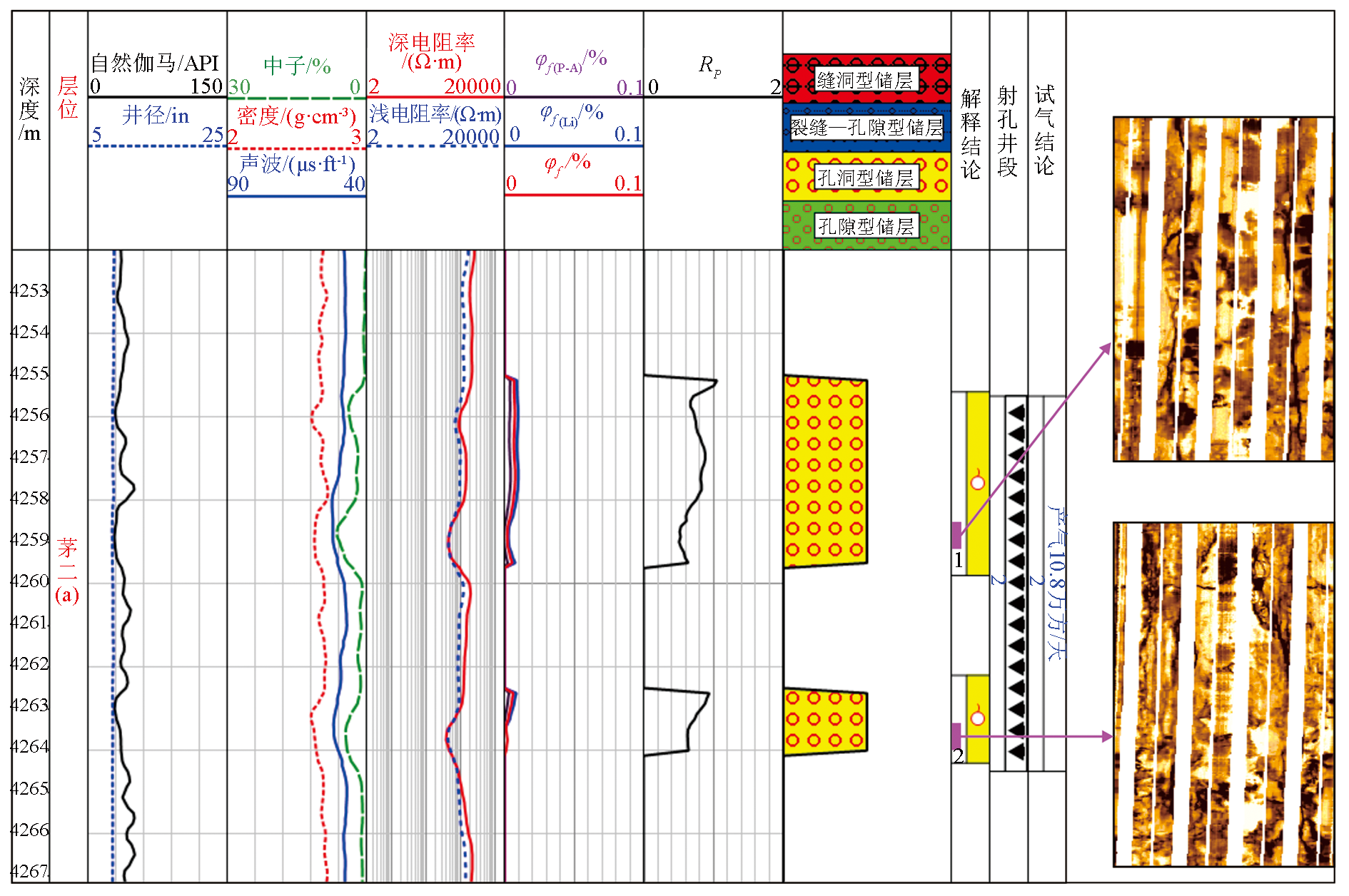

X2 well Maokou Formation reservoir type identification results
